Suncast Covington BMS7425 User manual

BMS7425– Covington™
Blow Molded Resin Storage Shed
ASSEMBLY INSTRUCTIONS
Quality Control Number:
© 2019 Suncast Corporation, Batavia, IL 0361322C
Easy Bolt Easy Driver
INCLUDED IN KIT
010210410
XX
Tools needed for installation

2
Before You Begin...
• Consult your local authorities for any permits required to construct shed.
Prior to the construction of your shed, check with the local building code official to review any required
permits or building limitations.
• A level and sturdy foundation is required before shed construction can begin.
Review the site preparation information within the manual before beginning assembly.
• Read instructions thoroughly prior to assembly.
This kit contains parts that can be damaged if assembled incorrectly or in the wrong sequence.
• Please follow instructions.
Suncast is not responsible for replacing parts lost or damaged due to incorrect assembly.
• Assistance is required during entire assembly.
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED IN EACH BOX.
PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE UNPACKING ALL PARTS.
Caution
• Proper site preparation required.
• Shed not intended for use in extreme weather conditions.
• Shed not intended for storage of flammable or caustic chemicals.
• Store heavy items near the bottom of shed.
• Shed not intended for use by children.
• DO NOT stand, sit, or store items on storage shed roof.
• Treat carefully in extreme temperatures.
• Repair or replace broken parts immediately.
• Suncast is not responsible for damage caused by weather or misuse.
• At regular intervals inspect your shed to make sure that assembly integrity has been
maintained.
• Periodically check that the location you have chosen to set your shed is still level.
• This kit contains parts with metal edges. Please be careful when handling.
Suncast Products and Replacement Parts
Suncast Products and Replacement Parts
To purchase Suncast replacement parts and learn about other Suncast products visit us online or call.
www.suncast.com
24 hours a day, 7 days a week, 365 days a year. 1-800-846-2345 or 1-630-879-2050

3
Shed Safety and Care
• Hot items, such as recently used grills, blowtorches, etc., must not be stored in the shed.
• Heavy articles should not be leaned against the walls, as this may cause panel distortion and
permanent damage.
• Keep roof clean of snow and leaves.
• The shed walls and roof sections have a textured exterior, much like vinyl home siding.
Over time, dust may accumulate in the texture. When combined with moisture, this could
encourage the growth of moss or mold on the shed. To maintain the look of your shed, we
recommend cleaning it each year with mild soap and water.
DO NOT use bleach, ammonia, or other caustic cleaners, and DO NOT use stiff bristle
brushes. Failure to perform annual cleaning could result in permanent staining of the plastic.
This is not a manufacturing defect and is not covered under warranty.
Assembly Day Tips
• Complete site preparation and foundation construction before unpacking parts and beginning
assembly.
• DO NOT attempt to assemble on a day with strong winds.
• DO NOT attempt to assemble on days when temperature is below 32 degrees.
• Set aside appropriate amount of time to completely assemble shed. Assembly time is
approximately 3 hours.
• Make sure you have assistance nearby to lift and secure parts in place.
• Wear light duty work gloves while assembling shed.
• Once roof is assembled, a flashlight may be of use when assembling smaller components
inside shed.
• DO NOT use a torque wrench or hand drill to tighten provided Easy bolts. Use 010210410
Easy Bolt Easy Driver tool (provided) ONLY.
• Suncast provides extra hardware for small fasteners for customer convenience. In some
cases, there will be extra small fasteners once the assembly is complete.
Note: This product contains parts that are used in different orientations to construct the shed. Please take note
of the orientation of the parts shown throughout this instruction manual. Failure to follow instructions could re-
sult in damage to parts. Suncast is not responsible for replacing parts lost or damaged due to incorrect
assembly.

4
0B00106
x2
E
E
0B00104
C
0B00152
A
0B00109
G
0B00103
D

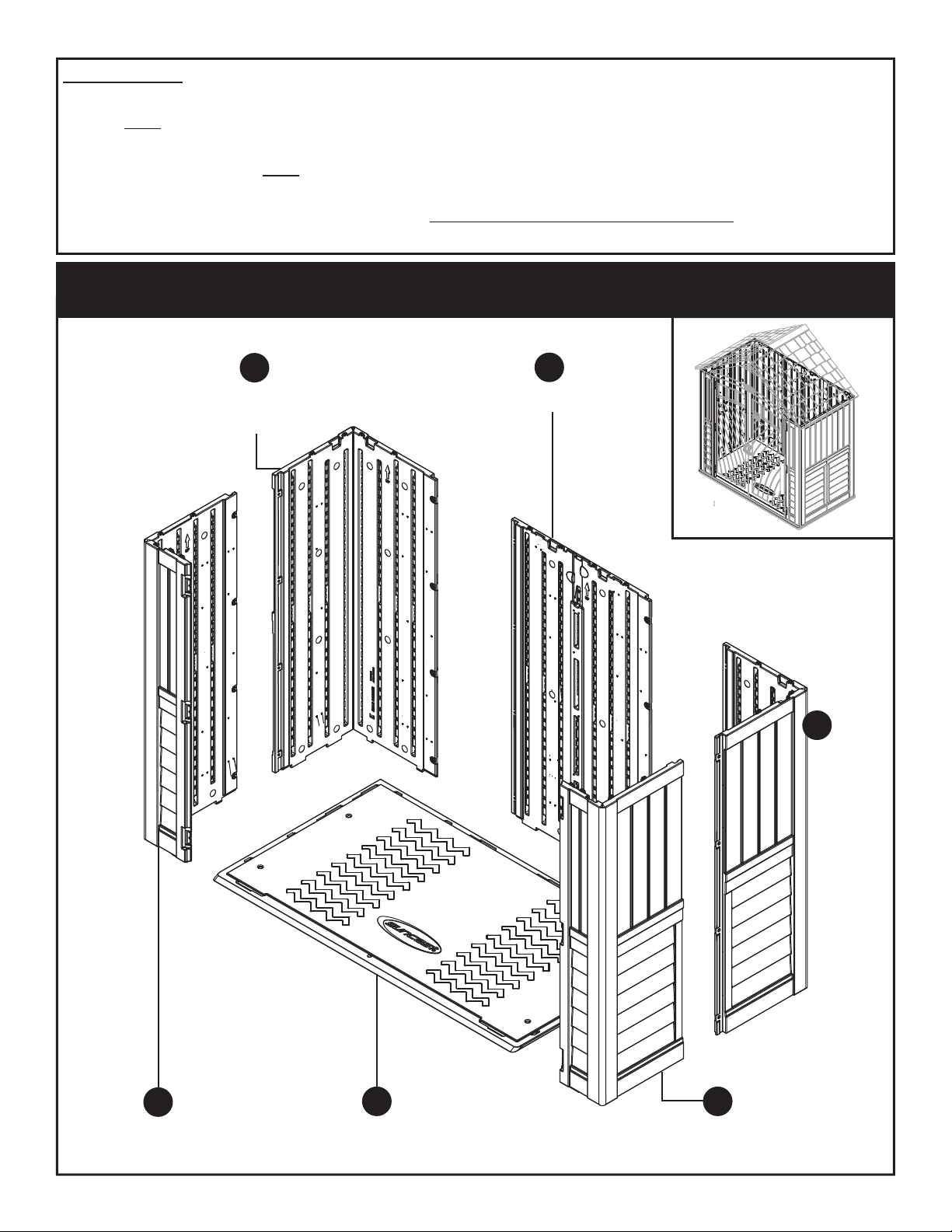

Parts - BMS7425 Walls and Floors
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE
CONTAINED IN EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS
MANUAL TO VERIFY ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.

5
0B00358
0B00359
I
0440631
x1
W
H
0440655
x1
TT
UU
S
0463370
x1
HHH
0631300
0631299
Parts - BMS7425 Doors
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE
CONTAINED IN EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS
MANUAL TO VERIFY ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.

6
U
0MR001007
K
0B00112A
X
0MR002001
x2
VV
R
0102203 –
x2
V
0MP000001
x2
M
0B00150A
WW
0MR009005
x2
L
0B00151A
J
0B00107A
Parts - BMS7425 Headers and Roof
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE
CONTAINED IN EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS
MANUAL TO VERIFY ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.

7
x6
FF
x77
KK
0480324A
0480303B –
04803270MP000002
0480341
x40
LL
0480374
x2
HH
x2
JJ
x6
MM
x18
GG
XX
x3
YY
x3
AAA
0480337
x6
JJ
Hardware shown at actual size (*Unless otherwise noted.) Extra hardware provided. Not all are used.
Hardware - BMS7425

8
0480370
Hardware
Hardware shown at actual size (*Unless otherwise noted.) Extra hardware provided. Not all are used.
0463370
HHH
1
23
RR
x4
III
x4
Door Handle Kit - BMS7425

9
Site Preparation and Platform Construction
Materials NOT supplied with BMS7425 Shed Kit
Note: Site preparation is required for this shed. Placing the shed on a constructed foundation is required. Without
a constructed foundation, settling will probably occur, causing distortion and damage to the shed. Suncast is not
responsible for replacing parts damaged or property lost due to incorrect assembly. Warranty requires foundation.
Note: Complete the site preparation and foundation construction before unpacking parts and beginning assembly. For
tips on site preparation, go to www.suncast.com, consult retailer, or local code.
To prepare your shed site, follow the below steps:
1) Consult your local authorities for building codes and covenants before beginning foundation or erecting shed.
2) Before any digging, check with local utilities to determine location of buried cables, pipes, etc.
3) Decide which type of foundation you want:
- Concrete slab, 4" thick
OR
- Wood platform
Use exterior grade wood. The wood platform should be set on pier blocks or footing. Consult your local retailer for
help to determine the best anchoring method for your particular installation. The provided plans are sized for the
minimum number of cuts to lumber and plywood.
4) Prepare the building site:
- The ground should slope away from the foundation area to provide drainage.
- The foundation surface must be flat and level.
- A vapor barrier should be provided to prevent excessive condensation in the shed.
- Follow local building codes for a proper vapor barrier.
5) Anchoring the shed to the foundation:
- Consult your local retailer for help to determine the best anchoring method for your particular installation.
- To secure the shed to a concrete slab, use masonry fasteners available at your local hardware retailer.
- To secure the shed to a wood platform, use 1/4" x 3" long lag screws with washers.
84"
47 1/4"
Anchoring floor panel to concrete slab
• Secure shed to concrete slab using masonry
fasteners.
• Dimensions allow for shed to fit within the nearest
1" on each side.
47 1/4"
84"
Anchoring floor panel to wood platform
• Secure shed to wood platform using 1/4" x 3" lag
screws.

10
Site Preparation and Platform Construction (continued)
Materials NOT supplied with BMS7425 Shed Kit
Wood platform critical spacing
• Check all critical spacing measurements.
Item Qty Size
A 1 47 ¼" x 84" x 3/4"
B 2 2" x 6" x 84"
C 4 2" x 6" x 12 ¼"
D 7 2" x 6" x 44 ¼"
Materials list
PLEASE NOTE- DIMENSIONAL
LUMBER IS ACTUALLY 1/2"
SMALLER THAN NOTED SIZES
(A 2x6 BOARD ACTUALLY
MEASURES 1½" X 5½")
84"
47 1
4
"
15 1
4
"
29"
15 1
4
"
29"
42 3
4
"
14 3
8
"
9 3
4
"
12 1
4
" (APPROXIMATE)
FRONT
A
B
C
D
FRONT

11

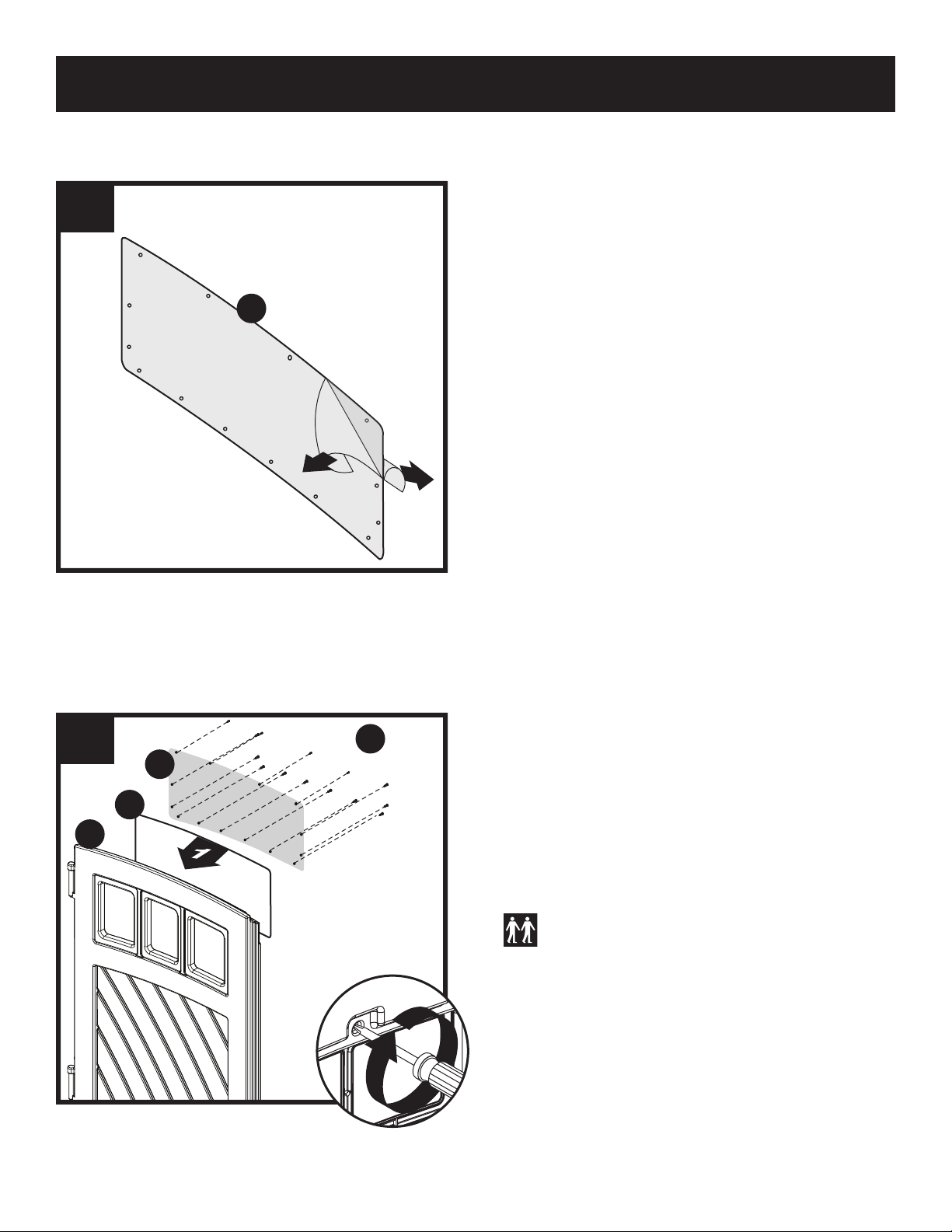

Peel film from both sides of window (S).
Note: One side of film will say "THIS SIDE OUT." Make
sure this side faces out when installing window.
Stand left door (I) vertically. In this order, layer into door
channel the window gasket (TT), and door window (S).
Through the back of door, secure layers with fourteen
screws (KK). Start with four corner screws and finish with
remaining screws. DO NOT over tighten screws.
Repeat Steps 1-2 for right door (H).
Note: The cut portion of window gasket (TT) MUST be
assembled on bottom of door channel.
Note: At least two people are needed during
assembly.
THIS SIDE OUT
1
S
2
2x14
TT
KK
S
I
Door Pre-Assembly

12
Door Pre-Assembly (continued)

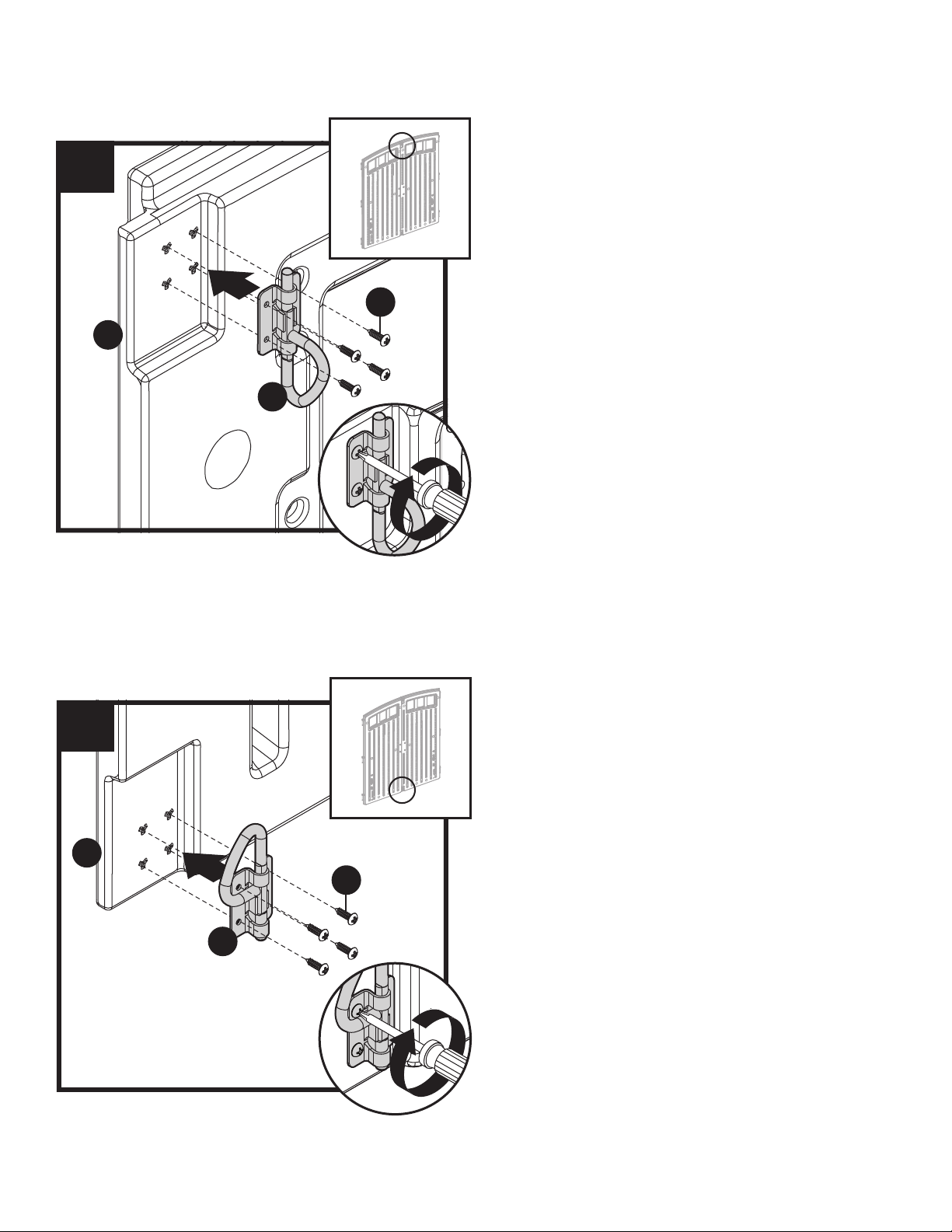

At bottom interior side of left door (I), attach D-ring slide
bolt (W) with four screws (LL) through provided holes.
1
2
4
x4
x4
LL
W
I
At top interior side of left door (I), attach D-ring slide
bolt (W) with four screws (LL) through provided holes.
1
2
3
x4x4
x4
LL
W
I

13

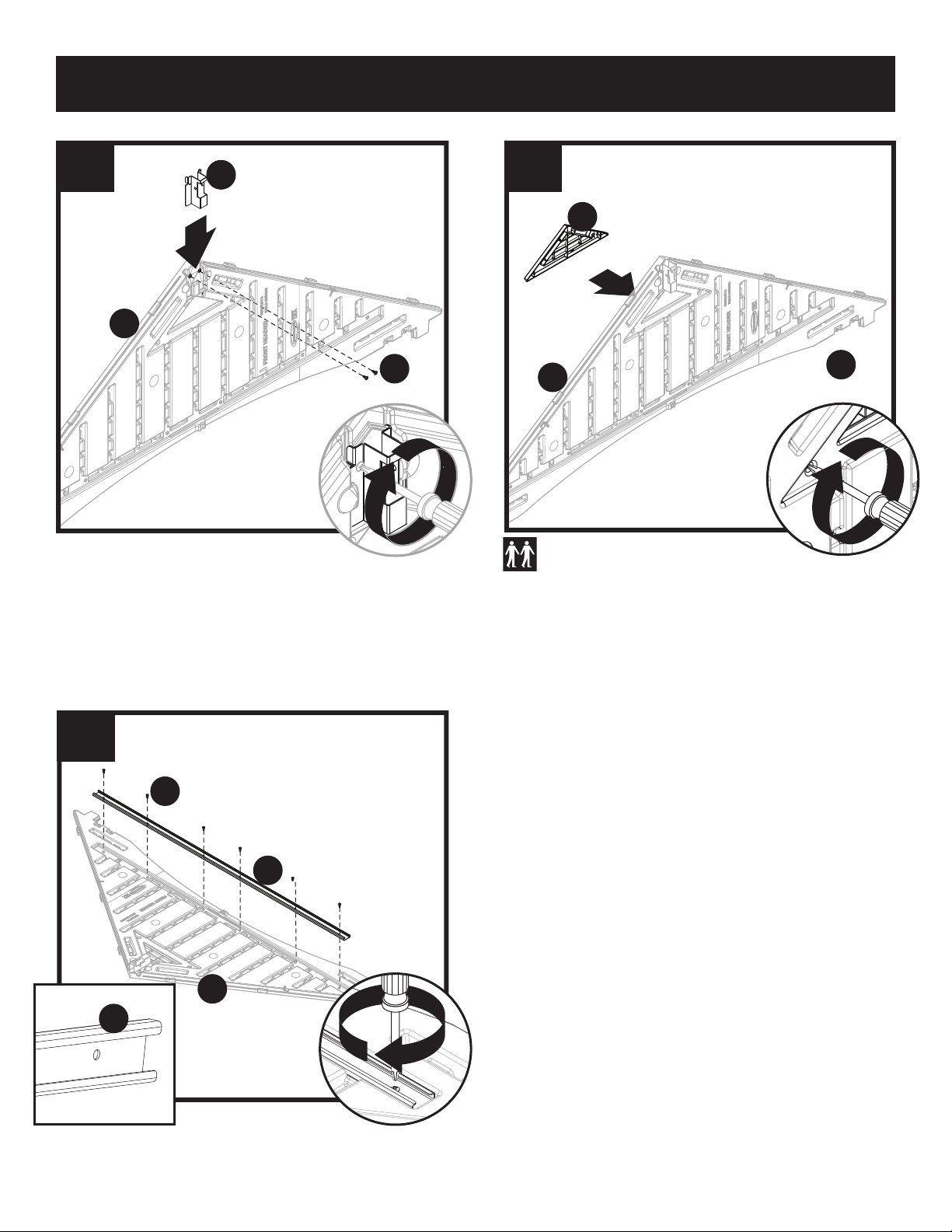

Slide roof ridge beam bracket (V) under tabs on inside
peak of front header (J) and secure with two screws (KK).
DO NOT over tighten screws.
Place header vent (R) into front opening in front header
(J). Secure through back of header with four screws (LL).
DO NOT over tighten screws.
1
2
5
x2
J
KK
V
1
1
2
6
x4
JLL
R
Header Pre-Assembly
2
7
x6
J
KK
X
X
Lay front header (J) on ground with lettering side facing
up. Place one header beam (X) into pocket on inside of
front header. Attach with six screws (KK). DO NOT over
tighten screws.
Repeat steps 5-7 for rear header (K).

Critical: When installing corners,
flex corner hinges back and forth
several times. This will help provide
a square corner and ensure proper
fit of remaining panels.
Important: DO NOT flex in reverse
position, as this can crack the panel.
14

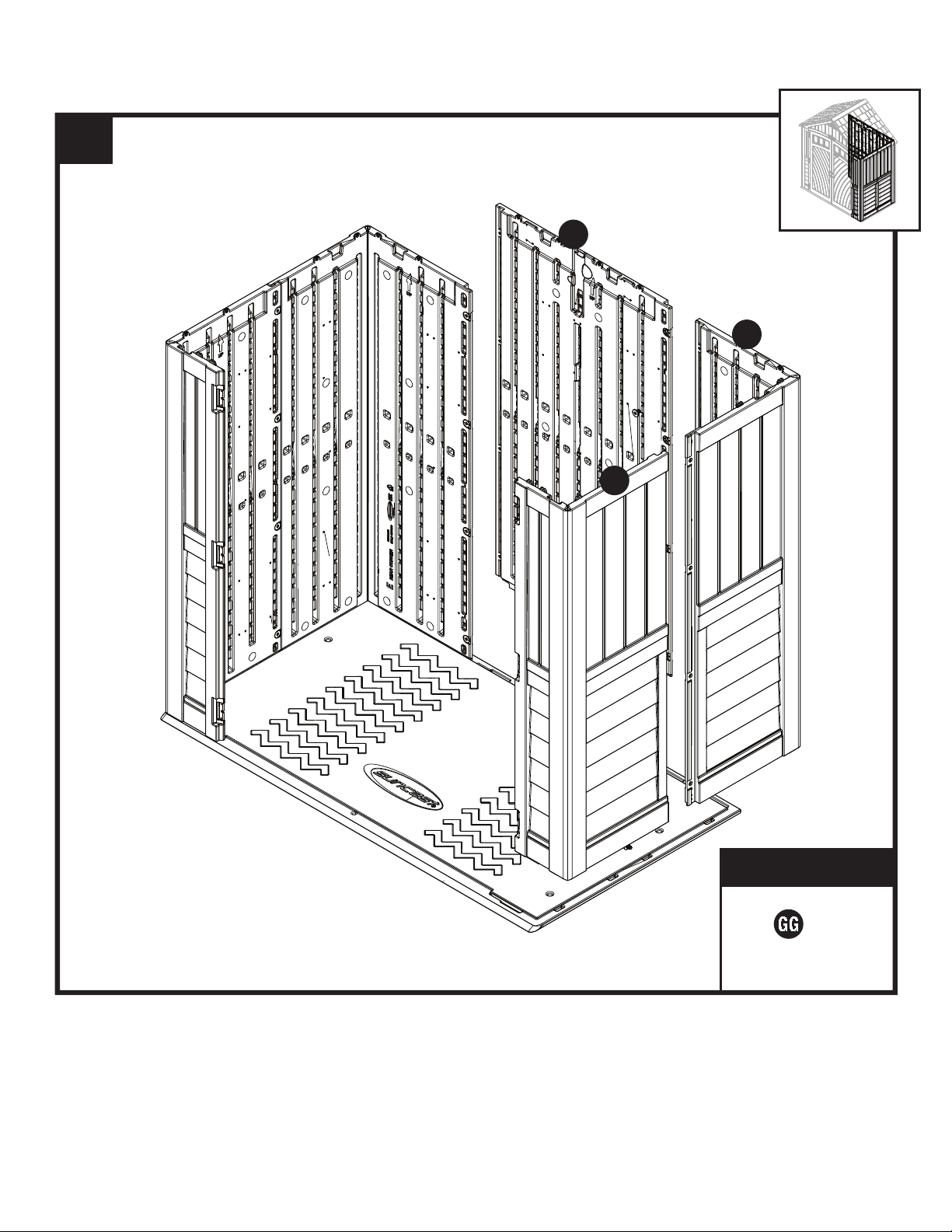

Shed Assembly/Walls
8
Tip left front (C) outward slightly and bend corner hinge.Align tab on bottom right side of left front (C) with slot
on front floor (A). Lower panel into slot and lock in place
by sliding panel toward door opening.
Note: Use a rubber mallet to “push” left front
corner (C) into locked position.
1
2
9
C
A
1
22
10
C

15
1
2
11
C
Tip left front (C) back to vertical position and align lower
tabs on right side with slots in floor.
Note: You will hear a snap when tab is fully engaged.
Shed Assembly/Walls (continued)
C
Side viewSide view
Top viewTop view
Before proceeding, make sure
corner is square (top view) where it
meets the floor and that panel is flush
(side view) with floor.
If not, repeat Steps 8–11
until square and flush.
12
Align tab on bottom left side of back corner (E) with slot
on front floor (A). Lower panel into slot and lock in place
by sliding panel toward front corner.
Note: Use a rubber mallet to “push” back corner (E)
into locked position.
1
2
13
E
A
1
22
14
E
Tip back corner (E) outward slightly and bend corner
hinge.

16
1
2
15
E
Shed Assembly/Walls (continued)
Tip back corner (E) back to vertical position and align
lower tabs on left side with slots in floor.
Note: You will hear a snap when tab is fully engaged.
E
Rear viewRear view
Top view
Top view
Before proceeding, make sure
corner is square (top view) where it
meets the floor and that panel is flush
(rear view) with floor.
If not, repeat Steps 13–15
until square and flush.
16
17
GG
x4
Secure back corner with four easy bolts (GG). Work
from floor to roof. DO NOT use torque wrench. Use
easy bolt easy driver (XX) and hand tighten. Easy bolt
head will be flush when fully seated. DO NOT over
tighten easy bolts.
Note: You may hear a click when easy bolt has been
tightened completely.

17
18
G
E
D
x12
GG
Hardware Needed
Repeat steps 8-17 for remaining panels.
Shed Assembly/Walls (continued)

18
Shed Assembly/Headers and Truss
2
19
KK
J
x4

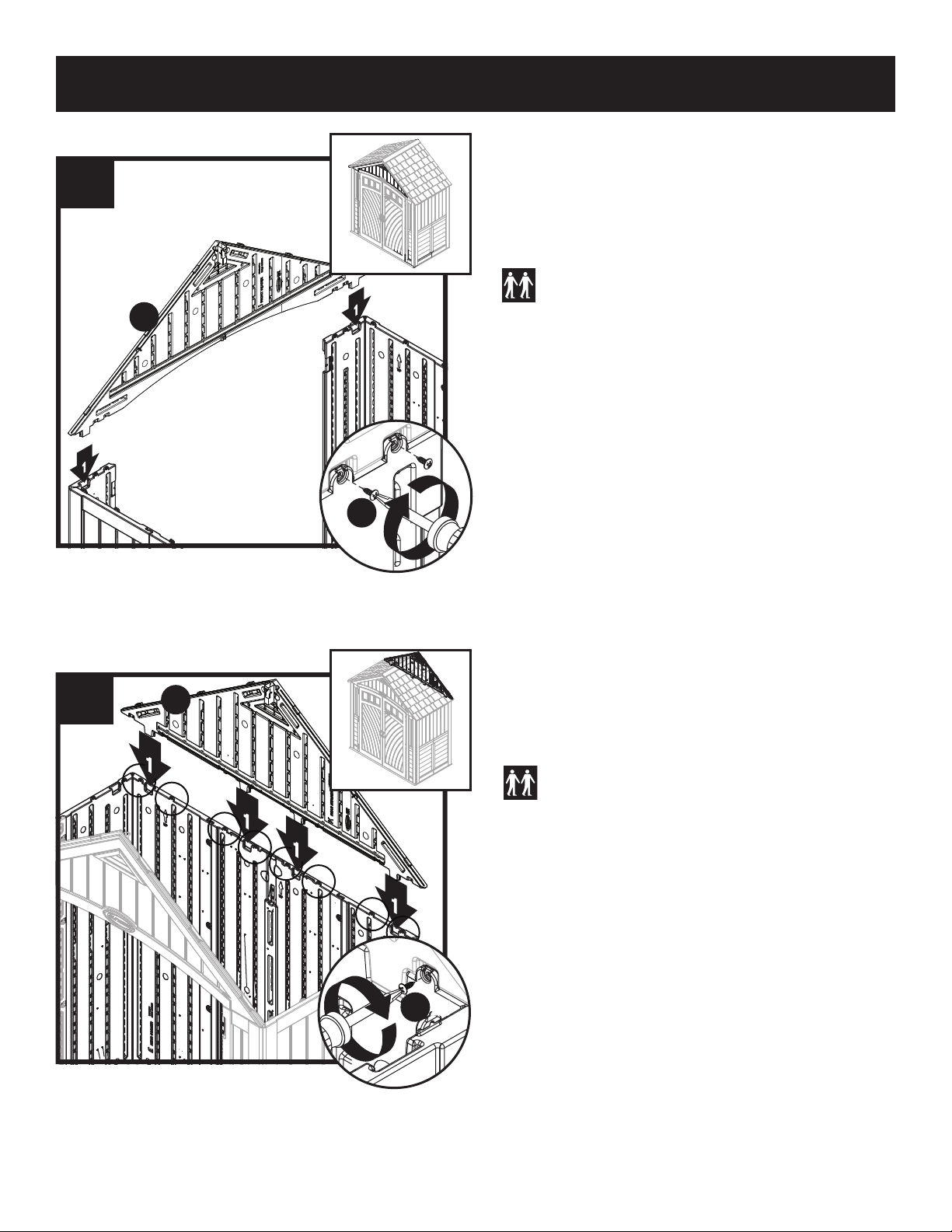

Place front header (J) over door opening and fit two
protruding support legs into pockets molded in front
corners. Secure front header using two screws (KK) in
each front corner.
Place rear header (K) over back walls and fit four
protruding support legs into pockets molded in back
walls. Secure rear header using eight screws (KK).
2
2
20
KK
K
x8x8

19
Shed Assembly/Headers and Truss (continued)
1
3
2
21
JJ HH
U
Raise ridge beam (U) up and into rear roof ridge beam
bracket. Secure with one 2" hex bolt (HH) and one nut (JJ).
Note: Alignment of ridge beam to bracket may require
header panels to be pushed inwards or outwards slightly
as ridge beam is slid into place.
1
3
2
22
JJ
U
HH
Slide ridge beam (U) into front roof ridge beam bracket.
Secure with one 2" hex bolt (HH) and one nut (JJ).
Note: Alignment of ridge beam to bracket may require
header panels to be pushed inwards or outwards slightly
as ridge beam is slid into place.
1
23
WW
2
3
KK
X2
Attach roof support bracket (WW) to front and rear
headers. Secure with two screws (KK).
Repeat for remaining roof support.

20
Shed Assembly/Roof

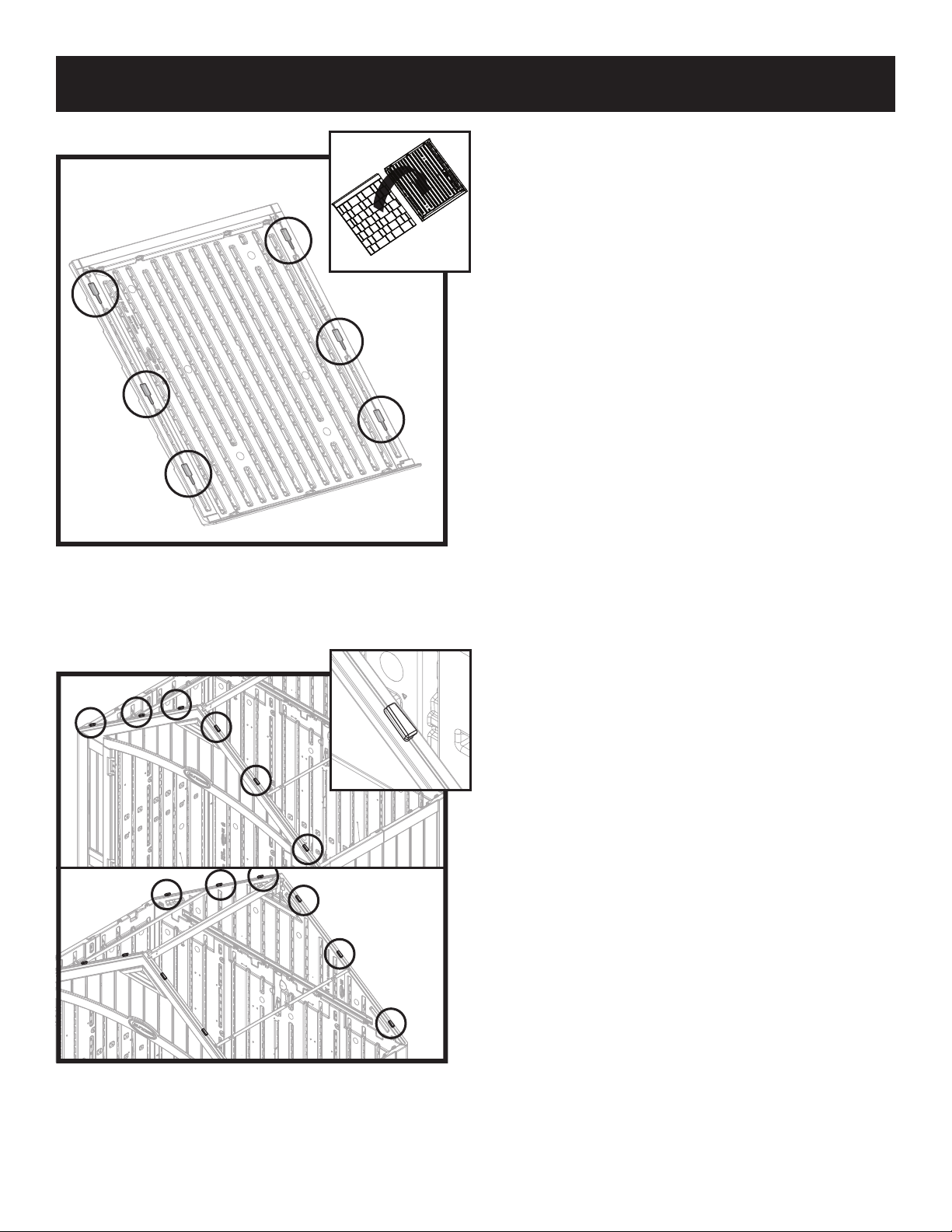

Before proceeding, locate and identify six dovetails on
interior side of right roof (L) and left roof (M).
Before proceeding, locate and identify six front header
tabs and six rear header tabs.
