Suncast Everett BMS6510 User manual

BMS6510 Blow Molded Shed
Everett™ Storage Shed
ASSEMBLY INSTRUCTIONS
Quality Control Number:
© 2017 Suncast Corporation, Batavia, IL 0361312B
Easy Bolt Easy Driver
INCLUDED IN KIT
010210410
Tools Needed For Installation
KK

2
Before You Begin...
• Consult your local authorities for any permits required to construct shed.
Prior to the construction of your shed, check with the local building code official to review any required
permits or building limitations.
• A level and sturdy foundation is required before shed construction can begin.
Review the site preparation information within the manual before beginning assembly.
• Read instructions thoroughly prior to assembly.
This kit contains parts that can be damaged if assembled incorrectly or in the wrong sequence.
• Please follow instructions.
Suncast is not responsible for replacing parts lost or damaged due to incorrect assembly.
• Assistance is required during entire assembly.
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED IN EACH BOX.
PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE UNPACKING ALL PARTS.
Caution
• Proper site preparation required.
• Shed not intended for use in extreme weather conditions.
• Shed not intended for storage of flammable or caustic chemicals.
• Store heavy items near the bottom of shed.
• Shed not intended for use by children.
• DO NOT stand, sit, or store items on storage shed roof.
• Treat carefully in extreme temperatures.
• Repair or replace broken parts immediately.
• Suncast is not responsible for damage caused by weather or misuse.
• At regular intervals inspect your shed to make sure that assembly integrity has been
maintained.
• Periodically check that the location you have chosen to set your shed is still level.
• This kit contains parts with metal edges. Please be careful when handling.
Suncast Products and Replacement Parts
www.suncast.com
24 hours a day, 7 days a week, 365 days a year. 1-800-846-2345 or 1-630-879-2050

3
Shed Safety and Care
• Hot items, such as recently used grills, blowtorches, etc., must not be stored in the shed.
• Heavy articles should not be leaned against the walls, as this may cause panel distortion and
permanent damage.
• Keep roof clean of snow and leaves.
• The shed walls and roof sections have a textured exterior, much like vinyl home siding.
Over time, dust may accumulate in the texture. When combined with moisture, this could
encourage the growth of moss or mold on the shed. To maintain the look of your shed, we
recommend cleaning it each year with mild soap and water.
DO NOT use bleach, ammonia, or other caustic cleaners, and DO NOT use stiff bristle
brushes. Failure to perform annual cleaning could result in permanent staining of the plastic.
This is not a manufacturing defect and is not covered under warranty.
Assembly Day Tips
• Complete site preparation and foundation construction before unpacking parts and beginning
assembly.
• DO NOT attempt to assemble on a day with strong winds.
• DO NOT attempt to assemble on days when temperature is below 32 degrees.
• Set aside appropriate amount of time to completely assemble shed. Assembly time is
approximately 3 hours.
• Make sure you have assistance nearby to lift and secure parts in place.
• Wear light duty work gloves while assembling shed.
• Once roof is assembled, a flashlight may be of use when assembling smaller components
inside shed.
• DO NOT use a torque wrench or hand drill to tighten provided Easy bolts. Use 010210410
Easy Bolt Easy Driver tool (provided) ONLY.
• Suncast provides extra hardware for small fasteners for customer convenience. In some
cases, there will be extra small fasteners once the assembly is complete.
Note: This product contains parts that are used in different orientations to construct the shed. Please take note
of the orientation of the parts shown throughout this instruction manual. Failure to follow instructions could re-
sult in damage to parts. Suncast is not responsible for replacing parts lost or damaged due to incorrect
assembly.

4

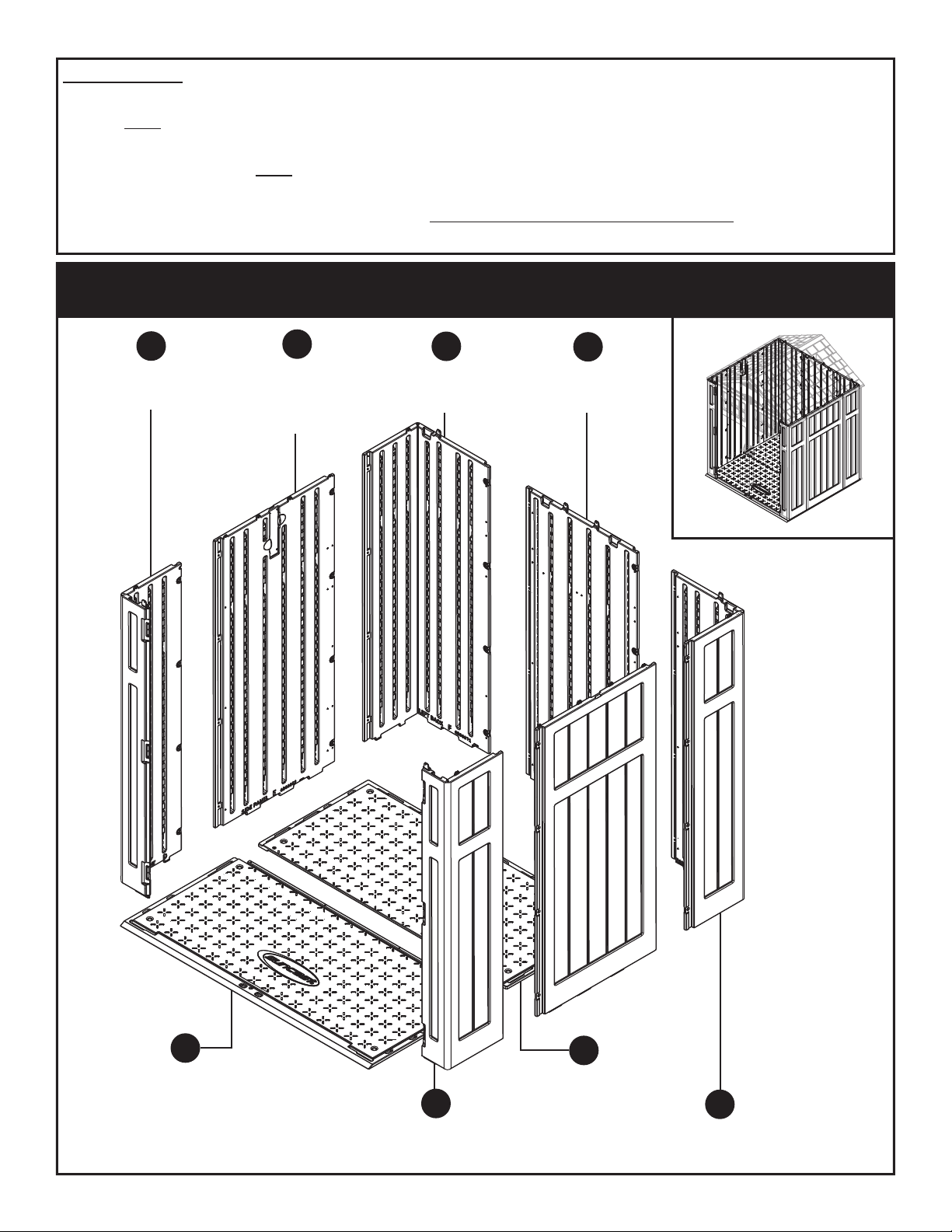

0B00344 –Back
panel
G
0B00334 – Left
back corner
F
0B00335 – Right back corner
H
0B00340 – Rear floor
C
0B00338 – Front Floor
A
0B00343 – Right front corner
J
0B000342 – Left
front corner
D
0B00341 – Side
panel
x2
E
Parts - BMS6510 Walls and Floor
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE
CONTAINED IN EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS
MANUAL TO VERIFYALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.

5

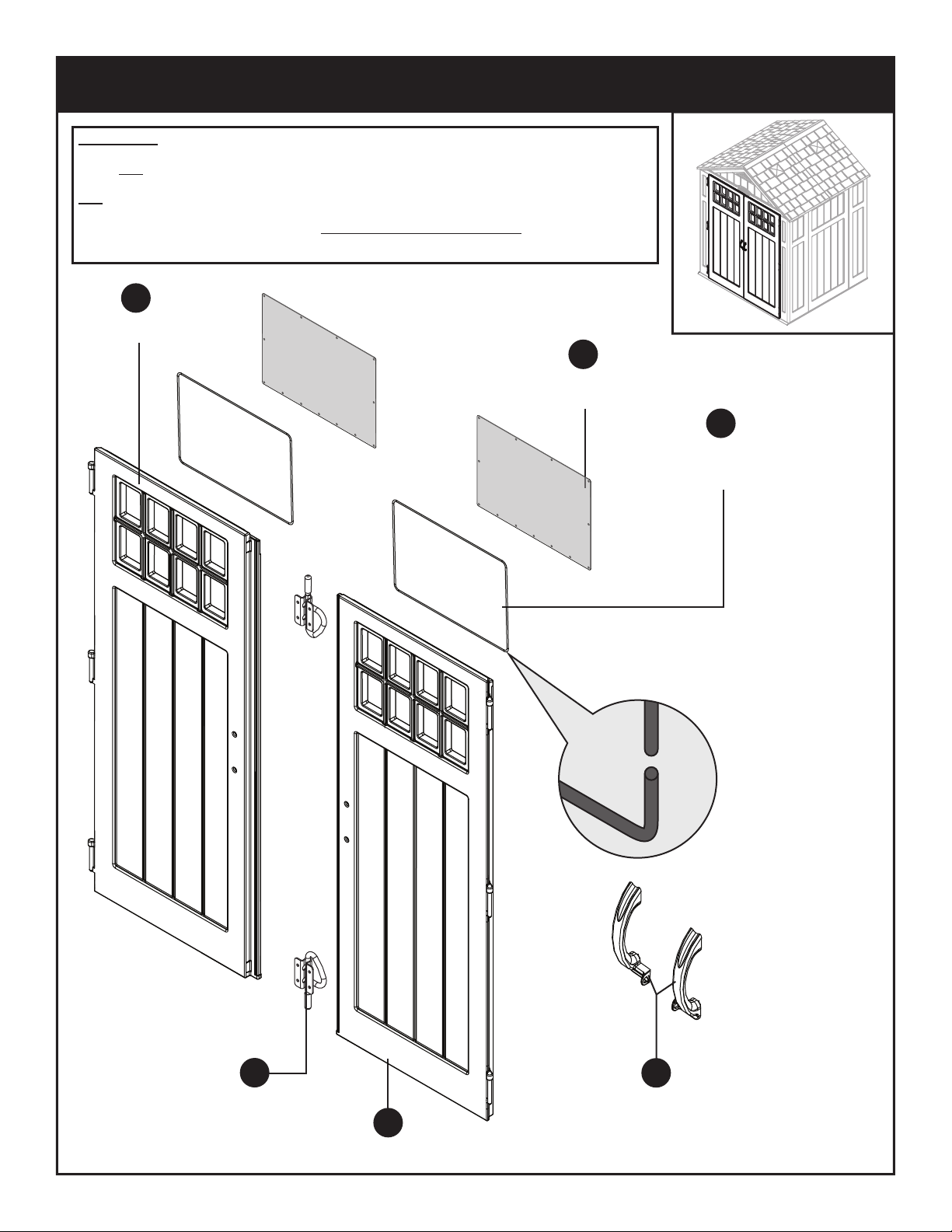

0440546A – Window gasket
x1 set
B
B
0B00336 – Left door
B
N
0B00337 – Right door
B
M
0440544B – Window
x1 set
B
I
0463370– Door handle Kit
x1 set
HHH
0440631 – D-ring
slide bolt
x1 set
P
Parts - BMS6510 Doors
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED
IN EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY
ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.

6
OMR001005 – Ridge beam
x1
B
T
B
S
0B00332 – Front header
B
K
0MR002002 – Header beam
x2
B
V
0B00333 – Rear header
B
L
0440630 – Vent screen
x1 set
B
U
OMP000001 – Header Bracket
x2
Parts - BMS6510 Header
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED
IN EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY
ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.

7

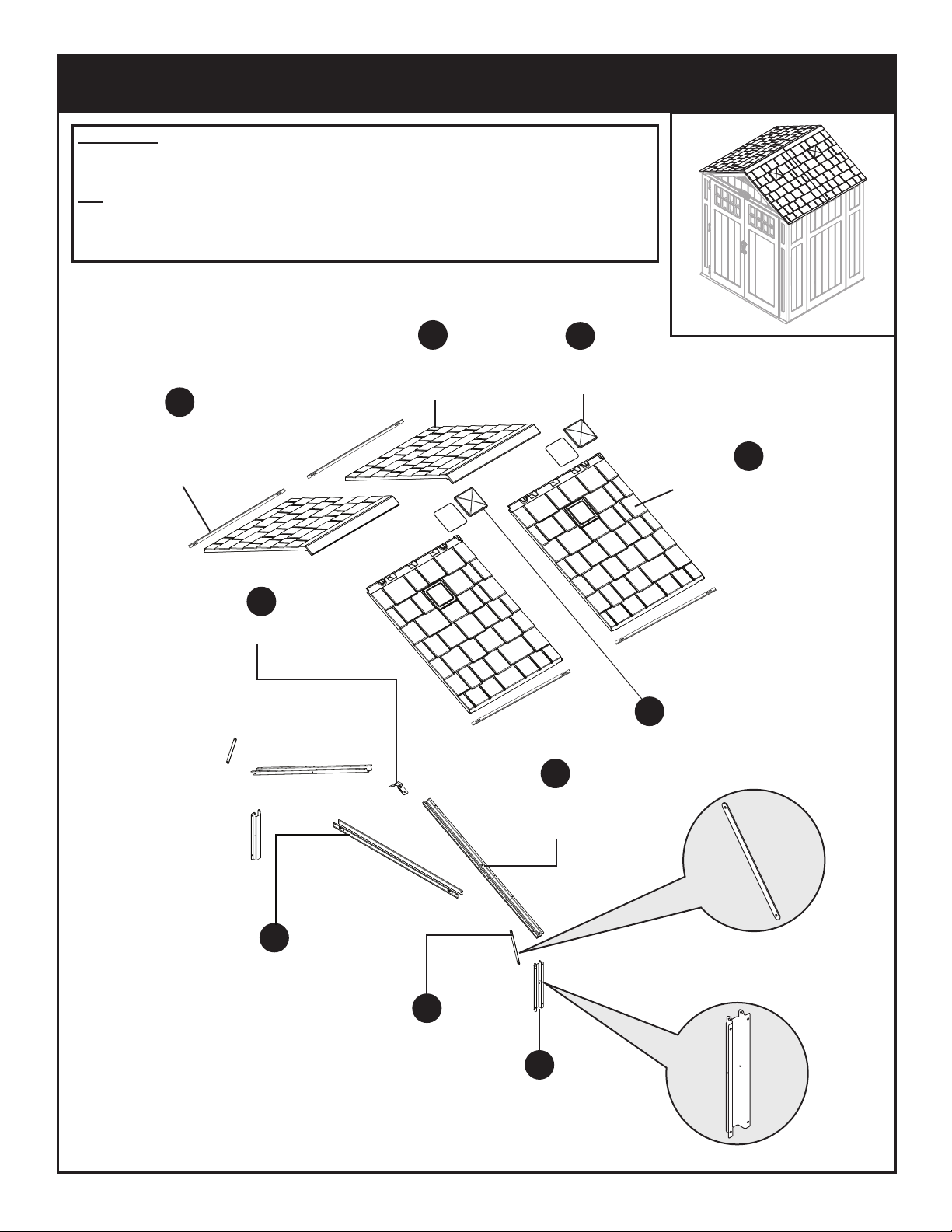

0MP000003 – Truss bracket
B
W
B
0B00331 – Left roof
x2
B
Q
0MR004001 –
Side adapter
bracket
x1 set
B
BB
0MR005002 – Truss leg
x2
B
Y
0MR006002 –
Truss cross brace
B
Z
0MP000004 –
Truss strap
x2
B
AA
0B00330 – Right roof
x2
B
O
SS
0MR009004–
Roof Support
x4
0102231 – Skylight
x2
B
CCC
0510700 – Gasket
x2
DDD
Parts - BMS6510 Roof
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED
IN EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY
ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.

8
.25 x 2" Hex bolt
x2
FFF
0480374 – Hardware
bag
.25 Locking nut
x2
EEE
Metal hinge plate
x6
CC
0480337 – Hardware bag
0MP000002 – Hardware bag
Easy bolt 7/8"
x26
JJ
*Easy bolt easy driver
KK
.625" Truss head screw
x167
LL
0480217 – Hardware bag
.25" x 2"
Hex bolt
x4
FF
.25" x 1"
Hex bolt
x2
GG
.25" x .75"
Machine screw
x6
DD
.25" Locking nut
x6
HH
.75" Sealing
screw
x6
EE
Rubber
washer
x6
II
Hardware shown at actual size (*Unless otherwise noted.) Extra hardware provided. Not all are used.
.25" Locking
nut
x6
HH
0480340 – Hardware bag 0480342 – Hardware bag
0480298A and 0480336 –
Hardware bag
Hardware - BMS6510

9
0480370
Hardware
Hardware shown at actual size (*Unless otherwise noted.) Extra hardware provided. Not all are used.

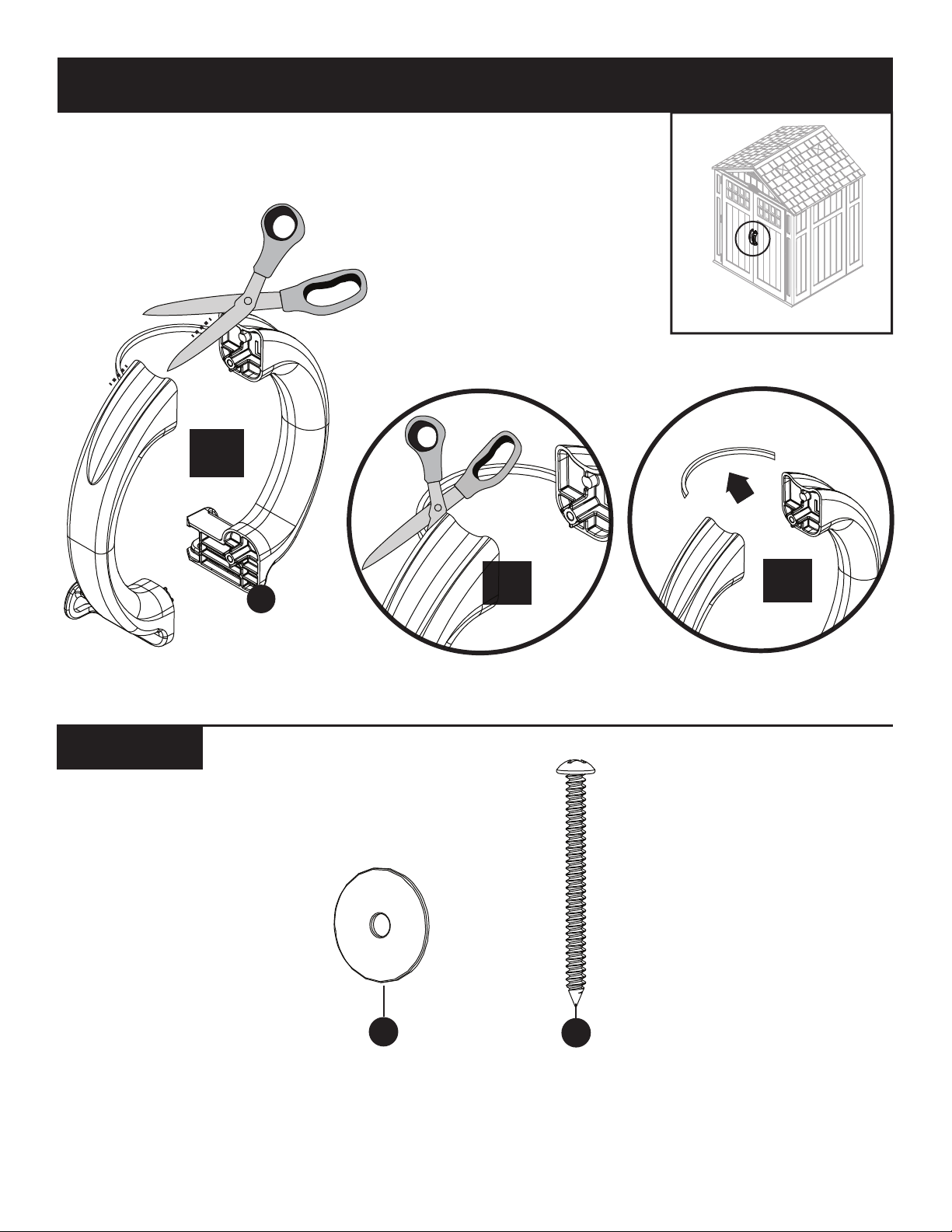

0463370
HHH
1
23
RR
.25" Washer
x4
III
.25" x 1" Pan head screw
x4
Door Handle Kit - BMS6510

10
72"
65 1/4"
FRONT
Anchoring floor panel to concrete slab
• Secure shed to concrete slab using masonry
fasteners.
• Dimensions allow for shed to fit within the nearest
1" on each side.
65 1/4 "
72"
FRONT
Anchoring floor panel to wood platform
• Secure shed to wood platform using 1/4" x 3" lag
screws.
Site Preparation and Platform Construction
Materials NOT supplied with BMS6510 Shed Kit
Note: Site preparation is required for this shed. Placing the shed on a constructed foundation is required. Without
a constructed foundation, settling will probably occur, causing distortion and damage to the shed. Suncast is not
responsible for replacing parts damaged or property lost due to incorrect assembly. Warranty requires foundation.
Note: Complete the site preparation and foundation construction before unpacking parts and beginning assembly. For
tips on site preparation, go to www.suncast.com, consult retailer, or local code.
To prepare your shed site, follow the steps below:
1) Consult your local authorities for building codes and covenants before beginning foundation or erecting shed.
2) Before any digging, check with local utilities to determine location of buried cables, pipes, etc.
3) Decide which type of foundation you want:
- Concrete slab, 4" thick
- Wood platform
Use exterior grade wood. The wood platform should be set on pier blocks or footing. Consult your local retailer for
help to determine the best anchoring method for your particular installation. The provided plans are sized for the
minimum number of cuts to lumber and plywood.
4) Prepare the building site:
- The ground should slope away from the foundation area to provide drainage.
- The foundation surface must be flat and level.
- A vapor barrier should be provided to prevent excessive condensation in the shed.
- Follow local building codes for a proper vapor barrier.
5) Anchoring the shed to the foundation:
- Consult your local retailer for help to determine the best anchoring method for your particular installation.
- To secure the shed to a concrete slab, use masonry fasteners available at your local hardware retailer.
- To secure the shed to a wood platform, use 1/4" x 3" long lag screws with washers.
OR

11
Site Preparation and Platform Construction (continued)
Materials NOT supplied with BMS6510 Shed Kit

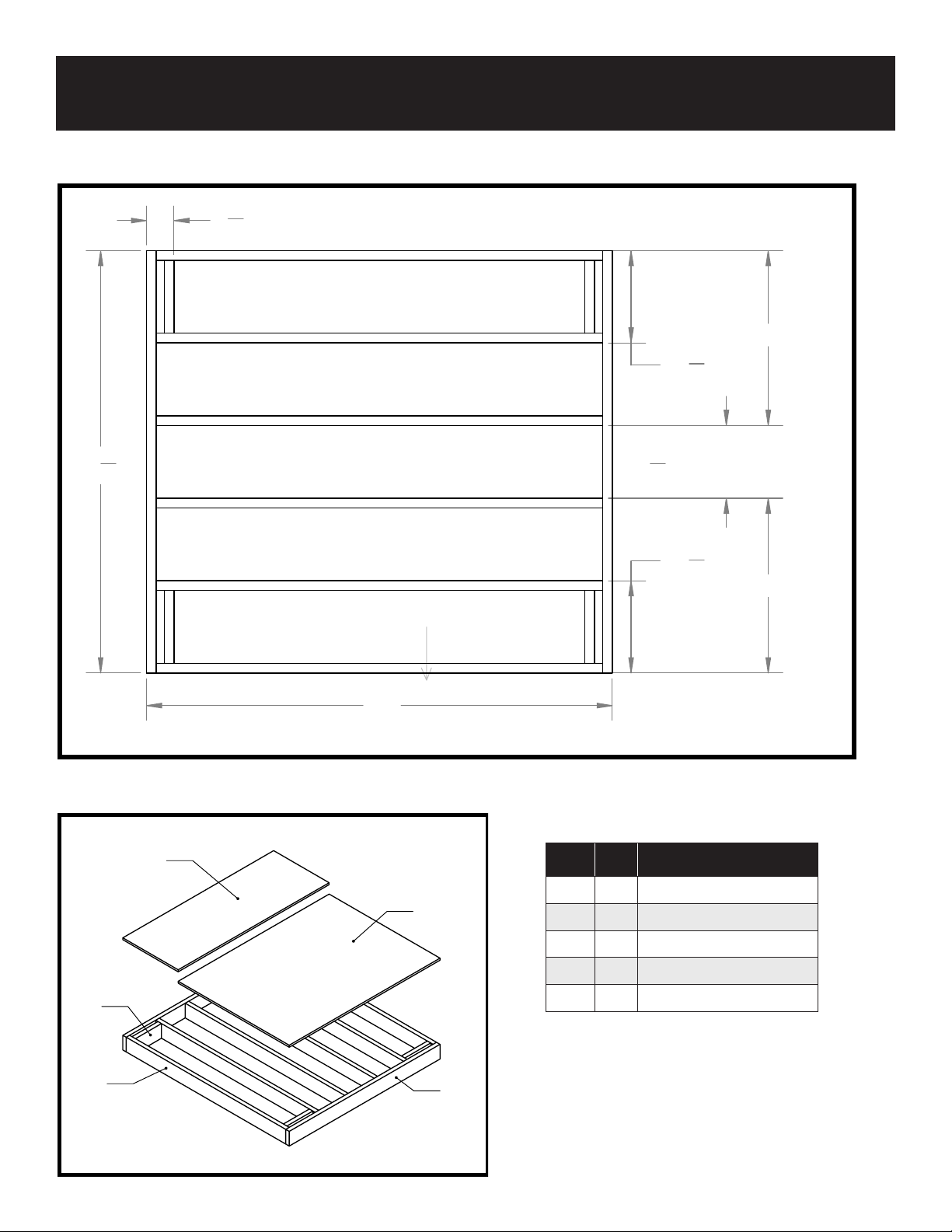

Wood platform critical spacing
• Check all critical spacing measurements.
Item Qty Size
A 1 24" x 65 ¼" x ¾"
B 1 48" x 65"¼ x ¾"
C 6 2" x 6" x 69"
D 4 2" x 6" x 11 ¼"
E 2 2" x 6" x 65 ¼"
Materials list
65 1
4
"
72"
14 1
4
"
27"
14 1
4
"
27"
4 1
4
"
11 1
4
" (APPROXIMATE)
FRONT
A
B
C
E
D
FRONT
PLEASE NOTE-DIMENSIONAL
LUMBER IS ACTUALLY ½"
SMALLER THAN NOTED SIZES
(A 2x6 BOARD ACTUALLY
MEASURES 1½" X 5½)

12

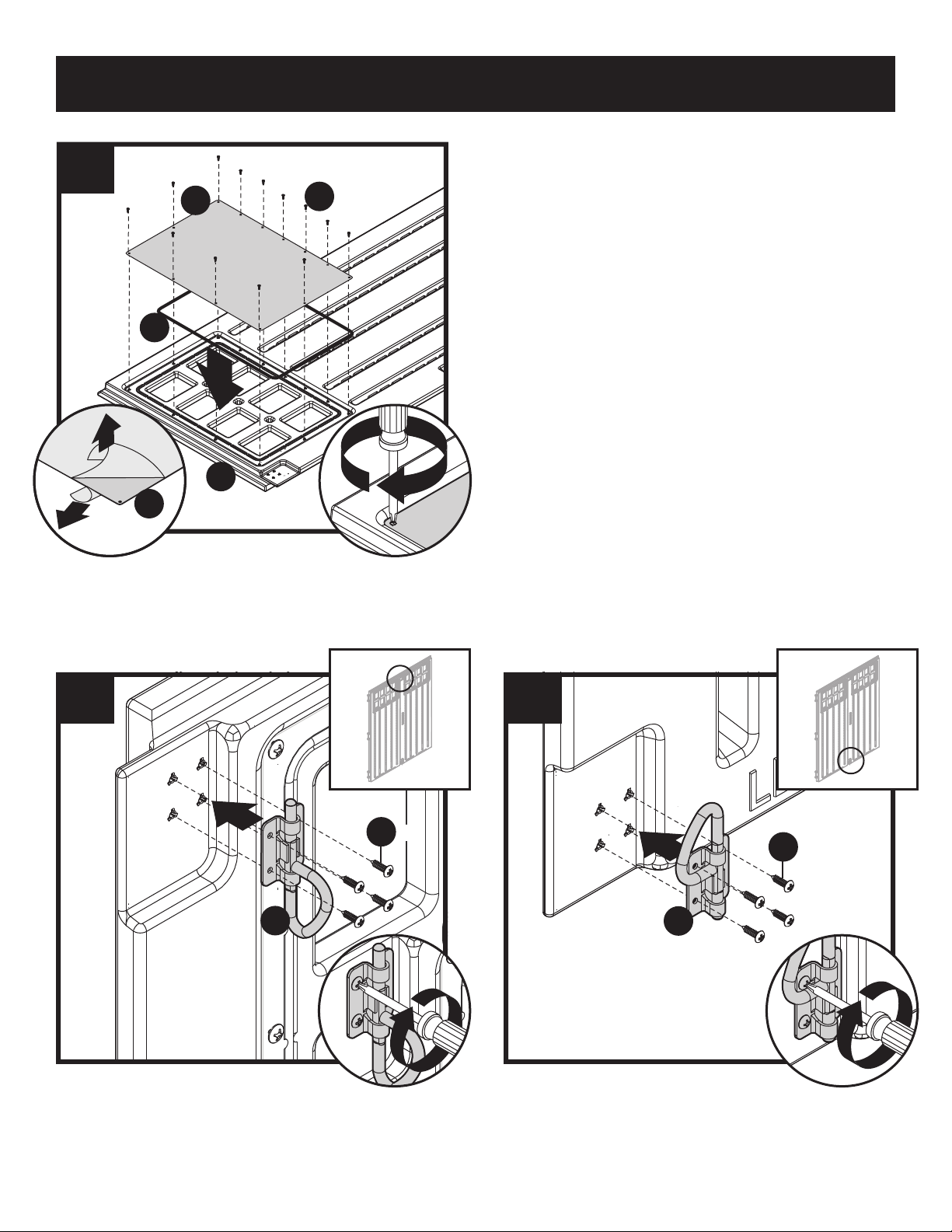

At bottom interior side of left door, attach D-ring slide
bolt (P) with four screws (LL) through provided holes.
1
2
3
x4
LL
P
x4
At top interior side of left door, attach D-ring slide bolt
(P) with four screws (LL) through provided holes.
1
2
2
x4x4
x4
LL
P
Peel film from both sides of window (I).
Lay left door (N) on flat ground with window screw
attachments facing up. Place window gasket (B) into
door channel, then place window (I). Cut excess gasket
length. Through backside of door, secure layers with
thirteen screws (LL)—start with four corner screws and
then finish with remaining screws. DO NOT over tighten
screws. Repeat on right door (M).
Note: The cut portion of window gasket (B) MUST be
assembled on top of door channel.
2
3
1
1
1
x13
B
I
I
LL
N
Door Pre-Assembly

13
1
1
3
2
6
V
K
LL
X6
1
3
2
x8
LL
5
K
U

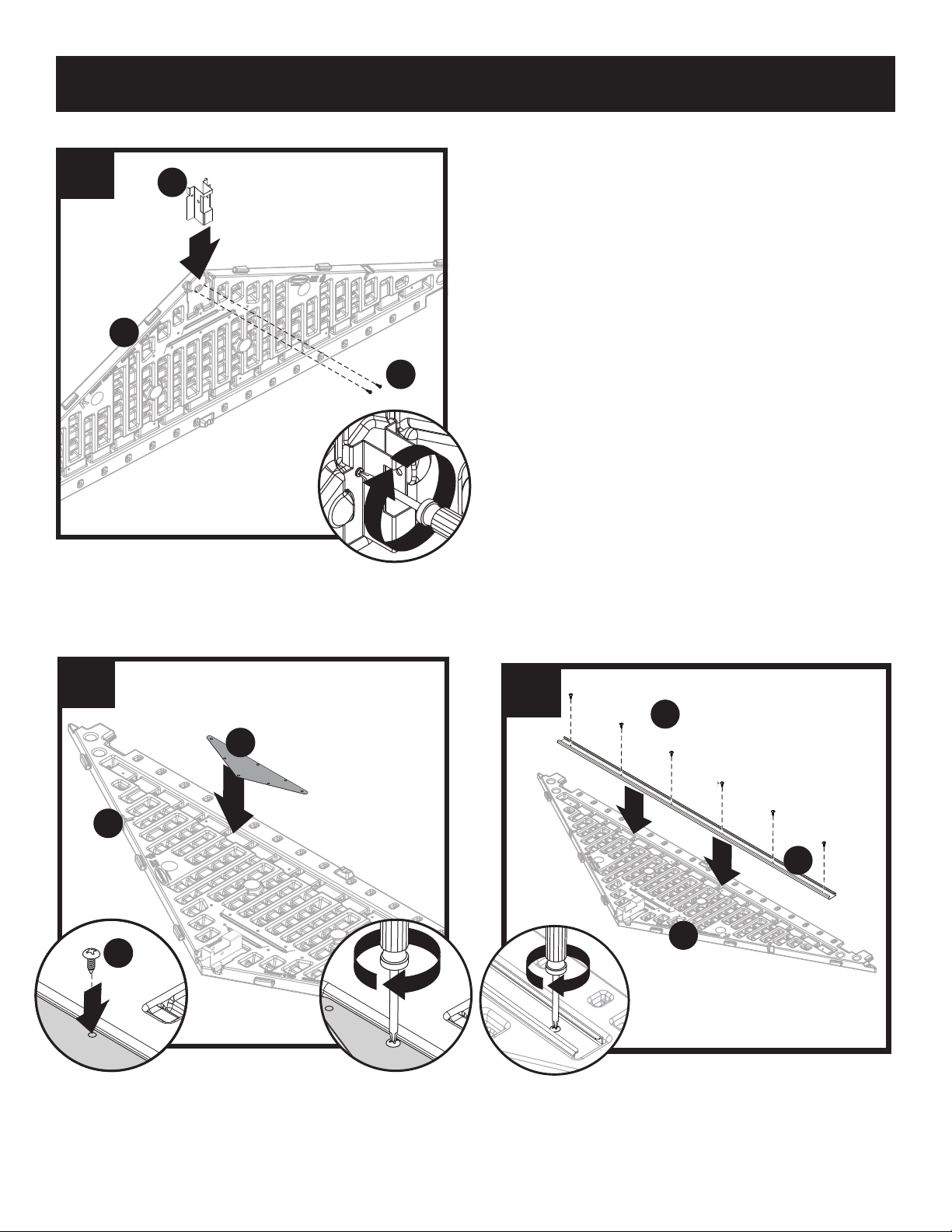

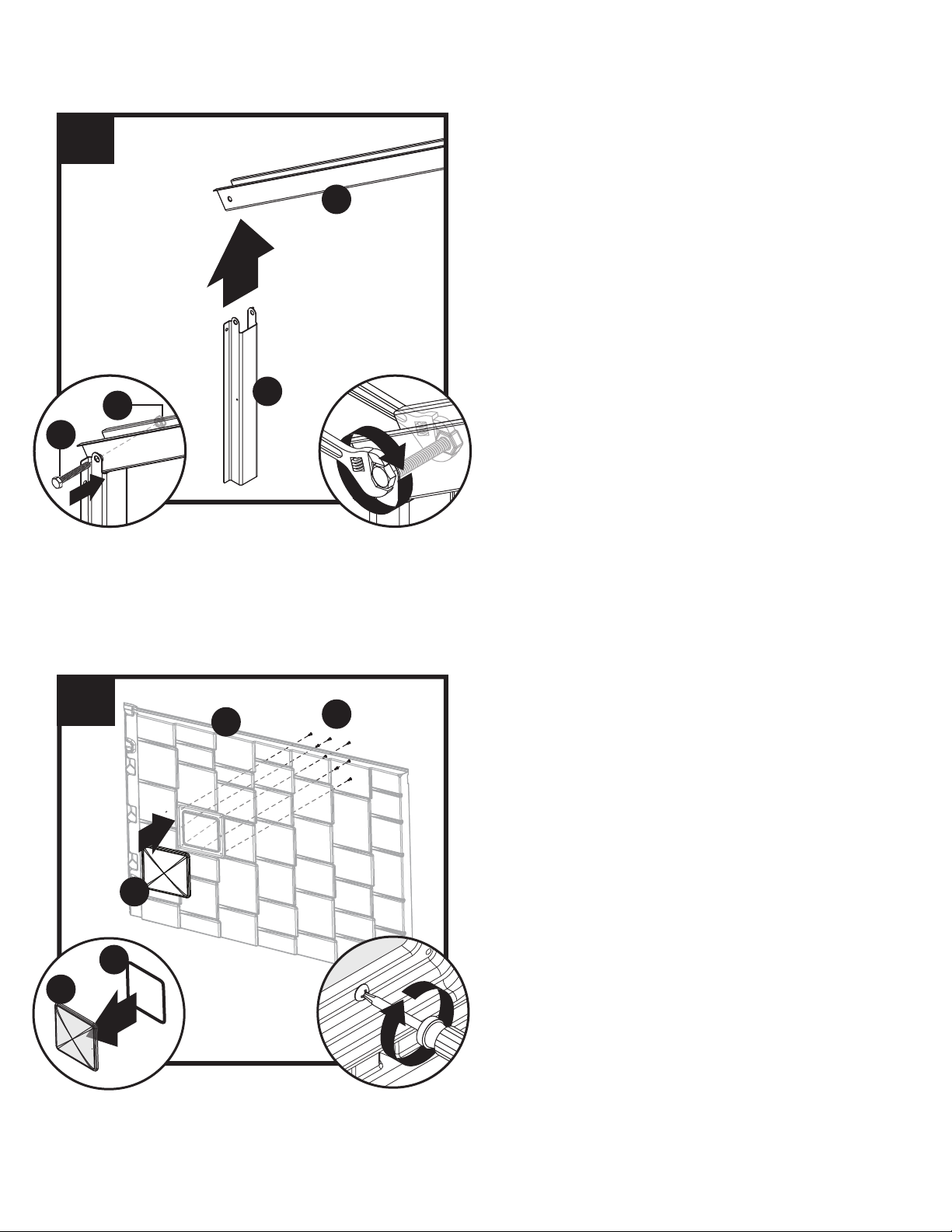

Slide roof ridge beam bracket (S) under tabs on inside
peak of front header (K) and secure with two screws
(LL). DO NOT over tighten screws.
Lay front header (K) on ground with lettering facing up.
Place vent screen (U) into rear opening in front header (K).
Secure through back of header with eight screws (LL).
DO NOT over tighten screws.
1
2
4
x2
K
LL
S
Header Pre-Assembly
Insert header beam (V) into header (K). Attach using six
screws (LL). DO NOT over tighten screws.
Repeat steps 4-6 for rear header (AA).

14
11
3
2
8
HH
FF
x2x2
x2
x2
x2
Z
ZY
Y

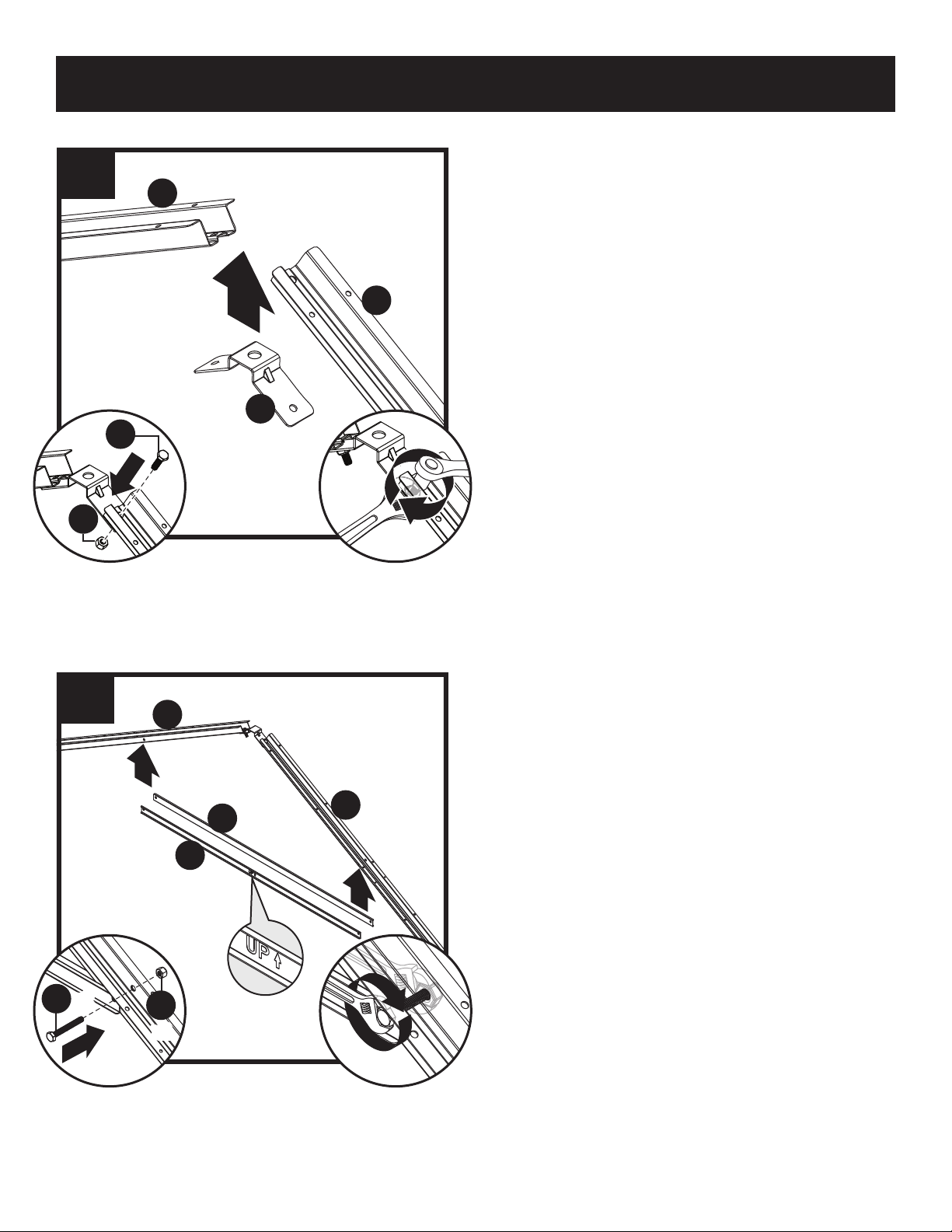

Attach truss cross beam (Z) to two truss legs (Y) using
two hex bolts (FF) and two nuts (HH). Stand truss and
check cross beam is level.
1
3
2
7
W
Y
Y
GG
HH
x2
x2
x2
Truss Pre-Assembly
Attach truss bracket (W) to end of one truss leg (Y)
with 1" hex bolt (GG) and nut (HH). REPEAT WITH
OTHER TRUSS LEG.
Note: Make sure side hole is at other end, as shown in
step 8.

15
1
3
1
2
9
BB
Y
FF
HH
Place side adaptor bracket (BB) at end of left truss leg (Y).
Secure adaptor bracket with one 2" hex bolt (FF) and
one nut (HH). Repeat for remaining side adaptor bracket
(BB).
Note: DO NOT over tighten side adaptor bracket (BB)
onto end of truss leg (Y). Roof panels will assemble
to truss legs (Y) in later step. After shed assembly is
completed, check that all hardware is securely fastened.
Truss Pre-Assembly (continued)
2
3
1
10
CCC
CCC
DDD
OLL
x8
Place skylight gasket (DDD) into skylight (CCC). Place
skylight (CCC) onto right roof panel (O). Secure from
underside with eight screws (LL). Make sure rib on roof
panel is seated fully against gasket on skylight.
Repeat for remaining roof panels.

Critical: When installing corners,
flex corner hinges back and forth
several times. This will help provide
a square corner and ensure proper
fit of remaining panels.
Important: DO NOT flex in reverse
position, as this can crack the panel.
16
Shed Assembly/Walls
11
Push front floor (A) and rear floor (C) panels together
and secure with four screws (LL).
Note: Refer to pages 9 and 10 to secure floors to
foundation.
1
2
A
LL
C
x4
12

17
Tip left front corner (D) back to vertical position and
align lower tabs on right side with slots in floor.
Shed Assembly/Walls (continued)
1
2
D
15
Align tab on bottom right side of left front corner (D) with
slot on front floor (A). Lower panel into slot and lock in
place by sliding panel toward door opening.
Note: Use a rubber mallet to “push” left front
corner (D) into locked position.
1
2
D
A
13
1
22
D
14
Tip left front corner (D) back to vertical position and
align lower tabs on right side with slots in floor.

18
D
Side viewSide view
Top viewTop view
Before proceeding, make sure
corner is square (top view) where it
meets the floor and that panel is flush
(side view) with floor.
If not, repeat Steps 13–15
until square and flush.
16
JJ
x4
18
Shed Assembly/Walls (continued)
1
2
E
17

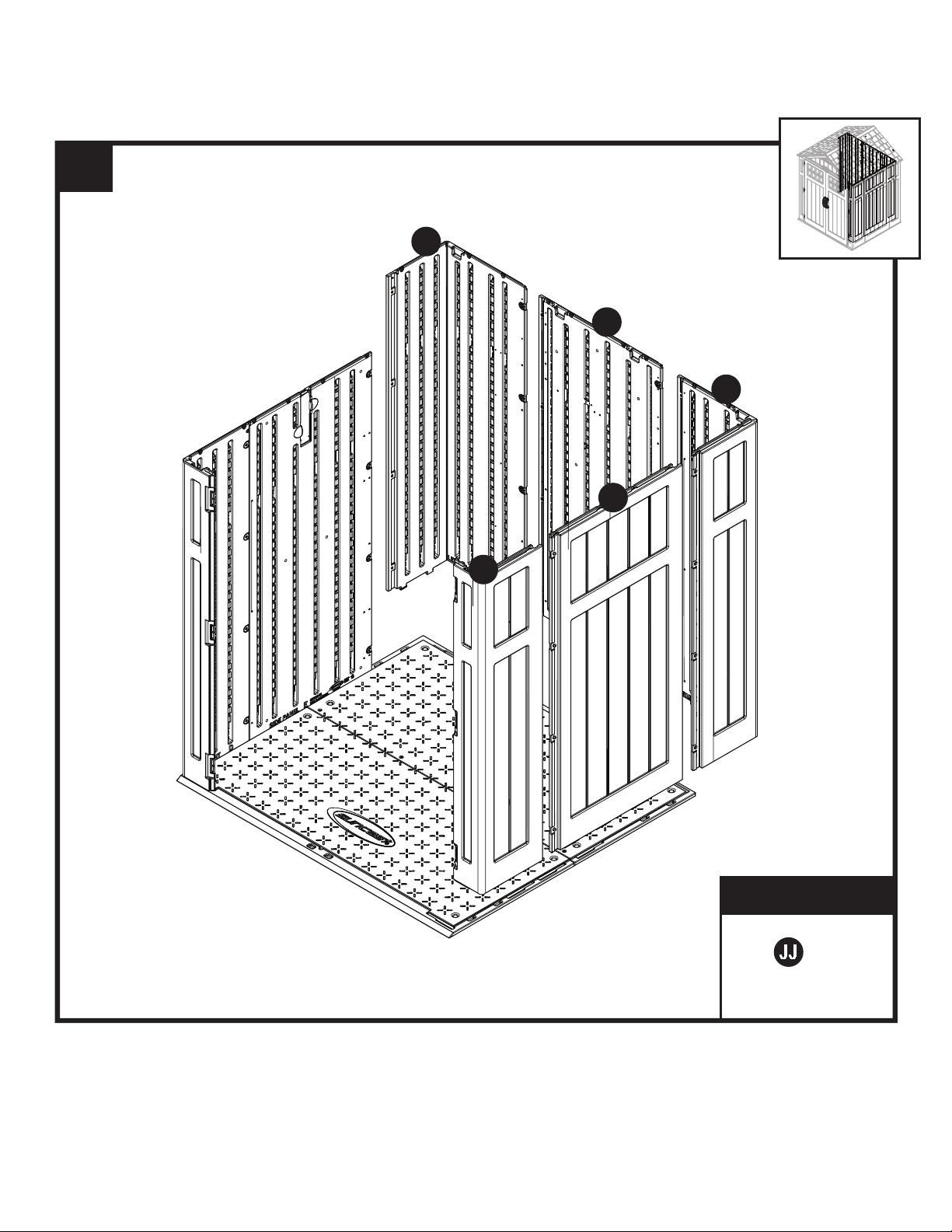

Align tabs on bottom of side panel (E) with slots along
front and rear floors. Lower panel into slots and lock in
place by sliding panel toward front corner.
Note: Use a rubber mallet to “push” side panel (E)
into locked position.
Secure side panel with four easy bolts (JJ), working from
floor to roof. DO NOT use torque wrench. Use easy bolt
easy driver (KK) and hand tighten. Easy bolt head will be
flush when fully seated. DO NOT over tighten easy bolts.
Note: You may hear a click when easy bolt has been
tightened completely.

19
Shed Assembly/Walls (continued)
19
E
F
H
G
x20
JJ
Hardware Needed
J
Repeat Steps 13-18 for remaining panels.

20
Shed Assembly/Headers
Place front header (K) over door opening and fit the
two protruding support legs on left and right front
corners into pockets molded in front header. Tabs on
front header must be seated in header channel pocket.
Secure front header using two screws (LL).
1
1
2
20
LL
K
x2
Place rear header (L) over back walls and fit the two
protruding support legs on left and right back corners
into pockets molded in rear header. Tabs on rear header
must be seated in header channel pocket. Secure rear
header using eight screws (LL).
1
1
1
1
2
2
21
LL
L
x8
x8
