Sundstrom SR 591 User manual

Operating Instruction
Welding Shield SR 591

OI06H-4318 SR 591
Title
Page
Operating Instruction SR 591
1 (19)
Drawn up by
Revised
Approved
Edition
JN
Pontus Ahllwy
01
Datum
Datum
Datum
2018-11-19
ÅÅÅÅ-MM-DD
2019-01-22
Index
1Introduction .......................................................................................................................2
1.1 Warnings/limitations...................................................................................................2
1.2 Delivery check............................................................................................................3
1.3 Accessories/Spare parts............................................................................................4
2Use....................................................................................................................................5
2.1 Installation..................................................................................................................5
2.2 Welding filter..............................................................................................................5
2.3 Putting the welding shield on and adjustment............................................................5
3Maintenance......................................................................................................................7
3.1 Cleaning.....................................................................................................................7
3.2 Storage ......................................................................................................................7
3.3 Maintenance schedule...............................................................................................8
3.4 Spare parts ................................................................................................................8
3.4.1 To change the outer protective lens ...................................................................8
3.4.2 To change the welding filter..............................................................................10
3.4.3 To change the inner protective lens..................................................................13
3.4.4 To change the correction lens ..........................................................................16
3.4.5 To change the sweatband ................................................................................17
3.4.6 To change the head harness............................................................................18

OI06H-4318 SR 591
Title
Page
Operating Instruction SR 591
2 (19)
1 Introduction
The Sundström SR 591 welding shield is intended for use individually or together with the
Sundström SR 900-system. For information about the SR 900-system, see the products user
instructions.
The welding shield is designed specifically for protection against radiation and spatter during
welding, flame-cutting and similar work.
If you feel uncertain about the selection and care of the equipment, consult your work
supervisor or get in touch with the sales outlet. You are also welcome to get in touch with the
Technical Service Department at Sundstrom Safety AB.
1.1 Warnings/limitations
Warnings
•Change the welding filter immediately if it is found to be damaged.
•Materials that come into contact with the user’s skin may give rise to allergic reactions if the
user is sensitive.
•If the welding shield is equipped with a toughened mineral glass lens, a protective lens
should be fitted on the inside of the toughened mineral glass lens.
•Damaged or scratched protective lens must immediately be replaced.
Limitations
•Check that the welding filter have the correct scale number for your work.
•The welding shield must always be fitted with a protective lens in addition to the welding
filter.
•Always observe the fire safety rules.

OI06H-4318 SR 591
Title
Page
Operating instruction SR 591
3 (19)
1.2 Delivery check
Check that the equipment is complete in accordance with the packing list, and undamaged.
Packing list Fig. 1
1) Welding shield, 2) User instructions, 3) Cleaning tissue

OI06H-4318 SR 591
Title
Page
Operating instruction SR 591
4 (19)
1.3 Accessories/Spare parts
1. Welding Shield SR 591
H06-4312
Welding filter, EN 4/5-13
R06-4508
2. Head harness SR 591
R06-4303
Welding filter EN 4/9-13, SR 59007
T06-4009
3. Sweatband SR 591, 5- pack
R06-4304
5. Outer protective lens SR 591
R06-4008
4. Welding filter EN 8, SR 59008
T06-4001
7. Inner protective lens for auto lens
R06-4009
Welding filter, EN 9, SR 59009
T06-4002
Inner protective lens for R06-4508
R06-4509
Welding filter, EN 10, SR 59010
T06-4003
8. Correction lens, dptr 1,0, SR 59014
T06-4010
Welding filter, EN 11, SR 59011
T06-4004
Correction lens, dptr 1,5, SR 59015
T06-4011
Welding filter, EN 12, SR 59012
T06-4005
Correction lens, dptr 2,0, SR 59016
T06-4012
Welding filter, EN 13, SR 59013
T06-4006
Correction lens, dptr 2,5, SR 59017
T06-4013
Welding filter EN 3/10, SR 59005
T06-4007
9. Holder weling filter SR 591
R06-4306
Welding filter EN 3/11, SR 59006
T06-4008
11. Protective hood
T06-4014
12. Cleaning tissues SR 5226, box of 50
H09-0401

OI06H-4318 SR 591
Title
Page
Operating instruction SR 591
5 (19)
2 Use
2.1 Installation
See also user instructions for SR 900-system.
2.2 Welding filter
Fit a welding filter. See section “To change the welding filter”
2.3 Putting the welding shield on and adjustment

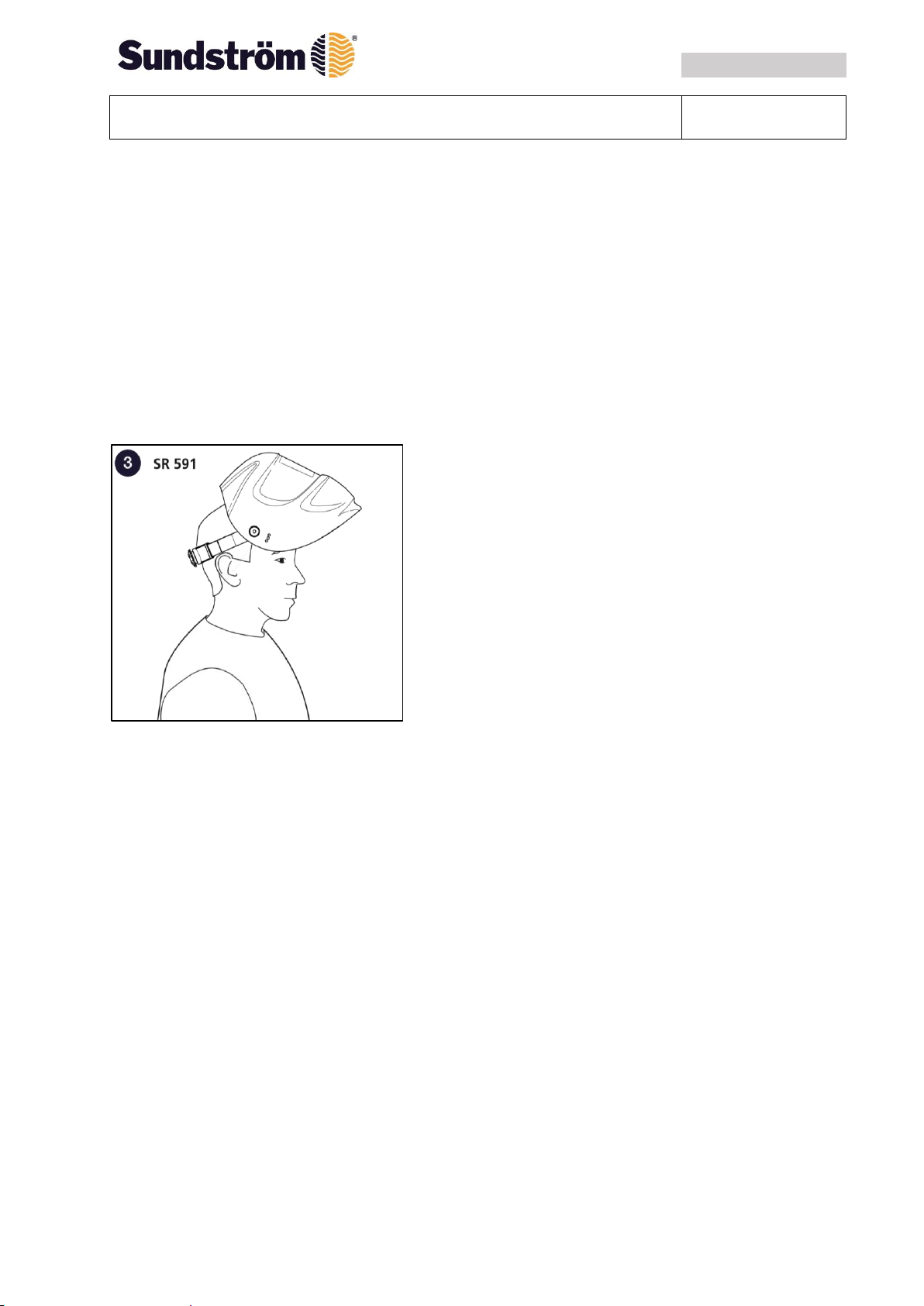

Raise the visor and put the welding
shield on. Fig. 3

OI06H-4318 SR 591
Title
Page
Operating instruction SR 591
6 (19)

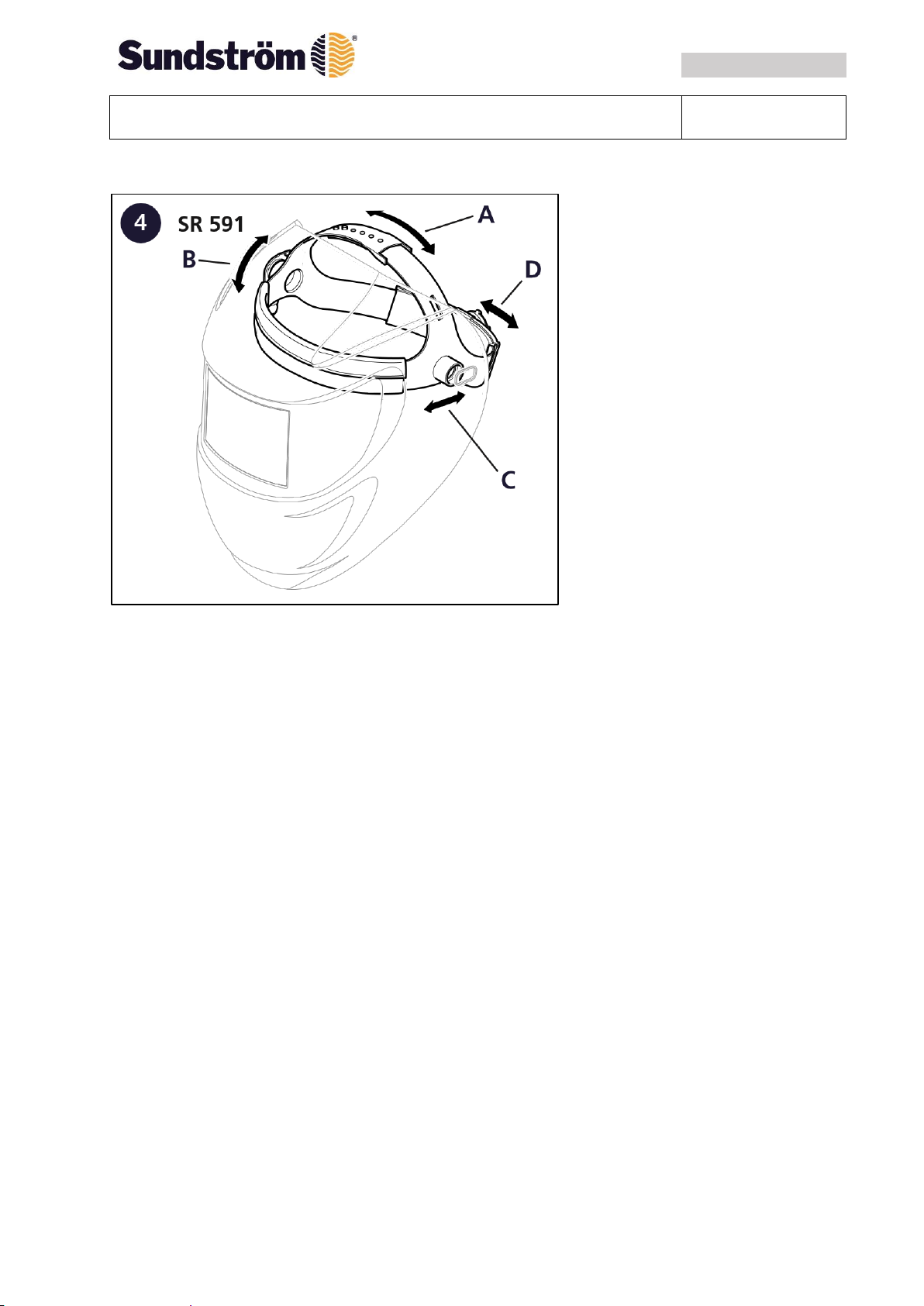

If necessary, adjust the head harness, see Fig. 4
Height adjustment
A - how high the welding shield sits on the head.
Angle adjustment between shield and head harness.
B - the angle against the shield.
Space adjustment between shield and head harness.
C - the space to the shield.
Width adjustment of the head harness.
D - adjustment of the width of the head harness.

OI06H-4318 SR 591
Title
Page
Operating instruction SR 591
7 (19)
3 Maintenance
The person who is responsible for cleaning and maintenance of the equipment must have
suitable training and be well acquainted with work of this type.
3.1 Cleaning
Sundström cleaning tissues SR 5226 are recommended for daily care.
If the equipment is more heavily fouled, the sweatband can be washed with a mild soap
solution.
If necessary, spray the face shield with 70 % ethanol or isopropanol solution for disinfection.
Wipe the plastic protective lens carefully, since they are sensitive to scratching.
Automatic welding filters are very sensitive to moisture.
Use only a dry polishing cloth.
NOTE! Never use solvents for cleaning.
3.2 Storage
After cleaning, store the equipment in a dry and clean place at room temperature. Avoid
exposing it to direct sunlight.
Lower the visor. Fig. 5.

OI06H-4318 SR 591
Title
Page
Operating instruction SR 591
8 (19)
3.3 Maintenance schedule
Recommended minimum requirements on maintenance routines so you will be certain that
the equipment will always be in usable condition
Before use
After use
Annually
Visual inspection1)
•
•
•
Cleaning
See section 3.1
•
•
1) Check that the product is intact and well cleaned before and after use. Make sure removable parts are
properly assembled.
3.4 Spare parts
Always use genuine Sundström parts. Do not modify the equipment. The use of non-genuine
parts or modification of the equipment may reduce the protective function and put at risk the
approvals received by the product.
3.4.1 To change the outer protective lens
Loosen the screw in the holder for
the welding filter. Fig 6

OI06H-4318 SR 591
Title
Page
Operating instruction SR 591
9 (19)
Release and remove the outer protective lens. Fig. 8-9
Fit the new outer protective lens. Fig. 10-11
Release and remove the holder for
the welding filter. Fig 7

OI06H-4318 SR 591
Title
Page
Operating instruction SR 591
10 (19)
3.4.2 To change the welding filter
Fit the holder. Fig. 7

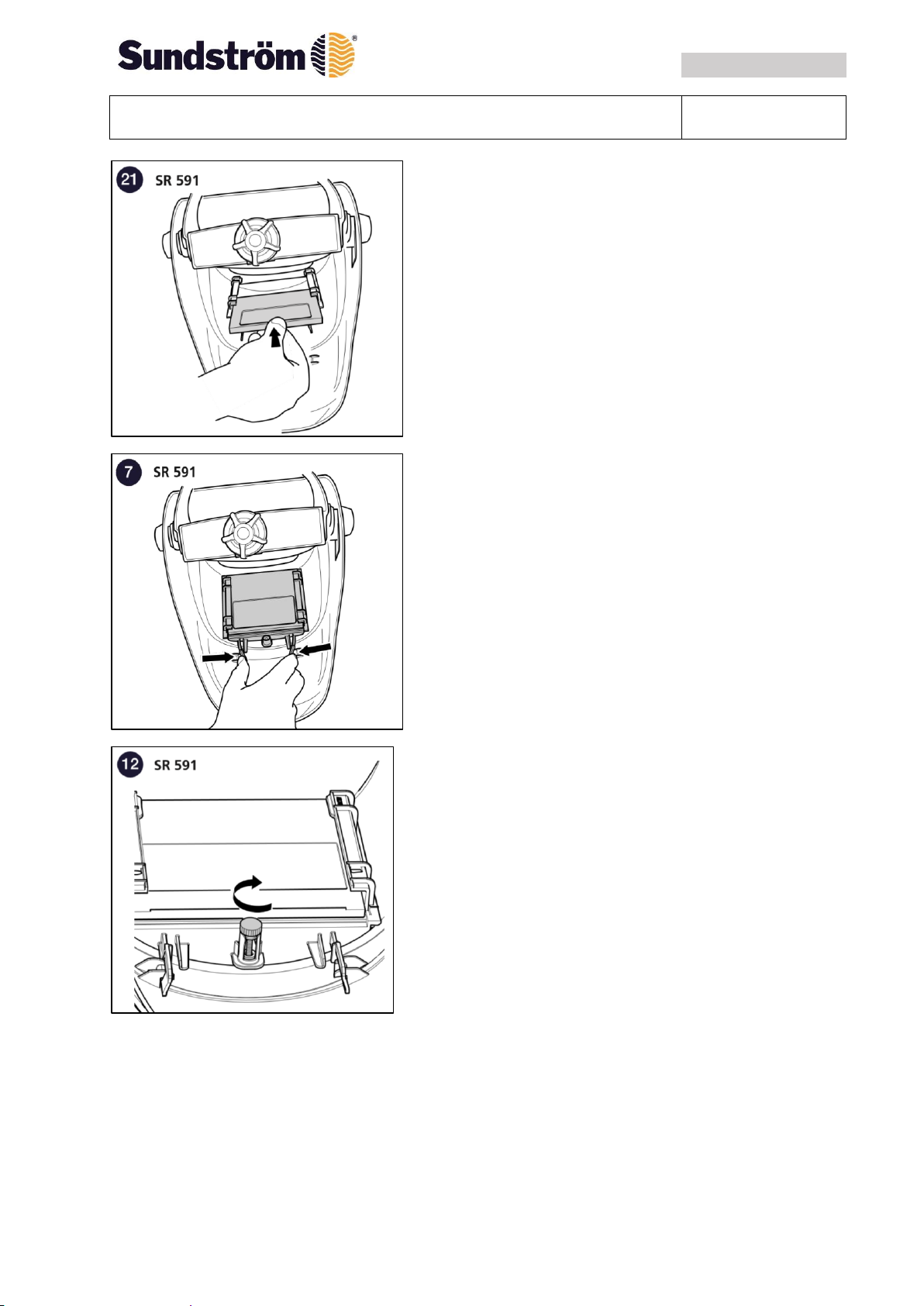

Tighten the screw. Fig. 12
Loosen the screw in the holder for
the welding filter. Fig. 6

OI06H-4318 SR 591
Title
Page
Operating instruction SR 591
11 (19)

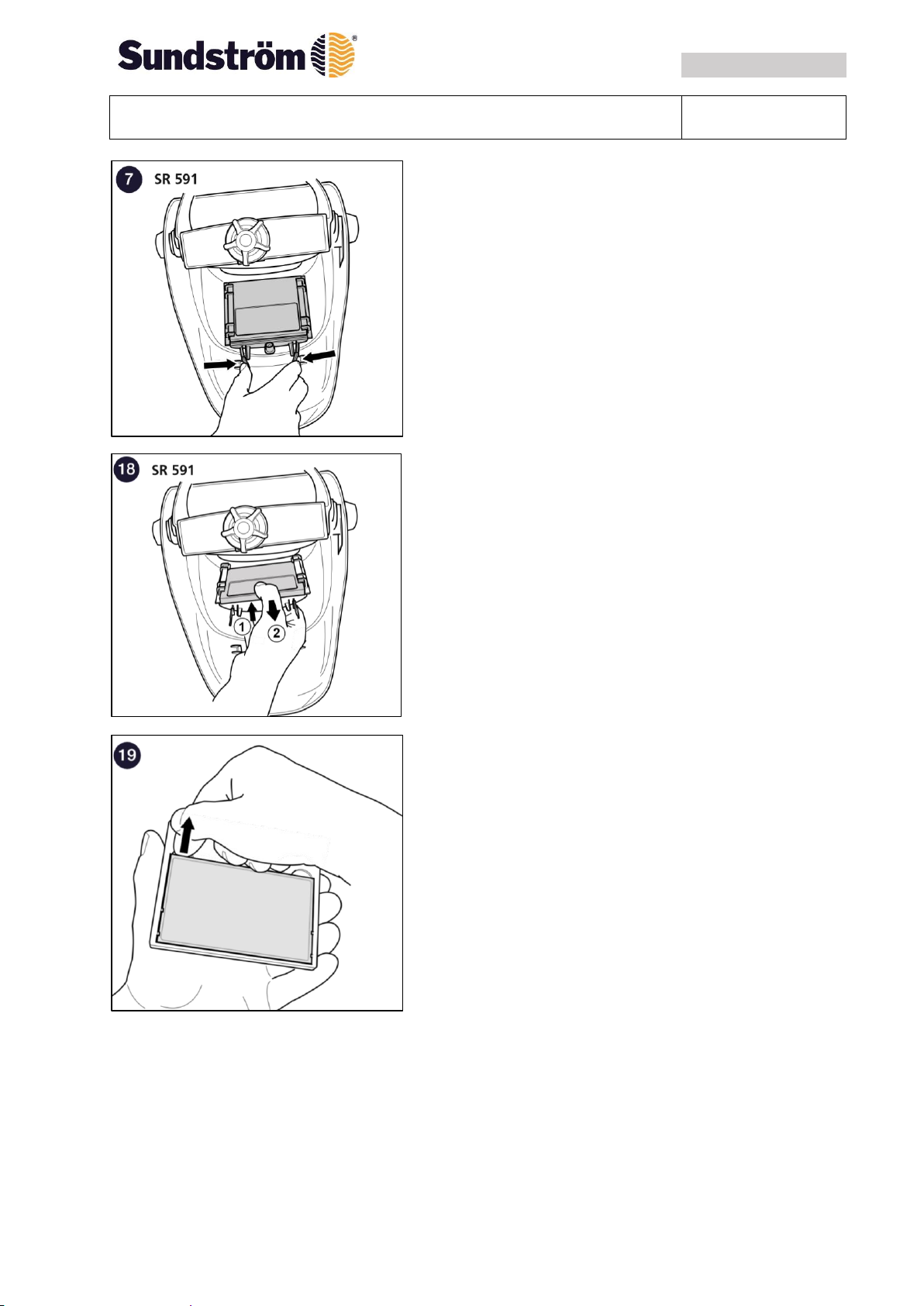

Release the holder for the welding
filter. Fig. 7
Release and remove the welding
filter. Fig. 18
Release and remove any inner
protective lens. Fig. 19

OI06H-4318 SR 591
Title
Page
Operating instruction SR 591
12 (19)
Fit any inner protective lens on the
inside of the new welding filter. Fig.
20
Fit the new welding filter. Fig. 21
Fit the holder. Fig. 7

OI06H-4318 SR 591
Title
Page
Operating instruction SR 591
13 (19)
3.4.3 To change the inner protective lens
Tighten the screw. Fig. 12
Loosen the screw in the holder for
the welding filter. Fig. 6
Release the holder for the welding
filter. Fig. 7

OI06H-4318 SR 591
Title
Page
Operating instruction SR 591
14 (19)
Release and remove the the welding
filter. Fig. 18
Release and remove the inner
protective lens. Fig. 19
Fit the new inner protective lens on
the inside of the welding filter. Fig. 20

OI06H-4318 SR 591
Title
Page
Operating instruction SR 591
15 (19)
Fit the welding filter. Fig. 21
Fit the holder. Fig. 7
Tighten the screw. Fig. 12

OI06H-4318 SR 591
Title
Page
Operating instruction SR 591
16 (19)
3.4.4 To change the correction lens
Release and remove the correction
lens. Fig. 22
Fit the new correction lens on the
inside of the welding filter. Fig. 23

OI06H-4318 SR 591
Title
Page
Operating instruction SR 591
17 (19)
3.4.5 To change the sweatband
Remove the sweatband. Fig. 24
Fit the sweatband on the head harness. Fig. 25-28

OI06H-4318 SR 591
Title
Page
Operating instruction SR 591
18 (19)
3.4.6 To change the head harness
Check that the head harness is locked in the fixing points of the welding shield.
Adjust the head harness according to the instructions in section “Putting the welding shield
on and adjustments”.

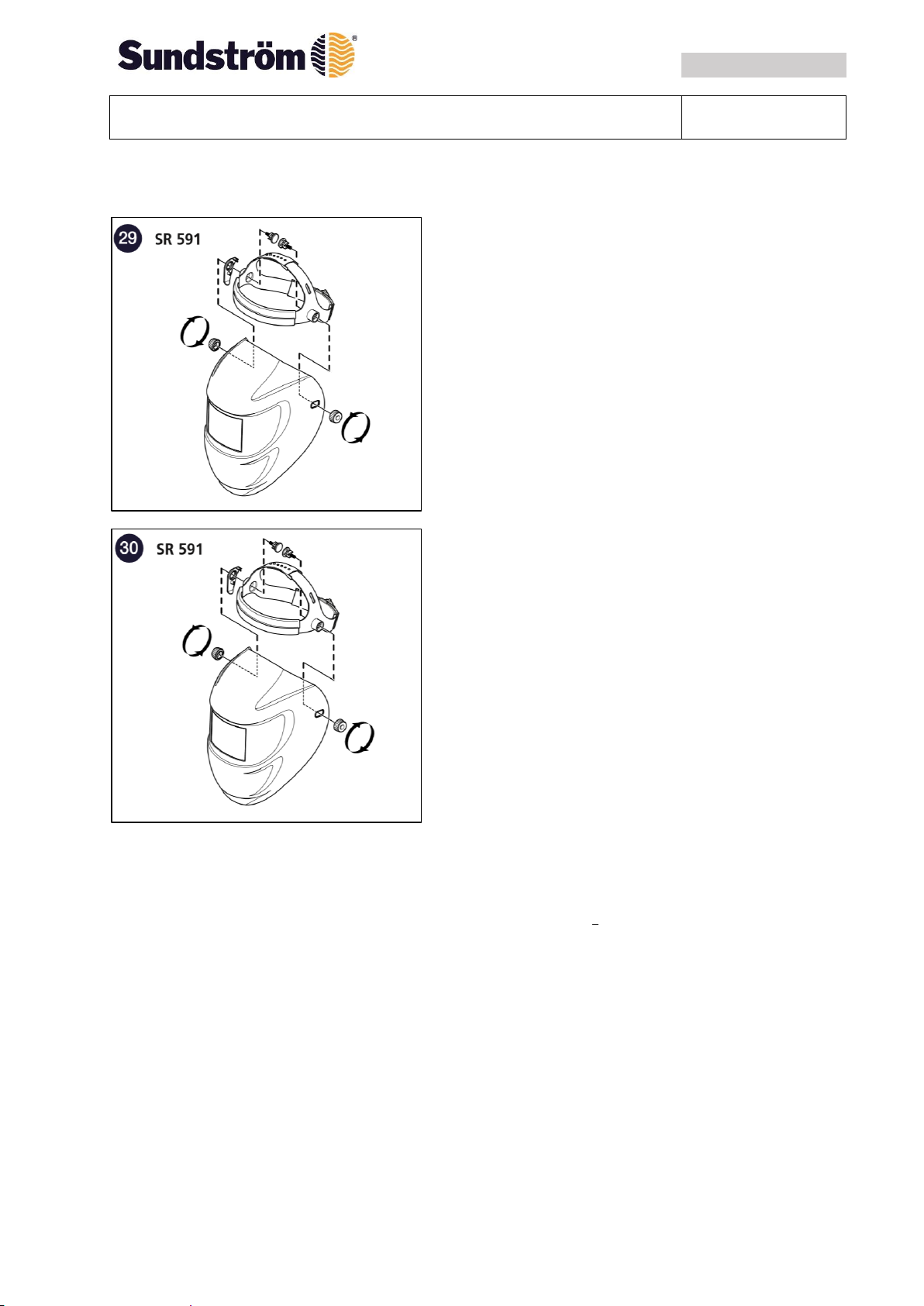

Remove the head harness from the
welding shield by releasing the two
fixing points. Fig. 29
Secure the two fixing points of the
head harness. Fig. 30
