Sunjoy A102007500 User manual

CountryofOrigin:ChinaProductionnumber:XXXXXXXXXX















ASSEMBLY INSTRUCTION
ITEM#：A102007500
WE HAVE YOU IN MIND, LET US SERVE YOU!
Questions? Issues?
CONTACT US
24 hours / 7 days a week
www.sunjoyonline.com
1-(866)-578-6569
[email protected]

2/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
Orvisitusatwww.sunjoyonline.com












• Thisproductisintendedfordomesticoutdooruseonly.
• Theproductshouldbeplacedonflat,horizontalground.
• Ensure enough clearance around the product. Before assembling the product, find level
ground not less than 6' (1.8 m) away from any structures or obstructions, such as fences,
garages,houses,overhangingbranches,laundrylines,orelectricalwires.
• Thisgazeboisnottoberegardedaspartofabuilding/housestructure.Thegazeboistobe
anchored onto the ground for added safety. Do not assemble the gazebo onto soil/earth
ground.Itisbestadvisabletohavethegazebobuiltontoawoodendeckorconcreteground
for stability. If it is to be build onto a wooden deck/ground, do ensure that the wooden
deck/ground has a strong foundation. It is advisable to use appropriatefloorplugs(not
provided)toanchorthegazeboontothewooden/concreteground.
• Somestructuresmayrequiretwoormorepeopletoinstallsafely. Check for underground
utilitiesbeforediggingordrivingstakesintotheground.
• Duringinstallation,followallsafetywarningsprovidedwithyourtools,andusesafetyglasses.
• Incaseyousetupmorethanonegazebo,keepaminimumdistanceof10'(3m)betweenthe
gazebos.
• Anyassemblyormaintenanceoftheproductmustbecarriedoutbyadultsonly.
• Arrangenecessarymanpowerwhenassemblingormovingtheproduct.
• Somepartsmaycontainsharpedges.Wearprotectiveglovesifnecessary.
• Keepchildrenandpetsawaywhilesettingupthegazebo.
• Checkallnutsandboltsperiodicallytoensurebolts/nutsaretightened. 
• Repairingandreplacingpartsshouldbedonebyaqualifiedtechnician.
• Thisgazeboisintendedfordecorativeandsunshadepurposesonly,anditisnotdesignedto
withstandharshweather,includinghighwinds,rain,andsnow.
• Donotlightanyfiresinsideorneartheproduct!
• Staycalmiffirebreaksout.Searchforthenearestexit.Donot returntothe gazebobefore
firemenallowyoutodoso.
• Donothangheavyweightsontheroofframe.
• Donotclimbontotheroofofthegazebo.Fallingoffthegazebocanresultinseriousinjury.
• Retaintheoriginalpackagingtostorethegazebo.



Important Safety Instructions
Caution! Properplacementofyourgazeboisessential.
Donotplacetheproductunderneathelectricallines.
Keepchildrenawayduringassembly.
Thisproductcontainssmallpartswhichcanbeswallowedbychildren.
Keepfingersawayfromtheplaceswheretheycanbepinchedortrapped.
Donotattempttoassemblethegazeboifanypartsaremissing.
Warning! Toreducetheriskofseriousinjury,readthefollowingsafetyinstructions
beforeassemblingandusingthegazebo.
Pleasecheckwithyourlocalgoverningauthority/localmunicipalcodesregarding
installationofstructuresbeforeassembl
y
.

3/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
  Orvisitusat  www.sunjoyonline.com


• Please read and understand this manual before any assembly. Before beginning assembly of
product,makesureallpartsarepresent.Comparepartswithpackagingcontentslist. 
• Ifanypartismissing,orifyouhaveanyquestions,contacttheservicecentreat1‐(866)‐578‐6569
(tollfree).
• Whenassemblingwoodenparts,donotovertorquetheboltstoavoidsplittingthewood.See
imageillustration.
• Placeallpartsfromtheboxinaclearedareaandpositionthemonthefloorinfrontofyou. 
• Removeallpackingmaterialsandplacethembackintothebox.Donotdisposeofthepacking
materialsuntilassemblyiscomplete. 
• Readeachstepcarefullybeforebeginninganyassemblyandmakesureyouunderstandeachstep.
Ifyouaremissingapart,pleasecallourtoll‐freenumberforassistance1‐(866)‐578‐6569.
• Neededforassembly:（Thefollowingtoolsarenotincluded）




















 






IMPORTANT:

4/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
Orvisitusatwww.sunjoyonline.com












































EXPLODED DRAWING

5/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
Orvisitusatwww.sunjoyonline.com
Parts List
Label Part Number Description Qty Part Image
01 P000400506 Outer Long Left
Beam 2
02 P000400507 Outer Long Right
Beam 2
03 P000400508 Outer Short Left
Beam 2
04 P000400509 Outer Short Right
Beam 2
05 P000400510 Inner Middle Beam 4
07 P000400511 Inner Long Beam 4
06 P000400512 Inner Short Beam 4
10 P005000200 Arc Support 1 4
11 P005000201 Arc Support 2 4
08 P000200227 Post 4
A P000501299 Big Roof Frame
Connector 4 
B3 P000501319 Big Roof Frame
Long Tube 2
B4 P000501317 Big Roof Frame
Short Tube 2
C3 P000601607 Small Roof Slanting
Beam 4

6/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
Orvisitusatwww.sunjoyonline.com

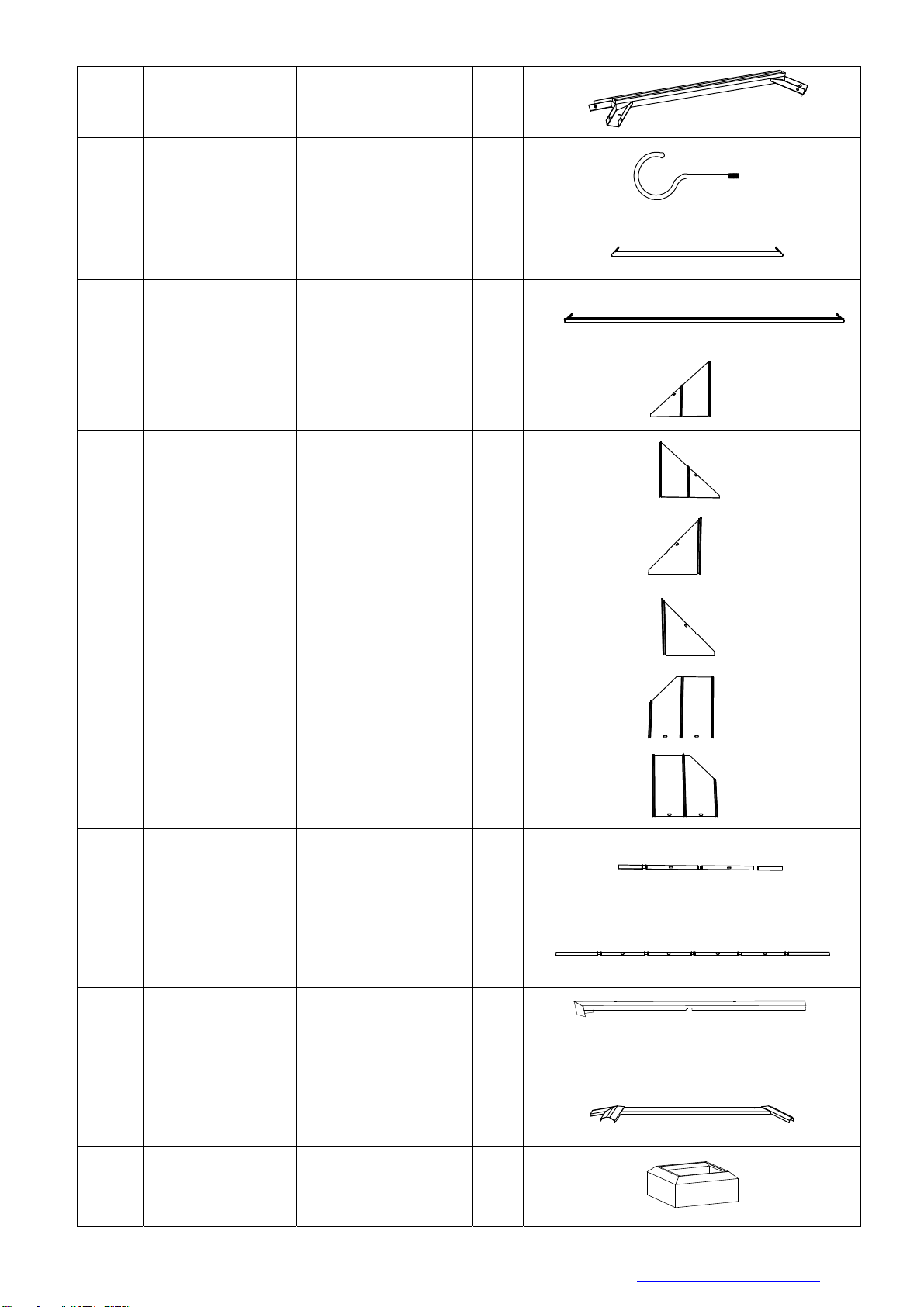

D3 P000501318 Small Roof
Connector1
E P005800001 Hook1
F9 P000601608 Small Roof Short
Beam2
F10 P000601615 Small Roof Long
Beam2
G3 P000700730 Small Roof Panel 1
(Short) 2
G6 P000700731 Small Roof Panel 2
(Short) 2
H1 P000700738 Small Roof Small
Panel 1 (Long) 2
H3 P000700739 Small Roof Small
Panel 2 (Long) 2
H4 P000700740 Small Roof Middle
Panel 1 (Long)2
H5 P000700741 Small Roof Middle
Panel 2 (Long)2
I1 P002200250 Small Roof Short
Press Panel 2
I3 P002200252 Small Roof Long
Press Panel 2
J3 P000800283
Small Roof
Slanting Beam
Cover
4
K3 P000900113 Small Roof Top
Cover 1
B P006100178 Base Cover 4

7/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
Orvisitusatwww.sunjoyonline.com
C2 P000100339 Base 4
M2 P000601609 Big Roof Slanting
Beam 4
N4 P000601610 Big Roof Middle
Beam 4
H2 P000501231 Slanting Beam
Connector 4
I2 P000501232 Middle Beam
Connector 4
Q9 P000601611 Big Roof Short
Small Beam 1 4
Q10 P000601612 Big Roof Short
Small Beam 2 4
Q11 P000601613 Big Roof Bottom
Short Beam 1 2
Q4 P000601614 Big Roof Bottom
Short Beam 2 2
R11 P000601616 Big Roof Long
Small Beam 1 4
R12 P000601617 Big Roof Long
Small Beam 2 4
R13 P000601618 Big Roof Bottom
Long Beam 1 2
R4 P000601619 Big Roof Bottom
Long Beam 2 2
S13 P000700732 Big Roof Left
Small Panel 4
S14 P000700734 Big Roof Left
Middle Panel 4

8/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
Orvisitusatwww.sunjoyonline.com
S15 P000700736 Big Roof Left Big
Panel 4
S16 P000700742 Big Roof Long Big
Panel 2
S17 P000700737 Big Roof Right Big
Panel 4
S18 P000700735 Big Roof Right
Middle Panel 4
S19 P000700733 Big Roof Right
Small Panel 4
T1 P002200251 Big Roof Press
Panel 1 8
T3 P002200252 Big Roof Press
Panel 3 2
U P000800284 Big Roof Slanting
Beam Cover 4
V5 P005700724 Short Netting Pipe
1 2
V6 P005700725 Short Netting Pipe
2 2
W1 P005700726 Long Netting Pipe
1 2
W2 P005700727 Long Netting Pipe
2 2


9/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
Orvisitusatwww.sunjoyonline.com

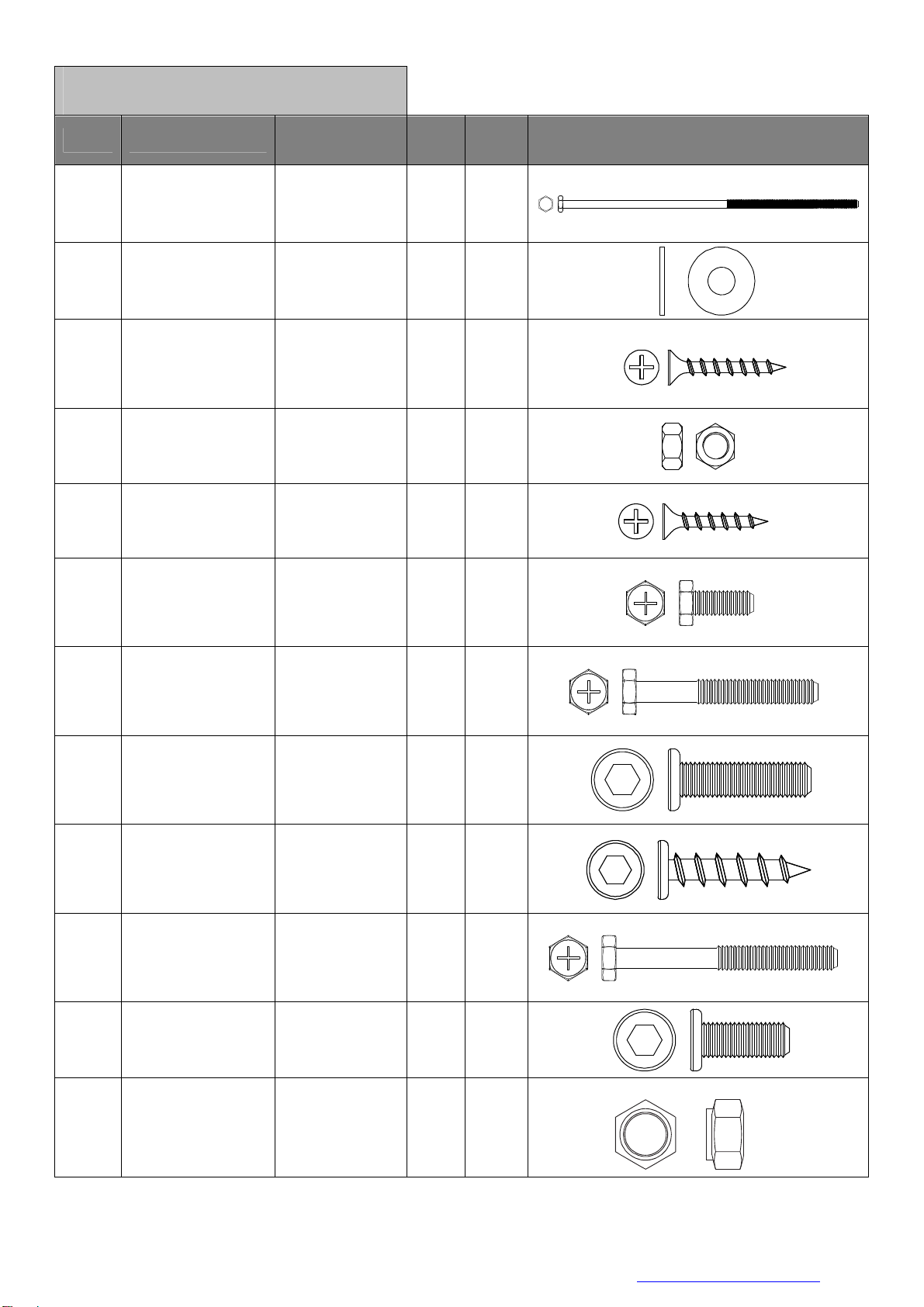

Hardware Pack
Label Part Number Description Qty Add Part Image
AA H010010276 Bolt M10*205 8 1
BB H050010020 Flat Washer
M6 230 12
CC H030050037 Screw M5*35 64 4
DD H040010004 Nut M6 8 1
EE H030050036 Screw M5*25 64 4
FF H010020011 Bolt M6*15 196 10
GG H010020016 Bolt M6*45 16 1
HH H010030083 Bolt M8*35 16 1
II H030030010 Bolt M8*35 16 1
JJ H010020025 Bolt M6*60 10 1
KK H010030084 Bolt M8*25 24 2
LL H040050020 Non-slip Nuts
M10 8 1

10/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
Orvisitusatwww.sunjoyonline.com

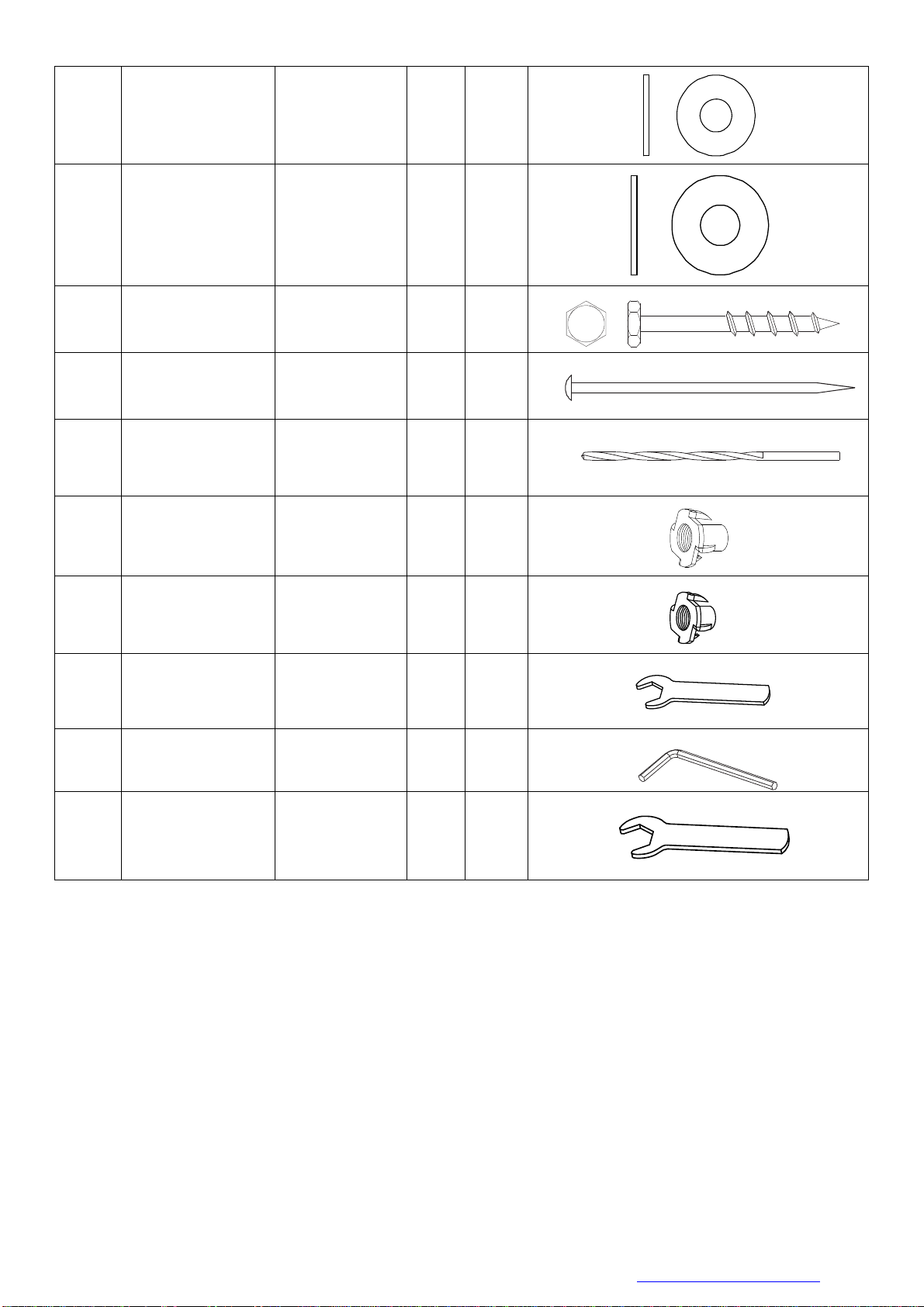

MM H050010060 Flat Washer
M8 56 3

NN H050010059 Flat Washer
M10 24 2

OO H030010031 Screw
M10*80 8 1
PP H070010003 Stake
Φ8*180 8 0
RR H090990002 M3 Dril 2 0 
SS H040050024 T-Nut
M8*20 16 1
VV H040050025 T-Nut
M8*8 24 2
Z1 H090010017 Wrench M6 2 0
Z2 H090030003 Allen Key M8 1 0
Z4 H090010015 Wrench M10 2 0















11/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
Orvisitusatwww.sunjoyonline.com


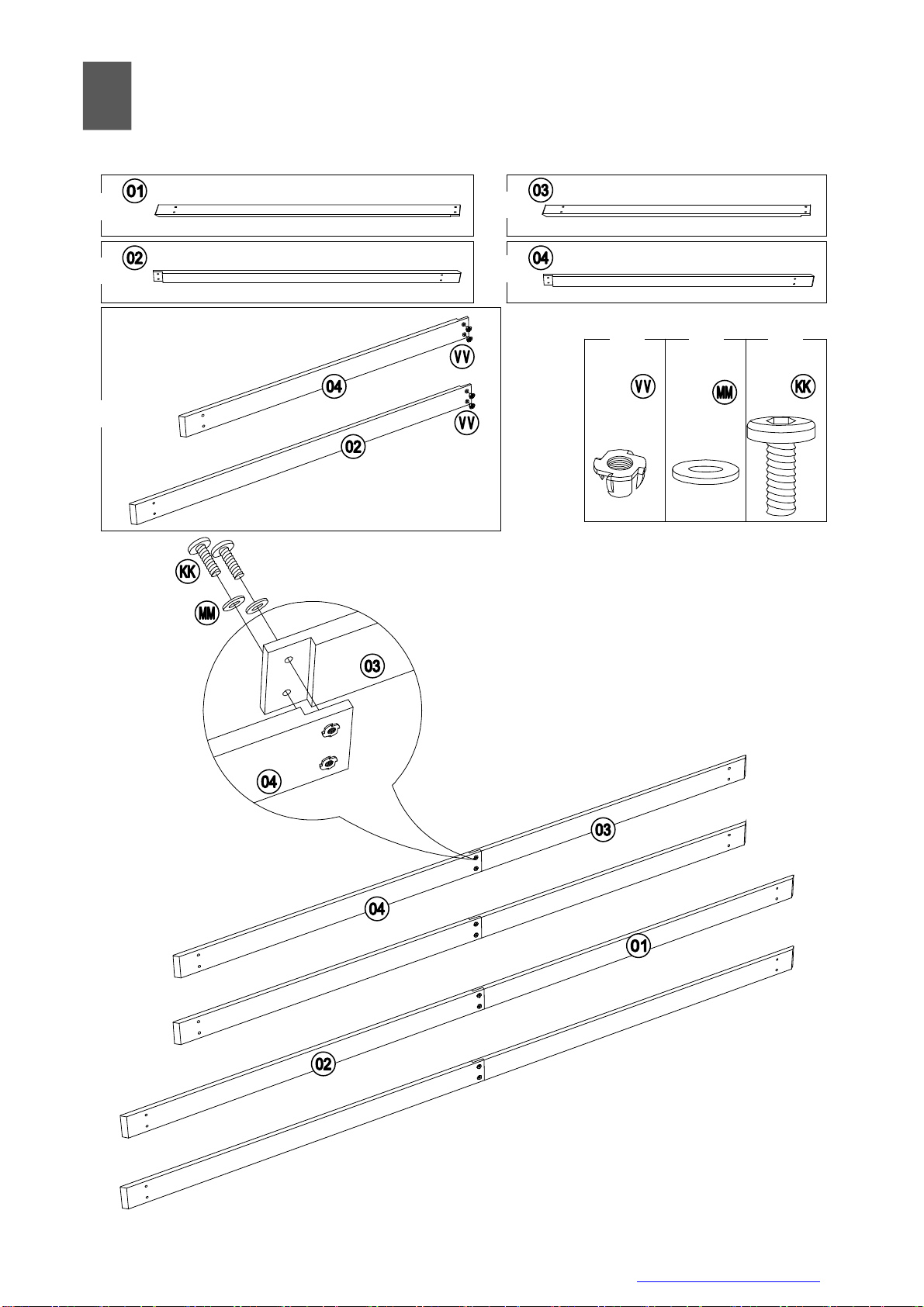

1
4X
16X
4X 4X

12/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
Orvisitusatwww.sunjoyonline.com


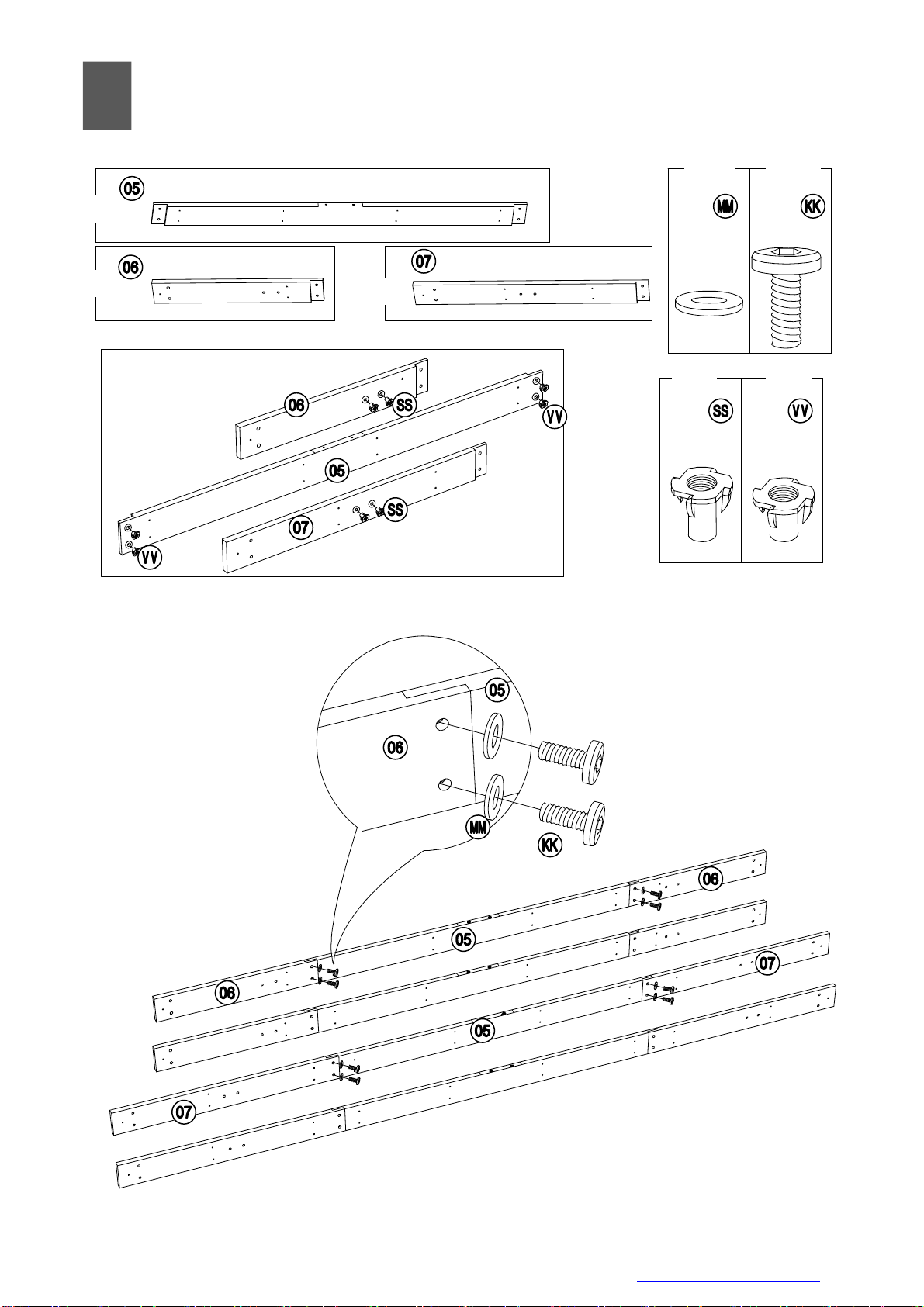

2
4X
4X
4X
16X
16X16X
16X

13/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
Orvisitusatwww.sunjoyonline.com

3
2X
2X
2X
8X
8X
2X
2X
8X

14/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
Orvisitusatwww.sunjoyonline.com

4
64X

15/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
  Orvisitusat  www.sunjoyonline.com


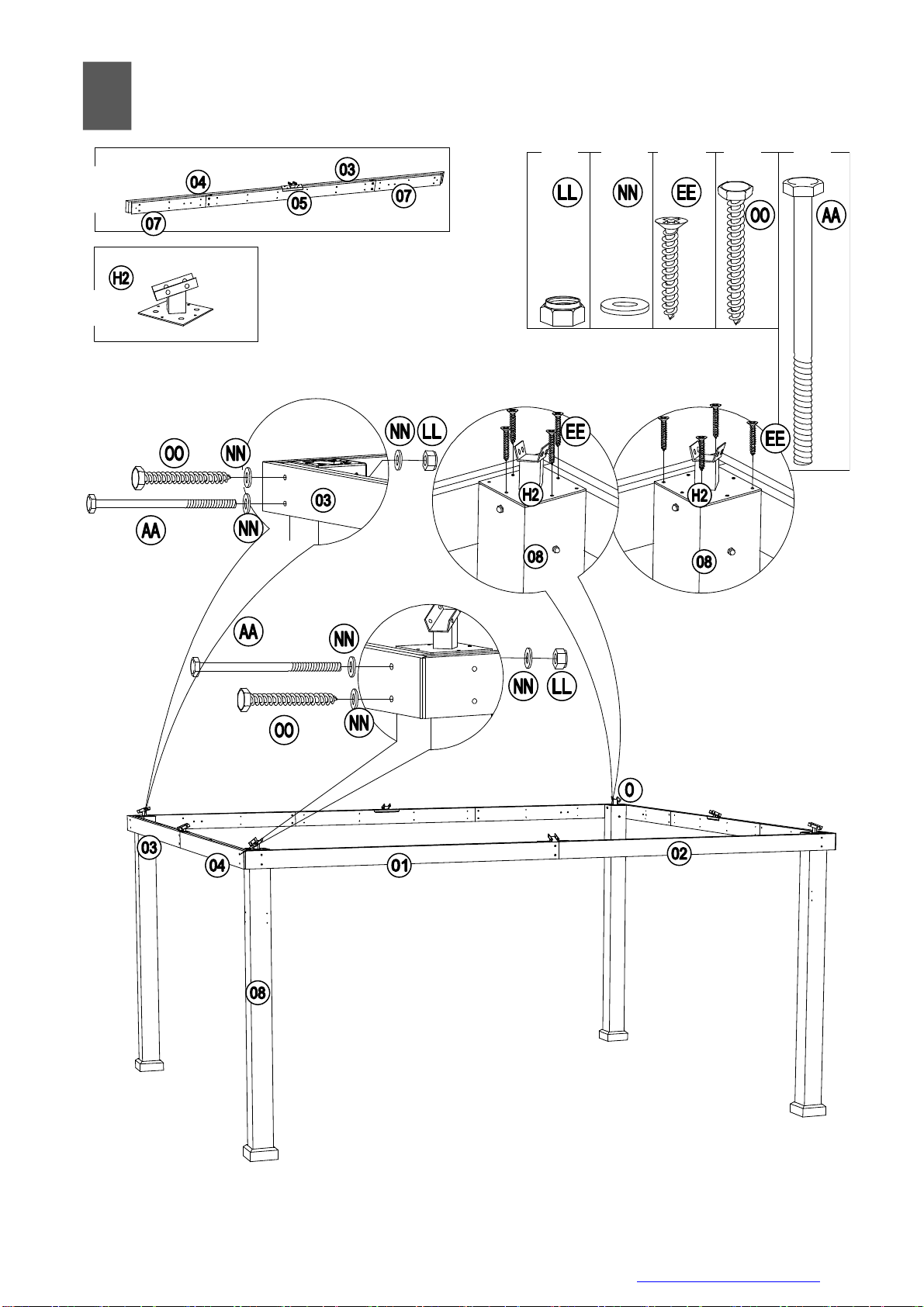

5
16X
4X
Locatinghole
10

16/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
Orvisitusatwww.sunjoyonline.com

6
4X 12X 4X 4X
2X

17/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
Orvisitusatwww.sunjoyonline.com


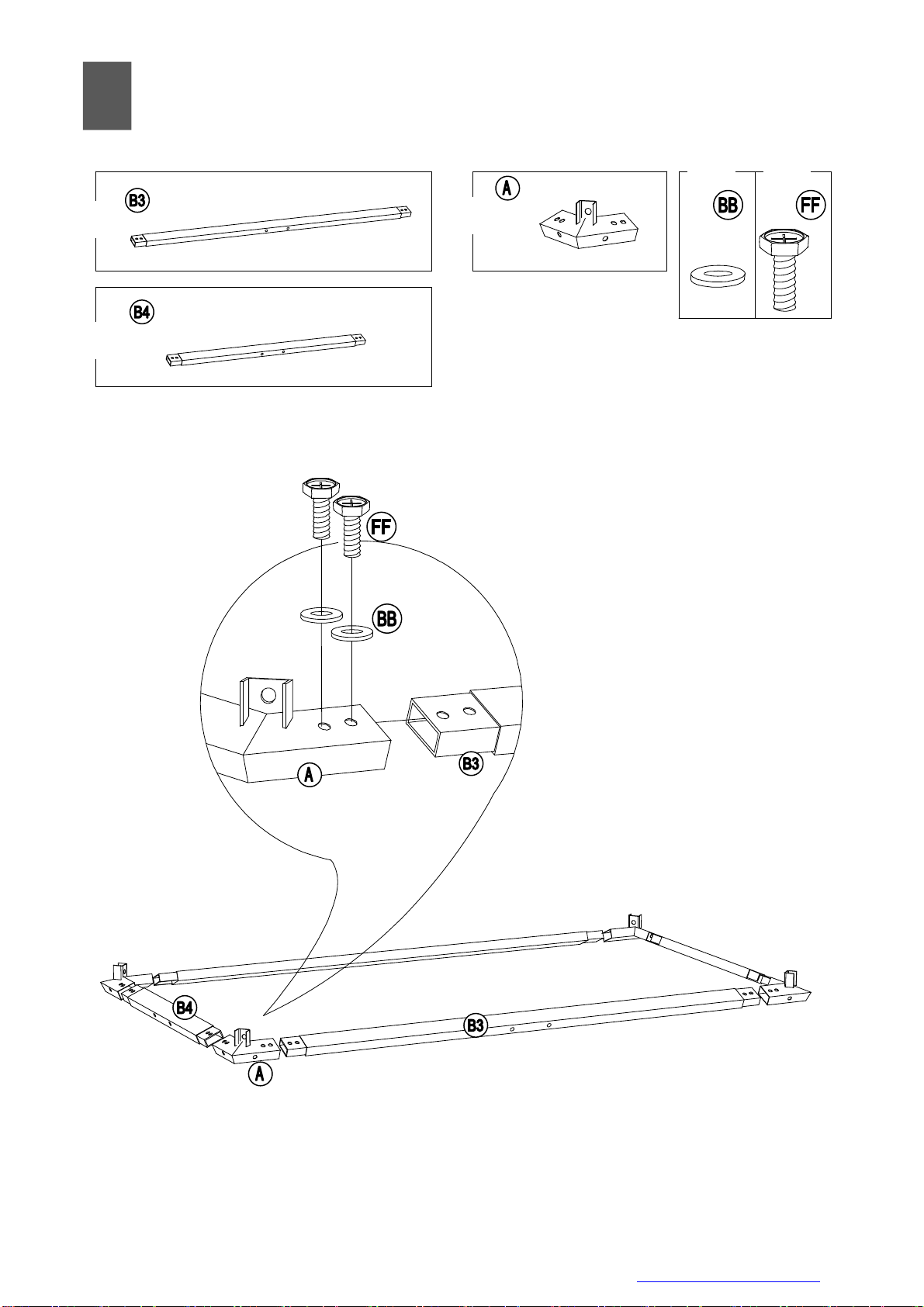

7
2X
4X
4X32X
12X
4X 4X

18/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
Orvisitusatwww.sunjoyonline.com


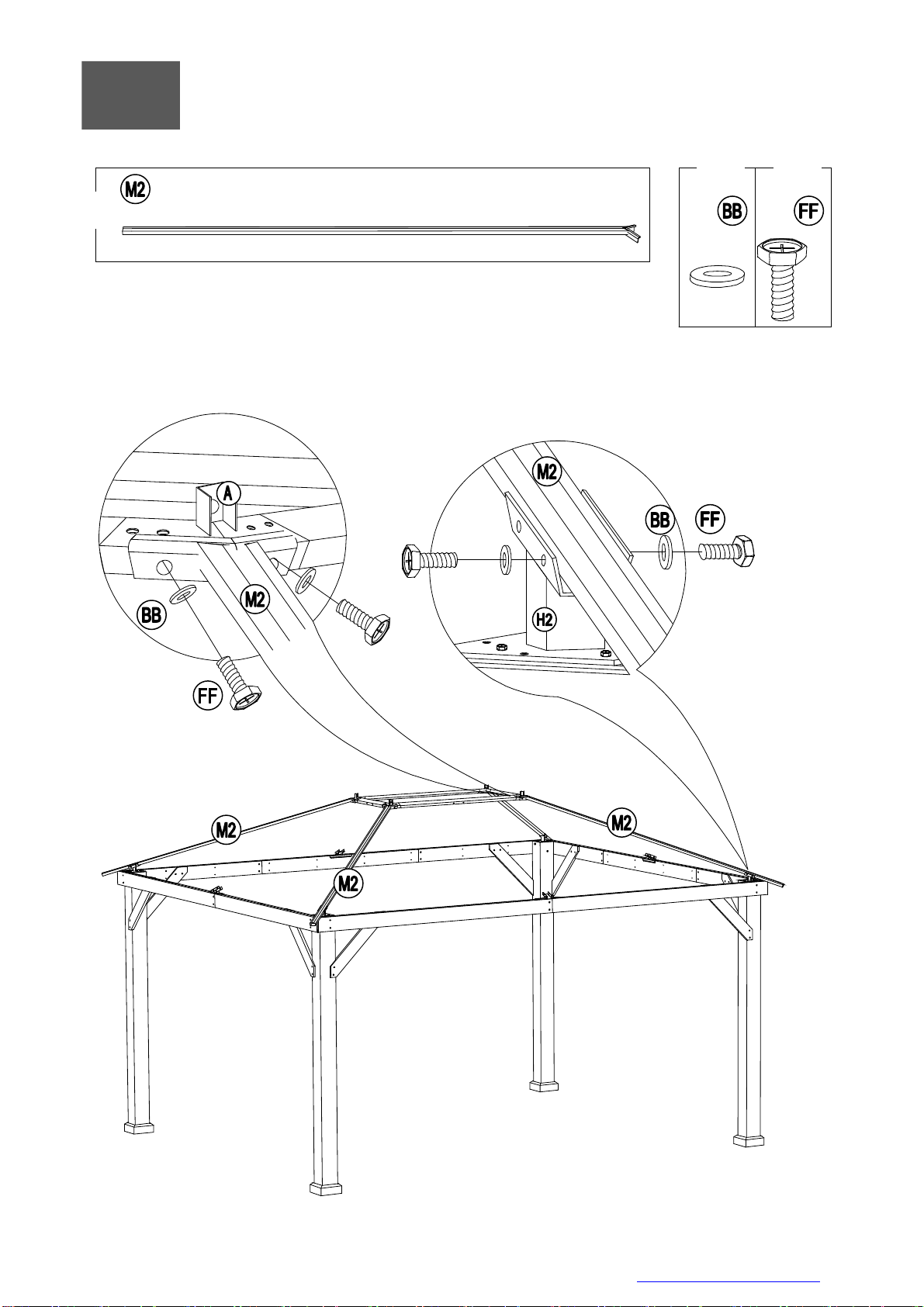

8
16X16X 32X
4X 4X
Rt∠90
Assembly Tip on Step 8:
Please measure to make sure the length of d1 is equal to d2
before moving to next step to ensure a square frame and best
results. Keep the beam at right angles to the post, the post
at right angles to the ground, and keep the beam horizontal.
d1=d2

19/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
Orvisitusatwww.sunjoyonline.com

9
4X
2X
16X16X
2X

20/36
CountryofOrigin:ChinaCall1(866)578‐6569forassistance.       
Orvisitusatwww.sunjoyonline.com


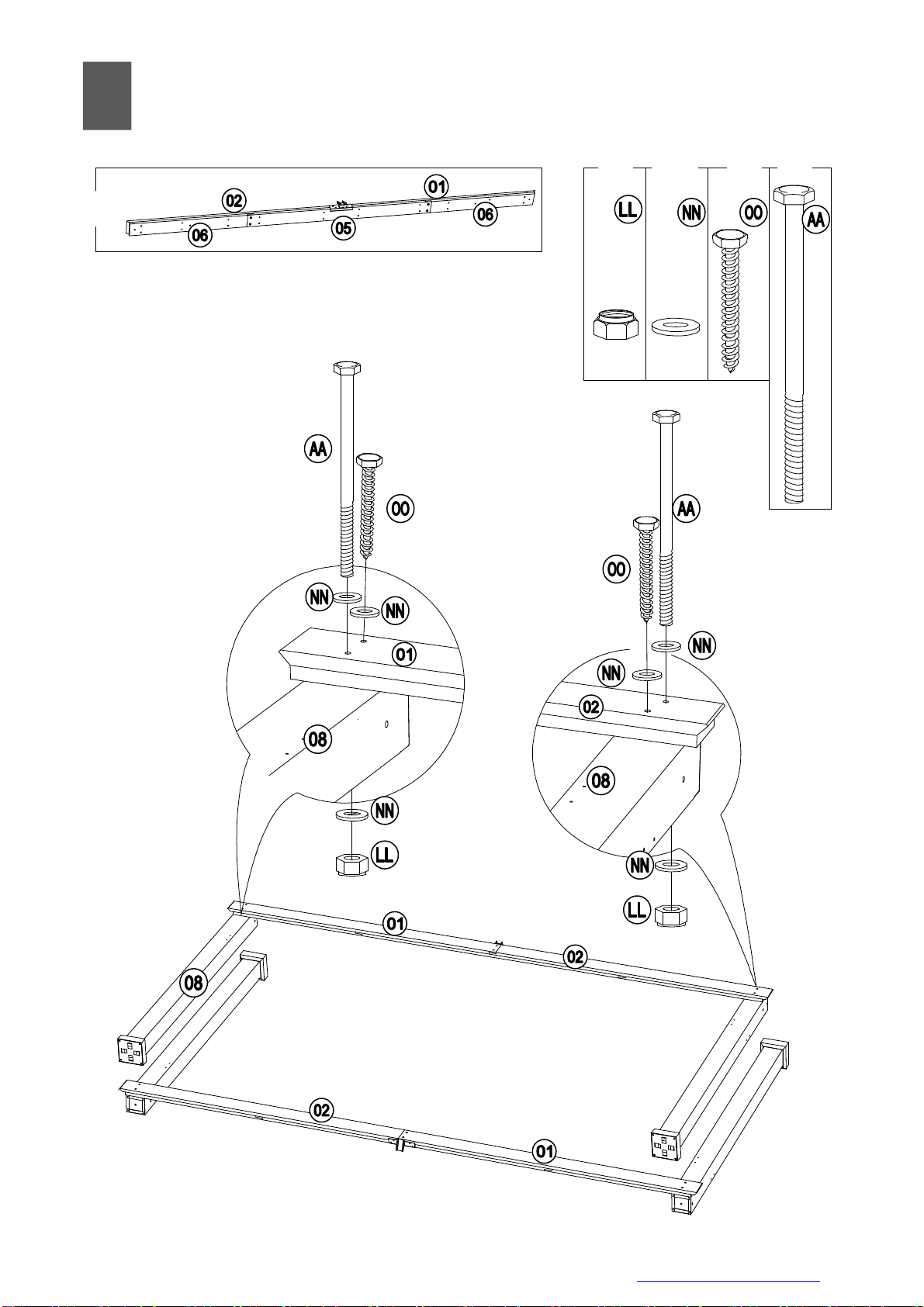

10
4X
16X16X
