HARDTOP GAZEBO

2
TABLE OF CONTENTS
Package Contents .............................................................................................................................. 3
Hardware Contents ............................................................................................................................ 5
Safety Information ............................................................................................................................. 6
Preparation .......................................................................................................................................... 6
Assembly Instructions ...................................................................................................................... 7
Care and Maintenance ...................................................................................................................... 17
Warranty .............................................................................................................................................. 17
Replacement Parts List...................................................................................................................... 18

3

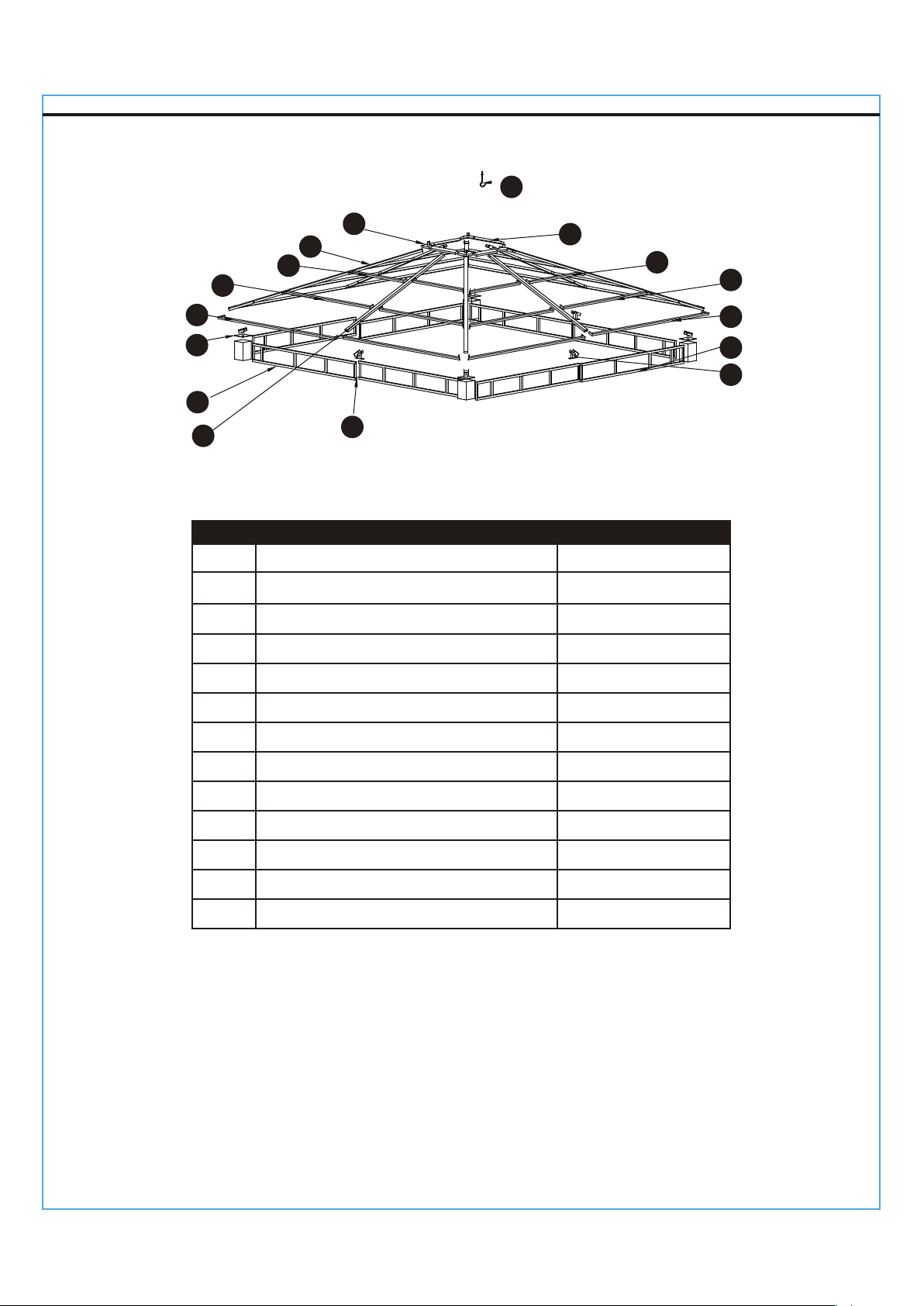

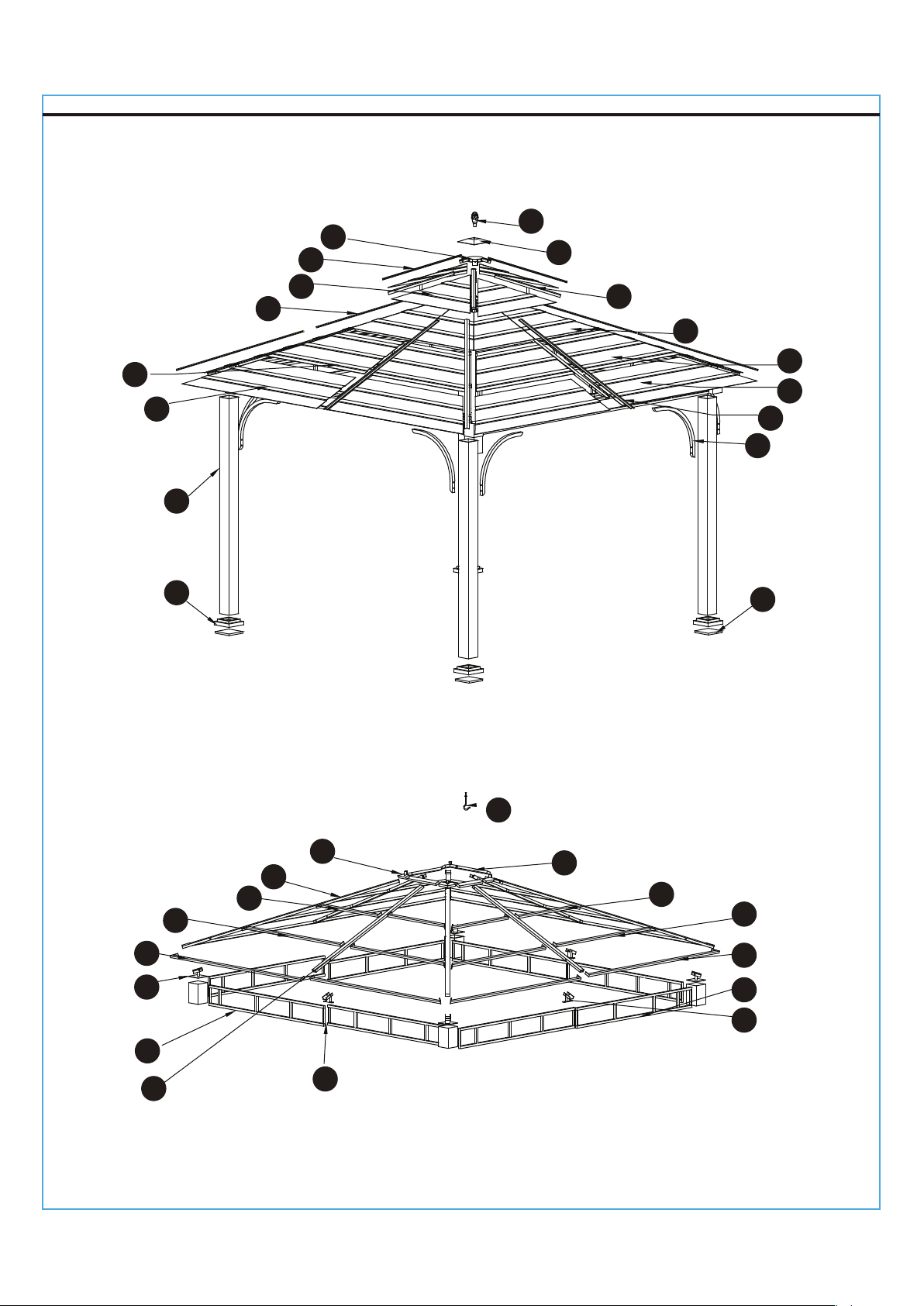

PACKAGE CONTENTS
K
I
N
L
O
M2
M4
Q
S
J
H
P
T
R
U
G2
V2
W2
X2
A2
D
G1
E
V1
W1
X1
C
B
A1
F
M1
M3
M5

4
PACKAGE CONTENTS
PART
A1
A2
B
C
D
E
F
G1
G2
H
I
J
K
L
M1
M2
M3
M4
M5
N
O
P
Q
R
S
T
U
V1
V2
W1
W2
X1
X2
4
4
4
4
4
4
4
4
4
4
1
1
1
4
4
4
4
4
4
4
4
4
4
4
4
8
1
4
4
4
4
4
4
Left Top Screen
Right Top Screen
Post Connector
Slanting Bar Connector
Beam Connector
Top Slanting Bar
Top Beam
Big Top Connector
Big Top Bar
Small Top Support Beam
Small Top Connector
Small Top Cover
Finial
Small Top Roof Panel
Big Roof Panel Cover 1
Big Roof Panel Cover 2
Big Roof Panel Cover 3
Big Roof Panel Cover 4
Big Roof Panel Cover 5
Small Top Roof Cover
Big Roof Panel Cover (Corner)
Big Roof Panel Cover (Middle)
Post
Base
Base Cover
Support Bar
Hook
Big Roof Top Beam (Short Side) 1
Big Roof Top Beam (Short Side) 2
Big Roof Top Beam (Middle Part) 1
Big Roof Top Beam (Middle Part) 2
Big Roof Top Beam (Long Side) 1
Big Roof Top Beam (Long Side) 2
DESCRIPTION QUANTITY

5

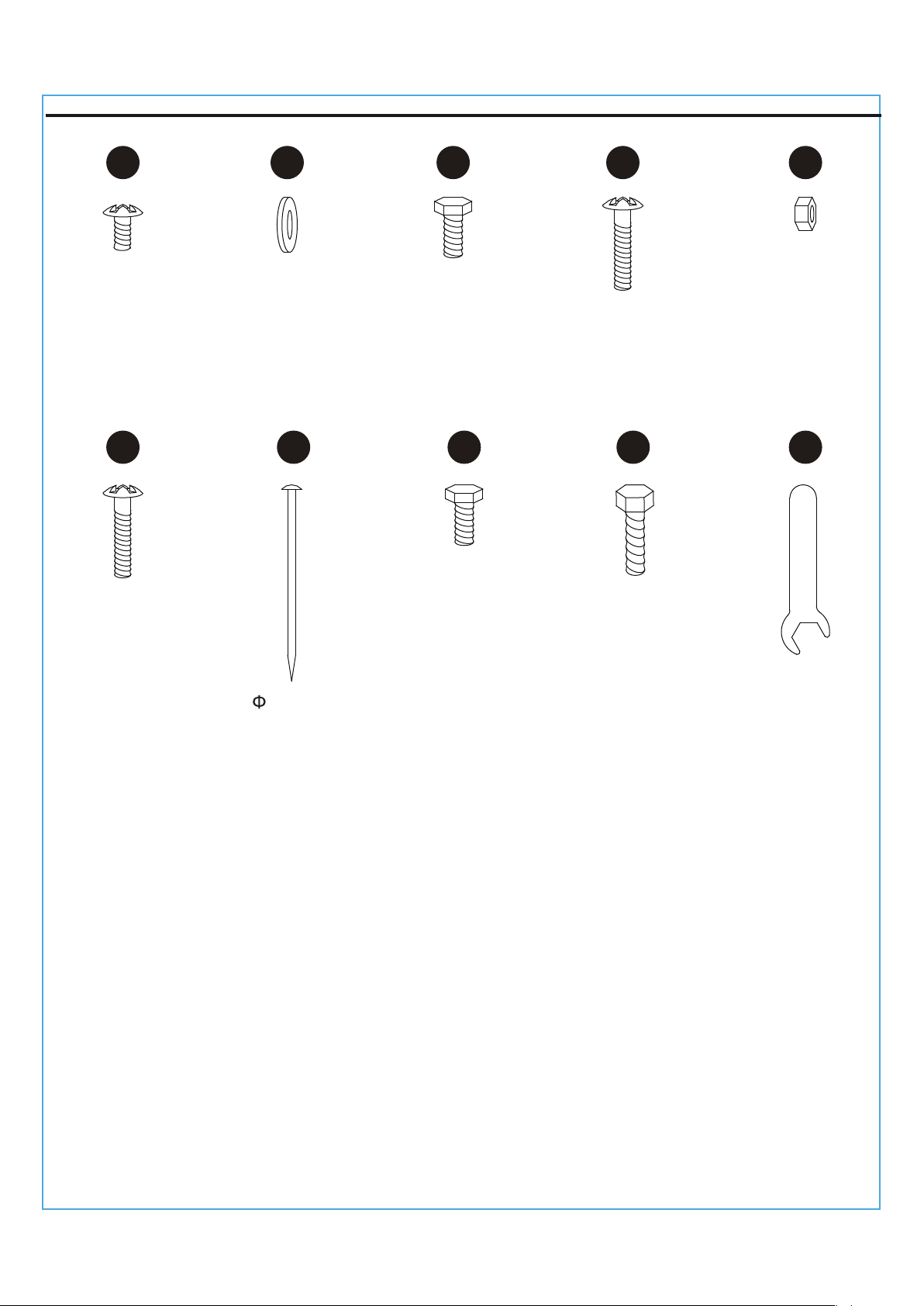

HARDWARE CONTENTS (shown actual size)
AA
Short Screw
M6 x 15 M6 x 25
M6 x 60
M6
M6
Qty. 108
BB
Flat Washer
Qty. 296
CC
Medium Bolt
Qty. 48
DD
Long Screw
Qty. 16
EE
M6 Nut
Qty. 16
FF
M6 x 35
Medium Screw
Qty. 24
HH
M6 x 15
Short Bolt
Qty. 52
I I
M6 x 40
Long Bolt
Qty. 32
JJ
Wrench
Qty. 2
GG
Stake
Qty. 16
8 x 260

6
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
WARNING
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 90 minutes.
Tools Required for Assembly: Wrench (included) and Phillips Screwdriver (not included).
PREPARATION
This product is intended for outdoor use only and should be placed on flat, horizontal ground.
Ensure enough clearance around the product.
Anchor the gazebo to the ground with stakes for added safety. Stakes are provided to secure
the gazebo in the ground. If you wish to secure the gazebo to a concrete and wood surfaces,
use anchors suited for these surfaces (anchors not included).
Do not assemble the gazebo on sandy, muddy or loose soil, as stakes do not have enough
CAUTION
Any assembly or maintenance of the product must be carried out by adults only.
anchorage in these types of soil.
Before assembling the product, find level ground no less than 6 ft. away from any structures
or obstructions, such as fences, garages, houses, overhanging branches, laundry lines,
or electrical wires.
Six or more people are recommended to safely assemble and/or move the product.
Some parts may contain sharp edges. Wear protective gloves if necessary.
Check all nuts and bolts periodically for tightness. When required, tighten them again.
Do not hang any weights on the roof frame.
Always keep children under close supervision when they are using or are around this product.
Never leave children unattended.
Hook maximum weight: 33 lbs.

7

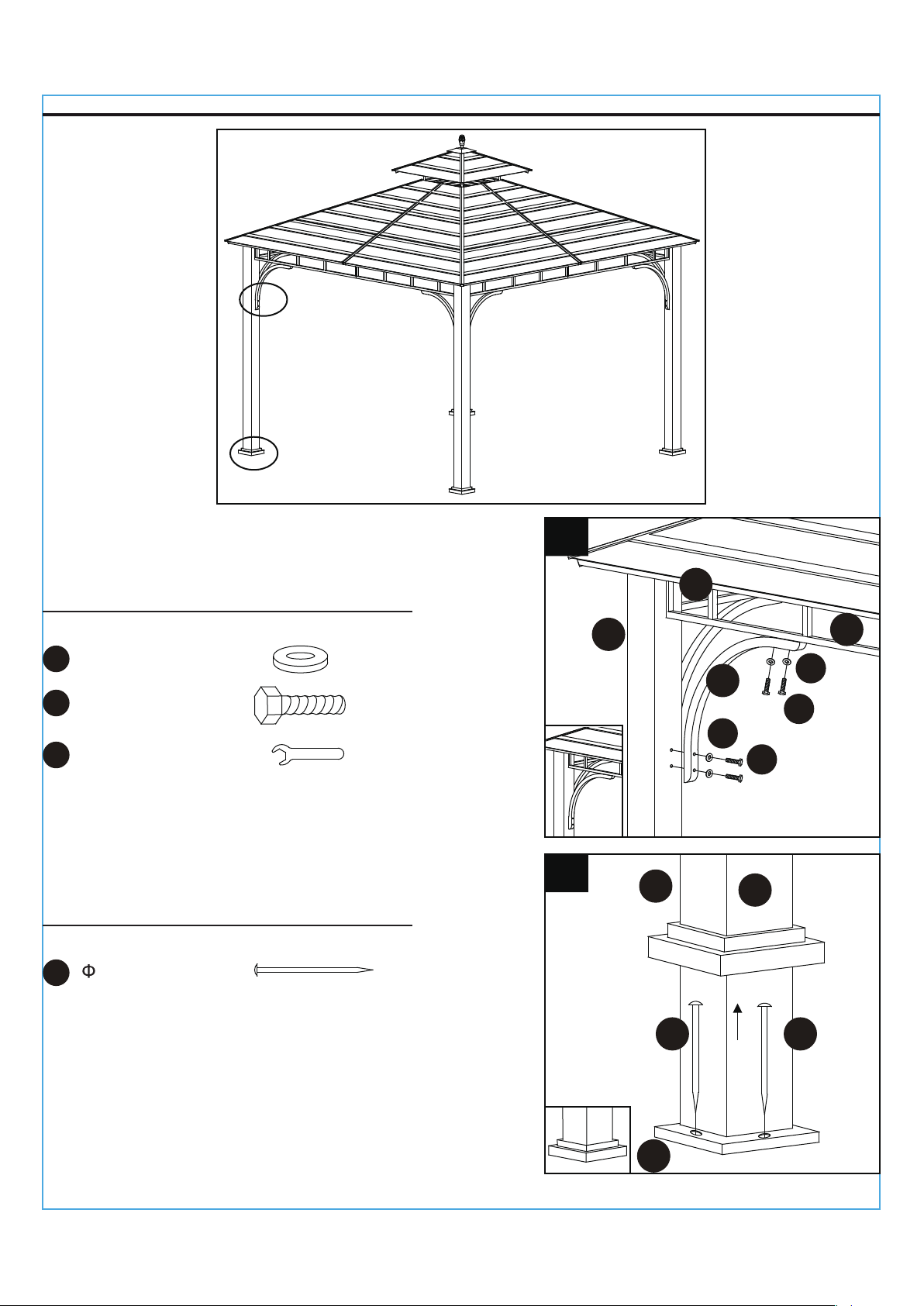

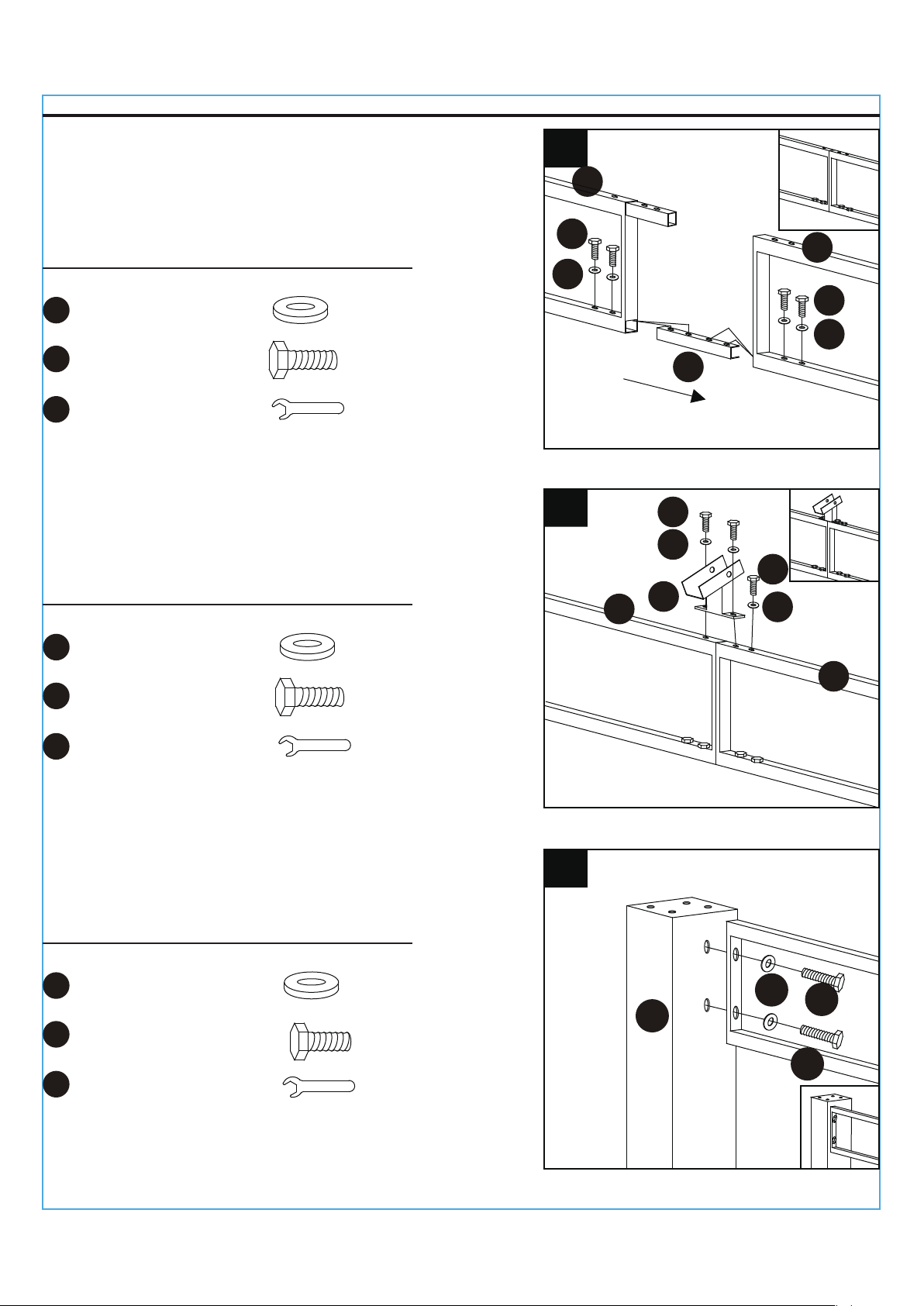

ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
1. Insert the posts (Q) into the base covers (S), and then
install the bases (R) to the bottoms of posts (Q) with medium
bolts (CC) and flat washers (BB). Tighten with wrench (JJ).
BB
CC
BB
CC
1
Q
S
R
Hardware Used
x 16
x 1
M6 x 25 Medium Bolt
CC
x 16
M6 Flat Washer
BB
M6 Wrench
JJ
Fig. 4
Fig. 3
Fig. 5
Fig. 8
Fig. 1
Fig. 6
Fig. 11
Fig. 10
Fig. 7 Fig. 9
Fig. 13
Fig. 12
Fig. 2

8

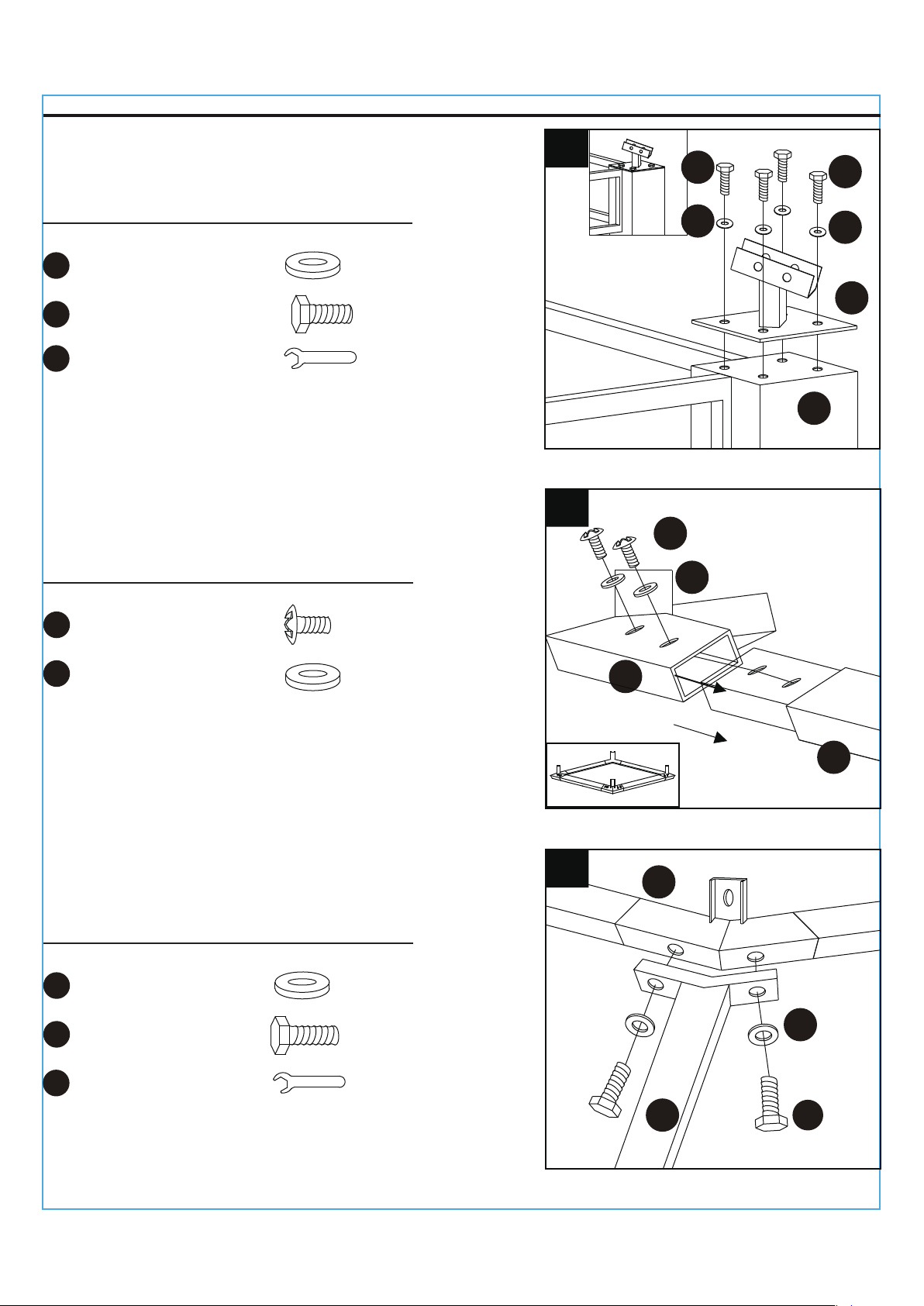

2. Insert the post connector (B) into left top screen (A1),
