Sunjoy L-DN522SAL-CT User manual

November 16 (实际生产日期) Made in China 1 / 3
ASSEMBLY INTRUCTION
ITEM#：L-DN522SAL-CT Coffee Table
Warning
Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should
always be followed to reduce the risk of personal injury and damage to the product. Please read all instructions
before assembly and use.
Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
Important: For technical assistance on assembly or replacement parts, please call Sunjoy Industries at 1(866) 578-6569
from 8:00 AM EST to 8:00 PM PST. You may email to [e-mail] or visit
www.sunjoyonline.com to place your order or fax your parts replacement order form (which is included in the
packaging) together with your purchase receipt to 1 [phone] for assistance.

November 16 (实际生产日期) Made in China 2 / 3
PARTS LIST
Label
Part Number
DESCRIPTION
QTY
A
DN0522XCT01
Table top
1
B
DN0522XCT02
Shelf
1
C
DN0522XCT03
Leg 1
2
D
DN0522XCT04
Leg 2
2
HARDWARE PACK
Label
Part Number
Description
QTY
Image of Part
H1
YM06015C
M6 x 15 bolt
12
H2
TD06C
M6 spring washer
12
H3
VD06C
M6 washer
12
H4
JM06010WJ2
Foot pad (preassembled)
4
H5
A04D
M6 wrench
1
ASSEMBLY STEPS
Step 1:
Attach Shelf (B) and Leg (C) with Bolt (H1), Spring
washer (H2) and Flat washer (H3).
Repeat the same step to Shelf (B) and Leg (D)
Do not tighten them at this step.

November 16 (实际生产日期) Made in China 3 / 3
Care & Maintenance:
Before using, clean the product completely with a soft dry towel.
When not in use, wipe free of any dirt or loose objects, wash with a mild solution of soap and water; rinse
thoroughly and dry completely. Do not use strong detergent or abrasive cleaners.
Steel components of garden accessories and furniture are treated with rust inhibiting paint. However, due to the
nature of steel, surface oxidation (rusting) will occur if this protective coating is scratched.
To minimize this condition, it is recommended that care be taken when assembling and handling the product, in
order to prevent the paint from being scratched.
Limited Warranty: The item is warranted to be free from defects in material or workmanship for a period of twelve
(12) months. However, we do not reimburse for transportation or delivery costs, nor compensate the individual or any
outside party for assembling or disassembling the product. This limited warranty is extended to the original purchaser
and applies to defects in materials and workmanship of your item, provided the item is maintained with care and used
only for personal residential purposes.
Exclusions
Items used for commercial, contract, or other non-residential purposes, or items damaged due to acts of nature,
vandalism, misuse, or improper assembly are not covered. Corrosion or rusting of hardware is not covered. Proof of
purchase (dated register receipt) is required for warranty claims. Warranty is to the original purchaser and is
non-transferable. Any replacement of warranted items will be in the original style and color or a similar style and color
if the original is unavailable or has been discontinued. As some states do not allow exclusions or limitations on an
implied warranty, the above exclusions and limitations may not apply. This warranty gives you specific rights, and you
may also have other rights, which vary from state to state.
Step 2
Put Table top (A) on the ground with the face
facing down. Attach it and the above assembled
legs with Bolt (H1), Spring washer (H2) and Flat
washer (H3). Tighten all bolts here.
Step3:
Turn over the table.
Now your coffee table is ready for use.

November 16 (实际生产日期) Made in China 1 / 4
ASSEMBLY INTRUCTION

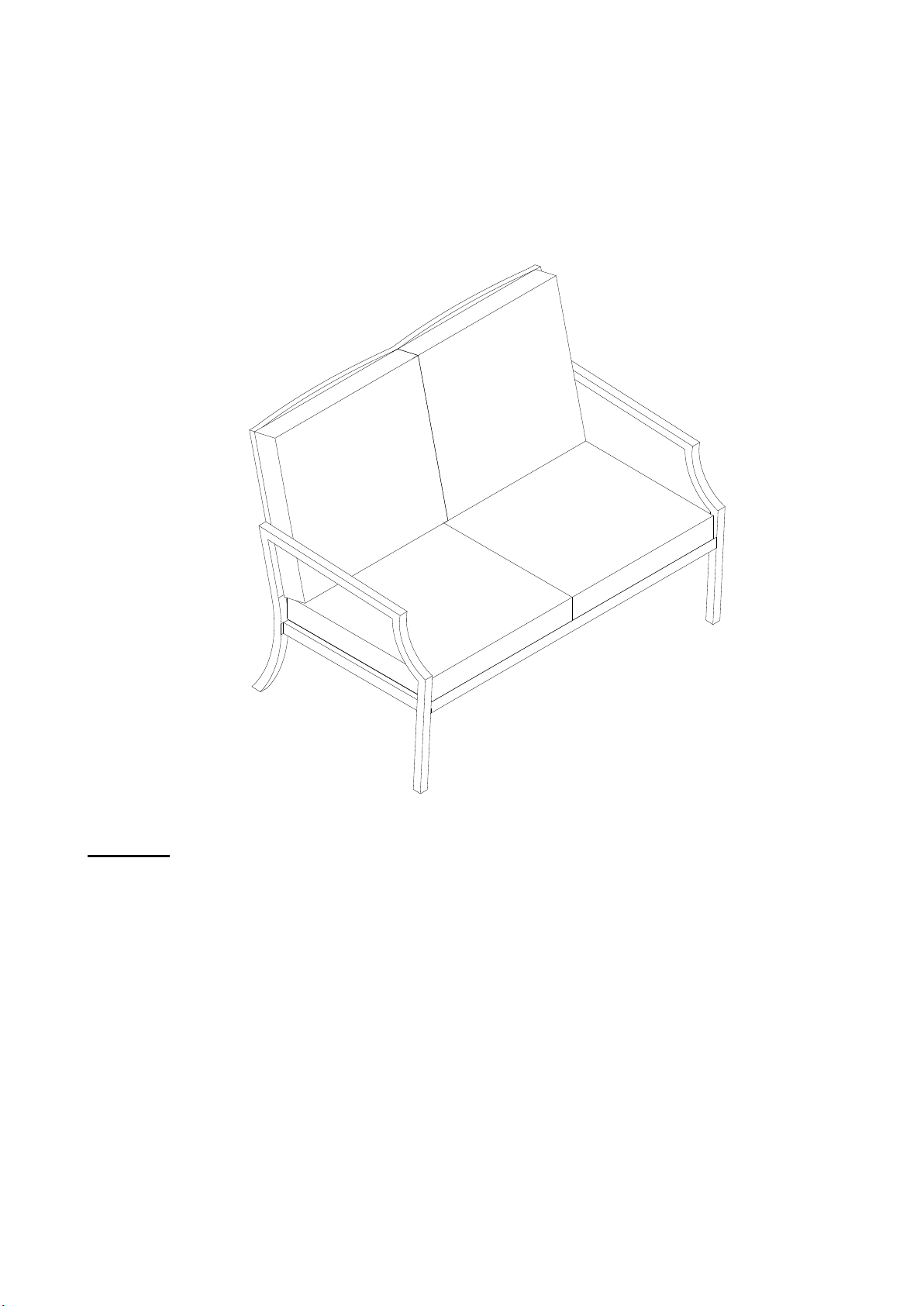

ITEM#：L-DN522SAL-A Loveseat
Warning
Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should
always be followed to reduce the risk of personal injury and damage to the product. Please read all instructions
before assembly and use.
Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
Important: For technical assistance on assembly or replacement parts, please call Sunjoy Industries at 1(866) 578-6569
from 8:00 AM EST to 8:00 PM PST. You may email to [e-mail] or visit
www.sunjoyonline.com to place your order or fax your parts replacement order form (which is included in the
packaging) together with your purchase receipt to 1 [phone] for assistance.

November 16 (实际生产日期) Made in China 2 / 4
PARTS LIST
Label
Part Number
DESCRIPTION
QTY
A
DN0522XXA01
Left armrest
1
B
DN0522XXA02
Right armrest
1
C
DN0522XXA03
Seat panel
1
D
DN0522XXA04
Chair back
1
E
DN0522XXA05
Seat cushion
2
F
DN0522XXA06
Back cushion
2
HARDWARE PACK
Label
Part Number
Description
QTY
Image of Part
H1
YM06035C
Bolt M6x35
10
H2
YM06060C
Bolt M6x60
3
H3
TD06C
Sprint washer M6
13
H4
VD06C
Washer M6
13
H5
A04D
Wrench M6
1
H6
QJ15W
Foot pad (preassembled)
4
ASSEMBLY STEPS
Step 1:
Attach Left armrest (A), Right armrest (B) to Seat
panel (C) by using Bolt (H1), Spring washer (H3)
and Flat washer (H4). Do not fully tighten at this
step.

November 16 (实际生产日期) Made in China 3 / 4
Step 2:
Insert the right pin on Chair back (D) into the hole
at Right armrest (B). (Fig.1);
Do the same step for Left armrest (A). (Fig.2).
Attach Chair back (D) and Seat panel (C) together
with Bolt (H2), Sprint washer (H3 and Flat washer
(H4). Tighten all bolts here.
Step 3:
Place Seat cushion (E), Back cushion (F) on the
assembled chair. Secure them to Chair with
Velcro at the cushions (Fig.1).
3
1
2
2
1

November 16 (实际生产日期) Made in China 4 / 4
Care & Maintenance:
Before using, clean the product completely with a soft dry towel.
When not in use, wipe free of any dirt or loose objects, wash with a mild solution of soap and water; rinse
thoroughly and dry completely. Do not use strong detergent or abrasive cleaners.
Steel components of garden accessories and furniture are treated with rust inhibiting paint. However, due to the
nature of steel, surface oxidation (rusting) will occur if this protective coating is scratched.
To minimize this condition, it is recommended that care be taken when assembling and handling the product, in
order to prevent the paint from being scratched.
Limited Warranty: The item is warranted to be free from defects in material or workmanship for a period of twelve
(12) months. However, we do not reimburse for transportation or delivery costs, nor compensate the individual or any
outside party for assembling or disassembling the product. This limited warranty is extended to the original purchaser
and applies to defects in materials and workmanship of your item, provided the item is maintained with care and used
only for personal residential purposes.
Exclusions
Items used for commercial, contract, or other non-residential purposes, or items damaged due to acts of nature,
vandalism, misuse, or improper assembly are not covered. Corrosion or rusting of hardware is not covered. Proof of
purchase (dated register receipt) is required for warranty claims. Warranty is to the original purchaser and is
non-transferable. Any replacement of warranted items will be in the original style and color or a similar style and color
if the original is unavailable or has been discontinued. As some states do not allow exclusions or limitations on an
implied warranty, the above exclusions and limitations may not apply. This warranty gives you specific rights, and you
may also have other rights, which vary from state to state.

November 16 (实际生产日期) Made in China 1 / 5
ASSEMBLY INTRUCTION
ITEM#：L-DN552SAL-A Motion chair
Warning
Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should
always be followed to reduce the risk of personal injury and damage to the product. Please read all instructions
before assembly and use.
Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
Important: For technical assistance on assembly or replacement parts, please call Sunjoy Industries at 1(866) 578-6569
from 8:00 AM EST to 8:00 PM PST. You may email to [e-mail] or visit
www.sunjoyonline.com to place your order or fax your parts replacement order form (which is included in the
packaging) together with your purchase receipt to 1 [phone] for assistance.

November 16 (实际生产日期) Made in China 2 / 5
PARTS LIST
Label
Part Number
DESCRIPTION
QTY
A
DN0522XXA07
Left armrest
1
B
DN0522XXA08
Right armrest
1
C
DN0522XXA09
Seat panel
1
D
DN0522XXA10
Back frame
1
E
DN0522XXA11
Middle bar
1
F
DN0522XXA12
Rear bar
1
G
DN0522XXA13
Seat cushion
1
H
DN0522XXA14
Back cushion
1
I
DN0522XXA15
Connector
2
HARDWARE PACK
Label
Part Number
Description
QTY
Image of Part
H1
YM06020C
Bolt M6x20
8
H2
YM06030C
Bolt M6x30
4
H3
TD06C
Spring washer M6
22
H4
VD06C
Washer M6
22
H5
BM08035C
Bolt M8x35 (2 preassmbled)
4
H6
BM08040C
Bolt M8x40 (2 preassmbled)
4
H7
VD08C
Flat washer M8(4 preassmbled)
8
H8
TD08C
Spring washer M8 (4 preassmbled)
8
H9
LM08C
Nut M8 (4pcs preassmbled)
8
H10
DP5025C
Iron piece M8 (4 preassmbled)
8
H11
QJ15W
Food pad (preassmbled)
4
H12
A04D
Allen Key M6
1
H13
W13D
Wrench M8
2
H14
TH12050C
Fiber board (preassmbled)
2
H15
YM06015C
Bolt M6x15
10

November 16 (实际生产日期) Made in China 3 / 5
ASSEMBLY STEPS
Step 1:
Inset Connector (I) into Back panel (D) and secure
them with Bolt (H15), Spring washer (H3) and Flat
washer (H4), do not tighten them at this step. Repeat
the same step to the other side.
Step 2:
Inset the other end of Connector (I) into Seat panel
(C) and secure them with Bolt (H15), Spring
washer (H3) and Flat washer (H4), do not tighten
them at this step.
Secure Chair back (D) and Seat panel (C) with Bolt
(H2), Spring washer (H3) and Flat washer (H4).
Tighten all bolts here.
Step 3:
Attach Rear bar (F) to Left armrest (B) with Bolt (H15),
Spring washer (H3) and Flat washer (H4), do not over
tighten. Repeat the same step to Rear bar (F) and Right
armrest (A), do not over tighten.
1
2

November 16 (实际生产日期) Made in China 4 / 5
Step 4:
Attach Middle bar (E) to Left armrest (A) with Bolt
(H1), Spring washer (H3) and Flat washer (H4).
Repeat the same step to Middle bar (E).
Tighten all bolts here.
Step 5:
Place the assembled chair seat/back on the assembled chair
base and secure them with Bolt (H6), Flat washer (H7),
Spring washer (H8), Nut (H9) and Iron piece (H10). See
Fig.1). Repeat the same step to the other location with Bolt
(H5), Flat washer (H7), Spring washer (H8), Nut (H9) and
Iron piece (H10). See Fig.2).
Tighten all bolts here.
Step 6:
Place Seat cushion (G), Back cushion (H) on
the assembled chair. Secure them to Chair
with Velcro at the cushions.
1
2

November 16 (实际生产日期) Made in China 5 / 5
Care & Maintenance:
Before using, clean the product completely with a soft dry towel.
When not in use, wipe free of any dirt or loose objects, wash with a mild solution of soap and water; rinse
thoroughly and dry completely. Do not use strong detergent or abrasive cleaners.
Steel components of garden accessories and furniture are treated with rust inhibiting paint. However, due to the
nature of steel, surface oxidation (rusting) will occur if this protective coating is scratched.
To minimize this condition, it is recommended that care be taken when assembling and handling the product, in
order to prevent the paint from being scratched.
Limited Warranty: The item is warranted to be free from defects in material or workmanship for a period of twelve
(12) months. However, we do not reimburse for transportation or delivery costs, nor compensate the individual or any
outside party for assembling or disassembling the product. This limited warranty is extended to the original purchaser
and applies to defects in materials and workmanship of your item, provided the item is maintained with care and used
only for personal residential purposes.
Exclusions
Items used for commercial, contract, or other non-residential purposes, or items damaged due to acts of nature,
vandalism, misuse, or improper assembly are not covered. Corrosion or rusting of hardware is not covered. Proof of
purchase (dated register receipt) is required for warranty claims. Warranty is to the original purchaser and is
non-transferable. Any replacement of warranted items will be in the original style and color or a similar style and color
if the original is unavailable or has been discontinued. As some states do not allow exclusions or limitations on an
implied warranty, the above exclusions and limitations may not apply. This warranty gives you specific rights, and you
may also have other rights, which vary from state to state.
