Sunjoy A106008400 User manual

Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
Item/Article #：A106008400
WE HAVE YOU IN MIND, LET US SERVE YOU!
Nous pensons en vous, laissez nous vous aider!
Questions? Issues?/ Questions? Problèmes?
CONTACT US / Contactez-nous
[e-mail]
www.sunjoyonline.com

2/ 48
Country of Origin: China
Pais d’origine: Chine
This product is intended for domestic outdoor use only.
The product should be placed on flat, horizontal ground.
Ensure enough clearance around the product. Before assembling the product, find level
ground not less than 6' (1.8 m) away from any structures or obstructions, such as fences,
garages, houses, overhanging branches, laundry lines, or electrical wires.
This gazebo is not to be regarded as part of a building/house structure. The gazebo is to be
anchored onto the ground for added safety. Do not assemble the gazebo onto soil/earth
ground. It is best advisable to have the gazebo built onto a wooden deck or concrete ground
for stability. If it is to be build onto a wooden deck/ground, do ensure that the wooden
deck/ground has a strong foundation. It is advisable to use appropriate floor plugs (not
provided) to anchor the gazebo onto the wooden/concrete ground.
Some structures may require two or more people to install safely. Check for underground
utilities before digging or driving stakes into the ground.
During installation, follow all safety warnings provided with your tools, and use safety glasses.
In case you set up more than one gazebo, keep a minimum distance of 10' (3 m) between the
gazebos.
Any assembly or maintenance of the product must be carried out by adults only.
Arrange necessary manpower when assembling or moving the product.
Some parts may contain sharp edges. Wear protective gloves if necessary.
Keep children and pets away while setting up the gazebo.
Check all nuts and bolts periodically to ensure bolts/nuts are tightened.
Repairing and replacing parts should be done by a qualified technician.
This gazebo is intended for decorative and sunshade purposes only, and it is not designed to
withstand harsh weather, including high winds, rain, and snow.
Do not light any fires inside or near the product！
Stay calm if fire breaks out. Search for the nearest exit. Do not return to the gazebo before
firemen allow you to do so.
Do not hang heavy weights on the roof frame.
Do not climb onto the roof of the gazebo. Falling off the gazebo can result in serious injury.
Retain the original packaging to store the gazebo.
Important Safety Instructions
Warning! To reduce the risk of serious injury, read the following safety instructions
before assembling and using the gazebo.
Please check with your local governing authority/local municipal codes regarding
installation of structures before assembly.
Caution!
Proper placement of your gazebo is essential.
Do not place the product underneath electrical lines.
Keep children away during assembly.
This product contains small parts which can be swallowed by children.
Keep fingers away from the places where they can be pinched or trapped.
Do not attempt to assemble the gazebo if any parts are missing.

•
•
•



•





•

•

•

•
•
•
•
•

•
•

•
•

•
•

•
Consignes de sécurité importantes
ATTENTION! 





Avertissement!



Country of Origin: China
Pais d’origine: Chine
3 / 48

4/ 48
Country of Origin: China
Pais d’origine: Chine
•Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure all parts are present. Compare parts with packaging
contents list.
•When assembling wooden parts, do not overtorque the bolts to avoid splitting the wood.
See image illustration.
•Place all parts from the box in a cleared area and position them on the floor in front of you.
•Remove all packing materials and place them back into the box. Do not dispose of the
packing materials until assembly is complete.
•Read each step carefully before beginning any assembly and make sure you understand each
step. If you are missing a part, please email [email protected]om.
•Needed for assembly:（The following tools are not included）
IMPORTANT:
Cordless drill
Hammer
Screwdriver
Ladder
4 people

5/ 48
IMPORTANT:
•

•
•

•
Si vous découvrez un défaut,veuillez envoyer un e-mail à
[email protected] pour obtenir de l'aide.
•





Utilisez un niveau


Véfifiez avec un équerre


Serrer les boulons Mesurer la distance




   4personnes
Country of Origin: China
Pais d’origine: Chine

6/ 48
Country of Origin: China
Pais d’origine: Chine
EXPLODED DRAWING

7/ 48
Country of Origin: China
Pais d’origine: Chine

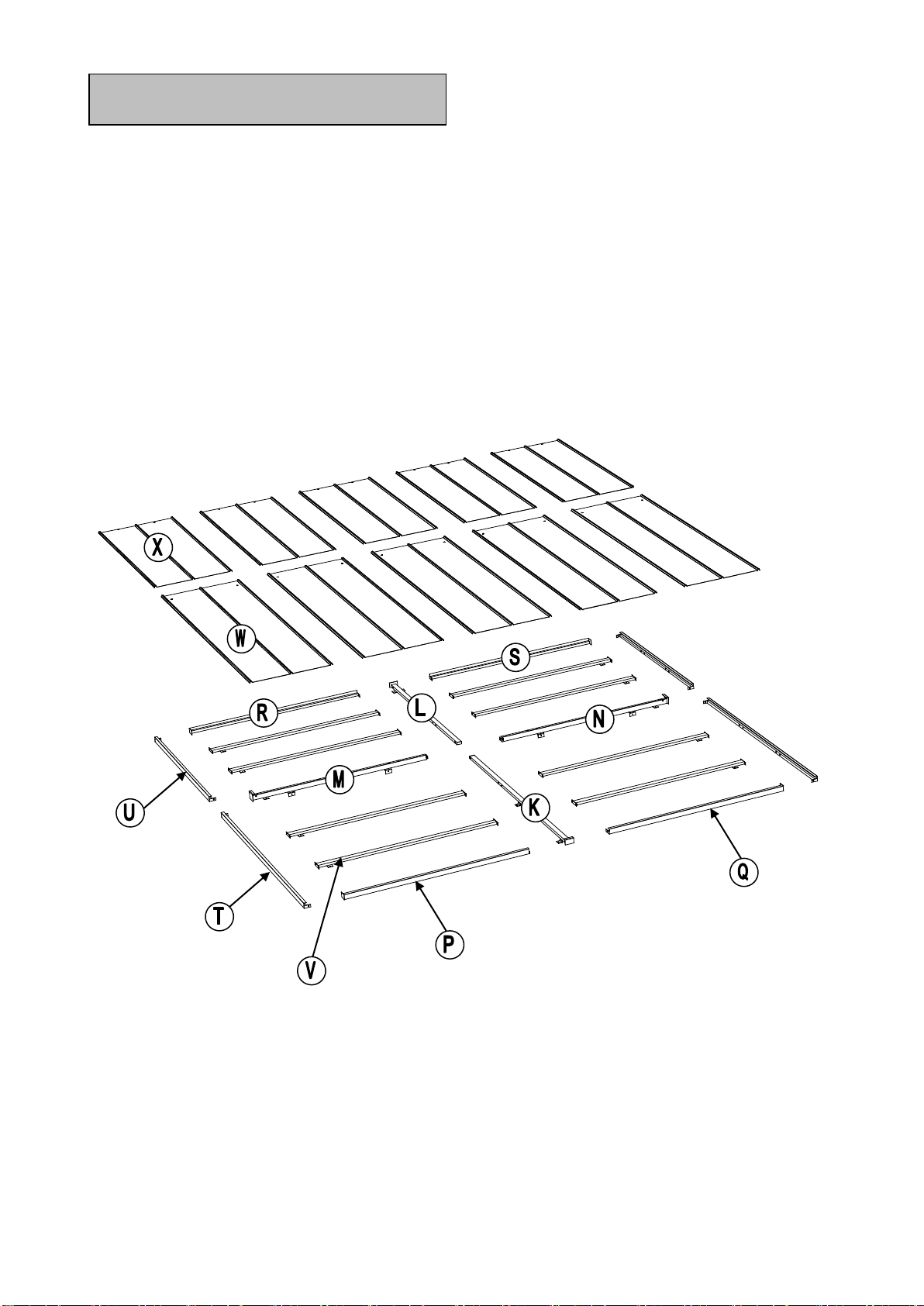

EXPLODED DRAWING

8/ 48
Country of Origin: China
Pais d’origine: Chine

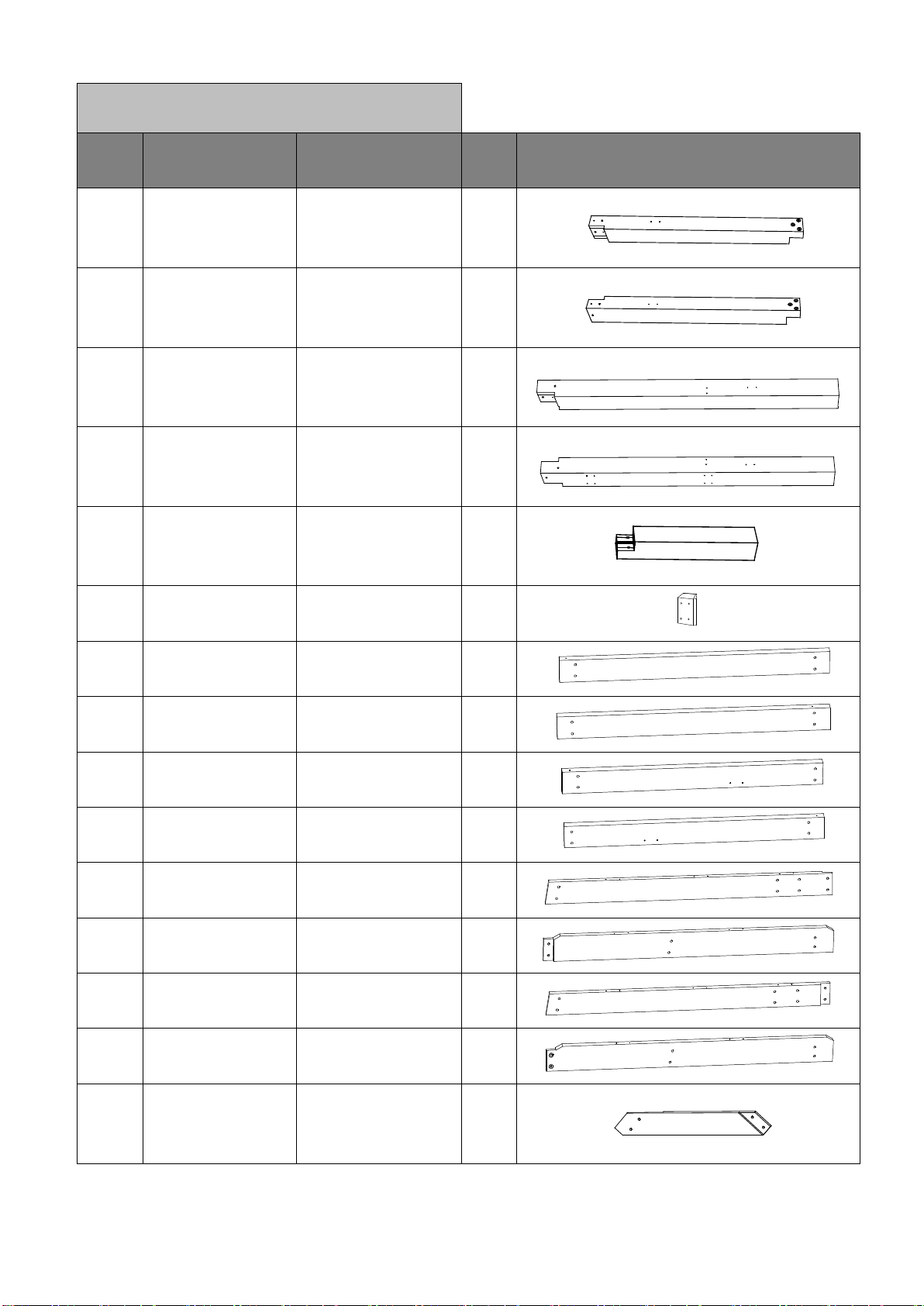

Parts List
Label Part Number Description Qty Part Image
01 P00020067001 Post 1 1
02 P00020067101 Post 2 1
03 P00020067201 Post 3 1
04 P00020067301 Post 4 1
05 P00020067401 Post 5 2
06 P00610018501 Base Cover 16
27 P00040139001 Back Cross Beam 1 1
28 P00040139101 Back Cross Beam 2 1
29 P00040139201
Front Cross Beam
(Middle) 1 1
30 P00040139301
Front Cross Beam
(Middle) 2 1
31 P00040139401 Long Cross Beam 4 1
32 P00040139501 Long Cross Beam 1 1
33 P00040139601 Long Cross Beam 3 1
34 P00040139701 Long Cross Beam 2 1
15 P00500061701 Brace 1 1

9/ 48
Country of Origin: China
Pais d’origine: Chine

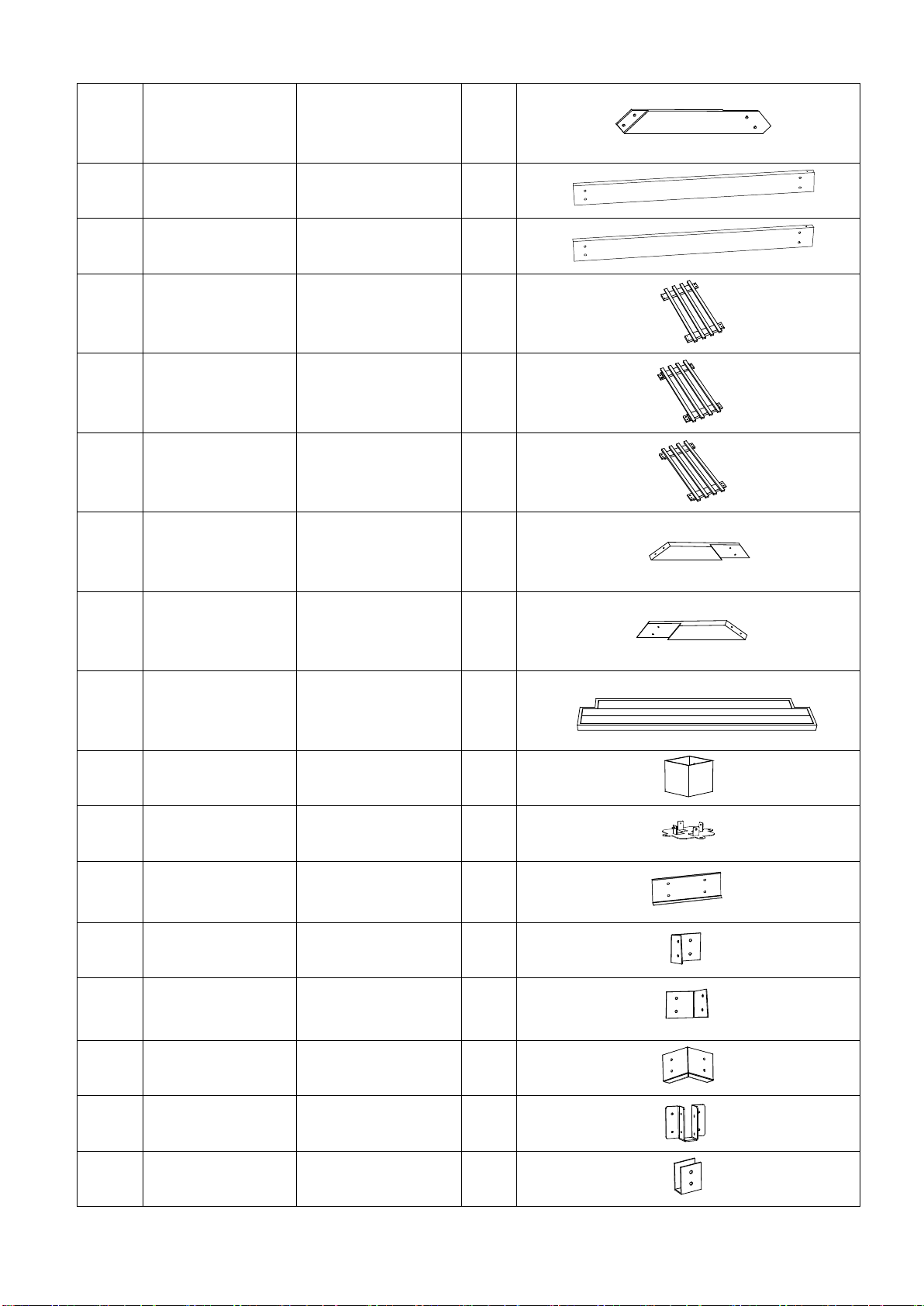

16 P00500061801 Brace 2 1
35 P00040139801
Middle Wood Cross
Beam 2
36 P00040139901 Front Cross Beam 2
21 P00630012401 Screen 1 2
22 P00630012501 Screen 2 2
23 P00630012601 Screen 3 1
24 P00500063801 Table Top Brace 1 2
25 P00500063901 Table Top Brace 2 2
26 P00210050701 Table Top 2
A P00220035601 Post Cap 2
B P00010013501 Post Base 4
C P00220039801 U Shape Hoop 1 4
D P00220035101
L-Shape Press Piece
1 1
E P00220035201 L-Shape Press Piece
2 1
F P00220035301
L-Shape Press Piece
3 2
G P00220035501 Screen Cap 2 4
J P00220035401 Screen Cap 1 8

10 / 48
Country of Origin: China
Pais d’origine: Chine

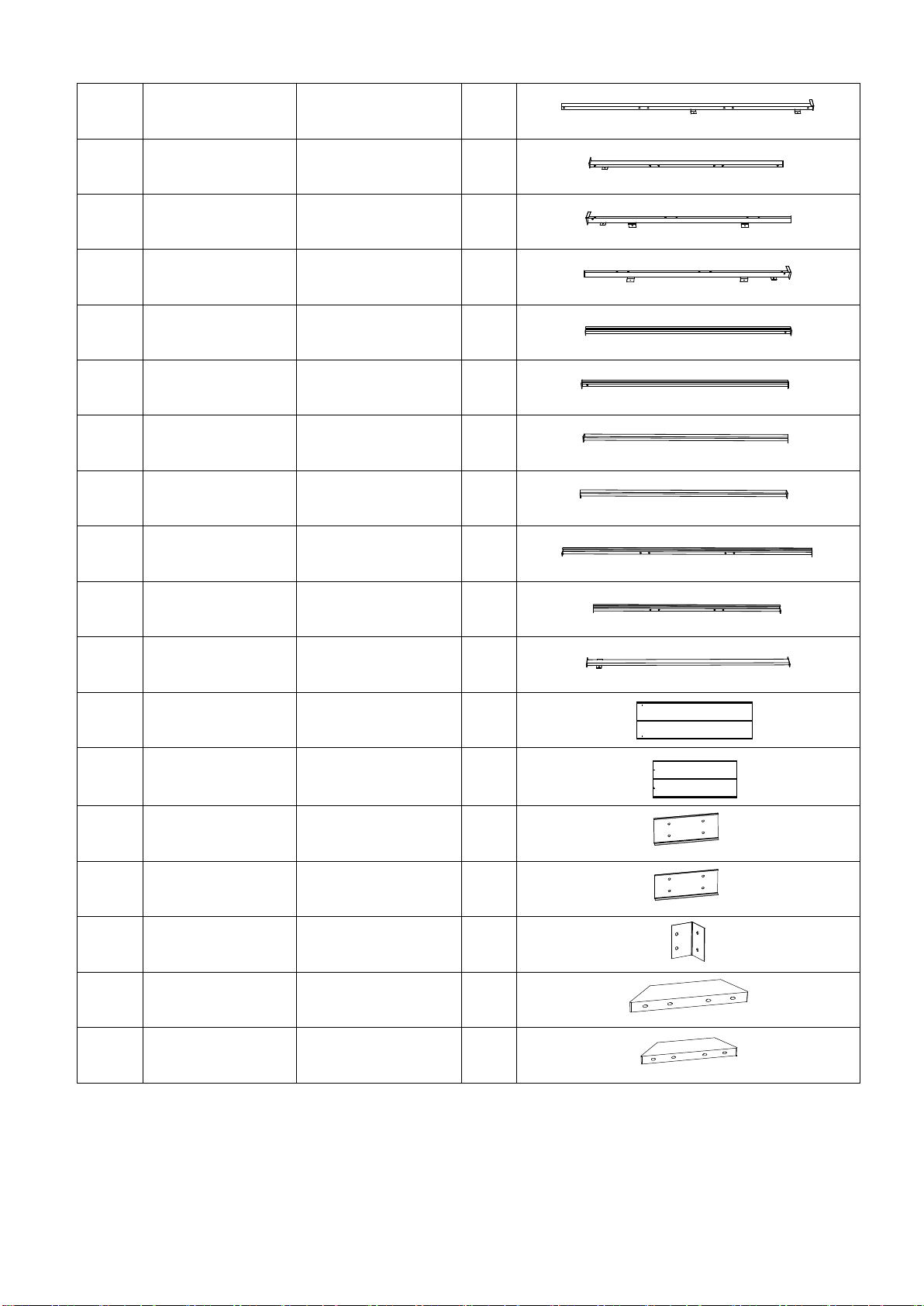

K P00060217701
Upper Middle
Cross Beam 1 1
L P00060217801
Upper Middle
Cross Beam 2 1
M P00040128501
Middle Cross Beam
2 1
N P00040128601
Middle Cross Beam
3 1
P P00060217501
Upper Panel
Flashing 1 1
Q P00060217601
Upper Panel
Flashing 2 1
R P00060217901
Lower Panel
Flashing 1 1
S P00060218001
Lower Panel
Flashing 2 1
T P00060217301
Side Panel Flashing
1 2
U P00060217401
Side Panel Flashing
2 2
V P00040128401
Middle Cross Beam
1 8
W P00080036801 Top Cap 1 5
X P00080036901 Top Cap 2 5
Y P00220039901 U Shape Hoop 2 2
AA P00220040001 U Shape Hoop 3 2
AB P00220040201 L Shape Hoop 4
37 P00500067401 Brace 3 4
38 P00500067501 Brace 4 2

11/ 48
Country of Origin: China
Pais d’origine: Chine
Liste des pièces
Étiqueter Numéro de la pièce Description Quantité DIAGRAMME DE LA PIÈCE
01 P00020067001 Poteau 1 1
02 P00020067101 Poteau2 1
03 P00020067201 Poteau 3 1
04 P00020067301 Poteau 4 1
05 P00020067401 Poteau 5 2
06 P00610018501 Barde de la base 16
27 P00040139001 Traverse arrière 1 1
28 P00040139101 Traverse arrière 2 1
29 P00040139201 Traverse avant
(Milieu ) 1 1
30 P00040139301 Traverse avant
(Milieu ) 2 1
31 P00040139401 Longue poutre
transversale 4 1
32 P00040139501 Longue poutre
transversale 1 1
33 P00040139601 Longue poutre
transversale 3 1
34 P00040139701 Longue poutre
transversale 2 1
15 P00500061701 Barre de Renfort 1 1

12/ 48
Country of Origin: China
Pais d’origine: Chine
16 P00500061801 Barre de Renfort 2 1
35 P00040139801 Poutre transversale
en bois moyen 2
36 P00040139901 Traverse avant 2
21 P00630012401 Façade 1 2
22 P00630012501 Façade 2 2
23 P00630012601 Façade 3 1
24 P00500063801 Support de table 1 2
25 P00500063901 Support de table 2 2
26 P00210050701 Dessus de la table 2
A P00220035601 Pommeau du Poteau 2
B P00010013501 Base du Poteau 4
C P00220039801 Uforme cerceau 1 4
D P00220035101 L-Pièce de presse
de forme 11
E P00220035201 L-Pièce de presse
de forme 21
F P00220035301 L-Pièce de presse
de forme32
G P00220035501 Capture de écran 2 4
J P00220035401 Capture de écran 1 8

13 / 48
Country of Origin: China
Pais d’origine: Chine
K P00060217701 Poutre transversale
moyenne supérieure 1 1
L P00060217801 Poutre transversale
moyenne supérieure 2 1
M P00040128501 Traverse Centrale
2 1
N P00040128601 Traverse centrale
3 1
P P00060217501 Panneau supérieur
Clignotant 1 1
Q P00060217601 Panneau supérieur
Clignotant 2 1
R P00060217901 Panneau inférieur
Clignotant 1 1
S P00060218001 Panneau inférieur
Clignotant 2 1
T P00060217301 Solin du Panneau
Latéral 1 2
U P00060217401 Solin du Panneau
Latéral 2 2
V P00040128401 Traverse Centrale
1 8
W P00080036801 Capuchon supérieur 1 5
X P00080036901 Capuchon supérieur 2 5
Y P00220039901 Uforme cerceau 2 2
AA P00220040001 Uforme cerceau 3 2
AB P00220040201 Lforme cerceau 4
37 P00500067401 Barre de Renfort 3 4
38 P00500067501 Barre de Renfort 4 2

14 / 48
Country of Origin: China
Pais d’origine: Chine

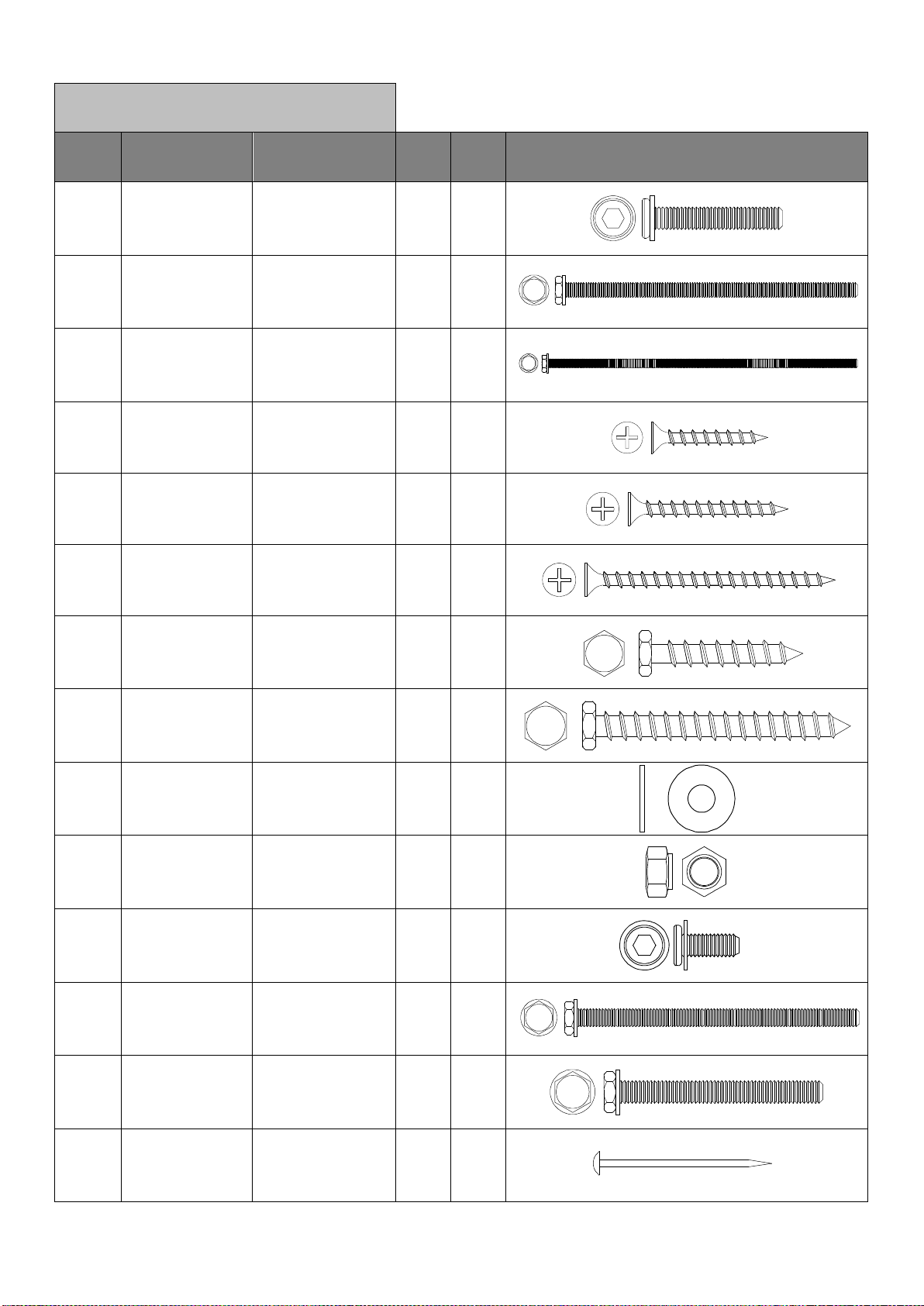

Hardware Pack
Label Part Number Description Qty Add Part Image
H1 H100010055 Bolt M8*35 20 1
H2 H100010135 Bolt M8*160 6 1
H3 H100010133 Bolt M8*190 2 1
H4 H030050008 Screw ST 4.2*19 86 5
H5 H030050122 Screw ST 4.2*40 64 4
H6 H030050128 Screw ST 4.2*60 40 2
H8 H030010129 Screw ST8*40 16 1
H9 H030010124 Screw ST8*80 8 1
H11 H050080007 Flat Washer M8 68 4
H12 H040050041 Hex Nut M8 44 3
H13 H100040002 Bolt M6*15 68 4
H14 H100010140 Bolt M8*125 6 1
H15 H100010134 Bolt M8*5036 2
HS H070010001 Stake Φ8*180 16 0

15/ 48
Country of Origin: China
Pais d’origine: Chine

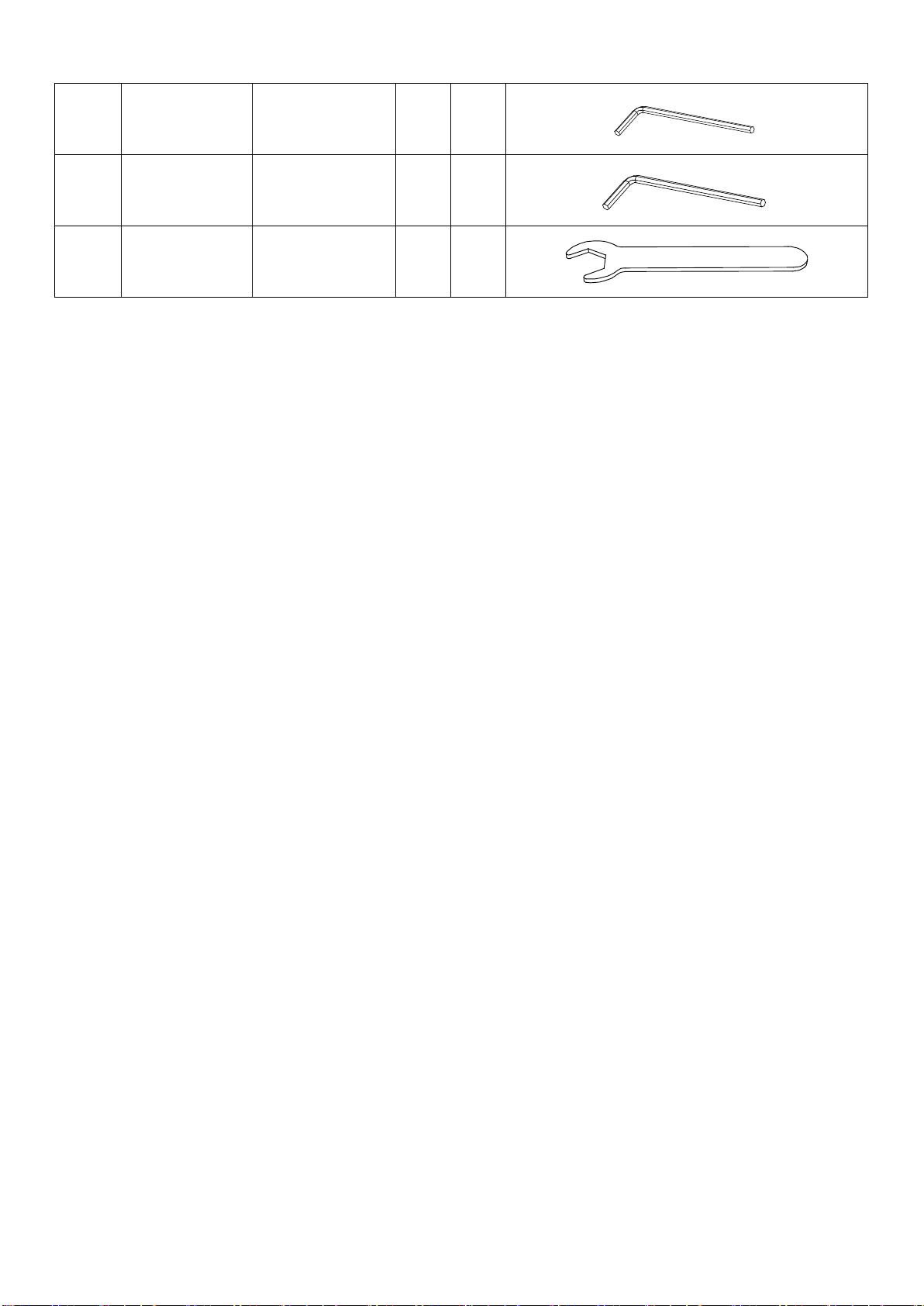

HW1 H090030002 Allen Key M61 0
HW2 H090030005 Allen Key M81 0
HW3 H090010012 Wrench M8 2 0

16 / 48
Country of Origin: China
Pais d’origine: Chine
Sachet de Quincaillerie
Étiquette Numéro de la pièce Description Quantité Add DIAGRAMME DE LA PIÈCE
H1 H100010055 Boulon M8*35 20 1
H2 H100010135 Boulon M8*160 6 1
H3 H100010133 Boulon M8*190 2 1
H4 H030050008 Visse ST 4.2*19 86 5
H5 H030050122 Visse ST 4.2*40 64 4
H6 H030050128 Visse ST 4.2*60 40 2
H8 H030010129 Visse ST8*40 16 1
H9 H030010124 Visse ST8*80 8 1
H11 H050080007 Rondelle plate M8 68 4
H12 H040050041 Écrou Hexagonal M8 44 3
H13 H100040002 Bolt M6*15 68 4
H14 H100010140 Boulon M8*125 6 1
H15 H100010134 Boulon M8*5036 2
HS H070010001 Piquet Φ8*180 16 0

17/ 48
Country of Origin: China
Pais d’origine: Chine
HW1 H090030002 Clé Allen M61 0
HW2 H090030005 Clé Allen M81 0
HW3 H090010012 Clé M8 2 0

18/ 48
Country of Origin: China
Pais d’origine: Chine

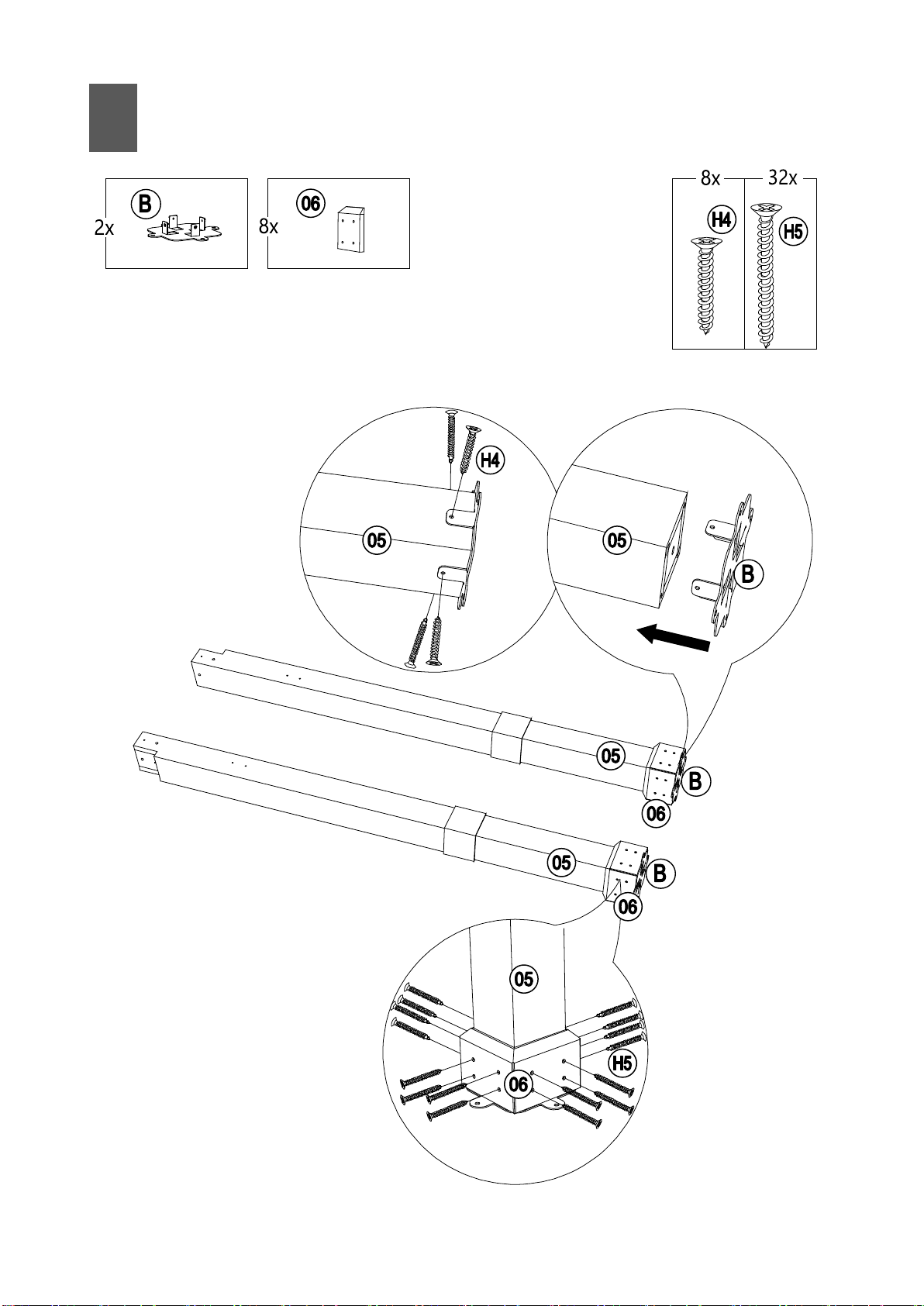

1

19/ 48
Country of Origin: China
Pais d’origine: Chine
2

20/ 48
Country of Origin: China
Pais d’origine: Chine
3
