Sunjoy SummerCove A102014000 User manual

Country of Origin: China
Pais d’origine: Chine
Production Number: XXXXXXXXXX
Numéro de fabrication: XXXXXXXX
ASSEMBLY INSTRUCTION
ITEM/Article #：A102014000
WE HAVE YOU IN MIND, LET US SERVE YOU!
Nous pensons en vous, laissez nous vous aider!
Questions? Issues? / Questions? Problèmes?
CONTACT US / Contactez-nous
[e-mail]
www.sunjoyonline.com

2/ 47
Country of Origin: China
Pais d’origine: Chine
• This product is intended for domestic outdoor use only.
•The product should be placed on flat, horizontal ground.
• Ensure enough clearance around the product. Before assembling the product, find level
ground not less than 6' (1.8 m) away from any structures or obstructions, such as
fences, garages, houses, overhanging branches, laundry lines, or electrical wires.
• This gazebo is not to be regarded as part of a building/house structure. The gazebo is
to be anchored onto the ground for added safety. Do not assemble the gazebo onto
soil/earth ground. It is best advisable to have the gazebo built onto a wooden deck or
concrete ground for stability. If it is to be build onto a wooden deck/ground, do
ensure that the wooden deck/ground has a strong foundation. It is advisable to use
appropriate floor plugs (not provided) to anchor the gazebo onto the wooden/concrete
ground.
• Some structures may require two or more people to install safely. Check for
underground utilities before digging or driving stakes into the ground.
• During installation, follow all safety warnings provided with your tools, and use safety glasses.
• In case you set up more than one gazebo, keep a minimum distance of 10' (3 m)
between the gazebos.
• Any assembly or maintenance of the product must be carried out by adults only.
• Arrange necessary manpower when assembling or moving the product.
• Some parts may contain sharp edges. Wear protective gloves if necessary.
• Keep children and pets away while setting up the gazebo.
• Check all nuts and bolts periodically to ensure bolts/nuts are tightened.
• Repairing and replacing parts should be done by a qualified technician.
• This gazebo is intended for decorative and sunshade purposes only, and it is not
designed to withstand harsh weather, including high winds, rain, and snow.
• Do not light any fires inside or near the product!
• Stay calm if fire breaks out. Search for the nearest exit. Do not return to the gazebo before
firemen allow you to do so.
• Do not hang heavy weights on the roof frame.
• Do not climb onto the roof of the gazebo. Falling off the gazebo can result in serious injury.
• Retain the original packaging to store the gazebo.
Important Safety Instructions
Warning! To reduce the risk of serious injury, read the following safety instructions
before assembling and using the gazebo.
Please check with your local governing authority/local municipal codes regarding
installation of structures before assembly.
Caution! Proper placement of your gazebo is essential.
Do not place the product underneath electrical lines.
Keep children away during assembly.
This product contains small parts which can be swallowed by children.
Keep fingers away from the places where they can be pinched or trapped. Do
not attempt to assemble the gazebo if any parts are missing.

3/ 47
Country of Origin: China
Pais d’origine: Chine
Consignes de sécurité importantes
ATTENTION! 





Avertissement!



•
•
•



• 
 
 
 
 

•

•

• 

•
•
•
•
•

•
•

•
•

•
•

•

4/ 47
Country of Origin: China
Pais d’origine: Chine
• Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure all parts are present. Compare parts with packaging
contents list.
•When assembling wooden parts, do not overtorque the bolts to avoid splitting the wood.
See image illustration.
•Place all parts from the box in a cleared area and position them on the floor in front of
you.
•Remove all packing materials and place them back into the box. Do not dispose of the
packing materials until assembly is complete.
•Needed for assembly:（The following tools are not included）
IMPORTANT:

5/ 47
Country of Origin: China
Pais d’origine: Chine
IMPORTANT:
•

•
•

•

•





Utilisez un niveau


Véfifiez avec un équerre


Serrer les boulons Mesurer la distance




   5 personnes

6/ 47
Country of Origin: China
Pais d’origine: Chine

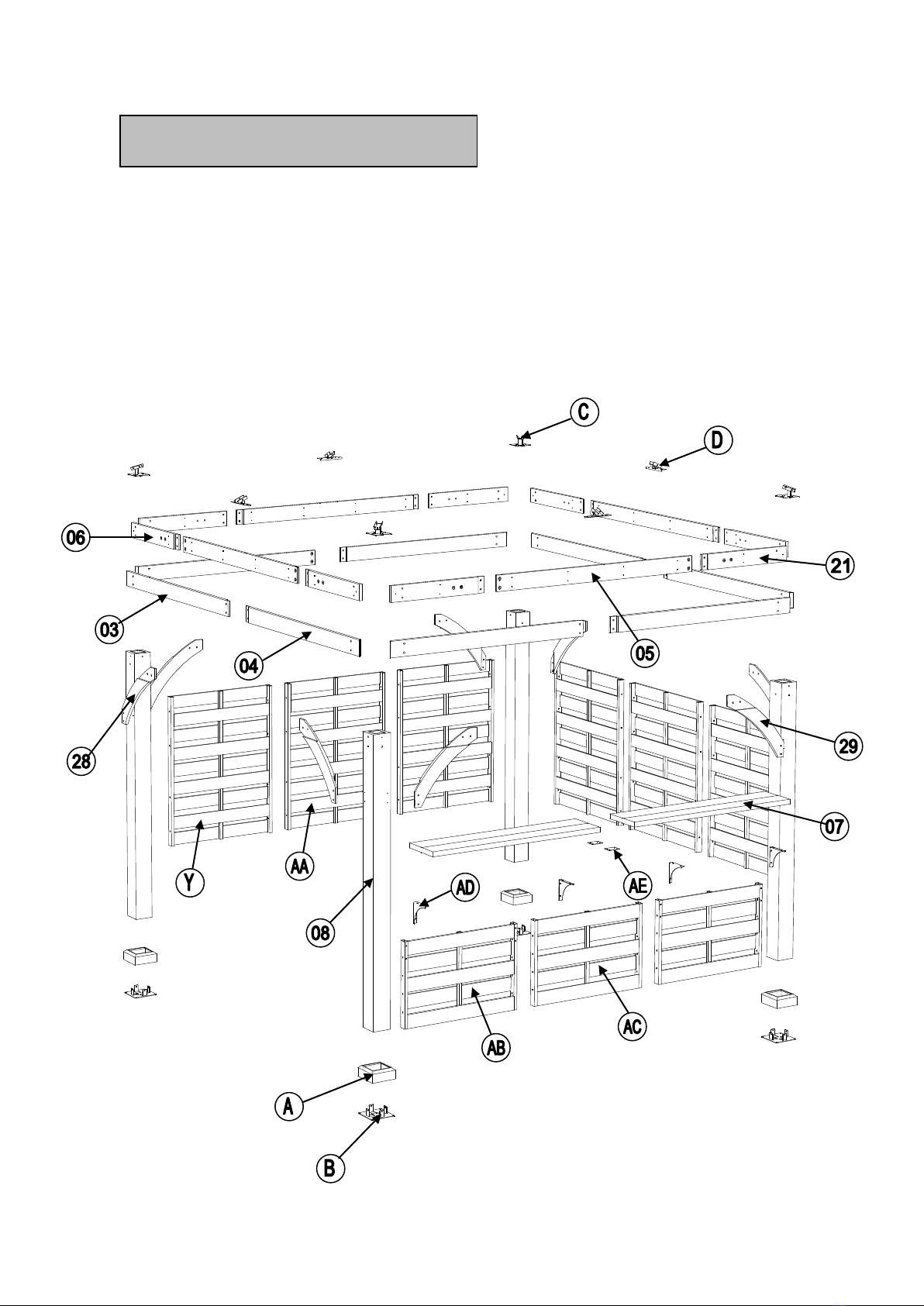

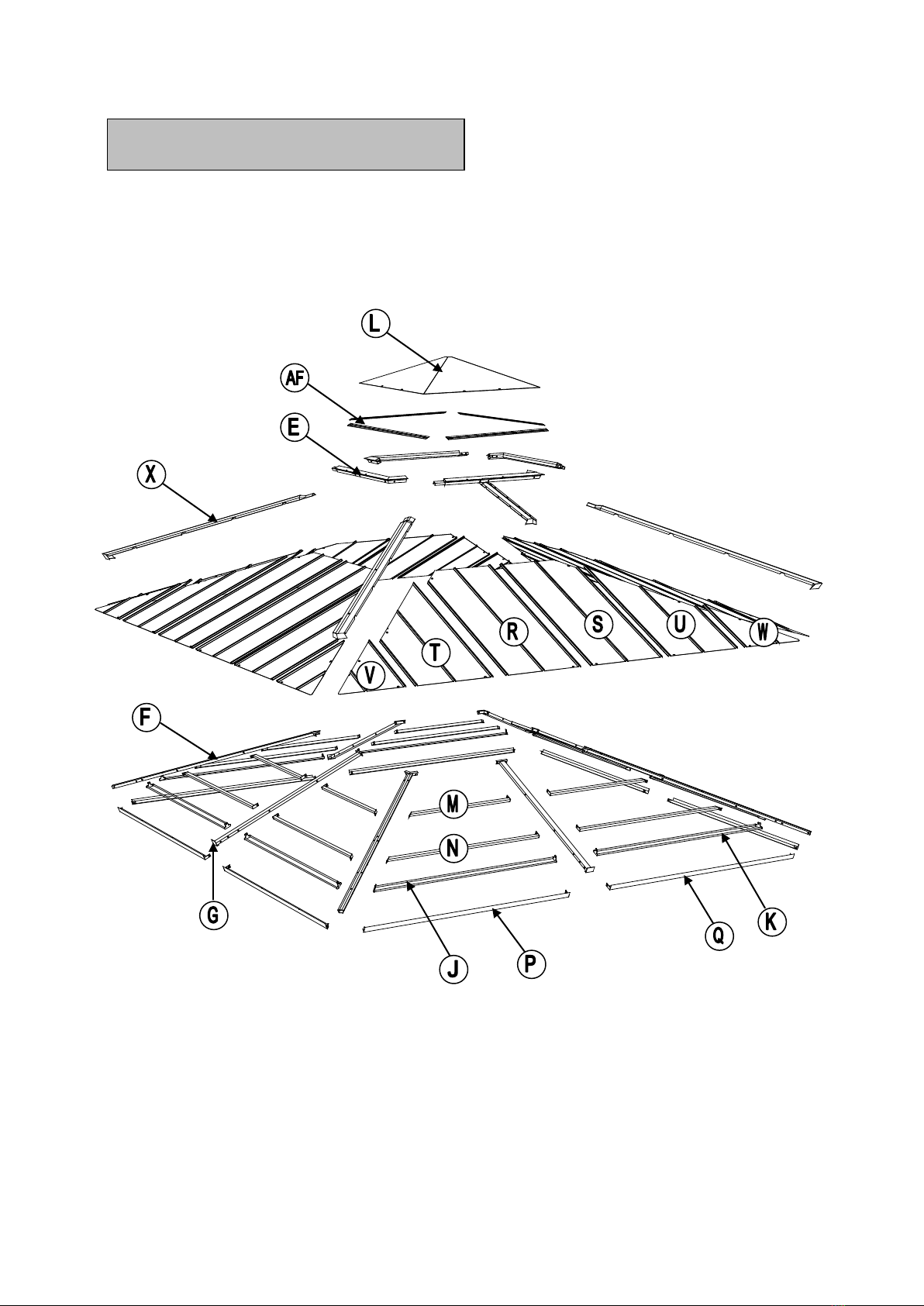

EXPLODED DRAWING/ DESSIN ÉCLATÉ

7/ 47
Country of Origin: China
Pais d’origine: Chine
EXPLODED DRAWING/ DESSIN ÉCLATÉ

8/ 47
Parts List
Label Part Number Description Qty Part Image
03 P00040122201 Lateral Left Beam 4
04 P00040122301 Lateral Right Beam 4
05 P00040122401 Inner Long Beam 4
06 P00040122601
Inner Short Beam
(Short Side) 4
21 P00040122501
Inner Short Beam
(Long Side) 4
08 P00010043901 Post 4
28 P00500061201 Brace 1 4
29 P00500061301 Brace 2 4
07 P00210049201 Table Top 2
A P00610021604 Base Cover 4
B P00010025804 Post Base 4
C P00050025104 Lower Connector for
Middle Beam 4
D P00050024804 Lower Connector for
Rafter Beam 4
E P00060212201 Big Roof Frame 4
F P00060197104 Rafter (Big Roof ) 4
G P00060198304 Middle Beam 4
J P00570034504 Left Mosquito Netting
Rod 4
K P00570034604 Right Mosquito
Netting Rod 4
Country of Origin: China
Pais d’origine: Chine

9/ 47
Liste de Pièces
Étiquette
03 P00040122201
Poutre Latérale
Gauche 4
04 P00040122301 Poutre Latérale Droite 4
05 P00040122401
Poutre Intérieure
Longue 4
06 P00040122601
Poutre Intérieure
Courte (Côté Court) 4
21 P00040122501
Poutre Intérieure
Courte (Côté Long) 4
08 P00010043901 Poteau 4
28 P00500061201 Barre de Renfort 1 4
29 P00500061301 Barre de Renfort 2 4
07 P00210049201 Dessus de Table 2
A P00610021604 Capuchon de pied 4
B P00010025804 Base du Poteau 4
C P00050025104 Connexion Inférieure
de la Poutre Centrale 4
D P00050024804 Connexion Inférieure de
la Poutre du Chevron 4
E P00060212201 Structure du Grand
Toit 4
F P00060197104 Chevron (grand toit) 4
G P00060198304 Poutre Centrale 4
J P00570034504 Tringle Gauche du
Filet Moustiquaire 4
K P00570034604 Tringle Droite du Filet
Moustiquaire 4
Country of Origin: China
Pais d’origine: Chine
Numéro de
la Pièce Description Quantité Numéro de la Pièce Diagramme

10 / 47

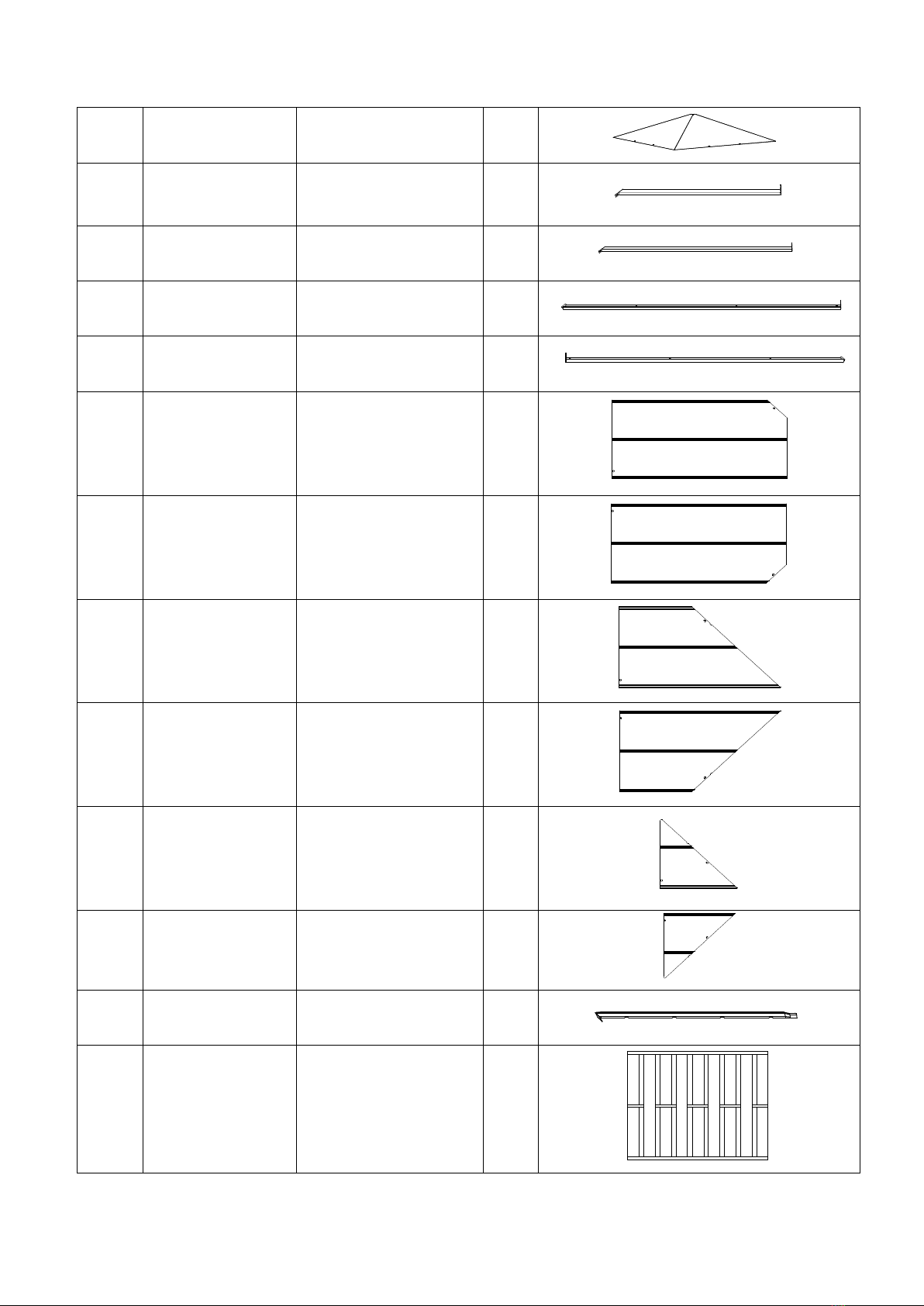

L P00070105601 PC Cover Board 1
M P00060198904 Big Roof Upper Top
Beam 8
N P00060199904 Big Roof Lower Top
Beam 8
P P00060201204 Big Roof Left Panel
Flashing 4
Q P00060201704 Big Roof Right Panel
Flashing 4
R P00070102104 Big Roof Big Panel (Left) 4
S P00070102604 Big Roof Big Panel
(Right) 4
T P00070101404 Big Roof Small Panel
(Left Middle) 4
U P00070101604 Big Roof Small Panel
(Right Middle) 4
V P00070101004 Big Roof Small Panel
(Left) 4
W P00070101204 Big Roof Small Panel
(Right) 4
X P00080035901 Big Roof Rafter Beam
Cap 4
Y P00630011401 Screen 1 (Big) 4
Country of Origin: China
Pais d’origine: Chine

11 / 47
L P00070105601 Toiture en PC 1
M P00060198904 Poutre Supérieure du
Grand Toit 8
N P00060199904 Poutre Inférieure du
Grand Toit 8
P P00060201204 Solin du Panneau
Gauche du Grand Toit 4
Q P00060201704 Solin du Panneau Droit
du Grand Toit 4
R P00070102104 Grand Panneau du
Grand Toit (Gauche) 4
S P00070102604 Grand Panneau du
Grand Toit (Droit) 4
T P00070101404 Petit Panneau du Grand
Toit (Centre Gauche) 4
U P00070101604 Petit Panneau du Grand
Toit (Centre Droit 4
V P00070101004 Petit Panneau du Grand
Toit (Gauche) 4
W P00070101204 Petit Panneau du Grand
Toit (Droit) 4
X P00080035901 Barde du Chevron du
Grand Toit 4
Y P00630011401 Façade 1 (Grande) 4
Country of Origin: China
Pais d’origine: Chine

12 / 47

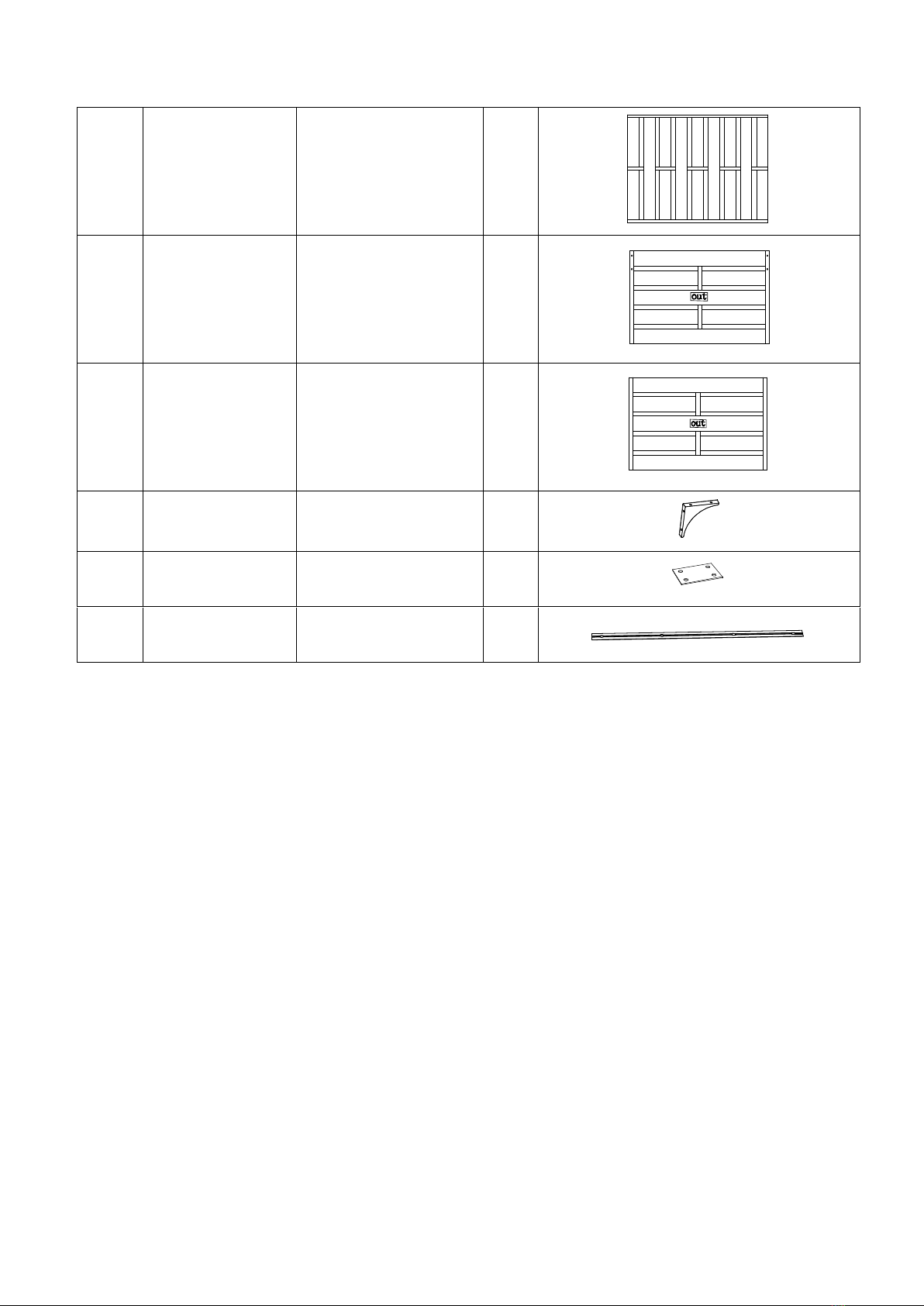

AA P00630011501 Screen 2 (Big) 2
AB P00630011601 Screen 1 (Small) 2
AC P00630011701 Screen 2 (Small) 1
AD P00050164701 Connect Panel 1 4
AE P00050164801 Connect Panel 2 2
Country of Origin: China
Pais d’origine: Chine
AFP00220034801 Press Panel 4

13 / 47
AA P00630011501 Façade 2 (Grande) 2
AB P00630011601 Façade 1 (Petite) 2
AC P00630011701 Façade 2 (Petite) 1
AD P00050164701 Connect Panel 1 4
AE P00050164801 Connect Panel 2 2
Country of Origin: China
Pais d’origine: Chine
P00220034801 Panneau de presse 4
AF

14 / 47
Hardware Pack
Label Part Number Description Qty Add Part Image
H1 H100010122 Bolt M6*20 152 8
H2 H100010123 Bolt M6*40 32 2
H3 H010010449 Bolt M10*205 8 1
H4 H100010054 Bolt M8*25 24 2
H5 H100010055 Bolt M8*35 16 1
H6 H030050058 Screw ST4.8*30 80 4
H7 H030050057 Screw ST4.8*40 56 3
H8 H030030013 Screw ST7.8*35 16 1
H9 H030010120 Screw ST5.8*50 24 2
H10 H030010031 Screw ST 9.8*80 8 1
H11 H050080006 Flat Washer M6 32 2
H12 H050080007 Flat Washer M8 16 1
H13 H050080008 Flat Washer
M10 24 2
H14 H040050026 Hex Nut M10 8 1
Country of Origin: China
Pais d’origine: Chine

15 / 47
H1 H100010122 Boulon M6*20 152 8
H2 H100010123 Boulon M6*40 32 2
H3 H010010449 Boulon
M10*205 8 1
H4 H100010054 Boulon M8*25 24 2
H5 H100010055 Boulon M8*35 16 1
H6 H030050058 Vis ST4.8*30 80 4
H7 H030050057 Vis ST4.8*40 56 3
H8 H030030013 Vis ST7.8*35 16 1
H9 H030010120 Vis ST5.8*50 24 2
H10 H030010031 Vis ST 9.8*80 8 1
H11 H050080006 Rondelle plate
M6 32 2
H12 H050080007 Rondelle plate
M8 16 1
H13 H050080008 Rondelle plate
M10 24 2
H14 H040050026 Écrou Hexagonal
M10 8 1
Country of Origin: China
Pais d’origine: Chine
Pack Quincaillerie
Étiquette Numéro de Description Quantité Add Numéro de la Pièce Diagramme
la Pièce

16 / 47
H15 H040090004 T-Nut
M8*8 24 2
H16 H040090005 T-Nut
M8*20 16 1
H17 H090990002 M3 Drill 2 0
HS H070010003 Stake Φ8*180 8 0
HW1 H090010017 M6 Wrench 2 0
HW2 H090030005 Allen Key M8 1 0
HW3 H090010015 M10 Wrench 2 0
Country of Origin: China
Pais d’origine: Chine
H18H100010105 Bolt M6*15 16 1

17 / 47
H15 H040090004 T-Nut
M8*8 24 2
H16 H040090005 T-Nut
M8*20 16 1
H17 H090990002 M3 Percer 2 0
HS H070010003 Piquet Φ8*180 8 0
HW1 H090010017 Clé M6 2 0
HW2 H090030005 Clé Allen M8 1 0
HW3 H090010015 Clé M10 2 0
Country of Origin: China
Pais d’origine: Chine
H18H100010105 Boulon M6*15 16 1

18 / 47

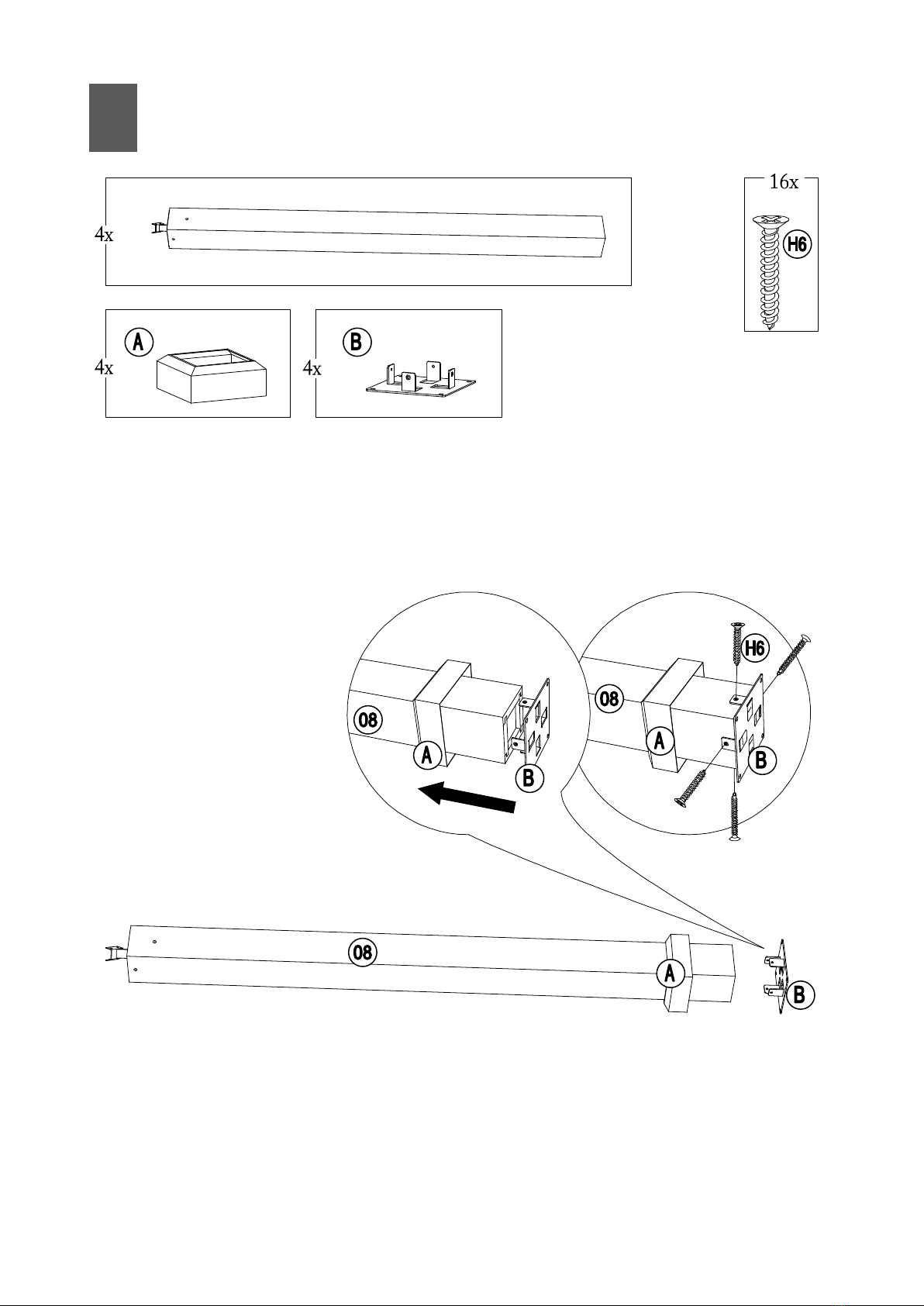

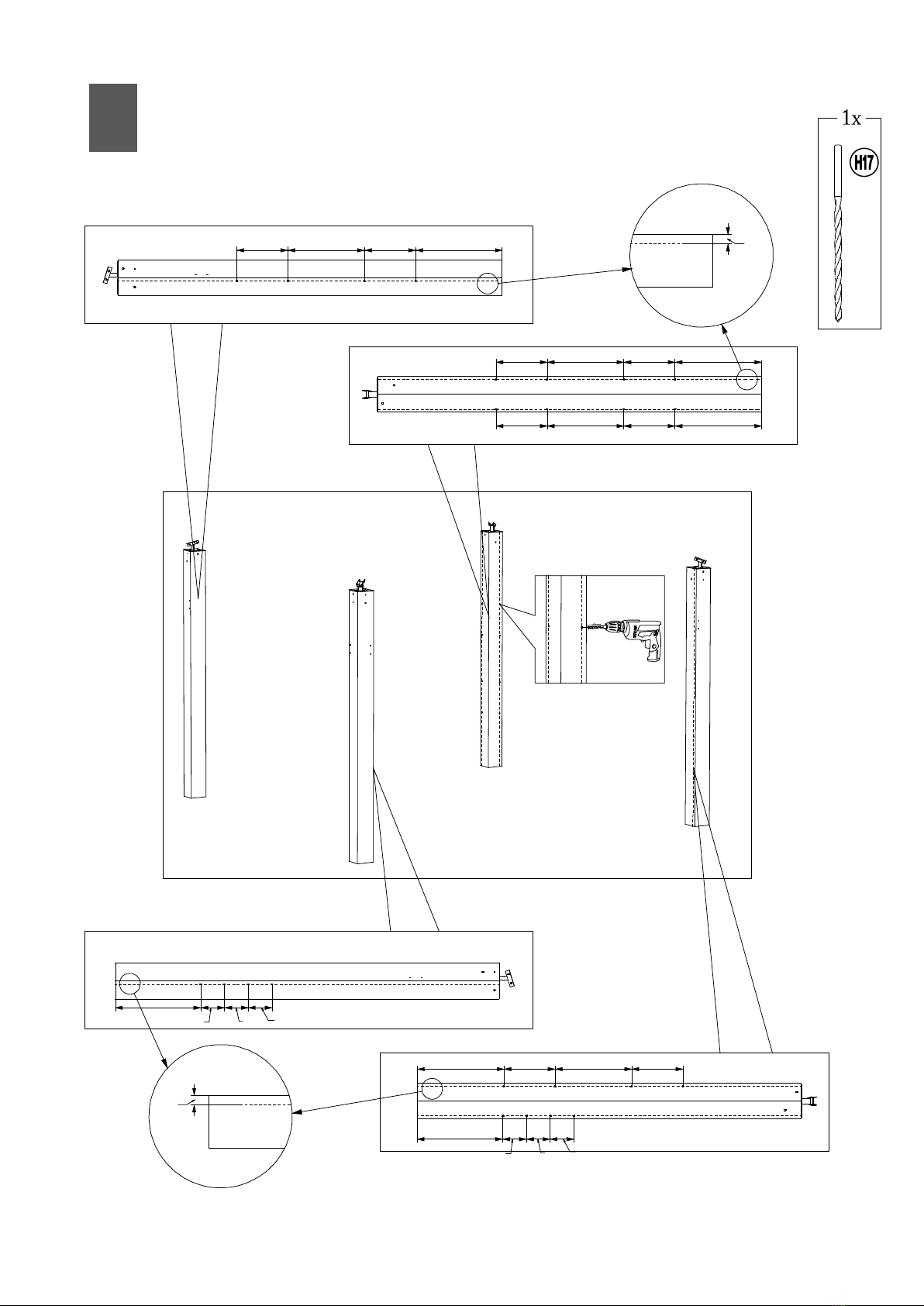

1
Country of Origin: China
Pais d’origine: Chine

19 / 47
379mm
374mm
280mm
379mm
420mm 280mm
420mm
420mm
379mm
280mm
420mm
280mm
379mm
280mm
280mm
280mm
130mm
25mm
25mm
130mm
130mm

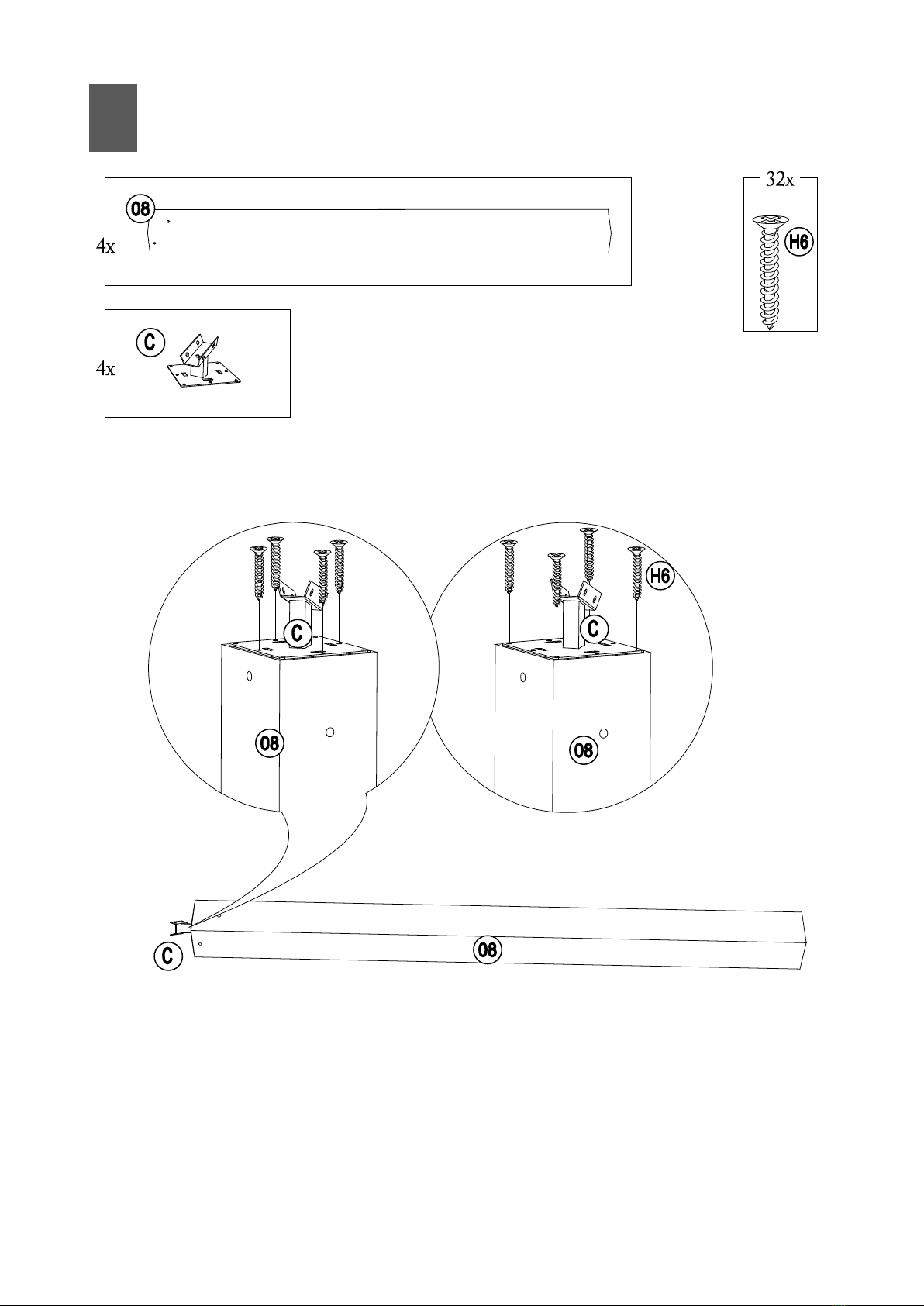

2
10mm
Country of Origin: China
Pais d’origine: Chine
280mm
374mm
130mm
130mm
130mm

20 / 47
3
Country of Origin: China
Pais d’origine: Chine
