ESSENTIAL INTERACTIVE
SERIES ELLIPTICAL
SF-E322002
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.
Your satisfaction is very important to us,PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [e-mail] or 1- 877 - 90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk, or
prevent you from using the equipment properly. Your physician’s advice is essential if you are
taking medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around
it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use until
the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 220 pounds (100 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving is
required.
12. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only. It is not intended for commercial
use!

2

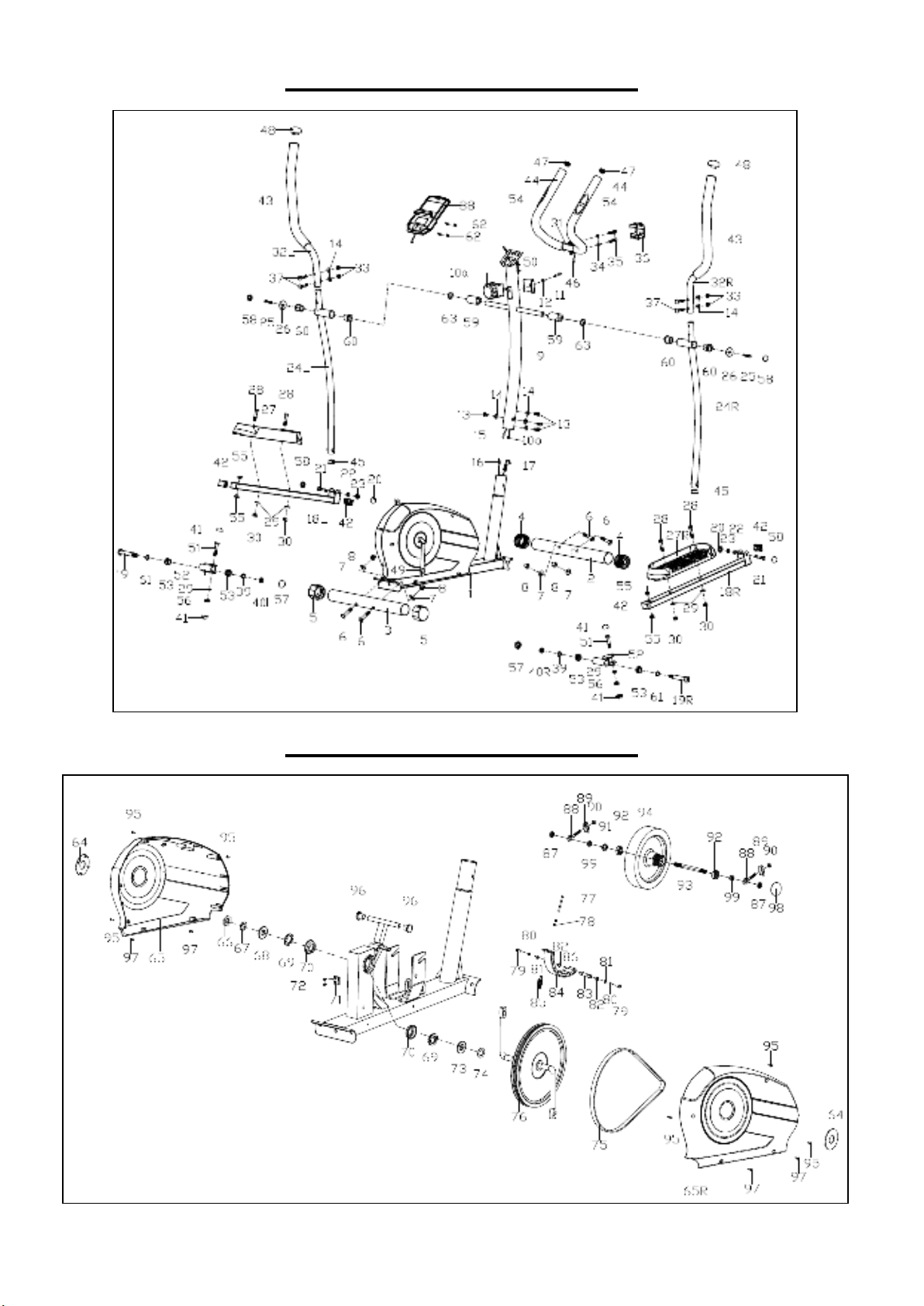

EXPLODED DIAGRAM 1
EXPLODED DIAGRAM 2

3

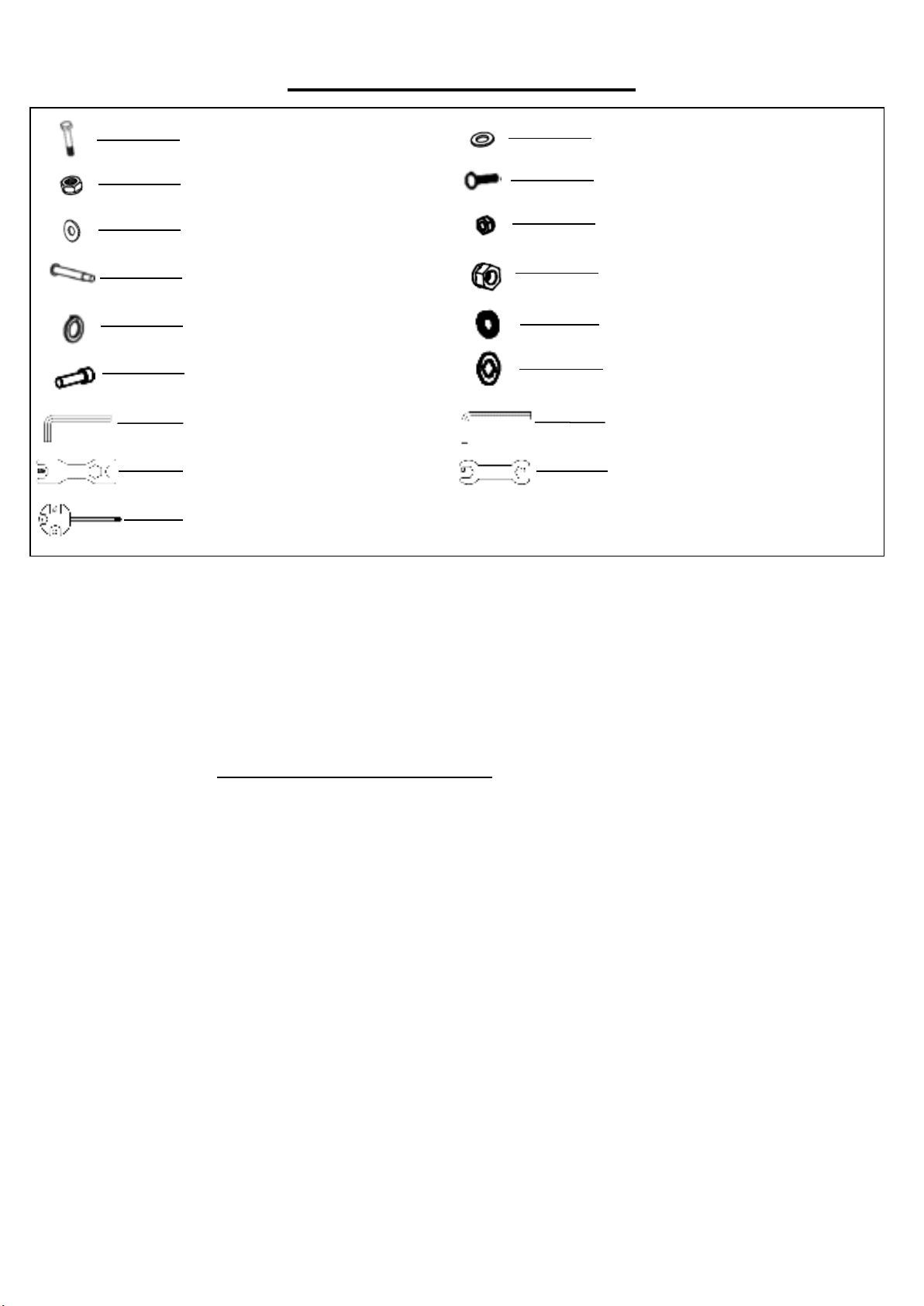

HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the
front of the manual)
Please contact us at [e-mail] or 1- 877 - 90SUNNY (877-907-8669).
#19L/R Φ16x89 2PCS
#37 M8x40 4PCS
#28 M10xL45 4PCS
#29 d10x1.5 4PCS
#30 M10 4PCS
#14 Φ20xd8.5xR25 4PCS
#33 M8 4PCS
#39 Φ13xB2 2PCS
#40L/R B0.5x20 2PCS
#61Φ17.1xΦ23x0.3 2PCS
#35 M8x30 2PCS
#34 d8x1.5 2PCS
#103 S8 1PC
#102 S6 1PC
#104 S13, S14 1PC
#101 S17, S19 1PC
#100 S13, S14, S15 1PC

4
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
53
Axle Bushing 1
4
2
Front Stabilizer
1
54
Pulse Sensor
2
3
Rear Stabilizer
1
55
Alloy Bushing
4
4
End Cap
2
56
Nylon Nut
M10
2
5
Leveler Cap
2
57
Nut Cap
S19
2
6
Carriage Bolt
M10×L57
4
58
Nut Cap
S14
4
7
Arc Washer
Φ10×1.5×Φ25×R28
4
59
Spacer
Φ32×59
2
8
Domed Nut
M10
4
60
Axle Bushing 2
4
9
Handlebar Post
1
61
Wave Washer
Φ17.1×Φ23×0.3
2
10a
Tension Controller
1
62
Phillips Screw
M5x10
4
10b
Tension Cable
1
63
Wave Washer
Φ20×Φ28×0.6
2
11
Phillips Screw
1
64
Crank Cover
2
12
Flat Washer
1
65L/R
Belt Cover
1pr.
13
Allen Bolt
M8×20
4
66
Nut
1
14
Arc Washer
Φ20×d8.5×R25
8
67
Washer
1
15
Upper Sensor Wire
1
68
Two-slot Nut
1
16
Lower Sensor Wire
1
69
Ball Bearings
2
17
Tension Hook
1
70
Bearing Housing
2
18L/R
Pedal Support Tube
1pr.
71
Sensor
1
19L/R
Hinge Bolt
Φ16×89
1pr.
72
Bolt
ST3×10
2
20
Nut Cap
S13
2
73
Three-slot Nut
1
21
Hex Bolt
M8×55
2
74
Big Washer
1
22
Flat Washer
d8×1.5
2
75
Belt
1
23
Nylon Nut
M8
2
76
Belt Pulley
1
24L/R
Swing Bar
1pr.
77
Hex Bolt
M6×55
1
25
Hex Bolt
M8×15
2
78
Hex Nut
M6
2
26
Flat Washer
Φ8.2×Φ32×2
2
79
Hex Bolt
M6×L15
2
27L/R
Pedal
1pr.
80
Spring Washer
Φ6
2
28
Hex Bolt
M10×L45
4
81
Flat Washer
D6
2
29
Flat Washer
d10×1.5
6
82
Axle Stop Ring
2
30
Nylon Nut
M10
4
83
Magnetic Board Axle
1
31
Armrest
1
84
Magnetic Board
1
32L/R
Handlebar
1pr.
85
Spring
1
33
Domed Nut
M8
4
86
Square Magnet
8
34
Spring Washer
d8×1.5
2
87
Hex Thin Nut
M10×1
2
35
Hex Bolt
M8×30
2
88
Adjusting Belt Bolt
M6×50
2
36
Decorative Cover
1
89
Adjusting U Washer
2
37
Carriage Bolt
M8×40
4
90
Hex Nut
M6
2
38
Meter
1
91
Spacer
1
39
Spring Washer
Φ13×B2
2
92
Bearing
6000
2
40L/R
Nylon Nut
B0.5×20
1pr.
93
Flywheel Axle
1
41
Nut Cap
S17
4
94
Flywheel
1
42
Square End Cap
4
95
Bolt
ST4.3×20
6
43
Foam Grip
2
96
Plug
2
44
Foam Grip
2
97
Bolt
ST5×20
4
45
Round End Cap
2
98
Plastic Nut
S17
1
46
Pulse Sensor Wire
1
99
Nut
M10×1.0
2
47
Spherical Cap
2
100
Spanner
S13, S14, S15
1
48
Mushroom Cap
2
101
Spanner
S17, S19
1
49
Crank Arm
1
102
Wrench
S6
1
50
Tension Controller Cover
1
103
Wrench
S8
1
51
Hex Bolt
M10×50
2
104
Spanner
S13, S14
1
52
Connecting Joint
2

5
ASSEMBLY INSTRUCTION
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY
(877-907-8669).
STEP 1:
Remove 4 Carriage Bolts (No. 6), 4
Arc Washers (No. 7) and 4 Domed
Nuts (No. 8) from the Front Stabilizer
(No. 2) and
Rear Stabilizer (No. 3)
using Spanner (No. 101).
Attach the Front Stabilizer (No. 2) and
Rear Stabilizer (No. 3) onto the Main
Frame (No. 1), secure with 4 Carriage
Bolts (No. 6), 4 Arc Washers (No. 7)
and 4 Domed Nuts (No. 8) that were
just remove by Spanner (No. 101).
Note: Ensure that all bolts and washers
are in place and partially threaded in
before completely tightening any of
them.

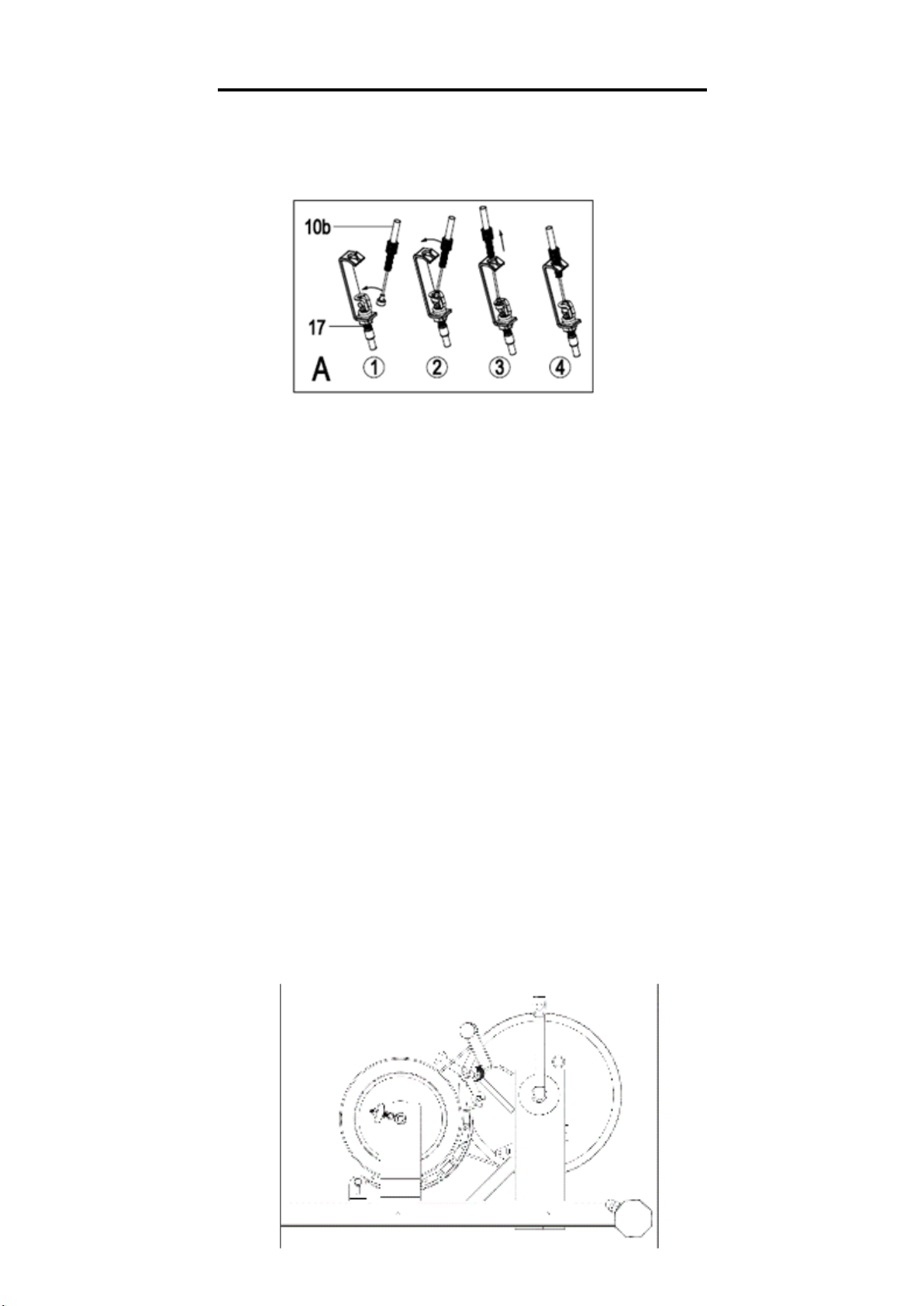

STEP 2:
A: Connect the Lower Sensor Wire
(No. 16) to the Upper Sensor Wire (No.
15), and then connect Tension Hook
(No. 17) with Tension Cable (No. 10b)
as shown in Diagram A.
Note: Make sure the Tension
Controller (No. 10a) is at the lowest
level before you connect the Tension
Cable (No. 10b). This ensures the wires
are at their longest point. We
recommend the assistance of a second
person to help hold the Handlebar Post
(No. 9). This will make the connection
easier when you are attaching Tension
Hook (No. 17) to Tension Cable (No.
10b).
B: Remove the preassembled 4 Allen
Bolts (No. 13) and 4 Arc Washers (No.
14) from the Main Frame (No. 1). Insert
the Handlebar Post (No. 9) into the
post of the Main Frame (No. 1); secure
with 4 Allen Bolts (No. 13) and 4 Arc
Washers (No. 14)
that were just
removed with Wrench (No. 102).
Note: Ensure that all bolts and washers
are in place and partially threaded in
before completely tightening any of
them.

6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-
90SUNNY
(877-907-8669).
STEP 3:
A: Remove the preassembled 2 Wave
Washers (No. 63), 2 Hex Bolts (No. 25)
and 2 Flat Washers (No. 26) from the
long axle of the Handlebar Post (No. 9).
Then attach the 2
Swing Bars (No.
24L/R) to the long axle of the Handlebar
Post (No. 9) with 2 Wave Washers (No.
63), 2 Hex Bolts (No. 25) and 2 Flat
Washers (No. 26)
that were just
removed with Spanner (No. 100).
Note: Please do not fully tighten at this
time.
Attach the Connecting Joint (No. 52)
on the Left Pedal Support Tube (No.
18L) to the Left Crank Arm (No. 49)
with 1 Left Hinge Bolt (No. 19L), 1
Wave Washer (No. 61). Turn the Left
Hinge Bolt (No. 19L) counter-clockwise
as tightly as you can with your hand.
Secure by tightening 1 Spring Washer
(No. 39) and 1 Silver color Nylon Nut
(No. 40L) clockwise
. Then use Allen
Wrench (No. 103) and Spanner (No.
101) to tighten securely.
Attach the Connecting Joint (No. 52)
on the Right Pedal Support Tube (No.
18R) to the Right Crank Arm (No. 49)
with 1 Right Hinge Bolt (No. 19R), 1
Wave Washer (No. 61). Turn the Right
Hinge Bolt (No. 19R) clockwise as
tight
ly as you can with your hand.
Secure by tightening 1 Spring Washer
(No. 39) and 1 Black color Nylon Nut
(No. 40R) counter-clockwise. Then use
Allen Wrench (No. 103) and Spanner
(No. 101) to tighten securely.
Note: Please do not fully tighten at this
time.
Remove the preassembled 2 Hex Bolts
(No. 21), 2 Flat Washers (No. 22) and 2
Nylon Nuts (No. 23) from 2 Pedal
Support Tubes (No. 18L/R). Then
fasten the 2 Swing Bars (No. 24L/R)
and the 2 Pedal Support Tubes (No.
18L/R) tightly with 2 Hex Bolts (No. 21),
2 Flat Washers (No. 22) and 2 Nylon
Nuts (No. 23) that were just removed
using Spanner (No. 100) and Spanner
(No. 104).
Fasten 2 Hex Bolts (No. 25)
and 2
Nylon Nuts (No. 40L/R)
tightly now.
Then cover with the 12 Nut Caps (No.
20 & 58 & 57 & 41).

7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY
(877-907-8669).

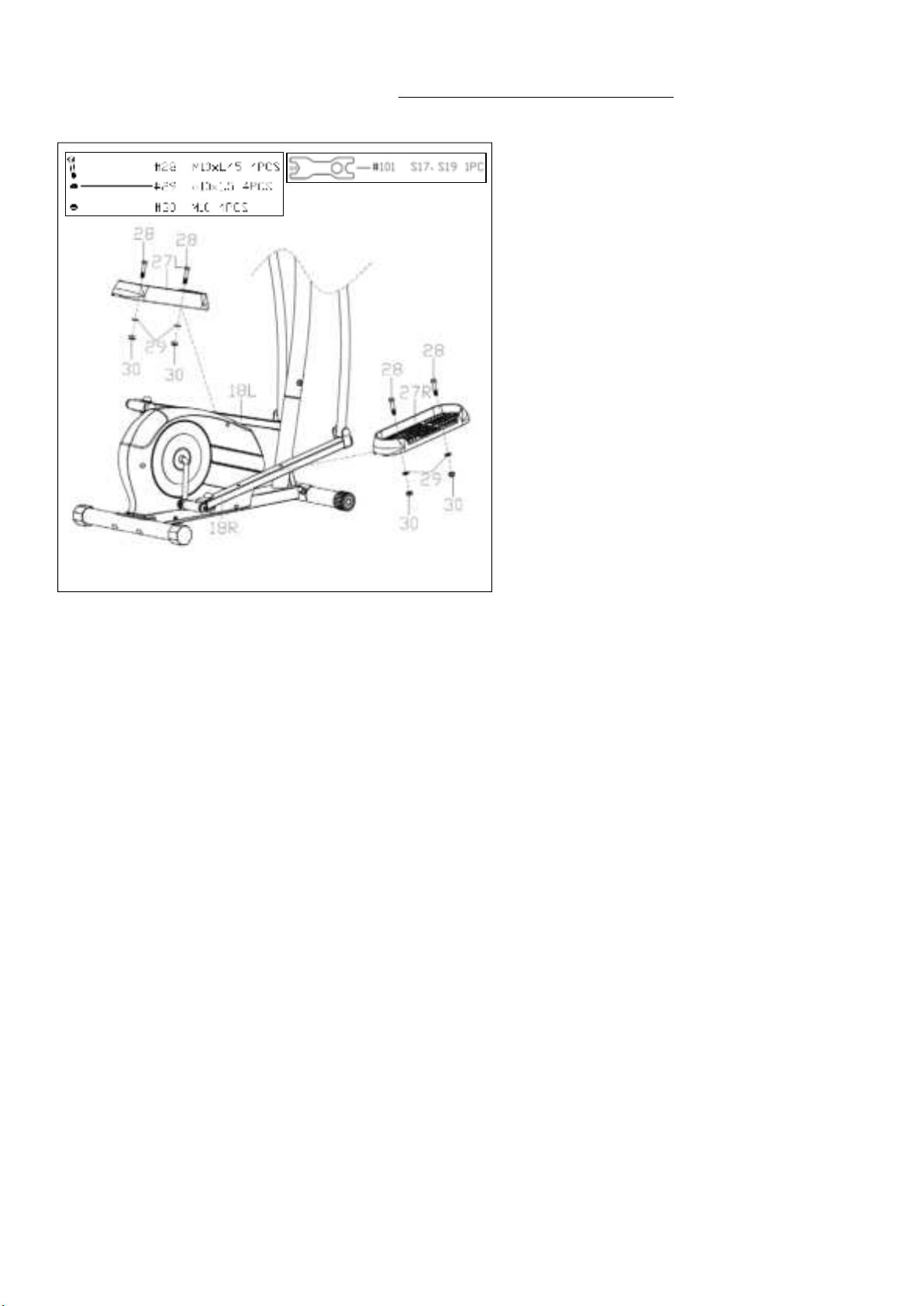

STEP 4:
Secure the 2 Pedals (No. 27L/R) to the
2Pedal Support Tubes (No. 18L/R)
respectively using 4
Hex Bolts (No.
28), 4 Flat Washers (No. 29)
and 4
Nylon Nuts (No. 30) using Spanner
(No. 101).
CAUTION:
Both pedals are labeled; L for LEFT
and R for RIGHT.

8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY
(877-907-8669).
STEP 5:
A: Attach Armrest (No. 31)
to the
Handlebar Post (No. 9)
in place.
Secure it with 2 Spring Washers (No.
34) and 2 Hex Bolts (No. 35) using
Wrench (No. 102).
Finally attach the
Decorative Cover (No. 36)
onto the
Armrest (No. 31).
B: Attach the 2 Handlebars (No. 32L/R)
on the 2 Swing Bars (No. 24L/R) with 4
Carriage Bolts (No. 37), 4 Arc
Washers (No. 14) and 4 Domed Nuts
(No. 33) using Spanner (No. 104).
Note: If the Handlebar (No. 32L/R) rubs
against the Armrest (No. 31) during the
workout,
please recheck if the
Handlebar (No. 32L/R)
is assembled
correctly. You should attach Handlebar
(No. 32L/R) to Swing Bar (No. 24L/R)
according to the label marked with L or
R.
STEP 6:
Remove the preassembled 4 Phillips
Screws (No. 62) from the Meter (No.
38) with Spanner (No. 100).
Plug the Pulse Sensor Wire (No. 46) to
the jack on the back of the Meter (No.
38). Then connect the
Upper Sensor
Wire (No. 15) to the wire from the Meter
(No. 38).
Attach the Meter (No. 38)to the bracket
of the Handlebar Post (No. 9) using 4
Phillips Screws (No. 62) that were just
removed with Spanner (No. 100).
Note:
To avoid damaging the wires,
please push them into the Handlebar
Post (No. 9) before secure the Meter
(No. 38)onto the bracket.
THE ASSEMBLY IS COMPLETE!

9
ADJUSTMENTS & USAGE GUIDE
1. If you find there is no difference between tension level 1 to level 8, please check the
connection of the tension cable. Please see Diagram A under Step 2.
2. If the meter does not show numbers correctly, please check the batteries. If the meter
does not count the speed and time, please check the connections of Upper Sensor Wire
(No. 15) to the Meter (No. 38) and Upper Sensor Wire (No. 15) to Lower Sensor Wire
(No. 16).
3. If you have difficulty putting Hinge Bolts (No. 19L/R) into the Crank Arm (No. 49),
please try moving the Crank Arm (No. 49) to a different angle. *Keep in mind the Left
Hinge Bolt (No. 19L) has reversed threading and must be installed by turning
counter-clockwise.
4. If you hear any noise when using the machine, please check if Hinge Bolts (No. 19L/R),
Hex Bolts (No. 21), Hex Bolts (No. 25) and Connecting Joints (No. 52)are loose. You
may remove these parts and add some lubricant oil to eliminate all noise possibilities.
Remember to tighten all the parts securely.
5. If it is very hard to pedal on the higher tension levels, or you hear rubbing noises, please
remove the Belt Cover (No. 65L/R), and adjust the screw seen in the following diagram.
You will need to lower the position of the screw by turning counter-clockwise. This will
keep the Magnet Board (No. 84) from contacting the magnetic flywheel. Before
re-installing the Belt Cover (No. 65L/R), test the tension level 8 to ensure the magnets
do not touch the flywheel.

10
6. If you still hear noises after you did Step 4 and Step 5, please remove the Belt Cover
(No. 65L/R). Loosen the screws for the Flywheel (No. 94) about a half of a rotation. See
the following diagram below.
7. If you feel the machine is uneven, please adjust the Leveler Cap (No. 5) on Rear
Stabilizer (No. 3) by turning it. If the machine is wobbly when you use it, please consider
adding an exercise mat under it.

11
BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION
The meter uses 2 AAA 1.5V batteries. Open the battery cover from the back of meter, then put 2
batteries into the battery compartment. Make sure the (+) and (-) ends of the batteries are in the
correct position. Put the battery cover back.
BATTERY REPLACEMENT
Open the battery cover, remove the old batteries, and replace with new batteries. Make sure the (+)
and (-) ends of the batteries are in the correct position. Put the battery cover back. When changing
batteries, always replace both with new batteries. Do not mix old and new batteries.

12

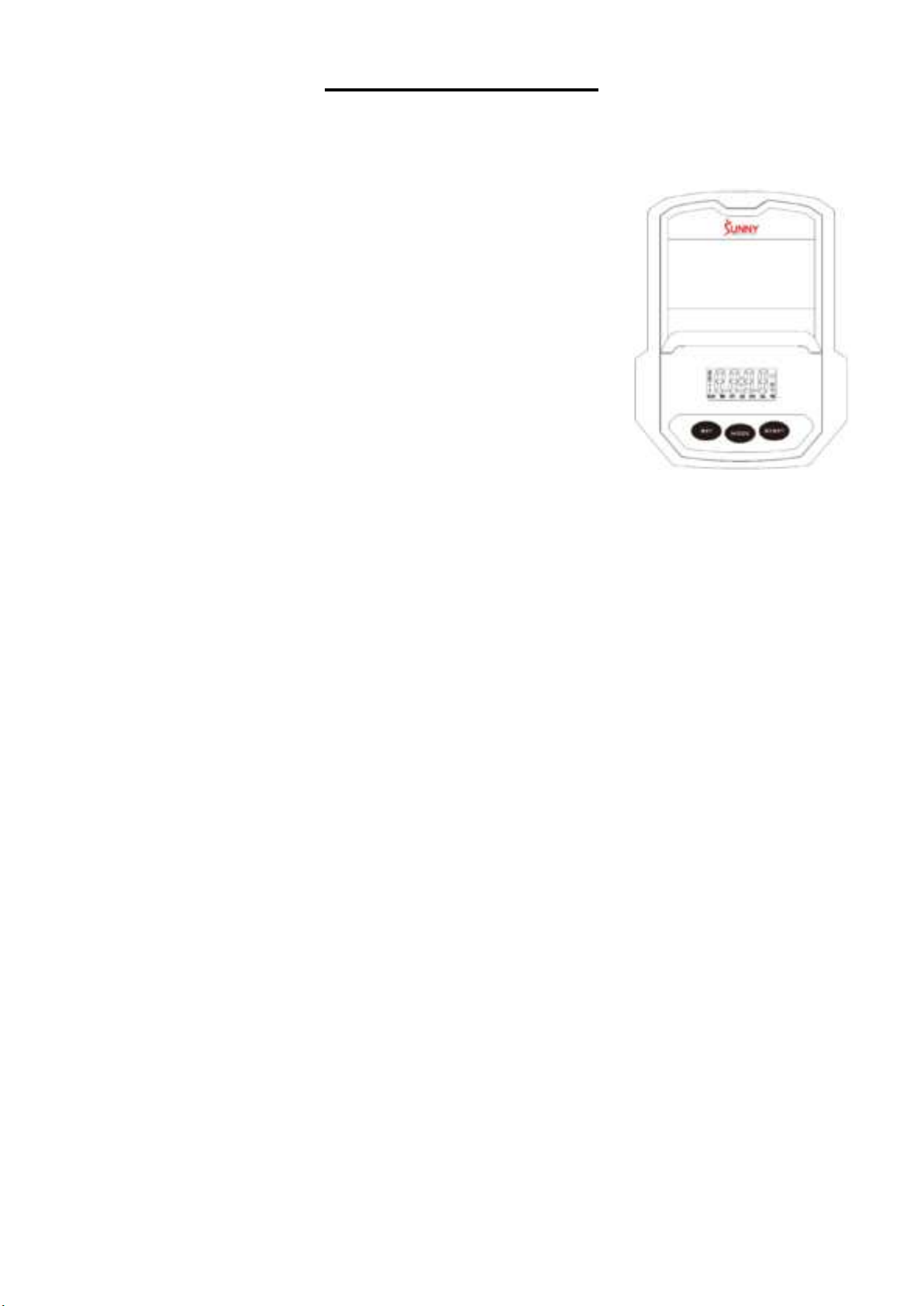

EXERCISE METER
FUNCTION BUTTONS:
MODE: Press the button to select TIME, DISTANCE, and
CALORIES to preset.
Press the button for selection function display value on
LCD or enter after setting.
Press the button and hold for 3 seconds to reset all
values except odometer to zero.
(When user replaces the batteries, all the values will
reset to ZERO automatically).
SET: To set up the target value of TIME, DISTANCE, and
CAL. Press the button and hold for 2 seconds to speed
up the increment.
RESET: Press the button to reset function value when setting.
Press the button and hold for 3 seconds to reset all
values except odometer to zero (When the user
replaces batteries, all the values will reset to ZERO
automatically).
FUNCTIONS & OPERATIONS:
1. BATTERY INSTALLATION:
Please install 2 AAA 1.5V batteries in the battery case on the back of computer. (Whenever
batteries are removed, all the function values will be reset to zero.)
2. AUTO ON/OFF:
Once the user begins to exercise, the computer will show the workout value automatically.
After about 4 minutes of inactivity, the computer will turn off. Odometer value does not reset
to 0 when the computer turns off. When the user starts to exercise again, the workout value
of odometer will accumulate continuously.
3. AUTO SCAN:
After the computer is powered on, press MODE button and the LCD will display all function
values from TIME-SPEED-DISTANCE-CALORIES-ODOMETER-PULSE. Each value will
be held for 6 seconds.
4. SPEED:
Displays the current training speed from 0.0 to 99.9 MPH (Miles per hour).
5. DISTANCE:
Accumulates total distance from 0.0 up to 9999 M (miles). The user may preset target
distance by pressing the SET & MODE buttons. Each increment is 0.1 M (Miles).
Automatically counts down from targeting value during exercise.
6. TIME:
Accumulates total time from 00:00 up to 99:59. The user may preset target time by pressing
SET & MODE buttons. Each increment is 1 minute.
Automatically counts down from targeting value during exercise.
7. CALORIES:
Accumulates calories burned during training from 0 to 9999 (Cal). The user may also preset
the target calories before training by pressing the SET & MODE buttons. Each setting
increment is 1 Cal.

13
Automatically counts down from targeting value during exercise.
Note: This data is a rough guide which cannot be used in medical treatment.
8. ODOMETER:
Displays the total accumulated distance from 0 to 9999 M (miles). User can also press
MODE button to display the odometer value.
9. PULSE:
The computer will display the user's heart rate in beats per minute (BPM) during training.
Note: This data is a rough guide which cannot be used in medical treatment.
10. RESET:
Press the button and hold for 3 seconds to reset all values except odometer to zero.
NOTE:
1. If the computer display is abnormal, please re-install the new batteries and try again.
Always change both batteries at the same time. Do not mix battery types and do not mix old
and new batteries.
2. Battery Spec: 1.5V UM-4 or AAA (2PCS).
3. Dispose the batteries safely, according to your state and regional guidelines.
APP CONNECTION
1. Scan below QR code to enter the app store and download the SunnyFit App to your
mobile phone.
2. Press the Bluetooth switch to connect. Then you can use the app through your
mobile phone.
Version 1.1
