Sunnydaze Decor AGR-355 User manual

03/2023CA636
3-DOOR SIDEBOARD CABINET
WITH DRAWERS
Carefully review assembly and care instructions before using this product. Save this document for future reference.

Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell.
Replacement parts or products will be sent at our discretion within the 1-year warranty period. Proof of purchase, with
the date of purchase as well as photos of the merchandise defect, must be provided. Photos are used to determine
the cause of defects and for future quality control. Register your warranty at https://tiny.cc/SunnydazeWarranty
If you have any questions, comments or concerns, feel free to contact us by phone at 833-982-1977, by email:
[e-mail], or via our contact us page at https://tiny.cc/SunnydazeContact
Purchase Date: / / Order/Customer Reference Number:
HELPFUL HINTS
Sunnydaze Decor advises reviewing this manual fully, and assembling the unit soon after purchase.
Check that all parts are accounted for and familiarize yourself with the assembly before beginning.

2-PERSON
ASSEMBLY
RECOMMENDED
Page 1 / 15
Inspect packaging to ensure all
parts are accounted for before
disposing of packing materials.
Save the packing slip.
SCAN THIS CODE
WITH YOUR
SMARTPHONE
TO VIEW OUR
ASSEMBLY VIDEO
(not included)
Phillips Screwdriver
Rubber Mallet
Hammer
Power Drill,
6mm Drill Bit,
2mm Drill Bit
(only use for installing wall anchor kit)

03/2023CA636
INTRODUCTION
Instrucciones
Instructions


Read the manual carefully to ensure you fully understand
all use, care, assembly, and safety information.
Read this manual carefully and
follow the assembly instructions
in the order listed. Pay close
attention to assembly drawings.
Regularly clean with a clean
microber cloth to prevent dust
accumulation.
Do not paint the unit.
Do not use abrasive materials or
cleaners to clean the furniture.
Indoor use only.
Do not expose the furniture to
heat or humidity.
When cleaning nearby the
furniture, do not allow contact
with water or cleaners as it may
deteriorate the furniture.
Do not allow metal components
to come in contact with water or
cleaners as it may cause rust and
staining.
Assemble on a soft, at, clean, and
dry surface.
Use a soft, protective barrier when
assembling the furniture.
TIP: Use the box carton as a
protective layer to separate and
protect the parts from scratches and
other damage during assembly.
Do not push or drag furniture as
doing so may damage the unit.
Only move furniture when it is empty.
Always ask for help when moving
furniture.
Avoid Accidents - Do not climb, sit
or stand on the furniture.
Do not allow children to play on or
inside the furniture.
Keep sharp objects away as they
may scratch or damage the unit.
Do not use the furniture as a writing
surface without a padded barrier.
NOTICE:
Manufacturer and seller expressly disclaim any and all liability from personal injury, property damage
or loss, whether direct or indirect, or incidental, resulting from the incorrect attachment, improper use,

Page 2 / 15

03/2023CA636
25
26
24
23
22
COMPONENTS
  
01 Top 1
02 Right Side Panel 1
03 Left Side Panel 1
04 Right Stile 1
05 Left Stile 1
07 Shelf 1
08 Bottom Frame 1
09 Left Cabinet Face Frame 1
10 Right Cabinet Face Frame 1
11 Center Face Frame 1
12 Vertical Drawer Face Frame 2
13 Top Face Frame 1
14 Outside Drawer Rail (L/R) 2
15 Center Drawer Rail 2
16 Back Support 2
17 Side Trim Board (L/R) 2
18 Front Trim Board 1
19 Leg 1
20 Backing Board 2
21 Divider 1
22 Drawer Face 3
23 Right Drawer Side 3
24 Left Drawer Side 3
25 Drawer Bottom 3
26 Drawer Back 3
27 Door 3
28 Door Brace 6
29 Bottom Panel 1
CHOKING HAZARD —
This item contains
small parts that can
be swallowed. Keep
children and pets away
during assembly.
WARNING
Page 3 / 15
  
AWood Dowel 76
BM4.5x28mm Pan Screw 43
CConnector 12
DHandle 3
EM3.5x30mm Flat Screw 12
FBracket 2
GM4x40mm Flat Screw 3
HM4x20mm Bolt 9
JKnob 3
KM3.5x14mm Pan Screw 28
LShelf Pin 4
MM3.5x25mm Pan Screw 14
NM4.5x25mm Pan Screw 24
ODrawer Slide 6
PM4x8mm Bolt 6
QHinge Plate 6
RHinge 6
SM4x14mm Flat Screw 18
YWall Anchor Kit 1
Z8x8mm Nail 30
Inspect packaging to ensure all
parts are accounted for before
disposing of packing materials.
Save the packing slip.
2-PERSON
ASSEMBLY
RECOMMENDED

03/2023CA636
IMPORTANT: Take care not to over-tighten screws as doing so may crack the wood or strip the screw hole, causing a weak connection and reduced stability.
ASSEMBLY
Carefully review all steps and fully understand assembly before beginning.
STEP 1
02: 1
03: 1
14: 2
23: 3
24: 3
29: 1
A: 32
Page 4 / 15
Locate and lay out
Right Side Panel (02),
Left Side Panel (03),
two Outside Drawer Rails (14),
three Right Drawer Sides (23),
three Left Drawer Sides (24), and Bottom Panel (29).
Install Wood Dowels (A) as noted below:
Left Side Panel (02),
install ve Wood Dowels (A).
Right Side Panel (03),
install ve Wood Dowels (A).
Outside Drawer Rail (14), install two
Wood Dowels (A) into each drawer rail.
Right Drawer Side (23), install two
Wood Dowels (A) into each drawer side.
Left Drawer Side (24),
install two Wood Dowels (A) into each drawer side.
Bottom Panel (29), install six Wood Dowels (A).
Set components aside, label if necessary.
STEP 2
C: 12
L: 4
TIP: Install connectors and shelf pins by gently tapping
them into the designated holes using a rubber mallet.
With the angled edge toward the inside of the panels, install six Connectors (C) into Right Side Panel (02), and six
Connectors (C) into Left Side Panel (03). Then, install two Shelf Pins (L) into each side panel, as shown.

03/2023CA636 Page 5 / 15
STEP 3
08: 1
09: 1
10: 1
11: 1
12: 2
13: 1
15: 2
16: 2
A: 44
STEP 4
B: 2
Locate Left Cabinet Bottom Frame (08), Face Frame (09), Right Cabinet Face Frame (10), Center Face Frame (11),
two Vertical Drawer Face Frames (12), Top Face Frame (13), two Center Drawer Rails (15), and two Back Supports
(16). Install four Wood Dowels (A) into all components, as shown.
Identify the two indents and the angled pre-drilled holes on Center Drawer Rails (15). Ensuring the indent with the
shortest distance from the edge is on top, and the angled pre-drilled holes faces the longer side of the back support,
secure Center Drawer Rails (15) onto Back Supports (16) using M4.5x28mm Pan Screws (B).
IMPORTANT:
Ensure Part 15 is installed in the correct
direction, as shown in the diagrams.

03/2023CA636
STEP 5
19: 1
G: 3
STEP 6
B: 6
Page 6 / 15
Align the top of Bottom Panel (29) with the back supports, as shown. Secure the bottom panel to each back support
using one M4x40mm Flat Screw (G).
Align Leg (19) with the bottom, center of the bottom panel and secure using one M4x40mm Flat Screw (G).
Identify the front, back, top and bottom of Right Side Panel (02) and Left Side Panel (03).
Secure each side panel to the bottom panel using three M4.5x28mm Pan Screws (B).

03/2023CA636
STEP 7
7: 1
STEP 8
M: 4
Page 7 / 15
IMPORTANT:
Ensure the components are tight against
each other before fastening the screws.
Identify the nished edge of Shelf (07). Slide the shelf into the cabinet, ensuring it is on top of the shelf pins, as shown.
With the angled mounting holes facing upward, align Bottom Frame (08), Left Cabinet Face Frame (09), Right
Cabinet Face Frame (10), and Center Face Frame (11) as shown.
After components are aligned as shown above, secure using four M3.5x25mm Pan Screws (M).
IMPORTANT:
Ensure the mounting holes
on Part 08 are installed as
shown in the diagram.

03/2023CA636

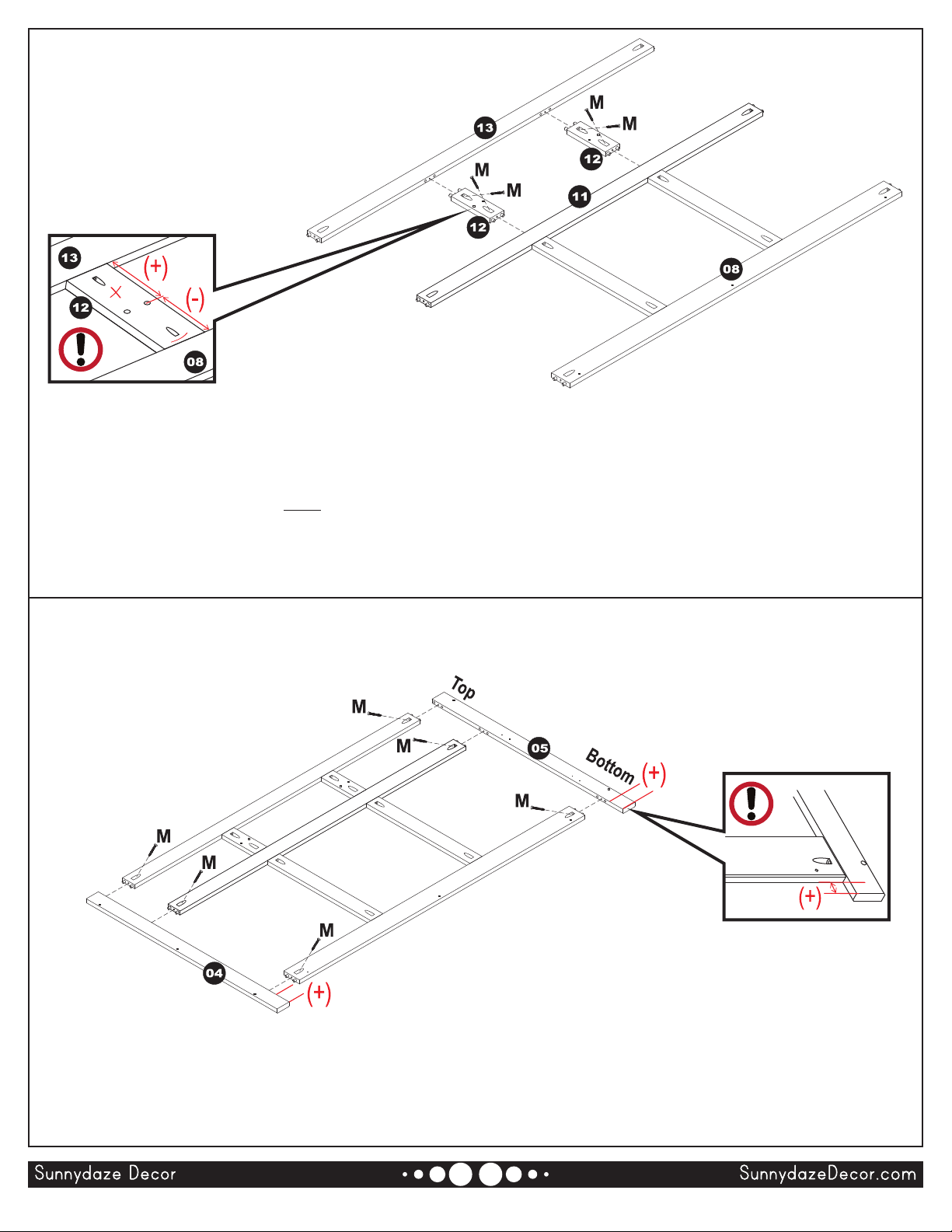

STEP 9
M: 4
STEP 10
04: 1
05: 1
M: 6
Page 8 / 15
IMPORTANT:
Ensure components are
installed as indicated in
the drawings.
IMPORTANT:
Ensure components are installed in the correct
direction, as indicated in the diagrams.
Installation direction is very important in this step.
Identify the longer gap between the dowel mounting holes and the edge of Vertical Drawer Face Frames (12); it is
marked with a + and - symbol to indicate there is a lesser and greater distance between the dowel mounting holes
and the edges, the plus (+) side must be on top.
With the angled mounting holes facing upward, align two Vertical Drawer Face Frames (12) with Center Face Frame
(11) and Top Face Frame (13).
After components are aligned as shown above, secure the components using four M3.5x25mm Pan Screws (M).
With the dowel mounting holes facing upward, align Right Stile (04), and Left Stile (05), as shown above.
NOTE: The bottom of the stiles have a gap between the dowel mounting holes and the edge.
After components are aligned as shown above, use six M3.5x25mm Pan Screws (M) to secure the stiles.
IMPORTANT:
Ensure the components are tight against
each other before fastening the screws.
IMPORTANT:
Ensure the components are tight against
each other before fastening the screws.

03/2023CA636
STEP 11
K: 12
Q: 6
STEP 12
B: 8
Page 9 / 15
IMPORTANT:
Ensure the hinge plates are installed as indicated by the arrows.
Align six Hinge Plates (Q) with indents on the backside of the front frame, as shown.
Secure each hinge plate using two M3.5x14mm Pan Screws (K).
Align the assembled front frame with the cabinet, as shown.
Secure the side panels of the cabinet to the stiles using six M4.5x28mm Pan Screws (B).
Then, secure the center drawer rails to the vertical drawer face frames using two M4.5x28mm Pan Screws (B).

03/2023CA636
STEP 13
01: 1
F: 1
K: 2
N: 6
STEP 14
17: 2
18: 1
B: 7
Page 10 / 15
Assistance is recommended for this step.
On the bottom of the unit, identify the indent on the backside of the bottom frame and the indent in the bottom, center
of the bottom panel. Align one Bracket (F) with the indents and secure using two M3.5x14mm Pan Screws (K).
Lay Top (01) on a at, clean surface. Align the assembled components with the top and secure using six M4.5x25mm
Pan Screws (N).
Align two Side Trim Boards (17) with the bottom of the unit, as shown. From the inside of the side panels, secure each
trim board using two M4.5x28mm Pan Screws (B).
Align Front Trim Board (18) with the bottom of the unit and secure using three M4.5x28mm Pan Screws (B).
NOTE: Have an assistant rmly hold the trim boards in place to ensure they remain ush with the unit while hardware is secured.

03/2023CA636
STEP 15
B: 8
F: 1
K: 2
Page 11 / 15
STEP 16
O: 6
S: 18
Identify the two indents on Outside Drawer Rails (14), the indent with the shortest distance between the indent and
the edge of the rail must be installed toward the front of the cabinet.
Secure one Drawer Rail (14) to each side of the cabinet using three M4.5x28mm Pan Screws (B) for each rail.
On the underside of the top, identify the indent in the center of the top panel and the indent on the backside of the top
face frame. Align one Bracket (F) with the indents and secure using two M3.5x14mm Pan Screws (K).
Push the front of Drawer Slide (O) backward. Align the 3rd round hole on the front of the drawer slide with the front
indent on the drawer rail and secure using one M4x14mm Flat Screw (S).
Slide the top piece of the drawer slide forward, the backside indent will align with the 1st small round hole on the back
of the slide. Ensuring the slide is centered on the drawer rail, secure the 1st small round hole, then secure the oblong
hole using two M4x14mm Flat Screws (S), as shown.
Repeat this process to secure the remaining ve drawer slides.
IMPORTANT: Ensure the drawer
rails are installed in the correct
direction, as indicated in the diagram.
IMPORTANT:
Ensure the drawer slide remains centered on the drawer rail; if the slides are not centered,
the drawer will be crooked.

03/2023CA636
STEP 17
22: 3
25: 3
26: 3
B: 12
D: 3
E: 12
H: 6
STEP 18
27: 3
28: 6
H: 3
J: 3
K: 12
N: 18
R: 6
Page 12 / 15
Ensuring the inside grooves align, secure Right Drawer Side (23) and Left Drawer Side (24) to Drawer Face (22)
using four M4.5x38mm Pan Screws (B).
Slide Drawer Bottom (25) into the grooves, as shown.
Secure Drawer Back (26) to the drawer sides using four M3.5x30mm Flat Screws (E).
Align Handle (D) with the front of the drawer face and secure using two M4x20mm Bolts (H), as shown.
Repeat this process to assemble the two remaining drawers.
Align two Door Braces (28) with the indents on the backside of Door (27) and secure using six M4.5x25mm Pan
Screws (N).
Secure two Hinges (R) to the backside of the door using two M3.5x14mm Flat Screws (K).
Turn the panel over and install one Knob (J) using one M4x20mm Bolt (H), as shown.
Repeat this step to assemble the two remaining doors.

03/2023CA636

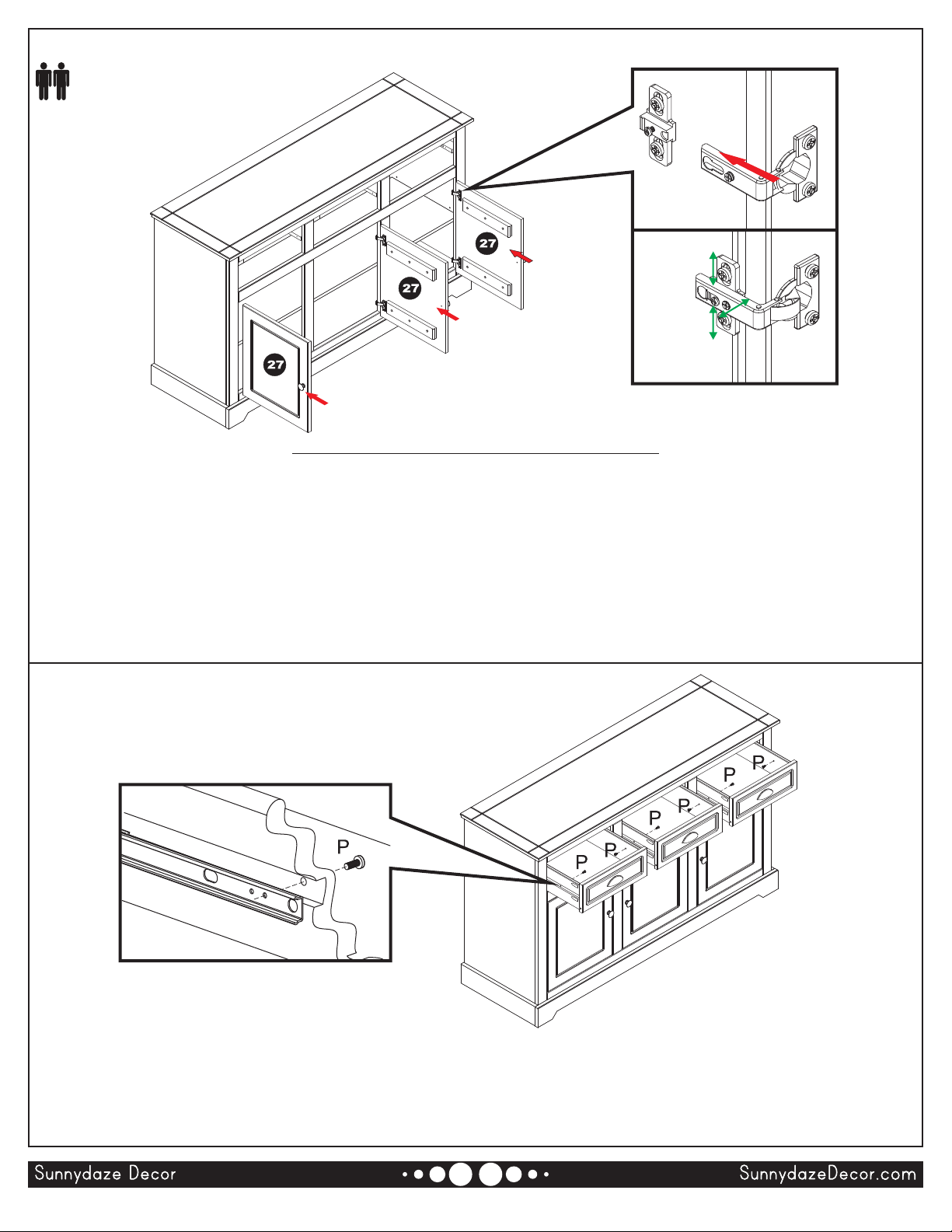

STEP 19
Page 13 / 15
STEP 20
P: 6
IMPORTANT: Ensure each door is properly
aligned before fully securing any screws.
Assistance is recommended for this step.
HINGE ADJUSTMENT INSTRUCTIONS
Door Installation:
Please note, the cabinet box must be level and plumb for the door to work properly. Under certain conditions, wall surfaces may not be plumb, which results
in a slight gap, either at the top or bottom, or between the doors.
Carefully hold the door and slide the hinge onto the hinge plate. Please note, the pin on the hinge slides into the slot of the hinge plate and the slot in the hinge
slides under the screw head. Tighten the hinge screw to secure the door to cabinet.
Door Adjustment Procedure:
Please note, care must be taken during hinge adjustment to avoid damage.
Only a slight adjustment is required. Rotate the Door Adjustment screws 1/8 to 1/4 turns at a time, then check the door position. Rotate adjustment screws as
necessary until doors are properly aligned.
Extend the drawer slides out the front of the cabinet.
Align the rst small hole on the drawer slides with the pre-drilled hole on the front of the drawer sides.
From the inside of the drawer, secure the drawer to the slide using M4x8mm Bolt (P), as shown.
Repeat to secure the other side of the drawer to the other slide.
Repeat this process to install the remaining two drawers.

03/2023CA636 Page 14 / 15
STEP 22
Y: 1
STEP 21
20: 2
21: 1
Z: 30
IMPORTANT: If walls are not solid like brick, stone or concrete, you will require special ttings (not included). When
in doubt, consult a professional.
Carefully measure the location of pilot hole before drilling and installing the unit.
WARNING: Check for pipes and electrical wiring before drilling.
• Place wall mounting strap against the wall and mark the position for drilling the hole.
• Using a power drill with a 6mm bit, drill a hole to 30mm depth. If the wall is softer, using a 5mm bit is recommended.
• Insert the wall anchor into the hole until the opening is flush with the wall.
• Secure the strap to the wall using the 25mm screw and washer.
• Use a 2mm drill bit to pre-drill a small pilot hole on the back of the furniture top. Secure the other end of the strap to
the furniture using the 14mm screw and washer.
Gently lay the unit face-down on a soft, clean surface.
Place two Backing Boards (20) on the back of the unit and slide Divider (21) between them.
Ensure the backing boards are snug within the lips of the top and side panels. Then, secure the backing board using
thirty 8x8mm Nails (Z).

03/2023CA636
NOTICE:
Manufacturer and seller expressly disclaim any and all liability from personal injury, property damage
or loss, whether direct or indirect, or incidental, resulting from the incorrect attachment, improper use,

Page 15 / 15

SAFETY STATEMENTS & WARNINGS
• Residential use only. Not for commercial or industrial use.
• For indoor use only.
• Ensure fittings are tight before use. Periodically check fitting to ensure they are tight.
• Only use this unit on a flat, level surface.
• Do not sit, stand or climb on the unit.
• Supervise children; never allow children to climb or sit on this unit as it may tip over and cause serious injury.
• Do not place liquids or hot items directly on the furniture.
• Never use chemical cleaning products or polishes as they may damage the finish.
• Do not exceed the weight capacity of the furniture.
• Do not overload the drawers as doing so may cause damage.
• Do not overload the shelves as doing so may cause them to sag.
• Do not place the unit in direct sunlight.
• Avoid placing unit near heating or cooling vents as forced air is very drying and can damage the unit.
• Do not write on furniture without a padded barrier to protect the surface.
If you experience issues with assembly or the product was damaged during shipping,
please contact our customer service team directly through one of the methods mentioned at the top of page 1.
Please have the item number and order information ready to expedite response time.
