Sunricher SR-2834BDMX User manual

09.34BDE.04713
Function introduction
Important: Read All Instructions Prior to Installation
Click to turn on/off
Press and hold down to save
colors;Click to recall the saved
Front side
Back side
Product Data
Brightness slider, touch to adjust
brightness
Dual color slider, touch to adjust color temperature
between Warm White and Cool White
60.3 mm
DMX512 Wall
Panel Controller
DC Power input DMX512 signal output
V- V+ D+ GNDD-
DMX OUTPUT
52.0 mm
60.3 mm
52.0 mm
19.4 mm
Dual Color DMX512 Controller Product Data
Output Signal DMX512 signal
Power Supply 12-24VDC
Power consumption 200 mA
Operating temperature 0-40°C
Relative humidity 8% to 80%
Dimensions 86x86x29.1mm
• Touch sensitive
• Glass interface(white & black)
• Standard DMX512 Signal output
• Control CCT color
• Control 1 zone/area
• Waterproof grade: IP20
Wiring diagram
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Safety & Warnings
DMX512 Wall
Panel Controller
V- V+ D+ GN DD-
DMX O UTPUT
12-24VDC
PSU
AC 100-240V
V+ V+
WW WW
CW CW
WW WW
CW CW
Connect with Dual Color LED Strip
V+ V+
WW WW
CW CW
WW WW
CW CW
Connect with Dual Color LED Strip
V+ V+
WW WW
CW CW
WW WW
CW CW
Connect with Dual Color LED Strip
12V/24V/36V
CV PSU
L
N
G
V+
V-
OUTPUT
INPUT
AC 100-240V
D1 D1 D2 D 2
DMX512 Decoder
GND
whit e
0-5 0-9 0- 9
D1 D1 D2 D 2
DMX512 Decoder
GND
whit e
0-5 0-9 0- 9
D1 D1 D2 D 2
DMX512 Decoder
GND
whit e
0-5 0-9 0- 9
Set DMX Address
This DMX master controller can control many DMX decoders, please set all decoders' address as 001.
100% WW+0% CW
0% WW+100% CW
100% brightness
1% brightness
50% WW+50% CW
Installation
12-24VDC
Power Supply

Other Sunricher Controllers manuals

Sunricher SR-2820 User manual

Sunricher

Sunricher SR-2820 User manual

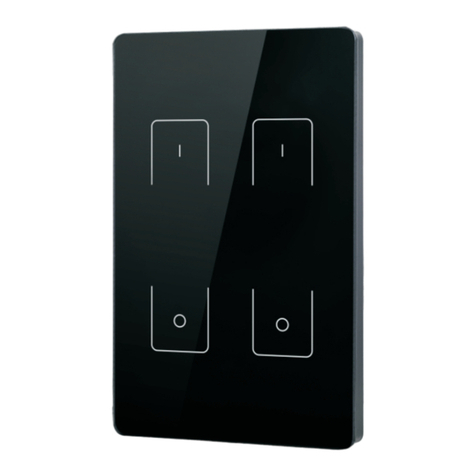

Sunricher SR-2202T1 US User manual

Sunricher

Sunricher SR-2202T1 US User manual

Sunricher SR-2833T1 User manual

Sunricher

Sunricher SR-2833T1 User manual

Sunricher SR-2820B User manual

Sunricher

Sunricher SR-2820B User manual

Sunricher SR-2400P User manual

Sunricher

Sunricher SR-2400P User manual

Sunricher DMXWA-002 User manual

Sunricher

Sunricher DMXWA-002 User manual

Sunricher SR-2202T2 IT User manual

Sunricher

Sunricher SR-2202T2 IT User manual

Sunricher SR-2309PRO-5C User manual

Sunricher

Sunricher SR-2309PRO-5C User manual

Sunricher SR-2820 User manual

Sunricher

Sunricher SR-2820 User manual

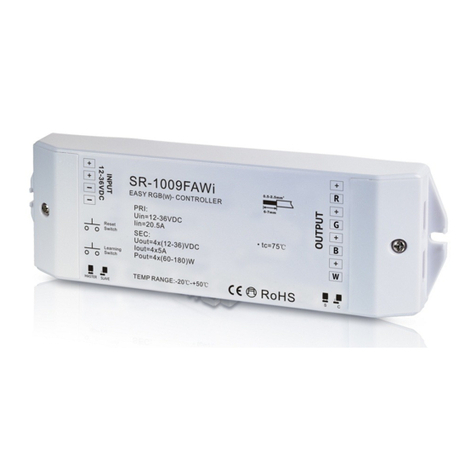

Sunricher SR-1009FAWi User manual

Sunricher

Sunricher SR-1009FAWi User manual

Sunricher SR-2812Wi User manual

Sunricher

Sunricher SR-2812Wi User manual

Sunricher SR-2834B User manual

Sunricher

Sunricher SR-2834B User manual

Sunricher SR-2411-ZG-DIM User manual

Sunricher

Sunricher SR-2411-ZG-DIM User manual

Sunricher SR-2855T2 User manual

Sunricher

Sunricher SR-2855T2 User manual

Sunricher SR-2411-ZG User manual

Sunricher

Sunricher SR-2411-ZG User manual

Sunricher SR-2812B User manual

Sunricher

Sunricher SR-2812B User manual

Sunricher SR-2834-5C User manual

Sunricher

Sunricher SR-2834-5C User manual

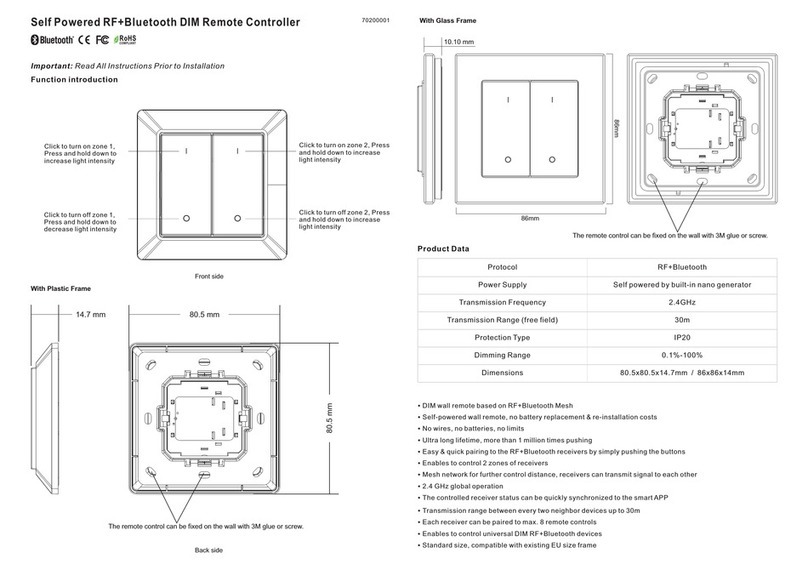

Sunricher SR-SBP2801K4-DIM-G2 User manual

Sunricher

Sunricher SR-SBP2801K4-DIM-G2 User manual

Sunricher SR-ZV9001T-DIM-EU User manual

Sunricher

Sunricher SR-ZV9001T-DIM-EU User manual

Sunricher SR-2816 User manual

Sunricher

Sunricher SR-2816 User manual

Sunricher SR-1007 Series User manual

Sunricher

Sunricher SR-1007 Series User manual

Sunricher SR-ZV9003T3-RGBW-US User manual

Sunricher

Sunricher SR-ZV9003T3-RGBW-US User manual

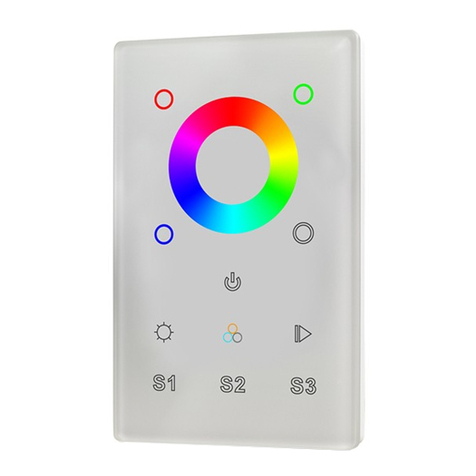

Sunricher SR-2300TR-G3-RGBW-US User manual

Sunricher

Sunricher SR-2300TR-G3-RGBW-US User manual

Sunricher C94-3ZW User manual

Sunricher

Sunricher C94-3ZW User manual

Popular Controllers manuals by other brands

Belimo PKR Series QUICK MOUNT VISUAL INSTRUCTION MANUAL

Belimo

Belimo PKR Series QUICK MOUNT VISUAL INSTRUCTION MANUAL

TAC Forta M310/800 installation instructions

TAC

TAC Forta M310/800 installation instructions

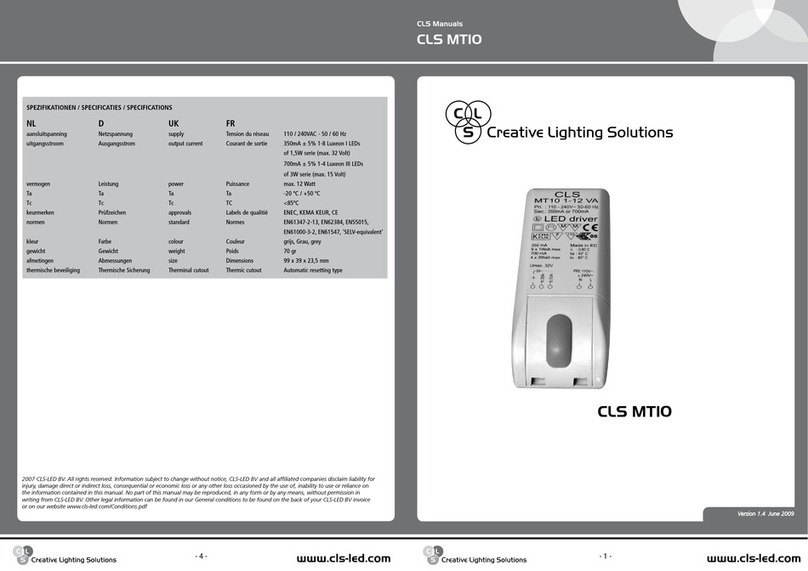

CLS CLS MT10 manual

CLS

CLS CLS MT10 manual

ORTEC 403 instruction manual

ORTEC

ORTEC 403 instruction manual

Allen-Bradley 2080-IQ4 user manual

Allen-Bradley

Allen-Bradley 2080-IQ4 user manual

Norac UC5 Topcon X30 installation manual

Norac

Norac UC5 Topcon X30 installation manual

MISUMI C1 user manual

MISUMI

MISUMI C1 user manual

Danfoss Redan PM instruction manual

Danfoss

Danfoss Redan PM instruction manual

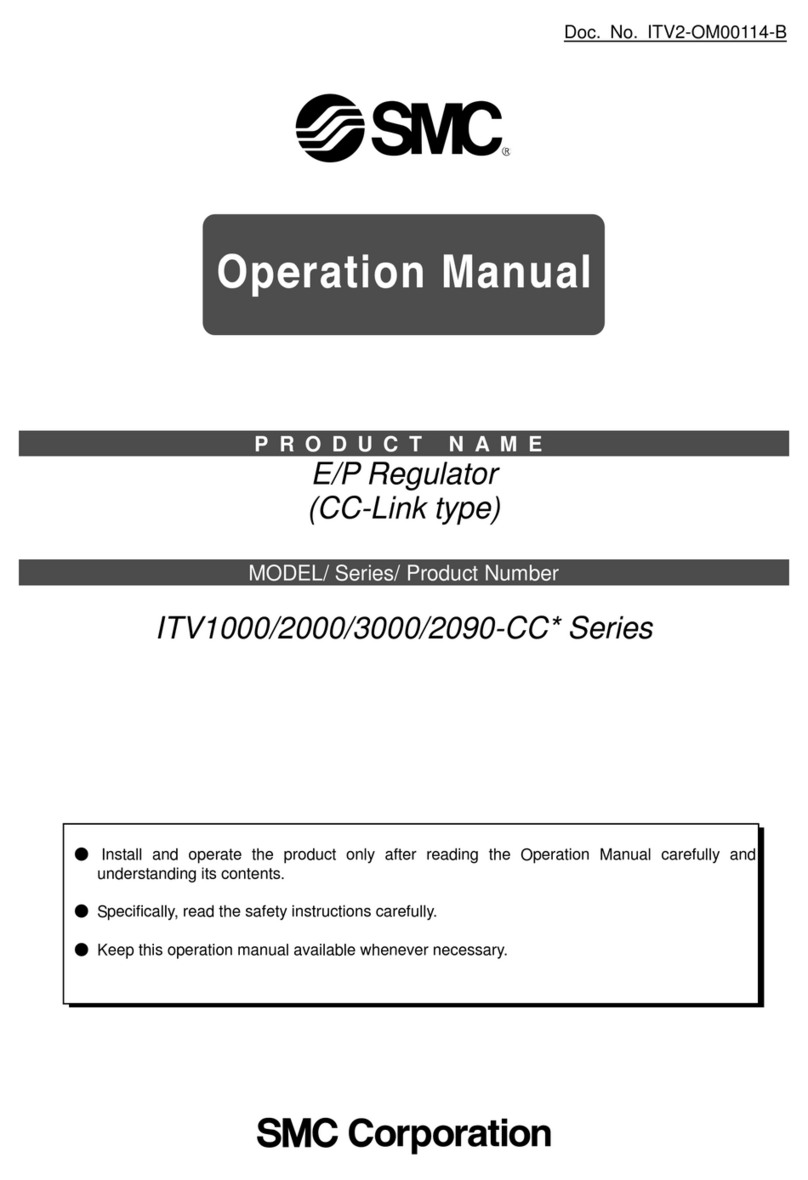

SMC Networks ITV1000-CC Series Operation manual

SMC Networks

SMC Networks ITV1000-CC Series Operation manual

Norac UC4 Plus Rogator 64 Series installation manual

Norac

Norac UC4 Plus Rogator 64 Series installation manual

Ecler VEO-XCTRLG2 user manual

Ecler

Ecler VEO-XCTRLG2 user manual

Xylem CentiPro Aquavar IPC Application guide

Xylem

Xylem CentiPro Aquavar IPC Application guide

Optimus AVR-A-OPT-02 Installation and operation manual

Optimus

Optimus AVR-A-OPT-02 Installation and operation manual

DMX4ALL DMX-LED-Dimmer 4 user manual

DMX4ALL

DMX4ALL DMX-LED-Dimmer 4 user manual

Martin Audio AQX - SCHEMATICS manual

Martin Audio

Martin Audio AQX - SCHEMATICS manual

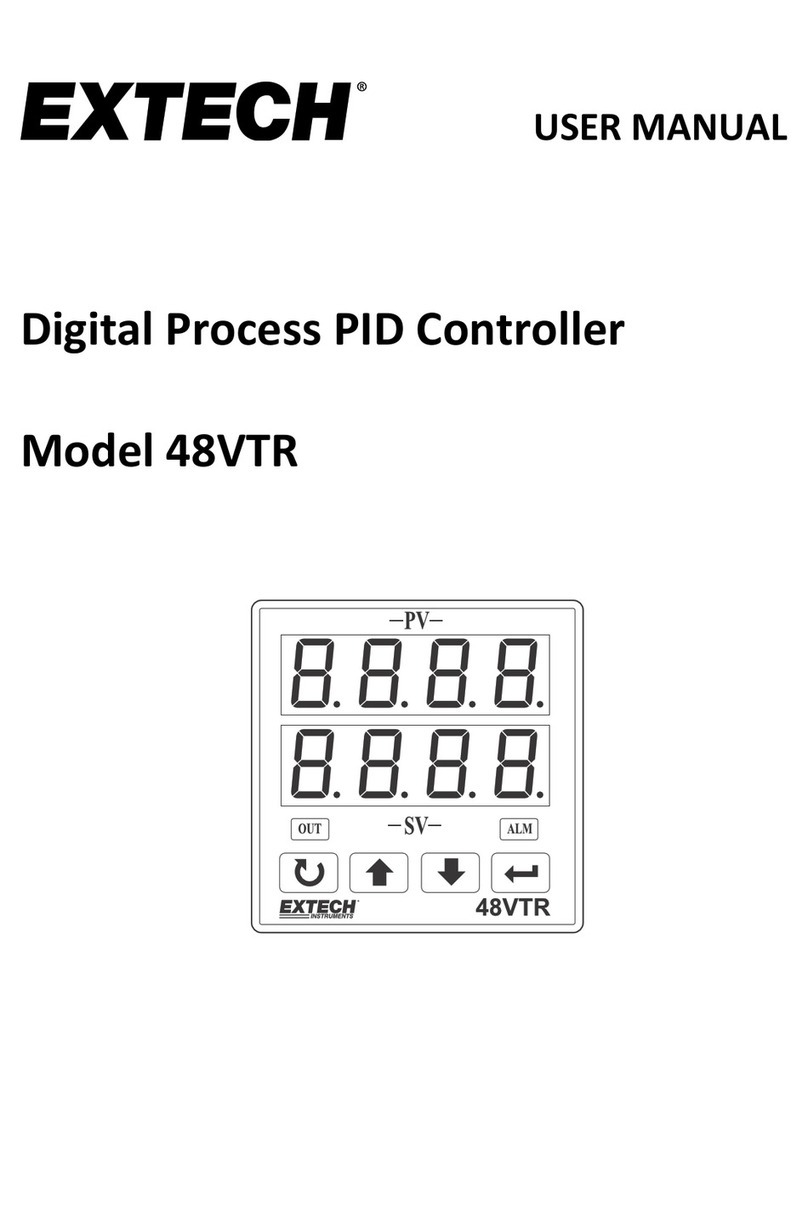

Extech Instruments 48VTR user manual

Extech Instruments

Extech Instruments 48VTR user manual

Phocos CX20 user manual

Phocos

Phocos CX20 user manual

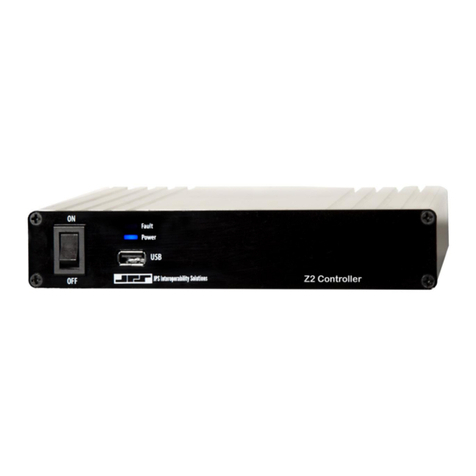

JPS Z2 Controller Installation and operation manual
