Sunrise Medical Sapphire 2 User manual

Owner’s Manual
SAPPHIRE 2
ENGLISH
4 Wheel Scooter
®
®

Iss 1
How to use this manual
Sunrise Medical Limited want you to get the best out of your scooter. This Owner’s
Manual will familiarise you with the scooter and its features. It contains guidance on
everyday usage and general care in addition to information on the high quality standards
which we adhere to and details about the warranty.
Your scooter will reach you in excellent condition having been personally inspected
before leaving the factory. By following the guidelines for maintenance on page 30 your
scooter will maintain its rst class condition and give you years of complete reliability
and satisfaction.
Note: Sunrise Medical Limited will later be referred to as “we” in this document.
How to use this manual

5Iss 2
Contents
Introduction page 1
General Warnings page 2
Quick Start Guide page 3 - 4
Features page 5
Getting On and Off your Scooter page 6
Tiller Control Functions page 7 - 8
Freewheel Mechanism page 9
Seat Removal and Adjustment page 10
Tiller Adjustment and Battery Removal page 11
Batteries and Charging page 12 - 13
Transportation page 14
Guidance for Safe Operation and Use page 15 - 19
Battery and Charging Information page 20 - 22
General Warnings page 23 - 26
EMC (EMI) Warnings page 27 - 28
Specications page29
Routine Maintenance page 30
Service History page 31
Trouble Shooting Guide page 32 - 33
Guarantee page 34

1Iss 2
With over 30 years experience, we are one of the longest established mobility equipment
manufacturers in the UK. All of our Scooters, Wheelchairs and Power Chairs undergo
rigorous tests to ensure they meet our requirements for comfort, safety and durability.
Our success is based on the strong traditions of quality, value for money and genuinely
caring for our customers. We pride ourselves not only on designing and building the
most innovative products, but also on our commitment to offer an excellent standard of
customer service both during and after sale.
Before using your scooter please read this manual carefully. It will provide you with
all the information you will require. However, if you have any queries about the use,
maintenance or safety of your scooter, please contact your local dealer. If you have any
other questions please write to the address below.
The scooter is classied as a category B vehicle under the European wheelchair
standard EN 12184.
It is intended for the use of people of all ages who may have difculty walking distances or
for periods of time. It is ideal for outdoor use and suitable for users up to 150kg in weight,
330lbs. Differing user weights can cause performance variation. Maximum user weight
tested using a 150kg test dummy.
The scooter is designed to be driven on footpaths and to cross roads.
It has been manufactured to comply with the requirements of the
Medical Device Directive 93/42/EEC / 2007/47/EEC, the radio interference
requirements of EEC Directive 89/336/EEC and the battery charger
requirements of EEC Directive 73/23/EEC
and
89/336/EEC. Electro Magnetic elds, such as those emitted by shop alarms
may be disturbed by use of the scooter. The function of the scooter may also be
disturbed by Electro Magnetic elds emitted by shop alarms.
We are dedicated to providing products of exacting quality that conform fully and reliably
to the requirements of their intended use. We are BS/EN ISO 9001 accredited which is
the internationally recognised standard for quality management systems. This approval
ensures we provide quality in all areas of our business from development through to nal
delivery. Should you require any further assistance then please contact your local dealer.
CUSTOMER SERVICES
SUNRISE MEDICAL LIMITED
SUNRISE BUSINESS PARK
HIGH STREET WOLLASTON
WEST MIDLANDS DY8 4PS
ENGLAND
Intern. Telephone [phone] Fax [phone]
E-Mail: [email protected]
Introduction

2Iss 2
GENERAL WARNINGS
DO NOT OPERATE THE SCOOTER BEFORE READING AND UNDERSTANDING
THIS INSTRUCTION MANUAL.
IF YOU ARE IN DOUBT ABOUT THE MEANING OF THESE INSTRUCTIONS, OR ANY
OF THE CAUTIONS AND WARNINGS, PLEASE CONSULT YOUR HEALTHCARE
PROFESSIONAL, DEALER OR RELEVANT TECHNICAL PERSONNEL.
FAILURE TO FULLY UNDERSTAND THE SCOOTER OPERATION MAY RESULT
IN AN UNEXPECTED RESPONSE FROM THE EQUIPMENT WHICH CAN IN TURN
LEAD TO POSSIBLE INJURY OR DAMAGE.
NOTES
Warning and Caution notices used in this manual, apply to hazards and unsafe practices
that could result in personal injury or damage to property.
WARNING
We supply an extensive range of mobility scooters to meet the varying needs of
individual users. It is the responsibility of the individual user and their healthcare advisor
qualied in making such choices, to decide which scooter is suitable for the user’s
intended purpose.
With regards to restraints, seat positioning straps, posture correction or other positional
aids and accessories, it is the obligation of the qualied healthcare professional in
conjunction with the dealer to ensure the suitability of such equipment for the safe
operation of the scooter.
Serious injury can occur in the event of a fall from a mobility scooter.
We DO NOT RECOMMEND that a scooter user is transported in any type of vehicle
when seated in the scooter.
At this time, there are no approved Tie-down Systems for the transportation of a user in
ANY moving vehicle whilst seated in a scooter.
It is our opinion that users of mobility scooters should be transferred into the appropriate
vehicle seating system and use should be made of the restraints available to the auto
industry.

3Iss 2
Quick Start Guide
Assembly
When lifting always keep the back straight, bend the knees and use the lifting handles
provided.
Ensure your rear drive unit is locked in position by checking the rear docking handle
(back light bracket) is fully engaged.
Set the tiller by holding the Tiller Adjustment Lever clockwise while moving the tiller
upwards. Remove the basket from the footboard and place on the bracket located on
the front of the tiller.
Lift battery “B” into the battery tray marked “B Insert First”, then lift battery “A” into
the battery tray marked “A Insert Last”. Ensure battery “A” is located onto the locking
post then lower onto the contacts. Insert the Battery Locking Pin into the locking hole
located at the rear of Battery “A”.
Note:Whenttingthebatteriesputthelargerhandletowardsthefrontofthe
scooter.
Lift the seat onto the seat post and press down to ensure it is fully engaged.

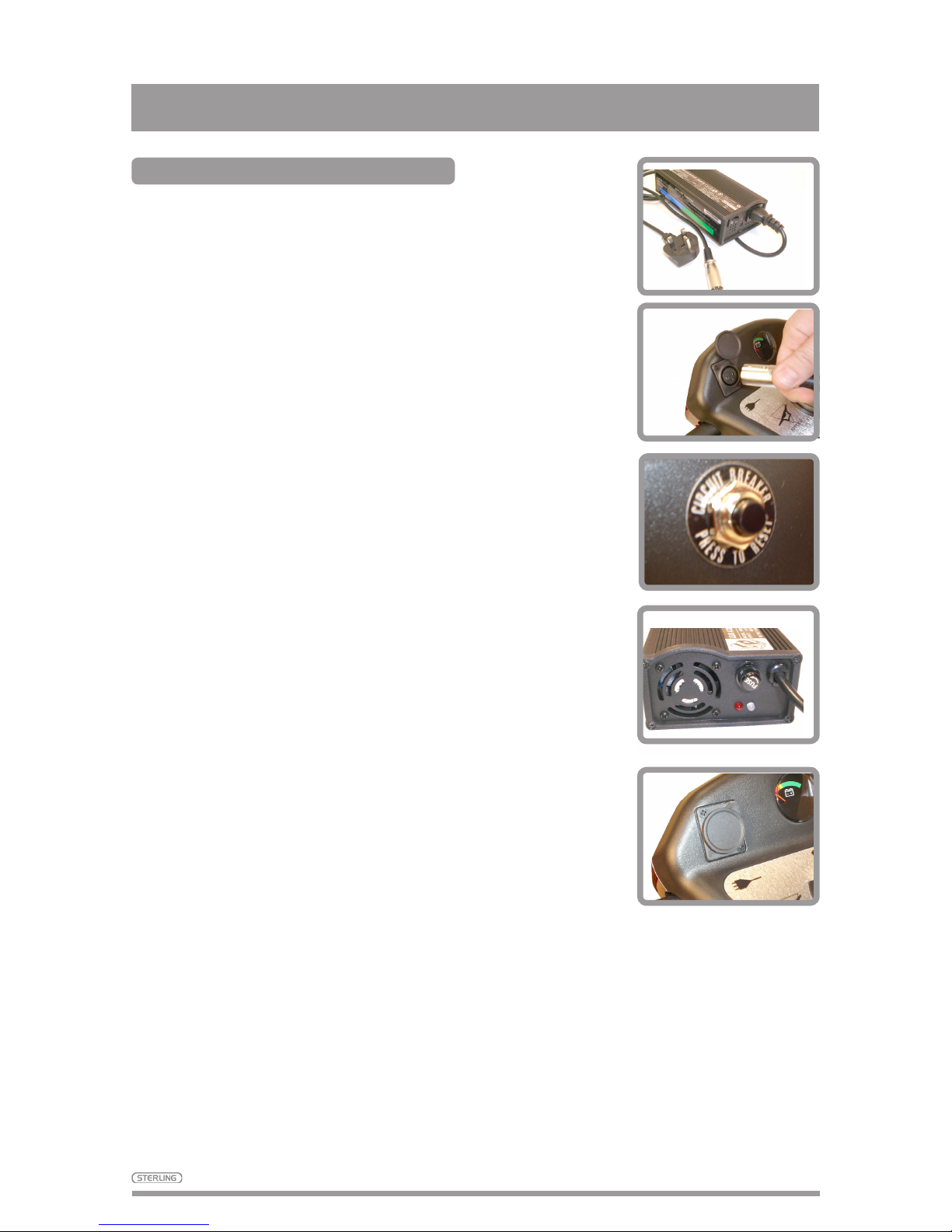

Battery Charging
The battery MUST be charged for 12 hours before rst use. Do not be tempted to use
the scooter unless the battery has been fully charged as failure to do this will result in
battery damage.

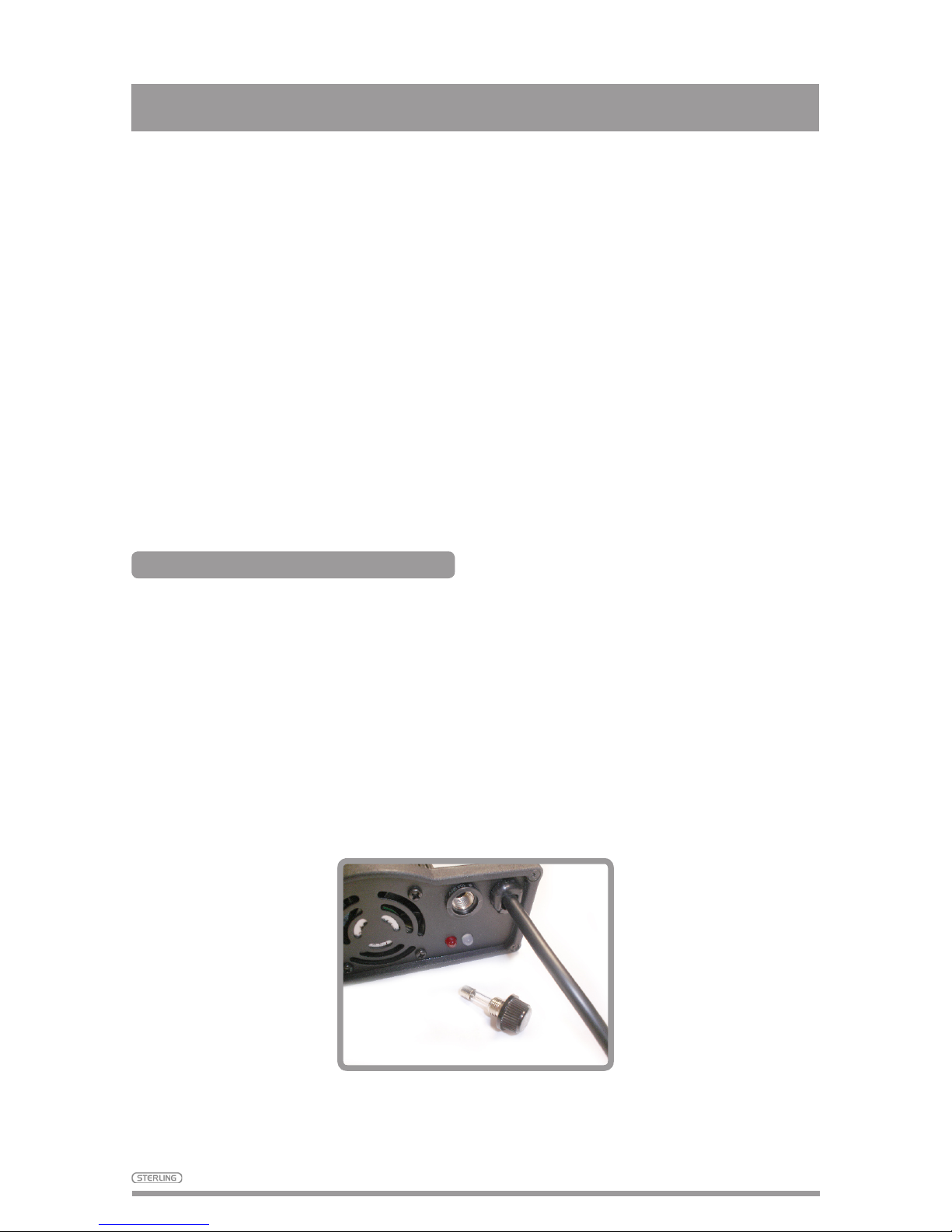

Connect the battery charger to the mains supply and the charging socket located on
the left hand side of the tiller fascia panel. Switch on the mains supply and then switch
on the battery charger. RED light = Power On, YELLOW Light = Charging and GREEN
Light = Charge Complete. Charge the scooter overnight after each use to maintain
battery condition (Approx cost 0.20 euros, 15 pence).
If you are in any doubt then please turn to pages 12 and 13 of this manual.
Typical Use
Designed for use on footpaths, for crossing roads and shopping. It should not be
driven through mud, water, snow, sand, loose gravel, long grass or any other unsound
surfaces.

4Iss 2
Quick Start Guide
Control Functions
Transporting
Your scooter is equipped with the following features that can be found on the tiller
fascia panel:
On/ Off Switch, Battery Gauge, Battery Charging Socket, Speed Control “Min to Max”,
Front / Rear Light, Horn and Directional Control Levers.
If you have previously used or owned a scooter before you MUST still read the
Owners Manual carefully to fully understand the controls and safety warnings.
If you are in any doubt of their functions then please turn to pages 7 and 8 of this
manual.
Your scooter may be disassembled quickly and simply for transportation:
1. Lift off the front basket.
2. Remove the seat, leaving the seat stem in position.
3. Remove the battery locking pin and batteries “A” then “B”.
4. Place the basket in the battery wells.
5. Lower the tiller, using the adjustment lever, to its lowest setting locking in the basket.
This will stop the tiller from moving during lifting operations and transportation.
6. De-dock the rear drive unit by lifting the docking handle (rear light) and moving the
front frame forwards. Note: Batteries MUST be removed before the scooter can be
de-docked.
7. Using the lifting handles provided carefully lift the scooter safely and securely into the
luggage compartment of the vehicle.
TIP:
Lift the front wheels in rst and use these to roll the frame along. Use the step at the
boot opening to rest parts if required.
To reassemble the scooter reverse the sequence above.
Important:
When reassembling the scooter, remember to insert the battery locking pin,
because failure to do so may result in the batteries disengaging during use.
Always secure your scooter parts before transportation. Remember to engage
the drive unit by pushing the freewheel lever forwards to stop the scooter from
moving.

5Iss 2

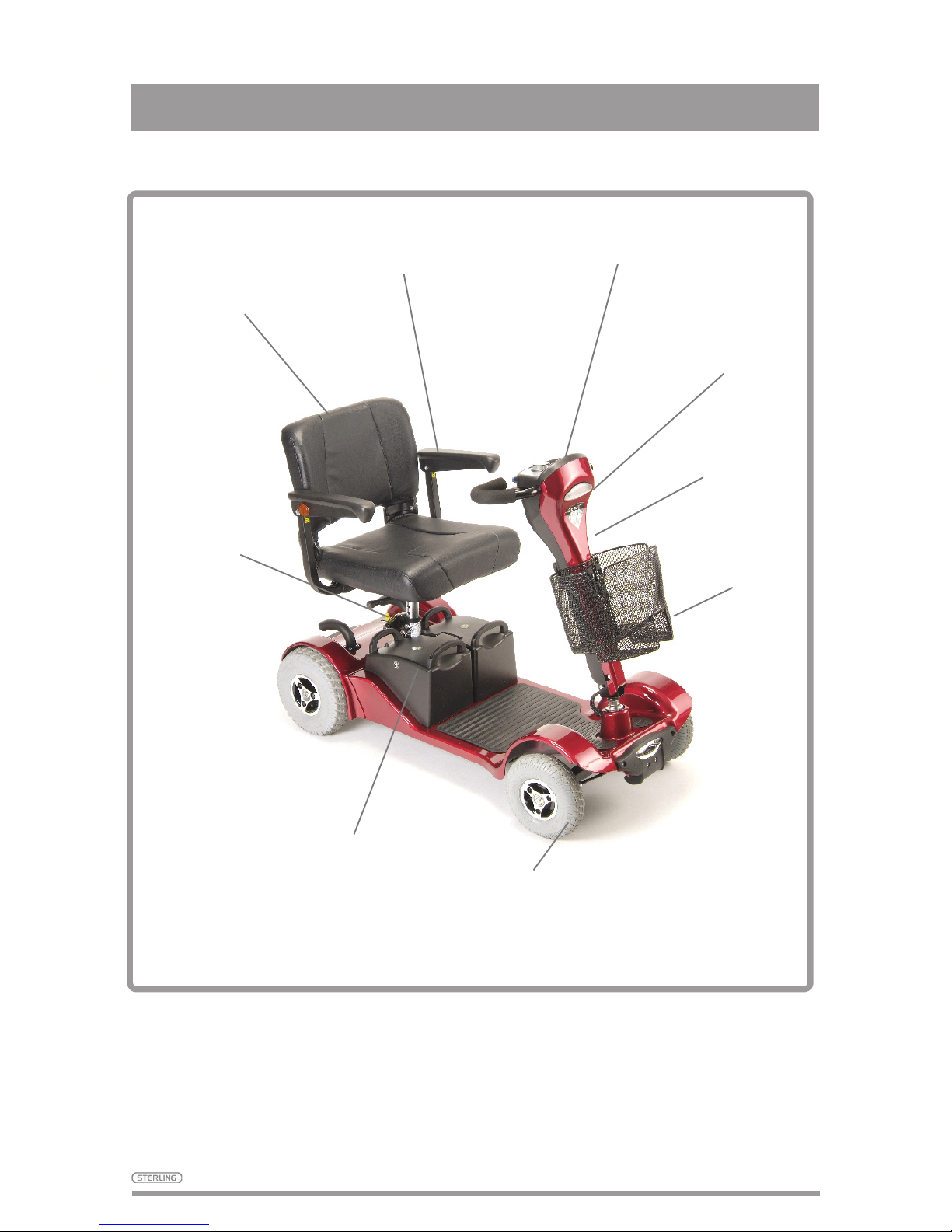

Features
Fig. 1
SEATING
Page 10
WIDTH ADJUSTABLE
ARMRESTS
Page 10
TILLER FASCIA
PANEL
Page 7 - 8
BASKET
Page 14
BATTERIES
Page 12 - 13 & 20-22
LIGHTS
Page 7 - 8
TYRES
Page 19 and 30
ADJUSTABLE
TILLER
Page 11
FREEWHEEL
LEVER
Page 9

6Iss 2

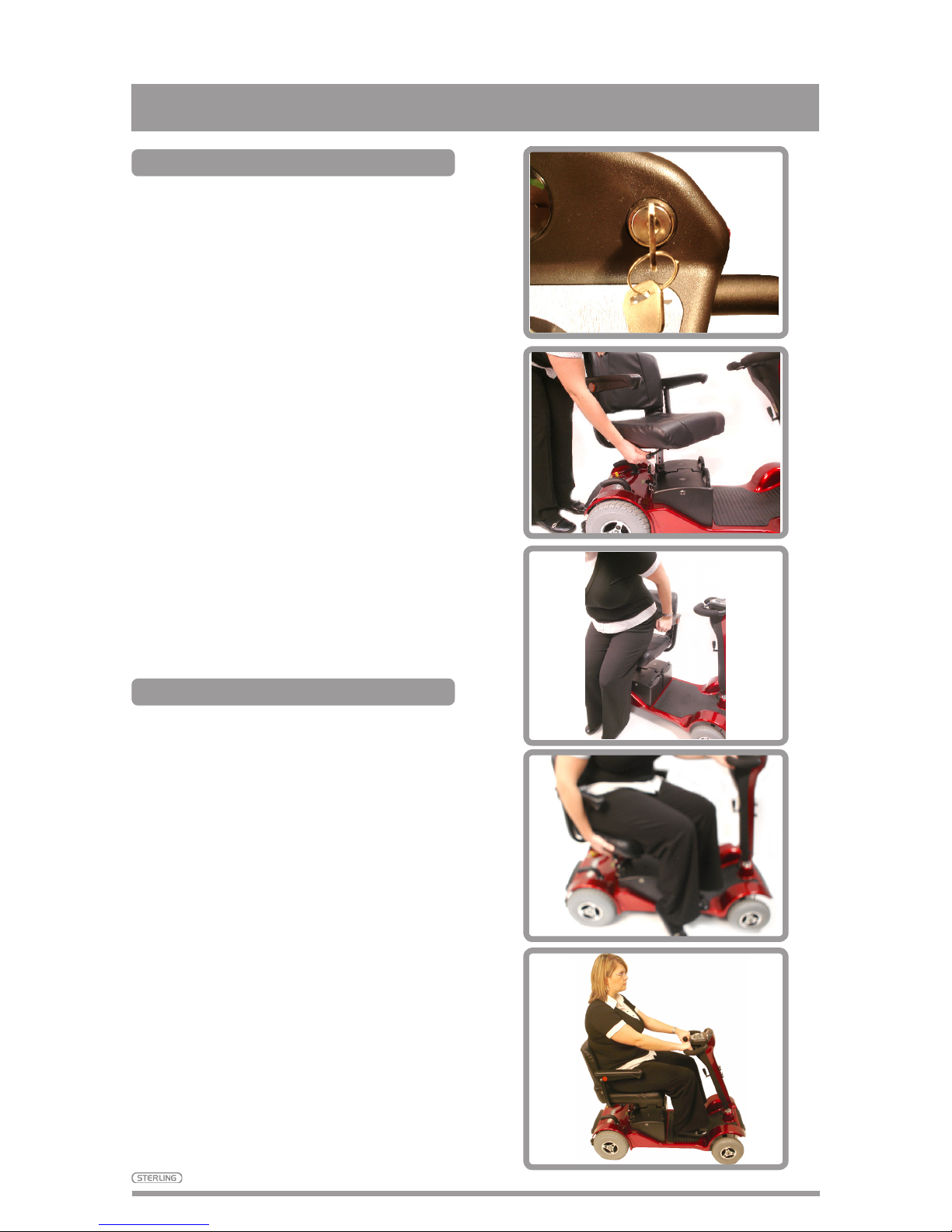

Getting On and Off your Scooter
Getting on to your scooter
1. Ensure that the key switch is turned to the
off position (Photo 6.1).
2. Push forward the seat swivel lever located
under the seat on the right-hand side and
rotate the seat to face you (Photo 6.2).
3. Put the armrests into the fully down
position and use them to steady yourself
as you gently lower yourself into the seat
(Photo 6.3).
4. Push forward the seat swivel lever and
gently swivel the seat to face forward
(Photo 6.4).
5. Ensure that both feet are placed rmly on
the oorboard of the scooter and the seat
is secure (Photo 6.5).
Getting off your scooter
1. Bring your scooter to a stop and turn
the key switch to off .
2. Push forward the seat swivel lever
located under the seat on the right-
hand side and rotate the seat 90
degrees to exit (Photo 6.2).
3. Put BOTH feet on the ground and
gently leave the seat using the arm
rests to assist you out of the chair
(Photo 6.3).
Photo 6.1
Photo 6.2
Photo 6.3
Photo 6.4
Photo 6.5

7Iss 2
Tiller Control Functions
Throttle
Lever
Control
Handle
Bars
Throttle
Control
Lever
Hand Controls
All of the drive controls for the scooter are to be found on the Tiller Control Box (Photo
7.1).
The Preset Speed Knob
Turning this knob to the left, “MIN”, reduces your available maximum speed. Turning it
to the right, “MAX”, increases the available maximum speed.
The Battery Gauge
This gives an approximation of battery charge and is illuminated for clarity.
The gauge is “RED” empty, to “YELLOW” charge required, to “GREEN” charged.
As the scooter moves over differing terrain, the Battery Gauge will dip up and down,
this is normal. For a more accurate indication, stop the scooter and note the reading. In
cold, damp weather the gauge will dip more often as the capacity and efciency of all
batteries drops in such conditions.
TIP: If your battery gauge has gone into the “RED” section you can increase your
remaining range by reducing your maximum speed. Remember you MUST charge your
battery overnight as soon as you can to prevent battery damage.
Operating the Lights
The lights are operated by pressing the blue button on the front fascia panel. Press the
button once to illuminate the lights, press the button again to switch the lights off. Switch
the lights on to make yourself more visible in low levels of light, day or night.
Pre-set
Speed Knob
Battery
Gauge
Light
Switch
Horn
Button
On-Off
Key
Throttle
Control
Lever
Battery
Charging
Socket
Photo 7.1

8Iss 2
Tiller Control Functions
Throttle Lever
The throttle lever offers nger-tip control of your scooter.
It controls the speed as well as forward and reverse motion.
To move the scooter in a FORWARD motion PULL the lever
with the RIGHT HAND or PUSH the lever with the LEFT
THUMB (Photo 8.1).
To move the scooter in a REVERSE motion PULL the lever with
the LEFT HAND or PUSH the lever with the RIGHT THUMB.
The lever will return by itself when released and the scooter will
slow to a stop (Photo 8.2).
The more you move the lever, the more your speed increases
up to its preset maximum. It is possible to operate your scooter
using one side of the throttle lever. To do this you must PUSH
and PULL on the chosen side of the throttle lever.
Horn Button
Pressing the yellow horn button operates an audible warning
sound. Use this function to warn pedestrians of your presence
when necessary (Photo 8.3).
Key Switch
The key switch switches the scooter ON and OFF.
Please note that the key cannot be removed when it is in the
ON position (Photo 8.4.).
Make sure that this switch is in the OFF position BEFORE
getting on or off the scooter. Remove the key to make sure the
scooter is OFF (Photo 8.5).
Turning the key to OFF whilst driving will cause the scooter
to stop very abruptly. This is not recommended except in
emergency stop, as continual use of this function could result in
damage to the scooter.
Off Board Charging Socket
The socket to connect the off-board charger is located on the
left hand side of the tiller fascia panel (Photo 8.6).
To use the socket, swivel the plastic cover to the left or right
to reveal the socket connections. The charger output plug can
now be connected ready to accept charge current from the
battery charger.
After use, ensure that the plastic swivel cover is rotated back
into place. This action helps prevent water from entering the
socket connections.
WARNING.
Do not attempt to charge your scooter outdoors or
in damp/wet conditions. Failure to comply with this
instructionmayleadtoashock/rehazard.
Photo 8.1
Photo 8.2
Photo 8.3
Photo 8.4
Photo 8.5
Photo 8.6
Photo 8.5

9Iss 2
Freewheel mechanism
A freewheel device disengages the power drive
to allow manual operation (i.e. the scooter can be
pushed at a walking pace).
The freewheel is selected by pushing BACKWARD
the lever that is located on the left hand side of
the scooter rear panel. Once freewheel has been
selected, the electronic drive control system is
disabled to prevent driving. This is a safety feature
to prevent you driving the scooter with the parking
brake disengaged (Photo 9.1).
To turn off the freewheel and engage the motor,
simply push the lever FORWARDS (Photo 9.2).
ALWAYS re-engage the freewheel device after use,
failure to do so may result in injury.
Freewheel Mechanism
Photo 9.2
Photo 9.1
WARNING:
Use extreme caution in the freewheel mode
especially on slopes/inclines. Letting go of
your scooter whilst it is in freewheel, can
cause the scooter to roll unexpectedly.

10 Iss 2
Seat Adjustment
1. To adjust seat height, remove the seat as
described (Photo 10.5).
2. Move the seat post to the new position and ret
the seat pin (Photo 10.6).
3. Ret the seat.
Seat Removal and Adjustment
Removing the Seat
Please note that these instructions are to be
used as a guide only.
1. Lift armrests upwards for ease of access (Photo
10.1) .
2. Stand behind the seat and fold the backrest down
(Photo 10.2).
3. Grasp the seat base and keeping a rm grip, lift
the seat vertically, keeping your back straight.
Bend knees if required (Photo 10.3).
4. Place seat at desired location for stowage,
keeping back posture straight at all times, bend
knees where required (Photo 10.4).
Note: Exercise caution when lifting the seat.
Armrest Adjustment
The width of the armrests can be adjusted by
loosening the two thumbwheel knobs located under
the seat base, moving the armrests to the desired
position and re-tightening the thumbwheel knobs
(Photo 10.7).
Photo 10.2
Photo 10.4
Photo 10.3
Photo 10.6
Photo 10.5
Photo 10.1
Photo 10.7

11 Iss 2

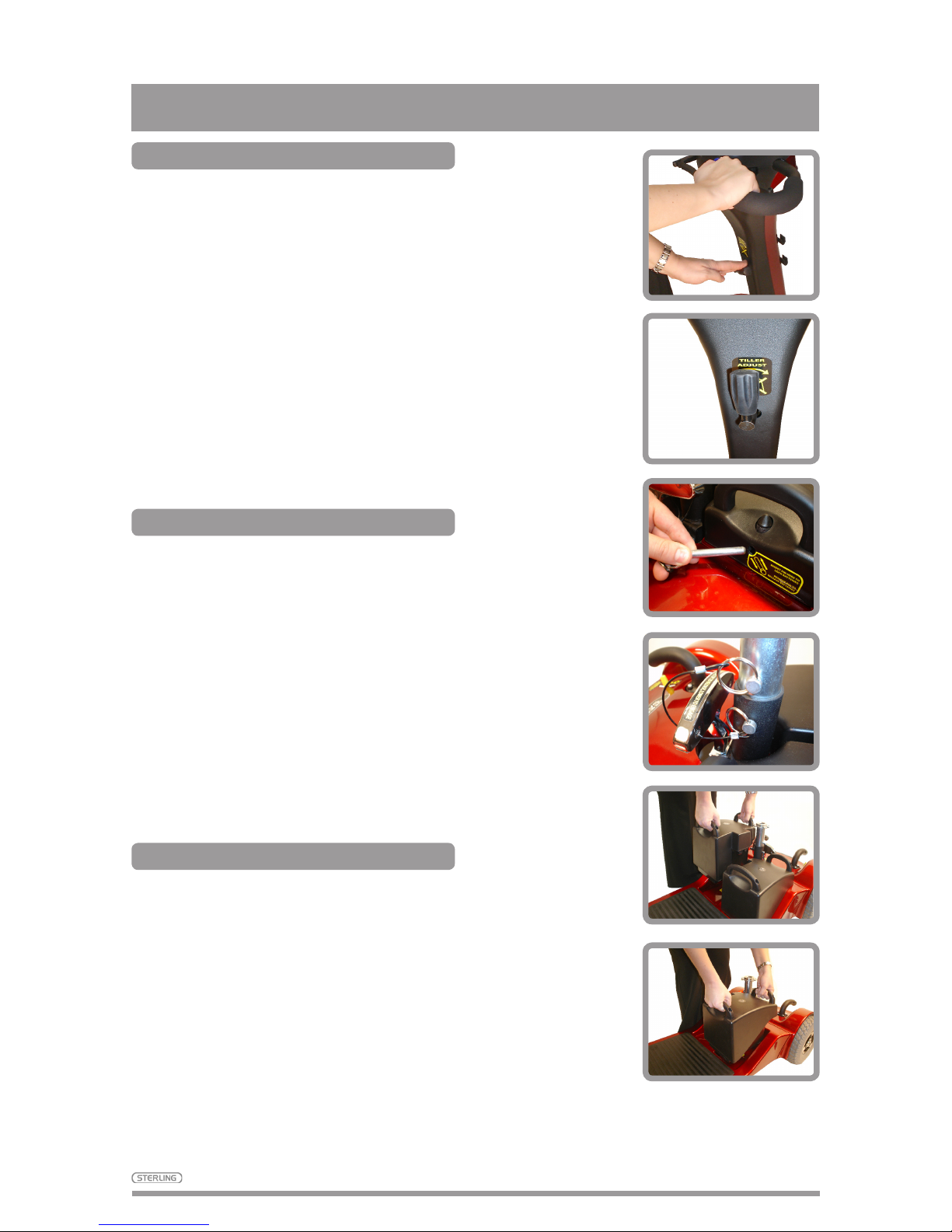

Tiller Adjustment and Battery Removal
Tiller Adjustment
The scooter features an innitely adjustable tiller which
allows you to lock the tiller in the most comfortable
driving position. This feature also lets you fold the tiller
down fully, for transportation and stowage.
The tiller adjusting lever is located on the driver’s side
of the tiller.
1. Support the tiller with your right hand.
2. Rotate the adjusting lever clockwise to release the
adjustment mechanism (Photo 11.1).
3. Move the tiller to the desired location.
4. Release the adjusting lever to the vertical position
(Photo 11.2).
Battery Removal
It is important to remove the seat rst to allow better
access to the batteries.
1. Remove the battery locking pin from the rear of
battery pack “A” (Photo 11.3).
2. Fit the battery locking pin into the seat stem for
storage (Photo 11.4).
3. Lift battery “A” vertically out of its battery tray using
the 2 handles provided (Photo 11.5).
4. Lift battery “B” vertically out of its battery tray using
the 2 handles provided (Photo 11.6).
Remember to keep the knees bent and the back
straight.
Battery Replacement
To replace the batteries reverse the sequence above
placing battery “B” onto the scooter rst, followed by
battery “A”, then insert the battery locking pin back
into battery “A”.
Important:
When reassembling the scooter, remember to insert
the battery locking pin, because failure to do so may
result in the batteries disengaging during use.
Ensure the battery wells are free from dirt and
grit - this will affect the performance of the battery
contacts.
Photo 11.5
Photo 11.4
Photo 11.3
Photo 11.2
Photo 11.1
Photo 11.6

12 Iss 2
Off-Board Battery Charger
Your scooter is supplied with an off-board charging facility
(Photo 12.1). Please note that only chargers with a capacity
of minimum 3.0 Amps and maximum of 6.0 Amps supplied
by your local authorised dealer should be used.
1. Switch your scooter off at the key switch.
2. Swivel the charge connector cover located on the Tiller
Fascia Panel and connect the charger (Photo 12.2).
3. Ensure that the charger plug is dry and intact before
connecting it to the mains and switching it on.
4. A reset button is located on the side of battery “A”.
Please check that the button is pressed in (Photo 12.3).
Note:
The charger is capable of charging from 230V or 110V
by switching the charger off and sliding the red tab on
the end of the charger to the required setting using a
small screwdriver. This setting is factory set to 230V.
The 5 Amp, off-board charger has 3 possible indications
(Photo 12.4):
1. RED = Charger is on.
2. YELLOW = Charging.
3. GREEN = Fully charged.
Ensure the scooter is switched off before commencing the
charging process.
After charging, always swivel the charging socket cover
back into place. This helps prevent water getting into the
socket (Photo 12.5).
Please note that the scooter has a safety circuit to prevent
it from being driven off during charging. If your scooter
fails to respond to normal control after a charging period,
please check that the battery charger has been completely
disconnected from the scooter.
Batteries and Charging
Photo 12.5
Photo 12.4
Photo 12.3
Photo 12.2
Photo 12.1

13 Iss 2
Batteries and Charging
The off-board charger must be kept dry in temperatures between -25°C and
40°C and not be subjected to mechanical damage.
In all cases, the charger must only be repaired by an authorised dealer.
WARNING !
NO SMOKING OR NAKED FLAMES WHEN CHARGING BATTERIES.
DO NOT TOUCH BATTERY PACK TERMINALS WITH METAL OBJECTS.
ONLY USE APPROVED REPLACEMENT BATTERIES.
IF DAMAGE TO BATTERIES OR BATTERY BOXES IS EVIDENT,
CONTACT YOUR LOCAL DEALER IMMEDIATELY - DO NOT ATTEMPT
TO SERVICE THE BATTERIES.
DEALER WARNING !
REMOVE METALLIC JEWELLERY WHEN WORKING WITH BATTERIES.
WEAR GLOVES AND GOGGLES IF MOVING LEAKING BATTERIES.
REPLACE DAMAGED OR LEAKING BATTERIES IMMEDIATELY.
Fuses
There is a reset button as described previously. If a fault occurs, the button
will pop out. Switch the scooter off, press the button in and switch the
scooter back on.
There is a 125A fuse tted to the positive terminal of each battery. These
fuses must be replaced by an authorised service agent.
There is also a 10A cartidge fuse tted on the charger and a fuse in the
mains plug of the battery charger. If this blows, switch off at the mains,
remove the plug and replace the blown fuse with a new fuse of the same
value (Photo 13.1).
Photo 13.1

14 Iss 2
Transportation
Transportation
Your scooter may be disassembled quickly
and simply for transportation.
1. Engage the drive unit by pushing the
freewheel lever forwards to stop the
scooter from moving during docking and
transportation.
2. Lift off the front basket.
3. Remove the seat, leaving the seat stem in
position.
4. Remove the batteries “A” then “B”
Transport batteries in the upright position.
5. Place the basket in the battery wells.
6. Lower the tiller, using the adjustment lever
to its lowest setting, locking in the basket
(Photo 14.1).
7. De-dock the rear drive unit by lifting the
docking handle (rear light) and moving
the front frame forwards. Note: Batteries
MUST be removed before the scooter can
be de-docked (Photo 14.2).
8. Using the lifting handles provided carefully
lift the scooter safely and securely into
the luggage compartment of the vehicle
(Photo 14.3).
TIP:
Lift the front wheels in rst and use these to
roll the frame along. Use the step at the boot
opening to rest parts if required (Photo 14.4).
To reassemble the scooter reverse the
sequence above.
Important:
When reassembling the scooter,
remember to insert the battery locking
pin, because failure to do so may result
in the batteries disengaging during use.
Always secure your scooter parts before
transportation. Do not sit on your scooter
whilst it is being transported in or on
another vehicle.
Photo 14.4
Photo 14.1
Photo 14.3
Photo 14.2

15 Iss 2
Guidance for Safe Operation and Use
Basic Driving
Caution!
It is advisable during the rst few sessions of operating your scooter that the area
around you is clear of obstacles and pedestrians.
Before operating your scooter, ensure the seat height and position has been adjusted to
your satisfaction and the tiller angle has been set for optimum safety and comfort.
Please see the “General Warnings”, “Getting on Your Scooter” and “Tiller Adjustment”
sections in this handbook.
1. Make sure you are properly seated on the scooter and that the speed control knob is
turned fully to the left, towards “MIN”.
2. Turn the key switch to the “ON” position.
3. On the tiller, use the throttle lever as described earlier. You will gently accelerate.
Release and you will gently stop. Practice these two basic functions until you get
used to them.
4. Steering the scooter is easy and logical. Be sure to remember to allow enough
clearance when turning corners so that the rear wheels clear any obstacle.
5. Shortcutting a pavement corner can cause the back wheel to go off the pavement,
causing problems if the corner is very rough. Avoid this at all times by steering an
exaggerated curve around the obstacle.
6. When steering in a tight spot, such as entering a doorway or when turning around,
stop the scooter and then turn the handlebar to where you want to go, then apply
power gently. This will make the scooter turn very sharply. It is also recommended
that the preset speed is set to a slower setting to aid control in tight spots.
7. Reversing requires attention - exercise caution when reversing especially down
slopes.
When reversing, always turn the handlebars in the opposite direction to the way you
want to go.
The more you operate the throttle lever, the faster you will go.
Reverse speed is 50% slower than forward speed. If the scooter does not move
in reverse, carefully turn the speed control knob clockwise until the scooter moves
gently backwards.
Important:
To preserve battery power there is a “sleep timer” feature built into the controller.
Should the scooter be left ON, but not operated for 15 minutes the scooter will go
into “sleep mode”. To reset this, switch the scooter OFF and then back ON again.

16 Iss 2
Guidance for Safe Operation and Use

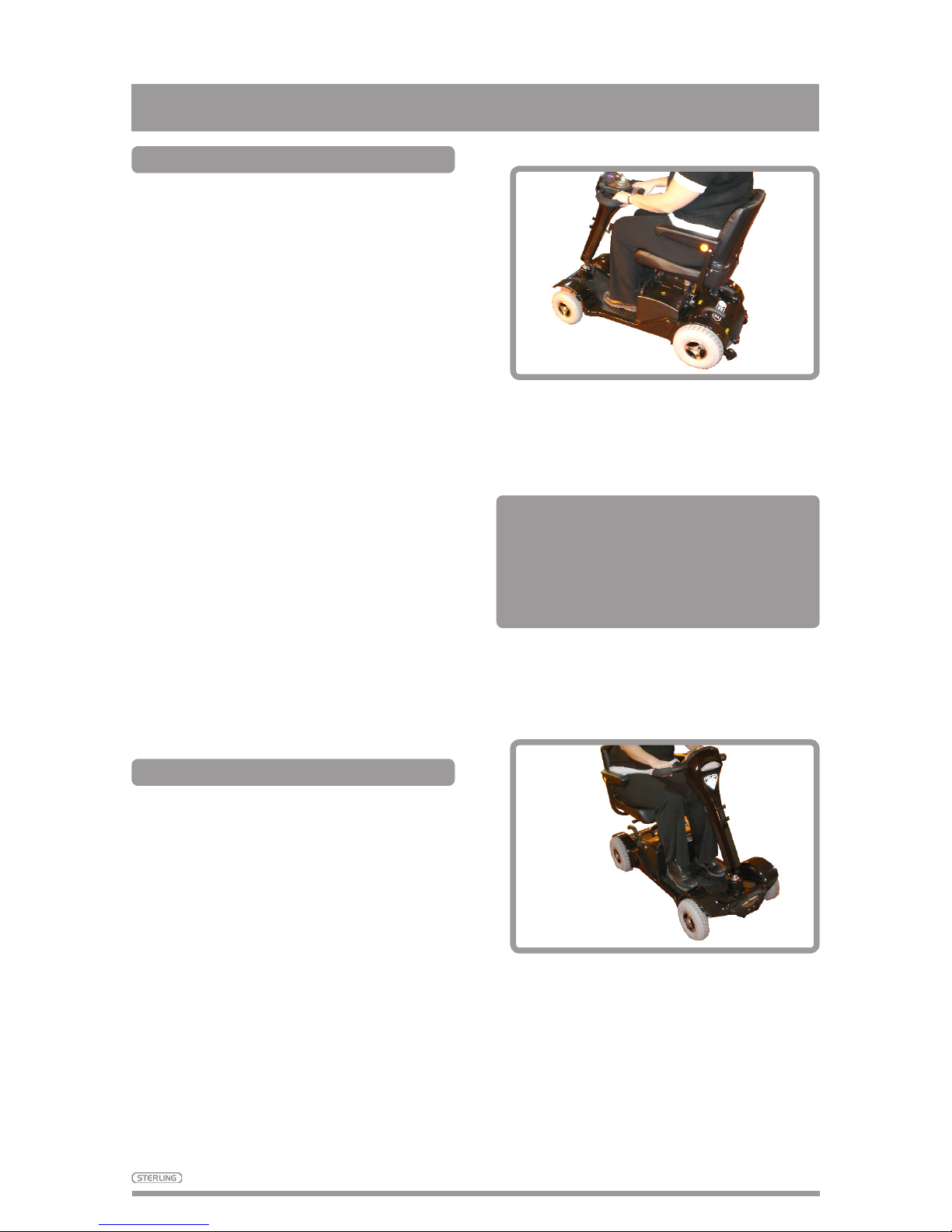

Hill climbing
This scooter has been tested to climb
an incline of no more than 10° with a
maximum user weight of up to 150kg
(330 lbs) (Photo 16.1). Do not attempt to
climb inclines in excess of this.
Always reduce your speed when
reversing on slopes. Do not reverse
down hills in excess of 8°and always use
extreme caution when reversing down
hills.
Do not attempt to drive along with the
wheels at different levels, e.g. along the
footpath and road simultaneously.
Hill climbing capability and distance
travelled between battery charges will be
adversely affected by such things as:
1. The weight of the user.
2. Terrain (e.g. grass or gravel).
3. Steepness of hills.
4. Level of charge and the age of the
batteries.
5. Extremes of temperature.
6. Use and weight of accessories.
Travelling across slopes
Care should be taken traversing across
a slope, always reduce your speed. Do
not traverse across the face of a slope in
excess of 10° (Photo 16.2).
Note: Where possible always travel
up or down hills or ramps
directly facing the slope of the
hill.
Do not traverse across the
face of a slope in excess of
10°. Disregard of this advice
could result in your scooter
tipping.
Please note that lap belts must
onlybeobtainedandttedby
an authorised dealer and used
according to the advice of your
healthcare professional.
Photo 16.2
Photo 16.1

17 Iss 2
Guidance for Safe Operation and Use
Emergency Braking
In the unlikely event of an unwanted movement of the scooter or other emergency,
switching off the key switch will bring the scooter to a stop.
Though very effective, emergency braking is extremely abrupt and must never be used
under normal circumstances.
Letting go of the throttle lever will slow the scooter to a controlled stop.
Switching off
The scooter must always be switched off at the key switch.
When the scooter is stowed or not in use for a long period of time, always charge the
batteries for 12 hours and then disconnect the battery pack before storing. If the scooter
is to be stored for a long period of time remove the fully charged battery packs and store,
at or near room temperature, out of freezing conditions i.e. greater than 0°C.
Braking
To bring the scooter to a standstill simply let go of the
throttle control lever (Photo 17.1).
Remember to keep both of your hands on the handlebars
whilst the scooter is braking.
Two types of braking are used.
(a) Automatic regenerative braking, which slows the
scooter to a stop.
(b) Automatic braking which will operate a couple of
seconds after releasing the control lever and holds the
scooter in position, even if you are on a hill.
Note: Automatic braking is not instantaneous
and will engage within 1/2 a wheel turn once
the scooter has stopped.
Use on the footpath
When using your scooter on the footpath always be aware of
pedestrians and situations which might require extra care. For
example, young children and pets. Remember, especially when
driving in public places, to drive with caution and regard for others
at all times. When manoeuvring in conned areas, including
shops, ensure the minimum speed is selected (Photo 17.2). If you
leave your scooter outside a shop ensure that it does not obstruct
the footpath or vehicular access.
Always switch off and take your key with you.
Photo 17.2
Photo 17.1
