Supertrax Porsche Macan S Style User guide

Porsche Macan S Style
Kids Ride on Car
Assembly and Instruction Manual
Please read this instruction manual carefully. It is
important to read and follow all of the steps during
assembly to ensure proper operation and safety of the
child. Please keep this manual for future reference.
Scan this QR Code
to view the
Assembly Video

SPECIFICATIONS:
Car Type:
Porsche Macan S Style
Battery Type:
12V9AH
Electric Motor:
12V30W 12V15W
Age Range:
2 –5 Years
Max. Weight:
65 lbs
Product Size:
42”L x 23”W x 17”H
Avg. Speed:
2 –4 MPH
Charging time:
8-12 hrs
Avg. Use Time:
1-2 Hrs (depending on use)
Remote Battery:
2 - AAA (not included)
IMPORTANT!
•Assembly of car and charging
of battery is only to be done
by an adult.
•WARNING!! NOT TO BE USED
ON STREETS or IN TRAFFIC.
•Never modify the electric
circuit system or tamper with
electric system. This can cause
permanent damage.
•Please check the product
regularly for any loose parts or
wires to ensure proper
operation.
•Adult supervision is
recommended during
operation by child to avoid
injury. Safety equipment is
recommended.
•Please make sure that the
child uses caution to avoid falls
and collisions, which could
cause injury to the child or
third party.
•Do not pick up vehicle by
steering wheel.
•Do not pick up battery by
wires or charger.
•Keep all plastic bags out of the
reach of young children.
•Not recommended for children
under the age of 2 yrs. due to
small parts that could cause a
choking hazard.
•Battery must be charged for a
minimum of 8-12 hours prior
to first use of the car to avoid
damage to the battery. Power
switch must be in off position
when charging.
•Battery charger should be
examined for damage prior to
each use. It is important to
inspect the cord and both ends
for damage. If damage is
found, DO NOT USE THE
CHARGER! Contact us for
replacement charger.
•Please retain instruction
manual for future reference.
•Please retain packaging in the
event it is necessary to return.
If the charger is plugged into the charging port, the car will
not power up regardless if the charger is plugged into the
wall outlet or not.

PACKING LIST:
1 - Car Body
1 - Charger
1 - Steering Wheel
1 - Remote Control
4 - Wheels
1 - Instruction Manual
1 - Seat
AV cord to connect MP3 Player
ASSEMBLY INSTRUCTIONS:
All assembly videos can be found on
YouTube under SPORTrax
Installing Rear Wheels
1. Remove car from box and plastic.
2. Prop rear of car up so rear axle is off the
ground.
3. Install 1 rear wheel w/hub on each side
of rear axle, as shown in photo.
(See Fig. 1)
4. Push the center button on the outside of
the wheel and push the wheel onto the
axle. Release the center button and
make sure that the wheel snaps into
place. Repeat for each wheel.
Installing Front Wheels
1. Place a washer onto the axle shaft.
2. Insert wheel bushing into the back side
of the wheel and slide wheel onto the
axle shaft.
3. Push the center button on the outside of
the wheel and push the wheel onto the
axle. Release the center button and
make sure that the wheel snaps into
place. Repeat for each wheel.

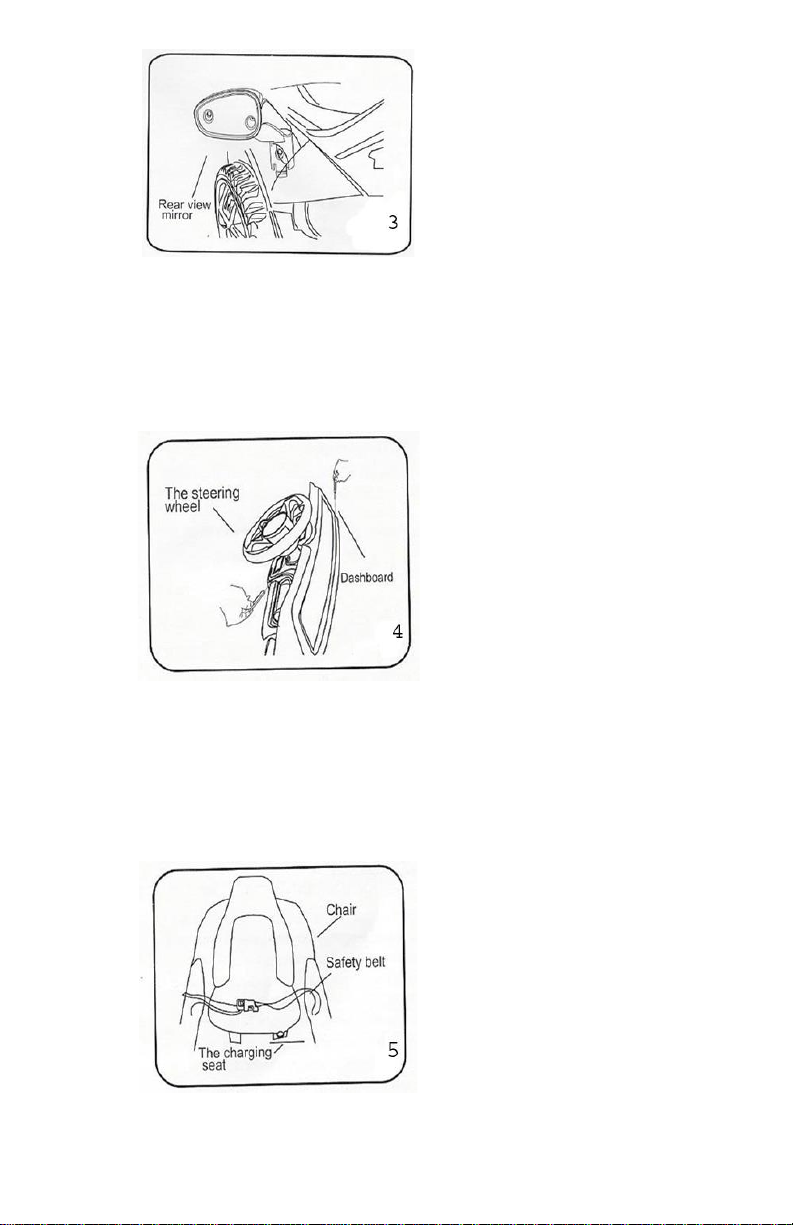

Installing the Rearview Mirror
1. Align the placement of the mirrors, near
the front of each door.
2. Push downward on the mirror until it
snaps into place.
Installing the Steering Wheel &
Windshield
1. Plug the electrical connector on the
steering wheel to the connector located
near the steering rod close to the
dashboard area. (If there is a plastic wire
tie holding wires to steering shaft, you
will need to cut the wire tie prior to
making the connection)
2. Place steering wheel right side up onto
the metal steering shaft.
3. Line up hole in metal steering shaft with
hole in the side of the smallest diameter
portion of the steering wheel.
4. Insert M5 bolt (supplied in the part
package) in one side of above
mentioned hole making sure that it goes
through the hole in the metal steering
shaft and complete through to the other
side of the steering wheel.
5. Screw on nut (supplied in the parts
package) and tighten until snug.
6. Align the placement of the windshield, in
front of the steering wheel.
7. Push downward on the windshield until
it snaps into place.
Installing the Seat
1. Set the seat in the appropriate position
on the car. Making sure that the tab on
the rear of the seat goes into the slot on
the body of the car.
2. Secure the seat by pushing the seat
release button and pressing down firmly
on the front of the seat. Release the
button and make sure that the seat is
secure.

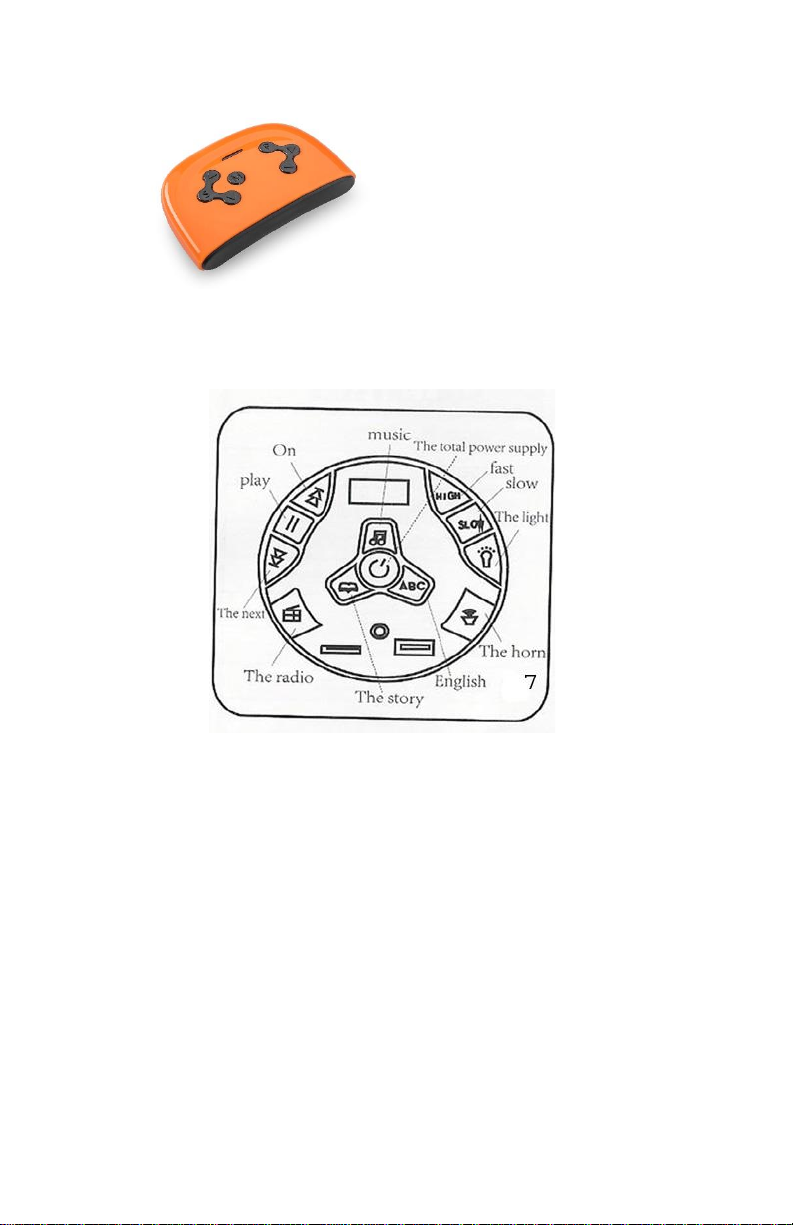

Operating the remote control
1.Install batteries
2.Hold Mbutton for more than three seconds
until light flashes
Then turn on the car, light should go solid and
will be paired to the car.
1 Light=Slow Speed
2 Lights=Medium Speed
3 Lights=High Speed
P=Parking brake
S=Speed Control
M=Code Matching
Power Button: Located in Center; Press the power button for powering on the
car; press for 3 seconds to power the car off
Music Note Button: Press button to start the pre-installed music.
Story Book Button: Press button to start the pre-installed children stories.
ABC Button: Press button for pre-installed children nursery rhymes.
Radio Button: Press button to start the FM radio function; Hold button to
search for radio stations in your area.
Lower Arrows Button: Press this button while music, story, or nursery rhymes
are playing to start the previous one.
Play/Pause Button: Press button to pause; press again to resume play
Upper Arrows Button: Press button to while music, story, or nursery rhymes
are playing to start the next one.
High Button: Press button to put car in fast mode.
Slow Button: Press button to put car in slow mode.
Lights Button: Press to turn on the lights; press again to turn the lights off.
Horn Button: Press to sound the horn.

Pull/Tow Function
Prior to using the pull/tow function, it is
necessary to install the rear body
bracket with the tow wheels.
1. Turn vehicle upside down.
2. Line up the bracket with
corresponding locations for the
screws near the rear bumber. The
wheels on the bracket need to be
positioned so that they are closest
to the rear bumber and able to flip
out of the bracket to the rear of the
car.
3. Install 5 screws (supplied) to secure
the bracket to the body of the car.
Using the pull/tow function
1. Please remove child from car
2. Locate rear pull/tow wheels under
the rear of car.
3. Flip the wheels so that they are
locked into position extending out
from the rear of the car.
4. Locate the handle under the front
of the car.
5. Flip the handle so that is locked
into position extending out from
the front of the car.
6. The car is now ready to pull/tow.
Car Operation
Once battery is fully charged, disconnect from charger. Press power button to
start the car. Once the power is on, you will hear the start-up sound of the
engine. To move the car forward, place “go-ahead/back”switch in the “go-
ahead”position and press the gas pedal; to move the car backward, place “go-
ahead/back”switch in the “back” position and press the gas pedal.
To operate the car using the remote control first make sure remote has been
paired to the car, the remote should operate the car upon command by
pressing the buttons for the direction you want the car to move. The buttons
found on the steering wheel operate the horn.

CHARGING & BATTERY MAINTENANCE:
•IMPORTANT! Battery must be charged for a
minimum of 12 hours prior to first use of the car to
avoid damage to the battery.
•When connecting the charger, please install the plug
into the car prior to plugging charger into the wall
socket.
•Charging time for battery is 8-12 hours
•DO NOT EXCEED 12 hours when charging.
•Only use the battery supplied with this car to avoid
damage to the car.
•Adult supervision is advised for connecting charger.
•Never reverse polarity of the battery + to red and –
to black. NOTE: On dual battery cars, there will be
a jumper wire that goes from the positive terminal
on one battery to the negative terminal on the
second battery. This is OK, the batteries run in
series to create 12V.
•Never short circuit battery! Do not touch red wires
to black wires.
•For remote control: it is not recommended to use
rechargeable batteries.
Please Note: As a safety precaution and to avoid
damage to the charger, the car will not power up
while charger port is plugged into the car.

WARNING:
- Use only the rechargeable battery and charger supplied with
your vehicle. NEVER substitute the battery or charger with
another brand. Using another battery or charger may cause
damage.
- NEVER modify the electric circuit system. Tampering with the
electric system may cause permanent damage to the system.
- Do not allow direct contact between battery terminals.
- Do not allow any type of liquid on the battery or its
components.
- Charge the battery in a well-ventilated area ONLY. Do not
charge near or around flammable materials.
- NEVER pick up the battery by the wires or charger. Damage can
occur to the battery and may cause a fire. Pick up the battery by
the case ONLY.
- Charge the battery in a dry area ONLY.
Wash hands after handling.
- Do not open the battery. Battery contains lead acid and other
materials that are toxic and corrosive.
- Do not open the charger. Exposed wiring and circuitry inside
case could cause electric shock. NEVER allow a child to handle
or charge the battery. Battery is heavy and contains lead acid
(electrolyte).
- Do not drop the battery. Permanent damage to the battery
could occur or cause serious injury.
- Before charging the battery, check for wear or damage to the
battery, charger, its supply cord and the connectors. DO NOT
charge the battery if any damage to parts has occurred.
- Do not allow the battery to drain completely. Recharge the
battery after each use or once per month if not used regularly.
- Do not charge the battery upside down.
-Always secure the battery with the bracket. Battery can fall out
and injure a child if vehicle tips over.
- The Power Switch must be turned in the OFF position when
charging.
- When the car begins to run slowly, recharge the battery.

GENERAL MAINTENANCE:
It is the parent’s responsibility to check main parts of the toy
before using. Regularly examine the car for potential hazard,
such as damage to the battery, charger, cable or cord, and plug.
Also, check that all screws are tightened throughout the car. In
the event of such damage, the toy must not be used until that
damage is repaired or replaced.
•Make sure the plastic parts of the vehicle are not cracked or
broken.
•Occasionally use a lightweight oil to lubricate moving parts
such as wheels.
•Park the vehicle indoors or cover it with a tarp to protect it
from wet weather.
•Keep the vehicle away from sources of heat, such as stoves
and heaters. Plastic parts may melt.
•Recharge the battery after each use. Only an adult should
handle the battery. Recharge the battery at least once a
month when not being used.
•Do not wash the vehicle with a hose. Do not wash the vehicle
with soap and water. Do not drive the vehicle in rainy or
snowy weather as water will damage the motor, electric
system and battery.
•Clean the vehicle with a soft, dry cloth. To restore shine to
plastic parts, use a non-wax furniture polish. Do not use car
wax. Do not use abrasive cleaners.
•Do not drive the vehicle in loose dirt, sand or fine gravel
which could damage moving parts, motors or the electric
system.
•For extended times when the car will not be used, the power
switch needs to be in the off position and the electrical
connections should be disconnected from the battery.

TROUBLE SHOOTING GUIDE:
Problem
Possible Cause
Possible Solutions
Car will not move
1. Battery voltage is low.
2. Screw on the wheels
may have come loose.
3. Battery connector may
have come apart or
have a bad connection.
4. Battery is damaged
5. Electrical box is
damaged
6. Motor is damaged
Charge the battery
Re-tighten screws on
wheels.
Re-connect the battery
connector to the car
electrical connector
Replace battery
Replace motor
The battery will not
charge.
1. Battery connector may
have come apart or
have a bad connection.
2. Battery charger
plugged into a bad wall
outlet.
3. Battery charger is
damaged.
Re-connect the battery
connector to the car
electrical connector
Try another wall outlet
Replace battery charger
Shortened battery
life
Battery was not charged
fully
Battery is old
Charge battery fully
Change battery
Some Noise and
heat when charging
battery
Chemical reaction
Normal
Low Speed
Battery is old
Battery is low on charge
Weight limit exceeded
Uneven or uphill path
Change the battery
Charge the battery
Do not exceed max
weight limit
Noise coming from
motor/gearbox
Gear in motor/gearbox
broken
Call for replacement
motor
The car shakes
when moving
Bad Connection of the
motor wires
Possible motor failure
Reconnect wires
Call for replacement
motor
No sound or lights
when running
Sound & Light wire(s) may
be loose.
Damage of sound & light
board
Reconnect wires
Call for replacement
sound & light board
Self-Resetting Breaker –The vehicle is equipped with a self-
resetting breaker. In the event the power is tripped the breaker
will reset itself in approximately one minute.
If you are unable to solve a problem, please feel free to contact us.
Phone: [phone] or Email: [e-mail]
