Supertrax Thar XL Parts list manual

Thar XL
Kids Ride on Car
Assembly and Operation Instructions
Please read this instruction manual carefully. It is important to read and
follow all the steps during assembly to ensure proper operation and safety of
the child. Please keep this manual for future reference.
Scan this QR Code
to view the
Assembly Video

SPECIFICATIONS:
Battery
Type:
2 - 12V10AH
Avg. Speed:
Approx. : 2 – 5 MPH
Age Range:
2 – 7 Years
Charging time:
8-12 hrs – MAXIMUM
Minimum 1 Charge
per month
Max.
Weight:
80 lbs
Avg. Use Time:
48-90 Minutes
(depending on use)
Fuse Interior
Electronics:
3AMP
Fuse Circuit Breaker:
18AMP
Product
Size:
53”L x 34”W x 34”H
Remote Battery:
2 - AAA (not included)
IMPORTANT!
•
Assembly of car and charging of battery
is only to be done by an adult.
•
WARNING!! NOT TO BE USED ON
STREETS OR IN TRAFFIC.
•Never modify or tamper with any part of
the electric circuit system. This can cause
permanent damage.
•Please check the vehicle regularly for
any loose parts or wires to ensure
safety and proper operation.
•
Adult supervision is recommended
during operation to avoid injury. Safety
equipment is recommended.
•
Please make sure that the child uses
caution to avoid falls and collisions,
which could cause injury to the child or
third party.
•
Do not pick up vehicle by steering wheel.
•
Do not pick up battery by wires or
charger.
•Keep all plastic bags out of the reach of
young children.
•
Not recommended for children under
the age of 2 yrs. due to small parts that
could cause a choking hazard.
•
Battery must be charged for a minimum
of 8-12 hours prior to first use of the car
to avoid damage to the battery. Power
switch must be in off position when
charging.
•
Battery charger should be examined for
damage prior to each use. It is
important to inspect the cord and both
ends for damage. If damage is found,
DO NOT USE THE CHARGER! Contact us
for a replacement charger.
•Please keep instruction manual for
future reference.
•Please keep original packaging.
If the charger is plugged into the charging port the car will not power on,
regardless if the charger is plugged into the wall outlet or not.

PARTS LIST
#
Name
#
Name
1
Main Body
12
Steering Wheel Nut
2
Rear Axle
13
Windshield
3
Drive Motor
14
Rearview Mirrors
4
Hub Adapter
15
Light Bar Brackets
5
Wheel Bushing
16
Light Bar Connectors
6
Wheel
17
Light Bar
7
Washer
18
Screw
8
Rear Axle Nut
19
Seat
9
Wheel Rims
20
Faux Spare Tire
10
Steering Wheel
21
Front Axle
11
Steering Wheel Bolt
All assembly videos can be found on
YouTube under SUPERtrax

ASSEMBLY INSTRUCTIONS:
1: Rear Tire Assembly:
On the inside and at the rear of the vehicle you will find two motors. First, unplug
and remove the driver’s side rear motor. NOTE: If the motors happen to get
reversed in the assembly process, this will make the vehicle drive opposite of
what is intended. Next, slide the motor onto the driver’s side of the rear axle with
the motor wires facing the inside of the vehicle. Then feed the motor wires
through the body and connect the motor to the connecting wires. Get one wheel
and add a wheel bushing to the wheel and screw hub adaptor to the inside of the
wheel with 4 screws. Slide the wheel onto the driver’s side of the rear axle and
align the hub adaptor with the motor grooves. On the outside of the wheel, insert
another wheel bushing, a washer and a nut and then tighten down with the
supplied lug nut wrench. Do not over tighten because this could cause premature
motor failure. Lastly, locate a wheel cover and snap into place on the wheel,
making sure that the tabs on the cover are aligned with the slots on the wheel.
Repeat this process for the passenger side rear motor and wheel assembly.

2: Front Tire Assembly:
Get one of the remaining 2 wheels. Add a wheel bushing to the inside of the wheel
and screw hub adaptor to the inside of the wheel with 4 screws. Slide the wheel
onto the driver’s side of the front axle and align the hub adaptor with the motor
grooves. On the outside of the wheel, insert another wheel bushing, a washer and
a nut on the end of the axle. Then tighten down with the supplied lug nut wrench.
Do not over tighten because this could cause premature motor failure. Lastly,
locate a wheel cover and snap into place on the wheel, making sure that the tabs
on the cover are aligned with the slots on the wheel. Repeat this process for the
passenger side rear motor and wheel assembly.

3: Installation of Steering Wheel:
Locate the steering wheel & remove the nut and bolt from the
base. Connect the steering wheel wires to wires coming out of
the steering column on the vehicle. Slide the steering wheel
into the steering column and align the wheel so that the bolt
will go back through. Attach the nut and tighten.
4: Connecting/Checking Battery Lines:
Most of the time the battery will already be hooked up. The proper way to connect
battery is as follows:
-Red wire to red terminal
-Black wire to black terminal
5. Installation of seat, windshield, and mirrors:
Find windshield and align with the body of the vehicle. Press firmly into place. Align
back of seat with the body of vehicle by inserting rear seat hooks into the body.
Screw the seat into place with provided screws. Find appropriate rear view mirrors
(there is a left & right side) & push/lock into place.

6. Installation of Rear Light Bar Assembly:
Get part #15 (rear light bar brackets) & and press down into body of vehicle.
NOTE: The side of the brackets with multiple screws face the inside of the
vehicle. Attach part #16 (light bar connectors) to the rear brackets. Slide the light
bar into the light bar connectors and slide into place. Note: The included light
bar is not functional.
7. Installation of Faux Spare Tire Cover:
Align tabs of the spare tire cover to the body of vehicle. Press down
until you hear a click. Note: This cover does not actually open or
contain a spare tire.
SYNCING THE REMOTE CONTROL:
1. Install batteries into the remote.
2. Remote lights will flash briefly and then go out.
3. After the lights on the remote have shut off and the car in the “OFF” position, press
and hold the car select button on the remote. (The lights on the remote will come on.)
While holding down the “car select” button, turn on the car. Continue holding the “car
select” button throughout the syncing process. When the “car select” light goes out,
the remote is synced to the car. NOTE: STOP Button=Parking brake.

CHARGING THE BATTERY:
The charging port is located under the gear selector lever and 6 inches to the right of
the gas pedal. Plug the charger into the charging port first, and then plug the charger
into a wall outlet.
*******!!!!DO NOT LEAVE THE CAR ATTACHED TO THE CHARGER ANY
LONGER THAN 12 HOURS TO AVOID DAMAGE!!!!!!********
Please Note: As a safety precaution and to avoid damage to the charger, the car will
not power up while charger port is plugged into the car.
THE BATTERY MUST BE CHARGED FOR A MINIMUM OF 8 HOURS BEFORE INITIAL USE
TO AVOID DAMAGE. ONLY AN ADULT SHOULD CHARGE AND RECHARGE THE
BATTERY.
BATTERY REPLACEMENT AND DISPOSAL:
Over time, all batteries naturally lose their ability to hold a charge. Depending on the
amount of use and driving conditions, the battery should function for one to three
years. To replace and/or dispose of the battery, follow these steps:
•Turn the locking button on the hood to the unlock position and then open the
hood.
•Carefully disconnect the battery connectors.
•Remove the battery bracket.
•Carefully lift the battery out of the vehicle. NOTE: you may want to wear
protective gloves before removal. DO NOT lift the battery by its connectors or
cables.
•Place the used in a plastic bag.
•Reconnect the red wire to the red terminal and the black wire to the black
terminal on the new battery.
•Replace the metal battery bracket.
•Close the hood and turn the locking button on the hood to the lock position.

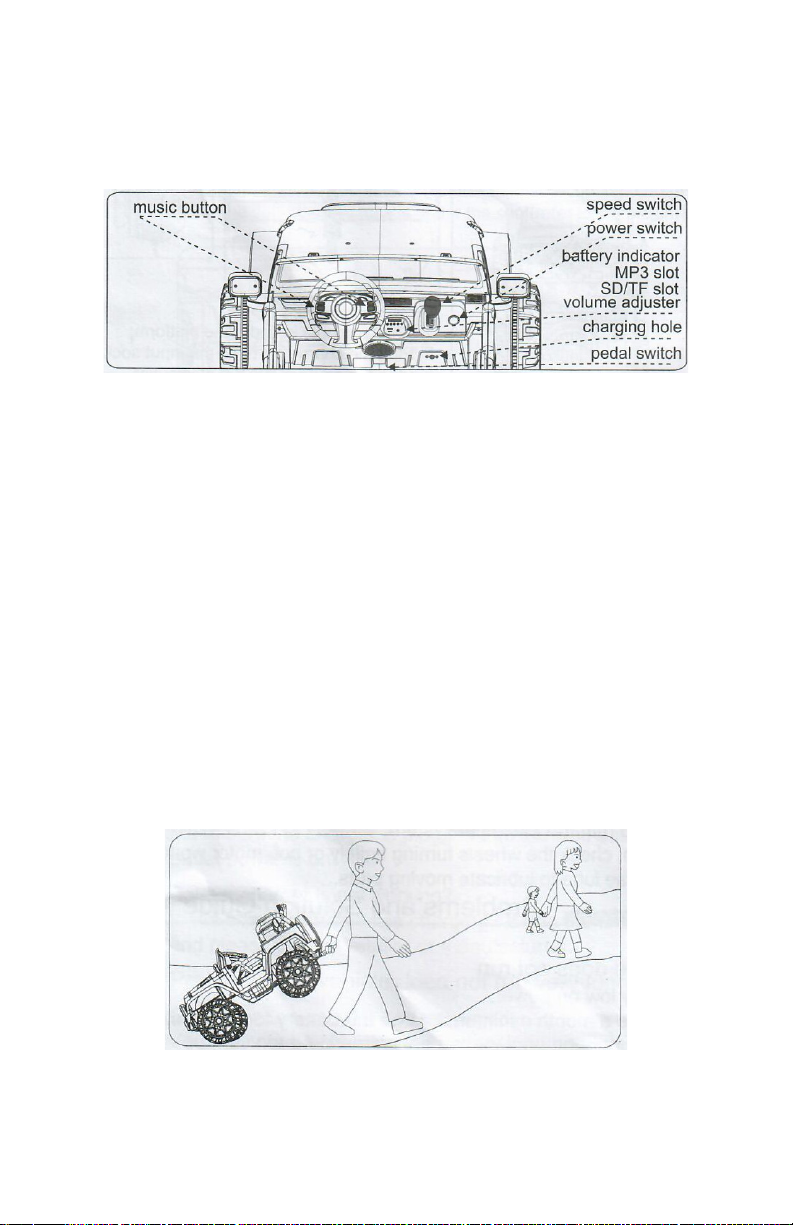

Main Functions
-Music Button: Press these buttons to start the pre-installed music.
-Power Button: Turns vehicle on and off.
-Back Button: Press to go back to previous song, hold button to increase
volume.
-Forward Button: Press to go to next song, hold button to decrease volume.
-Pause Button: Press button to pause music, press button again to restart
music.
-Power Display: Displays the battery power level.
-Music Button: Press button to start music.
-Charging Port: Plug charger in to charge the vehicle
-Micro SD Card Slot: Insert Micro SD Card here to play music that is
downloaded on an SD Card.
-Shift Switch: Used to switch between forward and reverse.

WARNING:
- Use only the rechargeable battery and charger supplied with
your vehicle. NEVER substitute the battery or charger with
another brand. Using another battery or charger may cause
damage.
- NEVER modify the electric circuit system. Tampering with the
electric system may cause permanent damage to the system.
- Do not allow direct contact between battery terminals.
- Do not allow any type of liquid on the battery or its
components.
- Charge the battery in a well-ventilated area ONLY. Do not
charge near or around flammable materials.
- NEVER pick up the battery by the wires or charger. Damage can
occur to the battery and may cause a fire. Pick up the battery by
the case ONLY.
- Charge the battery in a dry area ONLY.
Wash hands after handling.
- Do not open the battery. Battery contains lead acid and other
materials that are toxic and corrosive.
- Do not open the charger. Exposed wiring and circuitry inside
case could cause electric shock. NEVER allow a child to handle
or charge the battery. Battery is heavy and contains lead acid
(electrolyte).
- Do not drop the battery. Permanent damage to the battery
could occur or cause serious injury.
- Before charging the battery, check for wear or damage to the
battery, charger, its supply cord and the connectors. DO NOT
charge the battery if any damage to parts has occurred.
- Do not allow the battery to drain completely. Recharge the
battery after each use or once per month if not used regularly.
- Do not charge the battery upside down.
-Always secure the battery with the bracket. Battery can fall out
and injure a child if vehicle tips over.
- The Power Switch must be turned in the OFF position when
charging.
- When the car begins to run slowly, recharge the battery.

GENERAL MAINTENANCE:
It is the parent’s responsibility to check main parts of the toy before using.
Regularly examine the car for potential hazard, such as damage to the battery,
charger, cable or cord, and plug,. Also check that all screws are tightened
throughout the car. In the event of such damage, the toy must not be used
until that damage is repaired or replaced.
•Make sure the plastic parts of the vehicle are not cracked or broken.
•Occasionally use a lightweight oil to lubricate moving parts such as wheels.
•Park the vehicle indoors or cover it with a tarp to protect it from wet
weather.
•Keep the vehicle away from sources of heat, such as stoves and heaters.
Plastic parts may melt.
•Recharge the battery after each use. Only an adult should handle the
battery. Recharge the battery at least once a month when not being used.
•Do not wash the vehicle with a hose. Do not wash the vehicle with soap
and water. Do not drive the vehicle in rainy or snowy weather as water
will damage the motor, electric system and battery.
•Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts,
use a non-wax furniture polish. Do not use car wax. Do not use abrasive
cleaners.
•Do not drive the vehicle in loose dirt, sand or fine gravel which could
damage moving parts, motors or the electric system.
•For extended times when the car will not be used, the power switch needs
to be in the off position and the electrical connections should be
disconnected from the battery.

TROUBLE SHOOTING GUIDE:
Problem
Possible Cause
Possible Solutions
Car will not move
1. Battery voltage is low.
2. Battery connector or wires
are loose.
3. Battery is damaged or
dead.
4. Electrical box or motor is
damaged
Charge the battery
Re-connect the battery
connector to the car
Replace battery
Replace motor
The battery will not
charge.
1. Battery connector may
have come apart or have a
bad connection.
2. Battery charger plugged
into a bad wall outlet.
3. Battery charger is
damaged.
Re-connect the battery
connector to the car
electrical connector
Try another wall outlet
Replace battery charger
Shortened battery life
Battery was not charged fully
Battery is old
Charge battery fully
Change battery
Some Noise and heat
when charging battery
Chemical reaction
Normal
Low Speed
Battery is old
Battery is low on charge
Weight limit exceeded
Uneven or uphill path
Vehicle is being used in harsh
conditions
Change the battery
Charge the battery
Do not exceed max weight
limit
Use on flat surfaces
Avoid using car in harsh
conditions
Noise coming from
motor/gearbox area
Gear in motor/gearbox broken
Hub adapters slipping
Call for replacement
motor
Screw in hub adaptors to
the wheels
The car shakes when
moving
Bad Connection of the motor
wires
Possible motor failure
Reconnect wires
Call for replacement
motor
Car needs a push to go
forward
Poor contact of wires and/or
connectors
“Dead Spot” on motor
Hub adapters are not crewed in
to the wheels.
Check that the battery
connectors are firmly
plugged into each other. If
wires are loose around
the motor, contact the
distributor’s service
department
A dead spot means the
electric power is not being
delivered to the terminal
connection. Call our
service department
Self-Resetting Breaker – The vehicle is equipped with a self-resetting breaker.
In the event the power is tripped the breaker will reset itself in approximately
one minute.
If you are unable to solve a problem, please feel free to contact us.
Phone: [phone] or Email: [e-mail]
