Supertrax Rancher User manual

Rancher
Kids Ride on Car
Installation and Operation Instructions
Please read this instruction manual carefully. It is important to
read and follow all the steps during assembly to ensure proper
operation and safety of the child. Please keep this manual for
future reference.
Scan this QR Code
to view the
Assembly Video

SPECIFICATIONS:
Battery Type:
12V10AH
Avg. Speed:
2 –5 MPH
Age Range:
2 –6 Years
Charging time:
8-12 hrs –Minimum
1 Charge per month
Max. Weight:
70 lbs
Avg. Use Time:
48-90 Minutes
(depending on use)
Product Size:
51”L x 30”W x 25”H
Remote Battery:
2 - AAA (not
included)
IMPORTANT!
•Assembly of car and charging of
battery is only to be done by an
adult.
•WARNING!! NOT TO BE USED
ON STREETS or IN TRAFFIC.
•Never modify the electric
circuit system or tamper with
electric system. Can cause
permanent damage.
•Please check the product
regularly for any loose parts or
wires to ensure proper
operation.
•Adult supervision is
recommended during
operation by child to avoid
injury. Safety equipment is
recommended.
•Please make sure that the child
uses caution to avoid falls and
collisions causing injury to the
child or third party.
•Do not pick up vehicle by
steering wheel.
•Do not pick up battery by wires
or charger.
•Keep all plastic bags out of the
reach of young children.
•Not recommended for children
under the age of 2 yrs. due to
small parts that could cause a
choking hazard.
•Battery must be charged for a
minimum of 8-12 hours prior to
first use of the car to avoid
damage to the battery. Power
switch must be in off position
when charging.
•Battery charger should be
examined for damage prior to
each use. It is important to
inspect the cord and both ends
for damage. If damage is
found, DO NOT USE THE
CHARGER! Contact us for
replacement charger.
•Please retain instruction
manual for future reference.
•Please retain packaging in the
event it is necessary to return.
If the charger is plugged into the charging port, the car will not
power up regardless if the charger is plugged into the wall
outlet or not.

PARTS LIST
#
Name
Qty
#
Name
Qty
1
Seat
1
9
Spare Tire Storage
1
2
Steering Wheel
1
10
Windshield
1
3
Wheels
4
11
Mirrors
2
4
Wheel Cover
4
12
Charger
1
6
Front Bumper
1
14
Wheel Nut Wrench
2
7
Steering axle
assembly
2
Screws, Nuts, & Washers
8
Searchlight kit
3
All assembly videos can be found on
YouTube under SPORTrax

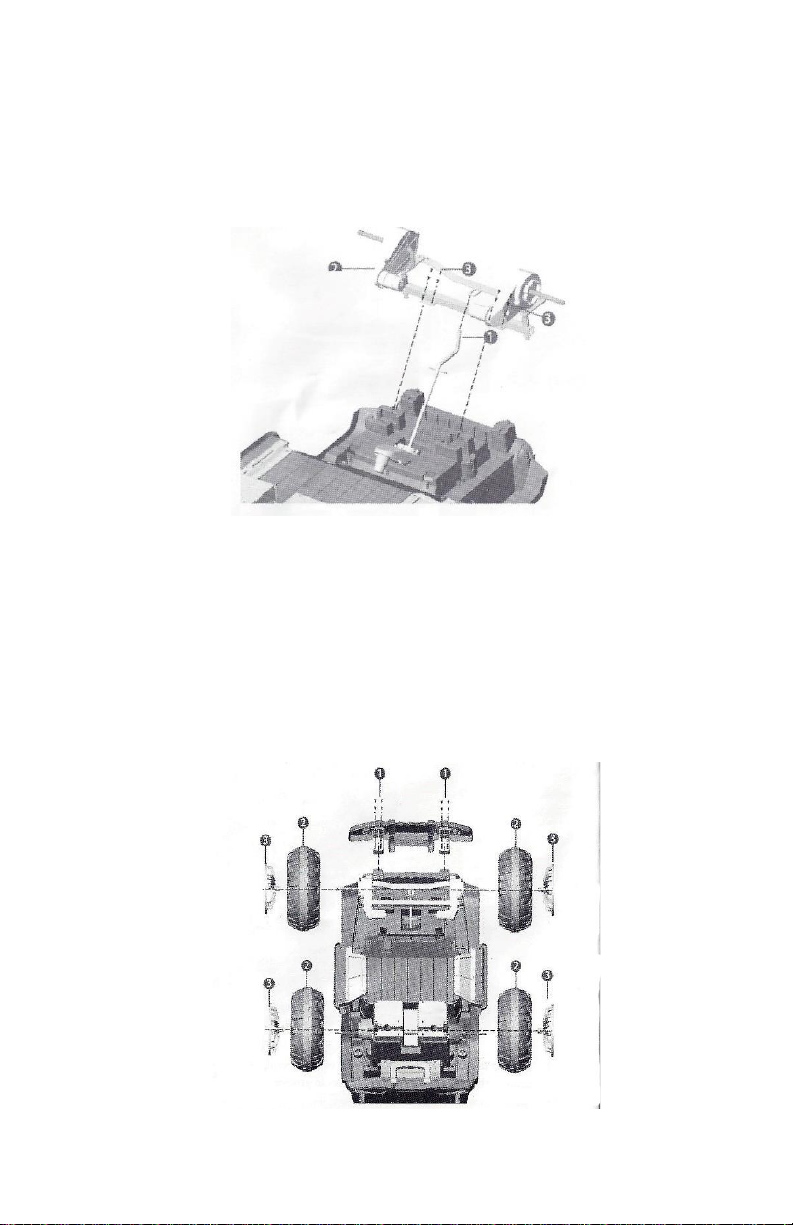

1: Install Front Steering Axle Assembly:
Turn car upside down. Insert steering rod, into the steering motor
located in the center on the car, towards the front. Make sure
steering rod is aligned with the motor, and coming out the
dashboard. Place the steering axle assembly with the motors into
place on the body of the car (as shown in the photo). Secure into
place with 4 screw per side.
2: Installation of the wheels, wheel covers & front bumper:
Place front bumper into place as shown in picture. Secure with 4
screws on each side. Remove lug nut and washer from each side of
axle. Slide wheel into place, and make sure to align hub adaptor to
motor. Slide washer, then nut back on and tighten down with wheel
nut wrenches. Do not over tighten tires because this could cause
premature motor failure. Repeat process for back wheel assembly.
Place wheel covers on with 3- screws each on all 4 wheels.

3: Installation of the spare tire storage and searchlight assembly:
Turn the car right side up. Install spare tire storage box onto the rear
of the body. Secure with 1 screw at top of the box. Connect wire
connector on end of light bar to corresponding connector from side
bracket. Feed wire from bar down threw hole you are inserting bar
into. Connect with body wiring. Secure mesh with 2- screws on each
side.
4: Installation of the steering wheel:
Connect the wire connector from the steering wheel to the
corresponding wire connector from the steering column. Remove
supplied steering wheel nut and bolt from the steering wheel. Slide
steering wheel onto the steering shaft and secure it back on with
the nut and bolt. May be necessary to push up from the steering
rod on the bottom of vehicle to align the hole to finish connecting
steering wheel.

5. Installation of seat, windshield, and mirrors:
Place the seat into position and secure with 2 - screws. If you would
like to use the seat belt, make sure they are hanging out of vehicle
before installing seat. Put the windshield into place and push down
until you hear it click into place. In the same way, place each side
mirror into place and push down until you hear it click into place.
.

Remote Control Function
Remote Control Instructions: For the first time use of remote control
or after replacing the battery, you need to sync the remote to the car.
a) Install the remote-control batteries (AA not included).
b) Hold the frequency button (Large button at top of remote)
2-4 seconds, the Low speed LED light should be flashing.
c) Turn on the car by pressing the Power button, the Low
speed LED light should still be flashing and then turn to a
steady light. If correct, then sync succeeded.
d) If the syncing failed (Low speed LED light still flashing),
remove the batteries and repeat steps a –b.
e) Without operation of remote after 10 seconds the remote-
control indication light will go off and into power saving mode.
f) Button Descriptions:
Forward Backward Turn Right Turn Left
S = Speed –Push button P = Emergency brake, press it once to stop
motion
for speed selection. of car. Pressing it again will release the
3 speed selections emergency brake, restoring the functions
of the
car.

Charging the battery:
The charging port is located on the right side of the dashboard under
the power button. Plug the charger into the charging port first, then
plug the charger into a wall outlet.
Please Note: As a safety precaution and to avoid damage to the
charger, the car will not power up while charger port is plugged into
the car.
BATTERY MUST BE CHARGED FOR A MINIMUM OF 8 HOURS BEFORE
INITIAL USE TO AVOID DAMAGE TO THE BATTERY. ONLY AN ADULT
SHOULD CHARGE AND RECHARGE THE BATTERY!
BATTERY REPLACEMENT AND DISPOSAL:
The battery will eventually lose the ability to hold a charge. Depending
on the amount of use, and varying conditions, the battery should
operate for one to three years. Follow these steps to replace and/or
dispose of the battery:
•Turn the locking button on the hood to unlock position & open
hood.
•Disconnect the battery connectors
•Remove the metal battery bracket
•Carefully lift the battery - you may want to wear protective
gloves before removal - Do Not lift the battery by its
connectors or cables
•Place the dead battery in a plastic bag
•Replace the battery and reconnect the connectors
•Replace the metal battery bracket
•Close the hood and turn the locking button on the hood to the
lock position.

Main Functions
1. Music Button: Press these buttons to start the onboard music
2. Power Button: Turn vehicle on and off
3. Back Button: press to go back to previous song, hold button to
increase volume
4. Forward Button: Press to go to next song, hold button to decrease
volume
5. Pause Button: Press button to pause music, press button again to
restart music
6. Power Display: Displays the level of charge in the battery
7. Music Button: Press button to start the music
8. Bluetooth Speaker: Press button, connect mobile phone, then the
car
can play music and perform calling functions from the phone.
9. FM Button: Switch between Storytelling, music, and radio
10. MP3 Slot
11. No Use
12. Light Button: turn lights on and off
13. Charging Socket: Plug charger in to charge the vehicle
14. Micro SD Card Slot
15. No Use
16. Shift Switch: Changes the direction the vehicle moves, forward or
backward

WARNING:
- Use only the rechargeable battery and charger supplied with
your vehicle. NEVER substitute the battery or charger with
another brand. Using another battery or charger may cause
damage.
- NEVER modify the electric circuit system. Tampering with the
electric system may cause permanent damage to the system.
- Do not allow direct contact between battery terminals.
- Do not allow any type of liquid on the battery or its
components.
- Charge the battery in a well-ventilated area ONLY. Do not
charge near or around flammable materials.
- NEVER pick up the battery by the wires or charger. Damage can
occur to the battery and may cause a fire. Pick up the battery by
the case ONLY.
- Charge the battery in a dry area ONLY.
Wash hands after handling.
- Do not open the battery. Battery contains lead acid and other
materials that are toxic and corrosive.
- Do not open the charger. Exposed wiring and circuitry inside
case could cause electric shock. NEVER allow a child to handle
or charge the battery. Battery is heavy and contains lead acid
(electrolyte).
- Do not drop the battery. Permanent damage to the battery
could occur or cause serious injury.
- Before charging the battery, check for wear or damage to the
battery, charger, its supply cord and the connectors. DO NOT
charge the battery if any damage to parts has occurred.
- Do not allow the battery to drain completely. Recharge the
battery after each use or once per month if not used regularly.
- Do not charge the battery upside down.
-Always secure the battery with the bracket. Battery can fall out
and injure a child if vehicle tips over.
- The Power Switch must be turned in the OFF position when
charging.
- When the car begins to run slowly, recharge the battery.

GENERAL MAINTENANCE:
It is the parent’s responsibility to check main parts of the toy
before using. Regularly examine the car for potential hazard,
such as damage to the battery, charger, cable or cord, and plug,.
Also check that all screws are tightened throughout the car. In
the event of such damage, the toy must not be used until that
damage is repaired or replaced.
•Make sure the plastic parts of the vehicle are not cracked or
broken.
•Occasionally use a lightweight oil to lubricate moving parts
such as wheels.
•Park the vehicle indoors or cover it with a tarp to protect it
from wet weather.
•Keep the vehicle away from sources of heat, such as stoves
and heaters. Plastic parts may melt.
•Recharge the battery after each use. Only an adult should
handle the battery. Recharge the battery at least once a
month when not being used.
•Do not wash the vehicle with a hose. Do not wash the vehicle
with soap and water. Do not drive the vehicle in rainy or
snowy weather as water will damage the motor, electric
system and battery.
•Clean the vehicle with a soft, dry cloth. To restore shine to
plastic parts, use a non-wax furniture polish. Do not use car
wax. Do not use abrasive cleaners.
•Do not drive the vehicle in loose dirt, sand or fine gravel
which could damage moving parts, motors or the electric
system.
•For extended times when the car will not be used, the power
switch needs to be in the off position and the electrical
connections should be disconnected from the battery.

TROUBLE SHOOTING GUIDE:
Problem
Possible Cause
Possible Solutions
Car will not move
1. Battery voltage is low.
2. Battery connector or wires
are loose.
3. Battery is damaged or
dead.
4. Electrical box or motor is
damaged
Charge the battery
Re-connect the battery
connector to the car
Replace battery
Replace motor
The battery will not
charge.
1. Battery connector may
have come apart or have a
bad connection.
2. Battery charger plugged
into a bad wall outlet.
3. Battery charger is
damaged.
Re-connect the battery
connector to the car
electrical connector
Try another wall outlet
Replace battery charger
Shortened battery life
Battery was not charged fully
Battery is old
Charge battery fully
Change battery
Some Noise and heat
when charging battery
Chemical reaction
Normal
Low Speed
Battery is old
Battery is low on charge
Weight limit exceeded
Uneven or uphill path
Vehicle is being used in harsh
conditions
Change the battery
Charge the battery
Do not exceed max weight
limit
Use on flat surfaces
Avoid using car in harsh
conditions
Noise coming from
motor/gearbox
Gear in motor/gearbox broken
Call for replacement
motor
The car shakes when
moving
Bad Connection of the motor
wires
Possible motor failure
Reconnect wires
Call for replacement
motor
Car needs a push to go
forward
Poor contact of wires and/or
connectors
“Dead Spot”on motor
Check that the battery
connectors are firmly
plugged into each other. If
wires are loose around
the motor, contact the
distributor’s service
department
A dead spot means the
electric power is not being
delivered to the terminal
connection. Call our
service department
Self-Resetting Breaker –The vehicle is equipped with a self-
resetting breaker. In the event the power is tripped the breaker
will reset itself in approximately one minute.
If you are unable to solve a problem, please feel free to contact us.
Phone: [phone] or Email: [e-mail]
