Sven UP-B600 User manual

www.sven.fi
Uninterrupted power
supply
UP-B600
UP-B800
UP-B1000
OPERATION
MANUAL

Uninterruptible
Power Supply
ENG
Congratulations on your purchase of the Sven uninterruptible power supply!
It is important that you carefully read the information contained in this Manual and keep it for future
reference.
COPYRIGHT
© 2019. SVEN PTE. LTD. Version 2.0 (V 2.0).
This Manual and information contained in it are protected by copyright.
All rights reserved.
TRADEMARKS
All trademarks are the property of their respective owners.
LIMITATION OF LIABILITY
Despite the efforts undertaken to make the Manual more accurate, some inconsistencies can be met
in the text. The information in this Manual is presented on an "as is" basis. The author and the pub-
lisher shall not be responsible to any person or entity with respect to loss or damages in connection
with or arising from the information contained in this Manual.
RECOMMENDATIONS FOR BUYERS
• Carefully unpack the product, check if there are any accessories left in the box. Check the device
for any damages. If you note that the product has been damaged during transportation, contact the
carrier; if the product does not function, immediately contact the seller.
• Do not switch on the device right after bringing it indoors from the environment with sub-zero
temperatures. Hold the unpacked product at least 4 hours at room temperature.
• Prior to installation and operation of the device carefully read the information contained in this
Manual and keep it for future reference.
• Shipping and transportation equipment is permitted only in the original container.
• Does not require special conditions for realization.
• Dispose of in accordance with regulations for the disposal of household and computer equipment.
CONTENTS
1. SAFETY PRECAUTIONS ............................................................................. 3
2. PACKAGE CONTENTS................................................................................ 3
3. TECHNICAL DESCRIPTION ......................................................................... 3
4. DESCRIPTION ......................................................................................... 4
5. SPECIAL FEATURES .................................................................................. 4
6. MAIN FUNCTIONS .................................................................................... 4
7. CONNECTION AND OPERATION................................................................... 5
8. TROUBLESHOOTING................................................................................. 5
9. TECHNICAL SPECIFICATIONS .................................................................... 6
Technical support is on www.sven.fi.
2

ENG
Operation Manual UP-600 UP-B800
UP-B1000
3
1. SAFETY PRECAUTIONS
Prior to operation be sure to carefully read the safety instructions:
• If the battery part of the UPS is completely discharged, and the UPS has been out of use for
three and more months, charge the battery to the maximum level.
• The connected load power shall not exceed the rated power identified in the table of the technical
specifications.
• Place the UPS in well-ventilated premises with controlled temperature. During operation the tem-
perature of the housing may increase, which is normal.
• Unplug the UPS from the mains prior to connection/disconnection of the power load cables to reduce
the risk of electric shock.
• Do not let liquid and foreign objects get inside the device, it can cause short circuit, get out down
the device or electric shock.
• In case there are signs of improper operation of the device (sparkling, unusual smells, etc.), it is
necessary to turn off the device immediately and disconnect it from the mains
• It is strictly forbidden to open the device housing – high voltage inside.
In case of any problems occurred, contact the Customer Service. For the list of Customer Service
offices, visit website www.sven.fi.
Never operate the UPS:
• in dusty environment or environment containing highly inflammable gas;
• at temperature higher than 40°C or lower than 5°C;
• at relative humidity level higher than 90%;
• in direct sunlight or next to heating elements;
• in vibration places.
• outdoors;
• In case of fire use only powder fire extinguisher, as using water can cause electric shock. Try to
install the UPS in proximity to power supply, in such way it will be easier to unplug the device if nec-
essary.
2. PACKAGE CONTENTS
• Uninterrupted power supply (UPS) — 1 pc.
• Operation Manual — 1 pc.
• Warranty card – 1 pc.
3. TECHNICAL DESCRIPTION
SVEN UP-B600/UP-B800/UP-B1000 models refer to line-interactive uninterrupted power supply
units. These UPS include in lead-acid maintenance-free 12 V batteries. When the UPS is in inverter
mode, current waveform at the output is the regular sinusoidal wave for power supply computers and
monitors. The UPSs are made in a narrow plastic case for installation on a flat surface and equipped
with an automatic voltage stabilizer (AVR), which allows providing correct power supply to consumers
at high or low voltage without switching to battery mode.

Uninterruptible
Power Supply
ENG
4
4. DESCRIPTION

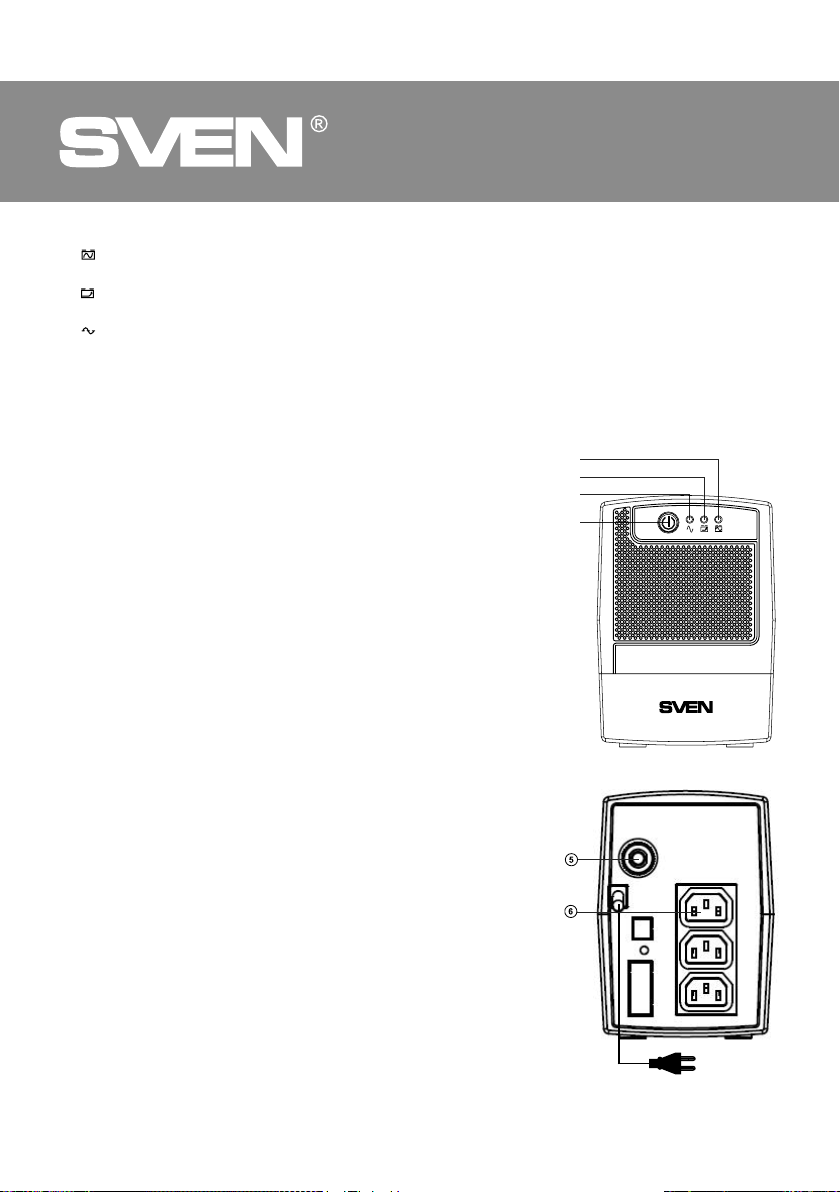

a: Battery mode indicator. The indicator turns red and remains steady when the UPS is connected to the
battery
b: Battery charge control indicator. The indicator turns yellow when the UPS is connected to the
mains.Intermittent light – the battery is being charged
c: UPS mains Indicator. The indicator turns green when the UPS is connected to the mains with volt-
age, which range is specified in the table of the technical specifications
dUPS ON/OFF button
eRenewable automatic breaker (click to restore)
fOutput outlets 3×IEC (C13 outlets)
5. SPECIAL FEATURES
• Line-interactive type UPS
• Built-in automatic voltage regulator ~175V-290V±3%
• Self-diagnosis after switching on
• Cold Start feature
• Automatic start function
• Output waveform – sine wave
• Surge protector function
• Output outlets3 *IEC (C13 outlets)
• Transformer thermal protection
c
d
b
a
Fig. 1.
Fig. 2.
6. MAIN FUNCTIONS
• If there is no electric power supply in the mains, the UPS is
powered with a battery, while the device connected to the PC
produces an audio alarm every few seconds.
• When the battery has fully run down, there is a long audio alarm
after which the UPS automatically switches off.
• When electric power supply restores in the mains, the UPS
automatically switches on. Then the battery should be charged for
at least 12 hours.
Important! Note that battery operation time depends on the
power consumption of the connected equipment and the
condition of the battery. During this time it is necessary to
save all open documents and switch off the PC, then the UPS
should also be switched off. The UPS may not work properly
when connecting a load with APFC.

ENG
Operation Manual UP-600 UP-B800
UP-B1000
5
7. CONNECTION AND OPERATION
Installation and сonnection
• Place the UPS in an appropriate position with proper ventilation (free space around the UPS must
be not less than 25 cm).
• Before the first UPS using, the battery should be charged without load for not less than 12 hours
(full charge time may vary depending on the capacity and discharge of the connected battery level).
Connect the UPS.
• Connect the consuming devices the UPS unplugged from the mains. For this, insert the power
plugs of the consuming devices into the UPS outlet(s).
• Connect the power cable to the single-phase mains. Indicator lights up Turn on the UPS by pres-
sing button d, a beep will sound. Stabilized voltage ~230 (-14/+10%) will be generated on the outlets.
• Turn on the connected devices using their switches (first turn on the most powerful device and last - the
least powerful one).
UPS disconnection
• Turn off the consuming devices, and then turn off the UPS by pressing buttond. At this, an acoustic
signal is generated, the outlets gare de-energized. In order to finish the shut down process, discon-
nect the power cable from the mains.
Acoustic alarms and protection
• During transition to the battery mode (at the loss of mains power supply) the UPS generates a
short acoustic signal. Further, under operation in the battery mode, the acoustic signals are generated
every 5 seconds until the UPS is shut down.
• Under high load (110%) the UPS generates frequent intermittent warning signals during 30 seconds.
Then the load is automatically released.
8. TROUBLESHOOTING
Problem Solution
The UPS is connected to the mains with
voltage nominal, though the device
shows no voltage in the mains and en-
ters off-line mode.
There is over- or undervoltage in the mains. Switch off
the PC and the UPS. Switch them on again after
voltage becomes normal. Fuse has tripped. Turn off the
fuse
.
The UPS does not start. The battery is discharged.
When power supply drops, the UPS
immediately switches off.
1. The battery is discharged. It is necessary to carry
out the whole cycle of battery charging.
2. The battery is out of order. It is necessary to
replace the battery.
3. Power requirements exceed the UPS capacity.
If none of the above methods can solve the problem, please seek professional advice at your nearest
service center. Never attempt to repair the product yourself.

Uninterruptible
Power Supply
ENG
6
9. TECHNICAL SPECIFICATIONS
Моdels
Parameters UP-B600 UP-B800 UP-B1000
Apparent power, VA ≤ 600 ≤ 800 ≤ 1000
Active power, W ≤ 300 ≤ 390 ≤ 510
Input voltage, V ~175-290±3%/50
Output voltage, V ~230 (-14/+10%)/50
Switch over time, ms ≤ 10
Output voltage
waveform
AVR mode Sinusoidal
Battery operation
mode Sine wave
Battery
Type Maintenance free sealed lead-acid batteries
Voltage, V 12
Capacity, A*h 4,5 7 9
Protection Overcurrent, short circuit
Ambient temperature, °С from +5 to +40
Relative humidity, % 10 - 90, without condensation
Dimensions, mm 280×100×140
Weight, kg 3,6 4,3 4,9
Notes:
• The presented technical specifications are referential and cannot be used as grounds
for any claims.
• ТМ SVEN products are constantly being improved. On this ground, the technical specifi-
cations and completeness can be altered without prior notice.

Uninterruptible
Power Supply
UP-B600
UP-B800
UP-B1000
Models: UP-B600, UP-B800, UP-B1000
Импортер в России: ООО «РЕГАРД», 105082,
г. Москва, ул. Фридриха Энгельса, д. 75, стр. 5.
Уполномоченная организация в России: ООО «РТ-Ф»,
105082, г. Москва, ул. Фридриха Энгельса, д. 56, стр. 1.
Условия гарантийного обслуживания смотрите в
гарантийном талоне или на сайте www.sven.fi.
Гарантийный срок: 24 мес.
Срок службы: 5 лет.
Производитель: «СВЕН ПТЕ. Лимитед», 176 Джу Чиат
Роуд, № 02-02, Сингапур, 427447. Произведено под
контролем «Свен Скандинавия Лимитед», 48310,
Финляндия, Котка, Котолахдентие, 15. Сделано в Китае.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-
02, Singapore, 427447. Produced under the control of Oy
Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland,
48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
This manual suits for next models
2
