SWorkz Apollo II Pro Nitro RTR User manual

2
1. Quality T7075 Aluminum Main Chassis.
2. Professional T7075 Front and Rear Shock Towers.
3. SWORKz S35-3 BBS Race Shock System.
4. High Performance CNC Machined Crown Gears and Pinion Gears.
5. F/R Full CVA Drive Shafts.
6. Aluminum Adjustable Front and Rear Lower Plastic Insert Toe-In System.
7. Double Protection Bumper Design.
8. Sealed Front and Rear Arms Design.
9. Adjustable Front Upper and Lower Suspension Arm System.
10. S35-3 Radio Tray System.
11. S350 Falcon II Pre-painted and Pre-Cut Body Shell is included.
12. Alpha 5 Posts Pull Starter Engine System.
13. 2.4G Radio System (SW-T2 Radio t for AA battery).
14. SWORKz SES-2S Steering Servo (with 12kg metal gear) Made by The World Famous Brand SAVOX.
INSTRUCTION
Introducing the new APOLLO II Pro Nitro RTR 1/8th scale o󰀨-road professional ready to run
buggy from SWORKz. The 1/8th APOLLO II Nitro buggy is a Pro RTR based on the pro S350
but with an updated S35-3 buggy center layout.
The APOLLO II Nitro buggy incorporates many of the race-inspired features from the S35-3
Pro Kit. This buggy provides precise feedback, a nimble and balance feel that will suit drivers
of all levels. The SWORKz design team put their efforts into proper weight distribution for
the APOLLO II Nitro buggy. Proper weight distribution proved to be instrumental to the setup
during the testing phase of the APOLLO II Nitro buggy.
The SWORKz APOLLO II Pro Nitro RTR buggy comes standard with many high quality parts
like a T7075 aluminum chassis (with the same S35-4 chassis hard coating process), front
and rear shock towers. It also has S35-3 Pro Kit's 16mm BBS Racing Shocks System, High
Performance Crown and Pinion Gears and oil lled di󰀨erentials providing traction and balance
on multiple o󰀨-road surfaces.
The S35-3's centre plastic BBD di󰀨 system provides better acceleration for the APOLLO II Nitro
buggy. It uses the S35-3 radio tray system that gives precise throttle and braking response.
The pivot ball steering system gives the driver sharp and accurate turning feedbacks. The
APOLLO II Nitro buggy comes with a race inspired base set up that is easy to drive.
The SWORKz SES-2S steering and throttle servos (with 12kg metal gears) are made by SAVOX.
This RTR also includes a 2.4G Radio System.
A pre-cut painted body shell is also included.
APOLLO II NITRO RTR Features:

3
WARRANTY
Your SWORKz APOLLO II Nitro Pro RTR kit warranty covers workmanship and
manufacturing defects of the original and unmodified parts. Warranty claims
resulting from crashes, abuse, improper operation, improper mounting, improper
adjustment or lack of maintenance will not be honored.
Contact your local hobby shop or SWORKz distributor for all claims and
questions. Claims must be well documented. All Claims are subject to expert
examination approval by SWORKz.
Specification
Length: 530mm
Width: 308mm
Height: 220mm
Ground Clearance: 65mm
Wheelbase: 325-330mm
Track: F:306mm / R:306mm
Gear Ratio: C:46/13T, F/R 43/13T
Weight: 3400g

4
INDEX
This radio controlled racing car is not a toy!
This high-performance R/C model is recommended for ages 14 and older.
INTRODUCTION 2
Warranty 3
INDEX 4
Required Equipment for Operation 5
Operation Guide 6
Assembly Steps 7-38
APOLLO II NITRO Key No. List 39-40
APOLLO II NITRO Spare Part List 41-42
APOLLO II NITRO Option Part List 42-43
End cover 44

5
Starter box
Engine Starting Equipment
Glow Plug
Double-sided tape
Paint
Long nose pliers
Modeling knife
Instant cement Thread lock
Included items
Hex wrench
1.5mm
2mm
2.5mm
1.5mm
2mm
2.5mm
Fuel bottle
Glow plug wrench
Screwdriver
Screwdriver
Radio Gear Nitro fuel
Stick Type
Throttle servo
Receiver batteries
Wheel & Trigger Type
Receiver
On/Off Switch
We recommend that you use fuel
containg 20~25% nitro.
Steering servo
Exhaust header
SP-80101
EFRA2042
Tools Recommended
Engine Recommended
Side cutter
Curved scissors
Grease
ST-3 Turbo Plug
ST-4 Turbo Plug

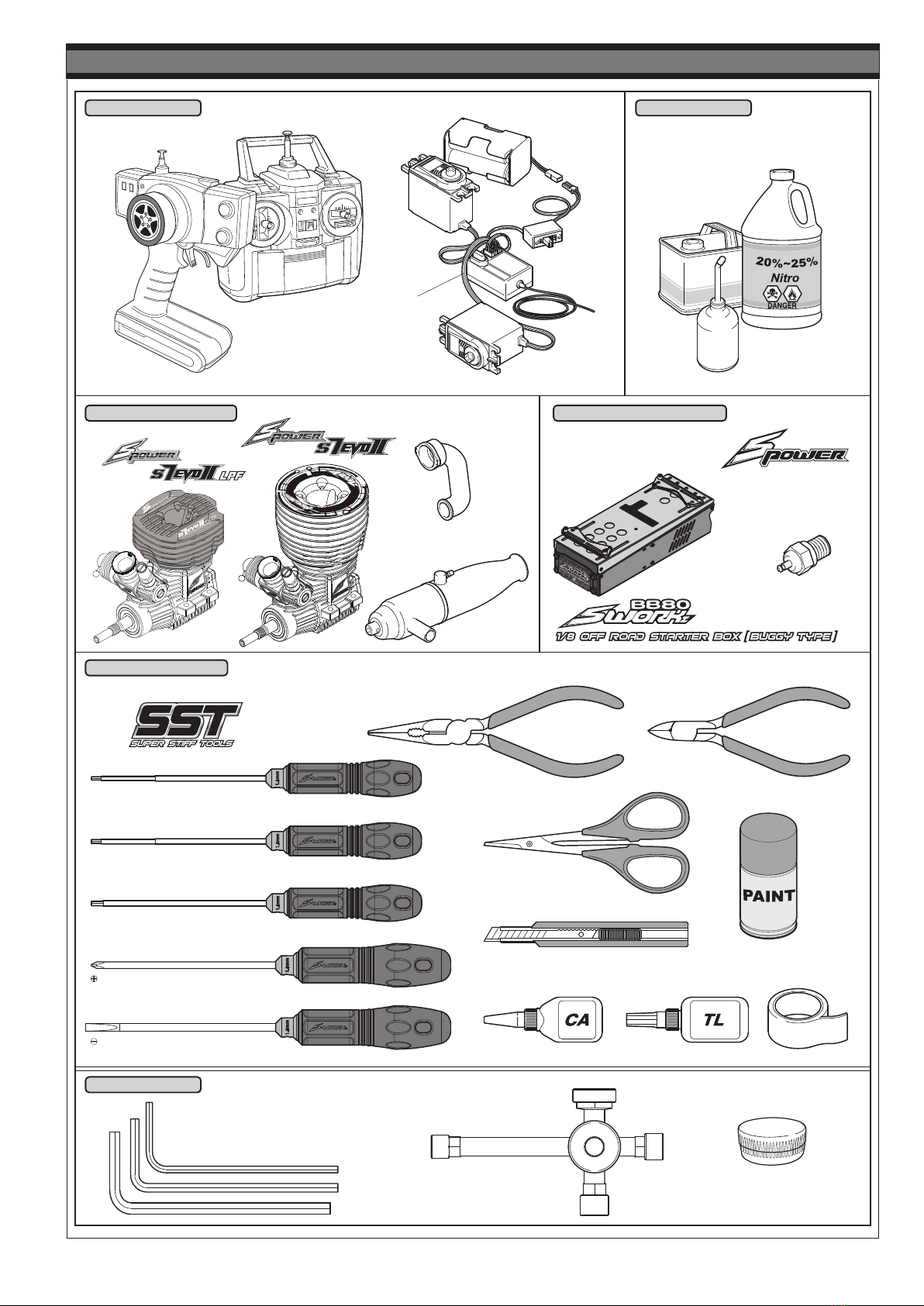

Required Equipment for Operation

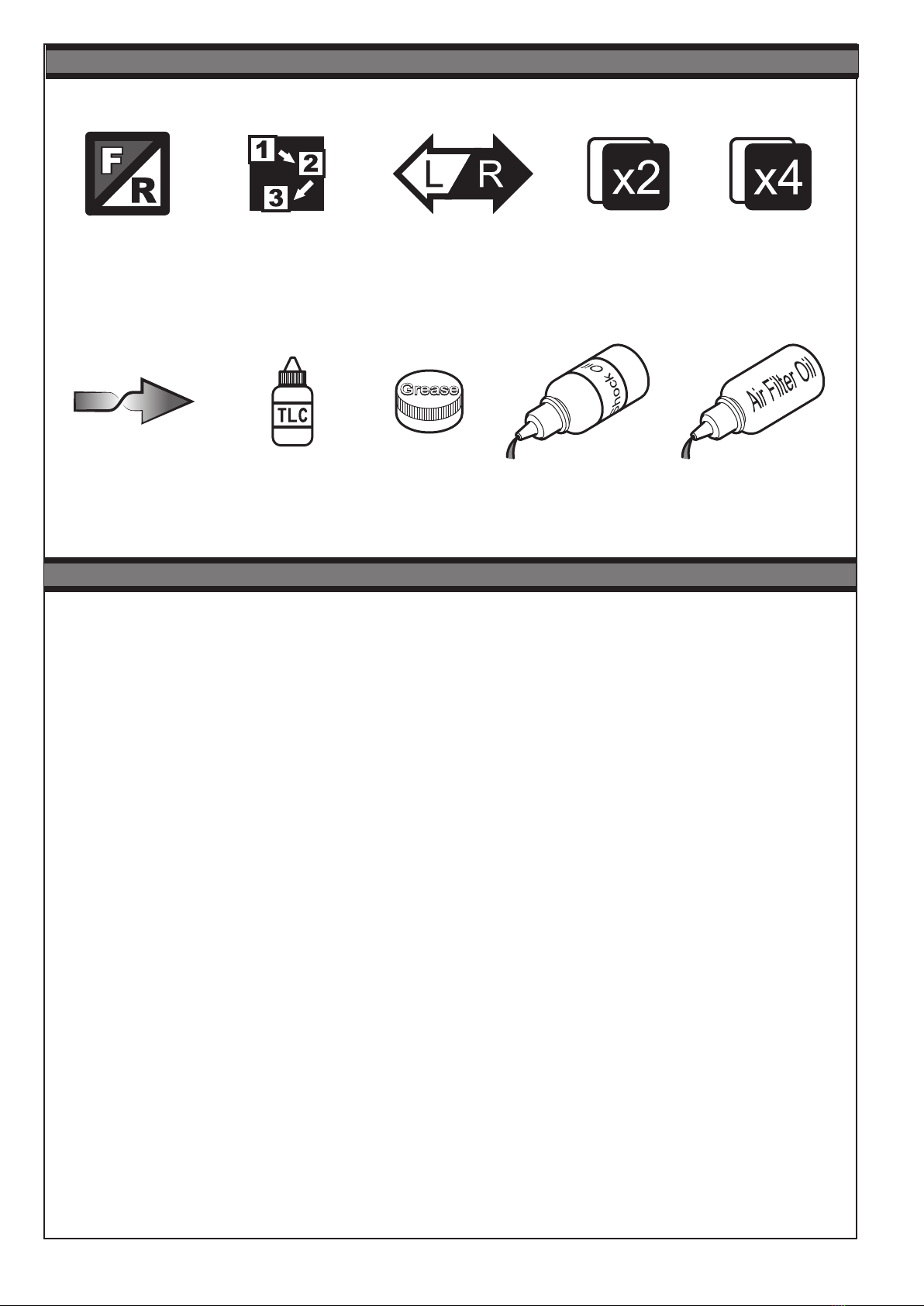

6
overturn
Assemble for
4 sets
Assemble for
2 sets
Assemble both left
and right sides
Assemble in the
specied order
Assemble front
and rear
Thread Locking
Compound
Grease Pure Silicone Oil Air lter oil
Operation Guide
Safety Precautions
The SWORKz APOLLO II Nitro Pro RTR is a high performance radio control model which needs
to be operated with caution and common sense.
The SWORKz APOLLO II Nitro Pro RTR is not intended for children under the age of 14 without
adult supervision. SWORKz shall not be held liable for any loss or damages, whether direct,
indirect, act of nature, arising from the abuse or misuse of this product or any other product
required while operating this model.
- The nitro fuel can be dangerous is improperly handled.
- Always keep your nitro fuel in a cool area and never use near flame, sparks, or while
smoking.
- Keep your nitro fuel, and all other ammables, out of the reach of children.
- Always run your model in a well ventilated area outdoors. Never run your model indoors.
- After running your car, all parts of the engine and exhaust can become extremely hot. Be
careful not to touch these parts especially when refueling, or making repairs.
- This model is controlled by your radio controller and is sometimes vulnerable to interference
from many outside sources. This interference can cause a loss of control so it is necessary to
operate this model in an open area to avoid personal, or property damage. Always ensure
turning on your radio rst.
- Keep all the parts included in the package out of reach of children.
- This model contains many fast rotating parts. Never touch them during operation.
- Follow the instructions included with your radio gear.
- Never operate your model near people or property. The speed of this model has the
potential to injure and or damage people and or property.
- Always use original SWORKz spare parts and option parts.
- Always ensure that the buggy is in proper working condition before use.

7
BAG B1
2
330014A
116006R
330015
320003 400002
320004
101004
101004
320004
101004
101004
610002A
210002B
116006R
330164
330015
320003
400002
330015
Pin M2.2x9.9mm x4
400002
O-ring S5 4.8X1.5 x4
101004
Washer 3.5X10X0.2mm x8
330013
Bevel Gear Shaft x4
Fill the differentials
with oil up to 80%
above the satellite
gears.
Put the SWORKz
Di󰀨. Oil 4000cps
for the front Di󰀨.
and 1500cps for the
rear Di󰀨.
Remember to apply a light coat
of grease to the o-ring, then
slide it over the shaft of the out
drive and seat it in the di󰀨 case.
Insert the pin through the hole
in the di󰀨 case and through the
hole in the shaft of the out drive.
330013
OK! NG!
108003
108003
330014A
108003
M3x10mm FH/ST HEX Screw x4
116006R
Ball Bearing 8x16x5mm (Red Rubber Case) x4

8
4
3
BAG C
116006R
330017
330017
330015
320003
108001
108001
320003 330013
610020
320003
330768
210079
116006R
330015
320003
400002
400002
101004
101004
101004
101004
Fill the
di󰀨erentials
with oil up to
80%
above the
satellite gears.
Put the
SWORKz
Di󰀨. Oil
6000cps for
the center Di󰀨.
Remember to apply a very light coat
of grease to the o-ring, then slide it
over the shaft of the out drive and
seat it in the di󰀨 case.
Insert the pin through the hole in the
di󰀨 case and through the hole in the
shaft of the out drive.
OK! NG!
330015
Pin M2.2x9.9mm x2
400002
O-ring S5 4.8X1.5 x2
101004
Washer 3.5X10X0.2mm x4
330013
Bevel Gear Shaft x2
108001
M3x12mm FH/ST HEX Screw x4
116006R
Ball Bearing 8x16x5mm (Red Rubber Case) x2

9
5
BAG D
116006R
116006R
104010
330160
2501114
2501114
2501529
108001 330227
108001
2501096
2501114
108001
M3x12mm FH/ST HEX Screw x4
101018
108001
101018
SHIM 13x16x0.2mm x3
106010
Please use the SHIM 13x16x0.2mm
to adjust when the play was bigger
between the crown gear and pinion
gear.
106010
M3x6mm Hex Socket OH/TP Screw x3
104010
M5x4mm Set Screw (Flat Bottom) x1
116006R
Ball Bearing 8x16x5mm (Red Rubber Case) x2

10
6
7
106006R
116006R
Please use the SHIM 13x16x0.2mm
to adjust when the play was bigger
between the crown gear and pinion
gear.

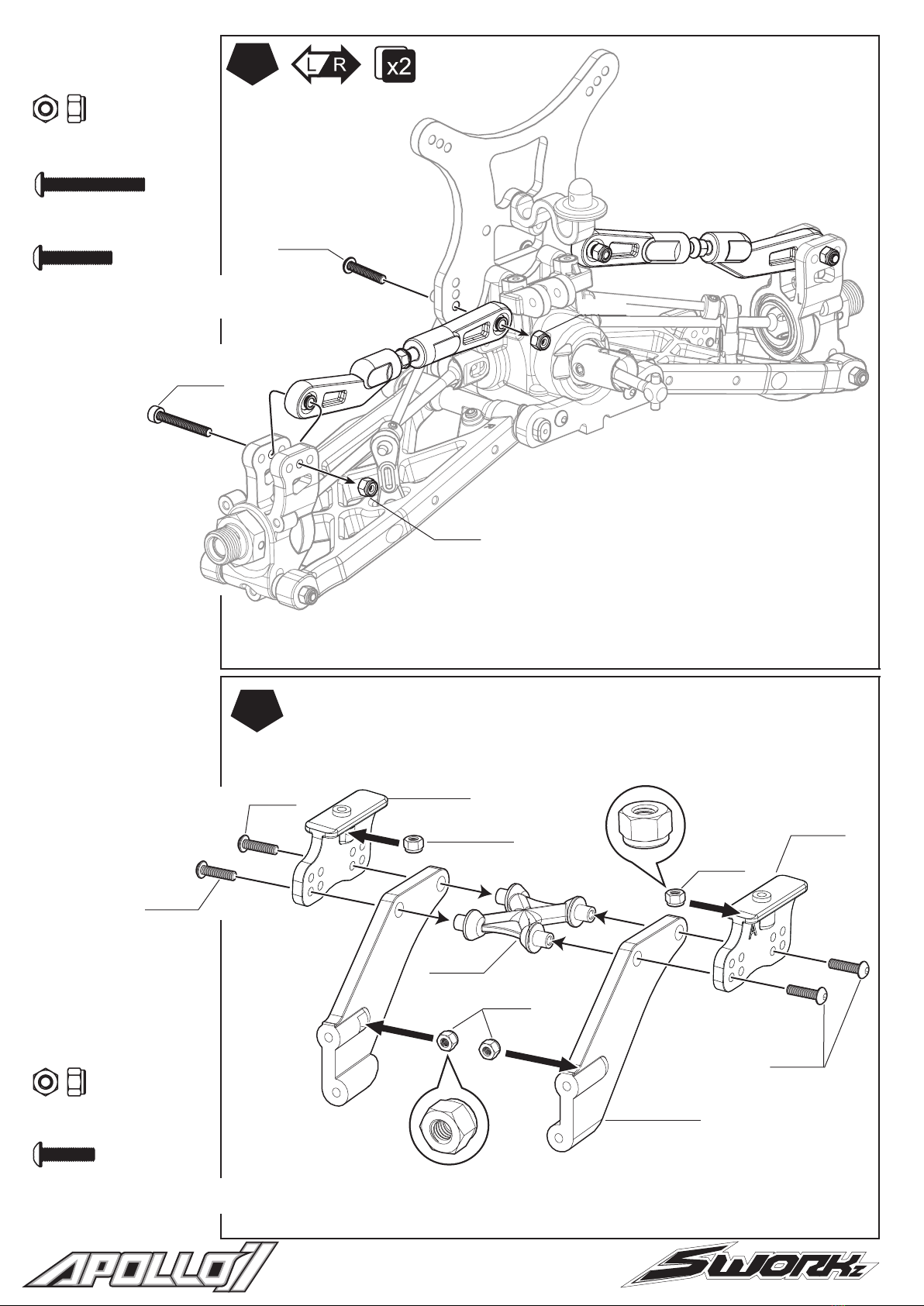

106008
106008
101018
SHIM 13x16x0.2mm x3
108001
101018
104010
330160
330830
330227
106010
2501529
2501114
104010
M5x4mm Set Screw (Flat Bottom) x1
106021A
M4x10mm Hex Socket OH/TP Screw X2
2501093B
106005
2501093B
106021A
330136
2501121D
330134
106005
M3x15mm Hex Socket OH/TP Screw x2
106008
M3x12mm Hex Socket OH/TP Screw x2
108001
M3x12mm FH/ST HEX Screw x2
BAG E1
116006R
Ball Bearing 8x16x5mm (Red Rubber Case) x2

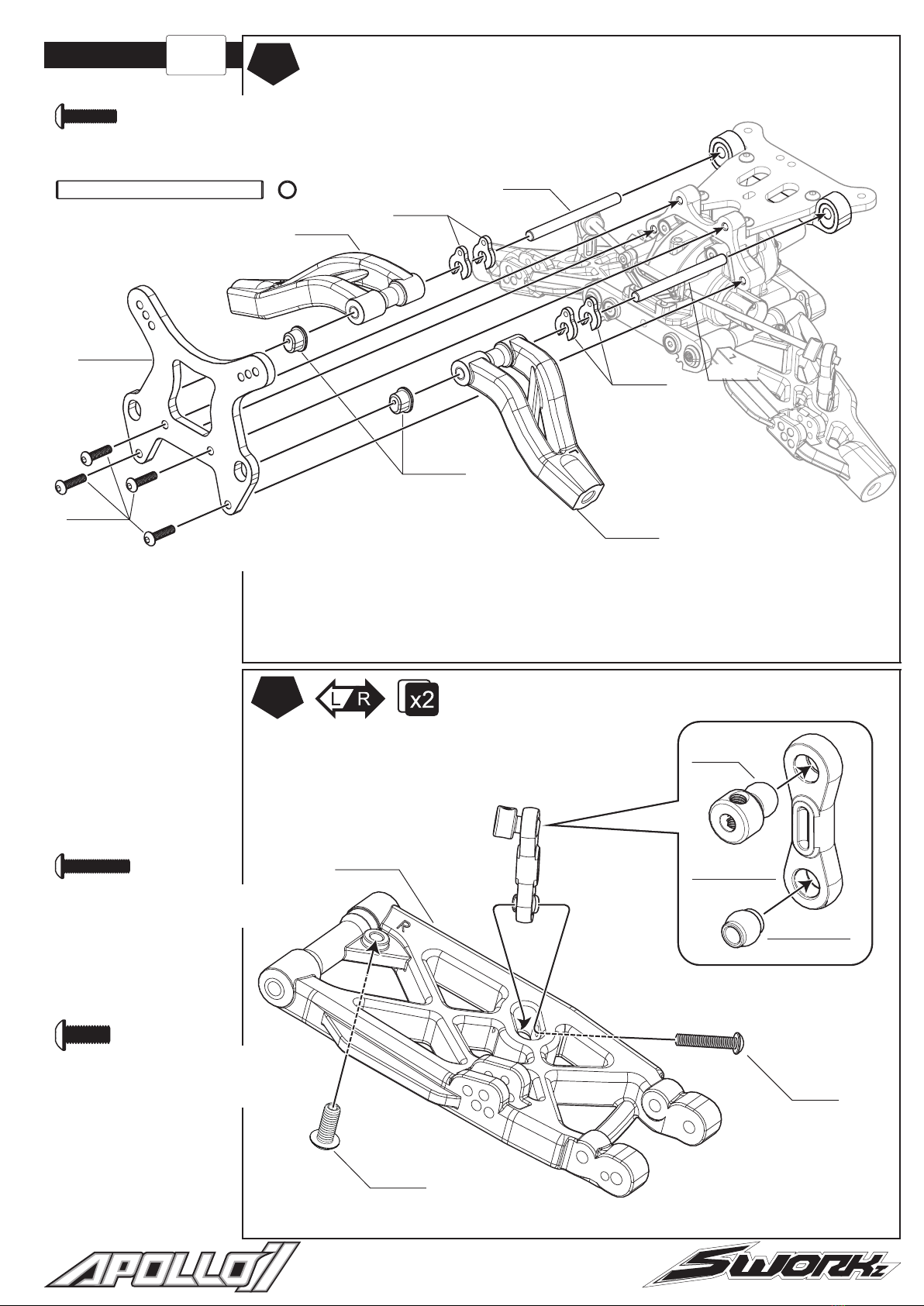

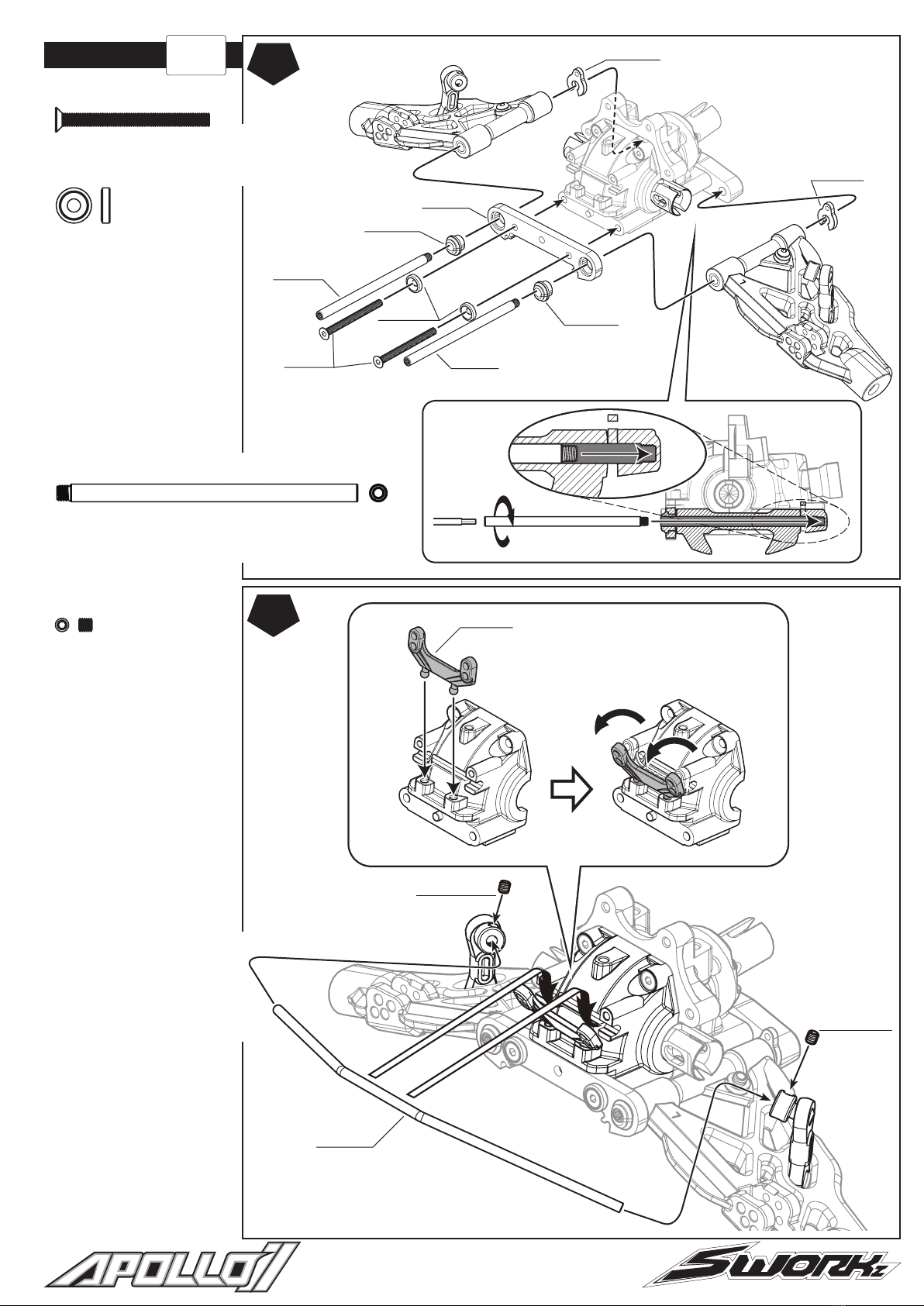

11
8
9
2501100
2.0mm
108008
M3x35mm FH/ST HEX Screw x2
101020A
3mm Countersunk x2
Washers (GM)
2501114
Pop in the Stabilizer Guide.
After assembly ensure that both
suspension arms move freely.
2501099
330831
2501099
330103
2501100
330103
108008
102020A
330103
Front/Rear Lower Arm HingPin x2
Use a 2mm Hex Wrench
and slowly tighten the
Hinge Pins.
104004
104004
115008A
104004
M3x3mm Set Screw x2
BAG E1

12
11
10
104005
105004
104005
105004
104005
M3x4mm Set Screw x2
105004
M2.6x6mm Cap Screw x2
2501096 106002
106002
106002
338110
103001
2501096
2501099
2501099
106002
103001
M3 Nut Lock x2
106002
M3x10mm Hex Socket OH/TP Screw x5
BAG E1

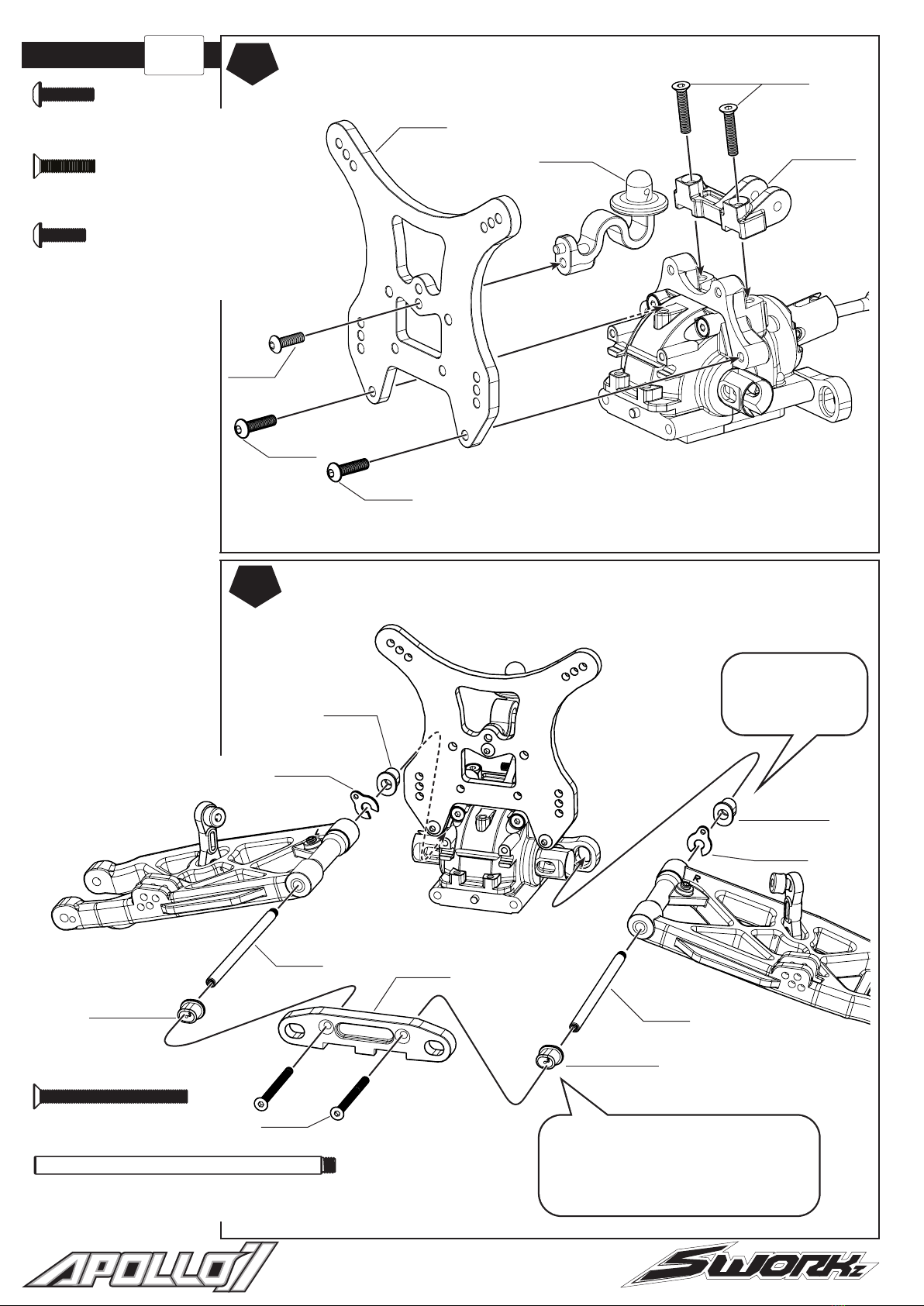

13
12
13
330119
2501100
2501099
106008
106021A
M4x10mm Hex Socket OH/TP Screw X2
2501113
2501113
330828
330119
2501100
330119
Front Upper Arm HingPin x2
106008
M3x12mm Hex Socket OH/TP Screw x4
106021A
2501094C
106005
330136
2501121C
330134
106005
M3x15mm Hex Socket OH/TP Screw x2
BAG E1

14
15
14
108005
M3x14mm FH/ST HEX Screw x2
2501097 2501122A
106008
106008
330829
106002
106002
M3x10mm Hex Socket OH/TP Screw x1
108005
330103
330103
108008
2501100
2501100
2502036
2502036
2502036
2501099
2501099
330103
Front/Rear Lower Arm HingPin x2
108008
M3x35mm FH/ST HEX Screw x2
The rear lower arm holder
insert can offer 1.0, 2.0 and
3.0 rear kick-up for your rear
lower suspension.
200108 R/F Insert (1 degree)
200109 R/F Insert (0 degree)
BAG E1
106008
M3x12mm Hex Socket OH/TP Screw x2
The new rear changeable plastic lower arm plate with
2 inserts can offer 2.0, 3.0 and 3.5 rear toe-in for your
rear lower suspension.
2502036 Rear Changeable Lower Arm Plate
Insert (2.0/3.5 Degree)
2502036 Rear Changeable Lower Arm Plate
Insert (3.0 Degree)

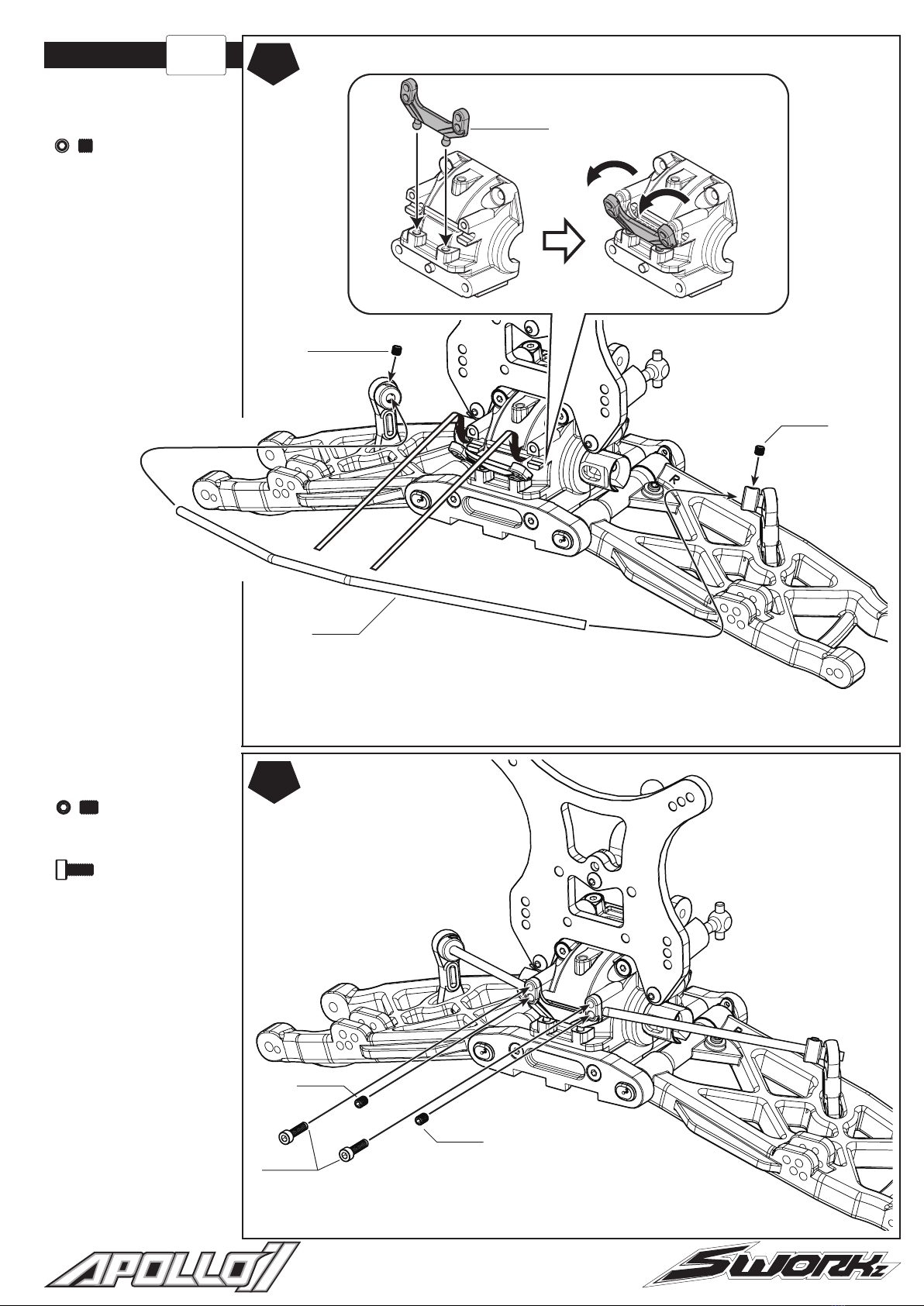

15
16
17
104004
104004
105005
104004
M3x3mm Set Screw x2
2501114
Pop in the Stabilizer Guide.
After assembly ensure that both
suspension arms move freely.
104005
104005
105004
104005
M3x4mm Set Screw x2
105004
M2.6x6mm Cap Screw x2
BAG E1

16
19
BAG E2
Please use the
6x10x0.2mm shim
to adjust play between
the servo saver post
and steering bell crank
plate.
3mm
18
330251
330251
103001
103001
101021
101021
101021
101021
106007
106007
330135A
115004
106004R
330114A
2501122B
2501667-5
2501122B
106004R
338109
103001
M3 Nut Lock x2
101021
M3x8xT1mm x4
101019
SHIM 6.0x10.0x0.2mm x1
106007
M3x12mm Hex Socket OH/TP Screw(HT) x2
106004R
101019
106004R
330113
106002
106002
M3x10mm Hex Socket OH/TP Screw x2
116004R
Ball Bearing 6x10x3mm (Red Rubber Case) x2
116004R
Ball Bearing 6x10x3mm (Red Rubber Case) x2

17
20
21
BAG E3
2501100
2501098A
2501098A
2501100
330118A
340035
340035
330118A
330252
330252
Screw and adjust 330118A Knuckle
Pivot Ball Nut so as the pivot ball can
be moved smoothly.
106002
Left
Right

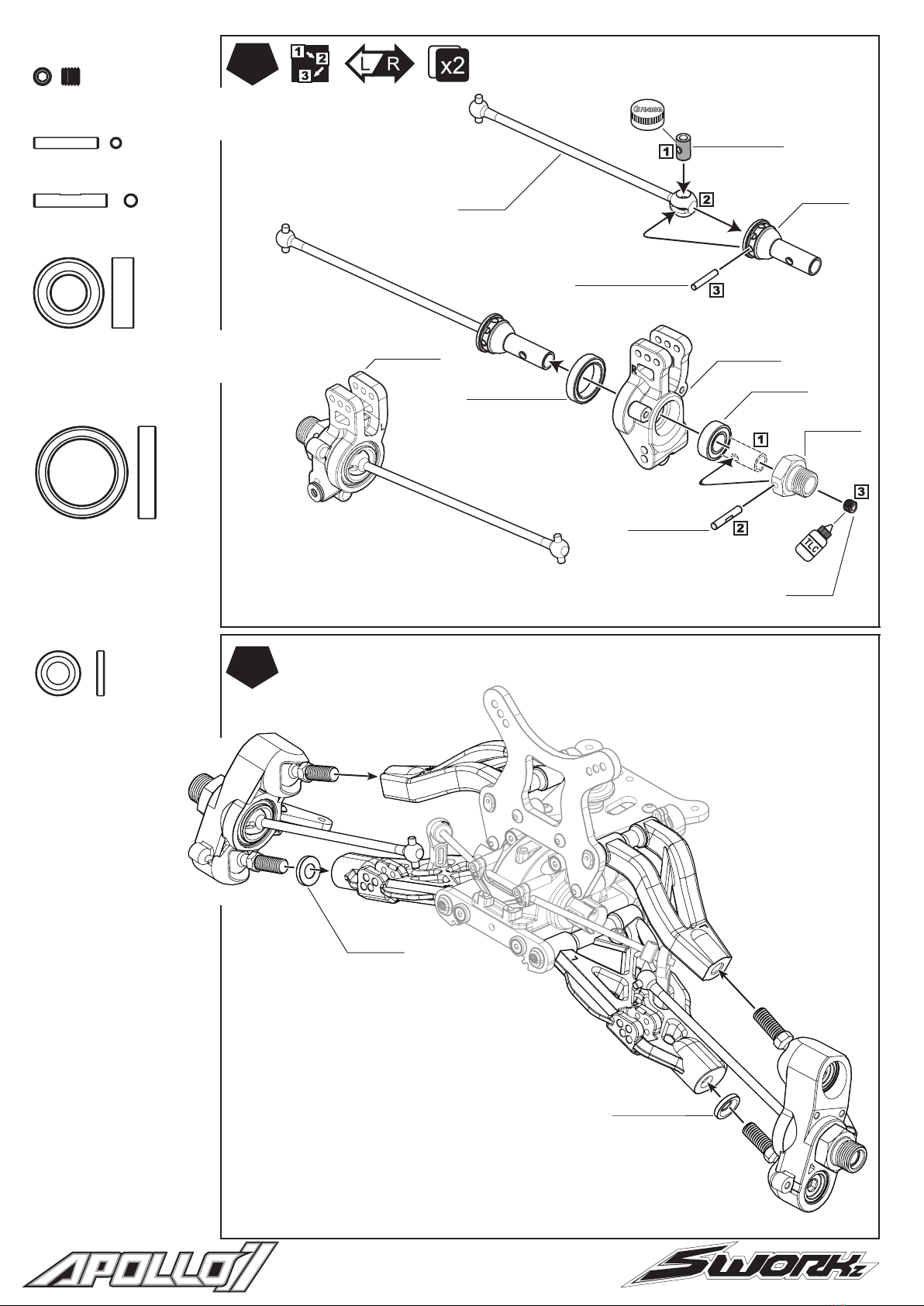

330110
330112
330111
330109
116012
116006R
330124
104010
330121A
330111
Pin M2.5x14.8mm x2
330124
Pin M3.0x16.8mm x2
104010
M5x4mm Set Screw (Flat Bottom) x2
106002
M3x10mm Hex Socket OH/TP Screw x4
116006R
Ball Bearing 8x16x5mm (Red Rubber Case) x2
116012
Ball Bearing 15x21x4mm x2

18
23
22
330121A
330110
330109
330111
116012
330112
116006R
2501095A
2501095A
330124
104010
330111
Pin M2.5x14.8mm x2
Left
Right
330124
Pin M3.0x16.8mm x2
330117A
Knuckle Pivot Ball Washer x2
104010
M5x4mm Set Screw (Flat Bottom) x2
330117A
330117A
116006R
Ball Bearing 8x16x5mm (Red Rubber Case) x2
116012
Ball Bearing 15x21x4mm x2

19
9.8mm

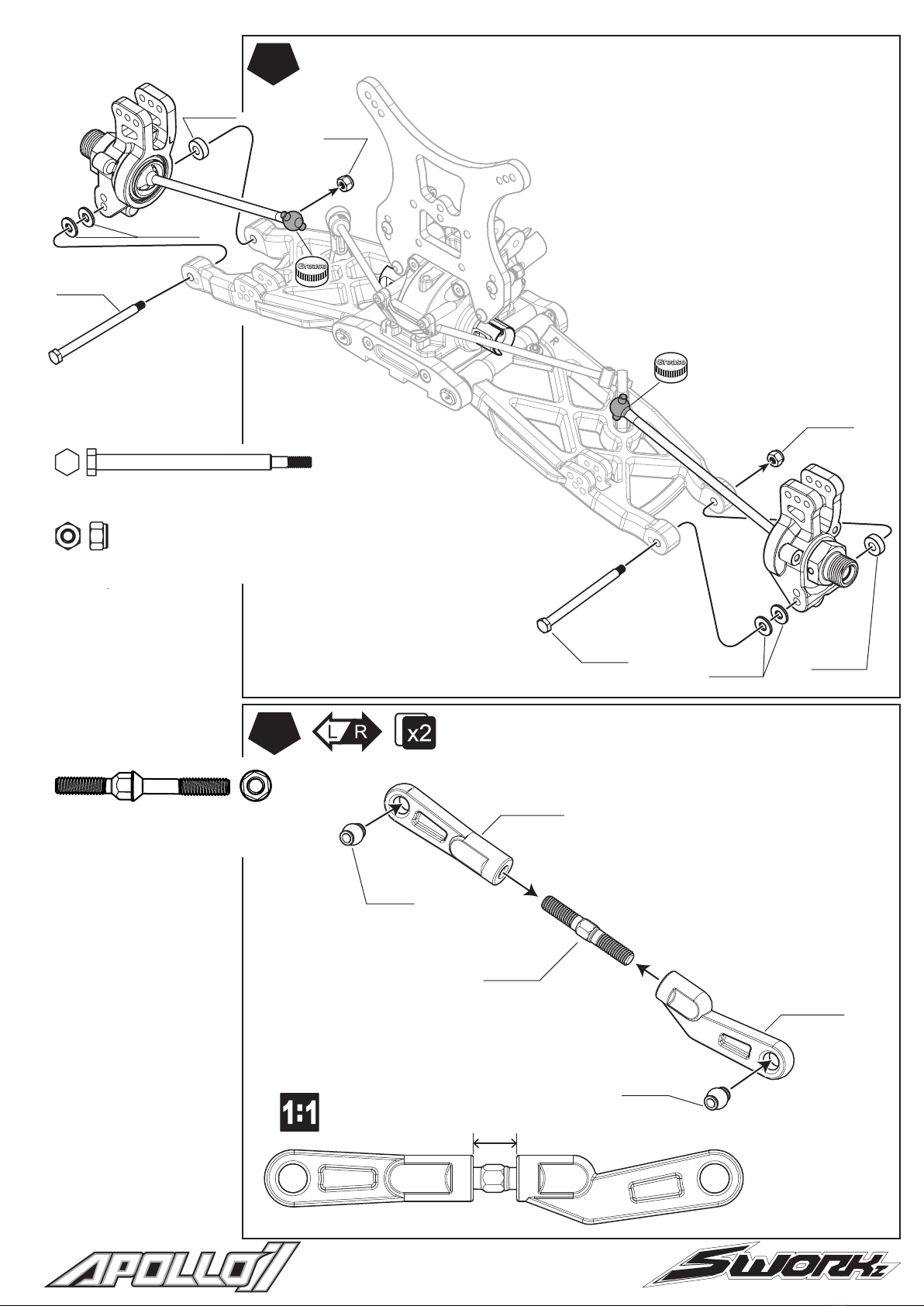

330401
Rear Hub Carriers Hing Pin with Nut x2
103001
M3 Nut Lock x2
24
25
330401
103001
103001
2501100
330401 2501100
330125
2501121C
330123A
2501121C
330125
2501100
2501100
330123A
Rear Upper Sus. Arm Turnbuckles x2

20
26
27
106008
106008
106008
103001
103001
2501097
2501097
2501097
2501097
103001
M3 Nut Lock x4
106008
M3x12mm Hex Soket OH/TP Screw x4
103001
103001
106003
105011
103001
105011
M3x23mm Cap Screw x2
106003
M3x16mm Hex Socket OH/TP Screw x2
103001
M3 Nut Lock x4
