SWorkz S35-T User manual

2
1. S35-T series Nitro Truggy T-7075 Aluminum Lightened Main Chassis with L.F.C system (Lower
Friction Coefcient)
2. S35 Series Front and Rear Pro Shock Towers made of Lightened T-7075 Aluminum for longer BBS
shocks system.
3. S35 Series BBS Emulsion Shock Caps.
4. S35-3 Lightened Transmission Gear Box System with High Performance Crown Gears and Pinion
Gears.
5. Front and Rear Universal Drive Shafts
6. S35-3 Series Aluminum Rear Lower Fully Adjustable Toe-In Block (A).
7. S35-3 Series Competition Aluminum Steering Knuckle Plates.
8. S35 Series P-BBD (Plastic Big Bore Diff.) Competition Large Centre Differential System.
9. Double Protection Bumper Design.
10. Heavy Duty Front and Rear Arms
11. Professional 2.0 Metal Brake Calipers.
12. New 150cc Floating Fuel Filter System Tank.
13. Adjustable Front Upper and Lower Suspension Arm System.
14. Speed Rhinoceros 2.0 Body Shell included.
INTRODUCTION
Specification
Length: 585mm
Width: 415mm
Height: 230mm
Ground Clearance: 75mm
Wheelbase: 375-380mm
Track: F:355mm / R:355mm
Gear Ratio: C:48/13T, F/R 46/10T
Weight: 3980g
The S35-T is a brand new SWORKz 1/8 nitro Truggy based on the SWORKz S35-3 nitro Buggy.
The Evolution of the S35-T project is the result of SWORKz passion for racing and race
development. Combining every detail into a more balanced and improved truggy called the "S35-T".
The SWORKz S35-T Pro Truggy Kit comes standard with many SWORKz Factory Team Option Parts
which provide strength and performance.
The S35-T newly designed front Ackerman steering system and unique front shock tower design
allow you to change the front upper angle position easily.
The centre plastic BBD differential system provides better acceleration for the S35-T.
A new simpler radio tray system gives better and more precise throttle and braking response.
Based on the S35-3 lightened transmission gear box system with a truggy crown gear ratio,
provides powerful punch as needed in truggy racing.
A longer T-7075 aluminum chassis comes with several new designs. The L.F.C (Lower Friction
Coefcient) chassis allows users to install 15-75g balance weights on the chassis CG position.
The S35-T includes high quality parts, a refined shock system, more options and an optimized
suspension geometry. Arms are made from a strong standard nylon material.
SWORKz utilizes only the highest quality materials and industry leading manufacturing processes,
resulting in a faster, stronger and more reliable vehicle. The SWORKz S35-T Pro Truggy Kit from
SWORKz has been designed to out-perform the competition on any Off-Road terrain, while offering
amazing performance to drivers of all levels.
S35-T Kit Features :

3
WARRANTY
Your SWORKz S35-T kit warranty covers workmanship and manufacturing
defects of the original and unmodified parts. Warranty claims resulting from
crashes, abuse, improper operation, improper mounting, improper adjustment or
lack of maintenance will not be honored.
Contact your local hobby shop or SWORKz distributor for all claims and
questions. Claims must be well documented. All Claims are subject to expert
examination approval by SWORKz.

4
INDEX
This radio controlled racing car is not a toy!
This high-performance R/C model is recommended for ages 14 and older.
INSTRUCTION 2
Warranty 3
INDEX 4
Required Equipment for Operation 5
Operation Guide 6
Assembly Steps 7-38
Blank Set-up Sheet 39-40
S35-T Key No. List 41-42
S35-T Spare Part List 42-43
S35-T Option Part List 43
End cover 44

5
Starter box
Engine Starting Equipment
Glow
Double-sided tape
Paint
Long nose pliers
Modeling knife
Instant cement Thread lock
Included items
Hex wrench
1.5mm
2mm
2.5mm
1.5mm
2mm
2.5mm
Fuel bottle
Glow plug wrench
Screwdriver
Screwdriver
Radio Gear Nitro fuel
Stick Type
Throttle servo
Receiver batteries
Wheel & Trigger Type
Receiver
On/Off Switch
We recommend that you use fuel
containg 20~25% nitro.
Steering servo
Exhaust header
SP-80102
EFRA2111
Tools Recommended
Engine Recommended
Side cutter
Curved scissors
Grease
ST-3 Turbo Plug
ST-4 Turbo Plug
6
Required Equipment for Operation

6
Operation Guide
Safety Precautions
The SWORKz S35-T is a high performance radio control model which needs to be operated
with caution and common sense.
The S35-T Pro Kit is not intended for children under the age of 14 without adult supervision.
SWORKz shall not be held liable for any loss or damages, whether direct, indirect, act of
nature, arising from the abuse or misuse of this product or any other product required while
operating this model.
- The nitro fuel can be dangerous is improperly handled.
- Always keep your nitro fuel in a cool area and never use near flame, sparks, or while
smoking.
- Keep your nitro fuel, and all other ammables, out of the reach of children.
- Always run your model in a well ventilated area outdoors. Never run your model indoors.
- After running your car, all parts of the engine and exhaust can become extremely hot. Be
careful not to touch these parts especially when refueling, or making repairs.
- This model is controlled by your radio controller and is sometimes vulnerable to interference
from many outside sources. This interference can cause a loss of control so it is necessary to
operate this model in an open area to avoid personal, or property damage. Always ensure
turning on your radio rst.
- Keep all the parts included in the package out of reach of children.
- This model contains many fast rotating parts. Never touch them during operation.
- Follow the instructions included with your radio gear.
- Never operate your model near people or property. The speed of this model has the
potential to injure and or damage people and or property.
- Always use original SWORKz spare parts and option parts.
- Always ensure that the buggy is in proper working condition before use.
overturn
Assemble for
4 sets
Assemble for
2 sets
Assemble both left
and right sides
Assemble in the
specied order
Assemble front
and rear
Thread Locking
Compound
Grease Pure Silicone Oil Air lter oil

7

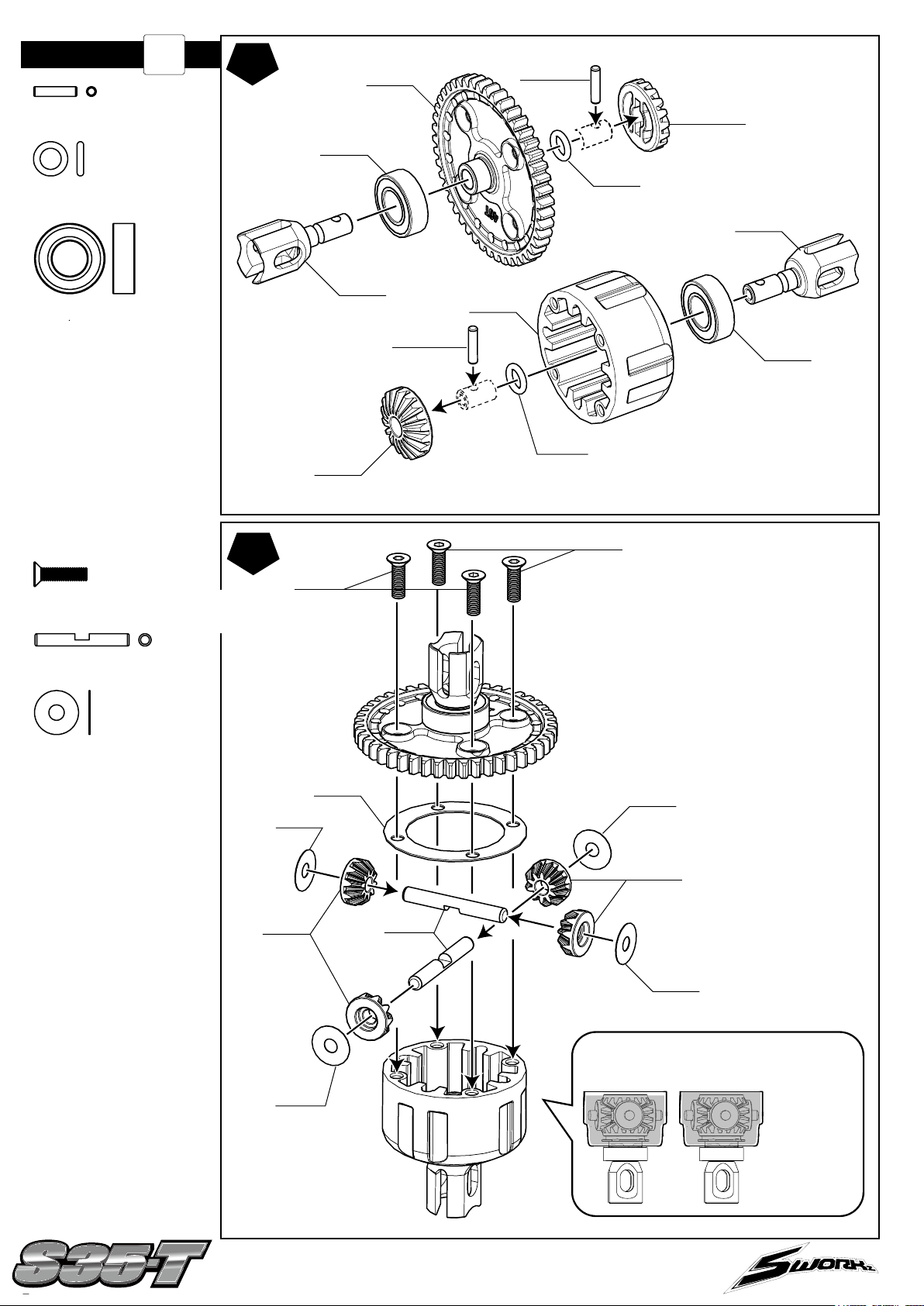

BAG B1
2
330014A
116006
330015
320003 400002
330013
320004
101004
101004
320004
101004
101004
610002
210002A
116006
330502A
330015
320003
400002
330015
Pin M2.2x9.9mm x4
400002
O-ring S5 4.8X1.5 x4
116006
Ball Bearing 8x16x5mm x4
101004
Washer 3.5X10X0.2mm x8
330013
Bevel Gear Shaft x4
Fill the differentials
with oil up to 80%
above the satellite
gears.
Put the SWORKz
Diff. Oil 7000cps
for the front Diff.
and 3000cps for the
rear Diff.
Remember to apply a light coat
of grease to the o-ring, then
slide it over the shaft of the out
drive and seat it in the diff case.
Insert the pin through the hole
in the diff case and through the
hole in the shaft of the out drive.
OK! NG!
108003
108003
330014A
108003
M3x10mm FH/ST HEX Screw x4

8
4
3
BAG C
116006
330017
330017
330015
320003
108001
108001
320004 330013
610020
320004
330784
210079
116006
330015
320003
400002
400002
101004
101004
101004
101004
116006
Ball Bearing 8x16x5mm x2
330015
Pin M2.2x9.9mm x2
400002
O-ring S5 4.8X1.5 x2
101004
Washer 3.5X10X0.2mm x4
330013
Bevel Gear Shaft x2
Fill the
differentials
with oil up to
80%
above the
satellite gears.
Put the
SWORKz
Diff. Oil
7000cps for
the center Diff.
Remember to apply a very light coat
of grease to the o-ring, then slide it
over the shaft of the out drive and
seat it in the diff case.
Insert the pin through the hole in the
diff case and through the hole in the
shaft of the out drive.
OK! NG!
108001
M3x12mm FH/ST HEX Screw x4

9
5
BAG D
Note:
The aluminum front lower arm holder (330215A) can offer 0° or 1°
kick-up for your front lower suspension.
You may use the inserts 2503260-14 to get 0°
kick-up or 2503260-15 to get 1° for your front lower suspension.
2503260-14 Front Lower Aluminum Arm Holder Inserts (0 degree)
2503260-15 Front Lower Aluminum Arm Holder Inserts (1 degree)
Note:
101018SHIM 13x16x0.2mm
Please use 13x16x0.2mm shims
to adjust the play between the
crown gear and pinion gear.
Standard suggestion is 1pc shim
on the diff crown gear side and
2pcs on the other side.
104010
330215A
101018
101018
108001
108001
2503260-14.15
2503260-14.15
2503261-3
116016
330661A
116016
108001
M3x12mm FH/ST HEX Screw x4
101018
SHIM 13x16x0.2mm
330650
116016
Ball Bearing 5x11x4mm x2
104010
M5x4mm Set Screw (Flat Bottom) x1
108001
2503261-2
x3
Pro Tip:
Before installing the M5x4 set screw (104010),
remember to clean the set screw and center driver joint (330661A) rst.
Then apply TLC on the set screw.

10
6
7
BAG E1
101018
330650
108001
330661A
101018 108001
108001
108001
M3x12mm FH/ST HEX Screw x4
101018
SHIM 13x16x0.2mm
116016
Ball Bearing 5x11x4mm x2
104010
M5x4mm Set Screw (Flat Bottom) x1
104010
330769
Note:
101018SHIM 13x16x0.2mm
Please use 13x16x0.2mm shims to adjust the play between the crown gear and pinion gear.
Standard suggestion is 1pc shim on the diff crown gear side and 2pcs on the other side.

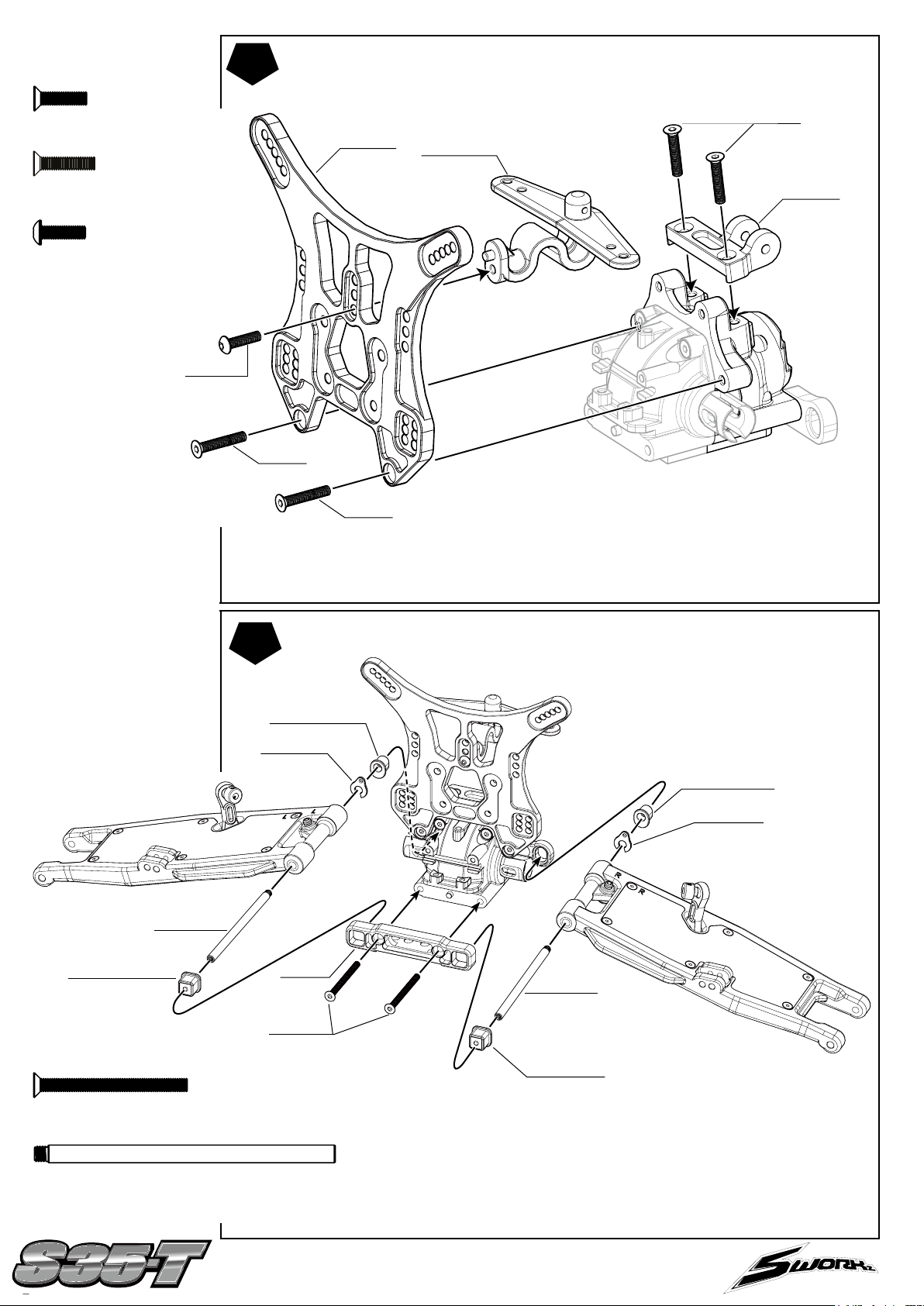

106016
106016
x3
106005
M3x15mm Hex Socket OH/TP Screw x2
108019
M2.6x6mm FH/ST HEX Screw x10
2501121C-6
330136
106005
106021A
330134
108019
2502037B
2502037B
Left
2503261-3
2503261-2
Pro Tip:
Before installing the M5x4 set screw
(104010), remember to clean the set screw
and center driver joint (330661A) rst.
Then apply TLC on the set screw.
106021A
M4x10mm Hex Socket OH/TP Screw X2

11
8
9

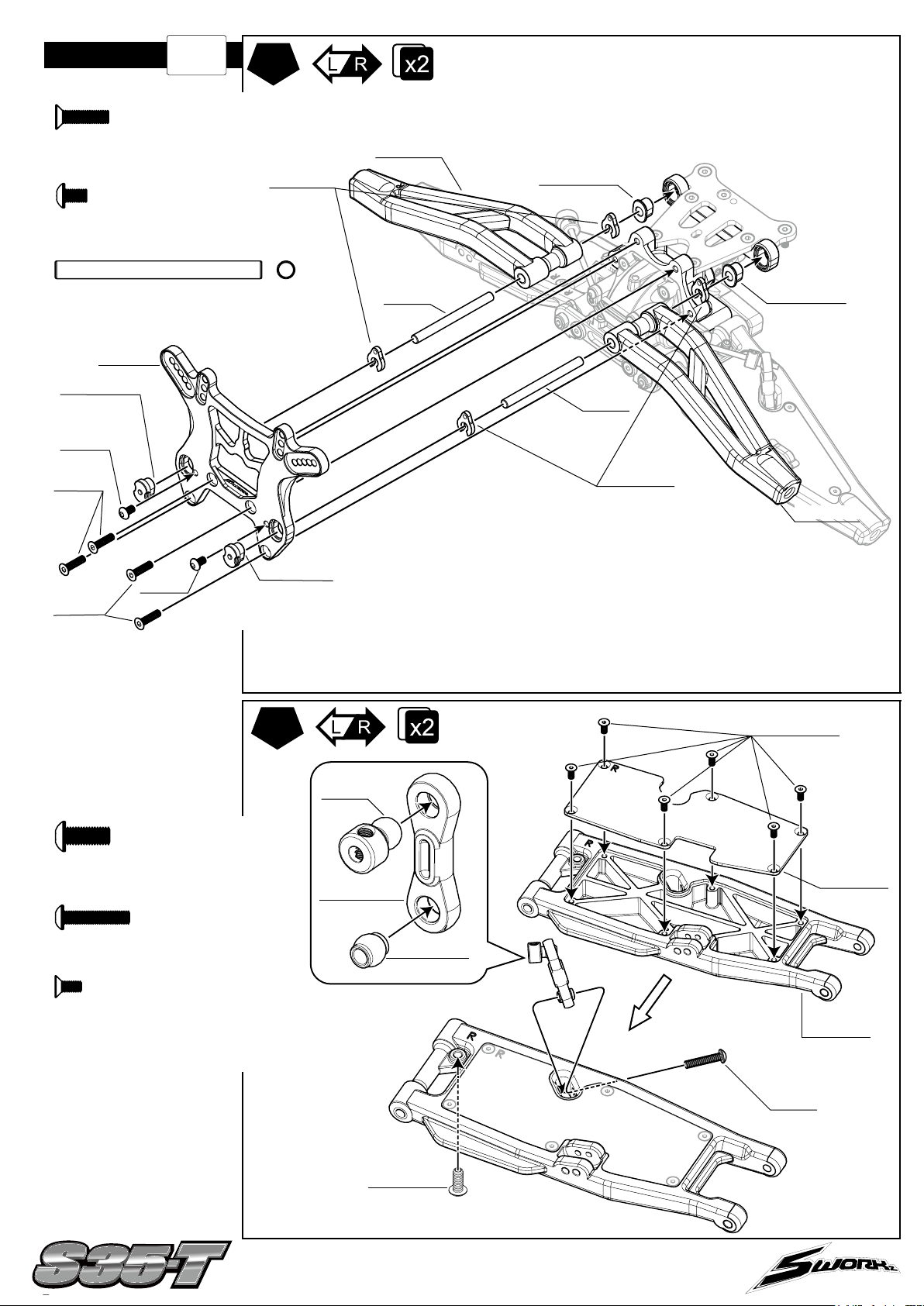

330103
2503261-1
104004
104004
118008
330642
2.0mm
330103
Front/Rear Lower Arm HingPin x2
104004
M3x3mm Set Screw x2
Use a 2mm Hex
Wrench and slowly
tighten the Hinge
Pins.
Pop in the Stabilizer Guide.
115008A
108008
M3x35mm FH/ST HEX Screw x2
101020A
3mm Countersunk x2
Washers (GM)
101020A
2503260-3
2503260-24.25
2503260-24.25
2503260-3

12
11
10
106013
106013
104005
104005
104005
M3x4mm Set Screw x2
330772
340002
Note:
The aluminum front upper arm holder (330772) can offer either
0° or + -1° kick-up for your front upper arm suspension.
You may use the inserts 2503260-18 to get 0° kick-up
or 2503260-11 to get +-1° for your front upper suspension.
2503260-11
S35-3 Aluminum Front Upper Arm Holder Insert (+/- 1.0 Degree)
2503260-18
S35-3 Aluminum Front Upper Arm Holder Insert (0 Degree)
108006
M3x8mm FH/ST HEX Screw x2
106013
M2.5x8mmH ex Socket OH/TPScrew x
2
108003
108006
108003
M3x10mm FH/ST HEX Screw x2

13
12
13
BAG E1
330820
106015
106015
330119
2502039B
2502039B
330119
108001
108001
2503260-9
2503260-10
2503260-9
2503260-10
2503260-1
2503260-2
2503260-3
2503260-4
2503260-2
2503260-3
2503260-4
2503260-1
Pro Tip:
The S35-3 Front Upper Arm Adjust Inserts
can give different steering adjustments (Ackerman).
Put all inserts behind the front upper arms, you will get faster steering response.
Otherwise put all inserts in front of the upper arms,
you will get more stable steering response.
Try to use 2503260-1 or 2503260-3 to adjust the front upper arm position.
108001
M3x12mm FH/ST HEX Screw x4
330119
Front Upper Arm HingPin x2
106005
M3x15mm Hex Socket OH/TP Screw x2
108019
M2.6x6mm FH/ST HEX Screw x12
106021A
2502038B
106005
330136
2501121C-6
330134
108019
2502038B
2503260-11
2503260-18
2503260-18
2503260-11
Note:
2503260-9
S35-3 Front Shock Tower Upper Arm Holder Insert (+/- 1.0 Degree)
2503260-10
S35-3 Front Shock Tower Upper Arm Holder Insert (0 Degree)
Note:
2503260-1
S35-3 Front Upper Arm Adjust Insert (0.9mm)
2503260-2
S35-3 Front Upper Arm Adjust Insert (1.0mm)
2503260-3
S35-3 Front Upper Arm Adjust Insert (1.1mm)
2503260-4
S35-3 Front Upper Arm Adjust Insert (2.0mm)
106021A
M4x10mm Hex Socket OH/TP Screw X2
106015
M3x5mm Hex Socket OH/TP Screw x2

14
15
14
2503260-16.17
330103
Front/Rear Lower Arm HingPin x2
108008
M3x35mm FH/ST HEX Screw x2
330103
330103
330770
108008
Note:
2503260-21
S35-3 Aluminum Rear Lower Fully Adjustable Toe-In Block (A) Insert (+- 1 degree)
2503260-22
S35-3 Aluminum Rear Lower Fully Adjustable Toe-In Block (A) Insert (0 degree)
2503260-23
S35-3 Aluminum Rear Lower Fully Adjustable Toe-In Block (A) Insert (+- 1 Kick up degree)
108001
M3x12mm FH/ST HEX Screw x2
2503260-16.17
108005
M3x14mm FH/ST HEX Screw x2
2502040-02
330399B
108001
108001
330669A
106002
106002
M3x10mm Hex Socket OH/TP Screw x1
108005
2503260-21
2503260-22
2503260-23
2503260-21
2503260-22
2503260-23
2503260-1
2503260-1
Pro Tip:
The 330770 Aluminum Rear Lower Fully Adjustable
Toe-In Block (A) can use 3 types of square inserts
to get 1.0/2.0/3.0 3 different toe in angles. Also plus
3 different rear lower arm kick up degrees.
For the option parts SW-330795
S35-3 Aluminum Rear Lower Fully Adjustable Toe-
In Block (B), you will have 0.5 degree more than
Type A, so 1.5/2.5/3.5 can be set.

15
16
17
104005
M3x4mm Set Screw x2
106013
M2.5x8m
mH ex Socket OH/TPScrew x
2
2503261-1
104004
104004
115008A
Pop in the Stabilizer Guide.
104005
104005
106013
104004
M3x3mm Set Screw x2

16
19
18
BAG E2
8mm
117003
117003
117003
117003
2501122A-10
103001
103001
106007
101021
106007
101021
330776
330114A
610019
115004
116004
116004
2501122A-11
330423A
330773
103001
M3 Nut Lock x2
116004
Ball Bearing 6x10x3mm x2
116004
Ball Bearing 6x10x3mm x2
101019
SHIM 6.0x10.0x0.2mm x1
117003
Flange Ball Bearing 3x6x2.5mm x4
108003
M3x10mm FH/ST HEX Screw x2
108003
116004
101019
330113
106007
M3x12mm Hex Socket x2
OH/TP Screw(HT)
101021
M3x8xT0.8mm x2
Please use the
6x10x0.2mm shim
to adjust play between
the servo saver post
and steering bell crank
plate.

17
20
21
BAG E3
2503260-8
2503264A
2503264A
2503260
330118A
106002
330774
330774
330118A
330252
330252
Screw and adjust 330118A Knuckle
Pivot Ball Nut so as the pivot ball can
be moved smoothly.
Left
Right
116006
116006
330124A
210074
104010
330551 Right
104010
M5x4mm Set Screw (Flat Bottom) x2
Be sure that M5x4 set screw must touch the at side from pin.
33124A
Pin M3.0x16.8mm x2
106002
M3x10mm Hex Socket OH/TP Screw x4
116006
Ball Bearing 8x16x5mm x4
Left

18
23
22
330124A
116006
330551
116006
210074
2501095A
104010
Left
Right
Be sure that M5x4 set screw must
touch the at side from pin.
330117A
106002
M3x10 mm Hex Socket OH/TP Screw x2
106002
2502040-02
104010
M5x4mm Set Screw (Flat Bottom) x2
33124A
Pin M3.0x16.8mm x2
116006
Ball Bearing 8x16x5mm x4

19
24
25
48mm
2503260-6
2503260-7
103001
103001 2503260-7
330782
330782
330782
Rear Hub Carriers Hing Pin with Nut x2
103001
M3 Nut Lock x2
330125
330125
2501121C-4
2501121C-9
330458
330458
S350T Rear Upper Arm Turnbuckle M5x72mm x2
2503260-6
2503260-7
2503260-7

20
27
26
106003
105011
103001
103001
103001
M3 Nut Lock x4
106008
106008
106008
103001
103001
2501097
2501097
2501097
2501097
103001
M3 Nut Lock x4
106008
M3x12mm Hex Soket OH/TP Screw x4
103001
106003
M3x16mm Hex Socket OH/TP Screw x2
105011
M3x12mm Cap Screw x2
