SWorkz S35-2E series User manual

2
INSTRUCTION
The SWORKz S350 BE1 Pro was a good start to our 1/8th electric buggy range. Now based on
the success of the S350 BE1 EVO, SWORKz further improved the buggy and created the S35-
2E.
The S35-2E is the ultimate SWORKz 1/8th electric buggy at the moment. Its new rear
suspension design and front ackerman steering system came directly from the 1/8th S350
EVO II Limited nitro buggy. A totally brand new center transmission system provides all round
improvements to the S35-2E.
The S35-2E includes higher quality parts, many option parts and a rened shock system with
optimized suspension geometry.
The SWORKz S35-2E Pro Kit comes standard with many SWORKz Factory Team Option Parts
that gives strength, performance and value to the car.
SWORKz utilizes only the highest quality materials and industry leading manufacturing
processes resulting in a faster, stronger, and more reliable vehicle. The S35-2E Pro Kit
from SWORKz has been designed to out perform the competition while offering amazing
performance to drivers of all levels.
Congratulations on your purchase of the new SWORKz S35-2E 1/8th scale off road racing
electric power buggy pro kit.
Please read this manual thoroughly, before you attempt to start running your S35-2E. This
manual contains step-by-step instructions to help you complete, prepare for startup, and ne-
tune your Buggy. Updates, setups, and product news will be posted on our website (www.
sworkz.com) or SWORKz RC Face Book page.
As always, if you should ever have any questions or need help with your S35-2E, please feel
free to contact our ofcial SWORKz dealers and distributors, as they will be glad to help you.
You may also contact us at any time for the most up to date information and support.
1. S35-2E 7076 B.H.C. ( Black Hard Coated) Aluminum Chassis.
2. S350 Series Competition Rear Lower Arm Set
3. S350 Series Competition Aluminum Rear Hub Carry
4. S350 Series Competition Steering Plate
5. S350 Series Competition Carbon Steering Knuckle Plates
6. S350T series Long BBS Pro Shock System Set
7. S350 Series Front Pro Shock Tower for Longer BBS shocks
8. S350 Series New Wheel Hub(L4.5mm)
9. S35 Competition Aluminum Rear Changeable Lower Arm Holder
10. New LDGS (Lightened Drive Gear System) gear system with 5x11 mm ball bearings.
11. Full Front and Rear LDS (Lightened Drive System) cross drive shaft system.
12. New Center Diff transmission drive shaft system.
13. Aluminum upper arm holder.
14. Aluminum front lower arm holder.
S350 EVO II Limited Kit Features:

3
WARRANTY
Your SWORKz S35-2E kit warranty covers workmanship and manufacturing
defects of the original and unmodified parts. Warranty claims resulting from
crashes, abuse, improper operation, improper mounting, improper adjustment or
lack of maintenance will not be honored.
Contact your local hobby shop or SWORKz distributor for all claims and
questions. Claims must be well documented. All Claims are subject to expert
examination approval by SWORKz.
Specification
Length: 530mm
Width: 308mm
Height: 220mm
Ground Clearance: 65mm
Wheelbase: 325-330mm
Track: F:306mm / R:306mm
Gear Ratio:
C:(45~47)/14T, F/R 43/13T
Weight: 3650g

4
INDEX
This radio controlled racing car is not a toy!
This high-performance R/C model is recommended for ages 14 and older.
INSTRUCTION 2
Warranty 3
Required Equipment for Operation 5
Operation Guide 6
Assembly Steps 7-33
Set-up Sheet 34
Blank Set-up Sheet 35
S35-2E Key No.List 36-37
S35-2E Spare Part List 38
S35-2E Option Part List 39
End cover 40

5
Charger and LiPo Battery
Double-sided tape
Paint
Long nose pliers
Modeling knife
Instant cement Thread lock
Included items
Hex wrench
1.5mm
2mm
2.5mm
1.5mm
2mm
2.5mm
Glow plug wrench
Screwdriver
Screwdriver
Radio Gear
Stick Type
ESC system
Wheel & Trigger Type
Receiver
Steering servo
Tools Recommended
Breshless Motor
Side cutter
Curved scissors
Grease
Required Equipment for Operation

6
Operation Guide
Safety Precautions
The SWORKz S35-5E is a high performance radio controlled model which needs to be
operated with caution and common sense.
The S35-2E Pro Kit is not intended for children under the age of 14 without adult supervision.
SWORKz shall not be held liable for any loss or damages, whether direct, indirect, act of
nature, arising from the abuse or misuse of this product or any other product required while
operating this model.
- The LiPO Battery can be dangerous is improperly handled.
- Always keep your LiPO Battery in a cool area and never use near flame, sparks, or while
smoking.
- Keep your LiPO Battery, and all other ammables, out of the reach of children.
- After running your car, all parts of the Motor and ESC can become extremely hot. Be careful
not to touch these parts.
- This model is controlled by your radio and that is vulnerable to interference from many
outside sources. This interference can cause a loss of control so it is necessary to operate this
model in an open area to avoid personal, or property damage. Always ensure turning on your
radio rst.
- Keep all the products included in the package out of reach of children.
- This model contains many fast rotating parts. Never touch them during operation.
- Follow the instruction included with your radio gear.
- Never operate your model near people or property. The speed of this model has the
potential for injury and or damage to people and or property.
- Always use original SWORKz spare and option parts.
- Always encure the buggy is in proper working condition before use.
- Always exercise caution when using any and all tools.
overturn
Assemble for
4 sets
Assemble for
2 sets
Assemble both left
and right sides
Assemble in the
specied order
Assemble front
and rear
Thread Locking
Compound
Grease Pure Silicone Oil Air lter oil

7
BAG B1
2
330014
116006
330015
320003 400002
330013
320004
101004
101004
320004
101004
101004
610002
108003
210002A
116006
330014
330487
330015
320003
400002
330015
Pin M2.2x9.9mm x4
400002
O-ring S5 4.8X1.5 x4
116006
Ball Bearing 8x16x5mm x4
101004
Washer 3.5X10X0.2mm x8
108003
M3x10mm FH/ST HEX Screw x8
330013
Bevel Gear Shaft x4
Fill the differentials
with oil up to 80%
above the satellite
gears.
Put the SWORKz
Diff. Oil 7000cps
for the front Diff.
and 3000cps for the
rear Diff.
Remember to apply a very light
coat of grease to the o-ring, then
slide it over the shaft of the out
drive and seat it in the diff case.
Insert the pin through the hole
in the diff case and through the
hole in the shaft of the out drive.
OK! NG!

8
4
3
BAG C
116006
330017
320003 400002
330015
108003
320004 330013
610002
108003
320004
101004
101004
108007
108007
101004
101004
200268
210002
116006
330017
330241
330015
320003
400002
108003
M3x10mm FH/ST HEX Screw x4
116006
Ball Bearing 8x16x5mm x2
330015
Pin M2.2x9.9mm x2
400002
O-ring S5 4.8X1.5 x2
101004
Washer 3.5X10X0.2mm x4
330013
Bevel Gear Shaft x2
Fill the
differentials
with Oil up to
80% full.
Use SWORKz
Diff. Oil
7000cps for
the center
Diff.
Apply a light coat of grease
to the o-ring, then slide it over
the outdrive shaft and place it
in the diff case.
Insert the pin through the hole
of the out drive.
108007
M3x6mm FH/ST HEX Screw x4

9
Please use the SHIM 13x16x0.2mm
to adjust when the play was bigger
between the crown gear and pinion
gear.
5
BAG M
BAG D
116016
101018
330215
104010
108001
330486
108001
106010
330496
330227
2501114
108001
M3x12mm FH/ST HEX Screw x4
101018
SHIM 13x16x0.2mm x2
106010
M3x6mm Hex Socket OH/TP Screw x3
116016
Ball Bearing 5x11x4mm x2
104010
M5x4mm Set Screw (Flat Bottom) x1

10
Please use the SHIM 13x16x0.2mm
to adjust when the play was bigger
between the crown gear and pinion
gear.
6
BAG D
106010
330486
330496
330227
116016
2501114
104010
108001
330267A
101018
108001
108001
M3x12mm FH/ST HEX Screw x4
101018
SHIM 13x16x0.2mm x2
106010
M3x6mm Hex Socket OH/TP Screw x3
116016
Ball Bearing 5x11x4mm x2
104010
M5x4mm Set Screw (Flat Bottom) x1

11
7
BAG E
BAG E
2501093B
106005
2501093B
104007
104007
M4x8mm Set Screw x2
106005
M3x15mm Hex Socket OH/TP Screw x2
Left
Right
330136
2501121A
330134
2501100
330086A
2501099
101020A
101020A
2501099
2501100
330103
108008
330103
108008
2502036-01
2502036-01
108008
M3x35mm FH/ST HEX Screw x2
101020A
3mm Countersunk x2
Washers (GM)
330103
Front/Rear Lower Arm HingPin x2
8
The option aluminum
front lower arm
holder (330215) can
offer 0° or 1° kick-up
for your front lower
suspension. You
may use the inserts
(2502036-01) to get
0° or 1° for your front
lower suspension.

12
10
BAG M9
BAG E
105004
104005
104005
105004
2501114
104004
104004
115034 (Front Sway Bar 2.1 mm)
115035 (Front Sway Bar 2.2 mm)
115036 (Front Sway Bar 2.3 mm)
104004
M3x3mm Set Screw x2
104005
M3x4mm Set Screw x2
105004
M2.6x6mm Cap Screw x2

13
12
116006
116006
330124
210046
104001
330121B
104001
M5x4mm Set Screw x2
330124
Pin M3.0x16.8mm x2
116006
Ball Bearing 8x16x5mm x2
Left
Right
11
2501100
2501098A
2501098A
2501100
330118A
330667
330667
330118A
330252
330252
Screw and adjust 330118A Knuckle
Pivot Ball Nut so as the pivot ball can
be moved smoothly.
106002
Right
BAG E
BAG M
106002
M3x10mm Hex Soket OH/TP Screw x4

14
13
BAG E
BAG M
BAG E
BAG M14
2501113
2501113
2501099
330625
108001
2501100 330119
2501100
330119
108001
M3x12mm FH/ST HEX Screw x4
330119
Front Upper Arm HingPin x2
14
106002
108003
108003
108003
2501099
2501099
2501097
330210A
330091
106002
M3x10mm Hex Socket OH/TP Screw x1
108003
M3x10mm FH/ST HEX Screw x4

15
BAG E
BAG M1
16
117003
117003
103001
103001
117003
101021
101021
117003
101021
101021
106003
106003
2501122
106004
330632
103001
M3 Nut Lock x2
116004
Ball Bearing 6x10x3mm x2
117003
Flange Ball Bearing 3x6x2.5mm x4
101021
M3x8xT0.8mm x4
106003
M3x16mm Hex Socket OH/TP Screw x2
330135A
115004
106004
330114A
330423A
2501122
15
330117A
330117A
330117A
Knuckle Pivot Ball Washer x2

16

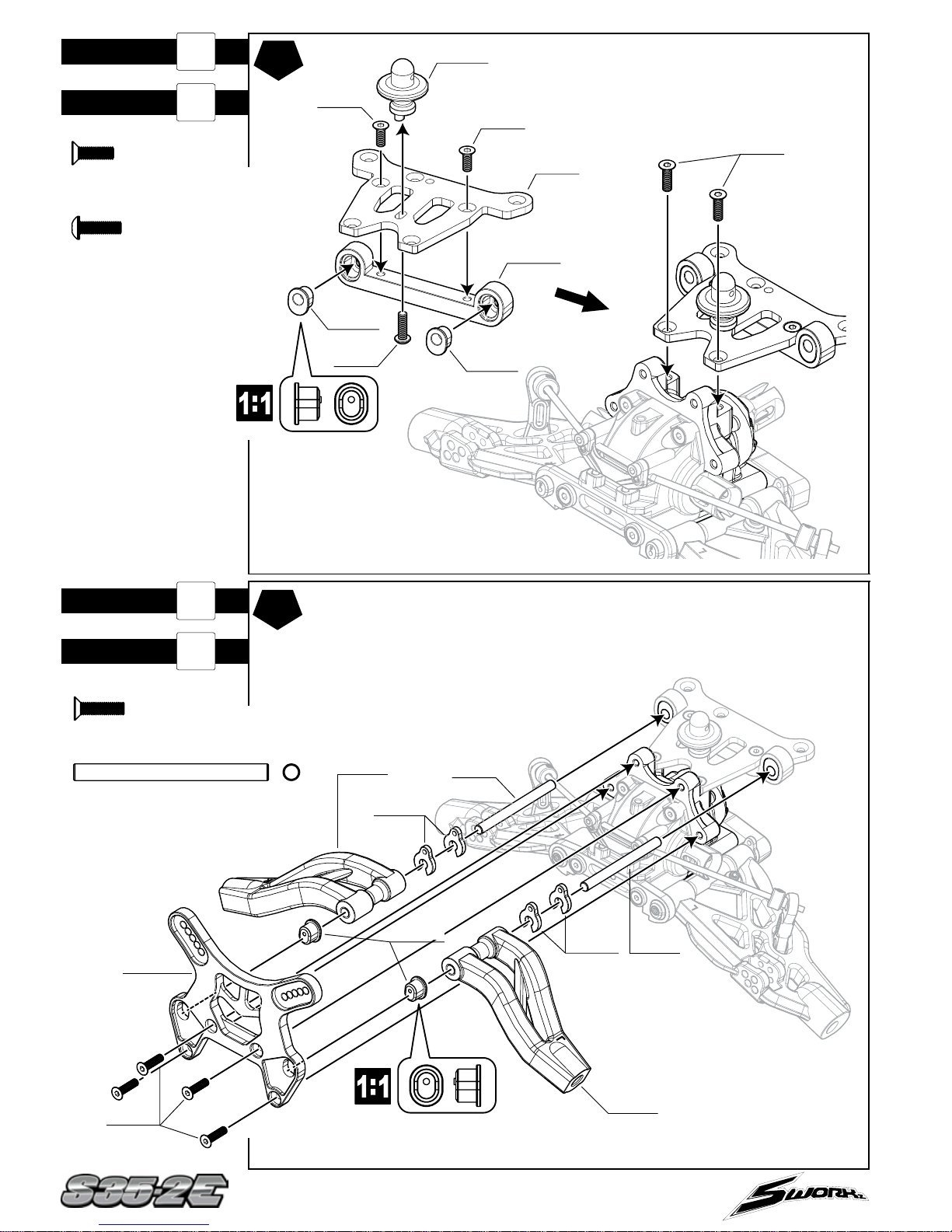

The new rear changeable plastic lower arm plate with
2 inserts which can offer 2.0~3.5 rear kick-up for your
rear lower suspension.
Rear Changeable Lower Arm Plate
Insert (2.0/3.5 Degree)
Rear Changeable Lower Arm Plate
Insert (3.0 Degree)
The rear lower arm holder
insert can offer 1.0, 2.0 and
3.0 rear kick-up for your rear
lower suspension.
R/F Insert (1 degree)
R/F Insert (0 degree)
17
18
BAG E
BAG M
106004
106004
330113
116004
Ball Bearing 6x10x3mm x2
101019
SHIM 6.0x10.0x0.2mm x1
108003
M3x10mm FH/ST HEX Screw x2
18
104007
104003
2501094C
106005
330136
2501121C
330134
104007
M4x8mm Set Screw x2
106005
M3x15mm Hex Socket OH/TP Screw x2

17
BAG E
BAG M
The new rear changeable plastic lower arm plate with
2 inserts which can offer 2.0~3.5 rear kick-up for your
rear lower suspension.
Rear Changeable Lower Arm Plate
Insert (2.0/3.5 Degree)
Rear Changeable Lower Arm Plate
Insert (3.0 Degree)
The rear lower arm holder
insert can offer 1.0, 2.0 and
3.0 rear kick-up for your rear
lower suspension.
R/F Insert (1 degree)
R/F Insert (0 degree)
20
330103
Front/Rear Lower Arm HingPin x2
108008
M3x35mm FH/ST HEX Screw x2
330103
108008
2501094C
2501100
2501100
330103
330670
2502036 2502036
2501099
2501099
2501094C
19
106002
M3x10mm Hex Socket OH/TP Screw x1
108015
M3x16mm FH/ST HEX Screw x4
108015
330399A
330626
2501097
106002
108015
108015

18
22
BAG E
BAG M
The new rear changeable plastic lower arm plate with
2 inserts which can offer 2.0~3.5 rear toe-in for your
rear lower suspension.
200480 Rear Changeable Lower Arm Plate
Insert (2.0/3.5 Degree)
200481 Rear Changeable Lower Arm Plate
Insert (3.0 Degree)
The rear lower arm holder
insert can offer 1.0, 2.0 and
3.0 rear kick-up for your rear
lower suspension.
200108 R/F Insert (1 degree)
200109 R/F Insert (0 degree)
104004
104004
2501114 Pop in the Stabilizer Guide.
21
115047 (Rear Sway Bar 2.5 mm)
115006 (Rear Sway Bar 2.6 mm)
115005 (Rear Sway Bar 2.8 mm)
104004
M3x3mm Set Screw x2
105004
104005
104005
104005
M3x4mm Set Screw x2
105004
M2.6x6mm Cap Screw x2

19
BAG E
BAG M
24
330401
Rear Hub Carriers Hing Pin with Nut x2
103001
M3 Nut Lock x2
330401
330401
103001
103001
2501100(3mm)
2501100(1mm)
2501100(3mm)
2501100(1mm)
2501100(1mm)
23
330121B
116006
330513 116006
330513
330651R
210046
330651L
330124
104001
330124
Pin M3.0x16.8mm x2
104001
M5x4mm Set Screw x2
116006
Ball Bearing 8x16x5mm x2
Left
Right

20
15mm
25
330125
330125
2501121A
330123A
200583
330123A
Rear Upper Sus. Arm Turnbuckles x2
BAG E
BAG M1
26
15mm
105011
M3x23mm Cap Screw x2
106003
M3x16mm Hex Socket OH/TP Screw x2
103001
M3 Nut Lock x4
BAG E
103001
105011
105011
103001
106003
106003
103001
103001
