SWORKz S350 EVO II INSTRUCTION MANUAL

2
INSTRUCTION
Specification
Length: 530mm
Width: 308mm
Height: 220mm
Ground Clearance: 65mm
Wheelbase: 320-325mm
Track: F:306mm / R:306mm
Gear Ratio: C:46/13T, F/R 43/13T
Weight: 3300g
Multiple World Champion Atsushi Hara joined Speedmaster to help develop the race program
and the SWORKz line of vehicles. Extensive testing, R&D and collaborations have resulted in
our newest project, the S350 EVO II. After the successful debut of the SWORKz S350 EVO, we
followed Hara’s concept to build on our successes with the EVO and improve and ultimately
create the S350 EVO II. The S350 EVO II includes higher quality parts, a rened shock system,
more options, and optimized suspension geometry.
The SWORKz S350 EVO II Pro Kit comes standard with many SWORKz Factory Team Option
Parts which improve strength, performance, and value.
SWORKz utilizes only the highest quality materials and industry leading manufacturing
processes resulting in a faster, stronger, and more reliable vehicle. The S350 EVO II Pro Kit
from SWORKz has been designed to out-perform the competition on any Off-Road terrain
while offering amazing performance to drivers of all levels.
Congratulations on your purchase of the new SWORKz S350 EVO II 1/8 scale off-road racing
buggy pro kit.
Please read this manual thoroughly, before you attempt to start or drive your S350 EVO II. This
manual contains step-by-step instructions to help you complete, prepare for startup, and ne-
tune your Buggy. Updates, setups, and product news will be posted on our website (www.
sworkz.com) or SWORKz RC Face Book, so check often.
As always, if you should ever have any questions or need help with your S350 EVO II, please
feel free to contact our ofcial SWORKz dealers and distributors, as they will be glad to help
you. You may also contact us at any time for the most up to date information and support.
1. New BBS 16mm front and rear shock system with new soft shock springs.
2. New front and rear lower arms with new shock position geometry.
3. New LDGS (Lightened Drive Gear System) gear system with 5x11 mm ball bearings.
4. Full LDS(Lightened Drive System) cross drive shaft system.
5. Center LDS(Lightened Drive System) cross drive shaft system.
6. New front steering knuckles t for LDS.
7. New rear hubs t for LDS.
8. New Falcon II body shell is included.
9. The PSP aluminum upper bell crank is now standard.
10. The PSP aluminum throttle linkage arm set is now standard.
11. Aluminum upper arm holder is now included.
12. S350 EVO series oating fuel lter system tank.
13. Standard with S350 professional metal brake calipers 2.0 set.
14. Aluminum rear chassis brace mount.
S350 BK1 EVO II Kit Features :

3
WARRANTY
Your SWORKz S350 EVO II kit warranty covers workmanship and manufacturing
defects of the original and unmodified parts. Warranty claims resulting from
crashes, abuse, improper operation, improper mounting, improper adjustment or
lack of maintenance will not be honored.
Contact your local hobby shop or SWORKz distributor for all claims and
questions. Claims must be well documented. All Claims are subject to expert
examination approval by SWORKz.

4
INDEX
This radio controlled racing car is not a toy!
This high-performance R/C model is recommended for ages 14 and older.
INSTRUCTION 2
Warranty 3
INDEX 4
Required Equipment for Operation 5
Explosion View with Spare Parts Number 6-14
Operation Guide 15
Assembly Steps 16-45
Blank Set-up Sheet 46
Set-up Sheet 47
S350 EVO II Key No. List 48
S350 EVO II Spare Part List 49
S350 EVO II Option Part List 50
S350 EVO II Kit Features 51
End cover 52

5

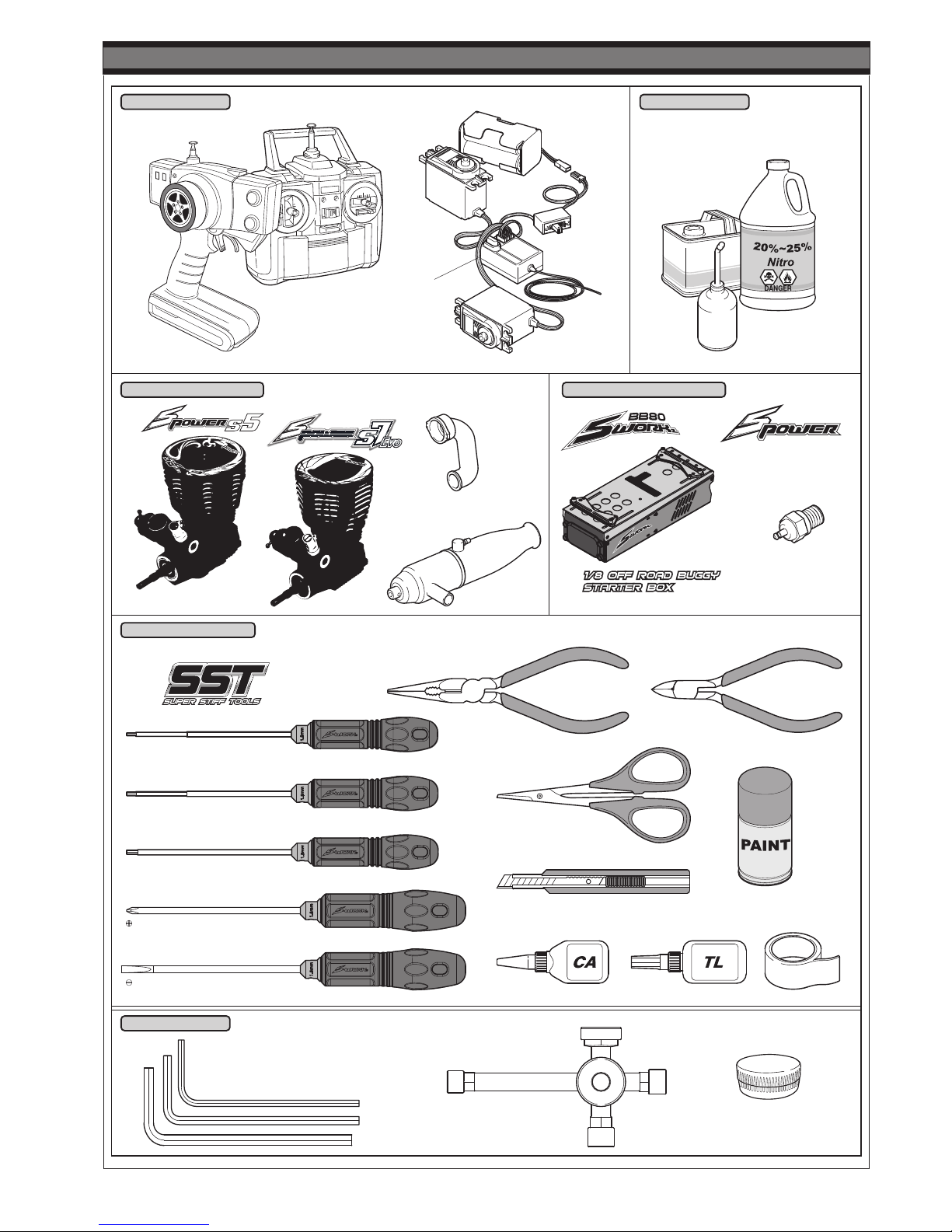

Starter box
Engine Starting Equipment
Glow
Double-sided tape
Paint
Long nose pliers
Modeling knife
Instant cement Thread lock
Included items
Hex wrench
1.5mm
2mm
2.5mm
1.5mm
2mm
2.5mm
Fuel bottle
Glow plug wrench
Screwdriver
Screwdriver
Radio Gear Nitro fuel
Stick Type
Throttle servo
Receiver batteries
Wheel & Trigger Type
Receiver
On/Off Switch
We recommend that you use fuel
containg 20~25% nitro.
Steering servo
Exhaust header
SP-80102
EFRA2111
Tools Recommended
Engine Recommended
Side cutter
Curved scissors
Grease
ST-3 Turbo Plug
ST-4 Turbo Plug
Required Equipment for Operation

6
104004
M3x3mm Set Screw x12
105005
M3x12mm Cap Screw x6
105013
M3x28mm Cap Screw x4
105004
M2.6x6mm Cap Screw x9
105001
M3x8mm Cap Screw x1
108013
M4x8mm FH/ST HEX Screw x1
108012
M4x16mm FH/ST HEX Screw x8
108011
M4x12mm FH/ST HEX Screw x4
108010
M4x10mm FH/ST HEX Screw x2
106010
M3x6mm Hex Socket OH/TP Screw x23
106006
M3x20mm Hex Socket OH/TP Screw x3
106005
M3x15mm Hex Socket OH/TP Screw x13
106002
M3x10mm Hex Socket OH/TP Screw x6
106008
M3x12mm Hex Socket OH/TP Screw x8
106009
M3x25mm Hex Socket OH/TP Screw x4
105011
M3x23mm Cap Screw x2
106003
M3x16mm Hex Socket OH/TP Screw x6
108006
M3x8mm FH/ST HEX Screw x29
108003
M3x10mm FH/ST HEX Screw x26
108001
M3x12mm FH/ST HEX Screw x22
108009
M3x20mm FH/ST HEX Screw x4
108008
M3x35mm FH/ST HEX Screw x4
104008
M4x4mm Set Screw x1
104011
M4x4mm Set Screw (Flat Bottom) x2
104005
M3x4mm Set Screw x4
104007
M4x8mm Set Screw x4
104001
M5x4mm Set Screw x4
105007A
M4x8mm I-Head Screw x4
106007
M3x12mm Hex Socket OH/TP Screw(HT) x6
108014
M3x3mm FH/ST HEX Screw x4
108015
M3x16mm FH/ST HEX Screw x2
108022
M3x25mm FH/ST HEX Screw x1

7

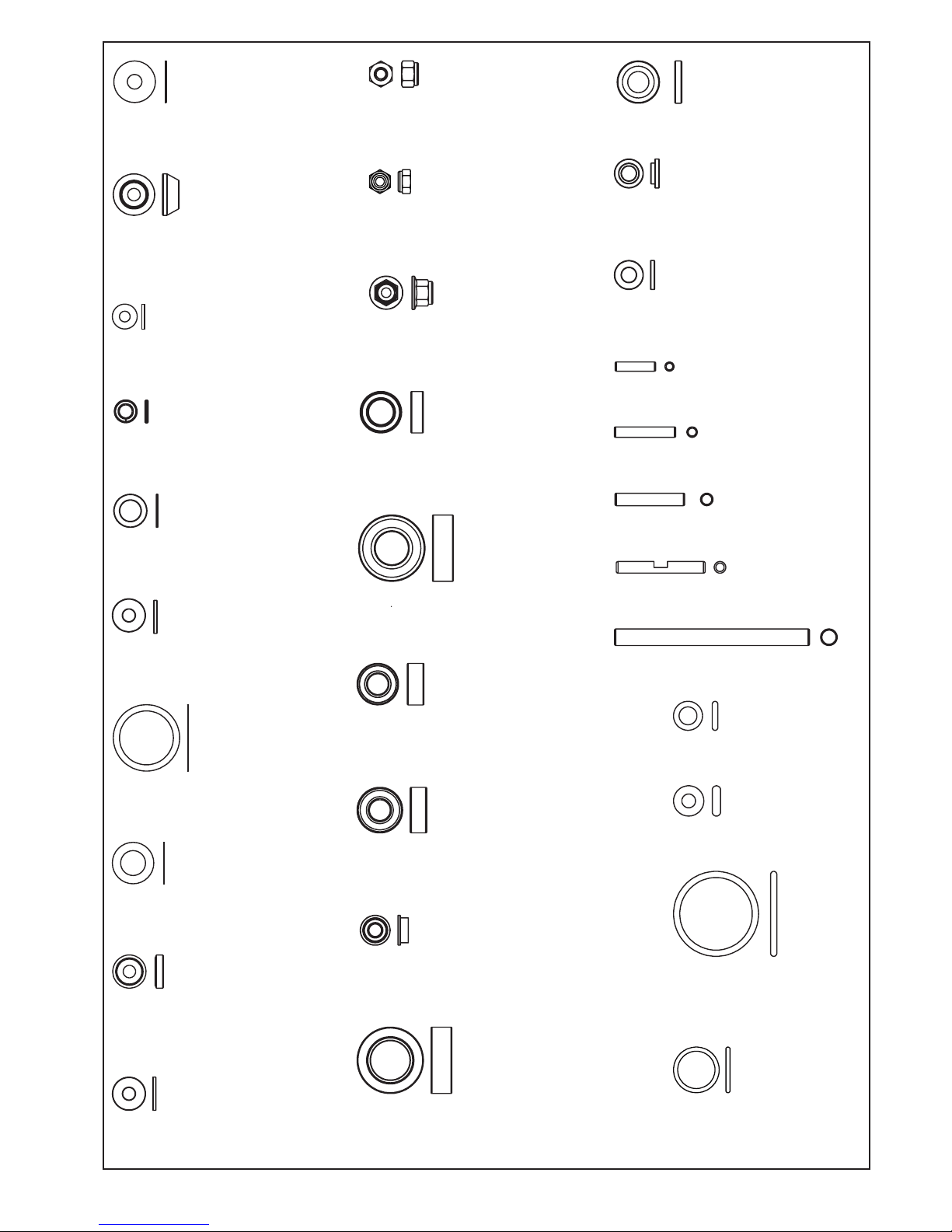

116010
Ball Bearing 5x10x4mm x2
116006
Ball Bearing 8x16x5mm x14
116004
Ball Bearing 6x10x3mm x4
117003
Flange Ball Bearing 3x6x2.5mm x6
103003A
Flange M3 Nut Lock (GM) x5
103001
M3 Nut Lock x19
400002
O-ring S5 4.8X1.5 x6
400006
Shock Seal O-Ring x8
400019
S350 New BBS System x4
Shock Spring Adjust
Nut O-Ring
101010A
M3 Countersunk Washer x4
(GM)
101020A
3mm Countersunk x2
Washers (GM)
101013
3mm Spring Washer x4
101015
M5x8xT0.4mm x5
101016
M3x8xT0.8mm x1
101018
SHIM 13x16x0.2mm x6
101004
Washer 3.5X10X0.2mm x12
101019
SHIM 6.0x10.0x0.2mm x2
101021
Washer M3x8xT0.8mm x5
330117A
Knuckle Pivot Ball Washer x2
330015
Pin M2.2x9.9mm x6
330111
Pin M2.5x14.8mm x6
330119
Front Upper Arm HingPin x2
330124
Pin M3.0x16.8mm x4
330013
Bevel Gear Shaft x6
330561
S350 New BBS System Shock x8
Seal Washer 3.6X7X2.5mm
330567
S350 New BBS System Shock x4
Seal Washer 3.5X7X1.0mm
116016
Ball Bearing 5x11x4mm x4
200574
S350 HC Pinion Gear Ball Bearing x4
Insert for 5x11x4mm
103004
M2.5mm Nut Lock x6
101011
M2.6x6xT0.6mm x4
400020
S350 New BBS System x4
Shock Seal O-Ring

8

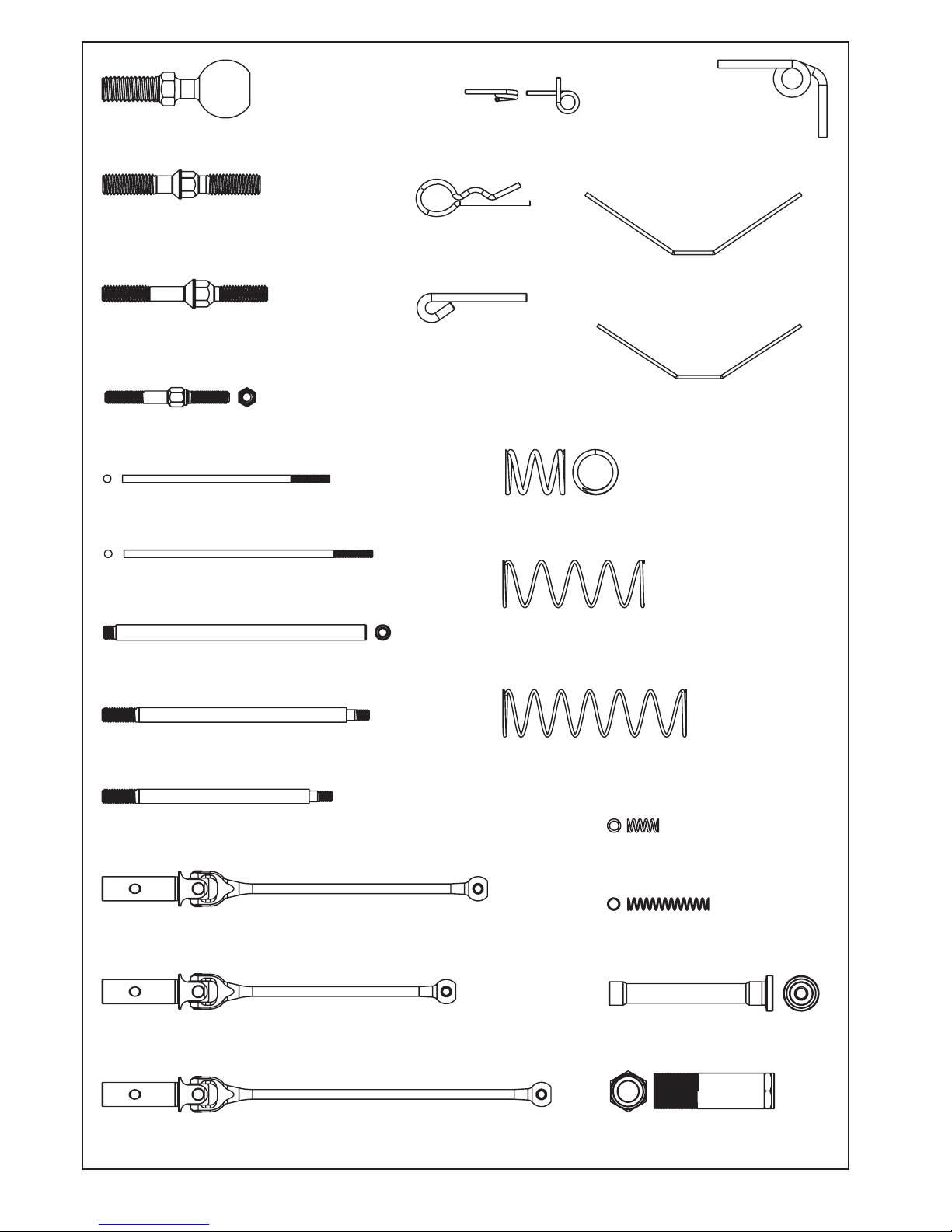

115004
Servo Saver Spring x1
330113
Servo Saver Shaft x2
330114A
S350 Servo Saver Post (HC) x1
115017
Throttle Rod Spring x1
115015
Brake Spring x2
115003
Tornado Clutch Spring x3
115011
Pipe Spring x1
115005
Rear Sway Ball 2.8mm x1
115008
Front Sway Ball 2.3mm x1
115019
Body Clip x2
330106
Brake Cam x2
115094
S350 New BBS System Front Shock x2
Spring (Soft)(1.4xP12.72)(Pink)
115097
S350 New BBS System Rear Shock x2
Spring (Soft)(1.4xP13.0)(Pink)
330103
Front/Rear Lower Arm HingPin x4
115016
Throttle Rod 50mm x1
115018
Brake Rod 60mm x2
330155
Steering Servo Turnbuckle (M3x30mm) x2
330252
Steering Knuckle Pivot Ball Turnbuckle x4
330123A
S350 EVO Rear Upper Sus. Arm x2
Turnbuckles M5x38mm
330126A
S350 EVO Steering Turnbuckle x2
M4x40mm
210045
S350 Series F/C Universal Cross Drive Shaft Set 82mm x1
330559
S350 New BBS System Shock Shaft ( S) x2
330558
S350 New BBS System Shock Shaft ( L) x2
210047
S350 Series R/C Universal Cross Drive Shaft Set 113.5mm x1
210046
S350 Series Universal Cross Drive Shaft Set 92.5mm x4

9
320003
Diff. Bevel Gear 18T x6
320004
Diff. Bevel Gear 10T x12
330104
Brake Cam (S) x1
330105
Brake Cam (L) x1
330160A
S350 S-System Pinion x2
Gear 13T (5mm)
330110
CVD Join x6
330156A
Adjuster Knob(GM) x4
330157A
Brake Adjuster Knob(GM) x2
330140A
Pipe Holder(GM) x1
330127
Steering Linkage x4
Ball Stud 7mm
330136
Sway Bar Ball Stud x4
330557
S350 New BBS System x4
Shock Seal Cap (GM)
330134
Shock Ball Stud x10
330138A
S350 EVO Shock x4
Cap Stud
330122A
S350 Wheel Nut (HC) x4
330121A
S350 Wheel Hub (HC) x4
330009
Tornado Fly Wheel x1
Center Nut
330125
Rear Upper Sus. x4
Arm Ball Stud
330563
S350 New BBS System Shock x2
Piston 1.4mm x6 Holes
330562
S350 New BBS System Shock x2
Piston 1.3mm x6 Holes
400022
S350 New BBS System x4
Shock Bladder (Medium)
330423A
S350 PSP System Aluminum x1
Series Settring Bellcrank
Upper (A 2H )
330407A
S350 series PSP Aluminum Throttl x1
Linkage Arm Plate(GM)
330408A
S350 series PSP Aluminum Throttl x1
Linkage Arm Holder(GM)
330210A
S350 Aluminum Front Upper x1
Arm Holder (GM Color)

10
330100A
S350 Engine Mount (L) (HC) x1
330101A
S350 Engine Mount (R) (HC) x1
330086A
S350 Front Lower Suspension Plate x1
330014
Front/Rear Diff. Outdrive x4
330017
Center Diff. Outdrive x2
610002
Diff. Gasket (0.5T) x3
330164
Crown Gear 43T x2
330018
46T SPUR GEAR x1
330006
Tornado Clutch Shoes x3
330118A
S350 Series Knuckle x4
Pivot Ball Nut(GM)
300017
Brake Disc x2
330555
S350 New BBS System Shock Body L (HD) x2
330556
S350 New BBS System Shock Body S (HD) x2
330560
S350 New BBS System x4
Shock Spring Adjust Nut
330135A
Servo Saver x1
Nut (GM)
330554
Shock Cap x4
330137
Clutch Bell 13T x1
330008A
SWORKz Tornado Fly x1
Wheel Set (GM)
330249A
S350 Series BK1 EVO Servo x1
Saver Steering Plate (GM)
330267A
Aluminum Rear Lower Arm x1
Holder (FC USE)
330435
High Performance Matel x2
Brake Calipers 2.0 A Side
330436
High Performance Matel x2
Brake Calipers 2.0 B Side
330401
Rear Hub Carriers Hing x2
Pin with Nut
330399A
S350 Series Aluminum x1
Rear Chassis Brace Mount
330508B
S350 Series BBS x1
Lightened 7075 Rear
Shock Tower(Standard)
330507B
S350 Series BBS x1
Lightened 7075 Front
Shock Tower(Standard)

11

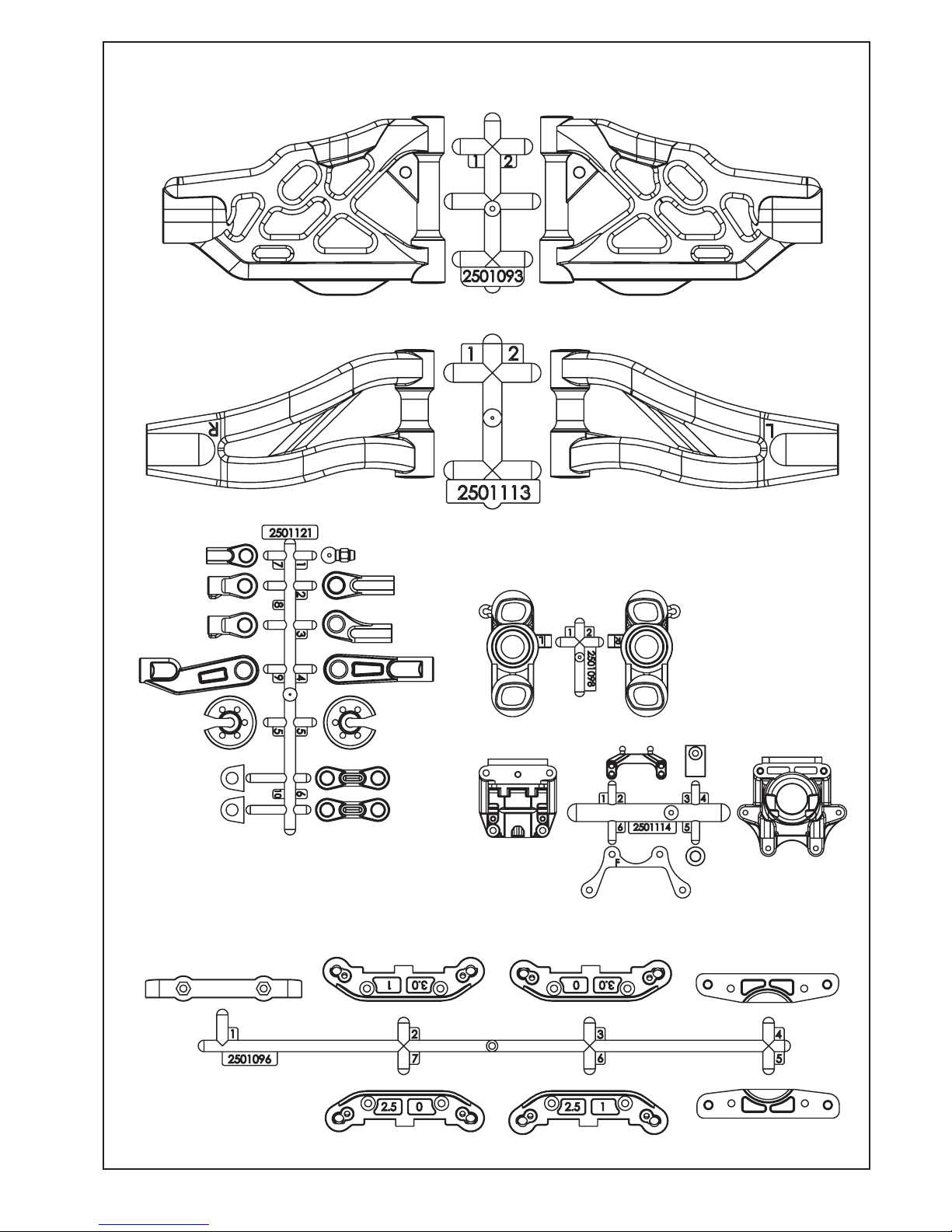

SW-2501098A
S350 Front Steering Knuckle Set x1
(Also for LDS) (L&R)
SW-2501113
S350 Front Upper Arm Set (L&R) x1
SW-2501121
S350 Ball End Set with x2
Shock Plastic Parts (2 Set)
SW-2501114
S350 Gear Box Set (F&R) x2
SW-2501096
S350 Full Arm Holder Set (7pc) x1
SW-2501093B
S350 EVO I/II BBS Front Lower Arm Set (L&R) x1

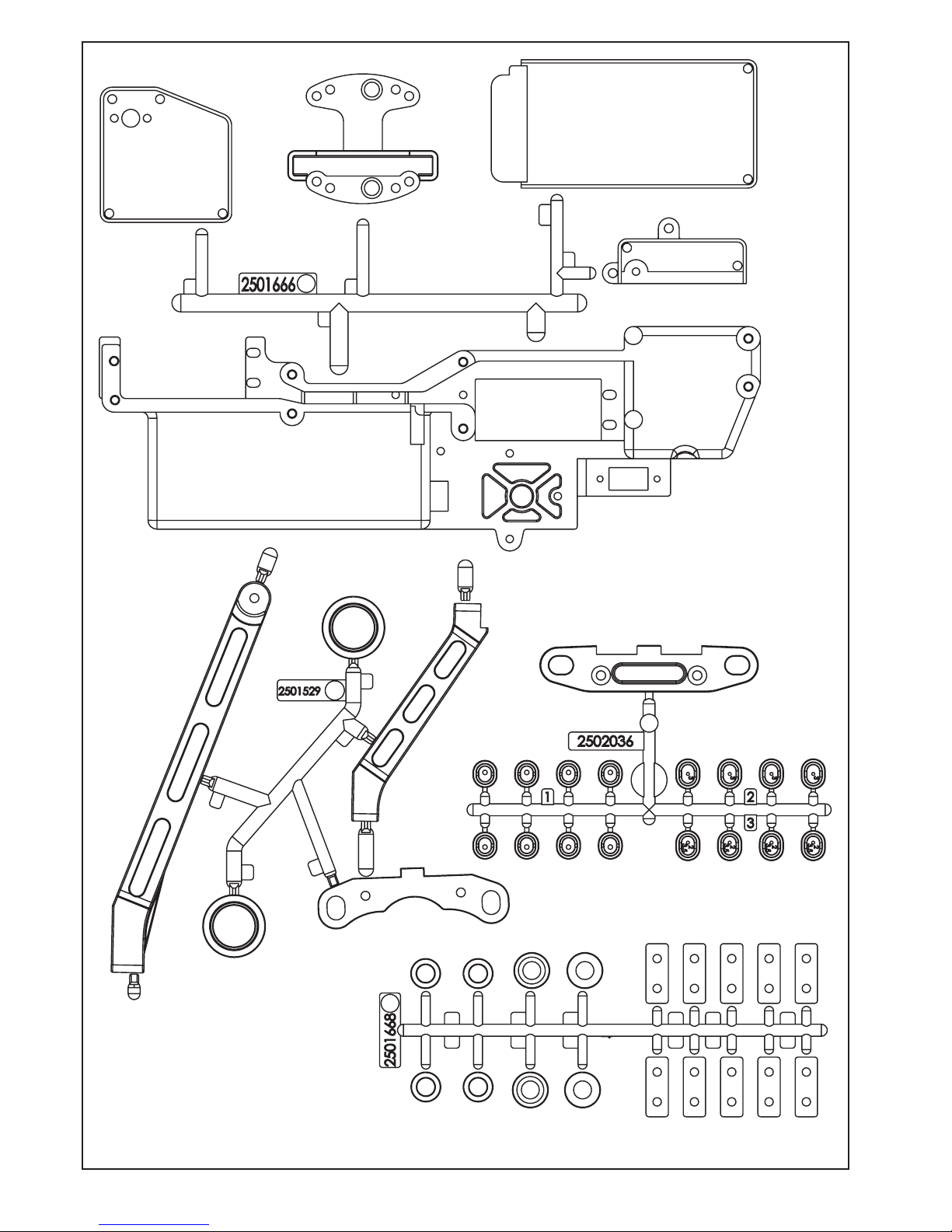

12
SW-210002
Center Diff. Mount
(Lower)(Upper)
x2
SW-2501100
S350 Pivot Ball Cup
Caster Insert Set
x2
SW-2501122
S350 Settring Bellcrank Set
with Servo Horn Set
x1
SW-2501123
S350 Side Guard Set (L&R) x1
Top View
SW-210033A
Fuel Tank
x1
Side View
x3
SW-210002A
Diff. Case
SW-2501667
S350 Power Steering Servo Savor
Arm Plastic
x1

13

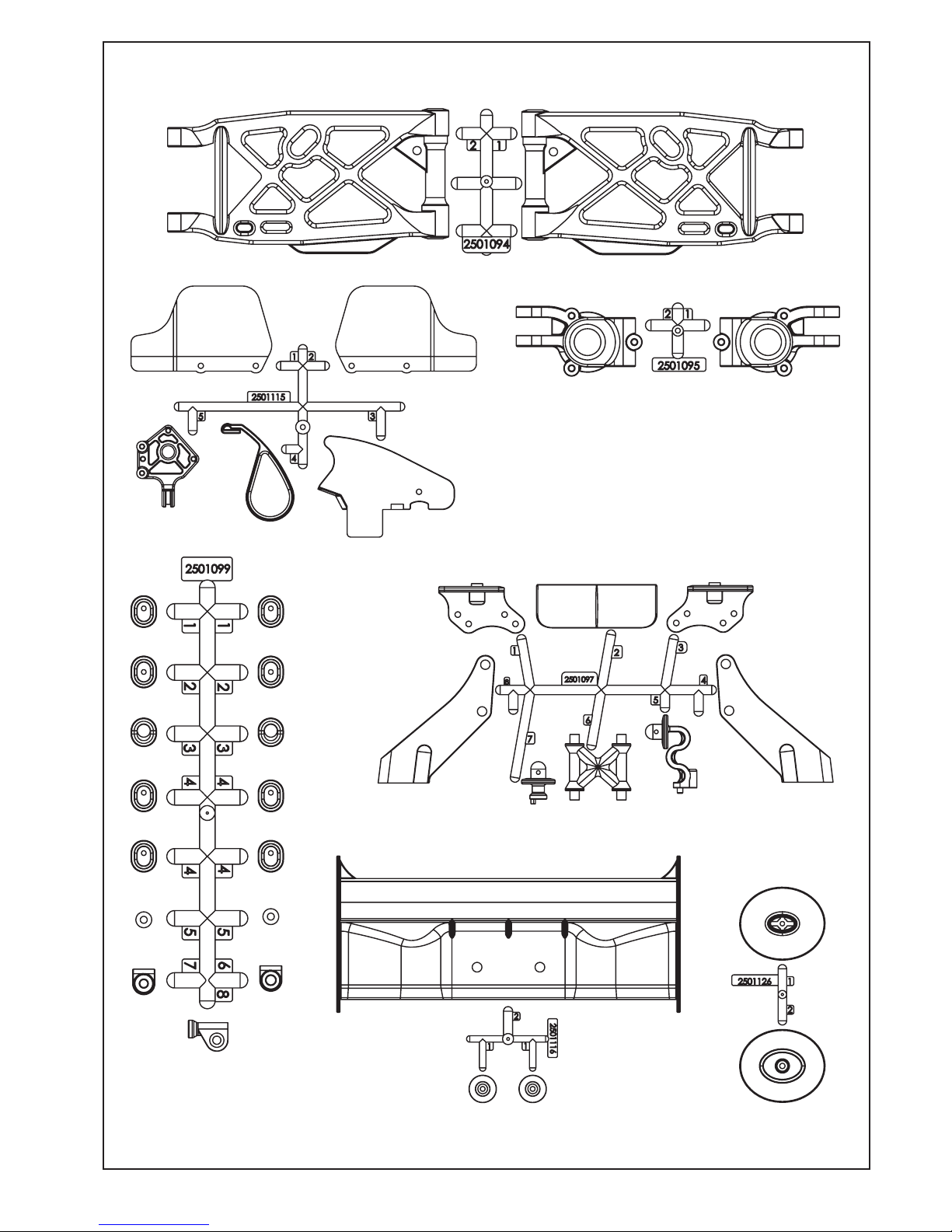

SW-2501095A
S350 Rear Hub Carrier Set x1
(Also for LDS) (L&R)
SW-2501099
S350 R/F Insert x2
Brake
Throttle Linkage
Linkage Holder
SW-2501126
Ail Filter Set x1
SW-2501094B
S350 EVO I/II BBS Rear Lower Arm Set (L&R) x1
SW-2501115
S350 Rear Lower Arm Dusty Cover x1
with Fuel Sprinkle Guard
SW-2501097
S350 Wing Stay Set with Bumper x1
SW-2501116
S-WORKz
High Done Force Wing Set x1
(BK)(Fit S350)

14
SW-2501666
S350 Power Steering
Radio Tray
x1
SW-2501529
S350 BX1/BR1 Plastic
Chassis Brace Set
x1
SW-2501668
S350 Series Plastic
Insert Set
x1
SW-2502036
S350 Series Rear Changable
Plastic Lower Arm Plate with insert
x1

15
Operation Guide
Safety Precautions
The SWORKz S350 EVO II is a high performance radio controlled model which needs to be
operated with caution and common sense.
The S350 EVO II Pro Kit is not intended for children under the age of 14 without adult
supervision. SWORKz shall not be held liable for any loss or damages, whether direct,
indirect, act of nature, arising from the abuse or misuse of this product or any other product
required while operating this model.
- The nitro fuel can be dangerous is improperly handled.
- Always keep your nitro fuel in a cool area and never use near flame, sparks, or while
smoking.
- Keep your nitro fuel, and all other ammables, out of the reach of children.
- Always run your model in a well ventilated area outdoors. Never run your model indoors.
- After running your car, all parts of the engine and exhaust can become extremely hot. Be
careful not to touch these parts especially when refueling, or making repairs.
- This model is controlled by your radio and that is vulnerable to interference from many
outside sources. This interference can cause a loss of control so it is necessary to operate this
model in an open area to avoid personal, or property damage. Always ensure turning on your
radio rst.
- Keep all the product included in the package out of reach of children.
- This model contains many fast rotating parts. Never touch them during operation.
- Follow the instruction included with your radio gear.
- Never operate your model near people or property. The speed of this model has the
potential for injury and or damage to people and or property.
- Always use original SWORKz spare and option parts.
- Always encure the buggy is in proper working condition before use.
- Always exercise caution when using any and all tools.
overturn
Assemble for
4 sets
Assemble for
2 sets
Assemble both left
and right sides
Assemble in the
specied order
Assemble front
and rear
Thread Locking
Compound
Grease Pure Silicone Oil Air lter oil

16

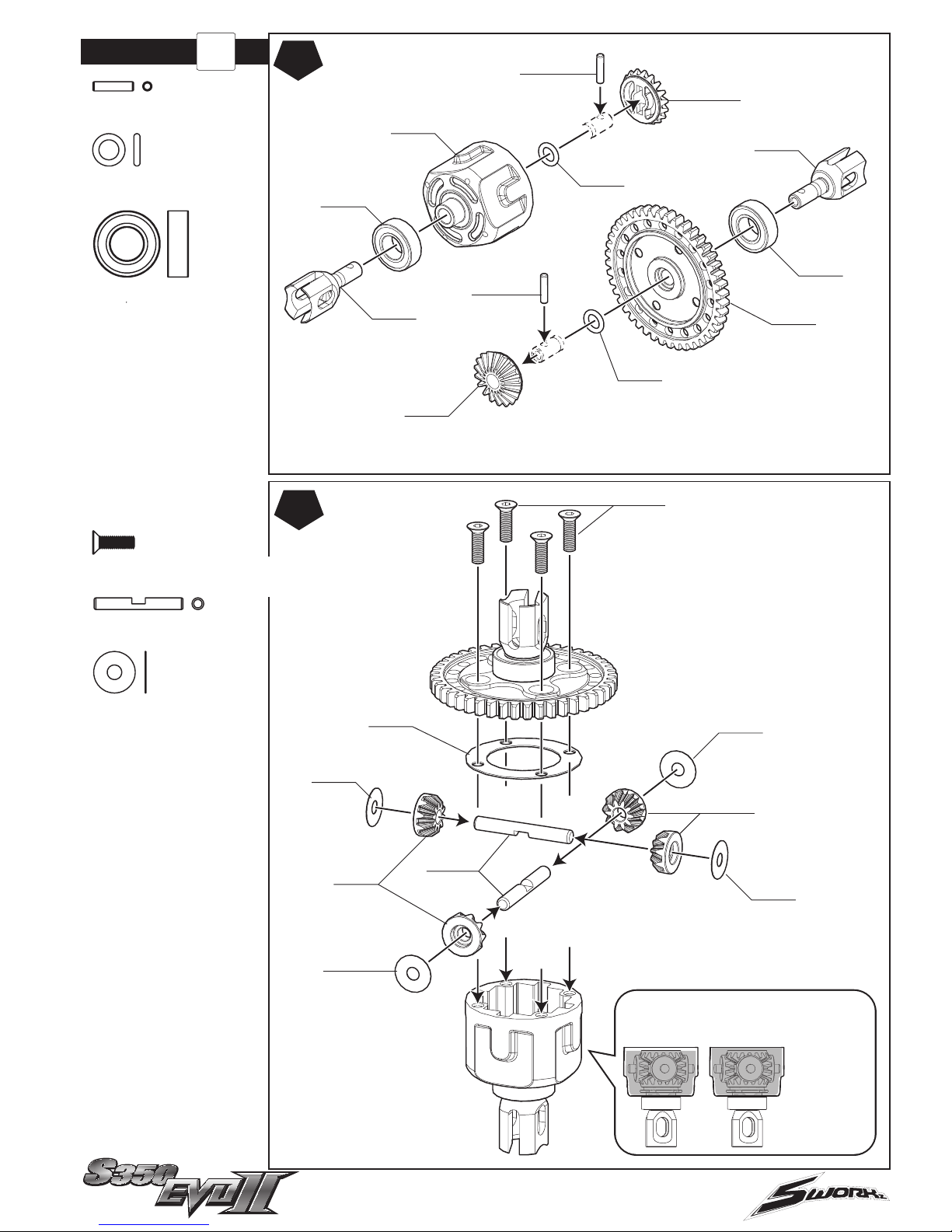

BAG B1
2
330014
116006
330015
320003 400002
330013
320004
101004
101004
320004
101004
101004
610002
108003
210002A
116006
330014
330164
330015
320003
400002
330015
Pin M2.2x9.9mm x4
400002
O-ring S5 4.8X1.5 x4
116006
Ball Bearing 8x16x5mm x4
101004
Washer 3.5X10X0.2mm x8
108003
M3x10mm FH/ST HEX Screw x8
330013
Bevel Gear Shaft x4
Fill the differentials
with oil up to 80%
above the satellite
gears.
Put the SWORKz
Diff. Oil 7000cps
for the front Diff.
and 3000cps for the
rear Diff.
Remember to apply a very light
coat of grease to the o-ring, then
slide it over the shaft of the out
drive and seat it in the diff case.
Insert the pin through the hole
in the diff case and through the
hole in the shaft of the out drive.
OK! NG!

17
4
3
BAG C
116006
330017
330017
330015
320003
108003
320004
330013
610002
320004
210002
116006
330018
330015
320003
400002
400002
101004
101004
101004
101004
108003
M3x10mm FH/ST HEX Screw x4
116006
Ball Bearing 8x16x5mm x2
330015
Pin M2.2x9.9mm x2
400002
O-ring S5 4.8X1.5 x2
101004
Washer 3.5X10X0.2mm x4
330013
Bevel Gear Shaft x2
Fill the
differentials
with oil up to
80%
above the
satellite gears.
Put the
SWORKz
Diff. Oil
7000cps for
the center Diff.
Remember to apply a very light coat
of grease to the o-ring, then slide it
over the shaft of the out drive and
seat it in the diff case.
Insert the pin through the hole in the
diff case and through the hole in the
shaft of the out drive.
OK! NG!

18
5
BAG M
BAG D
The standard front lower arm holder (200102) can
offer 0° kick-up for your front lower suspension.
You may use the optional one (200103) to get 1°
kick-up for your front lower suspension.
200102 Front Lower Arm Holder (0 degree)
200103 Front Lower Arm Holder (1 degree)
Please use the SHIM 13x16x0.2mm
to adjust when the play was bigger
between the crown gear and pinion
gear.
116016
101018
108001
330086A
108008
101020A
330160A
2501096
108001
106010
2501529
200574
200574
104011
210045
2501114
108001
M3x12mm FH/ST HEX Screw x4
108008
M3x35mm FH/ST HEX Screw x2
101018
SHIM 13x16x0.2mm x2
106010
M3x6mm Hex Socket OH/TP Screw x3
116016
Ball Bearing 5x11x4mm x2
104011
M4x4mm Set Screw (Flat Bottom) x1
101020A
3mm Countersunk x2
Washers (GM)

19
6
BAG D
7
BAG E
BAG M330136
2501121
2501093B
106005
2501093B
104007
330134
104007
M4x8mm Set Screw x2
106005
M3x15mm Hex Socket OH/TP Screw x2
Left
Right
Please use the SHIM 13x16x0.2mm
to adjust when the play was bigger
between the crown gear and pinion
gear.
200574
200574
330160A
2501529
210047
116016
2501114
106010
104011
108001
330267A
101018
108001
108001
M3x12mm FH/ST HEX Screw x4
101018
SHIM 13x16x0.2mm x2
106010
M3x6mm Hex Socket OH/TP Screw x3
116016
Ball Bearing 5x11x4mm x2
104011
M4x4mm Set Screw (Flat Bottom) x1

20
8
9
BAG E
BAG M2501114
104004
104004
115008
330103
2501099
2501099
2501100
2501100
2.0mm
330103
Front/Rear Lower Arm HingPin x2
104004
M3x3mm Set Screw x2
Use a 2mm Hex Wrench
and slowly tighten the
Hinge Pins.
Pop in the Stabilizer Guide.
