SWORKz S12-1M INSTRUCTION MANUAL

2
INSTRUCTION
The S12-1M chassis platform is designed for racing. It features a mid-front gear box with a lower position
spur gear system. The motor position is 65mm away from the traditional gear box (S12-1R) improving the
cornering speed when racing on carpet tracks.
The S12-1M also features a 3mm 7075 chassis layout that allows up to 4 different battery positions. The
buggy comes with a 6mm aluminum front shock tower and all the lower arm holders are made of strong
aluminium.
SWORKz designed a Pure Oil Shock System (no shock bladders) for quicker shock response and
improved suspension feel.
The S12-1M comes standard with the innovative Eaglet body designed for more rear grip and steering
response. The Eaglet body provides a well balance feel in both mid-motor and rear-motor congurations.
The S12-1M platform was designed from the ground up and is the perfect buggy for the serious racer
and weekend hobbyist alike. The smart and efcient design incorporated with a cost-effective and user
friendly platform was our primary goal from the beginning of the S12-1M project. We now introduce to
you the SWORKz S12-1M......
Congratulations on your purchase of the new SWORKz S12-1M 1/10 scale off-road racing buggy pro kit.
Please read this manual thoroughly, before you attempt to start or drive your S12-1M. This manual
contains step-by-step instructions to help you complete, prepare for startup, and ne-tune your buggy.
Updates, setups, and product news will be posted on our website (www.sworkz.com),
As always, if you should ever have any questions or need help with your S12-1M, please feel free to
contact our ofcial SWORKz dealers and distributors. You may also contact us at any time for the most
up to date information and support.
1. 3mm 7075 aluminum F.C.S.S. Chassis Design. with B.H.C.(Black Hard Coated)
2. New 1/10 2WD Lay Down Transmission Gear Box System with Middle Front Motor Position.
3. New 3 Pads Slipper Clutch System Design.
4. Standard with Gear Diff System.
5. Full Oil System Big Bore Shocks.
6.
Standard with 6mm 7075 Aluminum Front Shock Tower and Rear 4mm Pro-composite Carbon Fiber Shock Tower.
7. New Strengthen Material arms with new suspension geometry.
8. Includes both 12mm and 14mm Hex Wheel Hub System.
9. C-Hub Steering System Design.
10. New Adjustable Steering Plate with New Bell Crank System.
11. Full Aluminum Arm Holders and Toe in Plates.
12. Fits 2 types of Li-Po batteries. (Saddle pack and Shorty park)
13. Standard with SWORKz 1/10 Sonic Lexan 6.5" Wing.(2 sets)
14. Standard with S12-1 Eaglet Style Body Shell with Top Wing.
S12-1M Chassis Features:
Specification
Length: 415mm
Width: 248mm
Height: 45mm
Ground Clearance: 48mm
Wheelbase: 280-283mm
Track: F:248mm / R:243mm
Gear Ratio: S:82/21T
Weight: 1480g~1580g

3
WARRANTY
Your SWORKz S12-1M kit warranty covers workmanship and manufacturing defects of the
original and unmodied parts. Warranty claims resulting from crashes, abuse, improper
operation, improper mounting, improper adjustment or lack of maintenance will not be
honored.
Contact your local hobby shop or SWORKz distributor for all claims and questions. Claims
must be well documented. All Claims are subject to expert examination approval by
SWORKz

4
Instruction 2
Warranty 3
Index 4
Required equipment for operation 5
Explosion view with spare parts number 6-12
Operation guide 13
Assembly steps 14-33
Blank set-up sheet 34
Set-up sheet 35
S12-1M key no. list 36-37
S12-1M spare part list 38
S12-1M option parts list 39
INDEX
This radio control racing car is not a toy!
This high-performance R/C model is recommended for ages
14 and older.

5
Charger and LiPo Battery
Double-sided tape
Paint
Long nose pliers
Modeling knife
Instant cement Thread lock
Included items
Hex wrench
1.5mm
2mm
2.5mm
1.5mm
2mm
2.5mm
Glow plug wrench
Screwdriver
Screwdriver
Radio Gear
Stick Type
ESC system
Wheel & Trigger Type
Receiver
Steering servo
Tools Recommended
Breshless Motor
Side cutter
Curved scissors
Grease
Required Equipment for Operation

6
330300
Rear Upper Sus. Arm Turnbuckles
x6
330294
CVD Axle x2
330581
CVD Axle x2
330312A
Aluminum Shock Cap Studk x2
330597
Aluminum Shock Cap Studk x2
104012
M3x12mm Set Screw x5
104012
M4x4mm Set Screw x2
104004
M3x3mm Set Screw x3
330331
Steering Linkage Ball Stud 4.1mm
x10
330664
Steering Linkage Ball Stud 5mm x4
330283
Pin M2x10mm x4
330279
Bevel Gear Shaft x2
330285
Pin M2x14mm x2
330532
Shock Shaft S x2
330531
Shock Shaft L x2
330537
Front Hub Carriers Hinge Pin x4
330525
Reaw Lower Arm Hinge Pin (3x44mm) x2
330536
Front Hub Carriers Hing Pin x4
330534
Steering Hub Hinge Pin x2
106014
M2x6mm Hex Soket OH/TP Screw x8
106010
M3x6mm Hex Socket OH/TP Screw x12
106002
M3x10mm Hex Socket OH/TP Screw x16
106020
M2.5x5mm Hex Socket OH/TP Screw
x14
106008
M3x12mm Hex Soket OH/TP Screw x8
106005
M3x15mm Hex Soket OH/TP Screw x4
106001
M3x8mm Hex Socket OH/TP Screw x7
108006
M3x8mm FH/ST HEX Screw x23
108005
M3x14mm FH/ST HEX Screw x4
108003
M3x10mm FH/ST HEX Screw x6
108001
M3x12mm FH/ST HEX Screw x8
108015
M3x16mm FH/ST HEX Screw x2
108020
M2x4mm FH/ST HEX Screw x4

7
330134
Shock Ball Stud x4
116013
Ball Bearing 10x15x4mm x4
330528
CVD Join x2
101026
Insert M3x6xT1.5mm x2
101012
Washer M3x6xT0.5mm
x4
2502394
Washer M3x7xT1mm x6
115135
Slippen clutch Spring x1
116015
Bushing 5x8x2.5mm x4
116010
Bushing 5x10x4mm x8
116015
Servo Saver Bushing 3x4mm x2
2502401
Arm Hinge Pin Insert
x4
116015
Servo Saver Post x2
103005
Flange M3 Nut Lock x1
103002
Flange M4 Nut Lock x4
330528
Wheel Hub x2
330582
Wheel Hub x2
101011
Shock Washer 2.6x6x0.5mm x4
410047
S102 Shock Cap O-Ring (SP) x4
330305
Shock Washer 3.3x6.7x1mm x4
330298A
S104 Wheel Nut 14mm
x2
330544
Aluminum Shock Seal Cover x4
x4
330304A
Aluminum Shock Spring Adjust Nut
116017
Ball Bearing 6x12x4mm x2
330547
Shock Piston 1.5mmx2 holes x4
400014
O-Ring 1.5x13.5mm x6
103003
M3 Nut Lock x2
103004
M2.5 Nut Lock x4
400002
O-ring S5 4.8x1.5 x2
101004
Shim 3.5x10x0.2mm x4
330545
Shock Washer 3.3x6.5x2.5mm x8
400018A
Shock Seal O-ring 3x6.6mm x8
410049
Shock Seal Cap O-ring 8x10x1mm
x4
101020A
3mm Countersunk Washers (RD) x8

8
S104EVO/102 Shock Body (L) x2
330529
S104EVO/102 Shock Body (S) x2
330530
S104EVO/S102 Front Shock Spring(1.3P5.5) x2
115090
S12-1 Pro Rear Carbon Fiber Shock Tower x1
330527
S12-1 Aluminum Pro Front Shock Tower x1
330673
S104EVO/S102 Rear Shock Spring(1.2Px6.0) x2
115091
330654
Rear Lower Arm Holder x1
330538
Front Lower Arm Holder x1
330655
Front Lower Suspension Plate x1
330666
Aluminum Center Slipper Clutch Mount for Motor x1
Battery Case Support x1
330516
330541
Front/Rear Diff. Outdrive x2
330526
F/R Drive Shaft 78mm x4
330546
Shock Cap x4

9
S12-1 Slipper Clutch Outside Holder x1
330672
S104 Center Slipper Clutch Pad x1
610013
S12-1 Aluminum Idler Gear 20T x1
330627
S12-1 Slipper Clutch Case x1
2502403-06
S12-1 Diff Case Cover x1
2502402-02
S12-1 Diff Case x1
2502402-01
S12-1 Slipper Clutch Inside Holder x1
330671
S12-1 M Edition Idler Gear 34T x1
2503134-04
2502403-04
Center Gear Diff 81T Spur Gear x1
2502403-03
Center Gear Diff 76T Spur Gear x1
610017
Diff. Gasket(0.4T) x1
330277
Diff. Bevel Gear 18T x2
330278
Diff. Bevel Gear 10T x4
330410
S12-1 Motor Gear 21T x1

10

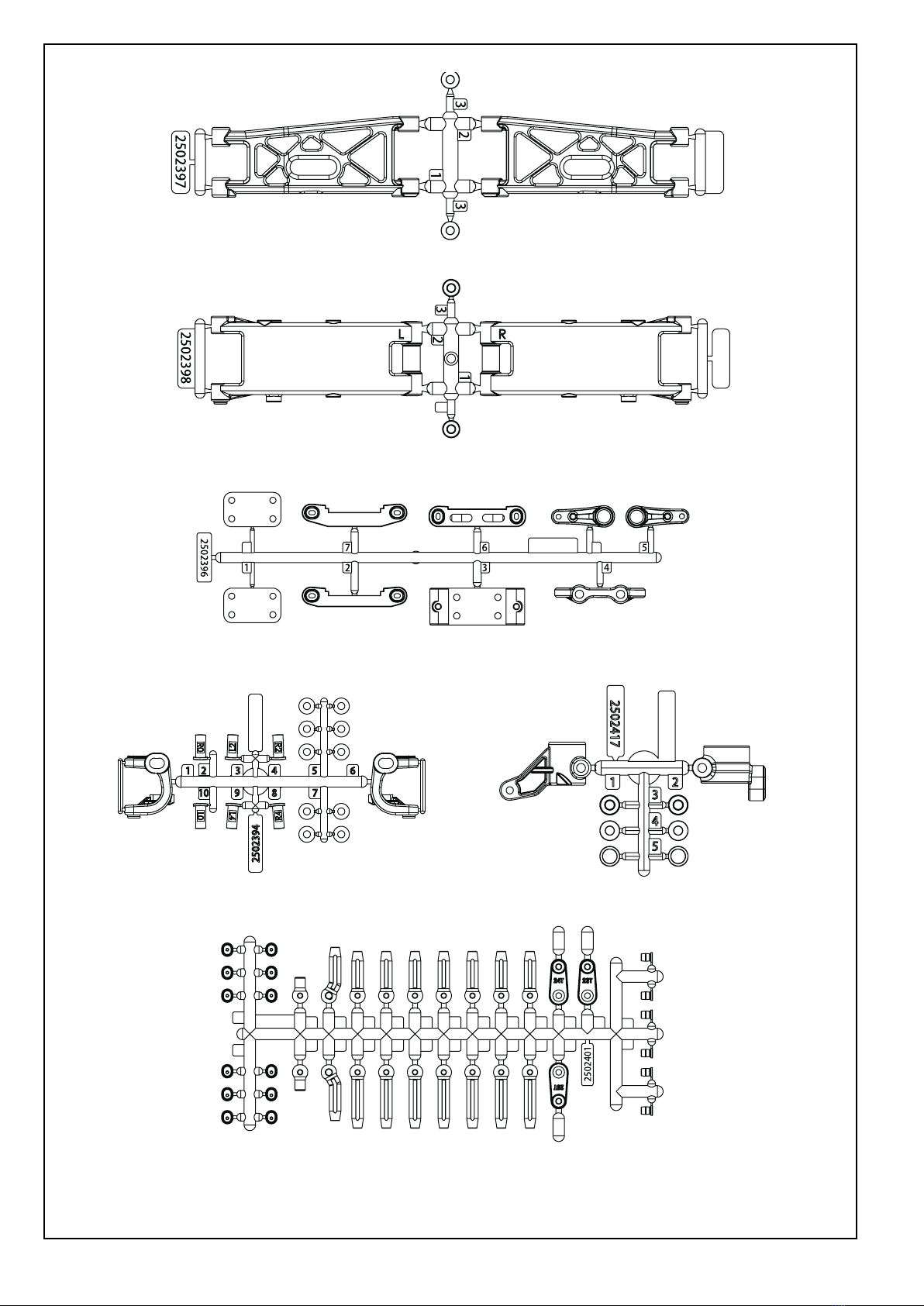

SW-2502397
S12-1 Front Lower Arm Set x1
SW-2502398
S12-1 Rear Lower Arm Set x1
SW-2502394
S12-1 Front Steering Knuckle and Inserts Set x1
SW-2502396
S12-1 Front Lower Arm Suspension Holder and Adjust Inster Set x1
SW-2502417
S12-1 Front Steering and Rear Hubs x1
SW-2502401
S12-1 Ball End Caps and Hinge Pin Inserts x1

11
SW-2502407
S12-1Batter Holder Parts Set x1
SW-2502406
S12-1 Side Guard x1
SW-2502408
S12-1 Rear Shock Tower Upper Holder Set x1
SW-2502395
S12-1 Rear Wing Mount Sets x1

12
SW-2502400
S12-1 Front/Rear Shock Towers and Holders x1
SW-2502399
S12-1 Bumper and Plastic Parts Set x1
SW-2503133
S12-1 Middle Front Motor Gear Box x1

13
Operation Guide
Safety Precautions
The SWORKz S12-1M is a high performance radio control model which needs to be operated with
caution and common sense.
The S12-1M Pro Kit is not intended for children under the age of 14 without adult supervision.
SWORKz shall not be held liable for any loss or damages, whether direct, indirect, act of nature,
arising from abuse or misuse of this product or any other product required.
- The LiPO Battery can be dangerous if improperly handled.
- Always keep your LiPO Battery in a cool area and never use it near flames, sparks, or while
smoking.
- Keep your LiPO Battery, and all other ammables, out of the reach of children.
- After running your car, all parts of the Motor and ESC can become extremely hot. Be careful not
to touch these parts.
- This model is controlled by your radio controller and can be vulnerable to interference from
many outside sources. This interference can cause a loss of control so it is necessary to operate this
model in an open area to avoid personal or property damage. Always ensure turning on your radio
rst.
- Keep all the products included in the package out of the reach of children.
- This model contains many fast rotating parts. Never touch them during operation.
- Follow the instructions included with your radio gear.
- Never operate your model near people or property. The speed of this model has the potential to
injure people and or damage property if misused.
- Always use original SWORKz spare parts and option parts.
- Always ensure that the buggy is in proper working condition before use.
- Always exercise caution when using any tools.

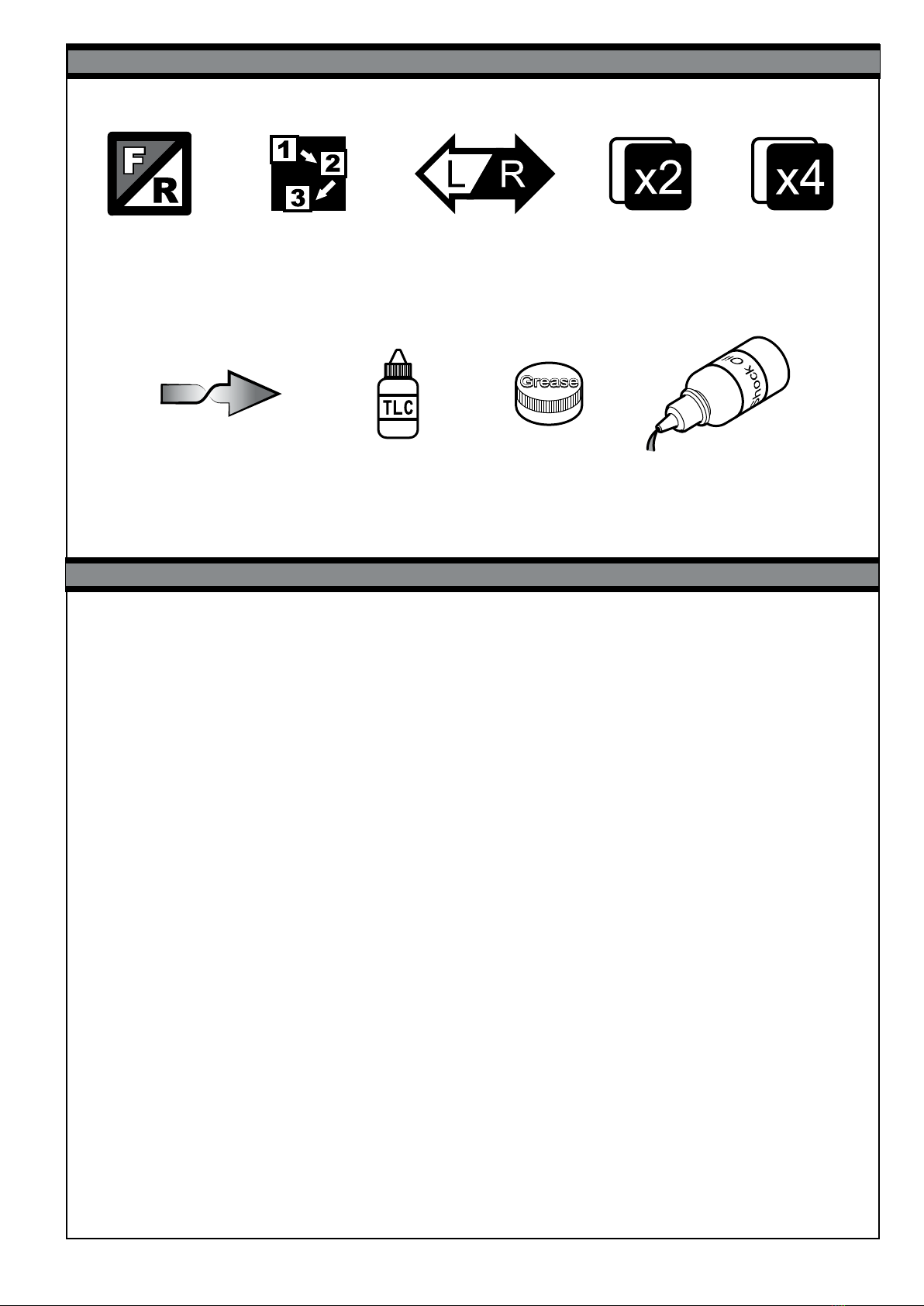

overturn
Assemble for
4 sets
Assemble for
2 sets
Assemble both left
and right sides
Assemble in the
specied order
Assemble front
and rear
Thread Locking
Compound
Grease Pure Silicone Oil

14
BAG D1
2
106002
M3x10mm Hex Socket OH/TP Screw x2
106010
M3x6mm Hex Socket OH/TP Screw x8
106010
M3x6mm Hex Socket OH/TP Screw x2
330331
Steering Linkage Ball Stud 5mm x3
116015
Ball Bearing 5x8x2.5mm x4
330533
Servo Saver Bushing 3x4mm x2
330540
Servo Saver Post x2
2502406
2502396
2502400
330524
116015
106010
330331
2502396
2502406
106010
106015
330533
2502396
106002
330540
330331

15
4
3
BAG D
2502396
108005
106002
330331
104012
108006
101012
2502401
108006
2502401
101012
106002
Steering servo
Not included
106002
M3x10mm Hex Socket OH/TP Screw x4
330331
Steering Linkage Ball Stud 5mm x1
101012
Washer M3x6xT0.5mm x4
2502401
F H S/K
108006
2502399
2502399
2502399
108005
M3x14mm FH/ST HEX Screw x2
108006
M3x8mm FH/ST HEX Screw x1
108006
M3x8mm FH/ST HEX Screw x3
104012
M3x12mm Set Screw x1
2502396 (0.5mm)

16
5
6
BAG D
106002
M3x10mm Hex Socket OH/TP Screw x2
330664
Steering Linkage Ball Stud 10mm x2
2502394
Insert M3x7xT1mm x4
108003
330673
2502394 (1mm)
2502394 (1mm)
2502400
106002
108001
330664
108003
M3x10mm FH/ST HEX Screw x4
108001
M3x12mm FH/ST HEX Screw x4

17
BAG D7
8
106020
330536
2502394 (1mm)
2502394
330537
Rear Hub Carriers Hinge Pin x2
330536
Rear Hub Carriers Hing Pin x2
104004
M3x3mm Set Screw x2
106020
M2.5x5mm Hex Socket OH/TP Screw x2
106020
M2.5x5mm Hex Socket OH/TP Screw x2
330331
Steering Linkage Ball Stud 5mm x4
116010
Ball Bearing 5x10x4mm x4
330534
Steering Hub Hinge Pin x2
L2
R2
L4
R4R0
106010
M3x6mm FH/ST HEX Screw x2
108005
M3x14mm FH/ST HEX Screw x2
330538
2502397
330537
108005
2502399
104004
106020
330331
330331
116010
330534
2502417
106010
116010
2502394 (0.5mm)
Left
Right
F
2502394
16mm
L0
14mm

18
9
10
BAG D
BAG F
106020
M2.5x5mm Hex Socket OH/TP Screw x2
330536
Rear Hub Carriers Hing Pin x2
2502394
Insert M3x7xT1mm x2
330331
Steering Linkage Ball Stud 5mm x2
116017
Ball Bearing 6x12x4mm x2
330331
330528
400014 104008
2502417
330285
116017
330283 330582
330581
330526
F/R Drive Shaft 72.5mm x2
330294
CVD Axle x2
330581
CVD Axle x2
330528
Wheel Hub x2
330582
Wheel Hub x2
330528
CVD join x2
330283
Pin M2x10mm x2
330285
Pin M2x14mm x2
104004
M4x4mm Set screw x2
116013
Ball Bearing 10x15x4mm x2
400014
O-Ring 1.5x13.5mm x2
330526
330528
330294
116013
2502394 (1mm)
330536
106020
Left
Right
For 12mm Hex Wheels Using.

19
11
12
106020
103003
2502398
2502417
330537
2502394
2502408
330527
106008
BAG D
106020
M2.5x5mm Hex Socket OH/TP Screw x2
330537
Rear Hub Carriers Hinge Pin x2
106002
M3x10mm Hex Socket OH/TP Screw x4
330664
Steering Linkage Ball Stud 10mm x2
106008
M3x12mm Hex Socket OH/TP Screw x4
106005
M3x15mm Hex Socket OH/TP Screw x2
103003
M3 Nut Lock x2
(1mm)
(2mm)
(2mm)
2502408
Please use a sharp utemsil to
carefully cut the 2502408 (Rear
Shock Tower Bottom Holder) on
an angle as shown above to t
into the 2503133 (Gear Box set)
106002
106005
106005
330664
Left
Right
2502539

20
14
13
For
Rear
2502401
2502398
2502401
330525
330655
2502399
108015
108006
M3x8mm FH/ST HEX Screw x4
BAG D
330654
108006
330525
Reaw Lower Arm Hinge Pin (3x44mm) x2
2502401
Arm Hinge Pin Insert x4
108015
M3x16mm FH/ST HEX Screw x2
