SWorkz S350 BE1 User manual

Instruction Manual
2802340

2
1/8 OFF ROAD RACING EP BUGGY
INSTRUCTION
Specification
Length: 535mm
Width: 308mm
Height: 220mm
Ground Clearance: 70mm
Wheelbase: 321-326mm
Track: F:306mm / R:306mm
Gear Ratio: C:46/13T, F/R 43/13T
Weight: 3650g
Congratulations on your purchase of the new SWORKz S350 BE1 1/8 scale off-road
racing brushless power buggy pro kit.
Please read this manual thoroughly before you attempt to start or drive your S350
BE1. This manual contains step-by-step instructions to help you complete, prepare for
startup, and ne-tune your Buggy. Updates, setups, and product news will be posted
on our website (www.sworkz.com), so check often.
If you should ever have any questions on your S350 BE1, please feel free to contact
our ofcial SWORKz dealers and distributors, as they will be glad to help you. You may
also contact us at any time for the most up to date information and support.
The SWORKz S350 BE1 Pro Kit comes equipped with many SWORKz Factory Team
Option Parts adding strength and performance to the car.
The S350 design team emphasized a lot on the weight distribution of the S350 BE1
contributing to the car performance and easy general car setup.
The SWORKz S350 BE1 1/8 scale off-road racing brushless buggy with its super
narrow chassis design, comes standard with the SWORKz X-system transmission that
provides powerful punch acceleration.
Equipped with Big Bore Shocks and oil lled differentials, the S350 BE1 delivers good
traction and balance on any off road tracks. The pivot ball steering system gives the
driver good control while driving the S350 BE1. The Standard set up given is a good
base start for any drivers.
Overall, the S350 BE1 is a perfect combination of design, quality and performance.
1. 2 Speed Transmission Gear Box System.
2. Comes Standard with SWORKz X-System Transmission.
3. Front and Rear Big Bore Shocks.
4. Unique 4 Wheel Dust Protection System.
5. Double Protection Bumper Design.
6. Super Narrow Chassis Design.
7. Adjustable Front Upper and Lower Suspension Arm System.
8. Rear Kick Up Chassis System
9. Center Spur Gear Protection Cover.
10. Single Unit Motor Holder with Center Diff. Mount.
11. Steering Servo with Receiver Box System.
12. Front and Rear Aluminum Chassis Brace.
S350 BE1 Kit Features :

3
WARRANTY
Your SWORKz S350 BE1 kit warranty covers workmanship and manufacturing
defects on the original parts. Warranty claims resulting from crashes, abuse,
improper operation, improper mounting, improper adjustment or lack of
maintenance will not be honored.
Contact your local hobby shop or SWORKz distributor for all claims and
questions. Claims must be well documented. All Claims are subject to expert
examination and approval by SWORKz .

4
INDEX
This radio control racing car is not a toy!
This high-performance R/C model is recommended for ages
14 and older.
INTRO 2
Warranty 3
2D Spare Parts List 6-13
Operation Guide 14
Assembly Steps 15-42
Set-up Sheet 43
SWORKz Driver’s Set-up Sheet for Reference 44
S350 BE1 Part No. List 45-46
S350 BE1 Spare & Option Part List 47
Company Info 48
Explosion View with Screw Items 49-50

5
Charger and LiPo Battery
Double-sided tape
Paint
Long nose pliers
Modeling knife
Instant cement Thread lock
Included items
Hex wrench
1.5mm
2mm
2.5mm
1.5mm
2mm
2.5mm
Glow plug wrench
Screwdriver
Screwdriver
Radio Gear
Stick Type
ESC system
Wheel & Trigger Type
Receiver
Steering servo
Tools Recommended
Breshless Motor
Side cutter
Curved scissors
Grease
Required Equipment for Operation

6
104004
M3x3mm Set Screw x4
105005
M3x12mm Cap Screw x2
105006
M3x28mm Cap Screw x4
105004
M2.6x6mm Cap Screw x4
108012
M4x16mm FH/ST HEX Screw x8
108010
M4x10mm FH/ST HEX Screw x6
106010
M3x6mm Hex Socket OH/TP Screw x34
106006
M3x20mm Hex Socket OH/TP Screw x5
106005
M3x15mm Hex Socket OH/TP Screw x10
106002
M3x10mm Hex Socket OH/TP Screw x8
106008
M3x12mm Hex Socket OH/TP Screw x5
105011
M3x23mm Cap Screw x2
106003
M3x16mm Hex Socket OH/TP Screw x2
108006
M3x8mm FH/ST HEX Screw x8
108003
M3x10mm FH/ST HEX Screw x20
108007
M3x6mm FH/ST HEX Screw x16
108014
M3x4mm FH/ST HEX Screw x4
108001
M3x12mm FH/ST HEX Screw x15
108009
M3x20mm FH/ST HEX Screw x4
108008
M3x35mm FH/ST HEX Screw x4
108005
M3x14mm FH/ST HEX Screw x2
104008
M4x4mm Set Screw x1
104005
M3x4mm Set Screw x4
104007
M4x8mm Set Screw x4
104001
M5x4mm Set Screw x4
105012
M3x10mm Cap Screw x2
108015
M3x16mm FH/ST HEX Screw x12
106011
M3x4mm Hex Soket OH/TP Screw x8
106007
M3x12mm Hex Socket OH/TP Screw(HT) x1

7
101010
M3 Countersunk Washer x6
101020
3mm Countersunk Washers (RD) x6
116006
Ball Bearing 8x16x5mm x10
116012
Ball Bearing 15x21x4mm x10
116004
Ball Bearing 6x10x3mm x4
117003
Flange Ball Bearing 3x6x2.5mm x2
200135
Rear Wheel Axle Insert (1mm) x4
200136
Rear Wheel Axle Insert (2mm) x2
101012
M3x6xT0.6mm x2
101011
M2.6x6xT0.6mm x4
101018
SHIM 13x16x0.2mm x6
101004
Washer 3.5X10X0.2mm x12
103003
Flange M3 Nut Lock x6
103001
M3 Nut Lock x20
103004
M2.5 Nut Lock x4
330117
Knuckle Pivot Ball Washer x2
330095
Shock Washer 3.6x7x1mm x4
330096
Shock Washer 3.6x7x2.5mm x4
101014
M3 Pivot Ball Bushing x1
330015
Pin M2.2x9.9mm x6
400002
O-ring S5 4.8X1.5 x6
330111
Pin M2.5x14.8mm x6
330119
Front Upper Arm HingPin x2
400006
Shock Seal O-Ring x8
400005
Shock Spring Adjust Nut O-Ring x4
330124
Pin M3.0x16.8mm x4
330013
Bevel Gear Shaft x6
101019
SHIM 6.0x10.0x0.2mm x4

8
330109
F/R Drive Shaft 93.5mm x4
115004
Servo Saver Spring x1
115013
Shock Spring 1.6mm (S) x2
115014
Shock Spring 1.6mm (L) x2
330113
Servo Saver Shaft x2
330114
Servo Saver Post x1
330132
Shock Shaft (L) x2
330133
Shock Shaft (S) x2
330115
Steering Knuckle Pivot Ball Turnbuckle x4
330120
Rear Hub Carriers Hing pin x2
330103
Front/Rear Lower Arm HingPin x4 115005
Rear Sway Ball 2.8mm x1
115008
Front Sway Ball 2.3mm x1
330123
Rear Upper Sus. Arm Turnbuckles x2
330126
Steering Turnbuckle x2
330155
Steering Servo Turnbuckle (M3x30mm) x1
115019
Body Clip x2
330108
X-system C/R Drive Shaft 125mm x1
330240
BE1 Center Front Drift Shaft 100mm x1

9
320003
Diff. Bevel Gear 18T x6
320004
Diff. Bevel Gear 10T x12
330110
CVD Join x6
330116
14mm Knuckle x4
Pivot Ball
330127
Steering Linkage x4
Ball Stud 7mm
410022A
Shock Bladder x4
330136
Sway Bar Ball Stud x4
330130
Shock Seal Cover x4
330134
Shock Ball Stud x10
330138
Shock Cap Stud x4
330122
Wheel Nut x4
330121
Wheel Hub x4
330125
Rear Upper Sus. x4
Arm Ball Stud
610002
Diff. Gasket (0.5T) x3
330164
Crown Gear 43T x2
330098
Shock Piston 1.4mmx5 holes x4
330102
X-system Pinion Gear 13T x2
330239
BE1 Motor Gear 14T x1
330235
BE1 Motor Gear 13T x1
330241
BE1 Center Supar Gear Mount x1

10
330152
Aluminum Rear Chassis Brace x1
330153
Aluminum Front Chassis Brace x1
330088
S350 Rear Lower Arm Holder x1
330086
S350 Front Lower Suspension Plate x1
330014
Front/Rear Diff. Outdrive x4
330017
Center Diff. Outdrive x2
330112
CVD Axle x4
330087
Front Shock Tower (Al) x1
330089
Rear Shock Tower (Al) x1
330118
Knuckle Pivot Ball Nut x4
330128
Shock Body (L) x2
330129
Shock Body (S) x2
330131
Shock Spring Adjust Nut x4
330135
Servo Saver Nut x1
330139
Shock Cap x4
330092
Servo Saver Steering Plate x1 330236
BE1 Aluminum Center Diff. Mount (F) x1
330238
BE1 Aluminum Center Diff. Mount (R) x1

11
SW-2501093
S350 Front Lower Arm Set (L&R) x1
SW-2501098
S350 Front Steering Knuckle Set (L&R) x1
SW-2501113
S350 Front Upper Arm Set (L&R) x1
SW-2501121
S350 Ball End Set with
Shock Plastic Parts (2 Set)
x2
SW-2501114
S350 Gear Box Set (F&R)
x2
SW-2501096
S350 Full Arm Holder Set (7pc) x1

12
SW-2501100
S350 Pivot Ball Cup
Caster Insert Set
x4
SW-2501122
S350 Settring Bellcrank Set
with Servo Horn Set
x1

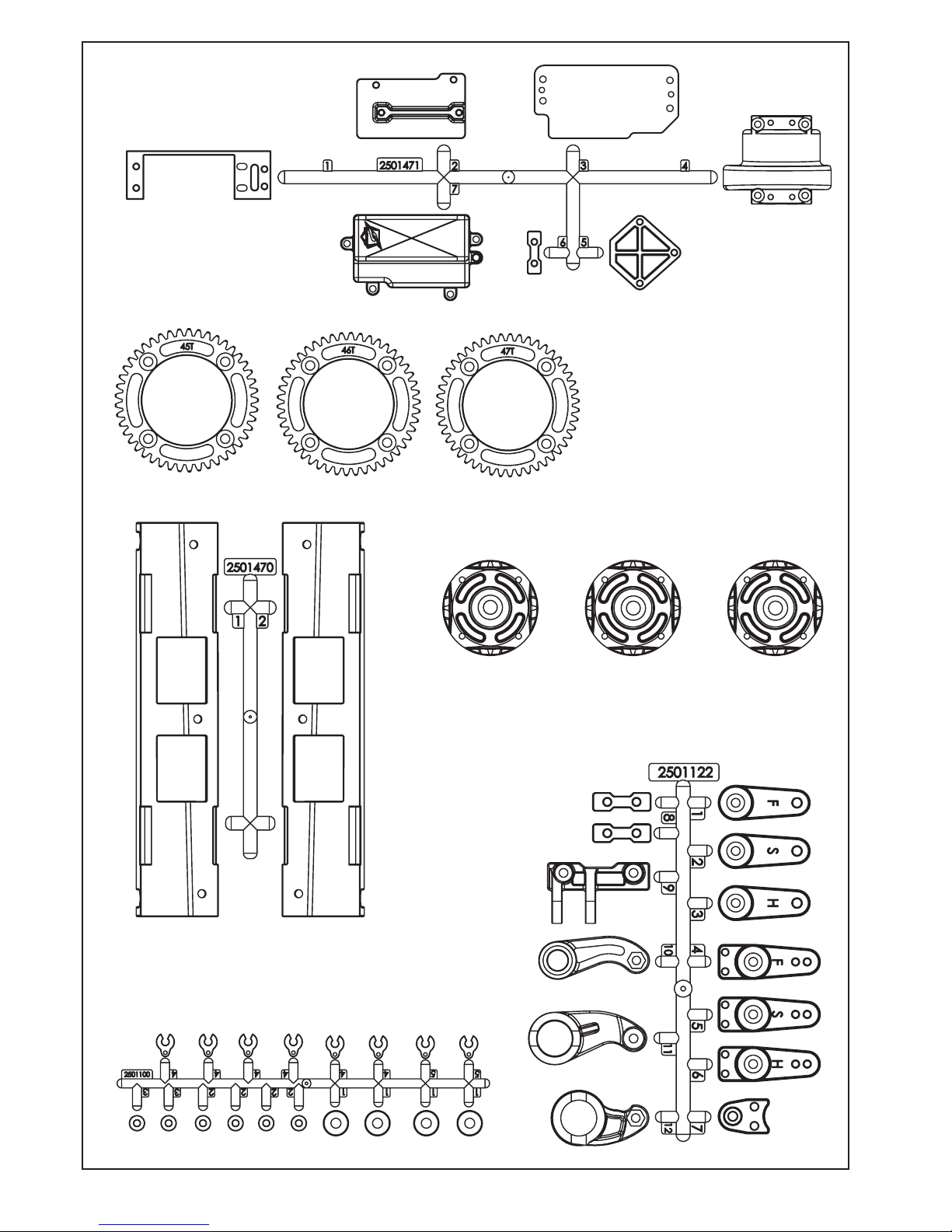

SW-2501471
S350 BE1Series Receiver Box
& Steering Servo Holder Set
x1
SW-2501470
S350 BE1Series LiPo
Battery(25mm)
Case Set
x1
x3
SW-210002
Diff. Case
x1
SW-2501469
BE1 Supar Gear 45T Plastic
x1
BE1 Supar Gear 46T Plastic
x1
BE1 Supar Gear 47T Plastic

13
SW-2501095
S350 Rear Hub Carrier Set (L&R) x1
SW-2501094
S350 Rear Lower Arm Set (L&R)
x1
SW-2501099
S350 R/F Insert
Brake
Throttle Linkage
Linkage Holder
x2
SW-2501118
S350 Wheel Dusty Cover Set
x1
SW-2501097
S350 Wing Stay Set with Bumper
x1
SW-2501116
S-WORKz
High Done Force Wing Set
(BK)(Fit S350)
x1

14
Operation Guide
Safety Precautions
The SWORKz S350 BE1 is a high performance radio control model which needs to be operated
with caution and common sense.
The S350 BE1 Pro Kit is not intended for children under the age of 14 without adult
supervision. SWORKz shall not be held liable for any loss or damages,whether direct, indirect,
act of nature, arising from abuse or misuse of this product or any other product required.
- The LiPO Battery can be dangerous if improperly handled.
- Always keep your LiPO Battery in a cool area and never use it near ames, sparks, or while
smoking.
- Keep your LiPO Battery, and all other ammables, out of the reach of children.
- After running your car, all parts of the Motor and ESC can become extremely hot. Be careful
not to touch these parts.
- This model is controlled by your radio controller and can be vulnerable to interference
from many outside sources. This interference can cause a loss of control so it is necessary to
operate this model in an open area to avoid personal or property damage. Always ensure
turning on your radio rst.
- Keep all the products included in the package out of the reach of children.
- This model contains many fast rotating parts. Never touch them during operation.
- Follow the instructions included with your radio gear.
- Never operate your model near people or property. The speed of this model has the
potential to injure people and or damage property if misused.
- Always use original SWORKz spare parts and option parts.
- Always ensure that the buggy is in proper working condition before use.
- Always exercise caution when using any tools.
overturn
Assemble for
4 sets
Assemble for
2 sets
Assemble both left
and right sides
Assemble in the
specied order
Assemble front
and rear
Thread Locking
Compound
Grease Pure Silicone Oil

15
BAG B1
2
330014
116006
330015
320003 400002
108003
320004
320004
330013
610002
101004
101004
101004
320004
101004
210002
116006
330014
330164
330015
320003
400002
330015
Pin M2.2x9.9mm x4
400002
O-ring S5 4.8X1.5 x4
116006
Ball Bearing 8x16x5mm x4
101004
Washer 3.5X10X0.2mm x8
108003
M3x10mm FH/ST HEX Screw x8
330013
Bevel Gear Shaft x4
Fill the differentials
with oil up to 80%
full.
Use SWORKz diff.
Oil 5000cps for the
front Diff.
and 3000cps for
the rear Diff.
Apply a light coat of grease to
the o-ring, then slide it over the
outdrive shaft and place it in
the diff case.
Insert the pin through the hole
of the out drive.

16
4
3
BAG C
116006
330017
320003 400002
330015
108003
320004 330013
610002
108003
320004
101004
101004
108007
101004
101004
108007
200268
210002
116006
330017
330241
330015
320003
400002
108003
M3x10mm FH/ST HEX Screw x4
116006
Ball Bearing 8x16x5mm x2
330015
Pin M2.2x9.9mm x2
400002
O-ring S5 4.8X1.5 x2
101004
Washer 3.5X10X0.2mm x4
330013
Bevel Gear Shaft x2
Fill the
differentials
with Oil up to
80% full.
Use SWORKz
Diff. Oil
5000cps for
the center
Diff.
Apply a light coat of grease
to the o-ring, then slide it over
the outdrive shaft and place it
in the diff case.
Insert the pin through the hole
of the out drive.
108007
M3x6mm FH/ST HEX Screw x4

17
5
6
BAG D
The standard front lower arm holder (200102)
gives a 0° kick-up for your front lower suspension.
Use the option(200103) to get 1° kick-up for your
front lower suspension.
200102 Front Lower Arm Holder (0 degree)
200103 Front Lower Arm Holder (1 degree)
Place SHIMs of 13x16x0.2mm
to adjust the play between the crown
gear and pinion gear.
The X-system short drive shaft is for the
front gearbox.
The X-system long drive shaft is for the
rear gearbox.
101018
108001
108001
106010
330102
116012
200024
330110
330111
330086
330162
116012
106010
M3x6mm Hex Socket OH/TP Screw x6
330111
Pin M2.5x14.8mm x2
116012
Ball Bearing 15x21x4mm x6
108001
M3x12mm FH/ST HEX Screw x4
108008
M3x35mm FH/ST HEX Screw x2
101018
SHIM 13x16x0.2mm x2
101020
3mm Countersunk Washers (RD) x2
108008
101020
200102

18
7
8
BAG D
BAG E
The rear lower arm plates gives a 2.5~3.0 rear toe-in
with 0°~1° kick-up for your rear lower suspension.
200104Rear Lower Arm Plate (0-2.5 D)
200105Rear Lower Arm Plate (0-3.0 D)
200106Rear Lower Arm Plate (1-2.5 D)
200107Rear Lower Arm Plate (1-3.0 D)
The rear lower arm holder insert
gives a 1.0, 2.0 or 3.0 rear kick-up
for your rear lower suspension
arms.
200108 R/F Insert (1 degree)
200109 R/F Insert (0 degree)
Place SHIMs of 13x16x0.2mm
to adjust the play between the crown
gear and pinion gear.
330136
200158
200120 106005
200121
104007
330134
108001
108008
108015
101018
200104
200108
108015
200108
330088
104007
M4x8mm Set Screw x2
106005
M3x15mm Hex Socket OH/TP Screw x2
108008
M3x35mm FH/ST HEX Screw x2
101018
SHIM 13x16x0.2mm x2
108001
M3x12mm FH/ST HEX Screw x2
108015
M3x16mm FH/ST HEX Screw x2

19
9
10 200101
104004
104004
115008
330103
200110
200110
200134
200134
2.0mm
330103
Front/Rear Lower Arm HingPin x2
104004
M3x3mm Set Screw x2
Use a 2mm Hex Wrench
and slowly tighten the
Hinge Pins.
Pop in the Stabilizer Guide.

20
12
11
BAG E
330116
108003
330093
200124
200124
330118
330094
330115
105004
104005
104005
M3x4mm Set Screw x2
105004
M2.6x6mm Cap Screw x2
330115
Steering Knuckle Pivot Ball Turnbuckle x4
108003
M3x10mm FH/ST HEX Screw x4
Screw and adjust 330118 Knuckle
Pivot Ball Nut so the Knucklel can
move smoothly.
Left
Right
