SWORKz S350 BX1e series INSTRUCTION MANUALSWORKz S350 BX1e series INSTRUCTION MANUAL

2
INSTRUCTION
Specification
Length: 535mm
Width: 308mm
Height: 220mm
Ground Clearance: 70mm
Wheelbase: 321-326mm
Track: F:306mm / R:306mm
Gear Ratio: C:45~47/13~14T,F/R 43/13T
Weight: 3600g
Congratulations on your purchase of the new SWORKz S350 BX1e 1/8 scale off-road
racing brushless power sport buggy.
Please read this manual thoroughly before you attempt to start or drive your S350
BX1e. This manual contains step-by-step instructions to help you complete, prepare
for startup, and fine-tune your Buggy. Updates, setups, and product news will be
posted on our website (www.sworkz.com), so check often.
If you should ever have any questions on your S350 BX1e, please feel free to contact
our ofcial SWORKz dealers and distributors, as they will be glad to help you. You may
also contact us at any time for the most up to date information and support.
The SWORKz S350 BX1e 1/8 scale off-road ready to race brushless power buggy is
derived from the DNA of S350 BE1 race kit.
Assembled in the same factory as the BE1, the BX1e incorporates many of SWORKz
racing experience therefore giving strength and performance to the car.
The SWORKz design team put a lot of effort into the weight distribution of the S350
BX1e. This contributes a major factor in the car performance and general car setup.
The SWORKz S350 BE1 1/8 scale off-road racing brushless power buggy with its
super narrow chassis design and also comes standard with Big Bore Shocks and oil
lled differentials providing traction and balance on any off road tracks. The pivot ball
steering system gives the driver good feedbacks while driving the S350 BX1e. The
Standard set up is a good base start for any drivers.
Overall, the S350 BX1e is a perfect combination of design, high quality and outright
performance.
1. 2 Speed Transmission Gear Box System.
2. Comes Standard with SWORKz X-System Transmission.
3. Front and Rear Big Bore Shocks.
4. Unique 4 Wheel Dust Protection System.
5. Double Protection Bumper Design.
6. Super Narrow Chassis Design.
7. Adjustable Front Upper and Lower Suspension Arm System.
8. Rear Kick Up Chassis System
9. Center Spur Gear Protection Cover.
10. Single Unit Motor Holder with Center Diff. Mount.
11. Steering Servo with Receiver Box System.
12. Front and Rear Aluminum Chassis Brace.
S350 BX1e RTR Features :

3
WARRANTY
Your SWORKz S350 BX1e kit warranty covers workmanship and manufacturing
defects of the original and unmodified parts. Warranty claims resulting from
crashes, abuse, improper operation, improper mounting, improper adjustment or
lack of maintenance will not be honored.
Contact your local hobby shop or SWORKz distributor for all claims and
questions. Claims must be well documented. All Claims are subject to expert
examination approval by SWORKz .

4
INDEX
This radio control racing car is not a toy!
This high-performance R/C model is recommended for ages
14 and older.
INSTRUCTION 2
Warranty 3
Required Equipment for Operation 5
Operation Guide/Safety Precautions 6
Assembly Steps 7-34
Set-up Sheet 35
SWORKz Driver’s Set-up Sheet for Reference 36
S350 BX1e Part No. List 37-38
S350 BX1e Spare & Option Part List 38-39
Company Info 40
Explosion View with Screw Items 41-42

5

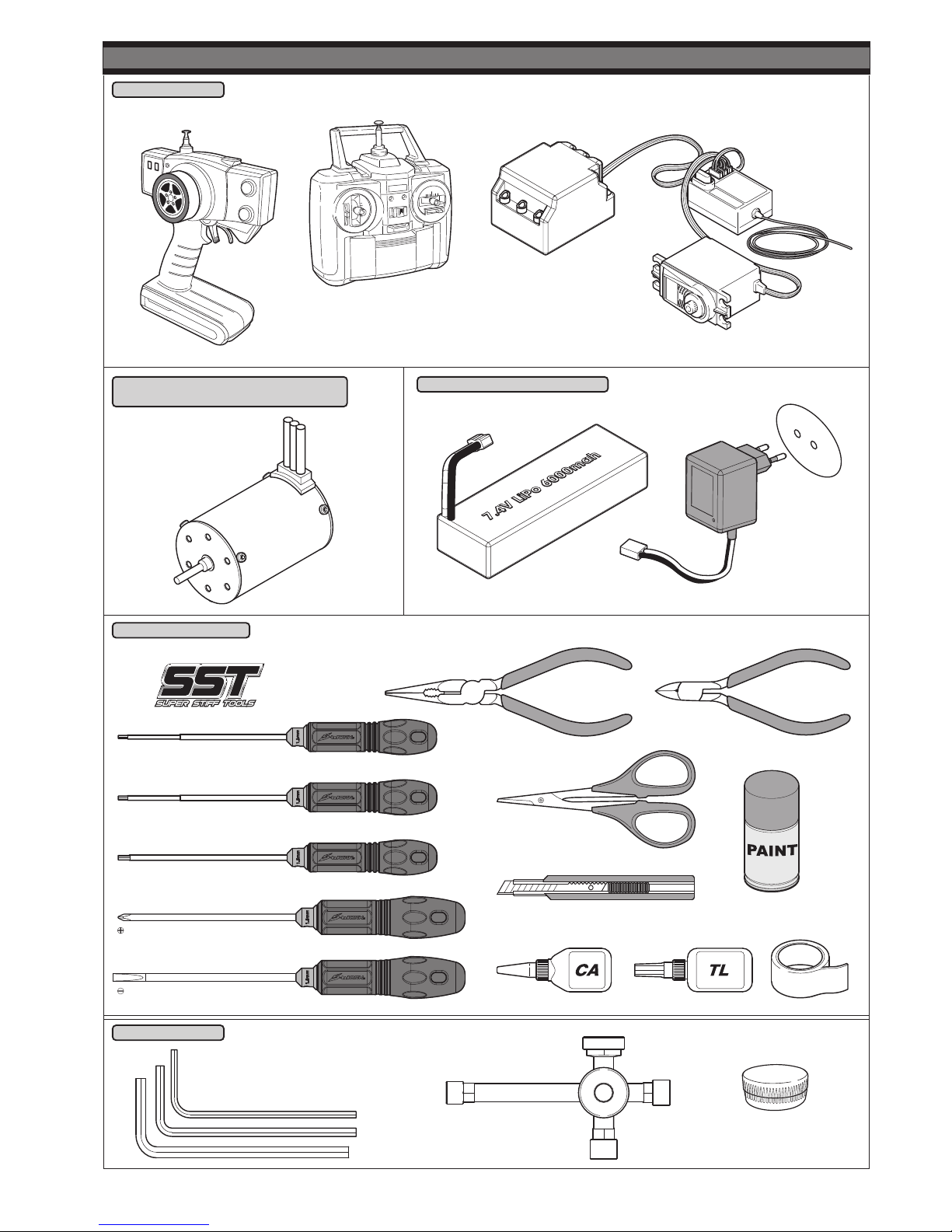

Charger and LiPo Battery
Double-sided tape
Paint
Long nose pliers
Modeling knife
Instant cement Thread lock
Included items
Hex wrench
1.5mm
2mm
2.5mm
1.5mm
2mm
2.5mm
Glow plug wrench
Screwdriver
Screwdriver
Radio Gear
Stick Type
ESC system
Wheel & Trigger Type
Receiver
Steering servo
Tools Recommended
Required for 1/8 Brushless Motor series
(Maximun up for 4168mm 2250KV)
Side cutter
Curved scissors
Grease
Required Equipment for Operation

6
Operation Guide
Safety Precautions
The SWORKz S350 BX1e is a high performance radio control model which needs to be
operated with caution and common sense.
The S350 BX1e Sport RTR is not intended for children under the age of 14 without adult
supervision. SWORKz shall not be held liable for any loss or damages, whether direct,
indirect, act of nature, arising from abuse or misuse of this product or any other product
required.
- The LiPO Battery can be dangerous if improperly handled.
- Always keep your LiPO Battery in a cool area and never use it near ames, sparks, or while
smoking.
- Keep your LiPO Battery, and all other ammables, out of the reach of children.
- After running your car, all parts of the Motor and ESC can become extremely hot. Be careful
not to touch these parts.
- This model is controlled by your radio controller and can be vulnerable to interference
from many outside sources. This interference can cause a loss of control so it is necessary to
operate this model in an open area to avoid personal or property damage. Always ensure
turning on your radio rst.
- Keep all the products included in the package out of the reach of children.
- This model contains many fast rotating parts. Never touch them during operation.
- Follow the instructions included with your radio gear.
- Never operate your model near people or property. The speed of this model has the
potential to injure people and or damage property if misused.
- Always use original SWORKz spare parts and option parts.
- Always ensure that the buggy is in proper working condition before use.
- Always exercise caution when using any tools.
overturn
Assemble for
4 sets
Assemble for
2 sets
Assemble both left
and right sides
Assemble in the
specied order
Assemble front
and rear
Thread Locking
Compound
Grease Pure Silicone Oil

7
1
2
330014
116006
330015
320003 400002
108003
320004
320004
330013
610002
101004
101004
101004
320004
101004
210002
116006
330014
330164
330015
320003
400002
330015

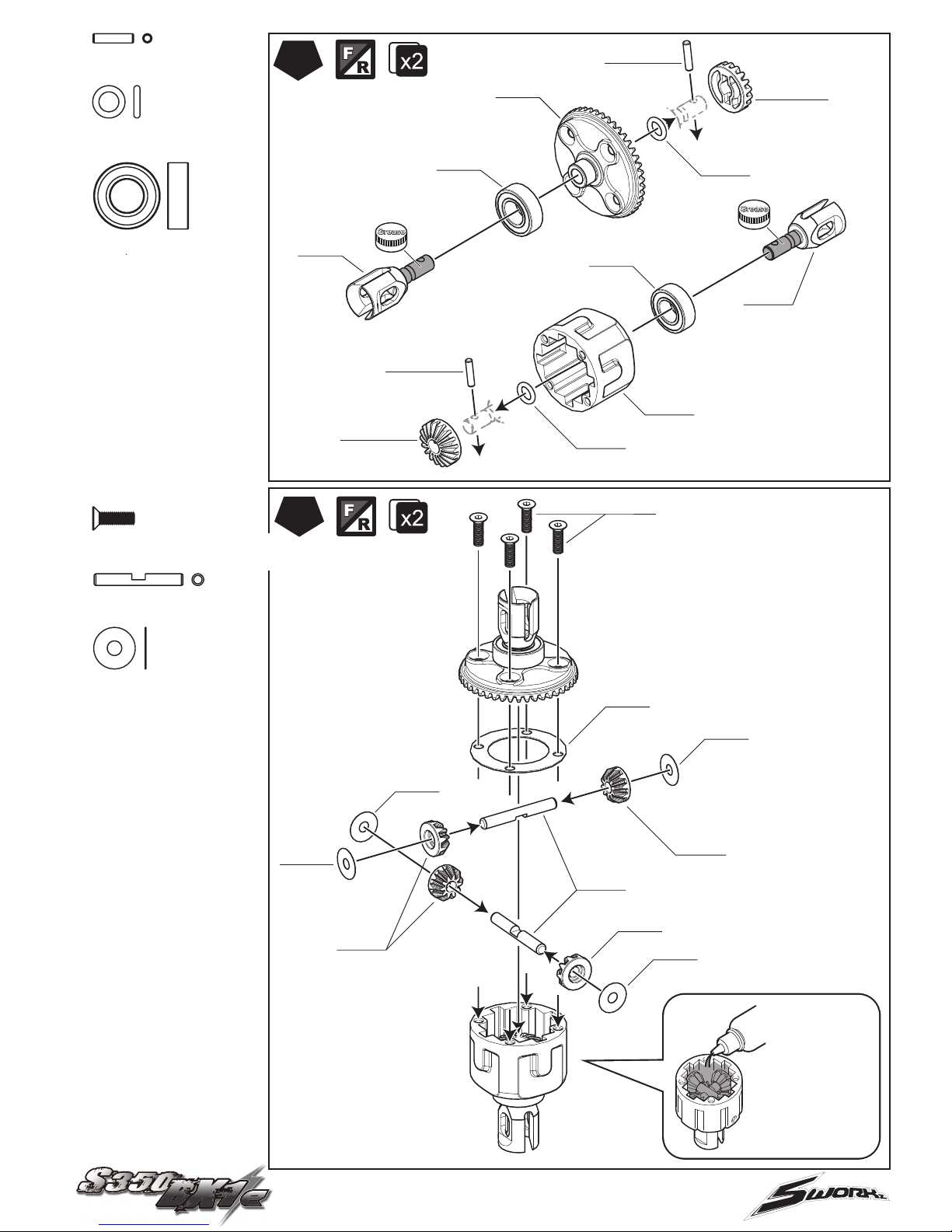

Pin M2.2x9.9mm x4
400002
O-ring S5 4.8X1.5 x4
116006
Ball Bearing 8x16x5mm x4
101004
Washer 3.5X10X0.2mm x8
108003
M3x10mm FH/ST HEX Screw x8
330013
Bevel Gear Shaft x4
Fill the differentials
with oil up to 80%
full.
Use SWORKz diff.
Oil 3000cps for the
front Diff.
and 1000cps for
the rear Diff.
Apply a light coat of grease to
the o-ring, then slide it over the
outdrive shaft and place it in
the diff case.
Insert the pin through the hole
of the out drive.

8
4
3
116006
330017
320003 400002
330015
108003
320004 330013
610002
108003
320004
101004
101004
108007
101004
101004
108007
200268
210002
116006
330017
330241
330015
320003
400002
108003
M3x10mm FH/ST HEX Screw x4
116006
Ball Bearing 8x16x5mm x2
330015
Pin M2.2x9.9mm x2
400002
O-ring S5 4.8X1.5 x2
101004
Washer 3.5X10X0.2mm x4
330013
Bevel Gear Shaft x2
Fill the
differentials
with Oil up to
80% full.
Use SWORKz
Diff. Oil
3000cps for
the center
Diff.
Apply a light coat of grease
to the o-ring, then slide it over
the outdrive shaft and place it
in the diff case.
Insert the pin through the hole
of the out drive.
108007
M3x6mm FH/ST HEX Screw x4

9
5
The standard front lower arm holder (200102) can
offer 0° kick-up for your front lower suspension.
You may use the optional one (200103) to get 1°
kick-up for your front lower suspension.
200102 Front Lower Arm Holder (0 degree)
200103 Front Lower Arm Holder (1 degree)
Please use the SHIM 13x16x0.2mm
to adjust when the play was bigger
between the crown gear and pinion
gear.
101018
108001
300029 106012
330160
200102
108001 330227
106010
116006
200267
104001
200024
116006
Ball Bearing 8x16x5mm x2
108001
M3x12mm FH/ST HEX Screw x4
101018
SHIM 13x16x0.2mm x2
104001
M5x4mm Set Screw x1
106010
M3x6mm Hex Socket OH/TP Screw x3
106012
M3x35mmHex Soket OH/TP Screw x2

10
6
7
Please use the SHIM 13x16x0.2mm
to adjust when the play was bigger
between the crown gear and pinion
gear.

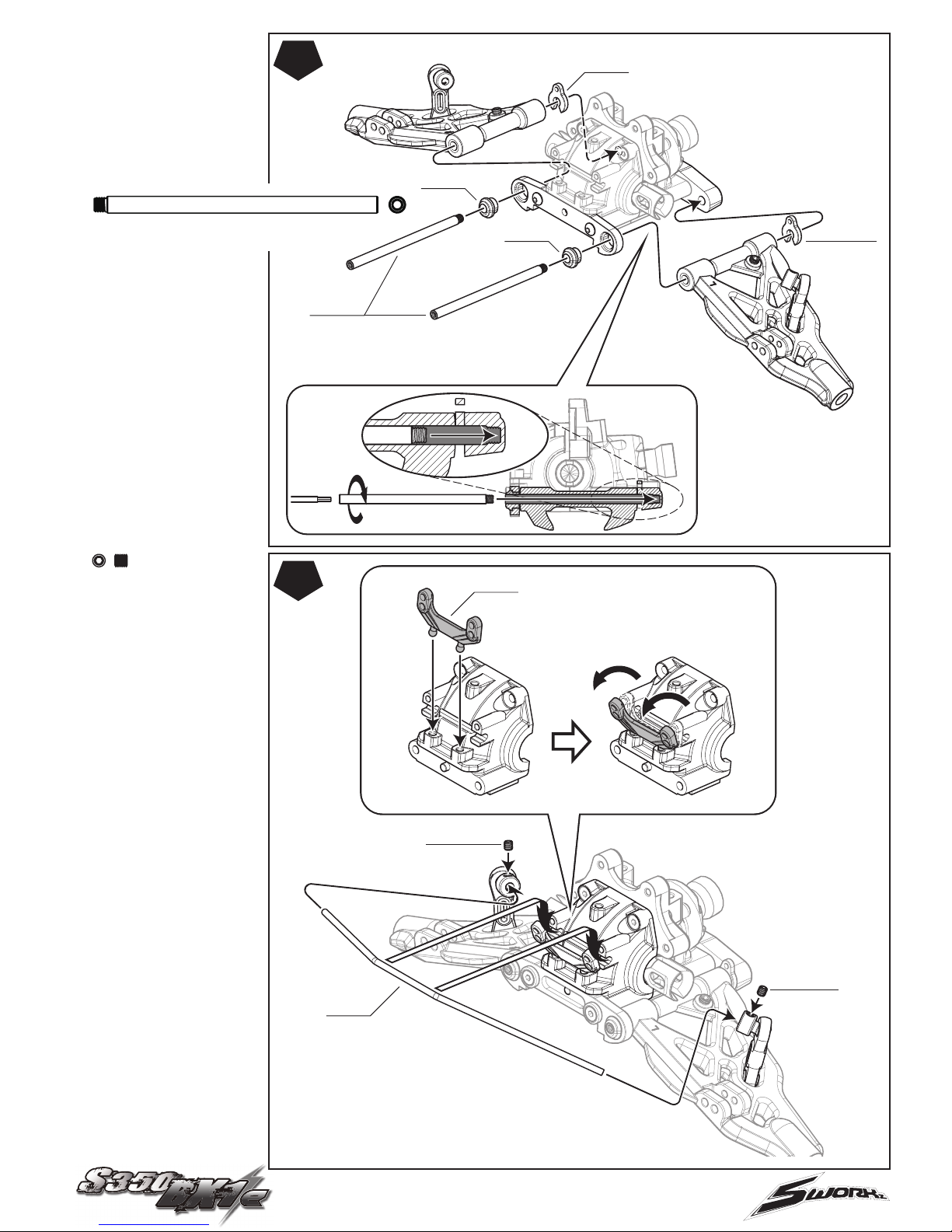

The rear lower arm plates can offer 2.5~3.0 rear toe-in
with 0°~1° kick-up for your rear lower suspension.
200104Rear Lower Arm Plate (0-2.5 D)
200105Rear Lower Arm Plate (0-3.0 D)
200106Rear Lower Arm Plate (1-2.5 D)
200107Rear Lower Arm Plate (1-3.0 D)
The rear lower arm holder
insert can offer 1.0, 2.0 and
3.0 rear kick-up for your rear
lower suspension.
200108 R/F Insert (1 degree)
200109 R/F Insert (0 degree)
330160
200108
200280
300026
200267
116006
200024
106010
104001
330227
106003
101018
108001
200104 108008
330136
200158
200120A
106005
200121A
104007
330134
116006
Ball Bearing 8x16x5mm x2
108008
M3x35mm FH/ST HEX Screw x2
101018
SHIM 13x16x0.2mm x2
104001
M5x4mm Set Screw x1
104007
M4x8mm Set Screw x2
106010
M3x6mm Hex Socket OH/TP Screw x3
106005
M3x15mm Hex Socket OH/TP Screw x2
106003
M3x16mm Hex Socket OH/TP Screw x2
108001
M3x12mm FH/ST HEX Screw x2

11
8
9200101
104004
104004
115008
330103
200110
200110
200134
200134
2.0mm
330103

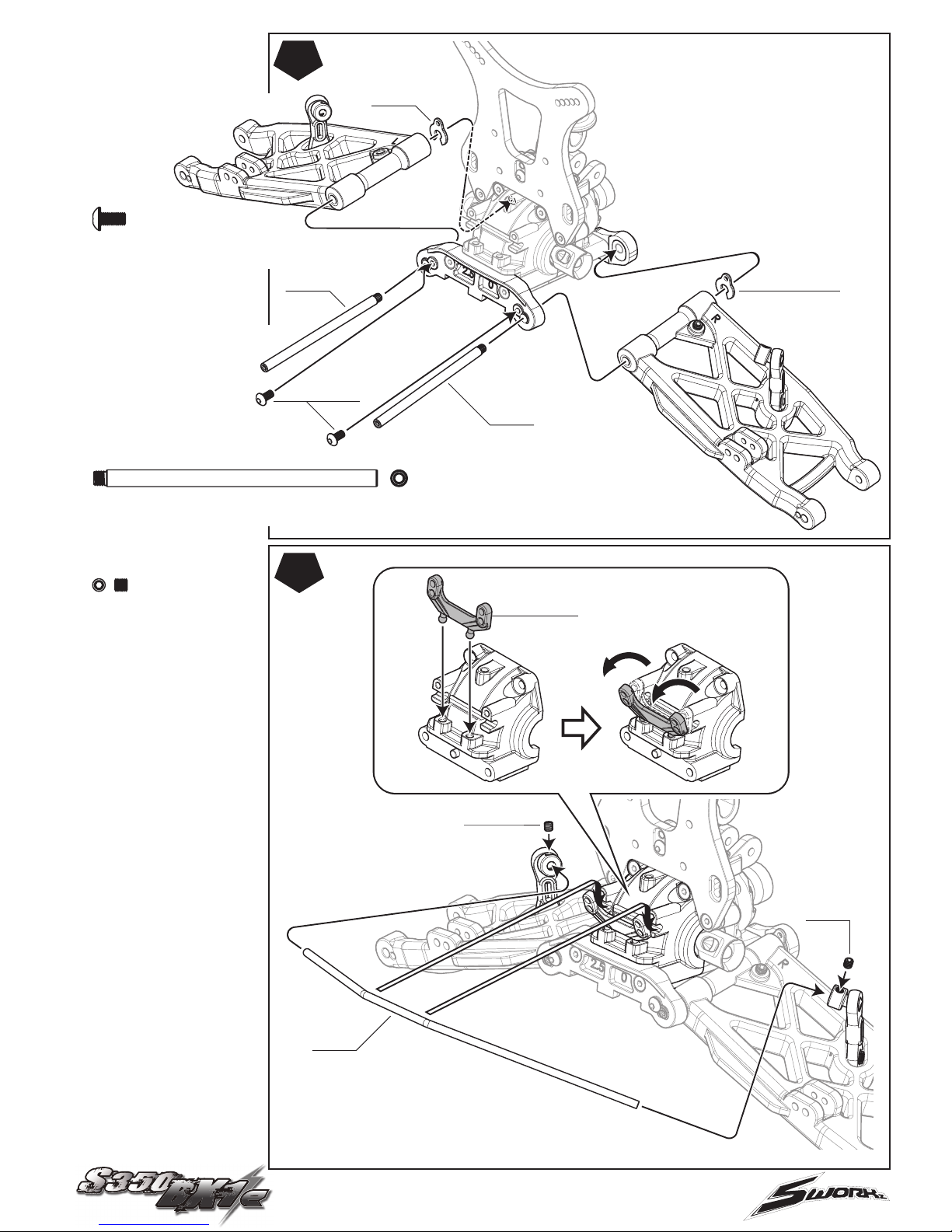

Front/Rear Lower Arm HingPin x2
104004
M3x3mm Set Screw x2
Use a 2mm Hex Wrench
and slowly tighten the
Hinge Pins.
Pop in the Stabilizer Guide.

12
11
10
106002
300030
200124
330252
200124
330252
330118
300030
105004
104005
104005
M3x4mm Set Screw x2
105004
M2.6x6mm Cap Screw x2
Screw and adjust 330118 Knuckle
Pivot Ball Nut so as the pivot ball can
be moved smoothly.
106002
M3x10mm Hex Socket OH/TP Screw x4

13
12
13
200171 106002
106002
106002
300024
103001
200125
200126
200126
106002
330110
330112
330111
330109
116012
116006
330124
330121
104001
104001
M5x4mm Set Screw x2
330111
Pin M2.5x14.8mm x2
330124
Pin M3.0x16.8mm x2
116012
Ball Bearing 15x21x4mm x2
116006
Ball Bearing 8x16x5mm x2
103001
M3 Nut Lock x2
106002
M3x10mm Hex Socket OH/TP Screw x5

14
15
14
200128
200127
200134
300027
200297
200297
106008
200133
330119
200133
330119
330119
Front Upper Arm HingPin x2
106008
M3x12mm Hex Socket OH/TP Screw x4
200298
200298

15
16
17
Please use the SHIM
6x10x0.2mm to adjust
when the play was
bigger between the
servo saver post and
settring bellcrank
plate.
106002
200296
330113
101019
106008
106008
330251
330251 300031
101021
101021
330135
115004
200296
200117
200116
330114
200118
103001
103001
200296
103001
M3 Nut Lock x2
101019
SHIM 6.0x10.0x0.2mm x1
330251
Steering Plate Bushing x2
101021
M3x8xT1mm x2
106008
M3x12mm Hex Socket OH/TP Screw x2
106002
M3x10mm Hex Socket OH/TP Screw x2

16
19
18
200119
200170
106002
106008
300028
108015
200172
104007
200132
106005
330136
200158
330134
104007
M4x8mm Set Screw x2
106005
M3x15mm Hex Socket OH/TP Screw x2
108015
M3x16mm FH/ST HEX Screw x2
106008
M3x12mm Hex Socket OH/TP Screw x2
106002
M3x10mm Hex Socket OH/TP Screw x1
Ensure that the
direction of the shock
tower insert #200119
is facing towards the
user during installation.

17
20
21
106010
200101
104004
104004
105005
330103
330103
200133
200133
330103
Front/Rear Lower Arm HingPin x2
104004
M3x3mm Set Screw x2 Pop in the Stabilizer Guide.
Use a 2mm Hex Wrench
and slowly tighten the
Hinge Pins.
(Check page 11)
106010
M3x6mm Hex Socket OH/TP Screw x2

18
23
22
330121
116012
116006
200129
200130
330228
330124
104001
105004
104005
104005
104005
M3x4mm Set Screw x2
105004
M2.6x6mm Cap Screw x2
330124

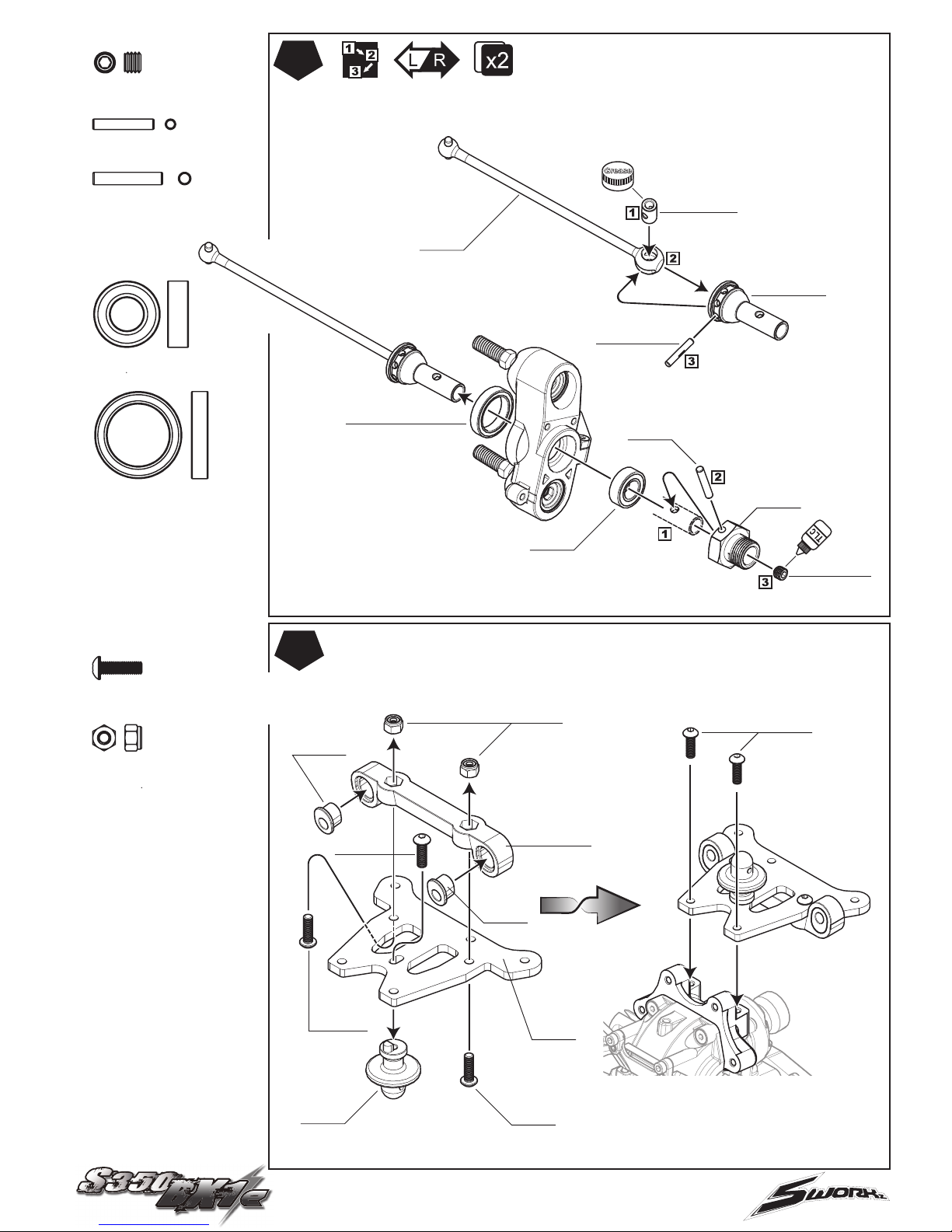

Pin M3.0x16.8mm x2
104001
M5x4mm Set Screw x2
116012
Ball Bearing 15x21x4mm x2
116006
Ball Bearing 8x16x5mm x2

19
24
25
10mm
330120
106010
330232
200136
330232
200135
106010
330120
200135
200136
330125
200138
330123
200137
330125
330120

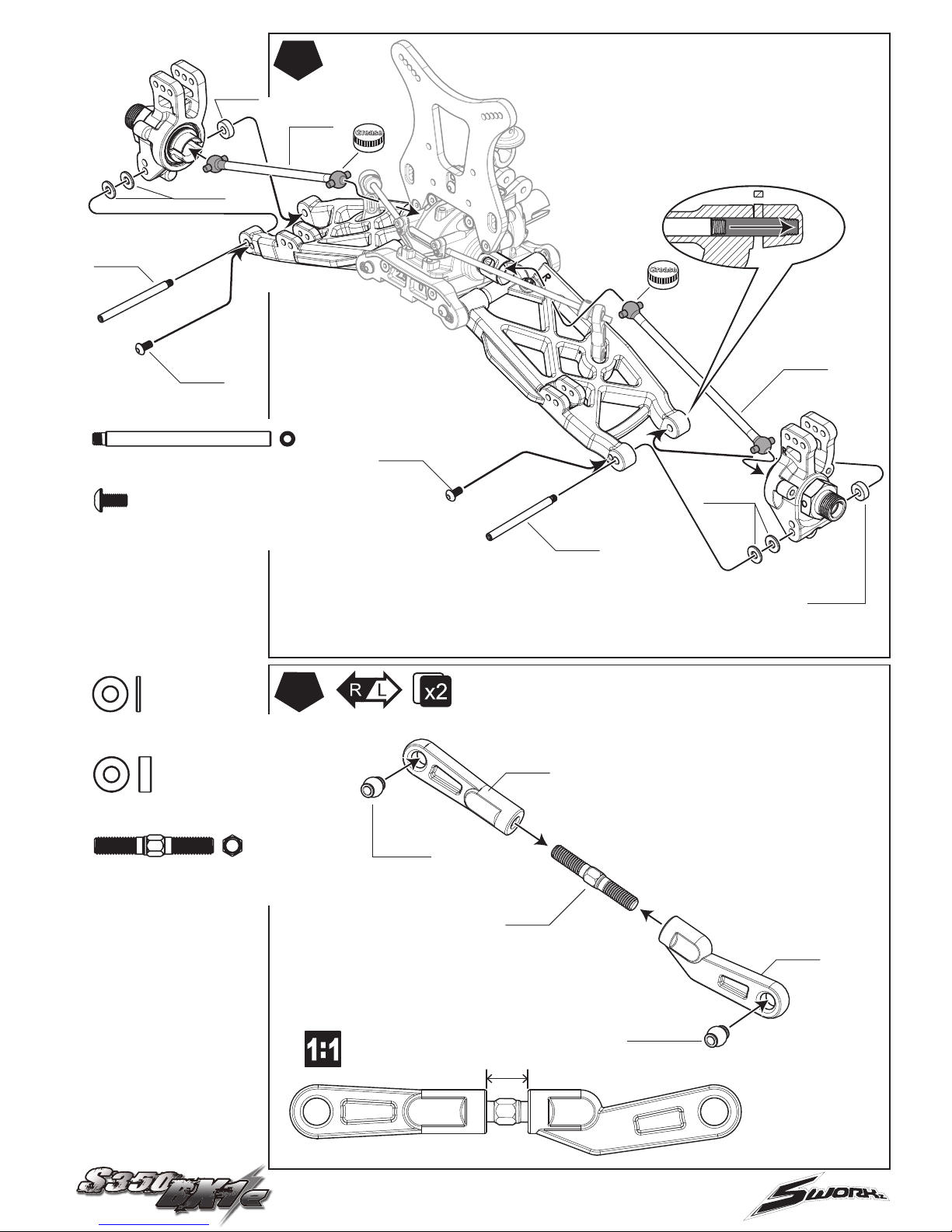

Rear Hub Carriers Hing pin x2
200135
Rear Wheel Axle Insert (1mm) x4
200136
Rear Wheel Axle Insert (2mm) x2
330123
Rear Upper Sus. Arm Turnbuckles x2
Use a 2mm Hex Wrench
and slowly tighten the
Hinge Pins.
106010
M3x6mm Hex Socket OH/TP Screw x2

20
27
26
103001
106003
105011
103001
103001
105011
103001
105011
M3x23mm Cap Screw x2
106003
M3x16mm Hex Socket OH/TP Screw x2
103001
M3 Nut Lock x4
106011
108014
106011
108014
108014
250015
330259
106011
106011
108014 250015
108014
M3x3mm FH/ST HEX Screw x4
106011
M3x4mm Hex Soket OH/TP Screw x4
