SWorkz S35-TE User manual

2
INTRODUCTION
Specification
Length: 590mm
Width: 415mm
Height: 230mm
Ground Clearance: 75mm
Wheelbase: 375-380mm
Track: F:355mm /R:355mm
Gear Ratio: C:45-47/15T, F/R:46/10T
Weight: 4150g
The first E-Truggy from SWORKz is called the "S35-TE". It is based on the latest 1/8 S35-T nitro
Truggy chassis design and combined with the S35-3E E-Buggy transmission system. The S35-TE is
the ultimate SWORKz 1/8th electric Truggy at this moment.
The new S35-TE Truggy suspension design and front Ackerman steering system is derived from the
1/8th S35-T nitro Truggy. A new center transmission system gives huge improvements to the S35-TE.
The S35-TE newly designed suspension are made from stronger nylon materials. A new front
Ackerman steering system and new front shock tower design allow you to change the front upper
angle positions easily.
The S35-3E lightened transmission gear box system with Truggy crown gear ratio provides powerful
punch, needed for Truggy racing.
The T-7075 aluminum chassis with its L.F.C (Lower Friction Coefcient) system gives more grip and
at the same time, less friction towards the rear.
The S35-TE includes high quality parts, a rened shock system and many important team option parts.
SWORKz utilizes only the highest quality materials and industry leading manufacturing processes
resulting in a faster, stronger, and more reliable vehicle. The S35-TE Pro Kit has been designed to
win races.
Congratulations on your purchase of the new SWORKz S35-TE 1/8 scale off-road racing EP Truggy pro kit.
Please read this manual thoroughly, before you attempt to start or drive your S35-T. This manual
contains step-by-step instructions to help you complete, prepare for startup, and fine-tune your
Truggy. Updates, setups, and product news will be posted on our website (www.sworkz.com), so
check often.
As always, if you should ever have any questions or need help with your S35-TE, please feel free to
contact our ofcial SWORKz dealers and distributors, as they will be glad to help you. You may also
contact us at any time for the most up to date information and support.
1. S35-TE Series Brushless Power Truggy T-7075 Aluminum Lightened Main Chassis with L.F.C
system (Lower Friction Coefcient)
2. Front and Rear Pro Shock Towers made of Lightened T-7075 Aluminum for longer BBS Shocks.
3. S35 Series BBS Emulsion Shock Caps.
4. S35-3 Lightened Transmission Gear Box System with High Performance Crown Gears and Pinion Gears.
5. New Center Diff Transmission Drive Shaft System.
6. Front and Rear Universal Cross Drive Shafts
7. S35-3 Series Aluminum Rear Lower Fully Adjustable Toe-In Block (A).
8. S35-3 Series Competition Aluminum Steering Knuckle Plates.
9. Double Protection Bumper Design.
10. Heavy Duty Front and Rear Arms
11. Adjustable front upper and lower Suspension Arm System.
12. Speed Rhinoceros 2.0 Body Shell included.
S35-TE Kit Features :

3
WARRANTY
Your SWORKz S35-TE kit warranty covers workmanship and manufacturing
defects of the original and unmodified parts. Warranty claims resulting from
crashes, abuse, improper operation, improper mounting, improper adjustment or
lack of maintenance will not be honored.
Contact your local hobby shop or SWORKz distributor for all claims and
questions. Claims must be well documented. All Claims are subject to expert
examination approval by SWORKz.

4
INDEX
This radio controlled racing car is not a toy!
This high-performance R/C model is recommended for ages 14 and older.
INSTRUCTION 2
Warranty 3
INDEX 4
Required Equipment for Operation 5
Operation Guide 6
Assembly Steps 7-34
Blank Set-up Sheet 35-36
S35-TE Key No.List 37-38
S35-TE Spare Part List 38-39
S35-TE Option Part List 39
End cover 40

5
Charger and LiPo Battery
Double-sided tape
Paint
Long nose pliers
Modeling knife
Instant cement Thread lock
Included items
Hex wrench
1.5mm
2mm
2.5mm
1.5mm
2mm
2.5mm
Glow plug wrench
Screwdriver
Screwdriver
Radio Gear
Stick Type
ESC system
Wheel & Trigger Type
Receiver
Steering servo
Tools Recommended
Breshless Motor
Side cutter
Curved scissors
Grease
Required Equipment for Operation

6
Operation Guide
Safety Precautions
The SWORKz S35-3E is a high performance radio controlled model which needs to be
operated with caution and common sense.
The S35-TE Pro Kit is not intended for children under the age of 14 without adult supervision.
SWORKz shall not be held liable for any loss or damages, whether direct, indirect, act of
nature, arising from the abuse or misuse of this product or any other product required while
operating this model.
- The LiPO Battery can be dangerous is improperly handled.
- Always keep your LiPO Battery in a cool area and never use near flame, sparks, or while
smoking.
- Keep your LiPO Battery, and all other ammables, out of the reach of children.
- After running your car, all parts of the Motor and ESC can become extremely hot. Be careful
not to touch these parts.
- This model is controlled by your radio and that is vulnerable to interference from many
outside sources. This interference can cause a loss of control so it is necessary to operate this
model in an open area to avoid personal, or property damage. Always ensure turning on your
radio rst.
- Keep all the products included in the package out of reach of children.
- This model contains many fast rotating parts. Never touch them during operation.
- Follow the instruction included with your radio gear.
- Never operate your model near people or property. The speed of this model has the
potential for injury and or damage to people and or property.
- Always use original SWORKz spare and option parts.
- Always encure the buggy is in proper working condition before use.
- Always exercise caution when using any and all tools.

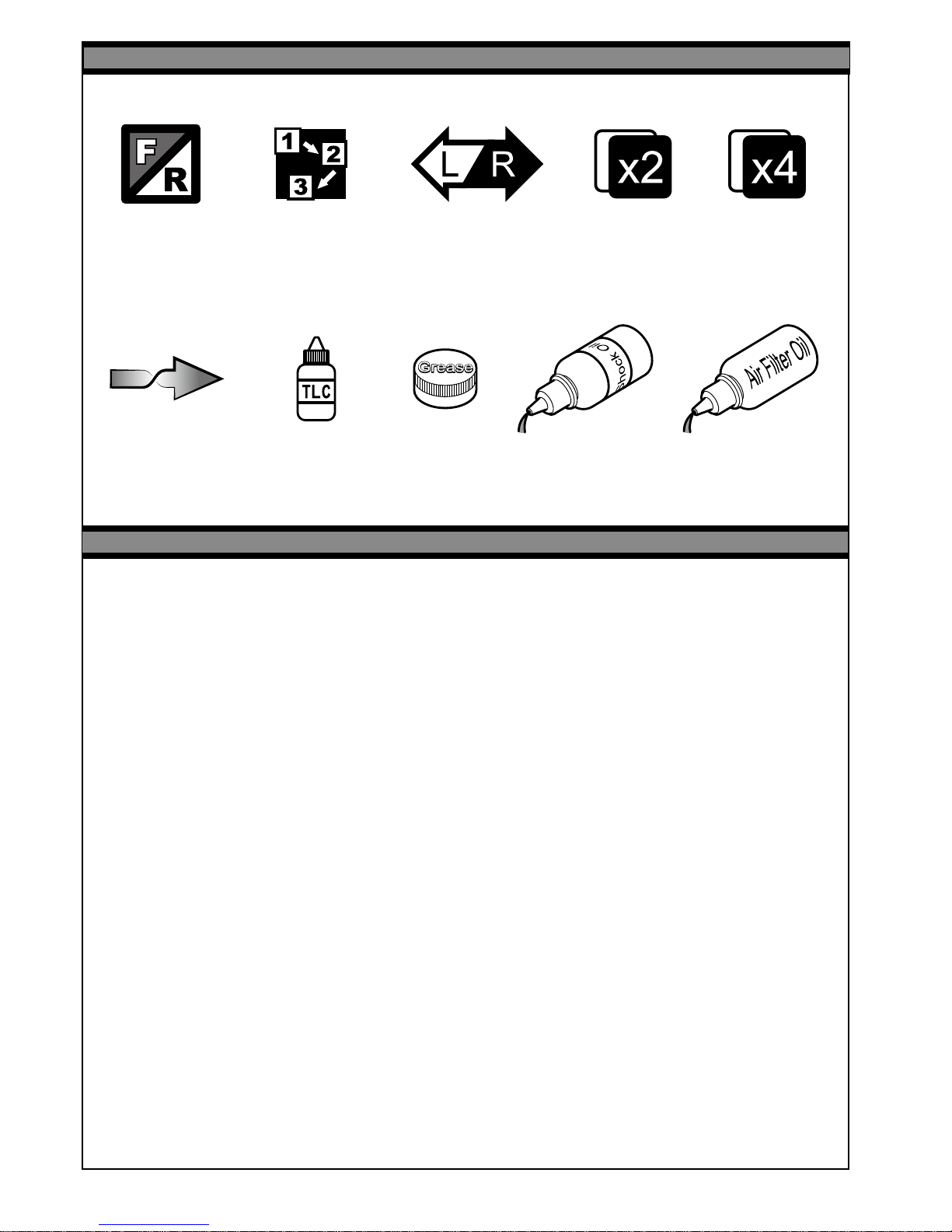

overturn
Assemble for
4 sets
Assemble for
2 sets
Assemble both left
and right sides
Assemble in the
specied order
Assemble front
and rear
Thread Locking
Compound
Grease Pure Silicone Oil Air lter oil

7

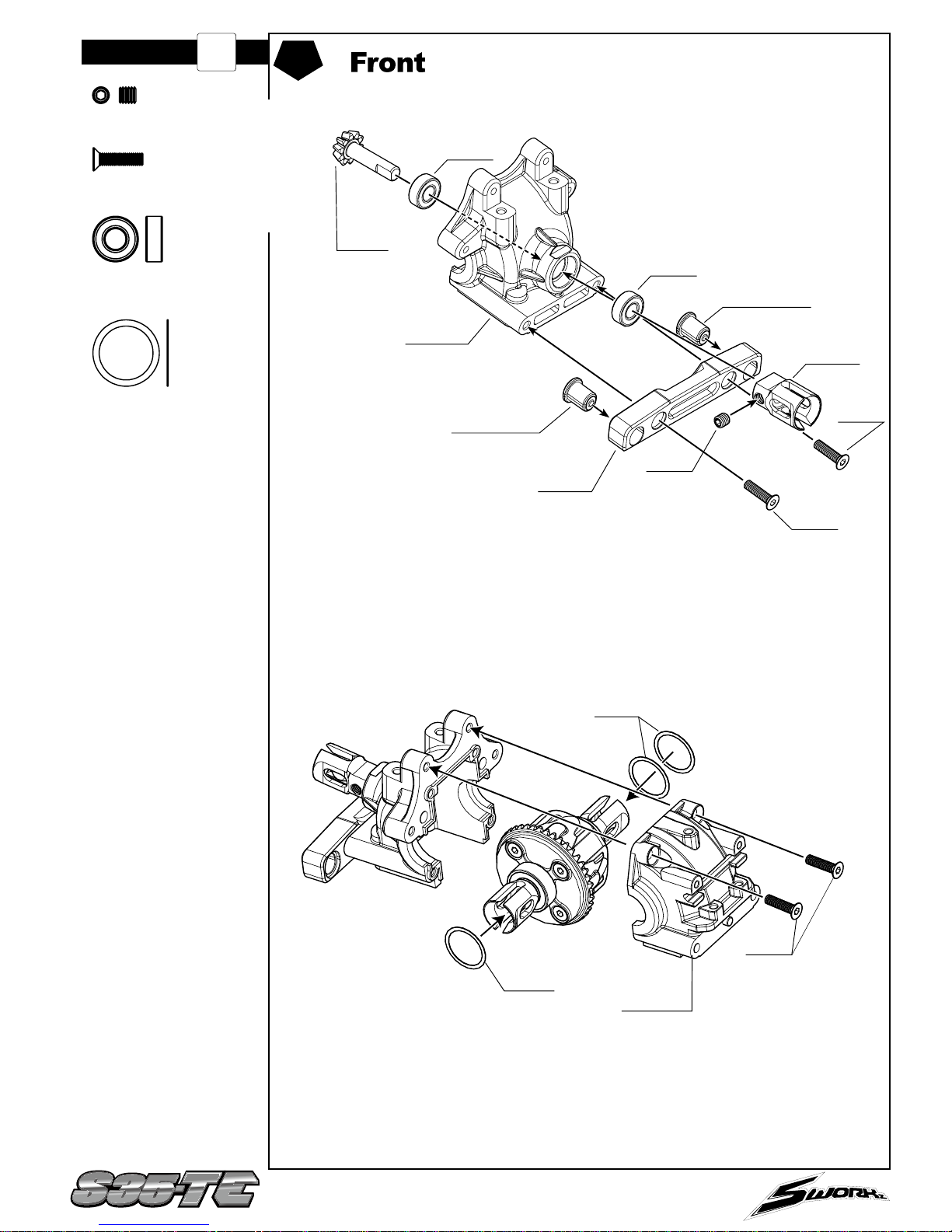

BAG B1
2
330014A
116006
330015
320003 400002
330013
320004
101004
101004
320004
101004
101004
610002
210002A
116006
330015
320003
400002
330015
Pin M2.2x9.9mm x4
400002
O-ring S5 4.8X1.5 x4
116006
Ball Bearing 8x16x5mm x4
101004
Washer 3.5X10X0.2mm x8
330013
Bevel Gear Shaft x4
Fill the differentials
with oil up to 80%
above the satellite
gears.
Put the SWORKz
Diff. Oil 7000cps
for the front Diff.
and 3000cps for the
rear Diff.
Remember to apply a light coat
of grease to the o-ring, then
slide it over the shaft of the out
drive and seat it in the diff case.
Insert the pin through the hole
in the diff case and through the
hole in the shaft of the out drive.
OK! NG!
108003
108003
330014A
108003
M3x10mm FH/ST HEX Screw x4
330502A

8
4
3
BAG C
116006
330017
320003 400002
330015
108003
320004 330013
610002
108003
101004
101004
108007
108007
101004
101004
2501469-01 (45T)
2501469-02 (46T)
2501469-03 (47T)
210002A
116006
330017
330241
330015
320003
400002
108003
M3x10mm FH/ST HEX Screw x4
116006
Ball Bearing 8x16x5mm x2
330015
Pin M2.2x9.9mm x2
400002
O-ring S5 4.8X1.5 x2
101004
Washer 3.5X10X0.2mm x4
330013
Bevel Gear Shaft x2
Fill the
differentials
with Oil up to
80% full.
Use SWORKz
Diff. Oil
7000cps for
the center
Diff.
Apply a light coat of grease
to the o-ring, then slide it over
the outdrive shaft and place it
in the diff case.
Insert the pin through the hole
of the out drive.
320004
108007
M3x6mm FH/ST HEX Screw x4

9
5
BAG D
Note:
The aluminum front lower arm holder (330215A) can offer 0° or 1°
kick-up for your front lower suspension.
You may use the inserts 2503260-14 to get 0°
kick-up or 2503260-15 to get 1° for your front lower suspension.
2503260-14 Front Lower Aluminum Arm Holder Inserts (0 degree)
2503260-15 Front Lower Aluminum Arm Holder Inserts (1 degree)
Note:
101018SHIM 13x16x0.2mm
Please use 13x16x0.2mm shims
to adjust the play between the
crown gear and pinion gear.
Standard suggestion is 1pc shim
on the diff crown gear side and
2pcs on the other side.
101018
108001
108001
108001
116016
116016
108001
M3x12mm FH/ST HEX Screw x4
101018
SHIM 13x16x0.2mm
116016
Ball Bearing 5x11x4mm x2
2503261-2
x3
330215A
2503260-14.15
2503260-14.15
330650
2503261-3
330661A
Pro Tip:
Before installing the M5x4 set screw (104010),
remember to clean the set screw and center driver joint (330661A) rst.
Then apply TLC on the set screw.
104010
104010
M5x4mm Set Screw (Flat Bottom) x1
101018

10
6
7
BAG E1
101018
108001
101018 108001
108001
108001
M3x12mm FH/ST HEX Screw x4
101018
SHIM 13x16x0.2mm
116016
Ball Bearing 5x11x4mm x2
330769
Note:
101018SHIM 13x16x0.2mm
Please use 13x16x0.2mm shims to adjust the play between the crown gear and pinion gear.
Standard suggestion is 1pc shim on the diff crown gear side and 2pcs on the other side.
106016
106016
x3
106005
M3x15mm Hex Socket OH/TP Screw x2
108019
M2.6x6mm FH/ST HEX Screw x10
2501121A
330136
106005
330134
108019
Left
330650
2503261-3
330661A
2503261-2
2501121C-6
2502037B
2502037B
104010
M5x4mm Set Screw (Flat Bottom) x1
104010
106021A
106021A
M4x10mm Hex Socket OH/TP Screw X2
Pro Tip:
Before installing the M5x4 set screw
(104010), remember to clean the set screw
and center driver joint (330661A) rst.
Then apply TLC on the set screw.

11
8
92503261-1
104004
104004
118008
2.0mm
330103
Front/Rear Lower Arm HingPin x2
104004
M3x3mm Set Screw x2
Use a 2mm Hex
Wrench and
slowly tighten
the Hinge Pins.
Pop in the Stabilizer Guide.
115008A
108008
M3x35mm FH/ST HEX Screw x2
101020A
3mm Countersunk x2
Washers (GM)
330103
330642
101020A
2503260-24.25
2503260-3
2503260-3
2503260-24.25

12
11
10
106013
106013
104005
104005
104005
M3x4mm Set Screw x2
Note:
The aluminum front upper arm holder (330786) can offer either
0° or + -1° kick-up for your front upper arm suspension.
You may use the inserts 2503260-18 to get 0° kick-up
or 2503260-11 to get +-1° for your front upper suspension.
2503260-11
S35-3 Aluminum Front Upper Arm Holder Insert (+/- 1.0 Degree)
2503260-18
S35-3 Aluminum Front Upper Arm Holder Insert (0 Degree)
106013
M2.5x8mmH ex Socket OH/TPScrew x
2
108003
108003
108003
M3x10mm FH/ST HEX Screw x4
330786
330091

13
12
13

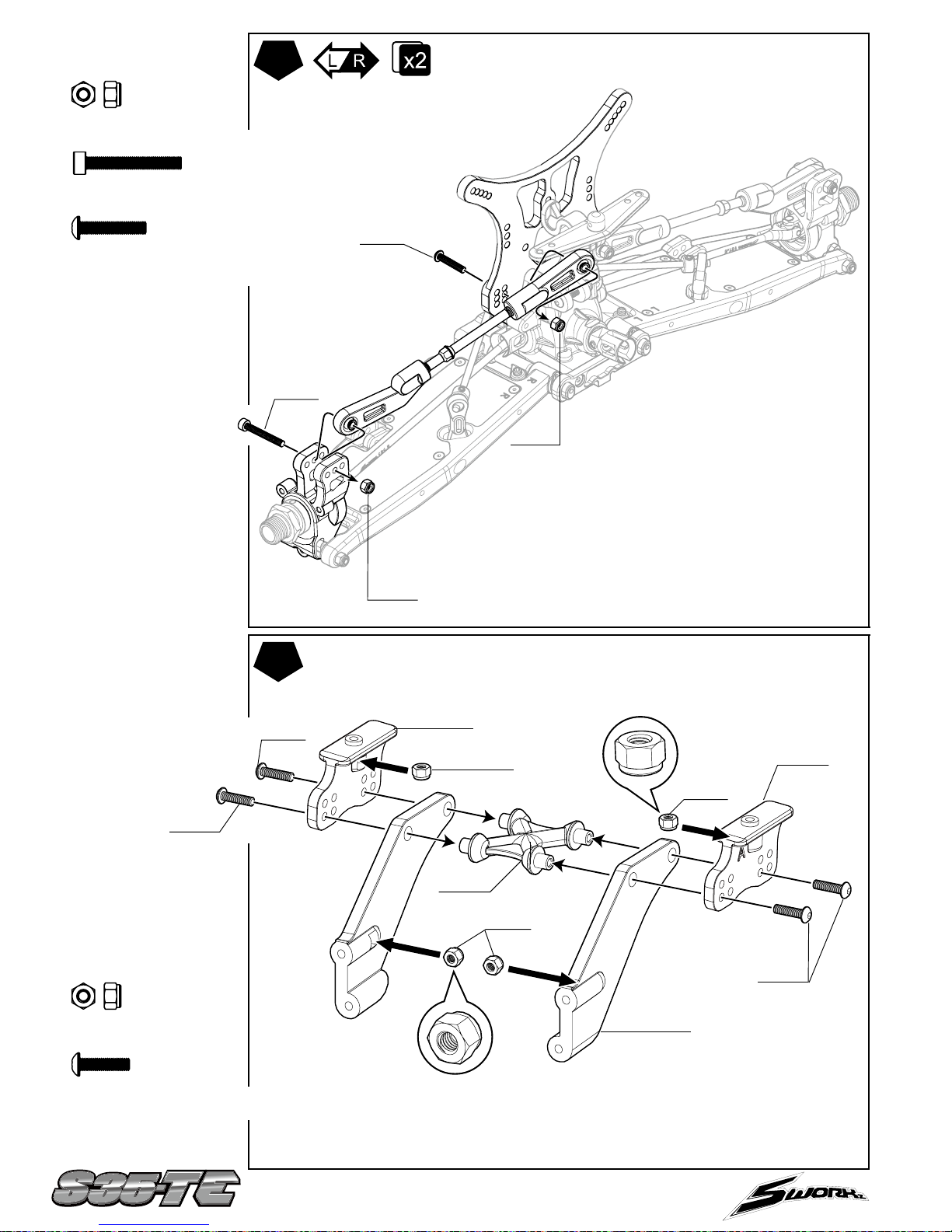

BAG E1
2503260-9
2503260-10
2503260-1
2503260-2
2503260-3
2503260-4
106015
106015
330119
330119
108001
108001
Note:
2503260-9
S35-3 Front Shock Tower Upper Arm Holder Insert (+/- 1.0 Degree)
2503260-10
S35-3 Front Shock Tower Upper Arm Holder Insert (0 Degree)
Note:
2503260-1
S35-3 Front Upper Arm Adjust Insert (0.9mm)
2503260-2
S35-3 Front Upper Arm Adjust Insert (1.0mm)
2503260-3
S35-3 Front Upper Arm Adjust Insert (1.1mm)
2503260-4
S35-3 Front Upper Arm Adjust Insert (2.0mm)
Pro Tip:
The S35-3 Front Upper Arm Adjust Inserts
can give different steering adjustments (Ackerman).
Put all inserts behind the front upper arms, you will get faster steering response.
Otherwise put all inserts in front of the upper arms,
you will get more stable steering response.
Try to use 2503260-1 or 2503260-3 to adjust the front upper arm position.
108001
M3x12mm FH/ST HEX Screw x4
330119
Front Upper Arm HingPin x2
106005
M3x15mm Hex Socket OH/TP Screw x2
108019
M2.6x6mm FH/ST HEX Screw x12
106005
330136
330134
108019
2503260-2
2503260-3
2503260-4
2503260-1
2503260-11
2503260-18
2503260-18
2503260-11
2503260-9
2503260-10
106015
M3x5mm Hex Socket OH/TP Screw x2
330820
2502039B
2502039B
2502038B
2502038B
106021A
M4x10mm Hex Socket OH/TP Screw X2
106021A
2501121C-6

14
15
14
330103
Front/Rear Lower Arm HingPin x2
108008
M3x35mm FH/ST HEX Screw x2
330770
Pro Tip:
The 330770 Aluminum Rear Lower Fully Adjustable
Toe-In Block (A) can use 3 types of square inserts
to get 1.0/2.0/3.0 3 different toe in angles. Also plus
3 different rear lower arm kick up degrees.
For the option parts SW-330795
S35-3 Aluminum Rear Lower Fully Adjustable Toe-
In Block (B), you will have 0.5 degree more than
Type A, so 1.5/2.5/3.5 can be set.
Note:
2503260-21
S35-3 Aluminum Rear Lower Fully Adjustable Toe-In Block (A) Insert (+- 1 degree)
2503260-22
S35-3 Aluminum Rear Lower Fully Adjustable Toe-In Block (A) Insert (0 degree)
2503260-23
S35-3 Aluminum Rear Lower Fully Adjustable Toe-In Block (A) Insert (+- 1 Kick up degree)
108005
M3x14mm FH/ST HEX Screw x2
108009
108009
106002
106002
M3x10mm Hex Socket OH/TP Screw x1
108005
108009
M3x20mm FH/ST HEX Screw x2
103001
M3 Nut Lock x2
101021
M3x8xT1mm x2
2502040-02
330669A
330399B
2503260-16.17
2503260-16.17
2503260-1
2503260-1
330103
330103
108008
2503260-21
2503260-22
2503260-23
2503260-21
2503260-22
2503260-23

15
16
17
104005
M3x4mm Set Screw x2
106013
M2.5x8m
mH ex Socket OH/TPScrew x
2
2503261-1
104004
104004
115008A
Pop in the Stabilizer Guide.
104005
104005
106013
104004
M3x3mm Set Screw x2

16
Please use the
6x10x0.2mm shim
to adjust play between
the servo saver post
and steering bell crank
plate.
8mm
108003
116004
330113
19
BAG E2 18
117003
117003
103001
103001
117003
117003
101021
101021
106007
106007
330135A
115004
106004
330114A
2501122A
2501667-8
2501122A
106004
330632
103001
M3 Nut Lock x2
116004
Ball Bearing 6x10x3mm x2
117003
Flange Ball Bearing 3x6x2.5mm x4
101021
M3x8xT1mm x2
101019
116004
Ball Bearing 6x10x3mm x2
101019
SHIM 6.0x10.0x0.2mm x1
108003
M3x10mm FH/ST HEX Screw x2
106007
M3x12mm Hex Socket OH/TP Screw(HT) x1
Please use the
6x10x0.2mm shim
to adjust play between
the servo saver post
and steering bell crank
plate.
610019

17
20
21
BAG E3
2503260-8
2503260
330118A
106002
330826
330826
330118A
330252
330252
Screw and adjust 330118A Knuckle
Pivot Ball Nut so as the pivot ball can
be moved smoothly.
Left
Right
330124
Pin M3.0x16.8mm x2
116006
Ball Bearing 8x16x5mm x2
104010
M5x4mm Set Screw (Flat Bottom) x2
Right
106002
M3x10mm Hex Socket OH/TP Screw x4
2503264A
2503264A
Be sure that M5x4 set screw must touch the at side from pin.
104010
116006
330124A
330551
116006
210074

18
23
22
116006
116006
330651L
Left
Right
106002
M3x10 mm Hex Socket OH/TP Screw x2
106002
2502040-02
330117A
Be sure that M5x4 set screw must
touch the at side from pin.
330124A
330551
104010
104010
M5x4mm Set Screw (Flat Bottom) x2
33124A
Pin M3.0x16.8mm x2
116006
Ball Bearing 8x16x5mm x4
210074

19
24
25
48mm
2503260-6
2503260-7
2503260-7
2503260-7
103001
103001
330782
330782
330782
Rear Hub Carriers Hing Pin with Nut x2
103001
M3 Nut Lock x2
330125
330125
330458
330458
S350T Rear Upper Arm Turnbuckle M5x72mm x2
2503260-6
2503260-7
2501121C-4
2501121C-9

20
27
26
106003
105011
103001
103001
106008
106008
106008
103001
103001
2501097
2501097
2501097
2501097
103001
103001
M3 Nut Lock x4
106008
M3x12mm Hex Soket OH/TP Screw x4
103001
M3 Nut Lock x4
106003
M3x16mm Hex Socket OH/TP Screw x2
105011
M3x12mm Cap Screw x2
