TECO e510 series User manual

I
Table of Contents
Preface 0-1
Chapter 1 Safety Precautions 1-1
1.1 Before Power UP 1-1
1.2 During Power UP 1-2
1.3 Before Operation 1-2
1.4 During Operation 1-2
1.5 Inverter Disposal 1-3
Chapter 2 Model Description 2-1
2.1 Nameplate Data 2-1
2.2 Model Identification 2-1
2.3 Standard Product Specification 2-2
Chapter 3 Environment & Installation 3-1
3.1 Environment 3-1
3.2 Installation 3-3
3.2.1 Installation method 3-3
3.2.2 Installation space 3-21
3.2.3 De-rating curves 3.2.4 Capacitor reforming Guide after long storage 3-22 3-22
3.3 Wiring guidelines 3-23
3.3.1 Power Cables 3-23
3.3.2 Control Cable selection and Wiring 3-23
3.3.3 Wiring and EMC guidelines 3-24
3.3.4 Failure liability 3-25
3.3.5 Considerations for peripheral equipment 3-26
3.3.6 Ground connection 3-27
3.3.7 Inverter exterior 3-28
3.4 Specifications 3-37
3.4.1 Product Specifications 3-37
3.4.2 General Specifications 3-39
3.5 Standard wiring 3-41
3.5.1 Single phase 3-41
3.5.2 Single/ Three phase 3-42
3.5.3 Three phase 3-43
3.6 Terminal Description 3-44
3.6.1 Description of main circuit terminals 3-44
3.6.2 Control circuit terminal description 3-46
3.7 Outline Dimensions 3-48
3.7.1 IP20/NEMA1 dimensions 3-48
3.7.2 IP66/NEMA4X dimensions 3-58
3.8 EMC filter disconnection 3-61
3.9 The Dimension and Installation of Operator panel 3-62
3.9.1 Description of dimension and installation 3-62

II
3.9.2 Description of Protective Cover 3-64
Chapter 4 Software Index 4-1
4.1 Keypad Description 4-1
4.1.1 Operator Panel Functions 4-1
4.1.2 Digital display Description 4-2
4.1.3 Digital display setup 4-4
4.1.4 Example of Keypad Operation 4-5
4.1.5 Operation Control 4-7
4.2 Programmable Parameter Groups 4-8
4.3 Parameter Function Description 4-28
4.4 Specification Description on Built-in PLC Function 4-81
4.4.1 Basic Instruction Set 4-81
4.4.2 Function of Basic Instructions 4-82
4.4.3 Application Instructions 4-83
Chapter 5 Troubleshooting and Maintenance 5-1
5.1 Error Display and Corrective Action 5-1
5.1.1 Manual Reset and Auto-Reset 5-1
5.1.2 Keypad Operation Error Instruction 5-3
5.1.3 Special conditions 5-4
5.2 General troubleshooting 5-5
5.3 Troubleshooting of the Inverter 5-6
5.3.1 Quick troubleshooting of the Inverter 5-6
5.3.2 Troubleshooting for OC, OL error displays 5-8
5.3.3 Troubleshooting for OV, LV error 5-9
5.3.4 Motor not running 5-10
5.3.5 Motor Overheating 5-11
5.3.6 Motor runs unbalanced 5-12
5.4 Routine and periodic inspection 5-13
5.5 Maintenance 5-14
Chapter 6 Peripheral Components 6-1
6.1 Reactor Specifications 6-1
6.2 Electromagnetic Contactor circuit breaker 6-1
6.3 Fuse Specification 6-2
6.4 Fuse Specification(UL Model Recommended) 6-2
6.5 Brake Resistor 6-3
6.6 Noise filter 6-4
Appendix 1 Instructions for UL App1-1
Appendix 2 E510 Parameter Setting List App2-1
Appendix 3 E510 MODBUS Communication protocol App3-1
Appendix 4 E510 PLC Communication protocol App4-1
Appendix 5 JN5-CM-USB instruction manual App5-1
Appendix 6 510 series accessories manual App6-1

0-1
Preface
To extend the performance of the product and ensure personnel safety, please read
this manual thoroughly before using the inverter. Should there be any problem in using the
product that cannot be solved with the information provided in the manual, contact Our’s
technical or sales representative who will be willing to help you.
※Precautions
The inverter is an electrical product. For your safety, there are symbols such as
“Danger”, “Caution” in this manual as a reminder to pay attention to safety instructions on
handling, installing, operating, and checking the inverter. Be sure to follow the instructions
for highest safety.
Danger Indicates a potential hazard that could cause death or serious
personal injury if misused.
Caution Indicates that the inverter or the mechanical system might be
damaged if misused.
Danger
Risk of electric shock. The DC link capacitors remain charged for five
minutes after power has been removed. It is not permissible to open the
equipment until 5 minutes after the power has been removed.
Do not make any connections when the inverter is powered on. Do not check
parts and signals on circuit boards during the inverter operation.
Do not disassemble the inverter or modify any internal wires, circuits, or
parts.
Ensure that the Inveter Ground terminal is connected correctly.
Caution
Do not perform a voltage test on parts inside the inverter. High voltage can
destroy the semiconductor components.
Do not connect T1, T2, and T3 terminals of the inverter to any AC input power
supply.
CMOS ICs on the inverter’s main board are susceptible to static electricity. Do
not touch the main circuit board.

1-1
Chapter 1 Safety Precautions
1.1 Before Power Up
Danger
Make sure the main circuit connections are correct Single phase L1(L),L3(N),
Three phase L1(L),L2,L3(N) are power-input terminals and must not be
mistaken for T1,T2 and T3. Otherwise, inverter damage can result.
Caution
The line voltage applied must comply with the inverter’s specified input
voltage.(See the nameplate)
To avoid the front cover from disengaging, or other damge do not carry the
inverter by its covers. Support the drive by the heat sink when transporting.
Improper handling can damage the inverter or injure personnel and should be
avoided.
To avoid the risk of fire, do not install the inverter on a flammable object.Install on
nonflammable objects such as metal.
This product provides the 24V for internal use only, do not use as the power
supply sources for other external components, such as sensors, electronic
components ... etc., otherwise it will cause adverse situation.
When disconnecting the remote keypad, turn the power off first to avoid any
damage to the keypad or the inverter.
Caution
This product is sold subject to EN 61800-3 and EN 61800-5-1.
In a domestic environment this product may cause radio interference in which
case the user may be required to apply corrective measures.
Motor over temperature protection is not provided.
Caution
Work on the device/system by unqualified personnel or failure to comply with
warnings can result in severe personal injury or serious damage to material. Only
suitably qualified personnel trained in the setup, installation, commissioning and
operation of the product should carry out work on the device/system.
Only permanently-wired input power connections are allowed.

1-2
1.2 During Power Up
Danger
When the momentary power loss is longer than 2 seconds, the inverter will not
have sufficient stored power for its control circuit. Therefore, when the power is
re-applied, the run operation of the inverter will be based on the setup of
following parameters:
Run parameters. 00-02 or 00-03.
Direct run on power up. Parameter. 07-04 and the status of external run
switch,
Note-: the start operation will be regardless of the settings for parameters
07-00/07-01/07-02.
Danger. Direct run on power up.
If direct run on power up is enabled and inverter is set to external run
with the run FWD/REV switch closed then the inverter will restart.
Danger
Prior to use, ensure that all risks and safety implications are considered.
When the momentary power loss ride through is selected and the power loss is
short, the inverter will have sufficient stored power for its control circuits to
function, therefore,when the power is resumed the inverter will automatically
restart depending on the setup of parameters 07-00 & &- 7-01.
1.3 Before Operation
Caution
Make sure the inverter model and rating are the same as that set in parameter
13-00.
Note :On power up the supply voltage set in parameter 01-01 will flash on the
display for 2 seconds.
1.4 During Operation
Danger
Do not connect or disconnect the motor during operation. Otherwise, It may
cause the inverter to trip or damage the unit.

1-3
Caution
Do not touch heat radiating components such as heat sinks and brake
resistors.
The inverter can drive the motor from low speed to high speed. Verify the
allowable speed ranges of the motor and the associated machinery.
Risk of electric shock. The DC link capacitors remain charged for five minutes
after power has been removed. It is not permissible to open the equipment until 5
minutes after the power has been removed.
Caution
The Inverter should be used in environments with temperature range from
(14-104°F) or (-10 to 50°C)* and relative humidity of 95%.
* IP20 : -10 ~ 50 °C without stick on type dust cover.
NEMA1 : -10 ~ 40 °C with stick on type dust cover.
Danger
Make sure that the power is switched off before disassembling or checking any
components.
1.5 Inverter Disposal
Caution
Please dispose of this unit with care as an industrial waste and according to your
required local regulations.
The capacitors of inverter main circuit and printed circuit board are considered as
hazardous waste and must not be burnt.
The plastic enclosure and parts of the inverter such as the cover board will
release harmful gases if burnt.
Danger
To avoid electric shock, do not take the front cover off while power is on.
The motor will restart automatically after stop when auto-restart function is
enabled. In this case, care must be taken while working around the drive and
associated equipment .
The operation of the stop switch is different than that of the emergency stop
switch. The stop switch has to be activated to be effective. Emergency stop has
to be de-activated to become effective.

2-1
Chapter 2 Model Description

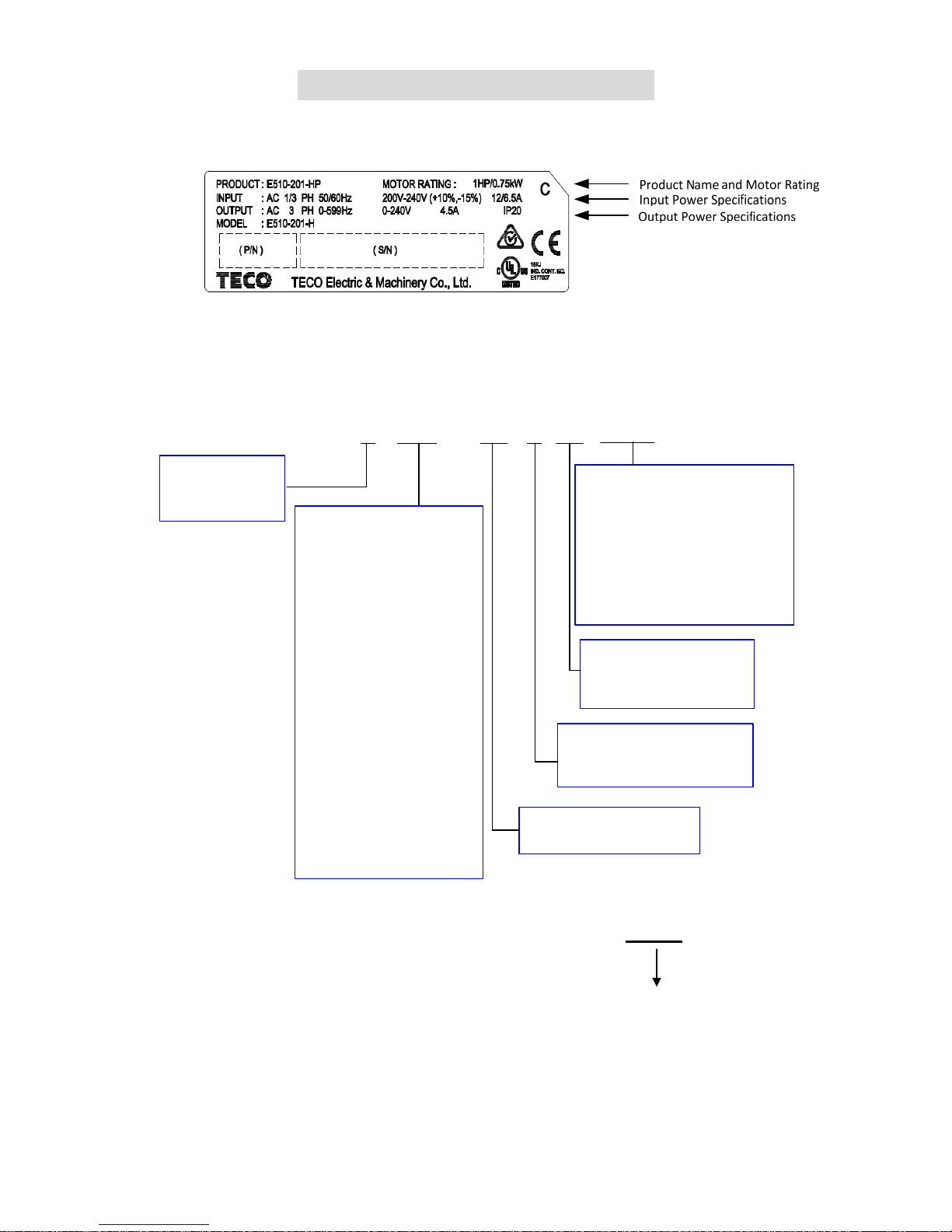

2.1 Nameplate Data
2.2 Model Identification
E510 - 2 P5 - H 1 F N4S
Power supply
1：Single phase
3：Three phase
Specification
H：Standard Type
Supply voltage
2：200V Class
4：400V Class Horsepower
200V Class P5: 0.5 HP
01: 1 HP
02: 2 HP
03: 3 HP
05: 5 HP
08: 8 HP
10: 10 HP
15: 15 HP
20: 20 HP
400V Class 01: 1 HP
02: 2 HP
03: 3 HP
05: 5 HP
08: 8 HP
10: 10 HP
15: 15 HP
20: 20 HP
25: 25 HP
EMC Filter
F ：Built-in
Blank：None
Structure：
N4S: IP66/Built-in VR+Switch
N4：IP66
N4R：IP66/Built-in VR
Blank：IP20
E510–4 20–H 3 F PT
PT: footprint type filter

2-2
2.3 Standard Product Specification
IP20 / NEMA 1 Type
Model Supply
voltage (Vac) (HP) (KW) Filter Frame Size
V X
E510-2P5-H1F 1 ph,
200~240V
(+10%-15%)
50/60 Hz
0.5 0.4 ◎ 1
E510-201-H1F 1 0.75 ◎ 1
E510-202-H1F 2 1.5 ◎ 2
E510-203-H1F 3 2.2 ◎ 2
E510-2P5-H 1 & 3 ph,
200~240V
(+10%-15%)
50/60 Hz
0.5 0.4 ◎ 1
E510-201-H 1 0.75 ◎ 1
E510-202-H 2 1.5 ◎ 2
E510-203-H 3 2.2 ◎ 2
E510-202-H3
3ph,
200~240V
(+10%-15%)
50/60 Hz
2 1.5 ◎ 1
E510-205-H3 5 3.7 ◎ 2
E510-208-H3 7.5 5.5 ◎ 3
E510-210-H3 10 7.5 ◎ 3
E510-215-H3 15 11 ◎ 4
E510-220-H3 20 15 ◎ 4
E510-401-H3F
3ph,
380~480V
(+10%-15%)
50/60 Hz
1 0.75 ◎ 1
E510-401-H3 1 0.75 ◎1
E510-402-H3F 2 1.5 ◎ 1
E510-402-H3 2 1.5 ◎1
E510-403-H3F 3 2.2 ◎ 2
E510-403-H3 3 2.2 ◎2
E510-405-H3F 5 3.7 ◎ 2
E510-405-H3 5 3.7 ◎2
E510-408-H3F 7.5 5.5 ◎ 3
E510-408-H3 7.5 5.5 ◎3
E510-410-H3F 10 7.5 ◎ 3
E510-410-H3 10 7.5 ◎3
E510-415-H3F 15 11 ◎ 3
E510-415-H3 15 11 ◎3
E510-420-H3FPT 20 15 ◎ 4
E510-420-H3F 20 15 ◎ 4
E510-420-H3 20 15 ◎4
E510-425-H3F 25 18.5 ◎ 4
E510-425-H3FPT 25 18.5 ◎ 4
E510-425-H3 25 18.5 ◎4
V : Built-in
X : None

2-3
IP66 / NEMA 4X Type
Model Supply voltage
(Vac) HP (KW) Filter VR Switch Frame
Size
V X V X V X
E510-2P5-H1FN4S 1 ph
200~240V
+10%-15%
50/60Hz
0.5 0.4 ◎◎◎ 1
E510-201-H1FN4S 1 0.75 ◎◎◎ 1
E510-202-H1FN4S 2 1.5 ◎◎◎ 2
E510-203-H1FN4S 3 2.2 ◎◎◎ 2
E510-2P5-HN4R 1 & 3 ph
200~240V
+10%-15%
50/60Hz
0.5 0.4 ◎ ◎ ◎ 1
E510-201-HN4R 1 0.75 ◎ ◎ ◎ 1
E510-202-HN4R 2 1.5 ◎ ◎ ◎ 2
E510-203-HN4R 3 2.2 ◎ ◎ ◎ 2
E510-205-H3N4 3 ph
200~240V
+10%-15%
50/60Hz
5 3.7 ◎◎◎ 2
E510-208-H3N4 7.5 5.5 ◎◎◎ 3
E510-210-H3N4 10 7.5 ◎◎◎ 3
E510-215-H3N4 15 11 ◎◎◎ 3
E510-220-H3N4 20 15 ◎◎◎ 3
E510-401-H3FN4S
3 ph
380~480V
+10%-15%
50/60Hz
1 0.75 ◎◎◎1
E510-401-H3N4 1 0.75 ◎◎◎1
E510-402-H3FN4S 2 1.5 ◎◎◎1
E510-402-H3N4 2 1.5 ◎◎◎1
E510-403-H3FN4S 3 2.2 ◎◎◎2
E510-403-H3N4 3 2.2 ◎◎◎2
E510-405-H3FN4S 5 3.7 ◎◎◎2
E510-405-H3N4 5 3.7 ◎◎◎2
E510-408-H3FN4S 7.5 5.5 ◎◎◎3
E510-408-H3N4 7.5 5.5 ◎◎◎3
E510-410-H3FN4S 10 7.5 ◎◎◎3
E510-410-H3N4 10 7.5
◎◎◎3
E510-415-H3FN4S 15 11 ◎◎◎3
E510-415-H3N4 15 11
◎◎◎ 3
E510-420-H3N4 20 15 ◎◎◎ 3
E510-425-H3N4 25 18.5 ◎◎◎ 3
V : Built-in
X : None
