Teledyne LeCroy T3DSO2000A Series User manual

T3DSO2000A
Oscilloscope
Quick Start Guide

This page is intentionally blank.

1
Copyright Information
Declaration
Teledyne LeCroy products are protected by patent law.
Teledyne LeCroy reserves the right to modify or change parts of or all the specications or
pricing policies at the company’s sole decision.
Information in this publication replaces all previously corresponding material.
Any method of copying, extracting or translating the contents of this manual is not allowed
without the permission of Teledyne LeCroy.

2 T3DSO2000A Quick Start
Contents
COPYRIGHT INFORMATION ................................................................................................................ 1
GENERAL SAFETY SUMMARY ............................................................................................................. 3
DAILY MAINTENANCE AND CLEANING ........................................................................................ 5
GENERAL INSPECTION ............................................................................................................................ 6
DIMENSIONS ............................................................................................................................................... 7
FRONT OF OSCILLOSCOPE .................................................................................................................... 9
BACK OF OSCILLOSCOPE ................................................................................................................... 10
PROBE COMPENSATION ..................................................................................................................... 11
USER INTERFACE ..................................................................................................................................... 12
BASIC OPERATIONS .............................................................................................................................. 19

3
General Safety Summary
Read the following precautions carefully to avoid any personal injuries, or
damage to the instrument or products connected to it. Use the instrument
only as specied.
Use only the power cord supplied for the instrument.
Ground the instrument. The instrument is grounded through the ground
conductor of the power cord. To avoid electric shock, always connect to
grounded outlets. Make sure the instrument is grounded correctly before
connecting its input or output terminals.
Connect the signal wire correctly. To avoid damage, observe input polarity
and maximum voltage/current ratings at all times.
Observe all terminal ratings and signson the instrument to
avoid re or electric shock. Before connecting to the instrument, read the
manual to understand the input/output ratings.
Do not operate with suspected failures. If you suspect that the instrument is
damaged, contact the Teledyne LeCroy service department immediately.
Do not operate in wet/damp conditions.
Do not operate in an explosive atmosphere.
Keep the surface of the instrument clean and dry.
Avoid touching exposed circuits or wires. Do not touch exposed contacts
or components when the power is on.
Do not operate without covers. Do not operate the instrument with covers or
panels removed.
Use only the fuse specied for the instrument.
Use proper over voltage protection.
Use anti-static protection. Operate in an anti-static protected area. Ground
measurement cable conductors before connecting to the instrument to
discharge any static electricity before connecting the cables to the instrument.
Observe ventilation requirements. Ensure good ventilation. Check the vent
and fan regularly to prevent overheating.

Safety Terms and Symbols
The following terms may appear on the instrument:
DANGER: Direct injury or hazard may occur.
WARNING: Potential injury or hazard may occur.
CAUTION: Potential damage to instrument/property may occur.
The following symbols may appear on the instrument:
CAUTION
Risk of
injury or
damage.
Refer to
manual.
WARNING
Risk of
electric
shock or
burn
Earth
Ground
Terminal
Protective
Conductor
Terminal
Frame or
Chassis
Terminal
ON/
Standby
Power
Alternating
Current
Measuring Terminal Ratings
Max. Input Voltage: 1 MΩ ≤ 400 Vpk (DC + Peak AC ≤ 10 KHz)
50 Ω ≤ 5 Vrms
Derated Voltage: 400 Vmax to 10 KHz, derating at 20 dB/decade to
10 Vmax at 400 KHz
No rated measurement category per IEC/EN 61010-031:2015.
Measuring terminals on this product are not intended to be connected directly to
mains.
Operating Environment
Temperature: 10 °C to 40 °C
Relative Humidity: 85% RH at 40 °C for up to 24 hours
Altitude: ≤ 3000 m
Use Indoors only.
Pollution Degree 2. Use in an operating environment where normally only dry,
non-conductive pollution occurs. Temporary conductivity caused by condensation
should be expected.
4 T3DSO2000A Quick Start

5
● Wipe the external dust o the instrument and test leads using a damp soft
rag. Be careful not to scratch the display screen when cleaning. Do not
allow any liquid to enter the instrument.
● Use a 75% isopropyl alcohol/water solution when a more thorough cleaning
is necessary.
NOTE:
To prevent damage to the surface of the instrument or test leads, do not use
any corrosive or chemical cleaning agents. Make sure the instrument is fully
dry before reconnecting the power to avoid short circuiting or personal injury.
AC Power
Input Voltage & Frequency: 100-120 V at 400 Hz or
100-240 V at 50/60 Hz
Automatic AC selection.
Power Consumption: 80 W maximum
Mains Supply Connector: CAT II per IEC/EN 61010-1:2010, instrument
intended to be supplied from the building wiring at utilization points (socket
outlets and similar).
Fuse Type
2 A / 250 V "T" rated 5x20 mm
Daily Maintenance and Cleaning
Maintenance
Protect the liquid crystal display from direct sunlight when storing or using
the instrument.
NOTE:
To avoid damage to the instrument or test leads, do not place them in mist,
liquid or solvent.
Cleaning
Regularly clean the instrument and test leads.

6 T3DSO2000A Quick Start
General Inspection
1. Inspect the shipping container
Keep the damaged shipping container or cushioning material until the contents of
the shipment have been completely checked and the instrument has passed both
electrical and mechanical tests.
The consigner or carrier will be responsible for damage to the instrument resulting from
shipment. Teledyne LeCroy would not provide free maintenance or replacement if the
instrument has been damaged in shipment.
2. Inspect the instrument
If there are instruments found damaged, defective or failure in electrical and
mechanical tests, please contact Teledyne LeCroy.
3. Check the accessories
Please check the accessories according to the packing list. If the accessories are
incomplete or damaged, please contact your Teledyne LeCroy sales representative.

7
Dimensions
Front View
Top View
352.4mm
224.2mm
138.8mm
111.1mm

8 T3DSO2000A Quick Start
Adjust the Supporting Legs
Adjust the supporting legs properly to use them as stands to tilt the oscilloscope
upwards for stable placement as well as easier operation and observation of the
instrument.
Connecting to Power Supply
The standard power supply for the instrument is 100-240 V, 50/60 Hz or 100-120 V,
400 Hz. Please use the power cord provided with the instrument to connect it to AC
power.

9
Front of Oscilloscope
Touch Screen Display
Front Panel
Waveform Generator Output
Probe Compensation and Ground
Terminal
USB Host Ports
Digital Inputs
Analog Input BNC Connectors
Power On / O Switch
Supporting Legs
See the “User Interface” chapter for more details about the Touch Screen
Display and Front Panel.
The built-in Waveform Generator is capable of outputting up to 50 MHz
frequency.
Connect the USB Host Ports to USB storage devices used for data transfer, or
USB mouse / keyboard for control.

10 T3DSO2000A Quick Start
Digital Input Connector receives 16-channel digital signals from the
digital probe.
Back of Oscilloscope
Auxiliary Output outputs the trigger pulse. When Pass / Fail is enabled,
outputs the pass / fail signal.
External Trigger Input.
LAN Port connects to the network for remote control.
USB Device connects with a PC for remote control.
AC Power Input.
Handle.

11
Probe Compensation
All oscilloscope probes should be properly compensated before their rst use with
the oscilloscope. A non-compensated or inadequately compensated probe may
cause inaccurate measurement. The following steps illustrate the proper probe
compensation procedure.
1. Use the probe to connect the CH1 Input Terminal and the Compensation Signal
Output Terminal on the front panel. Connect the ground alligator clip of the
probe to the “Ground Terminal” under the compensation signal output
terminal.

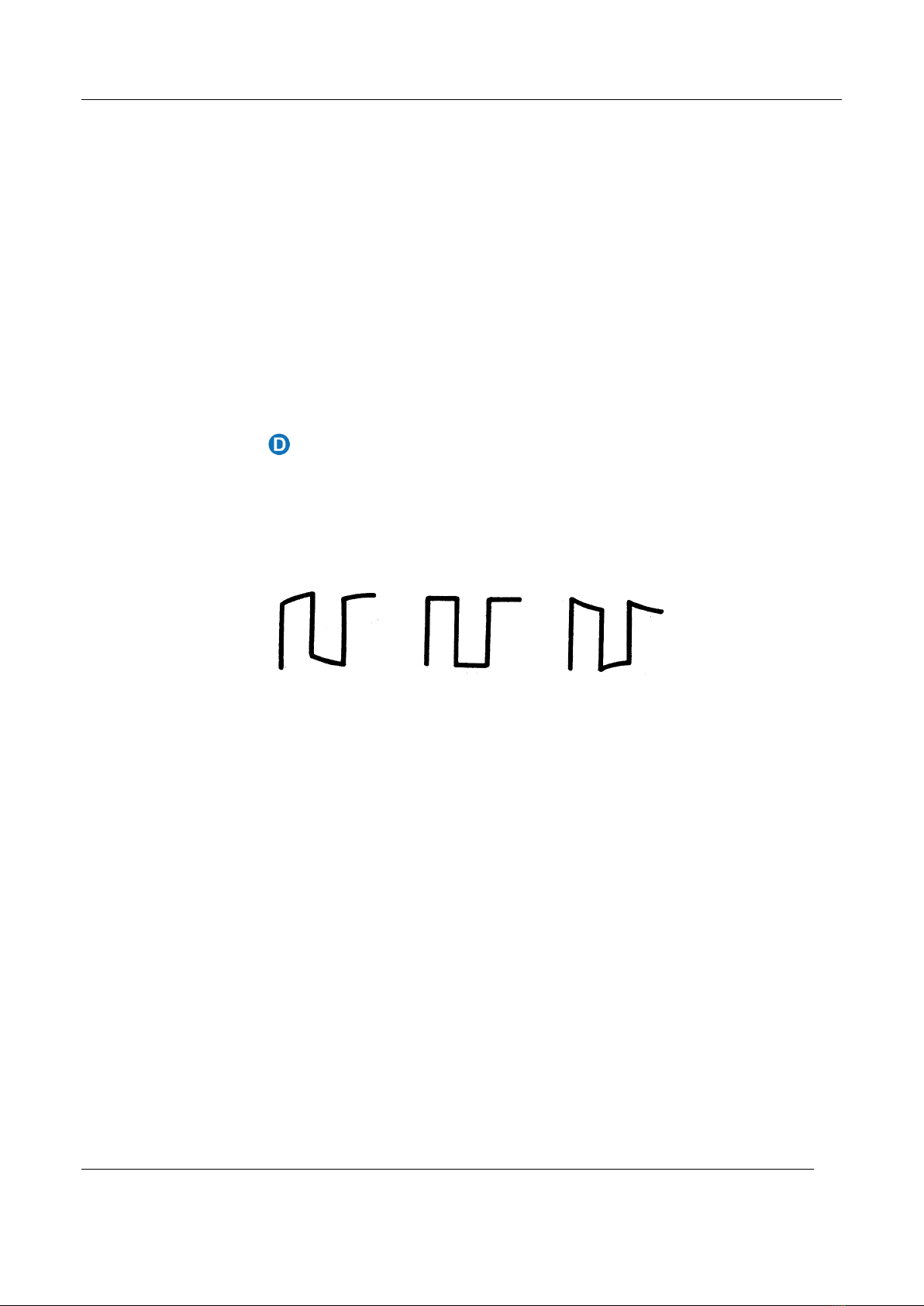

2. Check the displayed waveforms and compare them with the following figure.
Under
Compensated
Compensated
Correctly
Over
Compensated
3. Use a nonmetallic flat-head screwdriver to adjust the low-frequency
compensation adjustment hole on the probe until the waveform matches the
“Compensated Correctly” waveform above.

12 T3DSO2000A Quick Start
User Interface
Menu Bar with drop-down menus lets you access set-up dialogs and other
functions. All functionality can be accessed through the menu bar.
Grid Area displays the waveform traces. Traces can be moved by dragging
them and re-scaled by pinch and spread.
Channel descriptor boxes include analog channels (C1 - C4), digital channels
(D), math (F1-F2) and reference (Ref). They are located under the grid area,
showing the parameters of the corresponding traces. Touching the boxes
creates a dialog box.
Timebase and Trigger Descriptor Boxes show the parameters of timebase
and trigger respectively. Touching the boxes creates a dialog box.
Dialog Box is the main area to select the parameters for a chosen specific
function.
Trigger Delay Indicator locates where the waveform triggers on the horizontal
axis.
Trigger Level Indicator shows the level where the waveform triggers on the

13
vertical axis.
Cursors show where measurement points have been set.
Channel Descriptor Box
Channel index
Bandwidth limit indicator
Coupling and impedance
Volts/div
Offset
Probe attenuation
Timebase and Trigger Descriptor Boxes
Trigger delay
Time/div
# Samples
Sample rate
Trigger source
Trigger coupling
Trigger mode
Trigger level
Trigger type
Trigger slope

14 T3DSO2000A Quick Start
Dialog Box
The dialog box on the right side of the screen is the main area for setting the
parameters of the selected function.
Title bar. Touching the bar can hide
the dialog box, and touching again can
open the dialog box.
Parameter setting area.
Scroll bar. When parameters are more
than the displayed range, the blue
scrollbar will be displayed. By sliding
the dialog area up and down, or rolling
the mouse wheel, it can scroll to the
area not displayed.

15
To Set Parameters
The T3DSO2000A provides several different ways to set parameters:
Switch – sets parameters with two states, such as to
enable or disable a function. Touch the switch region to
change from one state to the other.
List – sets parameters with more than
two options, such as the coupling mode
of channels. Touch the parameter
region, and then select the expected
option from the pop-up list.
Virtual Keypad – Sets parameters with a numerical value.
Touch the parameter region, and the parameter can be
adjusted by the universal knob on the front panel; touch
the region again, then the virtual keypad appears;
To use the operation of setting
“deskew” of the channel as an
example: If the expected value is 65 ns,
input “65” on the virtual keypad, and
then choose the unit n to complete
the operation. On the virtual keypad,
touching the button Max , Min , and
Default quickly sets the parameter to
its maximum, minimum and default
values.

16 T3DSO2000A Quick Start
Touch Gestures
Waveforms, cursors and trigger level can be adjusted by touch gestures in the grid
area.
Drag the waveform left and right to move
it on the horizontal axis
Pinch and spread the waveform
horizontally to re-scale the timebase
Drag the waveform up and down to move
it on the vertical axis
Pinch and spread the waveform
vertically to re-scale the vertical gain

17
Touch and drag the cursor to move it
Touch and drag the cursor information
region to move the pair of cursors
simultaneously
Draw a rectangular box to create a zone
or a histogram region. At the beginning
of the gesture keep the angle close to 45°
so it can be recognized as the drawing
box gesture

18 T3DSO2000A Quick Start
Front Panel
Most of the front panel controls duplicate
functionality available through the touch screen
display. They are covered in more detail in the
Basics section and in the User Manual.
Automatically sets the waveform to
adapt the display according to its
frequency and amplitude
Resets the oscilloscope to the default
conguration.
Enables or disables the touch screen.
When it is lighted the functionality is
enabled
Rotate the universal knob to set the
value of the activated parameter, or to
move the selected cursor. Push to
select a different cursor.
Choosing the Language
＞ System setting ＞ Language
