Theben compact office 24V User manual

1103019405 / 04.2010 © Theben HTS
Art. Nr. 201 4 000
Art. Nr. 201 4 001
Presence detector
compact ofce 24V
compact ofce 24V Lux
Bedienungsanleitung 2
Notice d´utilisation 22
Installation manual 42
Manual de instrucciones 62
Istruzioni per l'uso 82
Gebruikershandleiding 102
Bruksanvisning 122
Bruksanvisning 142
Käyttöohje 162
Betjeningsvejledning 182
DK
D
F
GB
E
I
NL
S
N
FIN

42
English Installation manual
Presence detector
compact ofce 24V
compact ofce 24V Lux
Table of contents
1. Safety ..................................................43
2. Function and performance characteristics. . . . . . . . . . . . . . . . . . . . . . . 44
3.Fittingandconnection......................................45
4.Start-up.................................................48
5.Parallelcircuitoperation ....................................52
6. Use of the user remote control clic . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
7.TestOperation............................................ 54
8. Technical specications.....................................55
9. Warranty declaration .......................................57
10.Troubleshooting..........................................58

43
GB
Thank you for purchasing an Theben HTS presence detector and putting
your trust in us.
1. Safety
Familiarise yourself with the compact ofce 24V (Lux) before assembly and
start-up by reading this operating instructions.
IMPORTANT!
The unit requires no maintenance. Opening the unit or inserting foreign bo-
dies into it will invalidate the warranty.
Proper use
The presence detector serves exclusively for the purpose contractually ag-
reed between the manufacturer and the user. Any other use is regarded as
improper. The manufacturer is not responsible for any resulting damage.

44
2. Function and performance characteristics
The presence detector compact ofce 24V (Lux) detects persons within a
room on account of slightest movements. Simultaneously, its light sensor
measures the brightness in the room and compares it to the preset bright-
ness threshold. Two relays (compact ofce 24V) or one relay (compact ofce
24V Lux) serve as switching outputs.
The presence detector compact ofce 24V (Lux) is used preferably in ofces,
small passageways and ancillary rooms. A mechanical safety lock protects
the detector against unauthorised removal.
The switching contact A «Light» switches on the lighting in case of
presence and insufcient brightness, and off in case of absence or sufcient
brightness.
● Switching contact «Light»: potential-free relay
● Adjustable brightness threshold and switch-off delay
● Suitable for uorescent and compact energy saving lamps as wells as for
halogen and incandescent lamps
●Pulse function for staircase lighting timer
● QuickSet plus service remote control (optionally)
● clic user remote control (optionally)
The switching contact B «Presence» (compact ofce 24V only) controls
heating, ventilation and air-conditioning systems. The contact closes in case
of presence, a switch-on delay allows a delayed switching on.

45
GB
The contact can also be used for room surveillance purposes. Using redu-
ced sensitivity, it only responds on very distinct movements.
● Switching contact «Presence»: potential-free relay
● Adjustable switch-on delay and switch-off delay
●Surveillance function
The analog output 0-10V (compact ofce 24V Lux only) provides the
brightness measured by the detector’s light sensor as an analog signal. The
output can be used like a light sensor and functions independently from the
presence detector.
●Analog output 0-10V
●Linear or logarithmic output of brightness
3. Fitting and connection
3.1 Presence detection
The ideal mounting height is 2,0 - 3,0m.
The sensitivity of the detector decreases with increasing mounting height. In
order to ensure proper detection of persons, the detector requires an unob-
structed “view” of the persons. Ofce equipment, plants, suspended lamps
etc. may affect the presence detection (shading).

46
Detection range (mounting height 3,0m)
2
3
1
0
m0
23
112
33.5
0.8
3.5
Lux
3,5 3,5
32 1 12 30
o
M’height Seated persons Walking persons
2,0m 9 m2 3,0m x 3,0m 20 m2 4,5m x 4,5m ± 0,5m
2,5m 16 m2 4,0m x 4,0m 36 m2 6,0m x 6,0m ± 0,5m
3,0m 20 m2 4,5m x 4,5m 49 m2 7,0m x 7,0m ± 1,0m
3,5m --- 64 m2 8,0m x 8,0m ± 1,0m
seated persons
walking persons

47
GB
3.2 Light measurement
The detector measures articial
light and daylight reected directly
beneath the detector (beam width
approx. ± 30°).
The mounting location is used as
the reference for the lighting levels.
With indirect lighting, the arti-
cial light at the detector’s mounting location should not exceed 2000 Lux
(Brightness value > 2000 Lux).
3.3 Connection
A concealed housing should be used for ush-mounted tting of the
presence detector. A surface frame is available for surface mounting.
See the technical data
24V=
~
compact
power 24V
+-
A1 A2 B1 B2
compact
power 24V Lux
+-
A1 A2
24V=
~
+-
0-10V
0-10V

48
4. Start-up
The detectors are supplied ready for operation with a factory setting of re-
commended standard values. The QuickSet plus service remote control for
starting-up the system is optionally available. With the remote control all poten-
tiometer values can be set from a distance.
4.1 Settings for switching contact A «Light»
Potentiometer
Brightness threshold “LUX” Scale
● Transfer zones (no working area) approx. 2
● Working areas (ofce, conference room) approx. 4
● Activities requiring good visibility (laboratory, drawing, etc.) > 5
●Deactivation of brightness measurement «on»
Depending on the installation location,
natural light intensity, furniture, reection
characteristics of the room and the furni-
ture it may be necessary to correct the
settings by 1-2 steps on the scale.
For ease of setting up, we recommend the
service remote control QuickSet plus. 


49
GB
Switch-off delay time
● Transfer areas approx. 5min.
● Working areas approx. 10min.
● In the range between 2 - 15min the switch-off delay varies according to
its self-learning behavior. The set values <2min or >15min remain xed.
● «Pulse»: staircase lighting timer control (0.5sec. “on” / 10sec. “off”)
DIP switch
Light measurement: adaptive or xed hysteresis
●: the light measurement is in adaptive mode.
● : if the lighting is continuously
overridden by a superordinate logic, the
adaptive mode can be deactivated.
4.2 Settings for analog output 0-10V
(compact ofce 24V Lux only)
Linear or logarithmic output of brightness
●„0-10V lin“: linear output of brightness
●„0-10V log“: logarithmic output of brightness; improved resolution at low
lux values
0-10V lin
fix
auto
0-10V log

fix
auto


50
4.3 Settings for switching output B «Presence»
(compact ofce 24V only)
 Switch-off delay time for presence
● The pre-set values remain unchanged (no self-learning effect).
 Switch-on delay time for presence
● In case of presence, the contact does not close before the set switch-on
delay has elapsed.
● 0 = Contact closes immediately in case of presence.
● Room surveillance function; the contact closes only in case of dis-
tinct movements (effective protection against false alarms).

10s


51
GB
4.4 Behaviour on switching on
Whenever the sensor module is plugged onto the power module or the unit
is energised, the detector goes through tree phases which are indicated by
an LED.
1. Start-up phase (30sec)
● LED ashes every second, both contacts are closed
(light and presence on)
● In case of absence, both contacts open after 30sec.
2. Service phase (10min)
● The “Light” contact reacts instantaneously on brightness in order to
check the brightness threshold.
● If the brightness is insufcient the lighting is switched on (LED on),and if
the brightness is sufcient the lighting is switched off (LED off).
● The service phase can be terminated earlier by actuating the clic user
remote control.
3. Operation
● The detector is ready for operation (LED off).

52
5. Parallel circuit operation
● The relay outputs of a number of detectors can be connected in parallel
circuit operation. This enables coverage of large and irregularly shaped
rooms such as corridors, underground parkings e.g.
●A parallel connection of 0-10V analogue outputs is not permissible.
●The total permissible load does not increase.
● Presence detection and brightness measurement by all detectors
together.
● The brightness threshold value and switch-off delay time must be
adjusted individually for each detector.
● The user remote control clic can only be used subject to certain
restrictions (see section 6).
See the technical data
24V=
~
compact
power 24V
+-
A1 A2 B1 B2
compact
power 24V
+-
A1 A2 B1 B2
compact
power 24V Lux
+-
A1 A2
24V=
~
+-
0-10V
compact
power 24V Lux
+-
A1 A2 +-
0-10V
0-10V

53
GB
6. Use of the user remote control clic
Amount of devices Group adresses clic
One device Group addresses freely selectable.
See user instructions for user remote control clic fore
more details
Two devices Device 1: Group adress A or C
Device 2: Group adress B or D
clic: Group adresses A+B or C+D
The ON and OFF commands switch the lighting on
and off respectively.
Three and more devices The user remote control clic cannot be used!
Please note that the user remote control clic can only be used to
a limited extent with a number of detectors connected in parallel.


54
7. Test Operation
The test mode serves to check the presence detection
and the wiring.

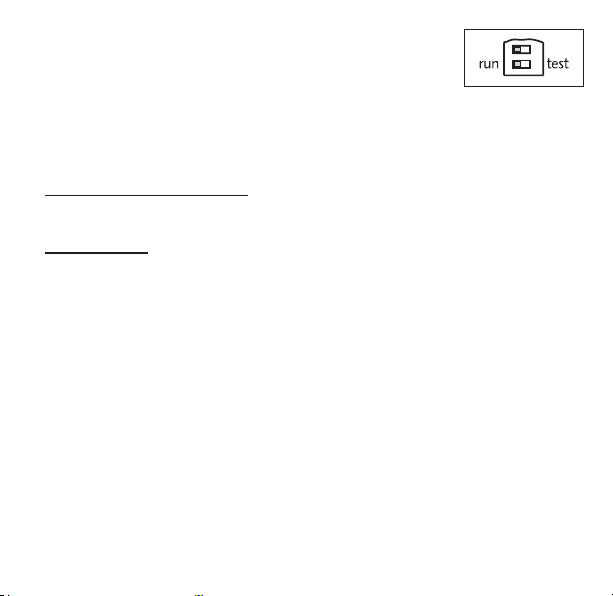

7.1 Setting the test mode with DIP-Switch
●Set DIP switch to «Test».
1. Start-up phase (30sec)
● Both contacts are closed for 30sec. (LED 20s «on», 10s «off» )
2. Test mode
● In case of movement (LED on), both contacts close.
● In case of absence (LED off), both contacts open after 10sec.
●NOTE: no brightness measurement.
● The detector remains permanently in the test mode.
7.2 Setting the test mode with QuickSet plus
●While setting the test mode with the service remote control QuickSet
plus, the detector jumps the start-up phase and changes directly into the
test mode.
● Test mode ceases automatically after 10 minutes. The detector performs
a reset (see section 4.3).

55
GB
8. Technical specications
Sensor module compact ofce 24V
Detection range: horizontal
vertical
360°
120°
Recommended mounting height (Mh) 2,0 - 3,0m
Maximum range 6 x 6 m (Mh. 2.5m)
8 x 8 m (Mh 3.5m)
Mixed light control
Light measurement deactivated
ca. 10 - 1500Lux
„on“
Switch off delay for light
Short pulse
10sec. - 20min.
0.5sec. „on“/ 10sec. „off“
Switch off delay for presence 10sec. - 120min.
Switch on delay for presence
Room surveillance
0sec. - 10min.
Power modules compact power 24V
compact power 24V Lux
Nominal voltage 24V AC/DC ± 20%
Relay output A1, A2 for „light“ Relais, potential free
Type of contact
potential-free micro-contact 24V
@ AC/DC ±20%
Switching capacity: minimal
maximal
1V / 1mA *)
50W / 460VA
*) A load of more than 60V or 100mA on the switching contact (max. 1.5W) changes
its characteristics permanently; the minimum load specication of 1V/1mA can no
longer be guaranteed.

56
Relay output B1, B2 for „presence“
(compact power 24V only)
Relay potential-free
Type of contact
potential-free micro-contact 24V
@ 2Aµ, 230V~2Aµ
Switching capacity: minimum
maximum
1V / 1mA *)
50W / 460VA
Analog output 0-10V
(compact power 24V Lux only)
0-10V
Output voltage 0-10V DC
Load resistor > 10kΩ
Mixed light measurement linear
logarithmic
approx. 10 - 1500 Lux
approx. 10 - 5000 Lux
Depth
Diameter
Mounting plate
40mm
48mm
70 x 70mm
Screw terminals max. 2x 2.5mm2
Size of concealed housing (for ush-mounting) Dim. 1, (NIS,PMI)
Ambient temperature 0° - 50°C
Degree of protection IP 40
Article numbers
compact ofce 24V 201 4 000
compact ofce 24V Lux 201 4 001
Surface frame for compact 907 0 514
Service remote control QuickSet plus 907 0 532
User remote control clic 907 0 515

57
GB
9. Warranty declaration
Theben HTS presence detectors are manufactured and quality-tested with the ut-
most care using state-of-the-art technologies. Theben HTS therefore guarantees
perfect function, provided the detectors are used as intended. However, should a de-
fect occur, Theben HTS offers the following warranty within the scope of its General
Terms and Conditions of Business:
Please bear in mind the following points:
● The warranty period is 24 months, commencing from the manufacturing date.
● The warranty becomes null and void if you or third parties undertake alterations to
the units.
● If the presence detector is connected to a software-controlled system, the war-
ranty for this connection is only valid provided the stated interface specication is
adhered to.
We undertake to repair or replace as quickly as possible all supplied components which
have become defective or unusable as a result of demonstrably bad material, faulty
design or defective workmanship up to the expiry of the warranty period.
Returns
In the event of a warranty claim please send the unit together with the delivery note and
a brief description of the fault to the dealer concerned.
Industrial property rights
The concept including hardware and software of these units is protected by copyright.

58
Fault Cause
Lighting does not switch on
or switches off in case of
presence and darkness
Lux value setting is too low; Lighting was switched
off manually with clic; Person is outside the detec-
tion range; Detection is disturbed by obstacles;
Set switch-off delay setting is too short
With persons present, the
lighting is on although the
brightness is sufcient
Lux value setting is too high; The lighting has been
switched on manually with clic recently (wait for 30
min); Detector is in test mode
Lighting does not switch off or
switches on spontaneously in
case of absence
Wait until the switch-off delay time has elapsed
(self-learning effect); Disturbing heat sources within
the detection range (heaters, incandescent lamp/
halogen lamp, moving objects (e.g. curtains due to
open windows)
Lighting keeps switching on
and off during the service
phase
Too much articial light is falling on the detector,
increase lux value. Set DIP switch to „x“ or reposi-
tion the detector.
Error blinking (4x per second) Failure during self test;
Device not working!
CE Declaration of Conformity
This device complies with the protection regulations of the EMC directives
2004/108/EC and of the Low Voltage directive 2006/95/EC.
10. Troubleshooting

59
GB
Subject to change without prior notice. Errors and omissions excepted.
∅
48
40
66
33
78
46
76
∅
102,5
26 27
102,5
15,5
Dimensions compact ofce 24V, compact ofce 24V Lux

60
Theben AG
Hohenbergstrasse 32, DE-72401 Haigerloch
Tel. [phone] - 0
Fax [phone] - 150
Hotline
Tel. [phone] - 369
Fax [phone] - 207
[email protected]
Switzerland
Theben HTS AG
Im Langhag 11, CH - 8307 Effretikon
Tel. [phone]
Fax [phone]
www.theben-hts.ch
Please nd the contact addresses for additional countries on www.theben.de
