Theben theRonda P360-110 DALI UP WH User manual

1
theRonda P360-110 DALI UP WH
2080040
theRonda S360-110 DALI UP WH
2080580
307279 02
Presence detectors
EN
1. Product characteristics
•Passive infrared presence detector for ceiling installation
•Round detection area 360° (up to 50 m2or 452 m2) for
reliable and easy planning
•Restriction of detection area with cover clips
•Automatic lighting control with constant lighting control
or switching operation
•Lighting dimmable in switching operation with or
without effect of daylight
•Orientation light (standby function)
•Easy to start-up without programming group addresses
(DALI Broadcast)
•DALI-2 certied
•Mixed light measurement suitable for uorescent lamps
(FL/PL/ESL), halogen/incandescent lamps and LEDs
•Calibration of brightness measurement
•Fully or semi-automatic operation, switchable
•Brightness setpoint value adjustable in lux
•Teach-in function via remote control or button
•Self-learning time delay
•Reduction of time delay when present briey (short-term
presence)
•Detection sensitivity congurable
•1 presence channel for external DALI relay, e.g. for HVAC
control
•Connection option for buttons for manual dimming and
switching
•Behaviour upon button operation selectable
•Scene functionality
•Ready for immediate use due to factory presetting
•Easy conguration of the energy-saving response with
“eco plus” function
•Test mode for checking function and detection area
•Extension of detection area via Master/Slave or Master/
Master switching
•Protection rating IP 54 (installed)
•Ceiling installation in ush-mounted box
•Surface mounting on ceilings possible with back box
(option)
•Management remote control „SendoPro, theSenda B/
App“ (optional)
•Installation remote control “theSenda P” (option)
•User remote control “theSenda S” (option)
2. Safety
Danger of death through electric shock or fire!
Installation should only be carried out by a
qualified electrician!
WARNING
•Work on electrical systems may only be carried out by
qualied electricians or by instructed persons under the
guidance and supervision of a qualied electrician in
accordance with the technical regulations applying to
electricity!
•Comply with the country-specic safety regulations for
work on electrical systems! Ensure absence of voltage in
the cable before installation!
•The device is maintenance-free. If the device is opened
or penetrated with any object, the guarantee lapses.
3. Proper use
The presence detector is intended for indoor installation. The
presence detector is exclusively intended for the use as con-
tractually agreed between the manufacturer and the user. Any
other use is considered to be unacceptable. The manufacturer
does not accept liability for any resulting damages.
4. Function
The presence detector is primarily used in ofces, schools,
conference rooms and corridors, as well as in homes, for easy
and energy-efcient control of lighting. The lighting is accor-
dingly inuenced by switching or constant lighting control.
Function description






Mixed light measurement
Presence detection
 Articial light
Push button for manual lighting control
Incident daylight
Channel C1 light
The lighting is controlled by presence and brightness. Articial
lighting is switched on and regulated at a constant brightness
level via the DALI interface in the event of too little daylight
and when the room is occupied.
The lighting is switched off via the DALI interface if there is
sufcient daylight or if the room is unoccupied.

2
Constant light control
Constant lighting control compensates for variations in
daylight by controlling the lighting. The overall brightness will
be kept constant at the desired brightness level. The lighting
is switched on with the switch-on dimming value C1 and
controlled so that it reaches the set brightness setpoint value
C1. Depending on "school" or "ofce" conguration type, the
presence detector behaves differently after manual dimming
via button:
•"School" conguration type for applications in class-
rooms and meeting rooms:
y Manual dimming stops constant lighting control.
y Lighting remains at dimmed level when room is occupied
(no brightness inuence).
y Switching off and on returns to standard operation.
•"Ofce" conguration type for applications in small and
large ofces:
y Constant light control remains active temporarily after
manual dimming to the current brightness value as the new
brightness setpoint value.
y The new brightness setpoint value only applies if the room
is occupied.
y After the lighting time delay expires, the originally set
brightness setpoint value is restored.
Switching operation
Switching response is controlled by presence and brightness.
The channel C1 Light switches on in darkness and if presence
is detected. The light switches off when there is sufcient
brightness or once the room is vacated after the set lighting
time delay. The lighting is switched on with the switch-on
dimming value C1. By using the button, the intensity of arti-
cial light can be changed for the duration of the presence. The
light is forced off after a preset time delay if the room was
(previously) vacated.
Standby (orientation light)
The standby function acts as an orientation light. After the
lighting time delay expires, the lighting is set to the standby
dimming value (1 – 25%) of the lamp output. The standby
time can be set between 0 s and 60 min or permanently. The
lighting is switched off if the brightness level in the room
exceeds the brightness setpoint value. The lighting automati-
cally returns to the standby brightness if the room brightness
falls below the brightness setpoint value. When the room
is entered again, the detector returns to the programmed
brightness setpoint value, either automatically (fully automa-
tic device) or after the button is operated (semi-automatic
device).
Lighting time delay
The minimum time delay (10 s – 60 min) is adjustable. It
adjusts automatically to the user's behaviour and can incre-
ase to 30 minutes or reduce back to the set minimum time.
With settings ≤ 2 min or ≥ 30 min, the time delay remains
unchanged at the set value. If someone goes into an unoccu-
pied room only briey and leaves it within 30 seconds, then
the light will be switched off prematurely after 2 minutes
(short-term presence).
Push button control
The lighting can be manually switched or dimmed at any time
via a button. A short press of the button switches the light
on or off, a longer press of the button dims the lighting up or
down. The dimming direction changes each time the button is
pressed.
The lighting is forced off after a preset time delay if the room
was (previously) vacated. If the lighting is switched off manu-
ally, the lighting remains switched off as long as the room is
occupied. The lighting switches on again automatically after
the time delay has expired.
Fully or semi-automatic device
Lighting control via the presence detector operates fully
automatically for increased comfort or semi-automatically for
greater energy savings. The lighting switches on and off auto-
matically as a “fully automatic device”. As a “semi-automatic
device”, the lighting must always be switched on manually.
The lighting is switched off automatically.
Exceptionally easy configuration of the energy-saving beha-
viour
By using the selection “eco” for optimal switching behaviour
or “eco plus” for maximum energy savings, users can adjust
the presence detector to their needs.

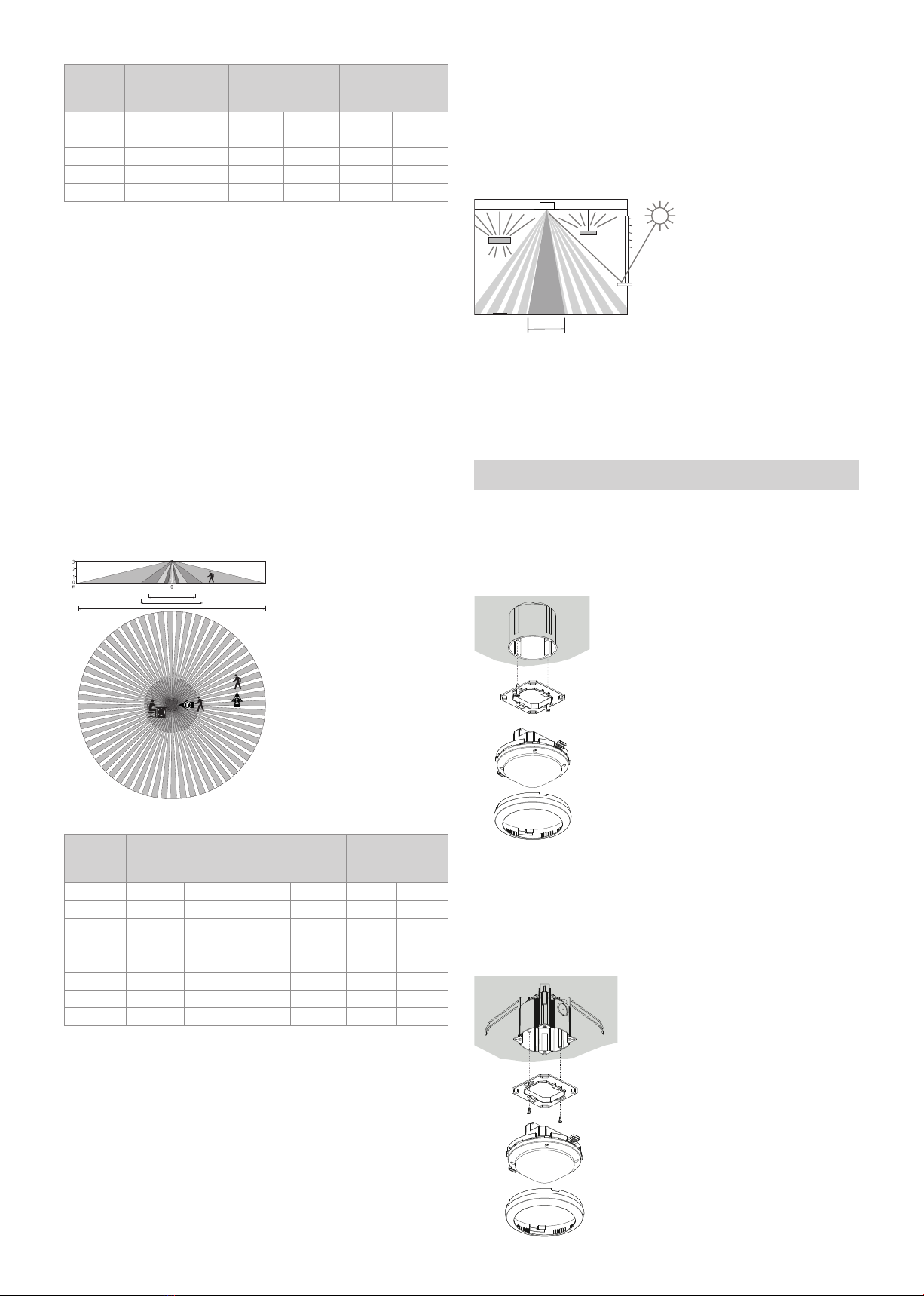

5. Detection area
theRonda S360-110 DALI
The circular detection area of theRonda S presence detector
covers an average detection area. Note that seated persons
are detected in different sized areas. The recommended ins-
tallation height is 2 m – 4 m. As installation height increases,
the sensitivity of the presence detector decreases. The extent
and distance between the active and passive zones of the
presence detector also increases. At an installation height of 3
m or higher, walking motions are necessary and the detec-
tion areas of several detectors should overlap in the marginal
zones. The detection range is reduced as the temperature
increases.
Seated people
The presence detector reacts very sensitively to the slightest
movements. The information refers to table height (approx.
0.80 m).
t
r / s
S
44 22
0

3
Instal-
lation
height (A)
Moving persons
Across (t)
Moving persons
Frontal (r)
Seated persons
(s)
2,0 m 38 m2Ø 7 m 5 m2Ø 2,5 m 5 m2Ø 2,5 m
2,5 m 38 m2Ø 7 m 7 m2Ø 3 m 7 m2Ø 3 m
3,0 m 50 m2Ø 8 m 13 m2Ø 4 m 13 m2Ø 4 m
3,5 m 50 m2Ø 8 m 13 m2Ø 4 m – –
4,0 m 64 m2Ø 9 m 13 m2Ø 4 m – –
All  gures are guidance value (Detection areas according to sensNORM IEC
63180, see data sheet).
theRonda P360-110 DALI
The circular detection area of theRonda P presence detector
covers a large detection area, and permits a complete room
coverage with many applications. Note that seated and wal-
king persons are detected in different areas. The recommen-
ded installation height is 2 m – 6 m. As installation height
increases, the sensitivity of the presence detector decreases.
Walking motions are necessary from installation heights of
3.5 m, and the detection areas of several detectors should
overlap in the marginal zones. The detection range is reduced
as the temperature increases.
Seated persons:
The presence detector reacts very sensitively to the slightest
movements. The information refers to table height (approx.
0.80 m).
S
t
r
s
12
4
3
3412
Installa-
tion height
(A)
Moving persons
Across (t)
Moving persons
Frontal (r)
Seated persons
(s)
2,0 m 380 m2Ø 22 m 28 m2Ø 6 m 16 m2Ø 4,5 m
2,5 m 415 m2Ø 23 m 38 m2Ø 7 m 24 m2Ø 5,5 m
3,0 m 452 m2Ø 24 m 50 m2Ø 8 m 28 m2Ø 6 m
3,5 m 452 m2Ø 24 m 50 m2Ø 8 m 38 m2Ø 7 m
4,0 m 452 m2Ø 24 m 50 m2Ø 8 m – –
5,0 m 452 m2Ø 24 m 50 m2Ø 8 m – –
6,0 m 452 m2Ø 24 m 50 m2Ø 8 m – –
10,0 m 491 m2Ø 25 m 50 m2Ø 8 m – –
All  gures are guidance value (Detection areas according to sensNORM IEC
63180, see data sheet).
Brightness measurement
The presence detector measures arti cial lighting and day-
light. The installation location is the reference point for the
lighting level. The brightness measurement can be adapted to
the conditions in a room with the room correction factor. The
light measurement area maps a rectangle of about 2.0 x 3.5
m at table height.
Direct light in uences the light measurement. Avoid placing
 oor lamps or suspended lighting directly below the detector.
LIf the brightness measurement is deactivated, channel C1
light only switches depending on the presence (brightness
setpoint value set to “measurement off” via the remote
control).
FensterInnen 2m
Suitable lamps
The presence detector is designed for the operation of  uo-
rescent lamps, compact  uorescent lamps, halogen/incande-
scent lamps and LEDs.
6. Installation
Flush-mounted  tting
The presence detector is  ush-mounted using a size 1 stan-
dard  ush-mounting installation socket.
Ceiling installation
A ceiling installation box 73A is available for a simpli ed
ceiling installation of the presence detector (see accessories).
This also ensures cord grip and contact protection. The instal-
lation diameter is 72 mm (drill diameter 73 mm).

4
Surface-mounted installation
A back box 110A is available for surface mounted installation
(see accessories).
7. Connection
The presence detectors can be combined as master in
individual switching, master-master in parallel switching or
master-slave parallel switching. Several push buttons can be
connected to one control input. Illuminated push buttons can
only be used with neutral conductor connection.
Up to 50 DALI operating devices can be connected to each
master device. We recommend distributing the DALI operating
devices equally over the 3 phases.
LAll detectors and buttons must be connected to the same
phase.
LConnect at least 1 Dali operating device per master.
Individual switching
In individual switching, the presence detector, as Master,
detects presence and brightness and controls lighting.
L
L
N
Master
EVG
DALI
DA+ DA-
S1
N
Master/Slave parallel switching
If the detection area covered by one presence detector is
insuf cient (larger rooms), then up to 10 detectors can be
operated in parallel by connecting the P terminals. In the
process, presence detection is performed by all detectors
together. The Master measures the brightness, operates the
buttons and controls the lighting. All other detectors are used
as Slaves. They only provide presence information.
L
N
L
Master
EVG
DALI
DA+ DA-
L
Slave
S1
S3/PN P
N
•Light measurement only with the Master
•Switch up to 10 detectors in parallel
•Use the same phase for all detectors and buttons
•Slave: theRonda P360 Slave (2080080)
Master/Master parallel switching
Several Masters can be used in parallel switching. Each
Master controls its lighting group according to its own bright-
ness measurements. Time delays and brightness setpoint
values are set individually on each master. Presence continues
to be detected by all detectors.
L
N
L
Master 1
EVG
DALI 1 DALI 2
DA+ DA–
Master 2
EVG
DA+ DA–
S3/P
S1
N
L
S3/P
S1
N
•One master with individual brightness measurement per
lighting group
•Switch up to 10 detectors in parallel
•Use the same phase for all detectors and buttons
Integrating an external DALI relay
•No more than 1 external DALI relay can be connected
on one single DALI line. The Dali relay must comply with
Standard IEC 62386-208 (device type 7).
•The detector automatically detects the DALI relay.
•Switch-on delay and time delay can be set using the
remote control.
Master
DALI
DA+ DA–S1
EVG
NL
N
L
EVG
DALI
Relay
8. Settings
The presence detectors are supplied with basic settings ready
for operation. The speci cations are guidance values. The
optional „SendoPro, theSenda B/App“ management remote
control or the “theSenda P” installation remote control are
available for start-up support. They enable remote setting.
The „SendoPro, theSenda B/App“ can be used to query, adjust
and optimise parameters. Parameters can only be adjusted

5
with the “theSenda P”. In this sense, the remote controls
serve as set-up aids. A range of variable parameters is availa-
ble for adjustment with the remote control (see section “Para-
meters via remote control”).
Settings via the button
Pressing the button for longer than 15 s triggers the teach-in
of the brightness setpoint value by the teach-in function. In
addition, the teach-in function can be conveniently executed
with the „SendoPro, theSenda B/App“ management remote
control or the “theSenda P” installation remote control (see
section “Control commands via remote control”).
The teach-in function via the button can be disabled using
the „SendoPro, theSenda B/App“ management remote
control when the “Conguration button” parameter is set to
“disabled”.
Parameters via remote control
The following parameters can be queried or changed via
the remote control for support during start-up as well as
servicing:
Parameter Description Can be
queried
Sendo-
Pro /
theSenda
B (App)
Can be
changed
Sendo-
Pro /
theSenda
B (App)
Can be
changed
theSenda
P
Function C1 Selection:
switching/control x x
Brightness set
point value C1
Value range in lux/
measurement off x x x
Brightness
actual value C1
Query brightness
actual value x
Room correction
factor mid
Room correction
factor x x
Brightness
measurement
value mid
Lux meter bright-
ness value in lux x
Detection sensi-
tivity (PIR)
Value range in
increments x x x
Lighting time
delay
Value range in
seconds and
minutes
x x
Short presence Short-term pre-
sence: On/Off x x
Energy saving
mode
Selection: eco/eco
plus x x
Presence switch-
on delay
Value range in
seconds/minutes x
Presence time
delay x x
Switch-on dim-
ming value C1 Value range in % x
Conguration
type C1 Selection: auto/man x x x
Control speed Selection: standard/
medium/fast x
Minimum dim-
ming value Value range in % x
Maximum dim-
ming value Value range in % x
Switch off
brightness
Value range in
minutes/hours/
never off
x
Manual dimming
response
Selection: school/
ofce x
Standby time
Value range in
seconds/minutes/
permanently on
x
Parameter Description Can be
queried
Sendo-
Pro /
theSenda
B (App)
Can be
changed
Sendo-
Pro /
theSenda
B (App)
Can be
changed
theSenda
P
Standby dim-
ming value Value range in % x
IR group address
C1 Selection: all/I/II/III x
Scene 1 C1 Value range in % x
Scene 2 C1 Value range in % x
Conguration
button
Selection: enabled /
disabled x
LED display
motion Off/On x
The parameters are sent to the presence detector with the
„SendoPro, theSenda B/App“ management remote control or
with the “theSenda P” installation remote control via infra-red.
Changed parameters are applied and used by the detector.
With the „SendoPro, theSenda B/App“ management remote
control, parameters can be queried by sending values level-
by-level to the detector. If the sent value is below the set
parameter, the LED illuminates briey. If the sent value is
equal or above the set parameter, the LED ickers for 2 s.
Function C1
The channel C1 light can be operated in the switching opera-
tion or constant lighting control function. Settings are made
via the “Function C1” parameter.
Value range (with the „SendoPro, theSenda B/App“)
Switching Channel C1 light is in the switching operating function
Control Channel C1 light is in the constant lighting control function
Further information can be found in the section “4. Function”,
under the “Channel C1 light” section on page 1.
Brightness set point value C1
The brightness setpoint value denes the minimum required
brightness. The currently prevailing brightness is measured
below the presence detector. If the prevailing brightness is
below the setpoint value, the light is switched on when a
presence is detected (in conguration type fully automatic
device).
Value range
•Lux values with „SendoPro, theSenda B/App“ manage-
ment remote control: 10 – 3000 lux, measuring off
•The following values are available with the “theSenda
P” installation remote control: 10, 15, 300, 500, 800 lux,
measuring off ( button)
•The currently measured brightness value (lux) can be
adopted as a new brightness setpoint value with the
„SendoPro, theSenda B/App“ management remote con-
trol by using the teach-in control command, or with the
“theSenda P” installation remote control via the teach-in
button. Values outside the permitted range will auto-
matically be set to the appropriate limit value.

6
•Deactivation of the brightness measurement (the
brightness has no effect). The light channels only switch
after presence/absence. Possible with the „SendoPro,
theSenda B/App“ management remote control (measu-
ring off) or the “theSenda P” installation remote control
(button ).
Room correction factor mid, brightness measure-
ment value mid
The room correction factor is a measurement for the diffe-
rence of the brightness measurement on the ceiling and the
work area. The brightness value on the ceiling is inuenced
by the installation location, the incidence of light, the position
of the sun, the weather conditions, as well as the reection
properties of the room and the furniture.
With the room correction factor, the measured brightness
value of the channel C1 light is adjusted to the conditions in
the room and in this way can be matched to the lux meter
value measured at the surface beneath the presence
detector.

Room correction factor = Brightness value at the ceiling
Brightness value on the work
surface
We recommend the following procedure:
 The lux meter is placed on the work surface below the
sensor and the measured lux value is entered via the
„SendoPro, theSenda B/App“ management remote control,
<brightness measurement value mid> parameter.
 The room correction factor is calculated from this
automatically. Values between 0.05 and 2.0 are permitted.
Calculated or entered values outside the permitted range
will automatically be set to the appropriate limit value.
 The calculated room correction factor will be applied
immediately. For monitoring purposes, the room correction
factor can be queried via the <room correction factor mid>
parameter.
LThe standard value is 0.3 and is suitable for most appli-
cations. Changes are only sensible in strongly deviating
situations.
Detection sensitivity
The detector has 5 sensitivity increments. The basic setting is
the middle increment (3).
Increments 1 to 5 can be selected and sent to the detector
with the „SendoPro, theSenda B/App“ management remote
control. On the “theSenda P” installation remote control, the
sensitivity can be decreased by one increment each time the
button
-
is pushed or increased with the button.
Value range
Incre-
ment
Sensitivity
1 Very insensitive
2 Insensitive
3 Standard
4 Sensitive
5 Very sensitive
By selecting the test presence operating mode, the set sensi-
tivity increment is not changed.
Lighting time delay
Value range
Adjustable values with SendoPro, theSenda B/App
management remote control
10 s – 60 min
In the “theSenda P” installation remote control, the
following values are available 10 s (button ),
30 s, 60 s, 2 min,
10 min, 20 min,
60 min (button )
Short presence
If someone goes into an unoccupied room only briey and
leaves it within 30 seconds, then the lighting will be switched
off prematurely after 2 minutes (short-term presence). The
short-term presence can be used for the fully automatic and
semi-automatic conguration types.
The time delay is applied according to the set time delay. Off
Short-term presence is active. On
Energy saving mode eco/eco plus
The selection of “eco” stands for optimum switching behavi-
our, while “eco plus” stands for maximum energy saving.
Value range (with SendoPro, theSenda B/App)
“eco” The time delay adjusts to the user behaviour by self-learning.
It does not drop below the set value.
“eco plus” The set time delay remains unchanged (no self-learning
effect). Faster response to brightness detection than with
“eco”.
Presence switch-on delay
The contact of the external DALI relay closes when some-
one is present regardless of the brightness and after the set
switch-on delay has elapsed. Buttons and the conguration
type (fully automatic device/semi-automatic device) do not
affect the relay contact.
Value range (with SendoPro, theSenda B/app)
No switch-on delay 0 s
Switch-on delay 10 s – 30 min
Presence time delay
The relay contact of the external DALI relay only opens once
the set time delay has elapsed in periods of absence.

7
Value range
Adjustable values from Sendo-
Pro/theSenda B/app
10 s – 120 min
Adjustable values from theSenda
P
10 s, 30 s, 60 s, 2 min, 10 min, 20 min,
120 min
Switch-on dimming value C1
The lighting is switched on with the switch-on dimming value
in both switching operation as well as constant light control.
Value range (with SendoPro, theSenda B/App)
Switch-on dimming value C1 30 – 100 %
Conguration type C1
Fully automatic device: the lighting switches on and off automati-
cally. (Due to presence, absence and brightness)
„SendoPro, theSenda B/App“
“theSenda P”
Auto
Button
A
Semi-automatic: switching on always has to be done manually.
Switching off is done automatically by the presence detector.
(Due to presence or brightness)
„SendoPro, theSenda B/App“
“theSenda P”
Man
Button
Control speed
In the constant light control function, the speed of the
constant light control can be set with the <control speed>
parameter.
Value range (with SendoPro, theSenda B/App)
Response is set to its optimum level. The control happens
gradually and is almost imperceptible.
Standard
The control is slightly faster. Average
The control is fast. Fast
Minimum/maximum dimming value
The upper and lower limits of the channel C1 light output
value can be set with both the <minimum dimming value>
and <maximum dimming value> parameters.
Value range (with SendoPro, theSenda B/App)
Minimum dimming value 1% – 25%
Maximum dimming value 50% – 100%
Switching off brightness
In the constant light control function, it is possible to choose
to switch the lighting off when there is sufcient brightness. If
the lighting is controlled down to the lower limit, the ligh-
ting will be switched off after the time set at the parameter
<Switch off brightness>. With the selection “never off”, the
lighting will never be switched off. This behaviour is valid, as
long as people are present.
Value range (with SendoPro, theSenda B/App)
Switches lighting off after a set amount of time. 5 min – 9 h
Lighting is never switched off. Never off
Manual dimming response
With constant lighting control, the manual dimming res-
ponse can be selected with the <manual dimming response>
parameter.
Value range (with SendoPro, theSenda B/App)
Constant light control remains active temporarily after manual
dimming to the current brightness value as the new setpoint
value. After the lighting time delay has expired, the originally
congured setpoint value is restored.
Ofce
Constant light control is interrupted temporarily via manual dim-
ming. The set point value remains unchanged.
School
Further information can be found in the chapter “Channel C1
light – constant lighting control” on page 2.
Standby time/standby dimming value
When standby time is activated, the lighting is not switched
off after completion of the lighting time delay, but remains set
to the standby dimming value as an orientation light.
Value range (with SendoPro, theSenda B/App)
Standby time 30 s – 60 min
Standby function (orientation light) is not active 0 s
Standby function (orientation light) is permanently
switched on
On
Standby dimming value 1 – 25%
IR group address C1
This parameter is applied when using the “theSenda S” user
remote control.
A group address can be assigned to channel C1 light. The
„SendoPro, theSenda B/App“ management remote control or
the “theSenda S” user remote control can be used to program
the group addresses in the detector.
Group address value range
Adjustable values „SendoPro, theSenda B/App“ I, II, III, All
Adjustable values “theSenda S” I, II
Using the “theSenda S” user remote control, the group
addresses can be assigned as follows:
Press the and buttons simultaneously for at
least 5 s
I
Press the and buttons simultaneously for at
least 5 s
II
Scene 1 C1 /Scene 2 C1
The desired dimming value for channel C1 light can be alloca-
ted to scene 1 and scene 2.
Value range (with SendoPro, theSenda B/App)
Adjustable values 0 – 100%
Using the “theSenda S” user remote control, the lighting is
rstly set to a desired brightness and then saved as followed:
Press the button for at least 3 s. Scene 1 is saved
Press the button for at least 3 s. Scene 2 is saved

8
The scene is called up by briey pressing the button.
Conguration button
The teach-in function via the button can be enabled or disab-
led with the <conguration button> parameter.
Value range (with SendoPro, theSenda B/App)
Teach-in function via the button can be executed. Enabled
Teach-in function via the button is disabled. Disabled
LED display motion
The motion detection can be displayed via the LED.
Value range (with SendoPro, theSenda B/App)
No display of motion detection. Off
The LED is switched on when motion is detected, otherwise
switched off.
On
Control commands via remote control
The following control commands can be triggered with the
remote control:
Control
command
Description Can be trigge-
red SendoPro
/theSenda B
(App)
Can be
trigge-
red the-
Senda P
Switching light Lighting group can be
switched on and off. x x
Teach-in chan-
nel C1 Activation x x
Presence test Off /On x x
Light test Off /On x
Restart Restart detector x x
Factory settings Set all parameters and set-
tings to factory setting. x
Reset DALI ECGs All connected DALI ECGs are
reset to factory settings x
Reset DALI
relays
All connected DALI relays
are reset to factory settings x
Teach-in channel C1
During teach-in, the currently measured brightness value is
accepted as brightness setpoint value C1. Values outside the
permitted range will automatically be set to the appropriate
limit value.
The teach-in control command can be executed with the
„SendoPro, theSenda B/App“ management remote control or
with the “theSenda P” installation remote control via the
button.
Presence test
Presence test mode is used to test presence detection and
wiring. Presence test mode can be activated with the „Sen-
doPro, theSenda B/App“ management remote control or with
the “theSenda P” installation remote control ( button). The
detector goes directly into test mode when the test mode is
set:•Every movement is indicated by the LED.
•When motion is detected, the lighting is switched on.
•The lighting is switched off after 10 seconds when the
room is unoccupied.
•Brightness measurement is deactivated, detector does
not respond to brightness.
•Constant light control is deactivated (switching mode).
•Standby function is deactivated.
•The detector reacts as in conguration type “fully auto-
matic device”, even if “semi-automatic” is set.
•Teach-in cannot be activated in test mode.
•Test mode ends automatically after 10 min. The detector
performs a new start (see switch-on behaviour on page 8).
Light test
The light test mode is used to check the brightness threshold
and the constant light control. The light test mode can be
activated with the „SendoPro, theSenda B/App“ management
remote control. The detector goes directly into test mode
when the test mode is set:
•The LED shows the light test mode (5 seconds on, 0.3
seconds off).
•The presence detector responds as in normal operating
mode, only the reaction to bright/dark is faster.
•In order to simulate this behaviour, either the area below
the presence detector can be illuminated or the blinds
operated.
•Test mode ends automatically after 10 min. The detector
performs a new start (see switch-on behaviour on page 8).
LNote: Do not use a torch to switch the presence detector!
The adaptive light switching thresholds will be distorted!
Factory settings
The presence detector is supplied with the following parame-
ter values:
Parameter Value
Function C1 Control
Brightness set point value C1 500 lux
Room correction factor mid 0.3
Detection sensitivity (PIR) Increment 3
Lighting time delay 10 min
Short presence On
Energy saving mode eco
Presence switch-on delay 0 s
Presence time delay 10 min
Switch-on dimming value C1 50%
Conguration type Auto
Control speed Standard
Minimum dimming value 10%
Maximum dimming value 100%
Switching off brightness 10 min
Manual dimming response School
Standby time 0 s
Standby dimming value 10%
IR group address C1 I
Scene 1 C1 30%
Scene 2 C1 70%
Conguration button Enabled
LED display motion Off
The parameters can only be set to factory settings by using
the „SendoPro, theSenda B/App“ management remote
control.

9
Reset DALI ECGs
The connected DALI ECGs are reset to factory settings.
9. Start-up
Switch-on behaviour
Every time the power supply is switched on, the presence
detector runs through two phases that are indicated by the
LED:
1. Start-up phase (30 s)
•The red LED ashes at one second intervals and lighting
is switched on with switch-on dimming value C1.
•The detector does not respond to push-button com-
mands or to the “theSenda S” user remote control.
•The lighting is switched off after 30 seconds when the
room is unoccupied.
2. Operation
•The red LED is off. The constant light control or switching
mode are started.
•The detector is ready for operation.
10. Technical data
Operating voltage 110 – 230 V AC, +10% /-15%
Frequency 50 – 60 Hz
Upstream protection device: 16 A
Power consumption (without DALI-ECG) < 0.4 W
Type of installation Ceiling installation; ush/
surface mounted or ceiling
installation
theRonda S360-110 DALI recommended
installation height
theRonda P360-110 DALI recommended
installation height
2.0 – 3.0 m/max. 4 m
2.0 – 3.5 m/max. 15 m
Minimum height > 1.7 m
Detection area horizontal 360°
theRonda S360-110 DALI maximum
range
Ø 4 m (Mh. 3 m) /13 m2seated
Ø 9 m (Mh. 15 m) /64 m2
walking
theRonda P360-110 DALI maximum
range
Ø 7 m (Mh. 3.5 m) /38 m2
seated
Ø 25 m (Mh. 10 m) /491 m2
walking
Setting range brightness setpoint value 10 – 3000 lux
Lighting time delay 10 s – 60 min
Presence switch-on delay 0 s – 30 min
Presence time delay 10 s – 120 min
Lighting standby time 0 s – 60 min /permanently on
Standby dimming value 1 – 25%
Control output lighting 100 mA guaranteed, max. 250
mA, max. 64 DALI operating
devices, basic insulation
Connection type Screw terminals
Max. cable cross-section Max. 2 x 2.5 mm²
Size of ush-mounted box Size 1, Ø 55 mm (NIS, PMI)
Protection rating IP 20 (IP 54 installed)
Ambient temperature -15 °C ... 50 °C
CE Declaration of Conformity This device conforms to the
safety regulations of the EMC
directive 2014/30/EU and of
directive 2014/35/EU.
Dali conformity IEC 62386-101, IEC 62386-103
Product overview
Type of
installation
Channel Operating
voltage
Colour Type Item
number
Ceiling
installation
Light 230 V AC White theRonda P360-
110 DALI WH
2080040
Ceiling
installation
Light 230 V AC White theRonda S360-
110 DALI WH
2080580
Troubleshooting
Fault Cause
Light does not switch
on and/or off if pre-
sence is detected and
in darkness
Brightness setpoint value is set too low; detector
set on semi-automatic; light was switched off
manually via button or “theSenda S”; person not
within detection area; obstruction(s) interrupting
detection; time delay set too short
Light stays on with
detection of presence
despite sufcient
brightness
Brightness setpoint value is set too high; light was
briey switched on manually via button or with
“theSenda S” (wait 30 min in switching operation);
detector is in test mode
Light does not switch
off and/or light swit-
ches on spontaneously
when no one is present
Wait for time delay (self-learning);
thermal sources of interference in the detection
area: fan heaters, incandescent lamps/halogen
spotlights, moving objects (e.g. curtains hanging in
open windows)
Push button does not
function
Device still in the start-up phase; illuminated
button was used without neutral conductor;
push button not fed to the Master
Light cannot be swit-
ched off with the push
button
Push button not fed to the detector. Check wiring
to the button
Lighting does not react Short circuit or interruption in the DALI bus. Electri-
cal surge in the DALI bus: Disconnect the detector
from the supply network for 1 minute (thermal
fuse).
Device does not
respond
Short-circuit: disconnect detector from the power
supply for 5 min (thermal fuse)
Error ashing
(4 x per second)
Error in self-test;
device not properly functional!
LED is on and ashes
off briey 2 x every 3 s
Detector does not recognise DALI ECGs. Check DALI
connections. At least 1 DALI ECG must be connec-
ted to the detector. Short circuit in DALI bus.
Master/Slave, Master/
Master parallel swit-
ching is not working
Detectors and buttons are not connected to the
same external conductor. <Terminal S3/P assign-
ment> parameter is not set to "Parallel".
11. Dimensions diagrams

10
12. Accessories
Back box 110A WH
Item No.: 9070912
Details > www.theben.de/en
Back box 110A GR
Item No.: 9070913
Details > www.theben.de/en
DE (ceiling installation) box 73A
Item No.: 9070917
Details > www.theben.de/en
Cover clip for area restriction
Item No.: 9070921
Details > www.theben.de/en
theSenda P
Item No.: 9070910
Details > www.theben.de/en
theSenda S
Item No.: 9070911
Details > www.theben.de/en
theSenda B/App
Artikel-Nr.: 9070985
Details > www.theben.de
13. Contact
Theben AG
Hohenbergstraße 32
72401 Haigerloch
GERMANY
Tel.: [phone]
Fax: [phone]
Hotline
Tel.: [phone]
[email protected]
www.theben.de
