Titan TTB591ROU Installation manual

ROUTER1250W TTB591ROU
SAFETY AND OPERATING MANUAL
Original Instructions

ROUTER1250W TTB591ROU
GUARANTEE
This TITAN product carries a guarantee of 2 years. If your product develops a
fault within this period, you should in the first instance contact the retailer where the
item was purchased.
This guarantee specifically excludes losses caused due to:
- Fair wear and tear
- Misuse or abuse
- Lack of routine maintenance
- Failure of consumable items (such as batteries)
- Accidental damage
- Cosmetic damage
- Failure to follow manufacturer’s guidelines
- Loss of use of the goods
This guarantee does not affect your statutory rights.This guarantee is only valid in the
UK.
For any enquiries relating to the guarantee please refer to your retailer.
Congratulations on your purchase of a power tool from TITAN Power
Tools (UK) Ltd. We want you to continue getting the best performance
from it so this handbook includes information on safety, handling and
care. Please retain this handbook in case you need to refer to any of the
information in the future.
Your TITAN power tool comes with a 2 year guarantee, so should it
develop a fault within this period contact your retailer.

GENERAL POWER TOOL SAFETY WARNINGS
WARNING: Read all safety warnings and all instructions. Failure to follow
the warnings and instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in
any way. Do not use any adapter plugs with earthed (grounded) power
tools. Unmodied plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There is an increased risk of
electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling
or unplugging the power tool. Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk
of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a
residual current device (RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired
or under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-
position before connecting to power source and/or battery pack,

ROUTER1250W TTB591ROU
picking up or carrying the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool
on. A wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your
hair, clothing and gloves away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the rate for
which it was designed.
b) Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source and/or the battery
pack from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these instructions to
operate the power tool. Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance
with these instructions, taking into account the working conditions
and the work to be performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool is
maintained.

ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR ROUTER
1. Hold power tool by insulated gripping surfaces, because the cutter may contact its own
cord. Cutting a “live” wire may make exposed metal parts of the power tool “live” and
shock the operator.
2. Use clamps or another practical way to secure and support the workpiece to a stable
platform. Holding the work by your hand or against the body leaves it unstable and may
lead to loss of control.
3. Router bits must not be removed while the machine is running.
4. Protect router bits against shocks and impacts.
5. Only use properly sharpened router bits, otherwise increased cutting force could
damage the workpiece.
6. Before use inspect the router bits for any damage. Do not use router bits, which are
cracked chipped or otherwise damaged.
7. Make sure that the workpiece is sufciently supported or clamped. Keep your hands
away from the surface to be cut.
8. When tting a router bit ensure that it is securely engaged within the collet and fully
tightened before use!
9. Make sure that router bit has been mounted and fastened correctly. Do not use
reducing rings or adapters to make the router bits t properly.
10. Apply the machine to the workpiece only when the machine is switched on.
11. When working with the machine always hold the machine rmly with both hands and
provide for a secure stance.
12. Always wear safety goggles and hearing protection. If desired or required also use
another protection for example an apron or helmet.
13. Always disconnect the plug from the socket before you carry out any work on the
machine. Only plug-in when the machine is switched off.
14. Keep mains lead clear from working range of the machine. Always lead the cable away
behind you.
15. Do not stop the router bits by hand after switching off.
16. The base plate must not be clamped down while the router bits is extended. Lowering
and raising the blade must be a smooth operation.
17. Always use the appropriate safety equipment that is required for the product. E.G.
Goggles / Safety Spectacles, Ear defenders (essential with tools with a noise rating of
over 80 dB(A)), Gloves for handling router bits and face masks. In all cases ensure that
the safety equipment is in good condition.
ADDITIONAL SAFETY WARNING FOR CONSTRUCTION DUST
The updated Control of Substances Hazardous to Health Regulations 1st October 2012
now also targets to reduce the risks associated with silica, wood and gypsum dusts.
Construction workers are one of the at-risk groups within this because of the dust that they
breathe: silica dust is not just a nuisance; it is a real risk to your lungs!
Silica is a natural mineral present in large amounts in things like sand, sandstone and
granite. It is also commonly found in many construction materials such as concrete and
mortar. The silica is broken into very ne dust (also known as Respirable Crystalline Silica
or RCS) during many common tasks such as cutting, drilling and grinding.

ROUTER1250W TTB591ROU
Breathing in very ne particles of crystalline silica can lead to the development of:
Lung cancer
Silicosis
Chronic Obstructive Pulmonary Disorder (Chronic obstructive pulmonary disease (COPD))
And breathing in ne particles of wood dust can lead to the development of Asthma
The risk of lung disease is linked to people who regularly breathe construction dust over a
period of time, not on the odd occasion.
To protect the lung, the COSHH Regulations sets a limit on the amount of these dusts
that you can breathe (called a Workplace Exposure Limit or WEL) when averaged over
a normal working day. These limits are not a large amount of dust: when compared to a
penny it is tiny – like a small pinch of salt:
This limit is the legal maximum; the most you can breathe after the right controls have
been used.
How to reduce the amount of dust?
1. Reduce the amount of cutting by using the best sizes of building products.
2. Use a less powerful tool e.g. a block cutter instead of angle grinder.
3. Using a different method of work altogether – e.g. using a nail gun to direct fasten cable
trays instead of drilling holes rst.
Please always work with approved safety equipment, such as those dust masks that
specially designed to lter out microscopic particles and use the dust extraction facility at
all time.
For more information please see the HSE website:
http://www.hse.gov.uk/construction or http://www.hse.gov.uk/pubns/cis69.pdf
WARNING! Some dust particles created by power sanding, sawing,
grinding, drilling and other construction jobs contain chemicals known
to cause cancer, birth defects or other reproductive harm. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks and cement and other masonry products.
• Arsenic and chromium from chemically treated timber.
Your risk form these exposures varies, depending upon how often you do this type of work.
To reduce your exposure to these chemicals:
• Work in a well ventilated area.
• Work with approved safety equipment, such as those dust masks that specially
designed to lter out microscopic particles and use the dust extraction facility at all
time.

VIBRATION
The European Physical Agents (Vibration) Directive has been brought in to help reduce
hand arm vibration syndrome injuries to power tool users. The directive requires power
tool manufacturers and suppliers to provide indicative vibration test results to enable users
to make informed decisions as to the period of time a power tool can be used safely on a
daily basis and the choice of tool.
Further Advice can be found at www.hse.gov.uk
Vibration total values (triax vector sum) determined according to EN 60745:
Cutting Vibration for cutting ah = 5.871m/s2
Uncertainty K = 1.5m/s2
The declared vibration emission value should be used as a minimum level and should be
used with the current guidance on vibration.
Calculating the actual period of the actual period off use can be difcult and the HSE
website has further information.
The declared vibration emission been measured in accordance with a standardised test
stated above and may be used to compare one tool with another.
The declared vibration emission value may also be used in a preliminary assessment of exposure.
WARNING: The vibration emission value during actual use of the power tool can
differ from the declared value depending on the ways in which the tool is used
dependant on the following examples and other variations on how the tool is used:
How the tool is used and the materials being drilled.
The tool being in good condition and well maintained
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed
WARNING: Identify safety measures to protect the operator that are based on an
estimation of exposure in the actual conditions of use (taking account of all parts of
the operating cycle such as the times when the tool is switched off and when it is running
idle in addition to the trigger time).Note The use of other tools will reduce the users’ total
working period on this tool.
Helping to minimise your vibration exposure risk.
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate)
Avoid using tools in temperatures of 10°C or less
Plan your work schedule to spread any high vibration tool use across a number of days.
Health Surveillance All employees should be part of an employer’s health surveillance
scheme to help identity any vibration related diseases at an early stage, prevent disease
progression and help employees stay in work.

ROUTER1250W TTB591ROU
Double insulation:
The tool is double insulated. This means that all the external metal parts are electrically
insulated from the mains power supply. This is done by placing insulation barriers between
the electrical and mechanical components making it unnecessary for the tool to be earthed.
Important note:
Be sure the supply is the same as the voltage given on the rating plate. The tool is tted
with a two-core cable and plug.
Remove the mains plug from socket before carrying out any adjustment or servicing.
SYMBOLS
To reduce the risk of injury, user must read instruction manual
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Wear gloves
Double insulation
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer
for recycling advice.
Conformity to CE directive
yyWxx Manufacturing date code; Year of manufacturing (20yy) and week of
manufacturing (Wxx);

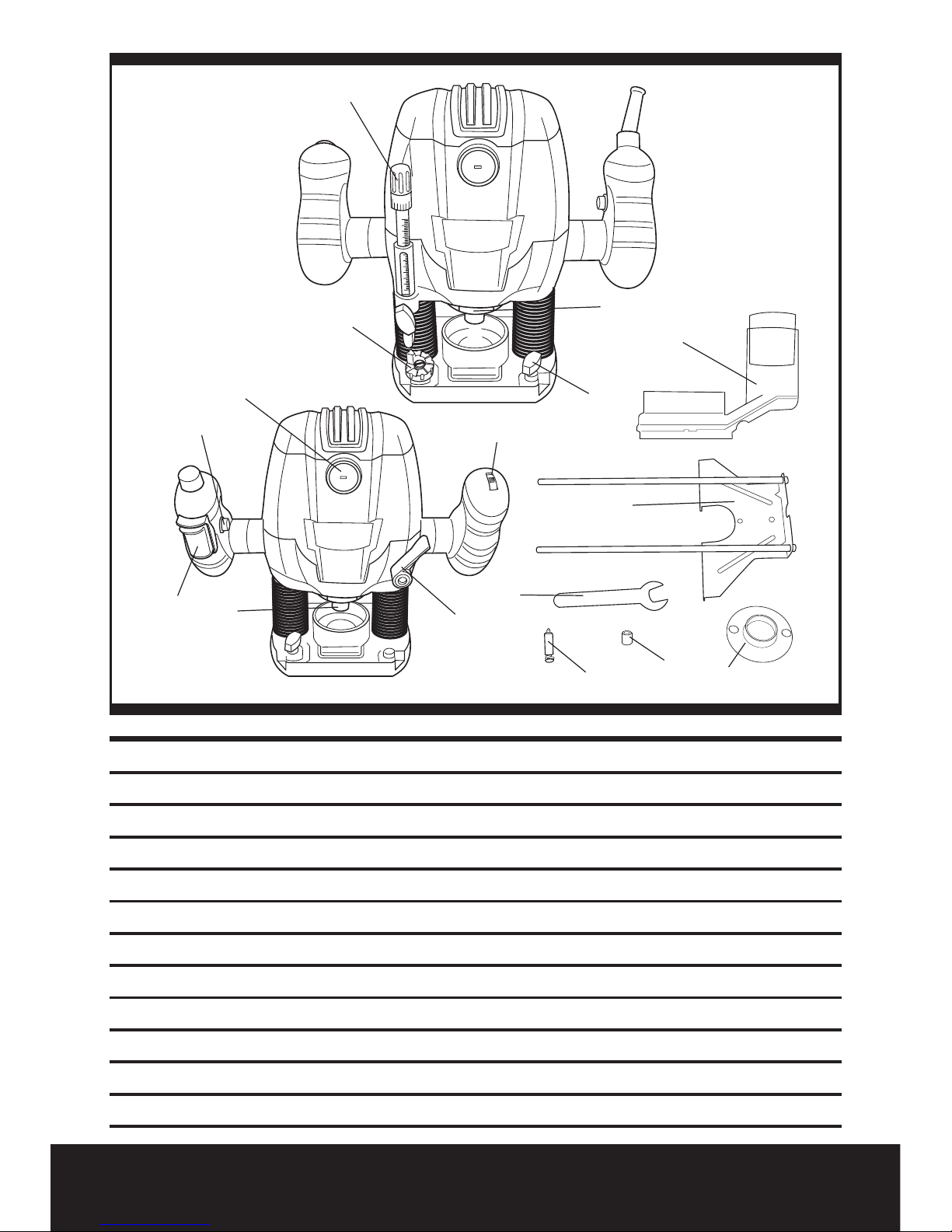

1. Depth stop bar with micro-adjustment
2. Turret depth stop
3. Parallel guide locking knob
4. Spindle lock
5. Carbon brush cap
6. Lock off button
7. ON/OFF trigger switch
8. Collet nut
9. Plunge lock lever
10. Variable speed dial
11. Vacuum adaptor
12. Parallel guide
1
6
5
12
10
13
89
7
14
15 16
4
11
3
2

ROUTER1250W TTB591ROU
13. Spanner
14. Centring pin
15. Collet
16. Guide bush
TECHNICAL DATA
Voltage 230-240V~ 50Hz
Input power 1250W
Variable speed 11000-30000/min
Plunge depth 55mm
Collet size 1/2”(12.7mm),1/4” (6.35mm)
Protection class II
Machine weight 3.7kg
NOISE DATA
A weighted sound pressure 85.9dB(A) KpA: 3dB(A)
A weighted sound power 96.9dB(A) KwA: 3dB(A)
Wear ear protection when sound pressure is over 80dB(A)
ACCESSOIRES
Dust extraction adaptor 1pc
Guide bush 1pc
Parallel guide 1pc
Spanner 1pc
Collet 6.35mm(1/4” for UK) 1pc
Centre pin 1pc
Long screws (20mm) 2pcs

OPERATIONS INSTRUCTIONS
NOTE: Before using the tool, read the
instruction book carefully.
INTENDED USE
This router shall be used for only for light works on
the wood. Other uses for the tool will lead to the
damage of the tool and a series of dangers to the
operator. This tool is intended for DIY home use, or
occasional professional use.
1. SWITCHING ON AND OFF (See Fig. 1)
Your router is equipped with a double action switch.
Start the tool by depressing the lock-off button (6)
and squeeze the trigger switch. Release the trigger
switch to stop the tool.
2. USING THE VACUUM ADAPTOR (See Fig. 2)
For the sake of your health and working nvironment,
always use a vacuum adaptor and vacuum. Use the
two long screws to fasten the adaptor socket securely
to the routing base. The adaptor socket is suitable for
vacuum adaptor with a suction hose of 35mm diameter.
3. FITTING THE ROUTER BITS ( See Fig. 3 &
Fig. 4)
Both 6.35mm(1/4˝) and 12.7mm(1/2˝) shaft bits
can be used with this product. To use 6.35mm
(1/4˝) size bits, the 1/4˝ collet (15) must be used.
12.7mm(1/2˝) size bits can be attached to the router
socket directly. Depress and hold the spindle lock
to stop the spindle from turning. Whilst holding the
spindle lock, loosen the collet nut by rotating it using
the supplied spanner. For 6.35mm (1/4˝) shaft bit
Insert the collet into the router shaft socket , then
insert a suitable router bit with at least 2/3 of the bit
shaft into the collet. For 12.7mm (1/2˝) shaft bit Insert
a suitable router bit directly into the router socket with
at least 2/3 of the bit shaft into the router shaft socket
. No collet is required for 12.7mm (1/2˝) bits.
Depress and hold the spindle lock and then tighten
the collet nut with the supplied spanner.
WARNING: Ensure the correct collet is
installed for the router bit to be used, i.e., 1/4”
router bits must only be used with the 1/4” collet, you
can insert 1/2” (12.7mm) bits into shaft directly, no
need collet adaptor.
Fig. 3
Fig. 4
Fig. 1
Fig. 2

ROUTER1250W TTB591ROU
Failure to follow this advice can lead to serious injury
as the router bit may not be properly secured in the
collet, or may damage the collet.
The router bit must suitable for the speed of the tool!
Never use the bit over its rated speed in anytime.
4. ADJUSTING DEPTH OF CUT (See Fig. 5
& Fig. 6)
The depth of cut is the distance between the turret
depth stop and the depth stop bar. Router bits vary
in depth, the turret depth stop allows for this with its
eight positions. Use one of the two following methods:
Method 1: Using a piece of wood method.
Fit the router bit, loosen the depth stop bar xing
screw, pull the plunge lock lever up and plunge
the router down until it comes into contact with
the workpiece. Lock the router into this position
by pushing down the plunge lock lever. Lift up the
depth stop bar and insert a piece of wood the same
thickness as the depth of cut between the stop bar
and triple stop bar.
Tighten the depth stop bar xing screw (a) and
release the plunge lock lever to return the router back
to its original position. The depth of cut is now set,
see “Starting the router” section for nal operation.
Method 2: Using the scale method
Fit the router bit, loosen the depth stop bar xing
screw and release the plunge lock lever. Lower the
router down until it contacts the workpiece, lock into
this position with the plunge lock lever. The scale on
the depth bar now shows the starting position. Note
the starting position will vary depending on the bit
used. Next add the required depth of the cut to the
starting position, i.e.: if the scale shows 20mm and
you require a cut of 10mm, then the correct
adjustment on the scale is 20+10=30mm, if the scale
shows 38mm and the required cut is 6mm in depth,
the adjustment on the scale will be 38+6=44mm.
Now move the depth stop bar to the calculated
number, and lock bar with the xing screw. Release
the plunge lock lever, the router will return to its
original position.
5. MARKING FINE ADJUSTMENT TO CUT
DEPTH (See Fig. 7)
If you want to make some accurate adjustment,
micro-adjustment can be made by turning the micro
depth adjustment knob (b).
Fig. 5
Fig. 8
Fig. 6
Fig. 7
a
b

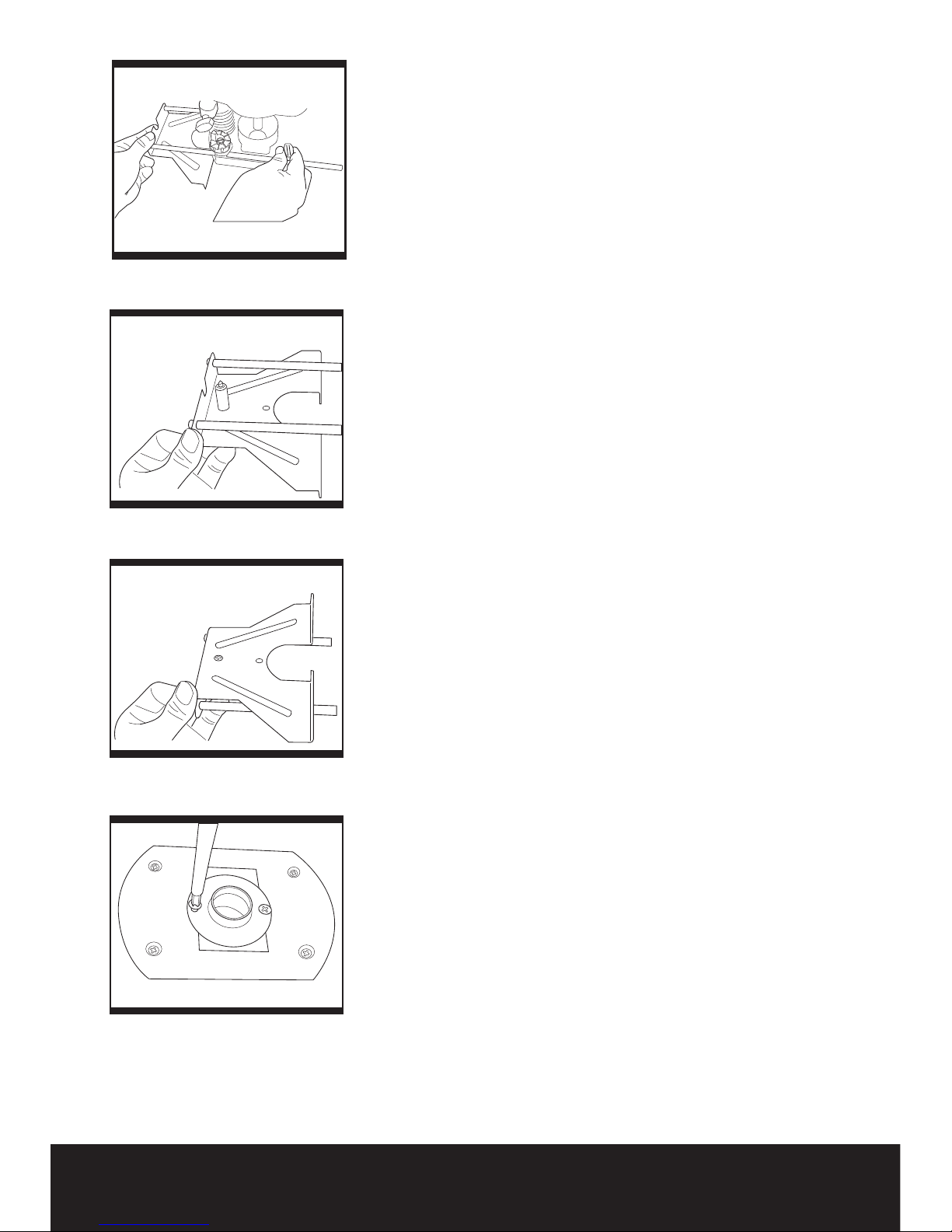

6. FITTING THE PARALLEL GUIDE (See Fig. 8)
Before using the parallel guide you will need to
assemble the guide. Remove the two screws and
washers from the end of the two bars and t the
guide to the bars using the washers and screws you
removed. Tighten screws securely. Insert the bars
into the grooves in the base of the router. Adjust the
guide to the required cutting width and tighten the
two parallel guide locking screws.
7. FITTING THE CENTRING PIN AND
MAKING CIRCULAR CUTS (
See Fig. 9 &
Fig. 10)
The centring pin allows you to make circular cuts.
(a) Fasten the centring pin on the parallel guide but
upside down.
(b) Push the guide shaft of the parallel guide.
(c ) Place the centring pin against the material.
(d) Set the required radius by adjusting the shaft
of the parallel guide and tighten the parallel guide
locking screws.
(e ) Fixing router in required depth with the plunge
lock lever.
(f ) Switch on the machine.
(g) After releasing the plunge lock lever, lower the
machine slowly.
(h) Cut grooves, shoulders, etc at a steady rate of
feed, holding the machine with both hands.
(y) When nished, raise the machine again.
(j ) Switch off the machine.
8. USING THE GUIDE BUSH (See Fig. 11)
Use this attachment to cut out a shape using a
pre-formed template (ie a worktop jig). Fix the Guide
Bush to the router base using the two long screws
provided. Thereafter use the instructions provided by
the template manufacturer.
Fig. 9
Fig. 10
Fig. 11
Fig. 5
Fig. 8
Fig. 6
Fig. 7
a
b

ROUTER1250W TTB591ROU
Fig. 12
9. VARIABLE SPEED CONTROL SWITCH
(See Fig. 12)
The variable speed control switch allows you to vary the
speed of the router enabling the optimum speed to be
selected for various size of router bits and to avoid the
workpiece being burnt, this can occur especially when
cross cutting. The speed increases as you turn the
switch towards the higher numbers and decreases on
the lower numbers (1 being slowest and MAX fastest).

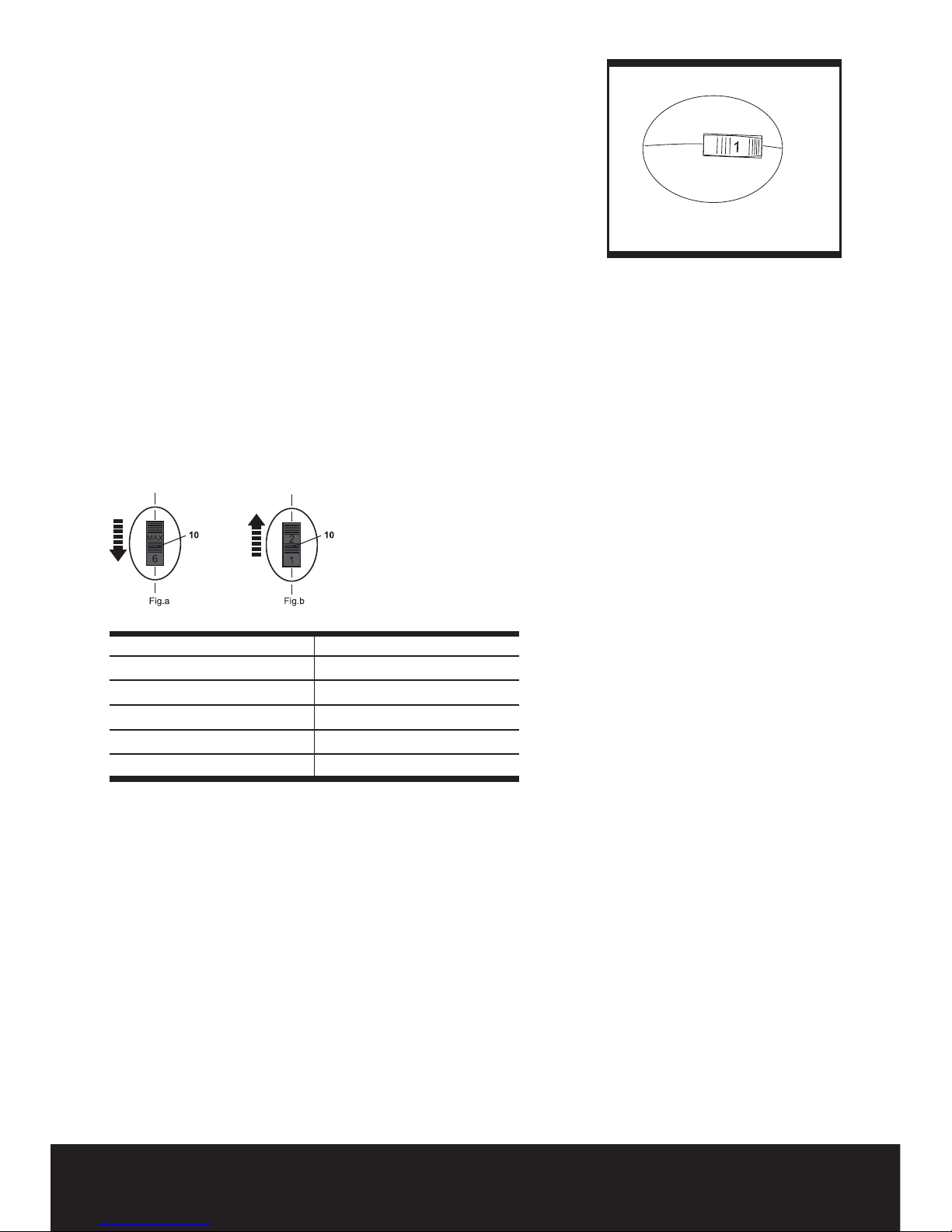

10. SPEED DIAL
Limit the maximum speed using the speed dial (10).
Turn the speed dial (10) backward to increase the
speed (Fig. a). A higher setting is suitable when
using large diameter router bits or working on hard
materials like wood.
Turn the speed dial (10) forward to decrease the
speed (Fig. b). A lower setting is suitable when
using small diameter router bits or working on soft
materials like plastic or aluminium.
Recommended rotation speed
Material Speed stages
Hardwood (beech) 4 – MAX
Softwood (pine) 5 – MAX
Chipboard 3 – 6
Plastics 3 – 4
Aluminium 1 – 4
NOTE: Above values are for guidance only and
may vary according to the actual workpiece.
11. SPEED CONTROL
1. Increase or decrease the speed of the router,
rotating the dial. The speed increases as the
numbers on the dial increase.
2. Adjust the speed to suit different working
materials. The tool works quicker and smoother at
different speeds when working in different woods.
3. Determine the optimum speed by making a trial
cut in a scrap piece of material.
The setting on the dial equates approximately to
no-load speeds that increase from approximately
11000min-1 to approximatel 30000min-1 in 7 steps.

Ensure that you use the correct setting for the
maximum rated speed of the router bit used.
Speed position Symbol indicator of
speed(min-1)
1 11000
2 15000
3 20000
4 24000
5 27000
6 29000
Max 30000
NOTE: Above speed table maybe can not accurate
match your product speed, as it is our experience
data. Just for reference.
12. STARTING THE ROUTER
NOTE: Before starting work make sure workpiece
is rmly secured.
To start the router, press in lock off button with
thumb then push on/off switch. Hold the two handles
rmly and let the router reach full operation speed,
lower the router to its working position, lock router
with plunge lock leve. Move smoothly through
workpiece. Release switch and lock lever,
allow router to return to top starting position. Let the
router stop fully before removing from workpiece.
NOTE: Stop the router before adjusting the variable speed.
Direction of feed
The router rotates in a clockwise direction, as a
consequence the router must be moved left to right as you
face the workpiece and anti-clockwise for outside edges.
Rate of feed
It is important to move the router at the correct speed
through the work. The incorrect speed may produce a
poor quality cut. Moving too fast can cause bit damage
and a rough uneven cut.
A too slow speed can cause the wood to burn and the
bit to overheat. The rate of feed will vary depending on
the size of bit, material and router speed. To determine
the best speed always practice on a small unseen
area or a spare piece of the same material rst.
WORKING HINTS FOR YOUR ROUTER
1. Using without a guide
This is useful for signwriting and creative work.
Use only shallow cuts.
2. Rate of feed

ROUTER1250W TTB591ROU
The cutter of your router rotates clockwise.
For more efcient cutting, move your router from left
to right as you stand facing the workpiece.
NOTE: When cutting outside edges, move your router
anticlockwise and clockwise when cutting inside edges.
MAINTENANCE
Remove battery from the tool and the plug
from the socket before carrying out any
adjustment, servicing or maintenance.
Your power tool requires no additional lubrication or
maintenance. There are no user serviceable parts
in your power tool. Never use water or chemical
cleaners to clean your power tool. Wipe clean with
a dry cloth. Always store your power tool in a dry
place. Keep the motor ventilation slots clean. Keep
all working controls free of dust. Occasionally you
may see sparks through the ventilation slots. This is
normal.
If the supply cord of the charger is damaged, it must
be replaced by the manufacturer, its service agent or
similarly qualied persons in order to avoid a hazard.
REPLACING THE CARBON BRUSH (See Fig.
13)
If you suspect that the brush may be worn or as a
purely precautionary measure, it can be removed
and inspected and replaced if required. Firstly
remove the cap over the brush housing with a
screwdriver. You can now remove the old carbon
brush. Slide the new brush into the housing and
relocate the cap and secure. Once the brush has
been replaced check and conrm that the router still
operates.
Allow the unit to run for a few minutes to enable the
new brushes to ‘bed’ down.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice. For
further information visit www.recyclemore.co.uk
Fig. 13

PLUG REPLACEMENT
(UK & IRELAND ONLY)
If you need to replace the fitted plug then follow the
instructions below.
IMPORTANT
The wires in the mains lead are coloured in accordance
with the following code:
BLUE =NEUTRAL
Brown = Live
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured
markings identifying the terminals in your plug,
proceed as follows. The wire which is coloured blue
must be connected to the terminal which is marked
with N. The wire which is coloured brown must be
connected to the terminal which is marked with L.
Warning:
Never connect live or neutral wires to the earth
terminal of the plug. Only fit an approved 13AMP
BS1363/A plug and the correct rated fuse.
Note: If a moulded plug is fitted and has to be
removed take great care in disposing of the plug
and severed cable, it must be destroyed to prevent
engaging into a socket.
13 Amp fuse approved
to BS1362
Connect
Blue to N
(neutral)
Outer sleeve
rmly clamped
Brown L(live)
Cable grip

ROUTER1250W TTB591ROU
Declaration of conformity
We, Importer
Titan Power Tools (UK) Ltd
Trade House, Mead Avenue, BA22 8RT
Declare that the product:
Designation: ROUTER 1250W
Model: TTB591ROU
Complies with the following Directives:
2004/108/EC Electromagnetic Compatibility Directive,
2006/42/EC Machinery Directive
2006/95/EC Low Voltage Directive,
2011/65/EU Restrictions of the Use of Certain Hazardous Substances in Electrical and Electronic
Equipment
2012/19/EU Waste Electrical and Electronic Equipment (WEEE),
Standards and technical specications referred to:
EN 60745-1: 2009 + A11: 2010
EN 60745-2-17: 2010
EN 55014-1: 2006+A1: 2009
EN 55014-2:1997+A1: 2001+A2: 2008
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2008
Authorised signatory and technical file holder
Date: 01/01/2014
Signature:
Name / title: Peter Harries / Quality Manager
Titan Power Tools (UK) Ltd. Trade House, Mead Avenue, BA22 8RT
