Introduction
Thank you for purchasing the TLV cyclone separator trap for air.
This product has been thoroughly inspected before being shipped from the
factory. When the product is delivered, before doing anything else, check the
specifications and external appearance to make sure nothing is out of the
ordinary. Also be sure to read this manual carefully before use and follow the
instructions to be sure of using the product properly.
This cyclone separator trap features a built-in free float air trap and uses
centrifugal force to separate condensate from air.
The combination of separator and built-in trap makes this product suitable for
use in locations where a separator would be installed together with a trap.
If detailed instructions for the special order specifications or options are not
contained in this manual, please contact TLV for full details.
This instruction manual is intended for use with the model(s) listed on the
front cover. It is necessary not only for installation but for subsequent
maintenance, disassembly/reassembly and troubleshooting. Please keep it in
a safe place for future reference.

172-65287MA-04 (DC3A-L) 7 Oct 2021
2
Safety Considerations
Read this section carefully before use and be sure to follow the instructions.
Installation, inspection, maintenance, repairs, disassembly, adjustment
and valve opening/closing should be carried out only by trained
maintenance personnel.
The precautions listed in this manual are designed to ensure safety and
prevent equipment damage and personal injury. For situations that may
occur as a result of erroneous handling, three different types of cautionary
items are used to indicate the degree of urgency and the scale of potential
damage and danger: DANGER, WARNING and CAUTION.
The three types of cautionary items above are very important for safety:
be sure to observe all of them as they relate to installation, use,
maintenance, and repair. Furthermore, TLV accepts no responsibility for
any accidents or damage occurring as a result of failure to observe these
precautions.
Symbols
Indicates a DANGER, WARNING or CAUTION item.
Indicates an urgent situation which poses a threat of death or
serious injury
Indicates that there is a potential threat of death or serious injury
Indicates that there is a possibility of injury or equipment/product
damage
DO NOT use for toxic, flammable or otherwise hazardous
fluids.
This product is a separator trap for air that separates and
discharges condensate from air piping systems. Use only for air
and/or air condensate. This product is for intended use only.
Improper use may result in such hazards as damage to the
product or malfunctions that may lead to serious accidents.
NEVER apply direct heat to the float.
The float may explode due to increased internal pressure, causing
accidents leading to serious injury or damage to property and
equipment.
Install properly and DO NOT use this product outside the
recommended operating pressure, temperature and other
specification ranges.
Improper use may result in such hazards as damage to the
product or malfunctions that may lead to serious accidents. Local
regulations may restrict the use of this product to below the
conditions quoted.
DO NOT use the product in excess of the maximum operating
pressure differential.
Such use could make discharge impossible (blocked).
Continued on the next page
DANGER
WARNING
CAUTION
WARNING
CAUTION

172-65287MA-04 (DC3A-L) 7 Oct 2021
3
Use hoisting equipment for heavy objects (weighing
approximately 20 kg (44 lb) or more).
Failure to do so may result in back strain or other injury if the
object should fall.
Take measures to prevent people from coming into direct
contact with product outlets.
Failure to do so may result in burns or other injury from the
discharge of fluids.
When disassembling or removing the product, wait until the
internal pressure equals atmospheric pressure and the
surface of the product has cooled to room temperature.
Disassembling or removing the product when it is hot or under
pressure may lead to discharge of fluids, causing burns, other
injuries or damage.
Be sure to use only the recommended components when
repairing the product, and NEVER attempt to modify the
product in any way.
Failure to observe these precautions may result in damage to the
product and burns or other injury due to malfunction or the
discharge of fluids.
Do not use excessive force when connecting threaded pipes
to the product.
Over-tightening may cause breakage leading to fluid discharge,
which may cause burns or other injury.
Use only under conditions in which no freeze-up will occur.
Freezing maydamage the product, leading to fluiddischarge, which
may cause burns or other injury.
CAUTION

172-65287MA-04 (DC3A-L) 7 Oct 2021
4
Specifications
DO NOT use for toxic, flammable or otherwise hazardous fluids.
This product is a separator trap for air that separates and discharges condensate
from air piping systems. Use only for air and/or air condensate. This product is for
intended use only. Improper use may result in such hazards as damage to the
product or malfunctions that may lead to serious accidents.
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or malfunctions
that may lead to serious accidents. Local regulations may restrict the use of this
product to below the conditions quoted.
DO NOT use the product in excess of the maximum operating pressure
differential. Such use could make discharge impossible (blocked).
Use only under conditions in which no freeze-up will occur.
Freezing may damage the product, leading to fluid discharge, which may cause
burns or other injury.
Refer to the product nameplate for detailed specifications.
A
Model
B
Nominal Diameter
C
Maximum Allowable Pressure (PMA)
D
Maximum Allowable Temperature (TMA)*
E
Maximum Differential Pressure
F
Maximum Operating Temperature (TMO)
G
Production Lot No.
H
Valve No.**
* Maximum allowable pressure (PMA) and maximum allowable temperature (TMA) are
PRESSURE SHELL DESIGN CONDITIONS, NOT OPERATING CONDITIONS.
** Valve No. is displayed for products with options. This item is omitted from the nameplate
when there are no options.
WARNING
CAUTION

172-65287MA-04 (DC3A-L) 7 Oct 2021
5

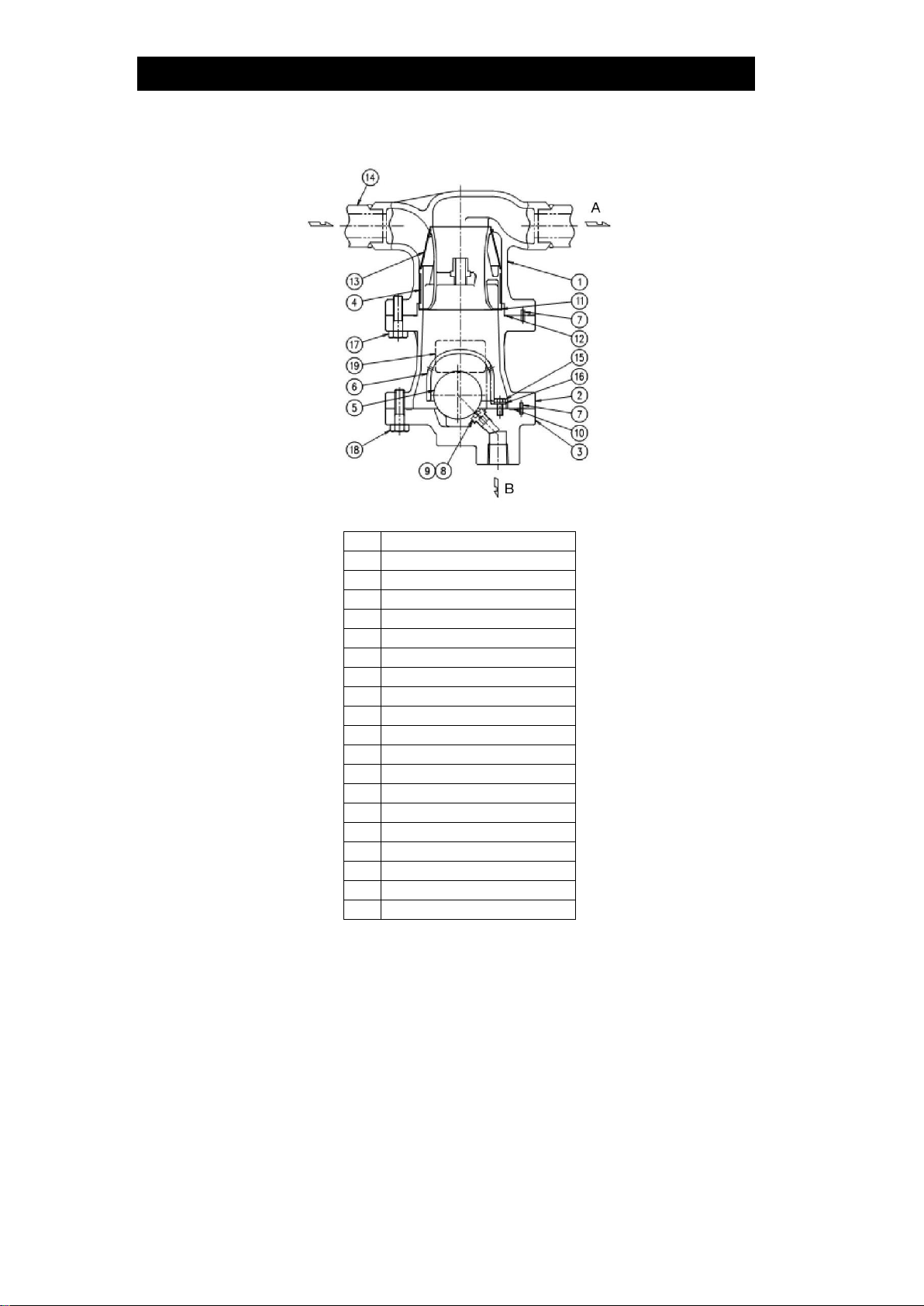

Configuration
No.
Name
1
Body
2
Separator Body
3
Trap Cover
4
Separator
5
Float
6
Float Cover
7
Guide Pin
8
Trap Valve Seat
9
Valve Seat Gasket
10
Trap Cover Gasket
11
Wave Spring
12
Body Gasket
13
Screen
14
Flange
15
Float Cover Bolt
16
Spring Washer
17
Body Bolt
18
Trap Cover Bolt
19
Nameplate
A: Separator Outlet
B: Air Trap Outlet

172-65287MA-04 (DC3A-L) 7 Oct 2021
6
Installation
DO NOT use for toxic, flammable or otherwise hazardous fluids.
This product is a separator trap for air that separates and discharges condensate
from air piping systems. Use only for air and/or air condensate. This product is for
intended use only. Improper use may result in such hazards as damage to the
product or malfunctions that may lead to serious accidents.
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or
malfunctions that may lead to serious accidents. Local regulations may restrict
the use of this product to below the conditions quoted.
Use hoisting equipment for heavy objects (weighing approximately 20 kg
(44 lb) or more).
Failure to do so may result in back strain or other injury if the object should fall.
Take measures to prevent people from coming into direct contact with
product outlets.
Failure to do so may result in burns or other injury from the discharge of fluids.
Do not use excessive force when connecting threaded pipes to the product.
Over-tightening may cause breakage leading to fluid discharge, which may cause
burns or other injury.
Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.
1. Before installation, be sure to remove all protective seals.
2. Before installing the product, blow out the inlet piping to remove any piping
scraps, dirt and oil. Close the inlet valve after blowdown.
3. Install the product at the point on the piping where the separation of condensate
will have the greatest effect on efficiency. For example, on an air main or branch
at the inlet of equipment requiring high-quality dry air.
4. Install the product so the arrow on the product is pointing in the direction of flow.
5. The product should be inclined no more than 10° horizontally and front-to-back.
6. Install a separator outlet valve and separator outlet piping, and air trap outlet
fittings and air trap outlet piping.
7. To facilitate inspection and maintenance, install a union at the air trap outlet and
ensure that there is sufficient space for maintenance.
8. Open the inlet valve and outlet valves and check to make sure that the product
functions properly.
If there is a problem, determine the cause using the “Troubleshooting” section in this
manual.
Tolerance Angle for Installation: 10°
Make sure the product is installed
with the raised TLV lettering on the
body horizontal.
WARNING
CAUTION

172-65287MA-04 (DC3A-L) 7 Oct 2021
7
Maintenance
Take measures to prevent people from coming into direct contact with
product outlets.
Failure to do so may result in burns or other injury from the discharge of fluids.
Be sure to use only the recommended components when repairing the
product, and NEVER attempt to modify the product in any way.
Failure to observe these precautions may result in damage to the product and
burns or other injury due to malfunction or the discharge of fluids.
Operational Check
A visual inspection of the following items should be done on a daily basis to
determine whether the product is operating properly or has failed. Periodically (at
least biannually) the operation should also be checked by using diagnostic
equipment, such as a stethoscope or thermometer.
(Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.)
Check to see if air is flowing from the separator outlet. Check all flow meters and
check the differential pressure.
If there is insufficient flow or differential pressure is too large, disassemble and check
for clogging of the screen.
If the product should fail, it may cause damage to piping and equipment, resulting in
faulty or low quality products or losses due to air leakage.
Trap Operational Check
Normal
:
Condensate is discharged continuously from the trap, and nothing but
condensate is discharged.
Blocked
(Discharge
Impossible)
:
No condensate is discharged from the trap outlet.
Blowing
:
Air continuously flows from the trap outlet.
Leakage
:
Air is discharged through the trap outlet together with the condensate.
Parts Inspection
When parts have been removed, or during periodic inspections, use the following
table to inspect the parts and replace any that are found to be defective.
Procedure
Screen:
Check for clogging or corrosion
Gaskets:
Check for warping or damage
Float:
Check for scratches or dents
Trap Valve Seat:
Check for wear or scratches
Body Interior:
Check for build-up
CAUTION

172-65287MA-04 (DC3A-L) 7 Oct 2021
8
Disassembly/Reassembly
NEVER apply direct heat to the float.
The float may explode due to increased internal pressure, causing accidents
leading to serious injury or damage to property and equipment.
Use hoisting equipment for heavy objects (weighing approximately 20 kg
(44 lb) or more).
Failure to do so may result in back strain or other injury if the object should fall.
When disassembling or removing the product, wait until the internal
pressure equals atmospheric pressure and the surface of the product has
cooled to room temperature.
Disassembling or removing the product when it is hot or under pressure may
lead to discharge of fluids, causing burns, other injuries or damage.
Use the following procedures to remove components. Use the same procedures in
reverse to reassemble.
(Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.)
Removing/Reattaching the Trap Cover
Part
During Disassembly
During Reassembly
Trap Cover Bolt 18
Remove with a socket wrench
Consult the table of tightening
torques and tighten to the proper
torque
Trap Cover 3
Remove the trap cover by pulling
it down, being careful not to
scratch the seating surface
Make sure there are no pieces
of the old gasket left on the
sealing surfaces of the
separator body and trap cover,
align the guide pin on the
separator body with the guide
pin hole on the trap cover and
reattach
Trap Cover Gasket 10
Remove the gasket and clean
sealing surfaces
Replace with a new gasket
Removing/Reinserting Parts inside the Trap Cover
Part
During Disassembly
During Reassembly
Float Cover Bolt 15
(Spring Washer 16)
Remove with a socket wrench
Consult the table of tightening
torques and tighten to the proper
torque
Float Cover 6
Remove by lifting up and off
Place it into position
Float 5
Remove, being careful not to
scratch the polished surface
Insert, being careful not to
scratch the polished surface
Trap Valve Seat 8
Remove with a socket wrench
Consult the table of tightening
torques and tighten to the proper
torque
Valve Seat Gasket 9
Remove, being careful not to
scratch the surfaces
Replace with a new gasket
WARNING
CAUTION

172-65287MA-04 (DC3A-L) 7 Oct 2021
9
Separating/Reattaching Body and Separator Body
Part
During Disassembly
During Reassembly
Body Bolt 17
Remove with a wrench
Consult the table of tightening
torques and tighten to the proper
torque
Separator Body 2
Pull down and out from the body,
being careful not to let the
separator and wave spring fall as
they come out with the separator
body
Make sure there are no pieces of
the old gasket left on the sealing
surfaces of the separator body
and body, align the guide pin on
the separator body with the
guide pin hole on the body and
reattach
Separator 4
Remove when detaching the
separator body
Insert into the groove in the
separator body
Wave Spring 11
Remove with the separator
Insert it into the groove
Screen 13
Remove, being careful not to
bend
Place on top of the separator,
being careful not to bend
Body Gasket 12
Remove, being careful not to
scratch the surfaces
Replace with a new gasket
Table of Tightening Torques
Part
Size
Torque
Distance Across
Flats
mm
(in)
N.m
(lbf·ft)
mm
(in)
Body Bolt 17
15 - 40
(1∕2–11∕2)
60
(44)
17
(21∕32)
50
(2)
70
(51)
19
(3∕4)
Trap Cover Bolt 18
15 - 40
(1∕2–11∕2)
60
(44)
17
(21∕32)
50
(2)
70
(51)
19
(3∕4)
Trap Valve Seat 8
15 - 40
(1∕2–11∕2)
15
(11)
13
(1∕2)
50
(2)
40
(29)
17
(21∕32)
Float Cover Bolt 15
15 - 50
(1∕2–2)
20
(15)
13
(1∕2)
NOTE:
-Coat all threaded portions with anti-seize.
-If drawings or other special documentation were supplied for the
product, any torque given there takes precedence over values
shown here.
(1 Nm 10 kgcm)

172-65287MA-04 (DC3A-L) 7 Oct 2021
10
Exploded View
No.
Name
1
Body
2
Separator Body
3
Trap Cover
4
Separator
5
Float
6
Float Cover
7
Guide Pin
8
Trap Valve Seat
9
Valve Seat Gasket
10
Trap Cover Gasket
11
Wave Spring
12
Body Gasket
13
Screen
14
Flange
15
Float Cover Bolt
16
Spring Washer
17
Body Bolt
18
Trap Cover Bolt
19
Nameplate

172-65287MA-04 (DC3A-L) 7 Oct 2021
11
Troubleshooting
NEVER apply direct heat to the float.
The float may explode due to increased internal pressure, causing accidents
leading to serious injury or damage to property and equipment.
When disassembling or removing the product, wait until the internal
pressure equals atmospheric pressure and the surface of the product has
cooled to room temperature.
Disassembling or removing the product when it is hot or under pressure may
lead to discharge of fluids, causing burns, other injuries or damage.
When the product fails to operate properly, use the following table to locate the
cause and remedy.
Problem
Cause
Remedy
No condensate is
discharged
(blocked) or
discharge is poor
The float is damaged or filled with
condensate
Replace with a new float
The trap valve seat port, screen or
piping is clogged with rust or scale
Clean parts
The product operating pressure
exceeds the maximum specified
pressure or there is insufficient
pressure differential between the
trap inlet and outlet
Compare specifications and actual
operating conditions
Air is discharged
or leaks from the
trap outlet
(blowing)
(air leakage)
Rust and scale have accumulated
around the trap valve seat or
beneath the float
Clean parts
The trap valve seat is damaged
Replace with a new trap valve seat
The float is deformed or coated with
scale
Clean or replace with a new float
The separator is installed above the
maximum allowable inclination
Correct the installation
Air is leaking from
sealing surfaces
Gasket deterioration or damage
Replace with a new gasket
Improper tightening torques were
used
Tighten to the proper torque
Water is mixed in
with the air from
the separator
outlet
Air flow velocity is too high
Take steps necessary to lower the
air flow velocity
Review causes listed above in “No condensate is discharged…” section
and follow the appropriate remedy
Separator outlet
pressure drops or
desired flow rate is
unachievable
The screen is clogged with rust and
scale
Clean or replace with a new screen
WARNING
CAUTION

172-65287MA-04 (DC3A-L) 7 Oct 2021
12
TLV EXPRESS LIMITED WARRANTY
Subject to the limitations set forth below, TLV CO., LTD., a Japanese corporation
(“TLV”), warrants that products which are sold by it, TLV International Inc. (“TII”) or
one of its group companies excluding TLV Corporation (a corporation of the United
States of America), (hereinafter the “Products”) are designed and manufactured by
TLV, conform to the specifications published by TLV for the corresponding part
numbers (the “Specifications”) and are free from defective workmanship and
materials. The party from whom the Products were purchased shall be known
hereinafter as the “Seller”. With regard to products or components manufactured by
unrelated third parties (the “Components”), TLV provides no warranty other than the
warranty from the third party manufacturer(s), if any.
Exceptions to Warranty
This warranty does not cover defects or failures caused by:
1. improper shipping, installation, use, handling, etc., by persons other than TLV,
TII or TLV group company personnel, or service representatives authorized by
TLV; or
2. dirt, scale or rust, etc.; or
3. improper disassembly and reassembly, or inadequate inspection and
maintenance by persons other than TLV or TLV group company personnel, or
service representatives authorized by TLV; or
4. disasters or forces of nature or Acts of God; or
5. abuse, abnormal use, accidents or any other cause beyond the control of TLV,
TII or TLV group companies; or
6. improper storage, maintenance or repair; or
7. operation of the Products not in accordance with instructions issued with the
Products or with accepted industry practices; or
8. use for a purpose or in a manner for which the Products were not intended; or
9. use of the Products in a manner inconsistent with the Specifications; or
10. use of the Products with Hazardous Fluids (fluids other than steam, air, water,
nitrogen, carbon dioxide and inert gases (helium, neon, argon, krypton, xenon
and radon)); or
11. failure to follow the instructions contained in the TLV Instruction Manual for the
Product.
Duration of Warranty
This warranty is effective for a period of one (1) year after delivery of Products to the
first end user. Notwithstanding the foregoing, asserting a claim under this warranty
must be brought within three (3) years after the date of delivery to the initial buyer if
not sold initially to the first end user.
ANY IMPLIED WARRANTIES NOT NEGATED HEREBY WHICH MAY ARISE BY
OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE AND ANY EXPRESS WARRANTIES NOT
NEGATED HEREBY, ARE GIVEN SOLELY TO THE INITIAL BUYER AND ARE LIMITED IN
DURATION TO ONE (1) YEAR FROM THE DATE OF SHIPMENT BY THE SELLER.
Exclusive Remedy
THE EXCLUSIVE REMEDY UNDER THIS WARRANTY, UNDER ANY EXPRESS
WARRANTY OR UNDER ANY IMPLIED WARRANTIES NOT NEGATED HEREBY
(INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE), IS REPLACEMENT; PROVIDED: (a) THE CLAIMED DEFECT IS
REPORTED TO THE SELLER IN WRITING WITHIN THE WARRANTY PERIOD, INCLUDING

172-65287MA-04 (DC3A-L) 7 Oct 2021
13
A DETAILED WRITTEN DESCRIPTION OF THE CLAIMED DEFECT AND HOW AND WHEN
THE CLAIMED DEFECTIVE PRODUCT WAS USED; AND (b) THE CLAIMED DEFECTIVE
PRODUCT AND A COPY OF THE PURCHASE INVOICE IS RETURNED TO THE SELLER,
FREIGHT AND TRANSPORTATION COSTS PREPAID, UNDER A RETURN MATERIAL
AUTHORIZATION AND TRACKING NUMBER ISSUED BY THE SELLER. ALL LABOR
COSTS, SHIPPING COSTS, AND TRANSPORTATION COSTS ASSOCIATED WITH THE
RETURN OR REPLACEMENT OF THE CLAIMED DEFECTIVE PRODUCT ARE SOLELY
THE RESPONSIBILITY OF BUYER OR THE FIRST END USER. THE SELLER RESERVES
THE RIGHT TO INSPECT ON THE FIRST END USER’S SITE ANY PRODUCTS CLAIMED
TO BE DEFECTIVE BEFORE ISSUING A RETURN MATERIAL AUTHORIZATION. SHOULD
SUCH INSPECTION REVEAL, IN THE SELLER’S REASONABLE DISCRETION, THAT THE
CLAIMED DEFECT IS NOT COVERED BY THIS WARRANTY, THE PARTY ASSERTING
THIS WARRANTY SHALL PAY THE SELLER FOR THE TIME AND EXPENSES RELATED
TO SUCH ON-SITE INSPECTION.
Exclusion of Consequential and Incidental Damages
IT IS SPECIFICALLY ACKNOWLEDGED THAT THIS WARRANTY, ANY OTHER EXPRESS
WARRANTY NOT NEGATED HEREBY, AND ANY IMPLIED WARRANTY NOT NEGATED
HEREBY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, DO NOT COVER, AND NEITHER TLV, TII NOR ITS TLV
GROUP COMPANIES WILL IN ANY EVENT BE LIABLE FOR, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO LOST PROFITS, THE
COST OF DISASSEMBLY AND SHIPMENT OF THE DEFECTIVE PRODUCT, INJURY TO
OTHER PROPERTY, DAMAGE TO BUYER’S OR THE FIRST END USER’S PRODUCT,
DAMAGE TO BUYER’S OR THE FIRST END USER’S PROCESSES, LOSS OF USE, OR
OTHER COMMERCIAL LOSSES. WHERE, DUE TO OPERATION OF LAW,
CONSEQUENTIAL AND INCIDENTAL DAMAGES UNDER THIS WARRANTY, UNDER ANY
OTHER EXPRESS WARRANTY NOT NEGATED HEREBY OR UNDER ANY IMPLIED
WARRANTY NOT NEGATED HEREBY (INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) CANNOT BE
EXCLUDED, SUCH DAMAGES ARE EXPRESSLY LIMITED IN AMOUNT TO THE
PURCHASE PRICE OF THE DEFECTIVE PRODUCT. THIS EXCLUSION OF
CONSEQUENTIAL AND INCIDENTAL DAMAGES, AND THE PROVISION OF THIS
WARRANTY LIMITING REMEDIES HEREUNDER TO REPLACEMENT, ARE INDEPENDENT
PROVISIONS, AND ANY DETERMINATION THAT THE LIMITATION OF REMEDIES FAILS
OF ITS ESSENTIAL PURPOSE OR ANY OTHER DETERMINATION THAT EITHER OF THE
ABOVE REMEDIES IS UNENFORCEABLE, SHALL NOT BE CONSTRUED TO MAKE THE
OTHER PROVISIONS UNENFORCEABLE.
Exclusion of Other Warranties
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
AND ALL OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE EXPRESSLY DISCLAIMED.
Severability
Any provision of this warranty which is invalid, prohibited or unenforceable in any
jurisdiction shall, as to such jurisdiction, be ineffective to the extent of such invalidity,
prohibition or unenforceability without invalidating the remaining provisions hereof,
and any such invalidity, prohibition or unenforceability in any such jurisdiction shall
not invalidate or render unenforceable such provision in any other jurisdiction.

172-65287MA-04 (DC3A-L) 7 Oct 2021
14
Service
For Service or Technical Assistance: Contact your TLV representative or your regional TLV office.
In Europe:
Daimler-Benz-Straße 16-18, 74915 Waibstadt, Germany
Tel:
Fax:
[49]-(0)7263-9150-0
[49]-(0)7263-9150-50
Units 7 & 8, Furlong Business Park, Bishops Cleeve, Gloucestershire GL52
8TW, U.K.
Tel:
Fax:
[44]-(0)1242-227223
[44]-(0)1242-223077
Parc d’Ariane 2, bât. C, 290 rue Ferdinand Perrier, 69800 Saint Priest,
France
Tel:
Fax:
33–(0)4-72482222
[33]-(0)4-72482220
In North America:
13901 South Lakes Drive, Charlotte, NC 28273-6790, U.S.A.
Tel:
Fax:
[1]-704-597-9070
[1]-704-583-1610
In Mexico and Latin America:
Av. Jesús del Monte 39-B-1001, Col. Hda. de las Palmas, Huixquilucan,
Edo. de México, 52763, Mexico
Tel:
Fax:
[52]-55-5359-7949
[52]-55-5359-7585
In Oceania:
Unit 8, 137-145 Rooks Road, Nunawading, Victoria 3131, Australia
Tel:
Fax:
[61]-(0)3-9873 5610
[61]-(0)3-9873 5010
In East Asia:
36 Kaki Bukit Place, #02-01/02, Singapore 416214
Tel:
Fax:
[65]-6747 4600
[65]-6742 0345
Room 5406, No. 103 Cao Bao Road, Shanghai, China 200233
Tel:
Fax:
[86]-(0)21-6482-8622
[86]-(0)21-6482-8623
No.16, Jalan MJ14, Taman Industri Meranti Jaya, 47120 Puchong,
Selangor, Malaysia
Tel:
Fax:
[60]-3-8065-2928
[60]-3-8065-2923
252/94 (K-L) 17th Floor, Muang Thai-Phatra Complex Tower B,
Rachadaphisek Road, Huaykwang, Bangkok 10310, Thailand
Tel:
Fax:
[66]-2-693-3799
[66]-2-693-3979
#302-1 Bundang Technopark B, 723 Pangyo-ro, Bundang, Seongnam,
Gyeonggi, 13511, Korea
Tel:
Fax:
[82]-(0)31-726-2105
[82]-(0)31-726-2195
In the Middle East:
Building 2W, No. M002, POBox 371684, Dubai Airport FreeZone,Dubai, UAE
Email:
[email protected]
In Other Countries:
881 Nagasuna, Noguchi, Kakogawa, Hyogo 675-8511, Japan
Tel:
Fax:
[81]-(0)79-427-1818
[81]-(0)79-425-1167
Manufacturer:
881 Nagasuna, Noguchi, Kakogawa, Hyogo 675-8511, Japan
Tel:
Fax:
[81]-(0)79-422-1122
[81]-(0)79-422-0112
