Introduction
Thank you for purchasing the TLV clean steam trap.
This product has been thoroughly inspected before being shipped from the factory. When
the product is delivered, before doing anything else, check the specifications and external
appearance to make sure nothing is out of the ordinary. Also be sure to read this manual
carefully before use and follow the instructions to be sure of using the product properly.
This clean steam trap is suitable for applications requiring condensate discharge from steam
transport lines, process systems and equipment (steam-using equipment). This clean steam
trap automatically and continuously discharge the inflowing condensate that is continuously
generated inside the equipment, thus preventing the accumulation of condensate and thereby
improving the heat transfer efficiency of the equipment.
For products with special order specifications or options, if detailed instructions for the special
order specifications or options are not contained in this manual, please contact TLV for full
details.
This instruction manual is intended for use with the model(s) listed on the front cover. It is
necessary not only for installation but for subsequent maintenance, disassembly/reassembly
and troubleshooting. Please keep it in a safe place for future reference.
3

Safety Considerations
• Read this section carefully before use and be sure to follow the instructions.
• Installation, inspection, maintenance, repairs, disassembly, adjustment and valve opening/
closing should be carried out only by trained maintenance personnel.
• The precautions listed in this manual are designed to ensure safety and prevent equipment
damage and personal injury. For situations that may occur as a result of erroneous handling,
three different types of cautionary items are used to indicate the degree of urgency and the
scale of potential damage and danger: DANGER, WARNING and CAUTION.
• The three types of cautionary items above are very important for safety: be sure to observe
all of them as they relate to installation, use, maintenance and repair. Furthermore, TLV
accepts no responsibility for any accidents or damage occurring as a result of failure to
observe these precautions.
Cautionary items and definitions
Danger
Indicates an urgent situation which poses a threat of death or serious injury
Warning
Indicates that there is a potential threat of death or serious injury
Caution
Indicates that there is a possibility of injury or equipment/product damage
Safety Considerations for the Product
Warning
NEVER apply direct heat to the float. The float may explode due to increased internal pressure,
causing accidents leading to serious injury or damage to property and equipment.
Caution
Install properly and DO NOT use this product outside the recommended operating
pressure, temperature and other specification ranges. Improper use may result in such
hazards as damage to the product or malfunctions that may lead to serious accidents. Local
regulations may restrict the use of this product to below the conditions quoted.
Caution
DO NOT use this product in excess of the maximum operating pressure differential. Such
use could make discharge impossible (blocked).
Caution
Take measures to prevent people from coming into direct contact with product outlets.
Failure to do so may result in burns or other injury from the discharge of fluids.
Caution
Be sure to use only the recommended components when repairing the product, and NEVER
attempt to modify the product in any way. Failure to observe these precautions may result in
damage to the product and burns or other injury due to malfunction or the discharge of fluids.
Caution
Use only under conditions in which no freeze-up will occur. Freezing may damage the
product, leading to fluid discharge, which may cause burns or other injury.
4

Caution
Use only under conditions in which no water hammer will occur. The impact of water hammer
may damage the product, leading to fluid discharge, which may cause burns or other injury.
5

Operation

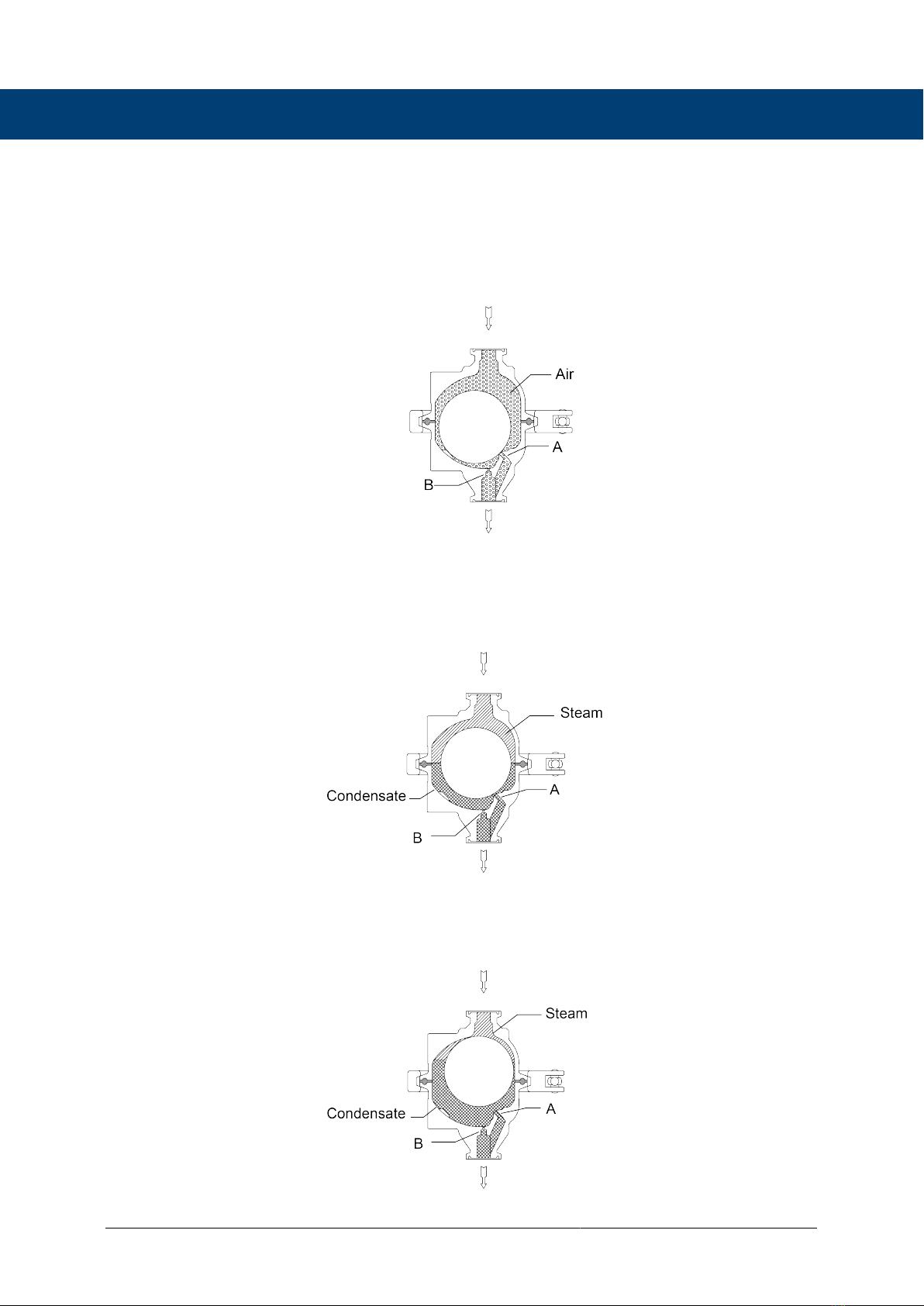

Principles of air and condensate discharge:
1. Initial Air Discharge
At start-up, before steam is supplied the system is cold and air occupies the system.
When steam is first supplied to the system, air is discharged through the drain hole (B)
while the orifice (A) is closed by the float.
2. Condensate Discharge
As steam is supplied, condensate flow begins. The rising condensate level causes the
float to rise due to buoyancy, opening the orifice (A) and allowing condensate to be
discharged. In this manner, continuous condensate discharge occurs while the opening
size of the orifice varies depending on the condensate flow rate.
3. Discharge of Large Quantities of Condensate
Increases in the condensate inflow rate cause the condensate level in the trap to rise.
The float consequently rises and enlarges the opening of the orifice (A), allowing more
condensate to be discharged.
6

4. Closed Position
When the condensate flow rate decreases, the float falls, closing off the orifice opening
(A). When condensate flow rate becomes less than the minimum amount of condensate
required to prevent steam discharge, some amount of steam is discharged from the
drain hole (B). Once the system stops operating, condensate remaining in the trap drains
through the drain hole (B) by gravity.
7

Specifications
Caution
Install properly and DO NOT use this product outside the recommended operating
pressure, temperature and other specification ranges. Improper use may result in such
hazards as damage to the product or malfunctions that may lead to serious accidents. Local
regulations may restrict the use of this product to below the conditions quoted.
DO NOT use this product in excess of the maximum operating pressure differential. Such
use could make discharge impossible (blocked).
Use only under conditions in which no freeze-up will occur. Freezing may damage the
product, leading to fluid discharge, which may cause burns or other injury.

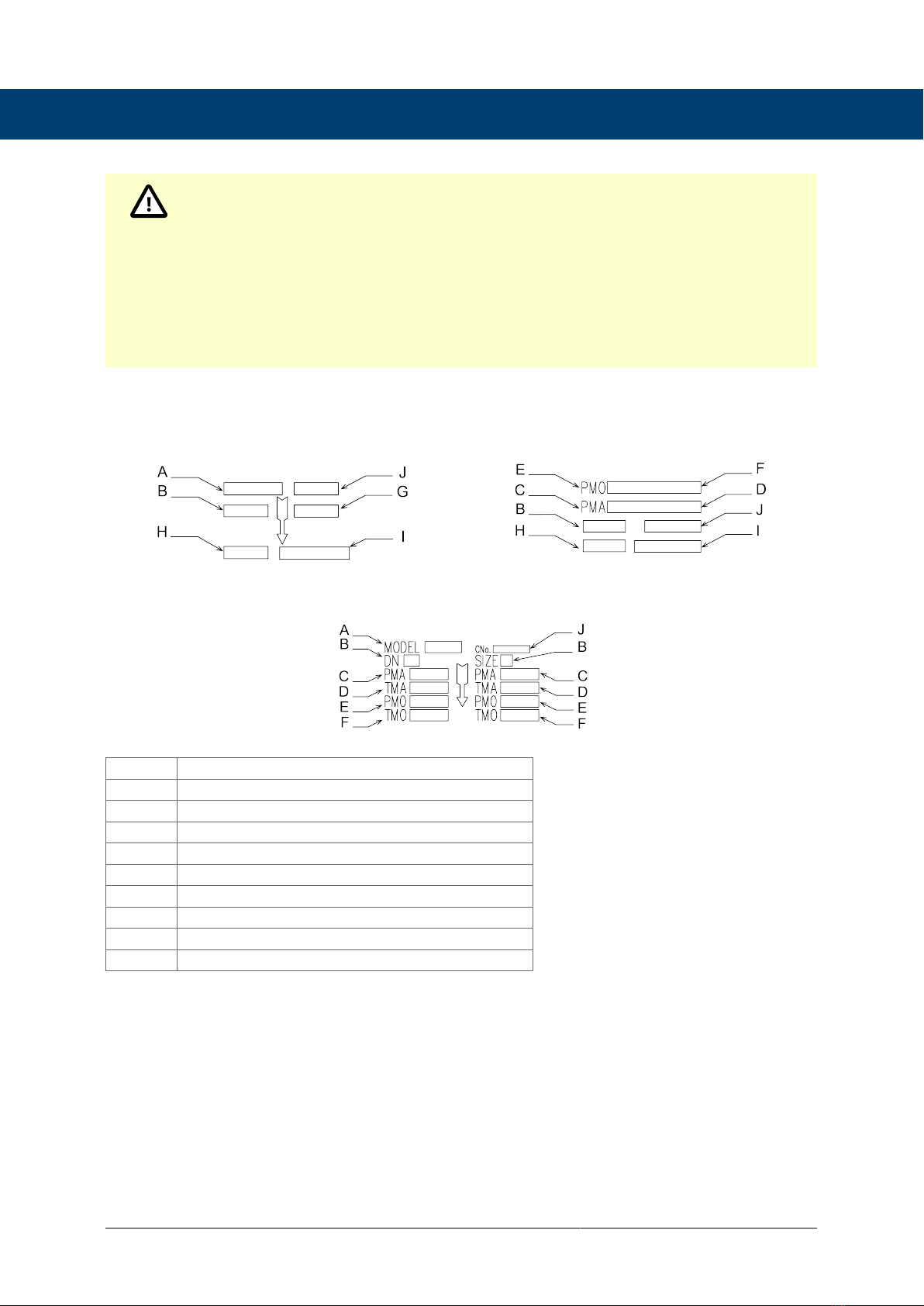

Refer to the indication on the body and cover for detailed specifications.
SS3-E/SS3-P/SS3-EP
Cover Body
SS5-P/SS5-EP
A Model
B Nominal Diameter
C Maximum Allowable Pressure (PMA) 01
D Maximum Allowable Temperature (TMA) 01
E Maximum Operating Pressure (PMO)
F Maximum Operating Temperature (TMO)
G Production Lot No.
H Connection Standard
I Connection Standard No.
J CNo. 02
01Maximum allowable pressure (PMA) and maximum allowable temperature (TMA) are PRESSURE
SHELL DESIGN CONDITIONS, NOT OPERATING CONDITIONS.
02CNo. (Charge/Mill No.) is displayed for products with options. This item is omitted when there are no
options.
8

Configuration
SS3-E/SS3-P/SS3-EP SS5-P/SS5-EP

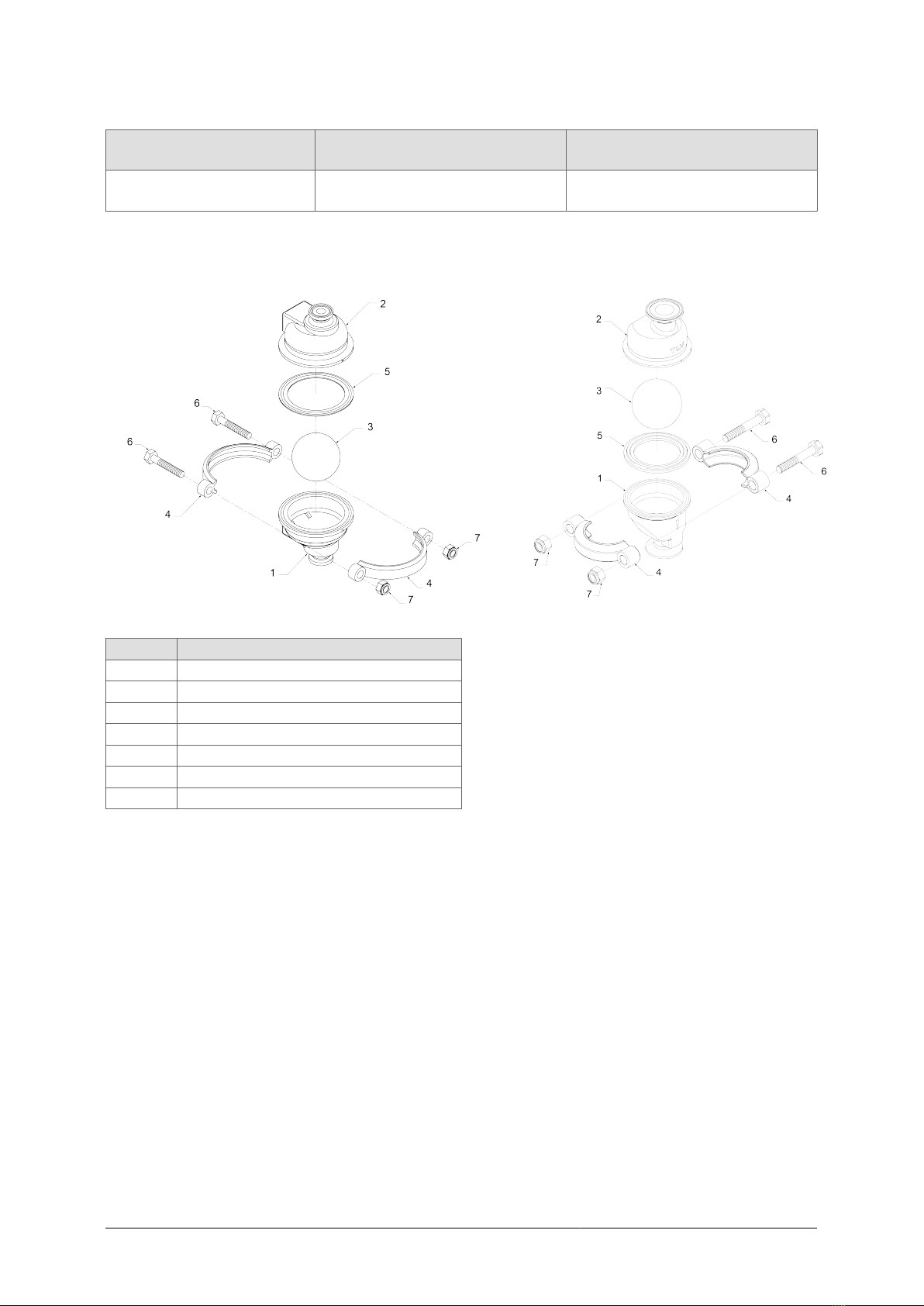

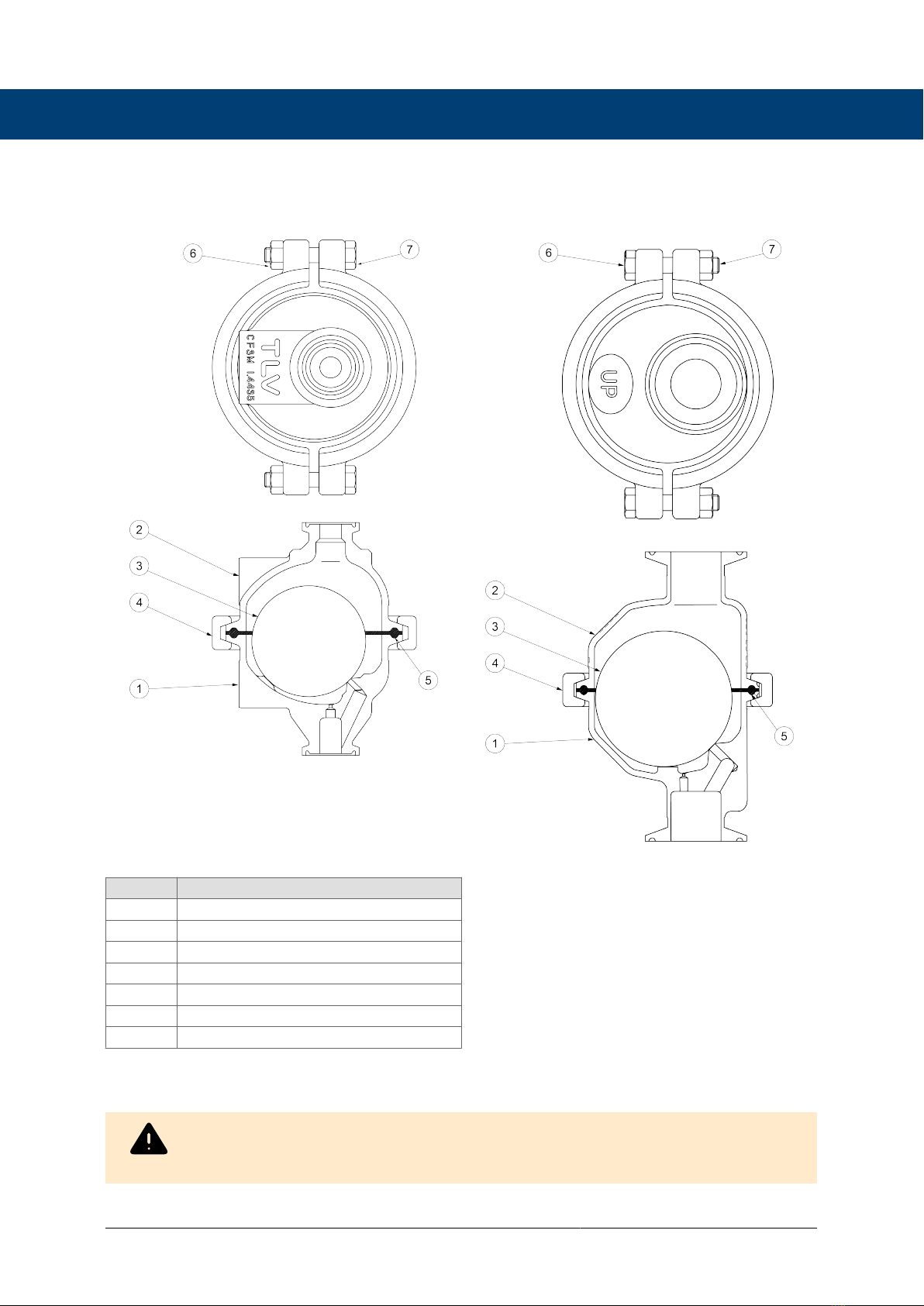

No. Part Name
1 Body
2 Cover
3 Float
4 Body Clamp
5 Cover Gasket
6 Wing Nut
9

Installation
Caution
Install properly and DO NOT use this product outside the recommended operating
pressure, temperature and other specification ranges. Improper use may result in such
hazards as damage to the product or malfunctions that may lead to serious accidents. Local
regulations may restrict the use of this product to below the conditions quoted.
Take measures to prevent people from coming into direct contact with product outlets.
Failure to do so may result in burns or other injury from the discharge of fluids.
Installation, inspection, maintenance, repairs, disassembly, adjustment and valve opening/
closing should be carried out only by trained maintenance personnel.
1. Before installation, be sure to remove all protective seals.
2. Before installing the product, blow out the inlet piping to remove any piping scraps, dirt
and oil. Close the inlet valve after blowdown.

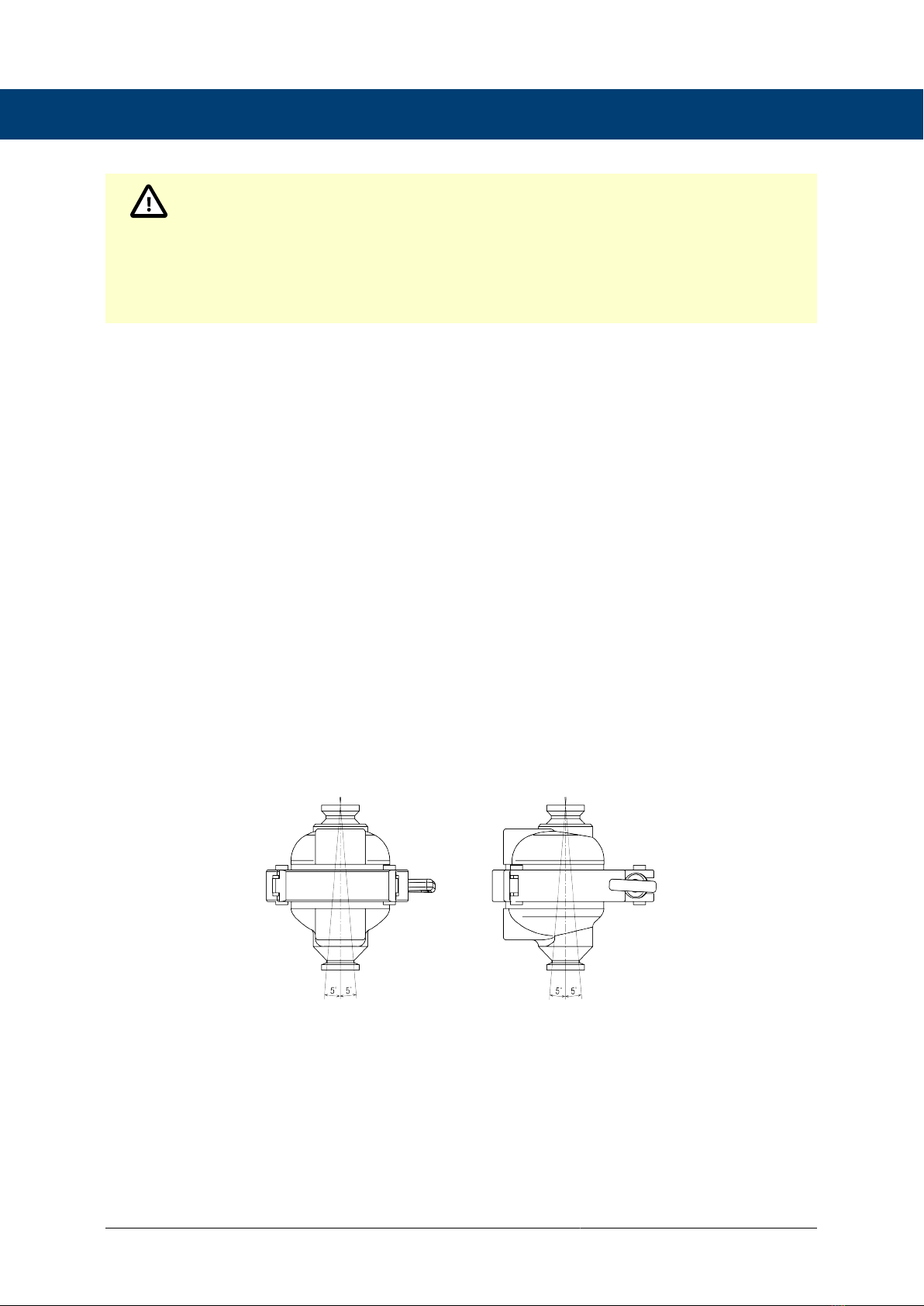

3. Install the product vertically with the inlet at the top and the outlet at the bottom within
the allowable inclination as shown below, and with the arrow on the body pointing in the
direction of flow.
4. Install condensate outlet valve and outlet piping.
5. The outlet pipe should lead to a safe place such as a drainage vessel, pit, etc. Make sure
the end of the pipe is above the water level, so that dirt and water cannot be sucked up by
vacuum when the system shuts down.
6. Open the inlet and outlet valves and check to make sure that the product functions
properly.
7. After steam has passed through the piping, allow the trap to cool by closing the inlet valve
and then further tighten the clamp.
8. Open the inlet valve again for normal operation.
If there is a problem, determine the cause using the “Troubleshooting” section in this manual.
Tolerance Angle for Installation: 5°
Make sure the product is installed with the raised TLV lettering on the cover horizontal.
10

Maintenance
Caution
Take measures to prevent people from coming into direct contact with product outlets.
Failure to do so may result in burns or other injury from the discharge of fluids.
Be sure to use only the recommended components when repairing the product, and NEVER
attempt to modify the product in any way. Failure to observe these precautions may result in
damage to the product and burns or other injury due to malfunction or the discharge of fluids.
Operational Check
A visual inspection of the following items should be done on a daily basis to determine
whether the product is operating properly or has failed. Periodically (at least biannually) the
operation should also be checked by using diagnostic equipment such as a stethoscope,
thermometer, TLV Pocket TrapMan or TrapMan.
If the product should fail, it may cause damage to piping and equipment, resulting in faulty or
low quality products or losses due to steam leakage.
Normal: During either intermittent or continual condensate discharge flash
steam is discharged and the sound of flow can be heard.
Blocked (Discharge
Impossible): No condensate is discharged. The product is quiet and makes no noise, and the surface temperature of the product is low.
Blowing: Live steam continually flows from the outlet and there is a continuous
metallic sound.
Steam Leakage: Live steam is discharged through the trap outlet together with
condensate, accompanied by a high-pitched sound.
Note
The SS3-E/SS3-P/SS3-EP/SS5-P/SS5-EP clean steam traps have a small built-in drain hole to
ensure no condensate remains in the trap after operation. Therefore, a minimum condensate
load is required during operation to prevent any steam discharge. If the condensate load is less
than the minimum condition, a small amount of live steam will be discharged along with any
condensate.
Parts Inspection
When parts have been removed, or during periodic inspections, use the following table to
inspect the parts and replace any that are found to be defective.
Procedure
Cover Gasket: Check for warping or scratches
Float: Check for warping or scratches
Body: Check for build-up inside the body Check for dirt, oil film, wear or scratches Make sure opening
of the orifice and a drain hole are not plugged with foreign matter
11

Disassembly / Reassembly
Warning
NEVER apply direct heat to the float. The float may explode due to increased internal pressure,
causing accidents leading to serious injury or damage to property and equipment.
Caution
When disassembling or removing the product, wait until the internal pressure equals
atmospheric pressure and the surface of the product has cooled to room temperature.
Disassembling or removing the product when it is hot or under pressure may lead to discharge of
fluids, causing burns, other injuries or damage.
Use the following procedures to remove components. Use the same procedures in reverse to
reassemble. (Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.)
Detaching/Reattaching the Body and the Cover
Part Name During Disassembly During Reassembly
Wing Nut 6
Body Clamp 4 Loosen the wing nut with a tool such as an adjustable
wrench, then remove the
body clamp
Consult the table of tightening torques and
tighten the wing nut to the proper torque; open
inlet valve and allow live steam to enter and
heat the trap, then close the inlet valve; after
the internal and atmospheric pressures have
equalized and the trap surface has cooled,
tighten the wing nut to the proper torque again
Steam may leak if the wing nut is not re-
tightened
Body 1
Cover 2 Remove, being careful not to scratch the surface With gasket in place, align grooves and gently place the cover on the body (Fig. A)
Cover Gasket 5 - Replace with a new gasket if damaged
Figure A
Detaching/Reassembly of Components Inside the Cover
Part Name During Disassembly During Reassembly
Float 3 Remove being careful not to
scratch the polished surfaces
of the float, the cover and the
body
Insert into body, being careful not to scratch
its polished surface, take care not to scratch or
damage the seating surface of the orifice (Fig.
B)
Figure B
12

Table of Tightening Torques
Part Name Torque
N•m (lbf•ft)
Wing Nut 6 10 (7)
Exploded View
SS3-E/SS3-P/SS3-EP SS5-P/SS5-EP
No. Part Name
1 Body
2 Cover
3 Float
4 Body Clamp
5 Cover Gasket
6 Wing Nut
13

Troubleshooting
Caution
When disassembling or removing the product, wait until the internal pressure equals
atmospheric pressure and the surface of the product has cooled to room temperature.
Disassembling or removing the product when it is hot or under pressure may lead to discharge of
fluids, causing burns, other injuries or damage.
If the product fails to operate properly, use the following table to locate the cause and remedy.
Problem Cause Remedy
No condensate is
discharged (blocked) or
discharge is poor
The float is damaged or filled with
condensate Replace with a new float
The float is sticking to the orifice Clean parts
The orifice opening of the drain
hole or piping are clogged with
rust and scale
Clean parts
Flow exceeds trap’s rate capacity Check specifications and reselect
the trap suitable for actual flow
The product operating pressure
exceeds the maximum specified
pressure or there is insufficient
pressure differential between the
product inlet and outlet
Compare specifications and
actual operating conditions
Steam locking has occurred Perform a bypass blowdown or
close the trap inlet valve and
allow the trap to cool
Steam is discharged or
leaks from the outlet
(blowing)
(steam leakage)
Build-up on the seating surface of
the orifice or rust and scale build-
up beneath the float
Clean parts
Scratches on the orifice Replace with a new body
The float is damaged or has
build-up Replace with a new float
Trap is installed above the
maximum allowable inclination
angle
Correct the installation
Trap vibration Lengthen the inlet piping and
fasten it securely
Steam is leaking from a
place other than the outlet Gasket deterioration or damage Replace with a new gasket
Improper tightening torques was
used on the body clamp wing nut Tighten to the proper torque
Float frequently becomes
damaged Water hammer has occurred Study and correct the piping
Some condensate is held in
the trap The small drain hole is blocked or clogged with foreign matter Clean
14

TLV EXPRESS LIMITED WARRANTY
Subject to the limitations set forth below, TLV CO., LTD., a Japanese corporation (“TLV”),
warrants that products which are sold by it, TLV International Inc. (“TII”) or one of its
group companies excluding TLV Corporation (a corporation of the United States of America),
(hereinafter the “Products”) are designed and manufactured by TLV, conform to the
specifications published by TLV for the corresponding part numbers (the “Specifications”)
and are free from defective workmanship and materials. The party from whom the Products
were purchased shall be known hereinafter as the “Seller”. With regard to products or
components manufactured by unrelated third parties (the “Components”), TLV provides no
warranty other than the warranty from the third party manufacturer(s), if any.
Exceptions to Warranty
This warranty does not cover defects or failures caused by:
1. improper shipping, installation, use, handling, etc., by persons other than TLV, TII or TLV
group company personnel, or service representatives authorized by TLV; or
2. dirt, scale or rust, etc.; or
3. improper disassembly and reassembly, or inadequate inspection and maintenance by
persons other than TLV or TLV group company personnel, or service representatives
authorized by TLV; or
4. disasters or forces of nature or Acts of God; or
5. abuse, abnormal use, accidents or any other cause beyond the control of TLV, TII or TLV
group companies; or
6. improper storage, maintenance or repair; or
7. operation of the Products not in accordance with instructions issued with the Products or
with accepted industry practices; or
8. use for a purpose or in a manner for which the Products were not intended; or
9. use of the Products in a manner inconsistent with the Specifications; or
10. use of the Products with Hazardous Fluids (fluids other than steam, air, water, nitrogen,
carbon dioxide and inert gases (helium, neon, argon, krypton, xenon and radon)); or
11. failure to follow the instructions contained in the TLV Instruction Manual for the Product.
Duration of Warranty
This warranty is effective for a period of one (1) year after delivery of Products to the first end
user. Notwithstanding the foregoing, asserting a claim under this warranty must be brought
within three (3) years after the date of delivery to the initial buyer if not sold initially to the first
end user.
ANY IMPLIED WARRANTIES NOT NEGATED HEREBY WHICH MAY ARISE BY
OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE AND ANY EXPRESS WARRANTIES NOT
NEGATED HEREBY, ARE GIVEN SOLELY TO THE INITIAL BUYER AND ARE LIMITED IN
DURATION TO ONE (1) YEAR FROM THE DATE OF SHIPMENT BY THE SELLER.
Exclusive Remedy
THE EXCLUSIVE REMEDY UNDER THIS WARRANTY, UNDER ANY EXPRESS
WARRANTY OR UNDER ANY IMPLIED WARRANTIES NOT NEGATED HEREBY
(INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE), IS REPLACEMENT; PROVIDED: (a) THE CLAIMED DEFECT IS
15

REPORTED TO THE SELLER IN WRITING WITHIN THE WARRANTY PERIOD, INCLUDING
A DETAILED WRITTEN DESCRIPTION OF THE CLAIMED DEFECT AND HOW AND WHEN
THE CLAIMED DEFECTIVE PRODUCT WAS USED; AND (b) THE CLAIMED DEFECTIVE
PRODUCT AND A COPY OF THE PURCHASE INVOICE IS RETURNED TO THE SELLER,
FREIGHT AND TRANSPORTATION COSTS PREPAID, UNDER A RETURN MATERIAL
AUTHORIZATION AND TRACKING NUMBER ISSUED BY THE SELLER. ALL LABOR
COSTS, SHIPPING COSTS, AND TRANSPORTATION COSTS ASSOCIATED WITH THE
RETURN OR REPLACEMENT OF THE CLAIMED DEFECTIVE PRODUCT ARE SOLELY
THE RESPONSIBILITY OF BUYER OR THE FIRST END USER. THE SELLER RESERVES
THE RIGHT TO INSPECT ON THE FIRST END USER’S SITE ANY PRODUCTS CLAIMED
TO BE DEFECTIVE BEFORE ISSUING A RETURN MATERIAL AUTHORIZATION. SHOULD
SUCH INSPECTION REVEAL, IN THE SELLER’S REASONABLE DISCRETION, THAT THE
CLAIMED DEFECT IS NOT COVERED BY THIS WARRANTY, THE PARTY ASSERTING
THIS WARRANTY SHALL PAY THE SELLER FOR THE TIME AND EXPENSES RELATED
TO SUCH ON-SITE INSPECTION.
Exclusion of Consequential and Incidental Damages
IT IS SPECIFICALLY ACKNOWLEDGED THAT THIS WARRANTY, ANY OTHER EXPRESS
WARRANTY NOT NEGATED HEREBY, AND ANY IMPLIED WARRANTY NOT NEGATED
HEREBY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, DO NOT COVER, AND NEITHER TLV,
TII NOR ITS TLV GROUP COMPANIES WILL IN ANY EVENT BE LIABLE FOR,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO
LOST PROFITS, THE COST OF DISASSEMBLY AND SHIPMENT OF THE DEFECTIVE
PRODUCT, INJURY TO OTHER PROPERTY, DAMAGE TO BUYER’S OR THE FIRST
END USER’S PRODUCT, DAMAGE TO BUYER’S OR THE FIRST END USER’S
PROCESSES, LOSS OF USE, OR OTHER COMMERCIAL LOSSES. WHERE, DUE TO
OPERATION OF LAW, CONSEQUENTIAL AND INCIDENTAL DAMAGES UNDER THIS
WARRANTY, UNDER ANY OTHER EXPRESS WARRANTY NOT NEGATED HEREBY
OR UNDER ANY IMPLIED WARRANTY NOT NEGATED HEREBY (INCLUDING THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE) CANNOT BE EXCLUDED, SUCH DAMAGES ARE EXPRESSLY LIMITED IN
AMOUNT TO THE PURCHASE PRICE OF THE DEFECTIVE PRODUCT. THIS EXCLUSION
OF CONSEQUENTIAL AND INCIDENTAL DAMAGES, AND THE PROVISION OF THIS
WARRANTY LIMITING REMEDIES HEREUNDER TO REPLACEMENT, ARE INDEPENDENT
PROVISIONS, AND ANY DETERMINATION THAT THE LIMITATION OF REMEDIES FAILS
OF ITS ESSENTIAL PURPOSE OR ANY OTHER DETERMINATION THAT EITHER OF THE
ABOVE REMEDIES IS UNENFORCEABLE, SHALL NOT BE CONSTRUED TO MAKE THE
OTHER PROVISIONS UNENFORCEABLE.
Exclusion of Other Warranties
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
AND ALL OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE EXPRESSLY DISCLAIMED.
Severability
Any provision of this warranty which is invalid, prohibited or unenforceable in any jurisdiction
shall, as to such jurisdiction, be ineffective to the extent of such invalidity, prohibition
or unenforceability without invalidating the remaining provisions hereof, and any such
invalidity, prohibition or unenforceability in any such jurisdiction shall not invalidate or render
unenforceable such provision in any other jurisdiction.
16

Service
For Service or Technical Assistance: Contact your TLV representative or your regional TLV
office.
In Europe:
Daimler-Benz-Straße 16-18, 74915 Waibstadt, Germany Tel:
Fax: [49]-(0)7263-9150-0 [49]-(0)7263-9150-50
Units 7 & 8, Furlong Business Park, Bishops Cleeve,
Gloucestershire GL52 8TW, U.K.
Tel:
Fax: [44]-(0)1242-227223 [44]-(0)1242-223077
Parc d’Ariane 2, bât. C, 290 rue Ferdinand Perrier, 69800 Saint
Priest, France
Tel:
Fax: [33]-(0)4-72482222 [33]-(0)4-72482220
In North America:
13901 South Lakes Drive, Charlotte, NC 28273-6790, U.S.A. Tel:
Fax: [1]-704-597-9070 [1]-704-583-1610
Av. Jesús del Monte 39-B-1001, Col. Hda. de las Palmas,
Huixquilucan, Edo. de México, 52763, Mexico
Tel:
Fax: [52]-55-5359-7949 [52]-55-5359-7585
In Oceania:
Unit 8, 137-145 Rooks Road, Nunawading, Victoria 3131,
Australia
Tel:
Fax: [61]-(0)3-9873 5610 [61]-(0)3-9873 5010
In East Asia:
36 Kaki Bukit Place, #02-01/02, Singapore 416214 Tel:
Fax: [65]-6747 4600 [65]-6742 0345
5/F, Building 7, No.103 Caobao Road, Xuhui District, Shanghai,
China 200233
Tel:
Fax: [86]-(0)21-6482-8622 [86]-(0)21-6482-8623
No.16, Jalan MJ14, Taman Industri Meranti Jaya, 47120 Puchong,
Selangor, Malaysia
Tel:
Fax: [60]-3-8052-2928 [60]-3-8051-0899
252/94 (K-L) 17th Floor, Muang Thai-Phatra Complex Tower B,
Rachadaphisek Road, Huaykwang, Bangkok 10310, Thailand
Tel:
Fax: [66]-2-693-3799 [66]-2-693-3979
#302-1 Bundang Technopark B, 723 Pangyo-ro, Bundang,
Seongnam, Gyeonggi, 13511, Korea
Tel:
Fax: [82]-(0)31-726-2105 [82]-(0)31-726-2195
In the Middle East:
Building 2W, No. M002, PO Box 371684, Dubai Airport Free Zone,
Dubai, UAE
Email: [e-mail]
In Other Countries:
881 Nagasuna, Noguchi, Kakogawa, Hyogo 675-8511, Japan
Tel:
Fax: [81]-(0)79-427-1818 [81]-(0)79-425-1167
Manufacturer:
881 Nagasuna, Noguchi, Kakogawa, Hyogo 675-8511, Japan Tel:
Fax: [81]-(0)79-427-1800 [81]-(0)79-422-2277
17

Option (2-piece Clamp with Bolts and Nuts)
Configuration
SS3-E/SS3-P/SS3-EP SS5-P/SS5-EP
No. Part Name
1 Body
2 Cover
3 Float
4 Body Clamp
5 Cover Gasket
6 Clamp Nut
7 Clamp Bolt
Disassembly/Reassembly
Warning
NEVER apply direct heat to the float. The float may explode due to increased internal pressure,
causing accidents leading to serious injury or damage to property and equipment.
18

Caution
When disassembling or removing the product, wait until the internal pressure equals
atmospheric pressure and the surface of the product has cooled to room temperature.
Disassembling or removing the product when it is hot or under pressure may lead to discharge of
fluids, causing burns, other injuries or damage.
Use the following procedures to remove components. Use the same procedures in reverse to
reassemble. (Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.)
Detaching/Reattaching the Body and the Cover
Part Name During Disassembly During Reassembly
Clamp Bolts 7
Clamp Nuts 6
Body Clamp 4
Loosen clamp nuts with a
tool such as an adjustable
wrench, then remove the
body clamp
When threading the clamp nut onto the clamp
bolt, the direction of the clamp nut must
be like that shown in the “Exploded View”
section on the next page. Consult the table
of tightening torques and tighten clamp nuts
to the proper torque; avoid lopsided tightening
by making sure that both sides are tightened
evenly; open inlet valve and allow live steam
to enter and heat the trap, then close the
inlet valve; after the internal and atmospheric
pressures have equalized and the trap surface
has cooled, tighten clamp nuts to the proper
torque again; Steam may leak if clamp nuts
are not re-tightened
Body 1
Cover 2 Remove, being careful not to scratch the polished surface With gasket in place, align grooves and gently place the cover on the body (Fig. A)
Cover Gasket 5 - Replace with a new gasket if damaged
Figure A
Detaching/Reassembly of Components Inside the Cover
Part Name During Disassembly During Reassembly
Float 3 Remove being careful not to
scratch the polished surfaces
of the float, the cover and the
body
Insert into body, being careful not to scratch
its polished surface, take care not to scratch or
damage the seating surface of the orifice (Fig.
B)
Figure B
19

Table of Tightening Torques
Part Name Torque
N•m (lbf•ft) Distance Across Flats mm (in)
Clamp Bolts 6
Clamp Nuts 7 10 (7) 13 (1/2)
Exploded View
SS3-E/SS3-E/SS3-EP SS5-E/SS5-EP
No. Part Name
1 Body
2 Cover
3 Float
4 Body Clamp
5 Cover Gasket
6 Clamp Bolt
7 Clamp Nut
20
