Torque 5494001-B User manual

VERSION: FFIB-101
PART #: 5494001-B

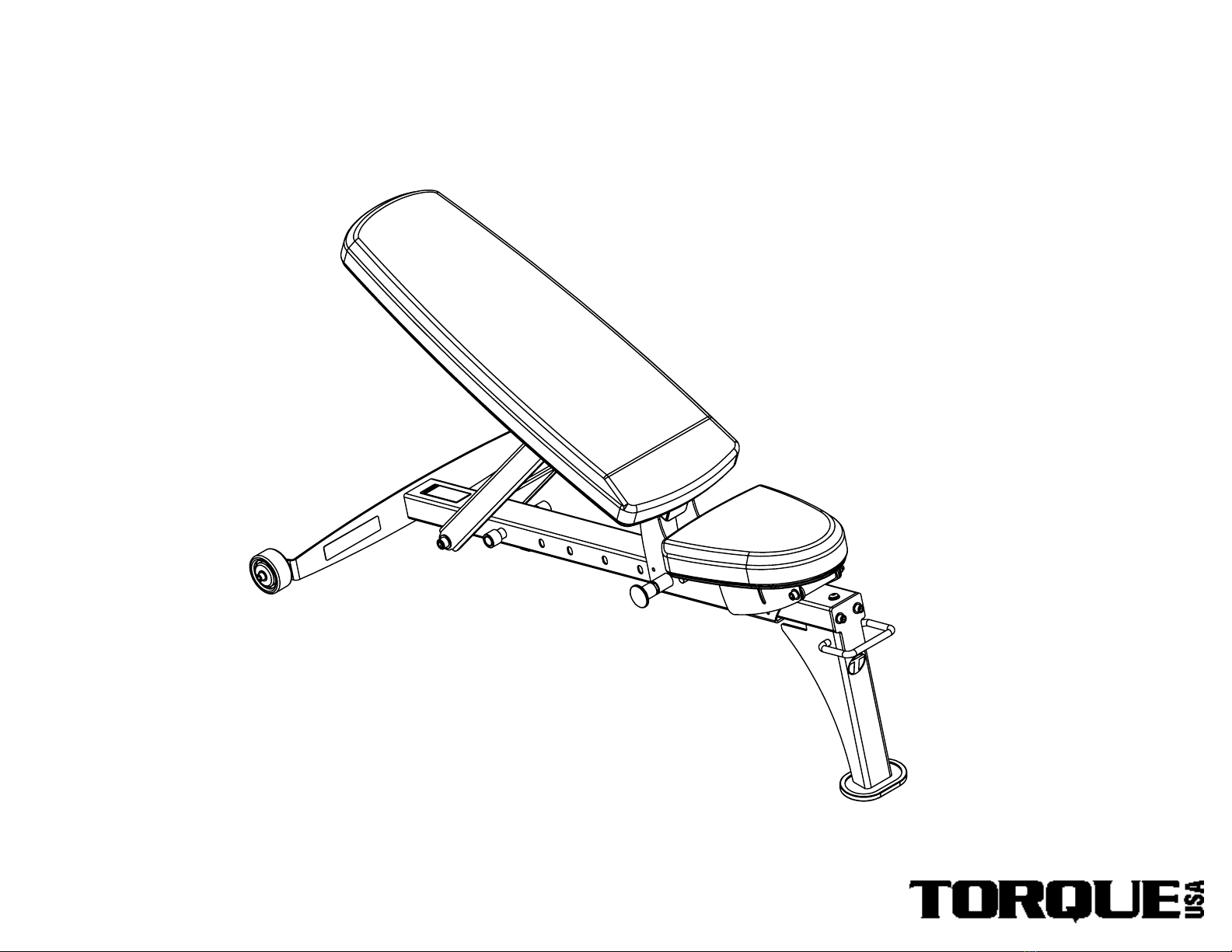

FLAT INCLINE BENCH ASSEMBLY GUIDE

2
TABLE OF CONTENTS
Important safety instructions:
Important safety instructions for using equipment: Page 3 •
Important safety instructions for assembling equipment: Page 3 •
Obtaining service: Page 3 •
General Notes:
Unpacking equipment: Page 4 •
Tools Required: Page 4 •
Optional equipment: Page 4 •
Assembly tips: Page 4 •
Parts List: Page 5
Assembly Instructions: Pages 6 - 14
Adjustments and Maintenance:
Attachment and adjustment instructions: Page 15 •
Maintenance: Page 15 •

3
Obtaining Service
Do not attempt to service the product yourself except for maintenance tasks described in this manual.
Refer to the Adjustments and Maintenance section at the back of this manual and the included workout booklet for information on product operation and service.
For further information, visit our website at www.torquefitness.com
or contact us at [email protected]
If you call or email customer service, have the model number and serial number(s) available. The location of the model and serial numbers are indicated in the back of this
manual. For future reference, write the model and serial number(s) in the space below.
Model Number:__________________________________________________________
Serial Number(s):________________________________________________________
Important Safety Instructions for Assembling Equipment
Assistance is required. Torque Fitness recommends using more than one person to assemble this equipment. 1.
This product must be assembled on a flat, level surface to assure its proper function. Locate the unit a few inches from walls or furniture to allow easy access 2.
during assembly and use.
Read each numbered step in Assembly and Maintenance Guide and follow the steps in sequence. Skipping ahead may result in damage to the equipment and 3.
may require components to be disassembled.
Wear proper attire during the assembly process. Do not wear clothing which is too loose or open toed shoes. 4.
READ ALL INSTRUCTIONS AND WARNING LABELS COMPLETELY PRIOR TO ANY USE OR ASSEMBLY. Failure to read and follow the safety instructions 1.
and warnings within the Assembly and Maintenance Guide may result in possible serious injury or death. Use this product only for the intended uses
described in the Assembly and Maintenance Guide and exercise booklet. DO NOT modify equipment in anyway. Any use other than as intended or
modification of product will void any and all product warranties.
Consult your physician before starting any exercise program. Warm up properly before engaging in resistance training. Stop exercising and consult a physician 2.
immediately
if you experience dizziness, nausea, faintness, chest pain, shortness of breath or any other abnormal symptoms during use of this equipment.
Certain exercise equipment and/or equipment may not be suitable or appropriate for pregnant women, people with heart conditions, balance impairment or other pre- 3.
existing health problems. Persons with disabilities should consult a physician and obtain medical approval prior to using this product and should only use this product
under close supervision. Failure to comply with these instructions will void any and all product warranties.
Carefully inspect equipment before each use. Replace all parts at the first sign of wear or damage. Tighten all loose connections. Do not disassemble, remove any 4.
parts or components or otherwise attempt to repair this product. DO NOT use product if product appears damaged. DO NOT attempt to fix a broken or jammed
machine, contact Torque Fitness Customer service at: 763-754-7533 (8:30 am - 5:00 pm CST). Failure to comply with these instructions will void any and all
product warranties.
Keep body and clothing clear of all moving parts. Do not put any foreign on or near this product when in use. Wear comfortable clothing which does not impair freedom 5.
of movement. Do not wear clothing which is too loose and could get caught in moving parts.
Make sure all adjustment spring pins are fully engaged after making an adjustment and before using the product. 6.
Children and pets must not be allowed near this machine. Supervise teenagers. This product is not a toy. 7.
If unsure of proper use of this product, contact Torque Fitness Customer service at: 763-754-7533 (8:30 am - 5:00 pm CST). or 1-877-TORQUE5 (1-866-664-9894). 8.
[email protected]
There is a risk assumed by the individuals who use this type of equipment. To minimize risk, you must follow these precautions:
Important safety instructions for using Equipment
WARNING !

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
4
Assembly Tips Continued
Note: Some items have been hidden for •
assembly clarity.
Note: Some pre-assembled parts may •
need to be temporarily removed in order to
complete the step. Follow the instructions
or damage to the product could occur.
Some parts may have extra holes that will •
not be used. Use only the holes depicted
in the instructions.
Certain parts make reference to the right •
and left side of the machine. In order to
determine the left and right side, stand with
your back to the front of the bench.
Provide ample space around the product •
for ease of assembly.
DO NOT fully tighten any connections until •
instructed to do so. This will help insure
that the alignment of all of the parts will be
correct.
Insert all bolts in the direction indicated in •
the instructions. Failure to do so may result
in clearance issues and will degrade the
aesthetics of the product.
Carefully follow instructions for all pivot •
points. In general, primary rotating parts
have connections that should be securely
tightened, while secondary connections
need to be loosen 1/4 turn.
Tools Required
Rubber mallet or hammer •
Creasent wrench •
3/4" Wrench or Ratchet with 3/4" socket •
9/16" Wrench or Ratchet with 9/16" socket •
3/8" Allen wrench •
5/16" Allen wrench •
1/8" Allen wrench •
Wire snips (to cut plastic tie wraps) •
Scissors or utility knife (to cut hardware •
bags)
Tape measure •
Optional Equipment
Optional equipment may be available for this product.
Follow the instructions included with the optional
equipment to assemble it to the base product.
Assembly Tips
In a continual effort to improve our •
products, specifications are subject to
change.

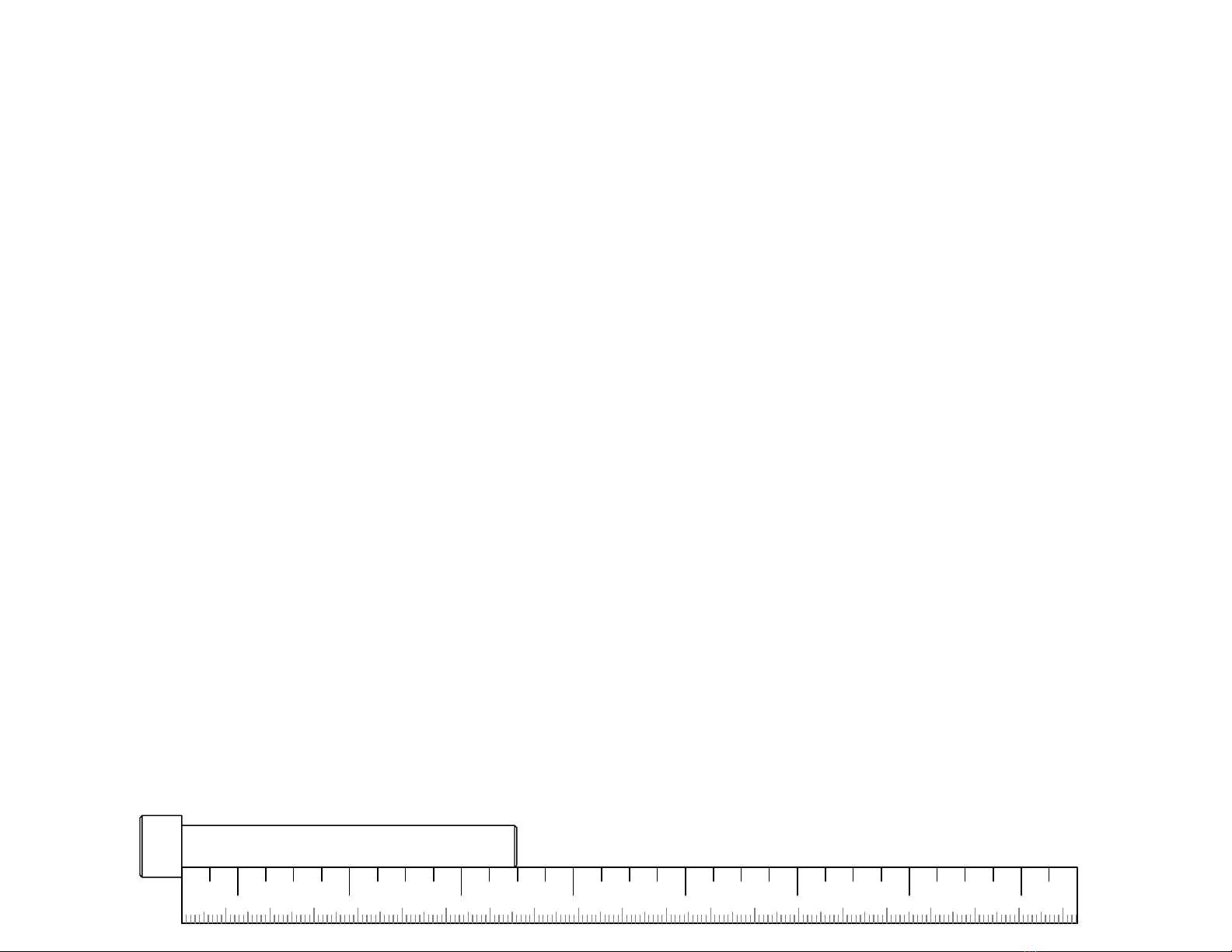

A 6" scale is provided at the bottom of •
every page. To correctly measure the
bolts, measure from underneath the bolt
head to the end of the bolt as illustrated
below.
Read all notes on each page before •
beginning that step.
Some of the items shown in the assembly •
steps may already be pre-assembled.
CAUTION: More than one person is required to
assemble this unit. Do not attempt to assemble by
yourself.
Unpacking the Equipment
This product may be packaged and shipped in multiple
boxes. Parts from all of the boxes are required for
various steps during the assembly process.
Carefully open each box and arrange all the parts near
the area where assembly is to take place.
CAUTION:
Use extreme care when cutting plastic tie
wraps and package banding. A wire cutter works best
for protecting yourself and the parts.
CAUTION: Some of the internal boxes may contain
upholstery. Do not use a utility knife to open any
boxes or the pads may be damaged.
The hardware is packed in bags. Carefully open each
bag and sort them per parts list on the next page.
Before starting assembly, identify each part and
hardware item as listed in the parts list on the next
page. If any items are missing, contact Torque Fitness
Customer service at: 763-754-7533 (8:30 am - 5:00 pm
CST). or 1-877-TORQUE5 (1-866-664-9894).
[email protected]
Note: Some items listed in the parts list may already
be pre-installed on the product.
GENERAL NOTES

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
ITEM PART NO DESCRIPTION QTY
1 54906PA PTD ASSY, SEAT SLIDE 1
2 5333801 ASSY, SPRING PIN 40MM 1
3 54899PA PTD ASSY, BENCH FRAME 1
4 54910PA PTD ASSY, FRONT LEG 1
5 2001101 WASHER, FLAT 3/8 SAE ST ZN 11
6 2004011 BOLT, 3/8-16 X 3-1/4" BUTTON HEAD W/NP 1
7 2009404 BOLT, 3/8-16 X 1-1/4" (32mm) ST HT SOCKET HEAD W/NP 4
8 5513501 SPACER, 16 OD X 10.1 ID X 9 1
9 54915PA PTD ASSY, BACK PAD SUPPORT 1
10 2001301 WASHER, FLAT 1/2 SAE ST ZN 6
11 2002401 NUT, 1/2 LW HT LK ST ZN 3
12 2005816 BOLT, 1/2-13 X 4-1/4" (108mm) SOCKET HEAD 1
13 5491801 WLDMT, BACK PAD PIVOT 1
14 2005825 BOLT, 1/2-13 X 6-1/2" (165mm) SOCKET HEAD 2
15 5492101 BRACKET, SEAT PAD SUPPORT 1
16 5493801 PAD, FFIB SEAT 1
17 54922PA PLTD ASSY, SEAT ADJUST 1
18 2001201 NUT, 3/8-16 LK ST ZN 2
19 2008418 BOLT, 3/8-16 X 4-3/4" (121mm) ST HT SOCKET HEAD 2
20 5513401 BOLT, 1/4 DIA X 3/8" SHOULDER 1
21 5493901 PAD, FFIB BACK 1
22 2009411 BOLT, 3/8-16 X 3" (76mm) ST HT SOCKET HEAD W/NP 2
5

1
2
SECURELY tighten spring
to the seat slide
6

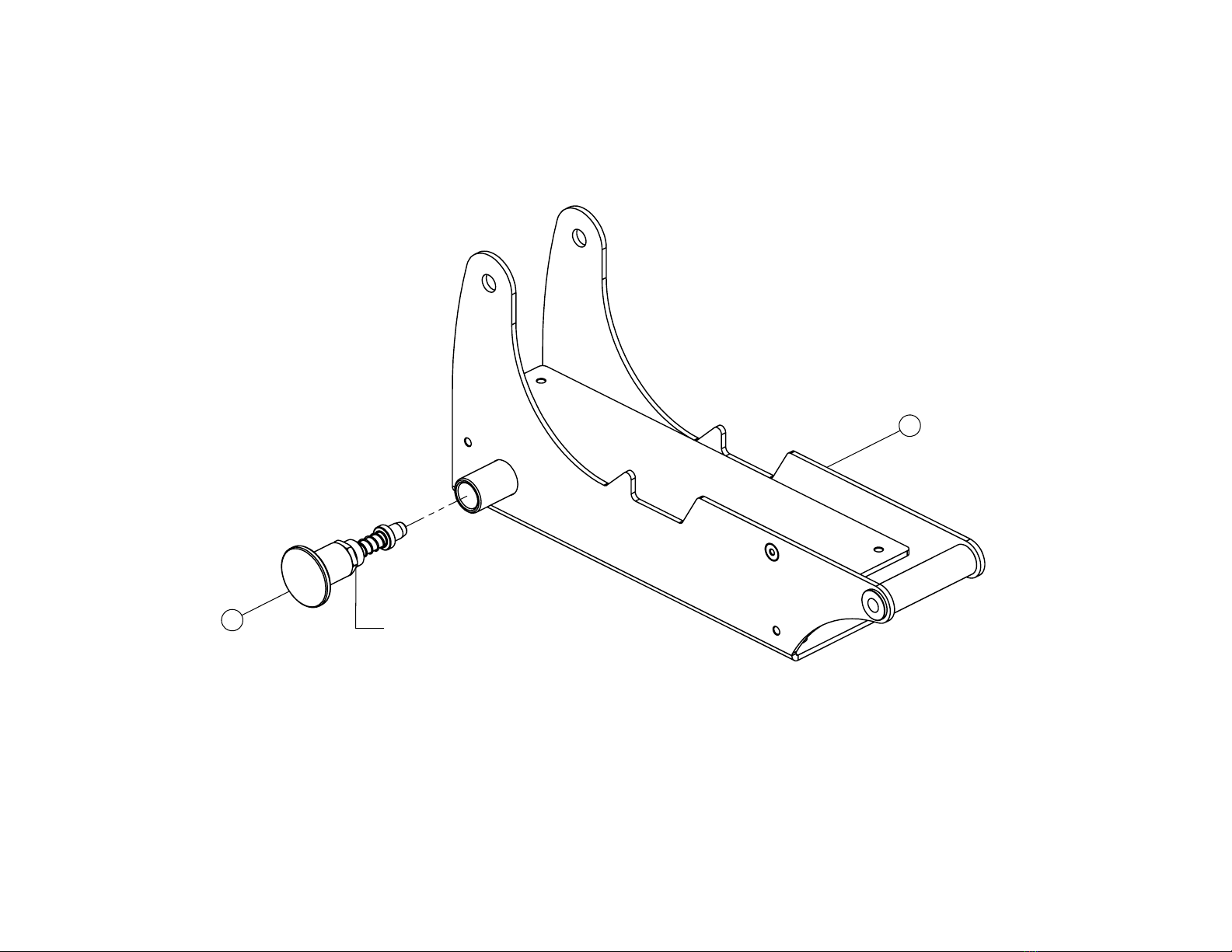

STEP 1

3
1
Pull back spring pin and carefully
slide seat over the bench frame.
Release spring pin into the first hole

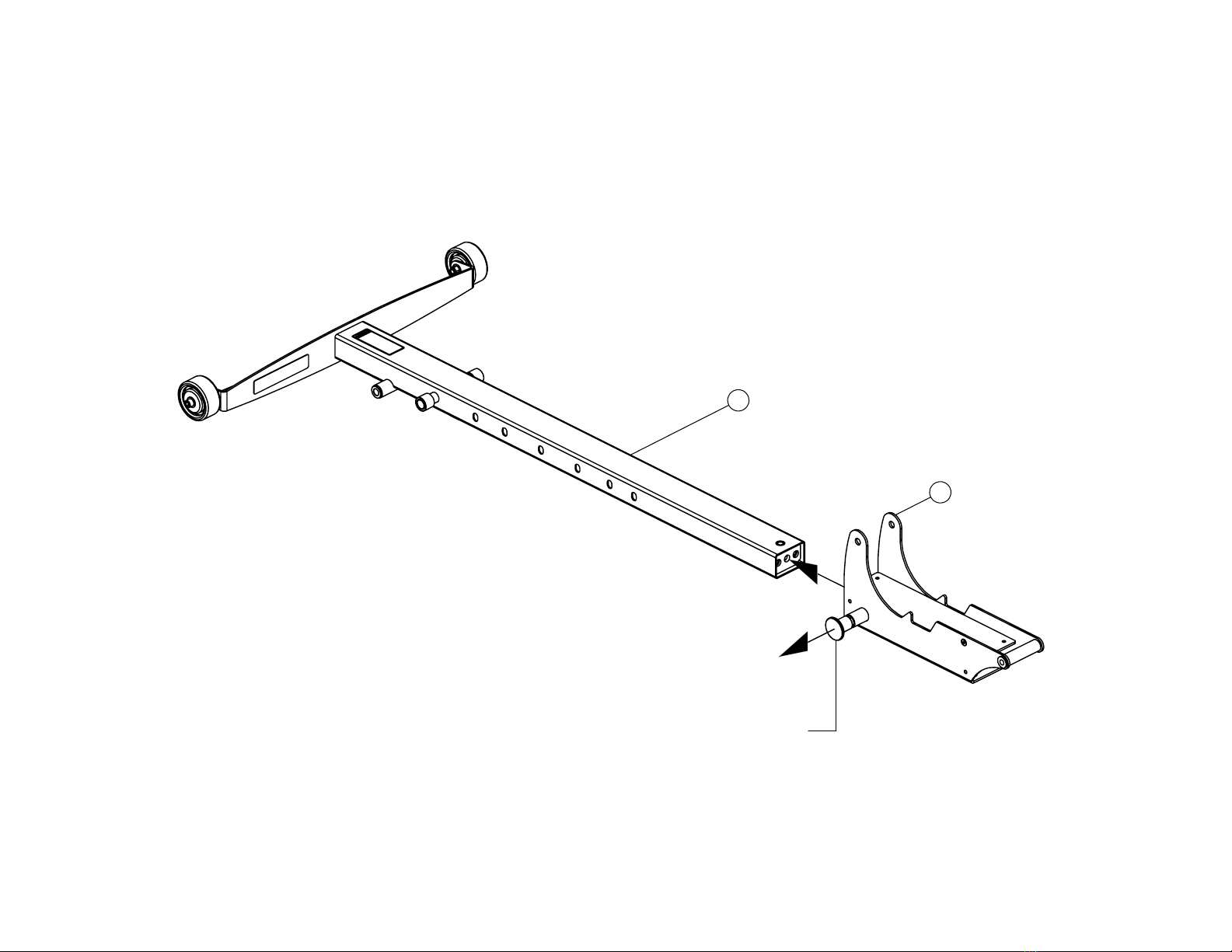

STEP 2
7

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
3
4
8
5
6 3/8 X 3-1/4" (83mm)
5
7 3/8 X 1-1/4" (32mm) W/NP
8

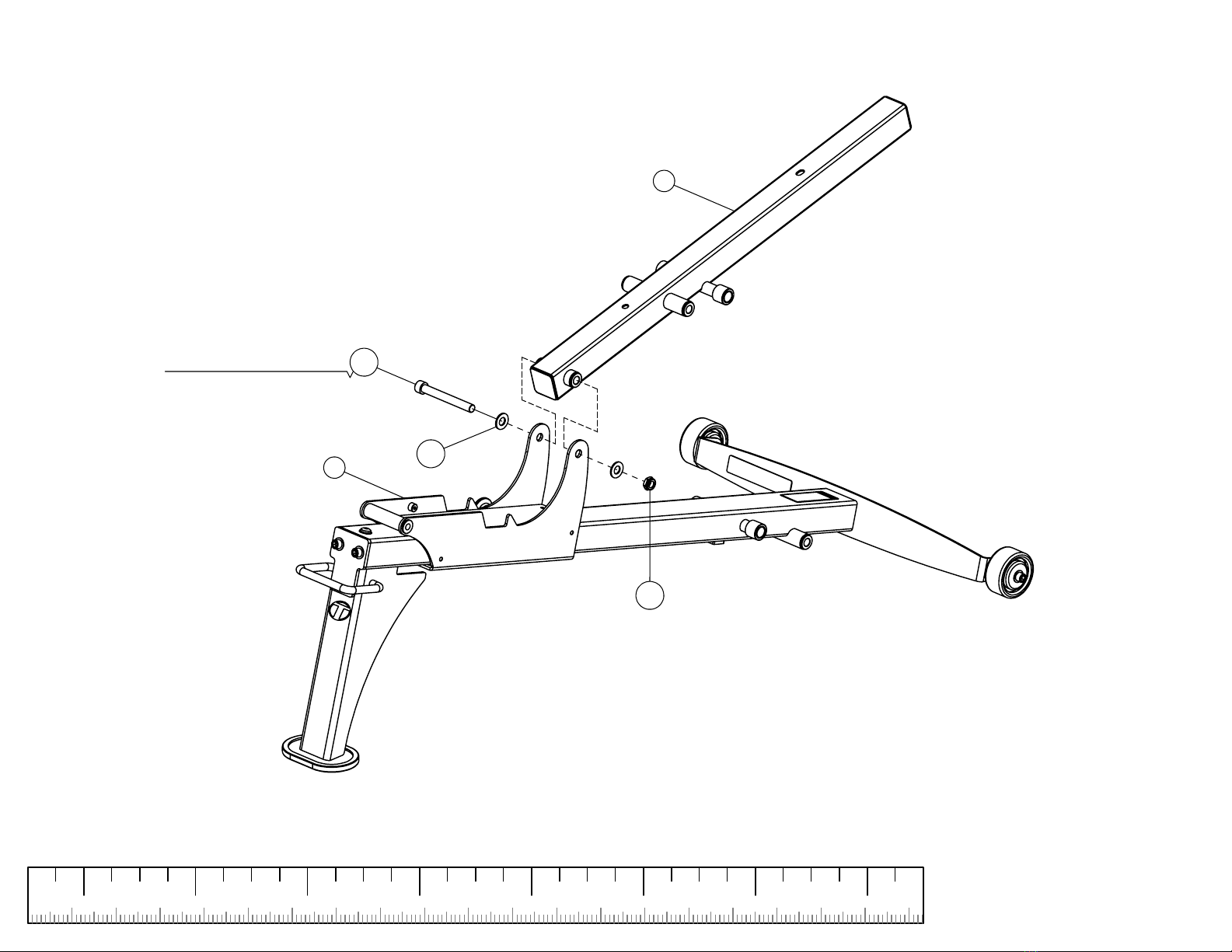

STEP 3
SECURELY tighten all bolt connections in this step

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
9
10
11
1
12 1/2 X 4-1/4" (108mm)
9
STEP 4
NOTE: SECURELY tighten bolt connection, then back nut off 1/4 turn. Part should rotate freely.

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
13
9
3
14 1/2 X 6-1/2" (165mm)
11
10

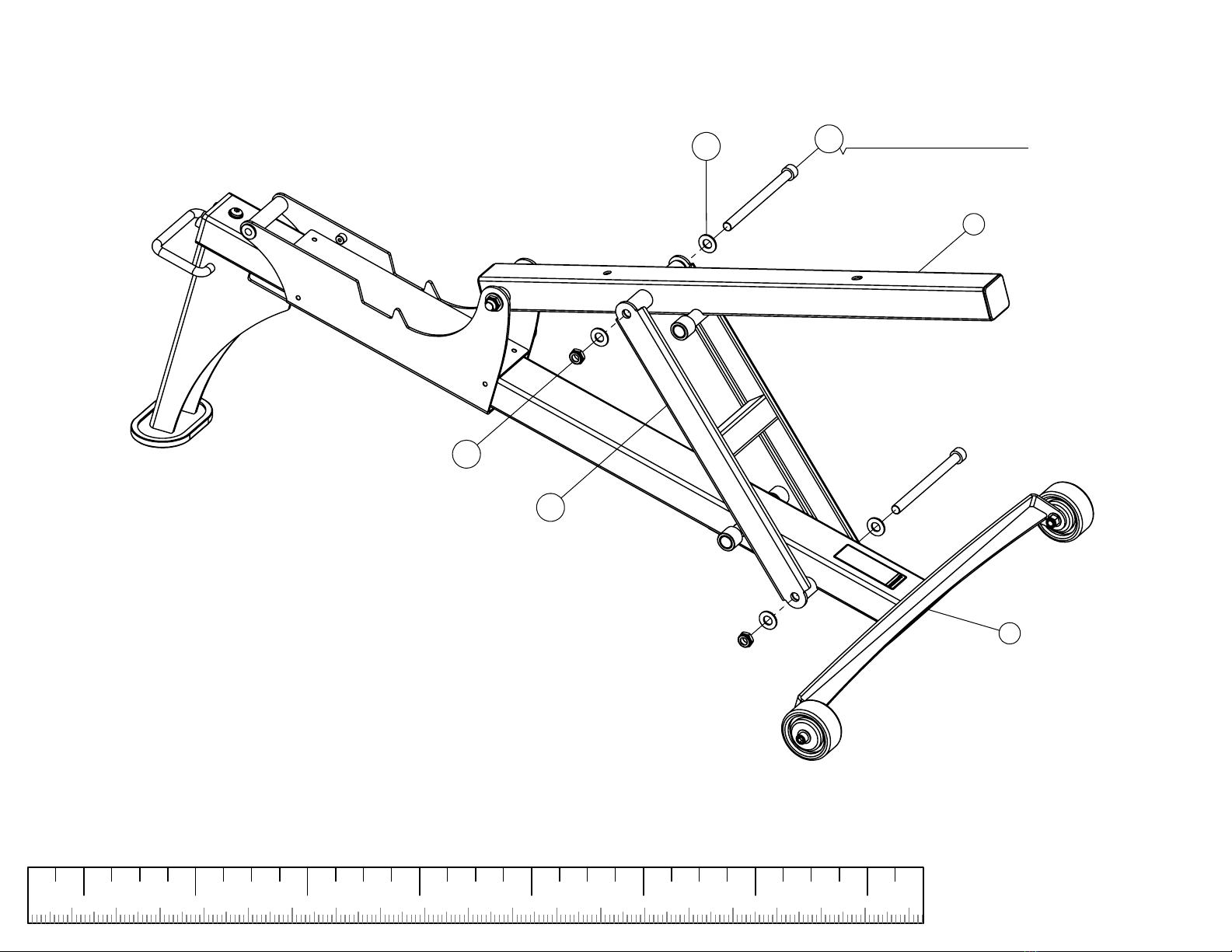

STEP 5
10
NOTE: SECURELY tighten bolt connections, then back nuts off 1/4 turn. Part should rotate freely.

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
16
15
5
7 3/8 X 1-1/4" (32mm) W/NP
11
STEP 6
SECURELY tighten bolt connections in this step

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
17
15
5
18

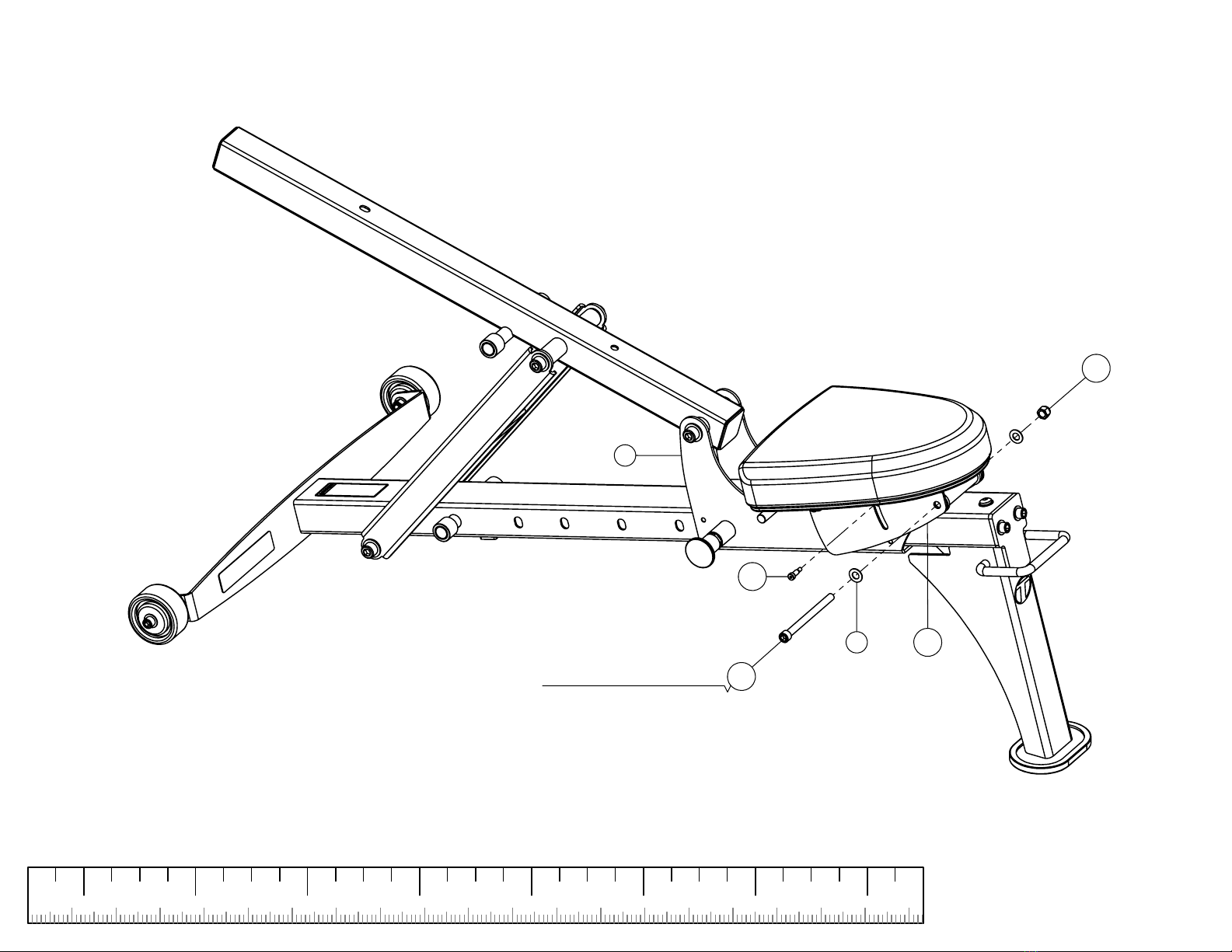

19 3/8 X 4-3/4" (121mm)
STEP 7
12
NOTE: SECURELY tighten bolt connection, then back nut off 1/4 turn. Part should rotate freely.

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
18
5
20
15
1
19 3/8 X 4-3/4" (121mm)
NOTE: SECURELY tighten bolt connection, then back nut off 1/4 turn. Part should rotate freely.
13
STEP 8

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
21
9
5
22 3/8 X 3" (76mm) W/NP
SECURELY tighten bolt connections in this step
STEP 9
14

NOTE:
To adjust back pad up
or down. Pull spring
pin out with one hand
and with the other hand,
adjust back pad to desired
location. Release spring
pin into the hole.
NOTE:
Back pad adjustments in
15 degree increments. Flat, 15,
30, 45, 60 and 75.
NOTE:
To adjust the seat pad up,
simply lift up on the seat
and allow the seat adjust to
engage stop on the seat
slide.
To lower the seat, lift up on
seat pad and flip the seat
adjust over the stop and set
the seat back down.

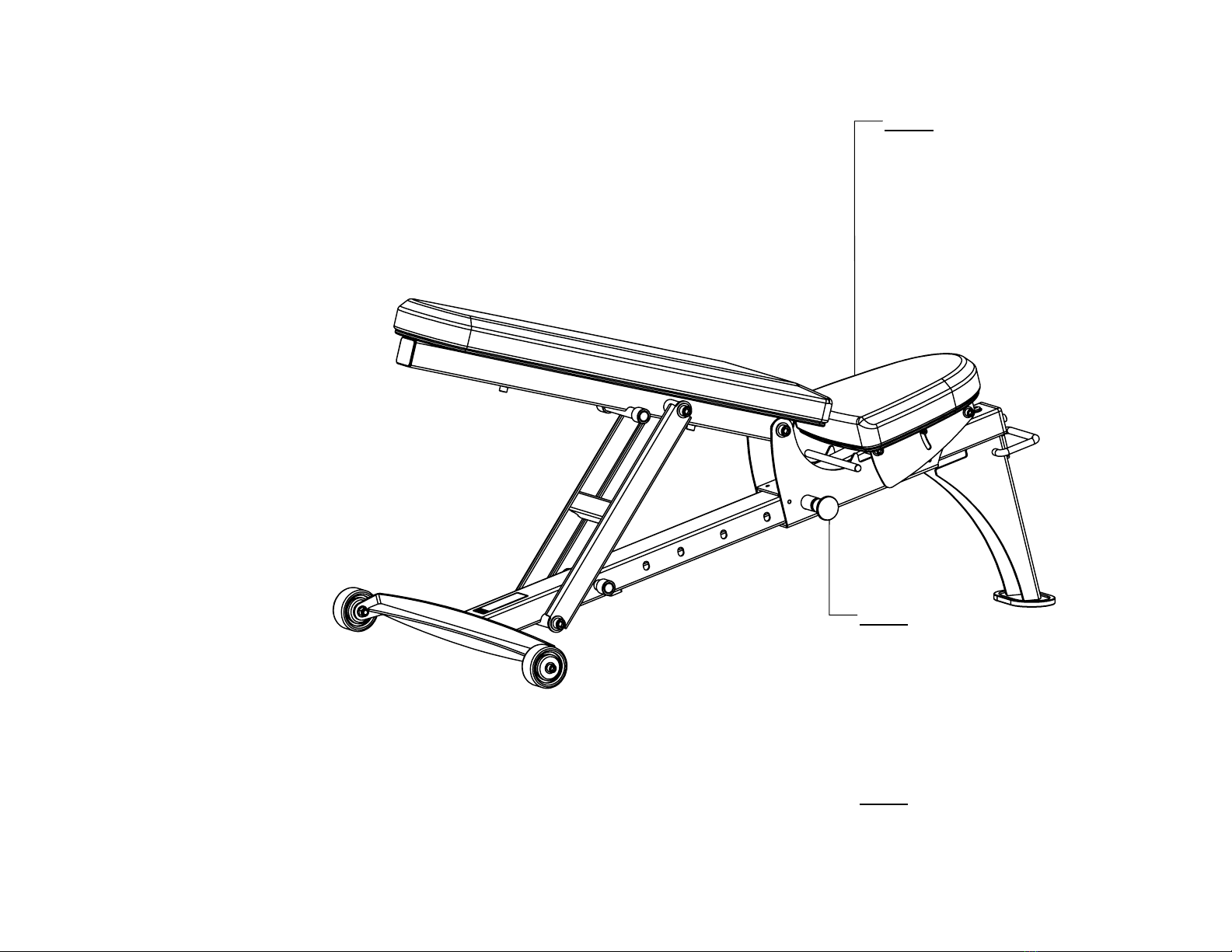

STEP 10
15
MAINTENANCE:
NUTS/BOLTS: Tighten and/or adjust as
needed.
SPRING PINS: Check that spring pin
fully engages the hole when released.
Tighten spring pin nut as needed.
FRAME: Wipe down and dry with polish
or wax.
UPHOLSTERY: Wipe down and dry
after each use. Clean and condition
periodically.
GRIPS: Inspect and replace if they
appear worn or damaged.
For customer service contact Torque
Fitness Customer service at: 763-754-
7533 (8:30 am - 5:00 pm CST). or
1-877-TORQUE5 (1-866-664-9894).
[email protected]
