Toyotomi TKN-2328R32 User manual

User’s Manual
Οδηγίες Χρήσης
ΚΛΙΜΑΤΙΣΤΙΚΟ ΤΟΙΧΟΥ ΤΥΠΟΥ INVERTER
WALL MOUNTED AIR CONDITIONER INVERTER TYPE
MODELS/ΜΟΝΤΕΛΑ
TKN/TKG-2328R32
TKN/TKG-2335R32
TKN/TKG-2356R32
TKN/TKG-2371R32
Thank you for purchasing our product.
Before using this product, be sure to read this Instruction Manual to ensure proper usage. Please
keep this manual for later reference.
Improper use of this product may result in a malfunction, failure, unexpected accident, or create
a potential hazard.
Ευχαριστούμε που επιλέξατε τα κλιματιστικά οικιακής χρήσης TOYOTOMI.
Για τη σωστή του χρήση παρακαλούμε διαβάστε το εγχειρίδιο χρήσης προσεκτικά, πριν θέσετε
τη μονάδα σε λειτουργία και κρατήστε το σε καλή κατάσταση για μελλοντική αναφορά.

2GB
R32: 675

3GB
The Refrigerant
WARNING：
To realize the function of the air conditioner unit, a special refrigerant circulates in
the system. The used refrigerant is the fluoride R32, which is specially cleaned.
The refrigerant is flammable and inodorous. Furthermore, it can leads to explosion
under certain conditions. But the flammability of the refrigerant is very low. It can
be ignited only by fire.
Compared to common refrigerants, R32 is a nonpolluting refrigerant with no harm
to the ozonosphere. The influence upon the greenhouse effect is also lower. R32
has got very good thermodynamic features which lead to a really high energy
efficiency. The units therefore need a less filling.
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacture. Should repair be necessary, contact your nea-
rest authorized Service Centre. Any repairs carried out by unqualified personnel
may be dangerous. The appliance shall be stored in a room without continuously
operating ignition sources. (for example: open flames, an operating gas appliance
or an operating electric heater.) Do not pierce or burn.
Appliance shall be installed, operated and stored in a room with a floor area larger
than 4m .
Appliance filled with flammable gas R32. For repairs, strictly follow manufacturer’s
instructions only. Be aware that refrigrants not contain odour. Read specialist’s
manual.
2
Appliance filled with flammable gas R32.
Before use the appliance, read the owner’s manual first.
Before repair the appliance, read the service manual first.
Before install the appliance, read the installation manual first.

4GB
Precautions
Do not connect air conditioner to multi-purpose socket.
This appliance can be used by children aged from 8
Operation and Maintenance
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Do not spray water on indoor unit. It may cause electric
shock or malfunction.
Otherwise, it may cause fire hazard.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
years and above and persons with reduced physical,
sensory ormental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Do not wash the air conditioner with water to avoid
electric shock.
After removing the filter, do not touch fins to avoid injury.
Do not use fire or hair dryer to dry the filter to avoid
deformation or fire hazard.
Do disconnect power supply when cleaning air
conditioner. Otherwise, it may cause electric shock.
.
WARNING

5GB
Do not block air outlet or air inlet. It may cause
malfunction.
remote controller may be broken.
ƔPower cord is overheating or damaged.
ƔThere’s abnormal sound during operation.
ƔCircuit break trips off frequently.
ƔAir conditioner gives off burning smell.
ƔIndoor unit is leaking.
contact the dealer or qualified professionals for service.
When turning on or turning off the unit by emergency
operation switch, please press this switch with an insulating
object other than metal.
outlet. It may cause personal injury or damage.
Precautions
conditioner and disconnect power immediately，and then
If the air conditioner operates under abnormal conditions,
it may cause malfunction，electric shock or fire hazard.
Do not spill water on the remote controller, otherwise the
electric shock or damage. Please contact dealer when
you need to repair air conditioner.
Do not repair air conditioner by yourself. It may cause
objects. It may cause damage or personal injury.
Do not step on top panel of outdoor unit, or put heavy
When below phenomenon occurs, please turn off air
Do not extend fingers or objects into air inlet or air
Maintenance must be performed by qualified
professionals. Otherwise, it may cause personal injury
or damage.
WARNING

6GB
Do install the circuit break. If not, it may cause malfunction.
of at least 3mm in all poles should be connected in fixed
wiring.
magnet buckle and heating buckle function, it can protect
the circuit-short and overload.
power supply circuit and circuit break.
Precautions
note the following table.Air switch should be included
Make sure the power supply matches with the
requirement of air conditioner.Unstable power supply or
incorrect wiring or malfunction. Please install proper power
supply cables before using the air conditioner.
An all-pole disconnection switch having a contact separation
Must follow the electric safety regulations when installing
the unit.
grounding wire of power socket.
Properly connect the live wire, neutral wire and
any work related to electricity and safety.
Be sure to cut off the power supply before proceeding
Including an circuit break with suitable capacity, please
Air Conditioner should be properly grounded. Incorrect
Don't use unqualified power cord.
grounding may cause electric shock.
According to the local safety regulations, use qualified
Installation must be performed by qualified professionals.
Otherwise, it may cause personal injury or damage.
Attachment
WARNING

7GB
Installation must be performed in accordance with the
persons in order to avoid a hazard.
must be properly grounding with specialized grounding
device by a professional. Please make sure it is always
grounded effectively, otherwise it may cause electric shock.
The appliance must be positioned so that the plug is
accessible.
If the length of power connection wire is insufficient，please
contact the supplier for a new one. Avoid extending the
wire by yourself.
All wires of indoor unit and outdoor unit should be
connected by a professional.
national wiring regulations.
requirement of NEC and CEC by authorized personnel
only
Precautions
wire, which can't be used for other purposes.
The grounding resistance should comply with national
electric safety regulations.
The air conditioner is the first class electric appliance. It
keep the interconnection cable away from the copper
tube.
The temperature of refrigerant circuit will be high, please
the manufacturer, its service agent or similarly qualified
If the supply cord is damaged, it must be replaced by
The yellow-green wire in air conditioner is grounding
The appliance shall be installed in accordance with
Do not put through the power before finishing installation.
WARNING

8GB
Instructions for installation and use of this product are
provided by the manufacturer.
Precautions
WARNING
The indoor unit should be installed close to the wall
reachable after finishing installation
far away from animals or plants.If it is unavoidable,
please add the fence for safety purpose.
If you need to relocate the air conditioner to another
place, only the qualified person can perform the work.
Otherwise, it may cause personal injury or damage.
must be installed in the line.
For the air conditioner without plug, an circuit break
Select a location which is out of reach for children and
For the air conditioner with plug，the plug should be

9GB
Precautions
WARNING
Leak test is a must after installation.
It is not allowed to drill hole or burn the connection pipe.
The air conditioner must be installed in a room that is
larger than the minimum room area. The minimum room
area is shown on the nameplate or following table a.
The air conditioner is not allowed to use in a room that
has running fire (such as fire source, working coal gas
ware, operating heater).
Instructions for installation and use of this product are
provided by the manufacturer.

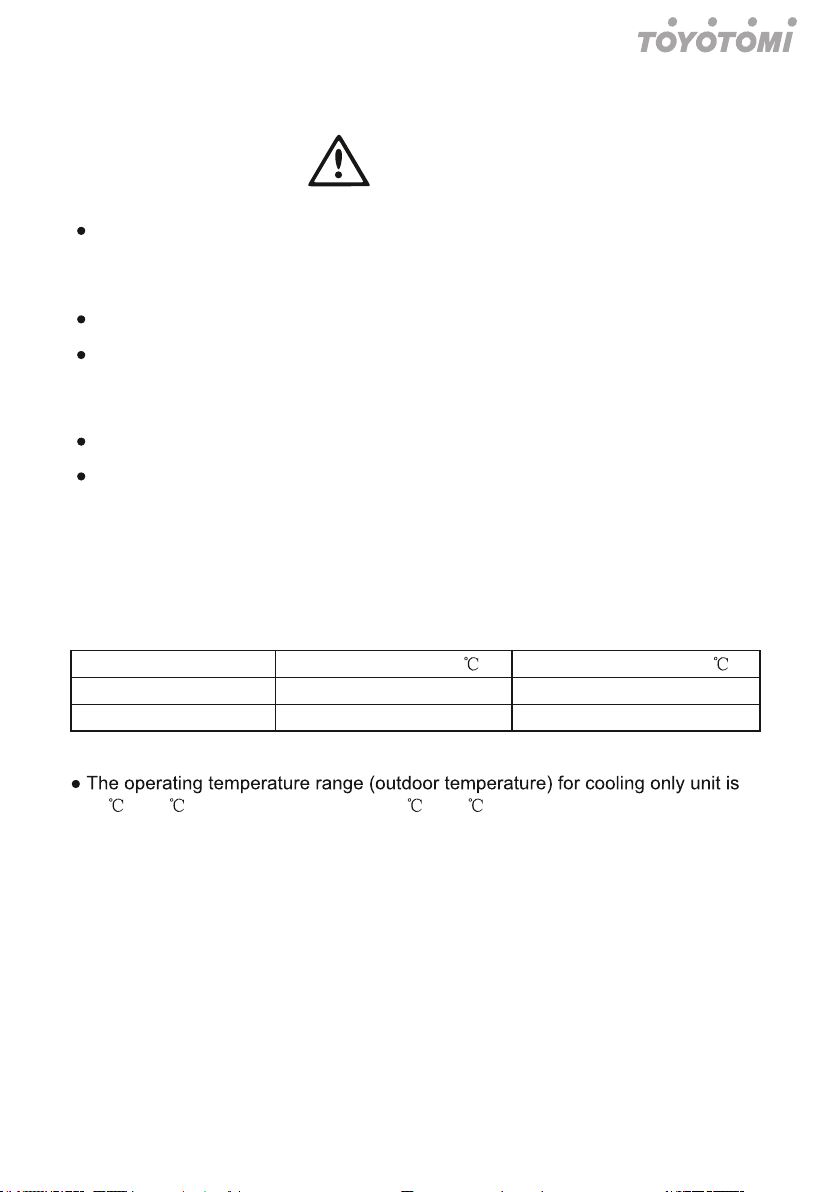

Working temperature range
NOTICE:
Indoor side DB/WB( ) Outdoor side DB/WB( )
50/2632/23gniloocmumixaM
30/18-/72gnitaehmumixaM
5151- ~50 ; for heat pump unit is - ~ 30 .

10 GB
air inlet
Connection wire
air outlet

11 GB
OPERATION AND INTRODUCTION OF REMOTE CONTROLLER

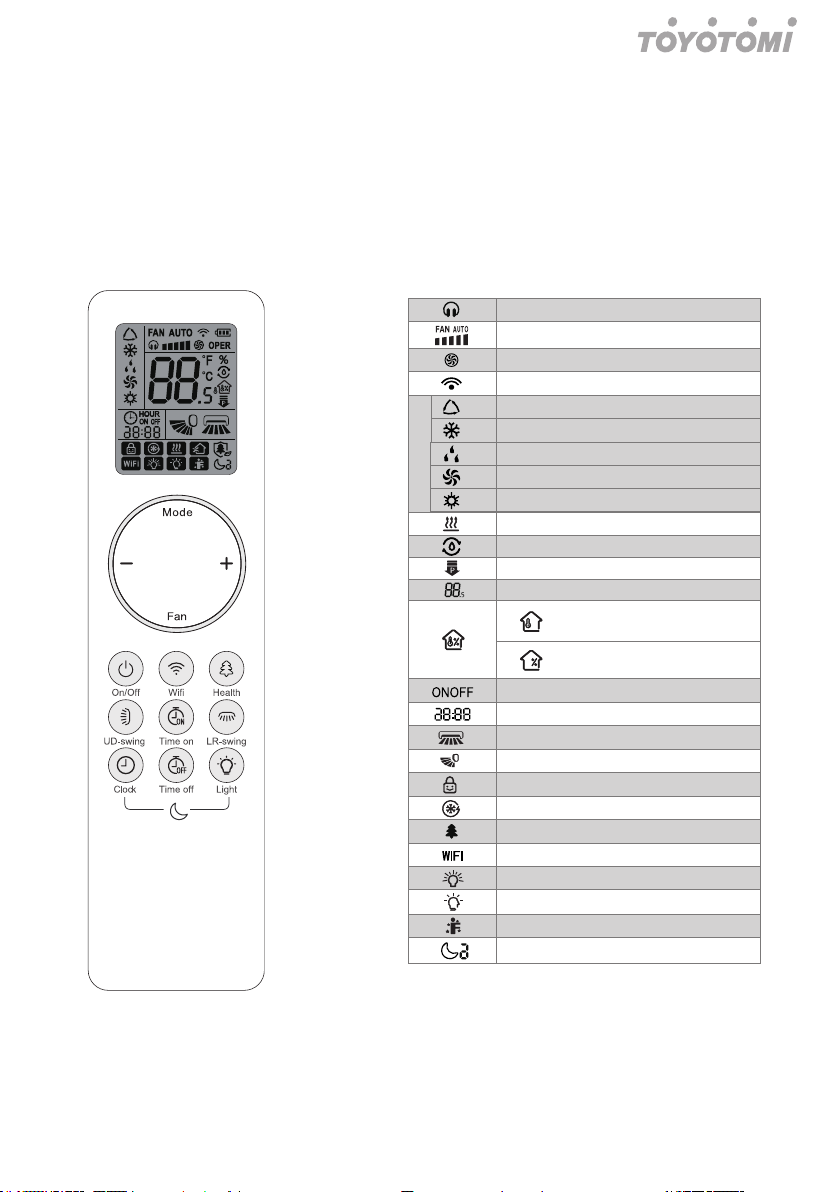

Buttons on remote controller Introduction for icons on display
screen
Quiet
Set fan speed
Turbo mode
Send signal
Auto mode
Cool mode
Dry mode
Fan mode
Heat mode
X-FAN function
Humidity control
Power limiting operation
Set temperature
Indoor ambient temp.
Indoor ambient humidity
TIMER ON / TIMER OFF
Set time
Left & right swing
Up & down swing
Child lock
Fast cool
Health function
WiFi function

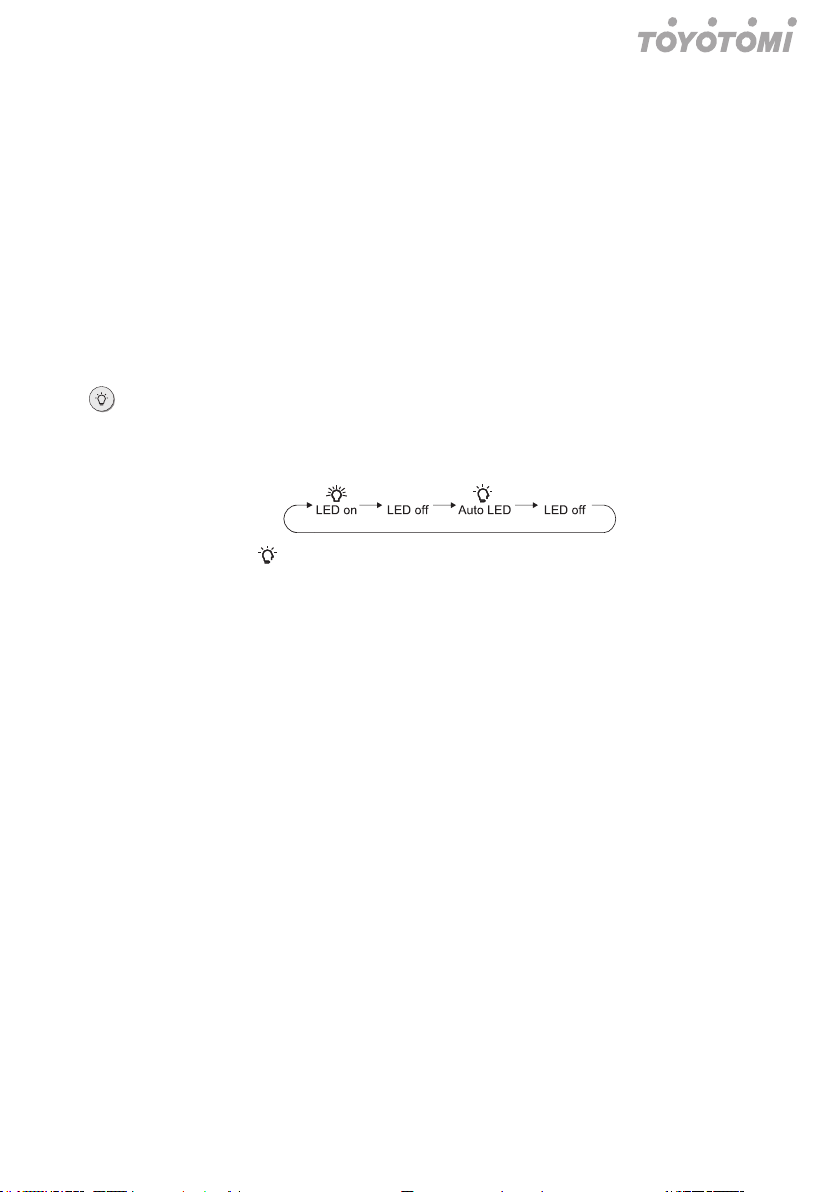

LED
Auto LED
I SENSE
Sleep mode
Operation mode

12 GB
Introduction for buttons on remote controller
NOTE
• This is a general use remote controller. It could be used for the air
conditioner with multifunction. For the functions which the model
doesn't have, if press the corresponding button on the remote
controller, the unit will keep the original running status.
• After putting through the power, the air conditioner will give out a
sound. Power indicator " " is ON. After that, you can operate the
air conditioner by using remote controller.
• Under on status, pressing the button on the remote controller, the
signal icon " " on the display of remote controller will blink once
and the air conditioner will give out a "di" sound, which means the
signal has been sent to the air conditioner.
On/Off button
Press this button to turn on the unit. Press this button again to turn
off the unit.

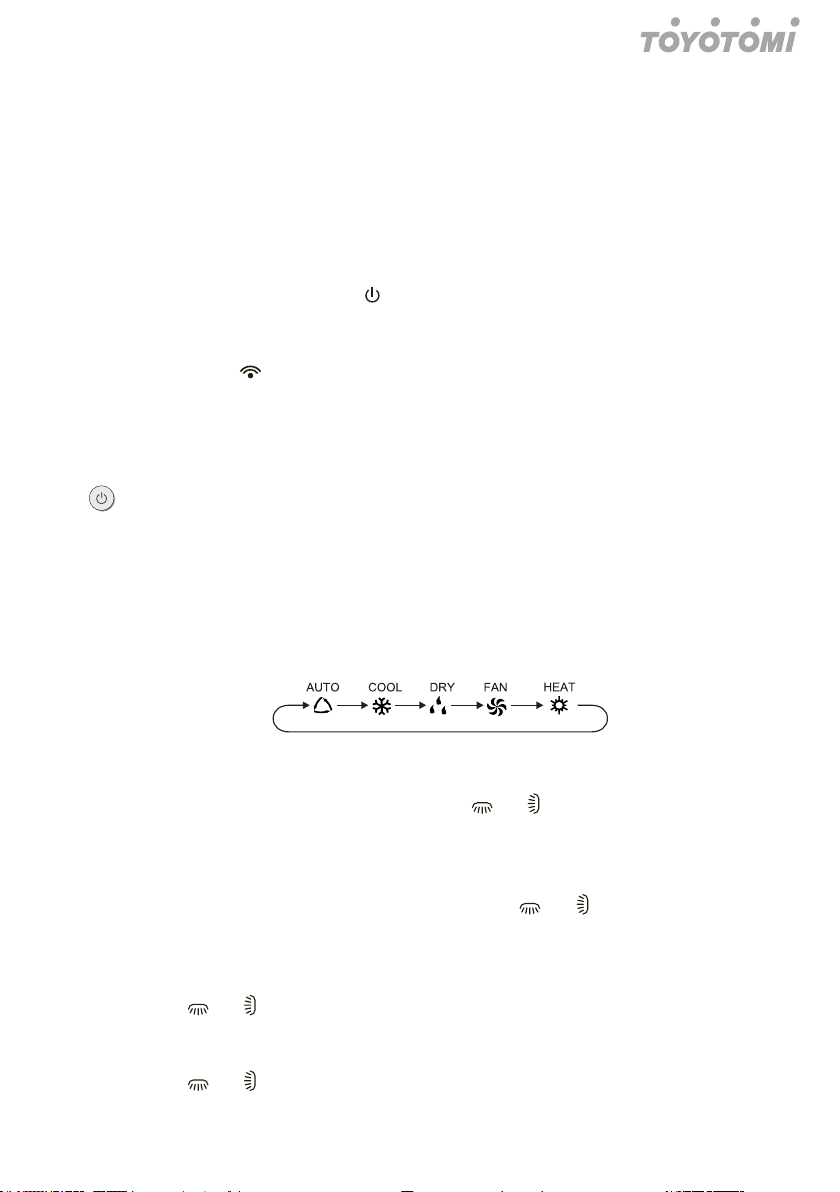

Mode button
Press this button to select your required operation mode.
• When selecting auto mode, air conditioner will operate
automatically according to the sensed temperature. Press "Fan"
button can adjust fan speed. Press " " / "
" button can adjust fan
blowing angle.
• After selecting cool mode, air conditioner will operate under cool
mode. Press " + " or " - " button to adjust set temperature. Press
"Fan" button to adjust fan speed. Press " " / "
" button to adjust
fan blowing angle.
• When selecting dry mode, the air conditioner operates at low speed
under dry mode. Under dry mode, fan speed can't be adjusted.
Press " " / "
" button to adjust fan blowing angle.
• When selecting fan mode, the air conditioner will only blow fan,
no cooling and no heating. Press "Fan" button to adjust fan speed.
Press " " / "
" button to adjust fan blowing angle.

13 GB
• When selecting heat mode, the air conditioner operates under
heat mode. Press " + " or " - " button to adjust set temperature.
Press "Fan" button to adjust fan speed. Press " " / " " button to
adjust fan blowing angle.
NOTE
• For preventing cold air, after starting up heat mode, indoor unit
will delay 1~5 minutes to blow air (Actual delay time depends on
indoor ambient temperature).
• Set temperature range from remote controller: 16~30ºC (61-86ºF).
• This mode indicator is not available for some models.
• Cooling only unit won't receive heat mode signal. If setting heat
mode with remote controller, press " On/Off " button can't start up
the unit.
Fan button
This button is used for setting Fan Speed in the sequence
that goes from AUTO, , , , , , , to , then back to Auto.
Low speed, Low-Medium speed, Medium speed, Medium-
High speed, High speed, Turbo speed, Quiet speed
NOTE
• It's low fan speed under dry mode.
• X-FAN function Hold fan speed button for 2s in cool or dry mode,
the icon " " is displayed and the indoor fan will continue operation
for a few minutes in order to dry the indoor unit even though you
have turned off the unit. After energization, X-FAN OFF is defaulted.
X-FAN is not available in auto, fan or heat mode.
This function indicates that moisture on evaporator of indoor unit
will be blowed after the unit is stopped to avoid mould.
• Having set X-FAN function on: After turning off the unit by pressing
"On/Off" button indoor fan will continue running for a few minutes.
at low speed. In this period, Hold fan speed button for 2s to stop
indoor fan directly.
• Having set X-FAN function off: After turning off the unit by pressing
" On/Off " button, the complete unit will be off directly.

14 GB
+ / - button
Press " + " or " - " button once increase or decrease set temperature
1°C (ºF). Holding " + " or " - " button, 2s later, set temperature on
remote controller will
change quickly. On releasing button after setting is finished,
temperature indicator on indoor unit will change accordingly.
Wifi button
Press "Wifi" button to turn on WiFi function, "Wifi" icon will be displayed
on the remote controller; Hold "Wifi" button for 5s to turn off WiFi
function and "Wifi" icon will disappear. Under off status, press "Mode"
and "Wifi" buttons simultaneously for 1s, WiFi module will restore
factory settings.
Health button
Press this button to turn on or turn off the health and scavenging
functions in operation status. Press this button for the first time to
start scavenging function;
LCD displays " ". Press the button for the second time to start health
and scavenging functions simultaneously; LCD displays " " and "
". Press this button for the third time to quit health and scavenging
functions simultaneously. Press the button for the fourth time to start
health function; LCD display " ".
Press this button again to repeat the operation above.
NOTE
• Scavenging function is not available. Health function is available.
UD-swing button
Press this button can select up & down swing angle.
Fan blow angle can be selected circularly as below:
no display
(horizontal louvers stops
at current position)

15 GB
• When selecting " ", air conditioner is blowing fan automatically.
Horizontal louver will automatically swing up & down at maximum
angle.
• When selecting " , , , , ", air conditioner is blowing fan at
fixed position. Horizontal louver will stop at the fixed position.
• Hold " " button above 2s to set your required swing angle. When
reaching your required angle, release the button.
NOTE
• Press this button continuously more than 2s, the main unit will
swing back and forth from up to down, and then loosen the button,
the unit will stop swinging and present position of guide louver will
be kept immediately.
• Under swing up and down mode, when the status is switched
from off to " ", if press this button again 2s later, " " status
will switch to off status directly; if press this button again within
2s, the change of swing status will also depend on the circulation
sequence stated above.
LR-swing button
Press this button can select left & right swing angle.
Fan blow angle can be selected circularly as below:
NOTE
• Press this button continuously more than 2s, the main unit will
swing back and forth from left to right, and then loosen the button,
the unit will stop swinging and present position of guide louver will
be kept immediately.
• Under swing left and right mode, when the status is switched from
off to " ", if press this button again 2s later, " " status will switch
to off status directly; if press this button again within 2s, the change
of swing status will also depend on the circulation sequence stated
above.
• This function only applicable for some models.
no display
(stops at current
position)

16 GB
Clock button
Press this button to set clock time. " " icon on remote controller will
blink. Press "+" or "-" button within 5s to set clock time. Each pressing
of "+" or "-" button, clock time will increase or decrease 1 minute. If
hold "+" or "-" button, 2s later, time will change quickly. Release this
button when reaching your required time. Press "CLOCK" button to
confirm the time. " " icon stops blinking.
NOTE
• Clock time adopts 24-hour mode.
• The interval between two operations can't exceed 5s. Otherwise,
remote controller will quit setting status. Operation for TIMER ON/
TIMER OFF is the same.
/ Timer on / Timer off button
• TIMER ON button
"TIMER ON" button can set the time for timer on. After pressing
this button, " " icon disappears and the word "ON" on remote
controller blinks. Press " + " or " - " button to adjust TIMER ON
setting. After each pressing " + " or " - " button. TIMER ON setting
will increase or decrease 1min. Holding " + " or " - " button, 2s later,
the time will change quickly until reaching your required time.
Press "TIMER ON" to confirm it. The word "ON" will stop blinking. "
" icon resumes displaying. Cancel TIMER ON: Under the condition
that TIMER ON is started up, press "TIMER ON" button to cancel it.
• TIMER OFF button
"TIMER OFF" button can set the time for timer off. After pressing
this button, " "icon disappears and the word "OFF" on remote
controller blinks. Press " + " or " - " button to adjust TIMER OFF
setting. After each pressing " + " or " - " button, TIMER OFF setting
will increase or decrease 1min. Holding " + " or " - " button, 2s later,
the time will change quickly until reaching your required time.
Press "TIMER OFF" and the word "OFF" will stop blinking. " " icon
resumes displaying. Under the condition that TIMER OFF is started
up, press "TIMER OFF" button to cancel it.

17 GB
NOTE
• Under on and off status, you can set TIMER OFF or TIMER ON
simultaneously.
• Before setting TIMER ON or TIMER OFF, please adjust the clock
time.
• When turning on TIMER ON or TIMER OFF function, set this function
valid all the time and the air conditioner will be turned on or turned
off at set temperature every day. ON/OFF button has no affect to
setting. If this function is not required, use the remote controller to
cancel it.
Light button
Press this button to control the LED status on the displayer, the
circulation change is as follow:
When selecting " " (Auto LED) with remote controller, LED indicator
on indoor unit will adjust the luminance automatically according to
the ambient intensity of illumination.
NOTE
• Auto LED function is not available.
• Light function is available.
Function introduction for combination buttons
Energy-saving function
Under cooling mode, press "Mode" and "Clock" buttons simultaneously
to start up or turn off energy-saving function. When energy-saving
function is started up, "SE" will be shown on remote controller, and air
conditioner will adjust the set temperature automatically according
to ex-factory setting to reach to the best energy-saving effect. Press
"Mode" and "Clock" buttons simultaneously again to exit energy-
saving function.
NOTE
• Under energy-saving function, fan speed is defaulted at auto speed
no display no display

18 GB
and it can't be adjusted.
• Under energy-saving function, set temperature can't be adjusted.
• Sleep function and energy-saving function can't operate at the
same time. If energy-saving function has been set under cool
mode, press "Clock" and "Light" buttons simultaneously will cancel
energy-saving function. If sleep function has been set under cool
mode, start up the energy-saving function will cancel sleep function.
Child lock function
Hold " On/Off " and " - " buttons simultaneously for 3s to turn on or
turn off child lock function. When child lock function is on, " " icon is
displayed on remote controller. If you operate the remote controller,
the " " icon will blink three times without sending signal to the unit.
8°C Heating function
Under heating mode, set temperature to 8°C to turn on 8 °C heating
function.The air conditioner keeps the heating status at 8°C.
NOTE:
• Under 8°C heating function,fan speed is defaulted at auto speed
and it can't be adjusted.
Temperature display switchover function
Under OFF status, hold "Mode" and " - " buttons simultaneously for 3s
to switch temperature displaybetween °C and °F.
function
function is for limiting power of the whole unit. Press "Mode" and
"Light" buttons simultaneously, the remote controller will circularly
display as the following:
• Maximum power limited under the mode is lower than that of
mode.
• If you want to cancel the power limiting function, press "Mode" and
"Light" buttons simultaneously till the icon in remote controller is
blank
No Setting

19 GB
not displayed.
• When the remote controller is turned off, power limiting function
is cancelled. If you want to activate the function, please repress
"Mode" and "Light" buttons simultaneously.
• If the current power is lower than the maximum power of mode,
then the power will not be limited after entering into such mode.
• For the model with one outdoor unit and two indoor units, if
any one of indoor units enters into power limiting function, the
outdoor unit will enter into the set limiting power mode of indoor
unit; when two indoor units enter into power limiting mode, then
the power of outdoor unit will be limited according to the lower
power of the two indoor units.
NOTE
• This function is not available.
Indoor ambient temperature
By holding " On/Off " and " " buttons simultaneously, you can see
indoor ambient temperature on indoor unit’s display. The setting on
remote controller is selected circularly as below:
When selecting " " with remote controller, temperature indicator on
indoor unit displays indoor ambient temperature.
Clean reminder function of filter
The reminder function is defaulted to be OFF. Hold " On/Off " and "
" buttons simultaneously for 5s to turn it on. The buzzer will give out
sound for 0.5s and the dual-8 nixie tube on the display will be on for
3s; Once the reminder function is turned on, when the air conditioner
has reached to the set time, the dual-8 nixie tube will flash about 30s
when the unit is turned on each time to remind the user to clean the
filter; you can turn off this cycle reminder by holding " On/Off " and
" " buttons simultaneously for 5s and then the air conditioner will
count time again.
NOTE
• Once the reminder function is turned on, only this cycle reminder
blank
No Setting

20 GB
can be cleared.
• This function is not available.
Self Clean function
Under unit off status, hold "Mode" and " " buttons simultaneously
for 5s to turn on or turn off the self clean function. When the self
clean function is turned on, indoor unit displays "CL" . During the
self clean process of evaporator, the unit will perform fast cooling or
fast heating. There may be some noise, which is the sound of flowing
liquid or thermal expansion or cold shrinkage. The air con-ditioner
may blow cool or warm air, which is a normal phenomenon. During
cleaning process, please make sure the room is well ventilated to
avoid affecting the comfort.
NOTE
• The self clean function can only work under normal ambient
temperature. If the room is dusty, clean it once a month; if not,
clean it once every three months. After the self clean function is
turned on, you can leave the room. When self clean is finished, the
air conditioner will enter standby status.
Night mode
Under cooling or heating mode, when turning on sleep mode and turn
to low speed or quiet, the outdoor unit would enter into night mode.
NOTE
• When you feel that the cooling and heating effect is poor, please
press "Fan" button to other fan speed or press "Clock" and "Light"
buttons simultaneously to exit the night mode.
• The night mode can only work under normal ambient temperature.
I SENSE function
Press "Health" and " + " buttons simultaneously to start I SENSE
function and "
" will be displayed on the remote controller. After this
function is set, the remote controller will send the detected ambient
temperature to the controller and the unit will automatically adjust
the indoor temperature according to the detected temperature. Press
"Health" and " + " buttons simultaneously again to turn off I SENSE
