Contents
Safety 4
General Safety Instructions 4
General Information 5
Specification 5
Description 6
Machine Limitations 7
Driving Stability 7
Operating Instructions 7
Before First Use 7
Filling the Tank 8
AquaTrans & AquaMove Operation 9
Maintenance 9
Periodic Checks 9
Risk Assessment 10
Warranty 11
Warranty Policy 11
What this Warranty Does Not Cover? 11
How to Obtain Service Under this Warranty? 11
Warranty Limitations 11

Product HandBook
AquaTrans™ & AquaMove™
1800 816 277www.tti.com.au
3
Disclaimer
All information, illustrations, and specifications contained in this manual are based on the latest product
information available at the time of this publication’s printing. TransTank International (TTi) reserves the right
to alter and substitute specifications and methods at any time, in line with our commitment to continuous
improvement.
No patent liability is assumed with respect to the use of information contained within this manual. While
every precaution has been taken in the preparation of this manual, TTi assumes no responsibility for errors or
omissions.
Thank you for purchasing an AquaTrans™ & AquaMove™ Water Cartage
Tank, which will provide many years of reliable service when operated and
maintained in accordance with this manual.
TTi manufacture a range of AquaTrans & AquaMove units, from 10 through to 17,000 litre tanks. This
manual describes the operation, driving stability, and maintenance procedures applicable to all units, noting
additional requirements to options where necessary.
All TTi AquaTrans & AquaMove tanks are rotationally moulded from quality polyethylene, purpose-designed
and manufactured to high standards. The AquaTrans & AquaMove is a ute, truck, or trailer-mounted tank
transportation system.
The AquaTrans & AquaMove unit is supplied complete, tested, and ready to go. The AquaTrans & AquaMove
is suitable not only for transporting potable water but other fluids such as molasses – almost any liquid
except fuel and harsh chemicals.
TTi recommends that if fluids other than water are to use used in the AquaTrans & AquaMove, the unit should
be designated solely to that fluid, to avoid any risk of cross-contamination from different products.
The owner is responsible to ensure that the equipment is operated in accordance with this manual, with
Australian WorkSafe requirements, applicable road rules and local council regulations. TTi is not liable for
any loss, injury or death resulting from the failure to observe all safe working regulations as required by law.
Included with your AquaTrans & AquaMove unit are the following documents:
• Operator’s Handbook (this manual, which includes the Warranty Registration Card)
• Tank Quality Check Form. This is your verification that the unit has been quality checked, and verifies the
serial number affixed to the unit.

Product HandBook
AquaTrans™ & AquaMove™
1800 816 277www.tti.com.au
4
Safety
This manual is intended for use by personnel experienced in the use of this and similar equipment. Read and
understand this manual before attempting to operate or perform routine maintenance on this equipment.
Your safety is of prime priority.
A WARNING highlights an essential operating or maintenance procedure, practice,
condition or statement, which, if not strictly observed, could result in injury or death
of personnel, or long-term health hazards.
A CAUTION highlights an essential operating or maintenance procedure,
practice, condition or statement, which, if not observed, could result in damage
or destruction of equipment.
A NOTE highlights or clarifies an essential systems description, operating or
maintenance procedure, condition or statement.
General Safety Instructions
1. This unit is designed and manufactured solely to carry water or benign fluids. Under no circumstances
should it be used for any other purpose. It must never be used for transporting fuel or harsh chemicals.
2. Only authorised and trained personnel are to operate this equipment. Operators must have read and
fully understood this manual before operating the Storm unit.
3. Do not operate this equipment while under the influence of alcohol or any drugs that could impair your
capabilities in any way.
4. The AquaTrans & AquaMove must be supported and secured on a flat surface, as specified in this
manual.
5. Personal Protection Equipment (PPE) must be worn when refuelling or operating a pump associated
with transferring fluid to or from your AquaTrans & AquaMove. Exposure to excessive noise over an
extended period can cause impairment or loss of hearing.
6. Avoid diesel or unleaded petrol contact with skin and eyes, and avoid breathing vapours or mists.
Refer to the relevant Safety Data Sheet (SDS).
7. Ensure the capacity of the vehicle is suitable for the loaded mass of the AquaTrans & AquaMove.
Refer to the vehicle’s operator manual for safe working loads and relevant safety instructions. Do not
exceed the carrying and braking capacity as specified by the vehicle manufacturer.
8. The AquaTrans & AquaMove tank is a confined space. Ensure compliance with OH&S requirements
if entering the tank.
9. Be aware of the height of the AquaTrans & AquaMove when mounted on a vehicle. Keep clear of
overhead obstructions, such as bridges, low-hanging tree limbs and power lines.

Product HandBook
AquaTrans™ & AquaMove™
1800 816 277www.tti.com.au
5
10. Appropriate working at heights OH&S requirements must be followed if accessing the top of the tank
is required.
11. TTi recommends the LiquidLocker baffle system be used in AquaTrans & AquaMove tanks of 2,000
litres and above. It is essential the LiquidLocker system be used in tanks of 10,000 litres and above.
12. All hoses and pipes attached to the AquaTrans & AquaMove tanks must be flexible, to prevent damage
due to vibration from pumps and motors. Rigid pipes must not be coupled directly to the tank.
13. For AquaTrans & AquaMove tanks fitted with 3” outlets, additional venting is required to prevent
internal negative pressure. This can be achieved by loosening or opening the tank lid.
14. The AquaTrans & AquaMove must never be left unattended while being filled.
15. Care should be taken at all times, particularly when operating on rough or steep terrain. Drivers
should be aware of fluid surge affecting the centre of gravity.
16. The AquaTrans & AquaMove has safety labels affixed to various locations on the unit. These labels
should be kept clean and legible, and replaced if damaged.
17. Any unauthorised modifications to this equipment may affect its function and create a serious safety
risk. Any unauthorised modifications will void any warranty on the unit.
18. Failure to observe the above safety precautions could void your warranty
General Information
Specifications
Tank Heavy duty UV stabilised chemical resistant polyethylene tank (10 to 17,000
litre capacity),
Standard Equipment Tank lid and seal (10 to 400 litre tanks)
Tank lid, rim and seal assembly (500 to 17,000 litre tanks) (x2 for 13,000 to
17,000 litre tanks)
¾” Poly drain bung and seal (10 to 400 litre tanks)
1½” MBSP fitting – poly (fitted) (500 to 1,500 litre tanks)
2” MBSP fitting – poly (fitted) (2,000 to 6,000 litre tanks)
3” MBSP fitting – brass (7,000 to 17,000 litre tanks)
Galvanised mounting pins (500 to 7,000 litre tanks)
Galvanised mounting pins and wedges (8,000 litres and above)
Options Translucent and opaque tank colour range
LiquidLocker™ Baffle Safety System (600 litres and above)
Top mount steel pump plate (220 and 400 litre tanks)
Galvanised steel skid frame (220 and 400 litre tanks)
Galvanised steel mounting frame (2,000 to 17,000 litre tanks)
Water level sight tube (from 200 litres and above)

Product HandBook
AquaTrans™ & AquaMove™
1800 816 277www.tti.com.au
6
Description
The TTi AquaTrans & AquaMove is designed to carry water and benign fluids safely and effectively. The
AquaTrans & AquaMove has the following features, refer to Figure 1.

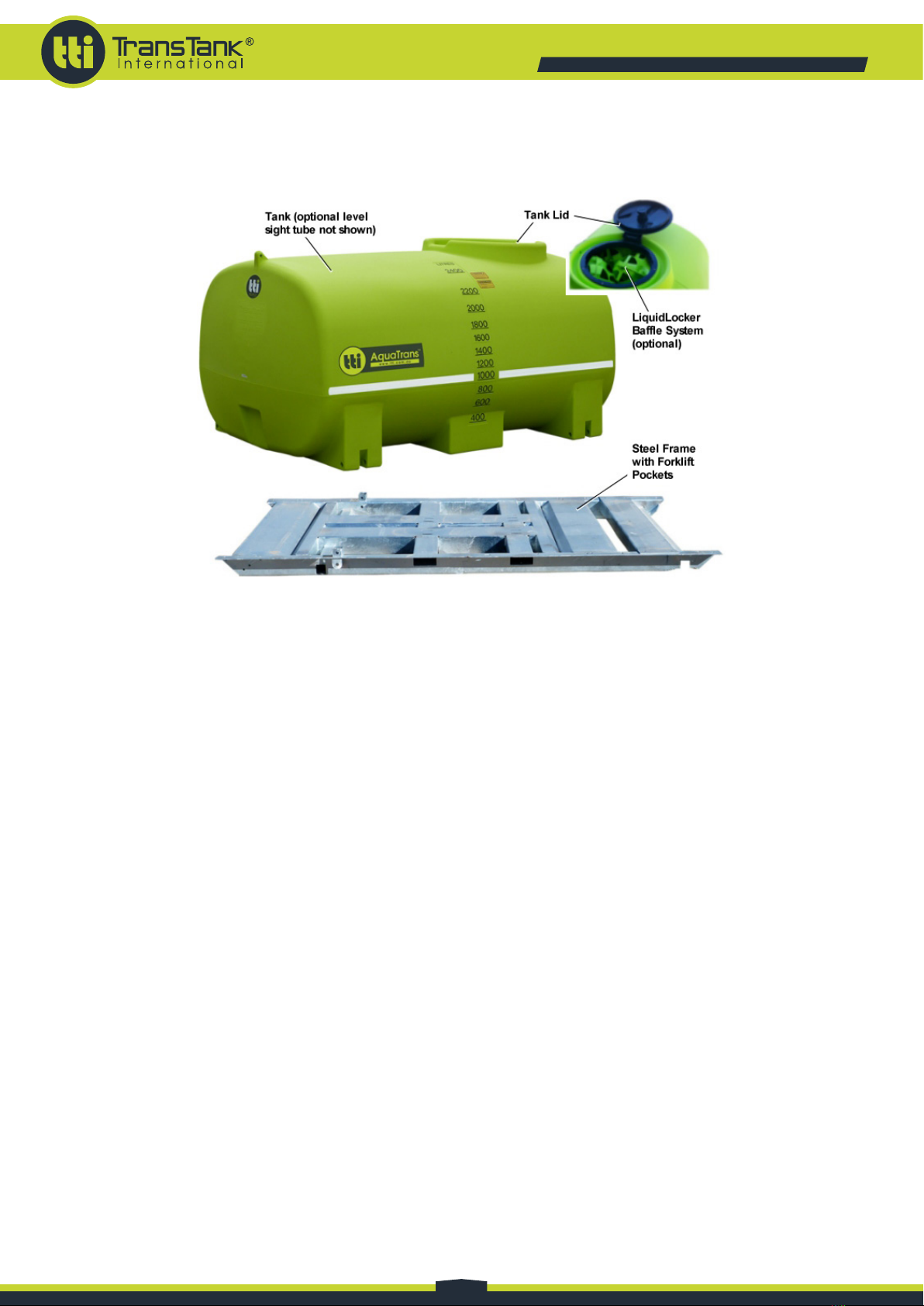

Figure 1 – Component Identification
Tank
All TTi tanks are constructed from UV stabilised, chemical resistant, virgin material polyethylene. Due
to the rotational moulding process, there may be a small variance in the overall dimensions of the tank,
therefore, calibration markings should be used as a guide only.
The extra thick tank wall structure provides a load capacity of up to 1.3 Specific Gravity. Top mount steel
pump plate built-in mounting points are available on the smaller tank sizes. A specific design feature is our
tank feet, enabling easy and quick mounting to any tray surface.
The AquaTrans & AquaMove comes in our standard opaque Safety Green, with a range of translucent and
opaque colours available as an option.
LiquidLocker Safety Baffle System
The LiquidLocker baffle system within the tank demonstrates measurable improvements in braking
performance and dynamic stability and controllability. LiquidLocker baffles are recommended for tanks
from 600 litres and above. The system has been independently tested, with the report available upon
request.
Tank Level Indicator
An optional level sight tube is fitted to the rear of the tank and provides an accurate level indication of
water within the tank. It is available for fitting to 200 litre tanks and above.
Steel Frames
The 220 and 400 litre AquaTrans tanks are available with optional skid frames, fully welded steel and hot-
dip galvanised for long-lasting protection.
AquaTrans & AquaMove tanks of 2,000 to 17,000 litres are available with optional fully welded steel
mounting frames, hot-dip galvanised for long-lasting protection. The frames incorporate forklift pockets
and are available with incorporated pump and hose reel mounting plates incorporated into the frame.

Product HandBook
AquaTrans™ & AquaMove™
1800 816 277www.tti.com.au
7
Machine Limitations
The AquaTrans & AquaMove tanks are subject to operating limitations. It is the operators’ responsibility to
ensure that this equipment is being operated safely and within these limitations.
Driving Stability
The AquaTrans & AquaMove tanks are heavy when filled with fluid. To maintain stability while operating this
unit:
• Ensure the vehicle tyres are inflated to their correct pressure at all times. Underinflated tyres can
cause excessive lateral motion of the tyre, which may cause a rollover.
• Allow extra room for braking and turning when the tank is full.
• Ensure any side gradient (slope) is accounted for, especially when the AquaTrans & AquaMove tank
is full, as the unit will have a higher centre of gravity.
Operating Instructions
Before First Use
Your AquaTrans & AquaMove tank is delivered fully assembled. Before use, it needs to be set up using the
following instructions:
• Complete the warranty registration online at www.tti.com.au/warranty-registration, or use the
Warranty Registration Card at the back of this handbook.
• Store this handbook, along with the Tank Quality Check Form and pump unit’s manual in the provided
leather pouch, in a safe and easily accessible place for future reference.
WARNING: The operator must fully understand all aspects of this handbook. Do not
use the AquaTrans & AquaMove tank until you have read this handbook.
• Read and thoroughly understand this handbook, paying particular attention to all safety requirements,
before using the AquaTrans & AquaMove for the first time.
• Check that all fittings are secure following transit and are not damaged in any way.
• Inspect the tank for any damage or abrasions.
• Mount the AquaTrans & AquaMove tank onto the vehicle, ensuring it is fully supported on a flat surface.
Ensure all feet are secured correctly with the supplied mounting pins (500 to 7,000 litres) or the
supplied mounting pins and wedges for the tanks of 8,000 litres and above, refer to Figure 2.
• For AquaTrans & AquaMove tanks of 2,000 litres and above, TTi recommend installing the LiquidLocker
baffle system to minimise fluid surge during transportation. It is essential the LiquidLocker system be
used in tanks of 10,000 litres and above.
• If the AquaTrans & AquaMove is supplied with an optional steel frame, ensure the steel frame is
securely mounted to the vehicle.

Product HandBook
AquaTrans™ & AquaMove™
1800 816 277www.tti.com.au
8
⦁

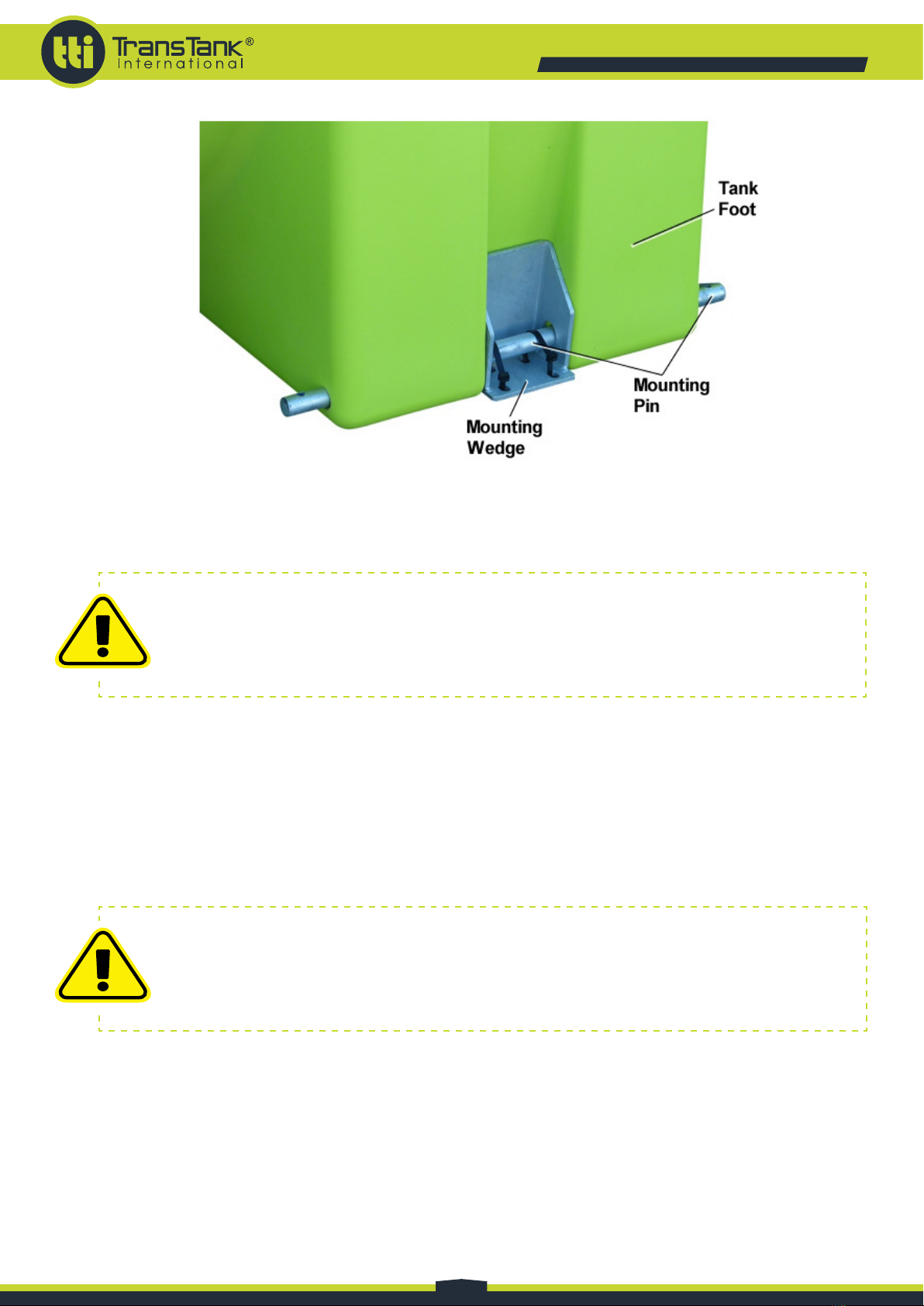

Figure 2 – AquaTrans & AquaMove Mounting System
Filling the Tank
CAUTION: The AquaTrans & AquaMove unit is designed for water and other benign
fluid use only. It must not be used for harsh chemicals or fuel.
The AquaTrans & AquaMove tank is filled by gravity from a supply, such as an overhead standpipe or
supply hose as follows:
• Remove the filling lid from the tank’s top opening.
• Position the AquaTrans & AquaMove unit’s top-mounted fill point under the standpipe or life up and
suitable secure a supply hose.
• Open the standpipe or supply hose valve and allow water to flow into the tank.
CAUTION: To prevent overflow, do not leave the filling operation unattended.
• An optional sight level tube is fitted to the tank, providing a visual indicator of the level of water in the
tank. If a sight level tube is not fitted, observe the water level directly in the tank. When the tank is
filled, close the supply’s valve.
• Upon completion of filling, replace the tank’s filling lid.

Product HandBook
AquaTrans™ & AquaMove™
1800 816 277www.tti.com.au
9
AquaTrans & AquaMove Operation
The AquaTrans & AquaMove is supplied with an MBSP fitting at the base of the tank to connect to your
discharge system. When so connected, the control of flow may be regulated by the discharge system.
For the larger tanks (2,000 litres and above) fitted with a 2” MBSP fitting, the tank’s filling lid must be
loosened and opened to provide adequate venting when discharging the tank’s fluid.
Maintenance
Your AquaTrans & AquaMove requires minimal maintenance but regular cleaning and checks will ensure
safe and reliable service over its lifetime. Periodic checks and inspections will identify any potential issues,
enabling timely rectification and minimising downtime.
Periodic Checks
The following checks and cleaning operations should be undertaken on a regular basis. The frequency of
these activities will depend on the nature of the operating environment and the operational hours of the
AquaTrans & AquaMove unit. Refer to the maintenance schedule tables below for details of maintenance
intervals.
• Clean the unit and inspect it for any signs of damage or wear. Replace any safety labels if they are
damaged or illegible.
• Check all hoses, fasteners and fittings are firmly secured, tighten if necessary.
• If the AquaTrans & AquaMove is to be stored for an extended period, ensure the tank and all pipelines
are empty and are not pressurised. Store the unit in a clean, dry and well-ventilated area.

Product HandBook
AquaTrans™ & AquaMove™
1800 816 277www.tti.com.au
10
Task Hazard Risk Control Measure/Mitigation
Ensure tank is
mounted correctly
on vehicle and do not
overload vehicle.
Partially fill the tank
with water & test
the tank or pumping
system, if necessary,
before use
Load not secured;
overloaded vehicle;
manual handling; slips,
trips or falls; fingers
jammed; overhead
powerlines - electricity;
leaks; tank in a confined
space
Medium
Read/follow decals on the tank
• Follow safe manual handling techniques;
• Don’t lift on your own if > 20kg, bend
knees & keep back straight;
• Keep fingers clear
• Keep tank at least 8m away from
overhead powerlines
• Keep water away from electrical sources
• Make sure tank mounted securely to
comply with relevant codes of practice
and transport authority requirements;
• Don’t exceed vehicle load limit; follow
state legislation & AS 2865: 2001
confined space
• Chassis mount frame to be designed by
licensed Truck Body Engineer if used on
public roads
Check weather and
ground conditions for
stability
Manual handling;
ground instability
Low
• Follow safe manual handling techniques
as above.
• Drive cautiously to suit ground and
weather conditions.
Fill the tank with water/
other fluids using a
pump, hydrant, hose or
similar apparatus
Manual handling; slips,
trips or falls; ground
instability; weather
conditions; falling from
height; use of chemicals
Medium
As above 1 & 2;
• Ensure fall prevention strategy exists if on
the tank;
• Whilst on the back of a vehicle filling the
tank - work platform or handrails in place
&/or the person filling the tank is secured
with a safety line or harness fall arrest
system in place. Follow MSDS.
Check that transport
vehicle is safe before
use, i.e. where
applicable: wheel nuts,
tyre pressure and
condition, bearings,
tow hitch, have been
serviced, etc. Driving
and using the water
tank from a vehicle -
take into account the
sway of water in the
tank when driving.
As above; loss of
load; heat & cold;
noise; exceed load
limit of vehicle; hose
entanglement; exhaust
fumes; terrain & slopes
High As above;
• Wear clothes to suit heat & cold;
• Wear hearing protection if noise >85 dBa;
• Follow the manufacturer’s safe operation
instruction for the vehicle and pump/spray
unit;
• Don’t overload - water weighs 1kg for every
1 litre;
• Secure unit to vehicle;
• Keep hose attachments tidy;
• TTi recommends LiquidLocker Baffle
System to control liquid surge.
Clean up, maintenance
& storage
As above Low ⦁As above;
⦁Store unit in a dry, well ventilated area
Risk Assessment

Product HandBook
AquaTrans™ & AquaMove™
1800 816 277www.tti.com.au
11
Warranty
Warranty Policy
TTI will, at its option, repair or replace without charge any part covered by this warranty that is found to be
defective in material and/or workmanship within twenty (20) years after the date of sale to the original retail
purchaser.
Upon request, the customer will make the defective part available for inspection and/or return the defective
part to TTi, transportation charges prepaid. All parts and components are covered by this warranty.
What this Warranty Does Not Cover?
This warranty does not cover:
• defects caused by depreciation or damage caused by incorrect mounting, normal wear, accidents,
improper maintenance, improper use or abuse of the product, alterations or failure to follow the
instructions and warnings provided.
• Any charges for making service calls, clean up time and transport charges.
• The use of non-genuine parts on equipment supplied by TTi. This will automatically negate any warranty.
How to Obtain Service Under this Warranty?
Warranty service can be arranged by contacting your dealer, or by contacting TTi directly on 1800 816 277.
Proof of warranty registration and date of purchase may be required to verify warranty coverage. Any
defective parts returned to TTI must be accompanied by a Return Goods Note. This form can be obtained
by contacting Product Support on 1800 816 277 or emailing [e-mail].
Warranty Limitations
Warranty limitations are as follows:
• There is no other express warranty. Any warranty that may be implied from this purchase including
merchantability and fitness for purpose is hereby limited to the duration of this warranty and to the
extent permitted by law. Any and all implied warranties are excluded.
• TTI will not be liable for any incidental, consequential or special damages and/or expenses in connection
with the purchase or use of this equipment, to the extent permitted by law.
• Only the warranty expressed in this limited warranty shall apply and no dealer, distributor or individual
is authorised to amend, modify, or extend this warranty in any way. Accordingly, additional statements,
whether oral or written, do not constitute warranties by TTi, and should not be relied upon.

www.tti.com.au
1800 816 277
[email protected]
PO Box 137, Nathalia, VIC, 3638
Murray Valley Hwy, Nathalia, VIC 3638
Proudly Built By:
Signature Date Signature Date
Quality Checked By:
Scan to view our PDF
Handbook online
