Trojan Elite 2000 User manual

ELITE 2000
TREADMILL AUTO
INCLINE CARDIO
USER MANUAL
Visit facebook.com/trojanhealth
www.trojanhealth.co.za
CAUTION
READ ALL PRECAUTIONS AND
INSTRUCTIONS IN THIS MANUAL
BEFORE USING THIS EQUIPMENT.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.

2
ELITE 2000 - T
INDEX
• Important Safety Instructions ________________________________ 3
• Grounding Instructions _______________________________________ 5
• Pre Assembly Check List______________________________________ 6
• Hardware & Tools List ________________________________________ 7
• Parts List____________________________________________________ 8
• Exploded Drawing ___________________________________________ 10
• Assembly Steps______________________________________________ 11
• Folding Instructions __________________________________________ 13
• Computer Functions__________________________________________ 14
• Operation Instructions _______________________________________ 15
• Trouble Shooting ____________________________________________ 20
• Technical Parameter _________________________________________ 22
• Exercise Instructions ________________________________________ 23
• Maintenance ________________________________________________ 26
• Centre The Running Belt _____________________________________ 28
• Fitness Tips & Techniques_____________________________________ 29
• Conditioning Guidelines_______________________________________ 30
• Warm Up & Cool Down _______________________________________ 31
• 2 Year Limited Warranty ______________________________________ 32
• Repair Procedure_____________________________________________ 33
• Notes _______________________________________________________ 34

3
ELITE 2000 - T
IMPORTANT SAFETY INSTRUCTIONS
It is the sole responsibility of the purchaser of Trojan products to read the owner’s manual, warning labels and
instruct all individuals, on proper usage of the equipment. Understanding each and every warning to the fullest
is important. If any of these instructions or warnings are unclear please contact Trojan Customer Services on
0861 TROJAN (0861 876526), within the Republic of South Africa. Customers residing outside South Africa
can contact us on [phone].
The equipment is only intended for home use and is not intended for commercial, institutional and/or studio
facilities use.
Contact Trojan with any questions regarding this classication. It is recommended that all users of Trojan be
informed of the following information prior to use.
HEALTH WARNING
• Before starting any exercise or conditioning program you should consult with your personal physician to
see if you require a complete physical exam. This is especially important if you are inactive, pregnant or
suffer from any illness.
• If at any time during exercise you feel faint, dizzy or experience pain, stop exercising immediately and
consult your physician.
• To avoid muscular pain and strain, begin each workout by stretching and warming up and end each session
by cooling down and stretching.
INSTALLATION
Trojan recommends that all equipment:
• Be secured to or set up on a solid, level surface to stabilise and eliminate rocking or tipping over
during training.
• Be set up inside your home away from moisture and dust (the equipment is not designed for outdoor use).
• Be set up with sufcient ventilation to ensure proper operation.
• Be set up with sufcient space around the equipment so that all exercises can be completed safely. It is
recommended that there should be at least 1 m of space around the equipment where access is required
to exercise.
PROPER USAGE
• Do not use the equipment in any way other than as designed or intended by the manufacturer. It is
imperative that Trojan equipment is used properly to avoid injury.
• Injuries may result from exercising improperly or excessively.
• Your Trojan equipment should only be used by one person at a time.
• Be careful to maintain your balance while using, mounting, dismounting or assembling your Trojan
equipment to avoid injury.
• Do not attempt to adjust the seat or handlebars while you are on your Trojan equipment.
• Servicing other than the procedures in this manual should be performed by an authorised service
representative only.

4
ELITE 2000 - T
ACCESS CONTROL
• Trojan recommends that all tness equipment be used in a supervised area. It is recommended that
the equipment be located in an access controlled area. Control is the responsibility of the owner. Keep
children away from all equipment.
• Parents or others supervising adults must provide close supervision of children if the equipment is used in
the presence of children.
INSPECTION
• Do not use or permit use of any equipment that is damaged, or has worn or broken parts. For all Trojan
equipment use only replacement parts supplied by Trojan.
• Always make sure that all nuts and bolts are tightened prior to each use.
• Maintain labels and nameplates – do not remove labels for any reason. They contain
important information.
• Equipment maintenance – preventative maintenance is the key to smooth operating equipment. Please
ensure that you follow our maintenance tips to ensure the continued correct function of your
Trojan equipment.
• Before any use, examine all accessories approved for use with the Trojan equipment for damage or wear.
• Should your Trojan equipment appear damaged or worn, do not attempt to use or repair the
equipment yourself.
• Please contact our service department on 0861 TROJAN (0861 876526) to arrange a repair.
Customers residing outside South Africa can contact us on [phone].
OPERATING WARNINGS
• It is the purchaser’s responsibility to instruct all users as to the proper operating procedures of all
Trojan equipment.
• Keep children away from all moving parts. Parents must provide close supervision of children if the
equipment is used in the presence of children.
• Do not wear loose tting clothing or jewellery when using the equipment. It is also recommended that
users tie up long hair to avoid contact with moving parts.
• Ensure that anyone not using the equipment stays clear of the user, accessories and moving parts while
the machine is in operation.
USER WEIGHT LIMITATIONS
• This Trojan ELITE 2000 Treadmill may not be used by persons weighing more than 150 kg.
SAVE THIS INSTRUCTION MANUAL FOR FUTURE USE AND REFERENCE.
If any of these instructions or warnings are unclear please contact Trojan Customer Services on
0861 TROJAN (0861 876526) within the Republic of South Africa or visit www.trojanhealth.co.za.
Customers residing outside South Africa can contact us on [phone].
IMPORTANT SAFETY INSTRUCTIONS

5
ELITE 2000 - T
GROUNDING INSTRUCTIONS
This product must be grounded. If a malfunction or breakdown occurs, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock. This product is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and grounded in accordance with all local codes
and ordinances.
DANGER – improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualied electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify the plug provided with the product. If it will not t the
outlet have a proper outlet installed by a qualied electrician.

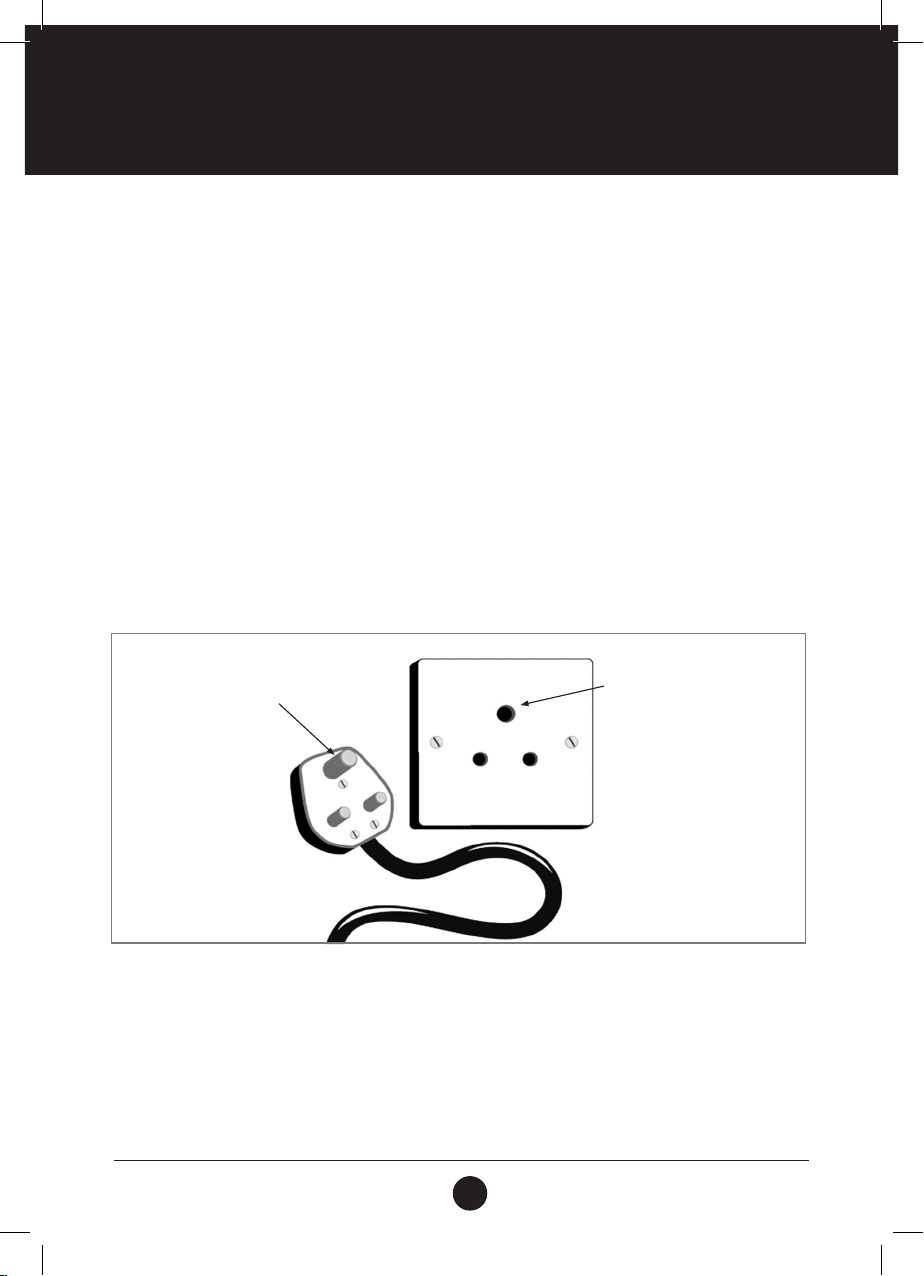

This product is for use on a nominal 220 - 240 Volt circuit and has a grounding plug that looks like
the plug illustrated in the gure. Make sure that the product is connected to an outlet with the
same conguration as the plug. No adaptor should be used with this product.
Please unplug the treadmill when not in use to avoid any damage in the event of power surges.
GROUNDED OUTLET
GROUNDING PIN

6
ELITE 2000 - T
PRE ASSEMBLY CHECK LIST
Thank you for choosing the Trojan ELITE 2000 Treadmill. We take great pride in producing this product and
hope it will provide many hours of quality exercise to make you feel better, look better and enjoy life to its
fullest. Yes, it’s a proven fact that a regular exercise program can improve your physical and mental health. Too
often, our busy lifestyles limit our time and opportunity to exercise. The Trojan ELITE 2000 Treadmill provides
a convenient and simple method to begin your assault on getting your body in shape and achieving a healthier
lifestyle. Before reading further, please review the drawing below and familiarise yourself with the parts that
are labelled.
Read this manual carefully before using the Trojan ELITE 2000 Treadmill.
Wheel
Computer
Running
Belt
Hand Pulse
Upright Safety Key
Running Deck 1410 mm (l) x 520 mm (w)
Set-up Size 1895 mm (l) x 940 mm (w) x 1620 mm (h)
User Weight 150 Kg (maximum)
Speed 1 - 20 Km/h
Programs Time, Speed, Distance, Calories, Pulse, Program, Incline

7
ELITE 2000 - T
HARDWARE & TOOLS LIST
INSTRUCTIONS FOR ASSEMBLY
• Before you start to assemble, please check the hardware packaging to make sure all parts are included.
• Basic tools, such as spanners will be provided for assembly.
2 3 4
29 (L & R) 26 (L & R) 27 (L & R)
54 73 65
69 Tool
Main Frame
1 PC L/R Upright Tube 2 PCS Computer Frame 1 PC
L/R Protective Cover
2 PCS L/R Outer Upright Tube Cover
2 PCS Inner Upright Tube Cover 2 PCS
Hex Socket Screw
2 PCS Cross Washer Head Screw 5 PCS Hex Socket Cap Screw 1 PC
Hex Bolt
2 PCS Multi Tool 1 PC Allen Key
Allen Key

8
ELITE 2000 - T
PARTS LIST
No. Description Qty
1 Bottom Frame 1
2 Main Frame 1
3 L/R Upright Tube 2
4 Computer Frame 1
5 Incline Frame 1
6 Strengthening Tube 1
7 Wheel Bracket 2
8 Front Roller 1
9 Rear Roller 1
10 Cylinder 1
11 Handlebar Pulse Steel Discs 4
12 Metal Speaker Grille 2
13 Transport Wheel Stopper 2
14 D-Shaped Axle 2
15 Transport Wheel Axle 2
16 Spacer 2
17 Edging Fixing 8
18 Computer Upper Cover 1
19 Computer Bottom Cover 1
20 Loudspeaker Cover 2
21 Hand Grip Upper Cover 2
22 Hand Grip Bottom Cover 2
23 L/R Hand Grip Protective Cover 2
24 L/R Hand Grip Protective Cover 2 2
25 L/R Hand Grip Protective Cover 3 2
26 Outer Upright Tube Cover 2
27 Inner Upright Tube Cover 2
28 Motor Cover 1
29 L/R Protective Cover 2
No. Description Qty
30 Rear Protective Cover 1
31L/R Front Hand Grip Protective Cover 1 P.r.
32L/R Shortcut Key 1 P.r.
33L/R Hand Grip 1 P.r.
34 Computer Back Cover 1
35 Computer Upper Cover 1
36 Edgings 2
37 Running Board 1
38 Running Belt 1
39 Blow Molding Cushion 2
40 Transport Wheel 2
41 End Cap 2
42 Flat Foot Pad 2
43 Square End Cap 2
44 Protective Plug 2
45 Cushion 2
46 Power Cord Buckle 1
47 Adjusting Wheel 2
48 Square End Cap 1 2
49 Square End Cap 2 2
50 Wheel 2
51 Belt 1
52 Plastic Pad 4
53 Anti-Slip Mat 4
54 Hex Socket Screw M10 X 55 1
55 Hex Socket Screw M10 X 50 2
56 Hex Socket Screw M10 X 40 1
57 Hex Socket Screw M10 X 15 14
58 Hex Socket Screw M8 X 50 4

9
ELITE 2000 - T
No. Description Qty
59 Hex Socket Screw M8 X 45 1
60 Hex Socket Screw M8 X 40 3
61 Hex Screw M8 X 15 2
62 Hex Screw M8 X 55 1
63 Hex Screw M8 X 35 1
64 Hex Socket Cap Screw M8 X 18 4
65 Hex Socket Cap Screw M6 X 45 1
66 Hex Socket Cap Screw M6 X 55 2
67 Hex Socket Cap Screw M6 X 12 2
68 Hex Bolt M6 X 30 4
69 Hex Bolt M6 X 25 2
70 Cross Pan Screw M6 X 15 2
71 Cross Washer Head Screw M5 X 16 4
72 Cross Washer Head Screw M4 X 15 13
73 Cross Washer Head Screw M5 X 8 5
74 Cross Pan Bolt M5 X 25 8
75 Cross Tapping Screw St4 × 35 4
76 Cross Tapping Screw St4 × 16 44
77 Cross Tapping Screw St4 × 12 14
78 Cross Tapping Screw St4.0 × 12 6
79 Cross Tapping Screw St2.9 × 9.5 4
80 Cross Tapping Screw St2.9 × 6 2
81 Cross Round Head Screw M4 X 8 2
82 Cross Pan Head Screw M4 X 8 4
83 Lock Washer Φ10 X 1.2 20
84 Lock Washer Φ8 X 1.2 8
85 Lock Washer Φ6 X 1.2 3
86 Flat Washer Φ13 X Φ8 X 1.2 10
PARTS LIST
No. Description Qty
87 Flat Washer D4 2
88 Spring Washer D4 2
89 Spring Washer Φ8 6
90 Nylon Nut M10 4
91 Nylon Nut M8 10
92 Nylon Nut M6 8
93 C-Shaped Clasp Φ8 4
94 PCB 1
95 Computer Connecting Wire 1
96 Upper Extension Wire 1
97 Lower Extension Wire 1
98 Computer Down Wire 1
99 Safety Lock 1
100 Light Sensor 1
101 Light Sensor Support 1
102 DC Motor 1
103 Incline Motor 1
104 Switch 1
105 Overload Protector 1
106 Power Cord 1
107 Speakers 2
108 Audio Jack 1
109 MP3 Wire 1
110 Amplier Board 1
111 SD Card / USB Socket 1
112 Filter 1
113 Inductor 1
114 Headphone Jack 1

10
ELITE 2000 - T
EXPLODED DRAWING

11
ELITE 2000 - T

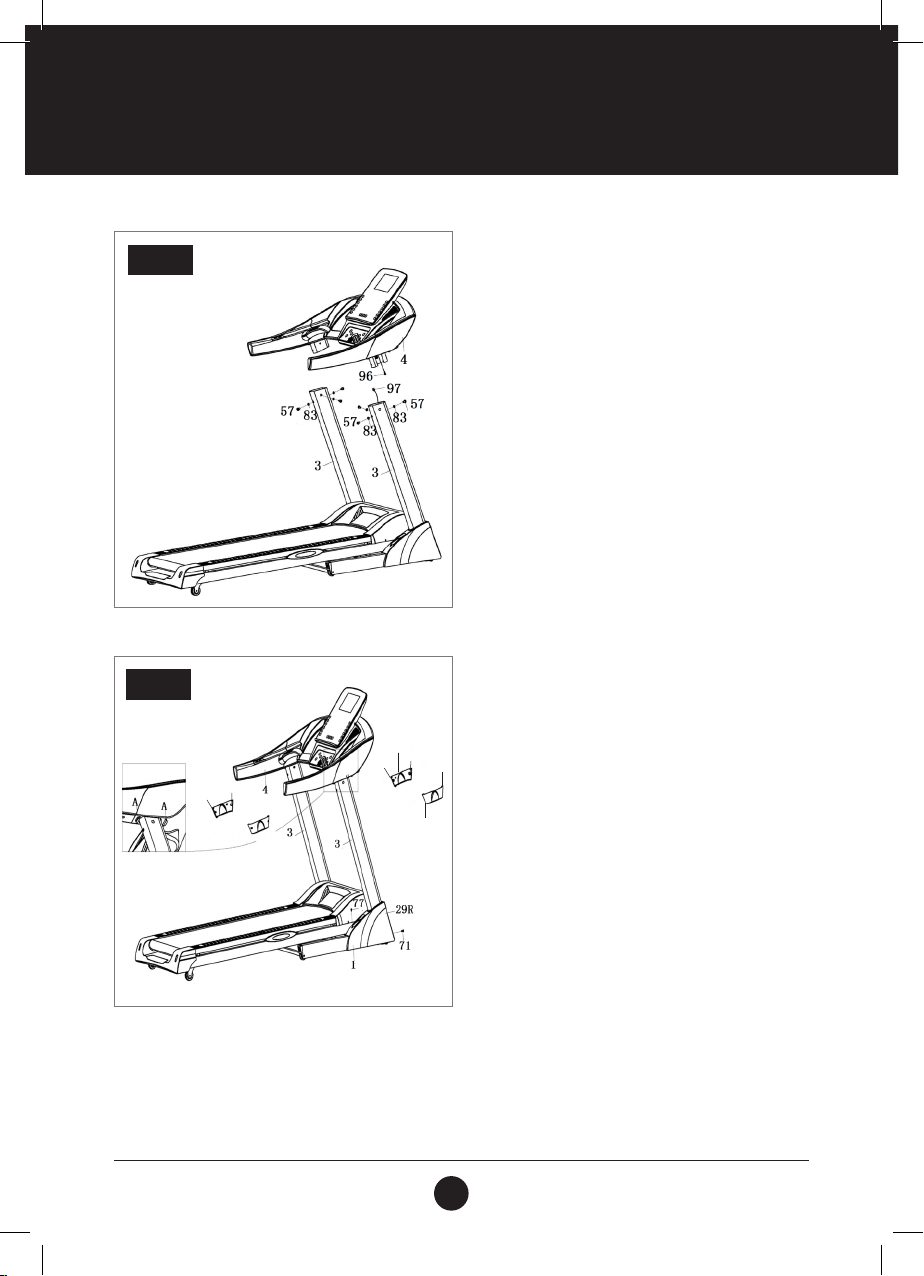

ASSEMBLY STEPS
1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling please check whether all the required parts have been supplied as per the exploded
drawing on the opposite page.
STEP 1
STEP 1:
Open the carton, remove all the parts and place the
Main Frame on a at surface.
Note: Please do not cut the packing straps
immediately.
STEP 2:
Cut the straps when the main frame has been securely
placed on a at and dry surface.
Note: do not move it any more.
Connect the Computer Down Wire (98) and the Lower
Extension Wire (97).
Lock the Left and Right Upright Tube (3) on the
Bottom Frame (1) with the Hex Socket Screws (57) and
the Lock Washer (83).
Note: Please do not tighten the Hex Socket Screw (57)
for the time being.
Place the Protective Cover (29 L/R) over the Left and
Right Upright Tube (3) respectively as shown in the
illustration.
STEP 2
1
29 L 29 R

12
ELITE 2000 - T
ASSEMBLY STEPS
STEP 3:
Connect the Upper Extension Wire (96) and the Lower
Extension Wire (97).
Afx the Computer Frame (4) on the Left and Right
Upright Tube (3) with the Hex Socket Screw (57) and
Lock Washer (83).
Tighten all the bolts securely.
STEP 4:
Secure the Protective Cover (29 L /R ) to the Bottom
Frame (1) with Cross Tapping Screw (77) and Cross
Washer Head Screw (71).
Insert (B) of the Outer Upright Tube Cover (26)
and Inner Upright Tube Cover (27) to (A) of the
Computer Frame (4) as illustrated in the image on
the left, and afx the Outer Upright Tube Cover
(26) and Inner Upright Tube Cover (27) tightly to
the Left and Right Upright Tube (3) with Cross
Tapping Screws (77).
STEP 3
STEP 4
PLEASE ENSURE THE ASSEMBLY HAS BEEN COMPLETED, PER THE ABOVE
INSTRUCTIONS AND THAT ALL BOLTS ARE SECURELY TIGHTENED. ONCE
THIS HAS BEEN CHECKED, YOU MAY PROCEED WITH THE INSTRUCTIONS
THAT FOLLOW. PLEASE ENSURE THAT YOU READ THE INSTRUCTIONS
CAREFULLY BEFORE OPERATING THE TREADMILL.
ATTENTION:
B
B
B
B
B
27
26

13
ELITE 2000 - T
FOLDING INSTRUCTIONS
FOLDING THE MACHINE
UNFOLDING THE MACHINE
FOLDING THE MACHINE:
Place one hand on (A), as illustrated below, and lift up
the machine in the direction of the arrow until you hear
a click sound from the cylinder (10).
Note: Please unplug the power cord to shut down
machine completely before folding or unfolding the
machine.
UNFOLDING THE MACHINE:
Place one hand on (A), tap (B) on the Cylinder (10)
with your foot and pull the running deck down to
the point in line with the Main Frame handles (C).
The running deck will now lower automatically.
Note: Ensure that all parts are secured and
correctly assembled before beginning to exercise
with the treadmill.
To prevent injury, please ensure that you,
children or pets are not in the way of the
descending running deck.
A

14
ELITE 2000 - T
FUNCTION BUTTON:
SPEED: Displays speed data;
TIME / HEART RATE: Displays time and heart rate data. Displays heartbeat rst while in
operation;
DISTANCE / CALORIE / INCLINE: Displays distance / calorie / incline data and displays these in order
of operation. Press “MODE” to switch between the selections. Incline
will be displayed rst for the section change and for stop; if the
incline is 0, the distance data will be shown;
STEP: Displays the step count.
FUNCTIONS AND OPERATIONS:
PROGRAM: When the treadmill is in standby mode, press PROGRAM to make a selection
between: P1 - P18 as well as U01 - U03 and FAT.
MODE: When the treadmill is in standby mode, press MODE to make a selection
between: default mode, time countdown, distance countdown and calorie
countdown mode.
START: When the treadmill is in standby mode, press START to start the treadmill.
STOP: When the motor is running, press STOP to stop the treadmill.
SPEED +: When the treadmill is in standby mode press SPEED + to increase the set value.
When the treadmill is running, press SPEED + to increase the speed.
SPEED -: When the treadmill is in standby mode press SPEED - to decrease the set
value. When the treadmill is running, press SPEED - to decrease the speed.
INCLINE +: When the treadmill is in standby mode press INCLINE + to increase the set
value. When the motor is running, press INCLINE + to increase the incline.
INCLINE -: When the treadmill is in standby mode press INCLINE - to decrease the set
value. When the motor is running, press INCLINE - to decrease the incline.
VOLUME: Adjusts the music volume.
UP/NEXT: Changes the track currently playing.
PROGRAM + MODE: When the safety key is removed, press PROGRAM+MODE for 3 seconds for
metric / inch conversion.
COMPUTER FUNCTIONS

15
ELITE 2000 - T
OPERATION INSTRUCTIONS
START-UP QUICKLY (MANUAL):
• One manual mode (including default mode), time countdown, calorie countdown and distance countdown
modes;
• 18 xed programs: P01 - P18;
• 3 customized programs: U01, U02 and U03.
Startup
• Place the safety key in the slot on the console.
• Press “START” and the screen will display 3—2—1 with a corresponding “Beep” and the treadmill will start.
MANUAL MODE:
How to enter manual mode:
• Switch on the power supply. The treadmill will switch on and automatically enter the default mode under
manual mode;
• When the treadmill is in standby mode, press MODE to select the default mode under the manual mode.
Three setting functions under manual mode are available: TIME, DISTANCE, CALORIE.
• When selecting the manual mode, the time is displayed as 0:00;
• In manual mode, press MODE to select the time countdown mode. The time screen will display the time
and ash. The preset time is 30:00. Adjust the countdown time by SPEED +/ SPEED - and INCLINE +/
INCLINE -. The time setting range: 5:00 - 99:00.
• In manual mode, press MODE to select the distance countdown mode. The preset distance will be displayed
as 1.00 km / mi. Adjust the distance by SPEED +/ SPEED - and INCLINE +/ INCLINE - in the range of 0.50 -
99.90 km / mi. Each increase / decrease point will be 0.1 km / mi.
• In manual mode, press MODE to select the calorie countdown mode. The preset calorie will be displayed as
50.0 kcal. Set the calorie by SPEED +/ SPEED - and INCLINE +/ INCLINE - in the range of 10.0 - 999.0 kcal.
Each increase/ decrease point will be 1.0 kcal.
Operation in manual mode:
• Press START and the treadmill will start operating after 3 seconds. The initial speed will be 1.0 km/h in the
metric system or 0.6 miles/h in the imperial system;
• Press SPEED +/ SPEED – to adjust the speed;
• Press INCLINE +/ INCLINE - to adjust the incline;
• Press the speed shortcuts to quickly get to the speed marked on the key;
• Press the incline shortcuts to quickly get up to the incline marked on the key;
• When the motor is running, press STOP to stop the treadmill;
• Remove the safety key to immediately stop the treadmill. The LCD computer will display “---” and the
buzzer will “Beep” 3 times;
• When the set time, calories or distance reduces to zero the buzzer will “Beep” 3 times and the speed screen
will display END. 5 seconds later, the machine will return to standby mode and the buzzer will “Beep” twice.

16
ELITE 2000 - T
• The machine is set to display a maximum of 99:59 minutes. Thereafter the machine will stop.
• In Forward-Timing Mode, hold the “MODE” button for 3 seconds. This will temporarily deactivate the
Automatic Shutdown function after every 100 minutes.
• “Lubrication” reminder: After every 300 km, the screen will light up the “Lubrication” reminder icon and
“Beep” twice. To clear this, stop the treadmill and hold the “STOP” button.
Fixed program mode:
• The default time is set to 30min. The setting range is between 5:00 - 99:00. Press SPEED +/ SPEED - or
INCLINE +/ INCLINE - to adjust the speed and incline;
• Press START and the treadmill will start running. The speed will gradually increase to the speed of the rst
stage of the auto program (see details in the table of program parameters);
• Press SPEED +/ SPEED - to adjust the speed;
• Press INCLINE +/ INCLINE - to adjust the incline;
• Press the speed shortcuts to get to the speed marked on the display faster;
• Press incline shortcut to get to the incline marked on the display faster;
• Each program is divided into 20 stages. The time for each stage will be divided by the 20 stages.
• The buzzer will sound three times when switching from one stage to another;
• When the set time reduces to zero, the speed will gradually reduce until the machine comes to a complete
stop, followed by 3 “Beeps”. The computer will display END. 5 seconds later, the machine will return to
the standby mode.
• Remove the safety key to stop the treadmill immediately. The LCD screen will display “---” and the buzzer
will “Beep” 3 times.
OPERATION INSTRUCTIONS

17
ELITE 2000 - T
Parameters in xed program mode (metric system)
OPERATION INSTRUCTIONS
TIME
PROGRAM
To set time ÷ 20 stages = running time of each stage.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
P1 SPEED 2 3 3 4 5 3 4 5 5 3 4 5 4 4 4 2 3 3 5 3
INCLINE 1 1 2 2 2 3 3 3 2 2 1 2 2 1 1 3 3 2 2 2
P2 SPEED 2 4 4 5 6 4 6 6 6 4 5 6 4 4 4 2 2 5 4 2
INCLINE 1 2 2 2 2 3 3 2 2 2 2 2 3 3 3 4 4 3 2 2
P3 SPEED 1 3 3 5 5 3 6 6 6 3 6 6 3 3 3 1 3 4 2 1
INCLINE 1 2 2 1 1 2 2 2 1 1 1 1 3 3 3 5 5 2 1 1
P4 SPEED 3 5 5 6 7 7 5 7 7 8 8 5 9 5 5 6 6 4 4 3
INCLINE 2 3 3 2 2 3 3 3 2 2 2 2 4 4 4 6 6 3 2 2
P5 SPEED 2 4 4 5 6 7 7 5 6 7 8 8 5 4 3 3 6 5 4 2
INCLINE 3 3 3 4 4 5 5 5 4 4 4 4 5 5 3 3 3 2 2 2
P6 SPEED 2 4 4 4 5 6 8 8 6 7 8 8 6 4 4 2 5 4 3 2
INCLINE 3 5 5 5 4 4 4 3 3 3 3 4 4 4 3 3 3 4 3 2
P7 SPEED 2 3 3 3 4 5 3 4 5 3 4 5 3 3 3 6 6 5 3 3
INCLINE 4 4 4 4 3 3 6 6 6 7 7 8 8 9 9 6 6 5 4 4
P8 SPEED 2 3 3 6 7 7 4 6 7 4 6 7 4 4 4 2 3 4 4 2
INCLINE 4 5 5 5 6 6 6 7 8 9 9 9 10 10 10 12 12 8 6 3
P9 SPEED 2 4 4 7 7 4 7 8 4 8 9 9 4 4 4 5 6 3 3 2
INCLINE 5 5 5 6 6 6 4 4 6 6 5 5 8 8 9 9 9 7 4 2
P10 SPEED 2 4 5 6 7 5 4 6 8 8 6 6 5 4 4 2 4 4 3 3
INCLINE 5 6 6 6 7 5 8 8 4 4 4 5 5 8 8 10 10 8 6 3
P11 SPEED 2 5 8 10 7 7 10 10 7 7 10 10 5 5 9 9 5 5 4 3
INCLINE 4 5 3 2 6 6 2 2 2 2 2 4 5 6 3 2 5 5 2 0
P12 SPEED 3 4 9 9 5 9 5 8 5 9 7 5 5 7 9 9 5 7 6 3
INCLINE 1 2 3 2 3 5 5 0 0 2 3 5 7 3 3 5 6 5 3 3
P13 SPEED 3 3 4 4 5 5 6 6 7 7 8 8 9 6 5 5 4 4 3 3
INCLINE 1 1 3 3 5 5 7 7 9 9 11 11 9 3 5 5 3 3 1 1
P14 SPEED 3 4 5 6 7 6 5 4 7 9 9 7 6 9 8 7 6 5 4 3
INCLINE 0 3 3 5 5 7 7 9 9 7 7 5 5 7 7 5 5 3 3 0
P15 SPEED 9 9 9 8 8 8 7 7 7 6 6 6 5 7 8 8 8 9 9 9
INCLINE 0 1 2 1 2 3 3 2 1 2 2 2 0 2 3 2 3 3 2 0
P16 SPEED 8 8 9 9 10 10 12 12 12 12 12 12 11 12 10 10 9 9 8 8
INCLINE 0 0 0 0 1 1 0 0 0 1 1 0 0 0 1 1 0 0 0 0
P17 SPEED 1 2 3 4 5 6 7 8 9 10 11 12 11 2 3 4 5 6 5 4
INCLINE 0 0 0 0 3 3 0 0 0 3 3 0 0 0 3 3 0 0 0 0
P18 SPEED 6 6 6 4 4 4 8 8 8 10 10 10 8 6 8 8 8 6 6 6
INCLINE 0 1 1 2 2 2 0 0 0 1 1 1 0 0 1 1 1 0 0 0

18
ELITE 2000 - T
OPERATION INSTRUCTIONS
MINIMUM
VALUE
DEFAULT
SETTING
SETTING
RANGE
DISPLAY
RANGE
Time (m:s) 0:00 30:00 5:00 - 99:00 0:00 - 99:59
Speed in metric system (km/h)
Speed in imperial system (mi/h) 0.0 N/A N/A 1.0 - 20.0 KMH 0.6 - 12.5 MPH
Incline (%) 00 N/A N/A 0 - 15
Distance (km/mi) 0.0 1.00 0.50 - 99.90 0.00 - 99.99
Calorie (kcal) 0 50.0 10.0 - 999.0 0.0 - 999.9
Customized program:
In addition to the 18 preset programs, the treadmill also has 3 customizable programs to support the user’s
specic requirements. These are U01, U02 and U03.
Setting of customized programs:
In standby mode, press PROGRAM to get to the required customized program (U01 - U03). Press MODE to
select the program. Set the parameters in the rst time section and set the speed by using the SPEED +/
SPEED - keys or speed shortcuts. Set the incline by using the INCLINE +/ INCLINE – keys or incline shortcuts.
Press MODE to complete the rst stage time and set up parameters for the second stage settings until the
setup is complete for all 20 stages. Settings will be kept until such time as the user changes them. Settings
will also not be lost when switching off the power.
To begin the customized exercise program:
• In standby mode, press PROGRAM until the required customized program (U01 - U03) is displayed. Select
the exercise time and press START and the machine will begin the program.
Instructions to set a customized program:
• Each program divides the exercise time into 20 stages. Ensure that speed, incline and time is selected for
all 20 stages before pressing start.
Parameter display range:
Safety Key Function
The safety key can be removed at any time. The LCD screen will display “---” and the buzzer will “Beep” 3
times. The treadmill will come to an immediate stop. When the safety key is removed, all settings will reset
to default.
Energy-Saving Mode:
The system has an energy-saving function. In standby mode, if the treadmill has not received any instruction
from the user after 10 minutes, the system will enter the energy-saving mode automatically. Press any key
to restart the system.

19
ELITE 2000 - T
OPERATION INSTRUCTIONS
MP3 function:
The treadmill can play MP3 music.
USB function:
When the treadmill is switched on and connected via USB to a device, it can play MP3 music. The volume can
be controlled with the buttons on the computer. Adjust the volume to avoid damaging the speakers.
Shutdown:
Be sure to shut down the treadmill by switching off the power supply to avoid damaging the treadmill.
Caution:
Ensure that the power is on and the safety key is inserted before using the treadmill.
• If the treadmill feels like it is not running correctly, remove the safety key and the treadmill will slow
down and come to a complete stop. Insert the safety key to return to the standby mode.
• Should you have any queries, please contact the Trojan Call Centre for assistance.

20
ELITE 2000 - T
TROUBLE SHOOTING
ERROR CODE MAIN REASON SOLUTION TO ERROR
E01 This error indicates a possible
communication failure between
the motor and the computer
resulting in the motor not
receiving a signal from the
computer.
1. Check whether the connector between the
treadmill and the controller is damaged. If it is,
then have it replaced.
2. Check whether the plug is in correctly.
E02 This error indicates possible
damage to the surge protector.
1. Check that the correct voltage is being used.
If not, then consult an electrician to ensure
correct voltage.
2. Check that the power cable has been inserted
correctly.
3. Check if there is a strange smell coming from
the motor. If there is, then replace the motor.
E03 This error indicates a possible
sensor failure.
1. Check if the sensor is correctly installed. If not
then have it installed correctly.
2. Check if the sensor is damaged. If damaged,
then have it replaced.
E04 This error indicates a possible
incline motor self-inspection
failure.
1. Check if the incline motor wires have been
connected correctly. If not, re-connect them.
2. Check if the wire on the incline motor is
damaged. Change wire if required.
After checking all the above, press the study key
on the incline motor to reset
E05 This error indicates a possible
current overload.
1. If current overload has been detected or the
motor is stuck this will cause an excessive
current and the machine will start self-
protecting its system. Adjust the machine and
restart.
2. Check if the motor has a noise coming from
it or if the motor / bottom control board has
burnt out. If it has burnt out, then change to a
new motor and/or bottom control board. Use
correct voltage moving forward.
E06 This error indicates that the
motor wires are possibly not
connected correctly.
1. If the motor wires are not connected correctly,
then reattach them correctly.
