Trojan TITAN 330 User manual

CAUTION
READ ALL PRECAUTIONS AND
INSTRUCTIONS INTHIS MANUAL
BEFORE USING THIS EQUIPMENT.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.
Visit facebook.com/trojanhealth
www.trojanhealth.co.za
TITAN 330
TREADMILL
USER MANUAL
TM

2
10334
index
  
  
  
  
  
   
   
   
   
    
    
   
   
   
   
   
   

3
10334


It is the sole responsibility of the purchaser of Trojan products to read the owner’s manual, warning labels and
instruct all individuals, on proper usage of the equipment. Understanding each and every warning to the fullest
is important. If any of these instructions or warnings are unclear please contact Trojan Customer Services on
0861 TROJAN (0861 876526), within the Republic of South Africa.
The equipment is only intended for home use and is not intended for commercial, institutional and/or studio
facilities use.
Contact Trojan with any questions regarding this classication. It is recommended that all users of Trojan be
informed of the following information prior to use.
HEALTH WARNING
• Before starting any exercise or conditioning program you should consult with your personal physician to
see if you require a complete physical exam.This is especially important if you are inactive, pregnant or
suffer from any illness.
• If at any time during exercise you feel faint, dizzy or experience pain, stop exercising immediately and
consult your physician.
• To avoid muscular pain and strain, begin each workout by stretching and warming up and end each
session by cooling down and stretching.
ACCESS CONTROL
• Trojan recommends that all tness equipment be used in a supervised area. It is recommended that
the equipment be located in an access controlled area. Control is the responsibility of the owner. Keep
children away from all equipment.
• Parents or other supervising adults must provide close supervision of children if the equipment is used in
the presence of children.
INSTALLATION
Trojan recommends that all equipment:
• Be secured to or set up on a solid, level surface to stabilise and eliminate rocking or tipping over
during training.
• Be set up inside your home away from moisture and dust (the equipment is not designed for
outdoor use).
• Be set up with sufcient ventilation to ensure proper operation.
• Be set up with sufcient space around the equipment so that all exercises can be completed safely.
It is recommended that there should be at least 1 m of space around the equipment where access is
required to exercise.

4
10334


PROPER USAGE
• Do not use the equipment in any way other than as designed or intended by the manufacturer. It is
imperative that Trojan equipment is used properly to avoid injury.
• Injuries may result from exercising improperly or excessively.
• Your Trojan equipment should only be used by one person at a time.
• Be careful to maintain your balance while using, mounting, dismounting or assembling your Trojan
equipment to avoid injury.
• Do not attempt to adjust the seat or handlebars while you are on your Trojan equipment.
• Servicing other than the procedures in this manual should be performed by an authorised service
representative only.
INSPECTION
• Do not use or permit use of any equipment that is damaged or has worn or broken parts. For all Trojan
Equipment use only replacement parts supplied by Trojan.
• Always make sure that all nuts and bolts are tightened prior to each use.
• Maintain labels and nameplates – do not remove labels for any reason.They contain important
information.
• Equipment maintenance – preventative maintenance is the key to smooth operating equipment. Please
ensure that you follow our maintenance tips to ensure the continued correct function of your Trojan
equipment.
• Before any use, examine all accessories approved for use with the Trojan equipment for damage or wear.
• Should your Trojan equipment appear damaged or worn, do not attempt to use or repair the equipment
yourself.
• Please contact our service department on 0861 TROJAN (0861 876526) to arrange a repair.
OPERATING WARNINGS
• It is the purchaser’s responsibility to instruct all users as to the proper operating procedures of all Trojan
equipment.
• Keep children away from all moving parts. Parents must provide close supervision of children if the
equipment is used in the presence of children.
• Do not wear loose tting clothing or jewellery when using the equipment. It is also recommended that
users tie up long hair to avoid contact with moving parts.
• Ensure that anyone not using the equipment stays clear of the user, accessories and moving parts while
the machine is in operation.
USER WEIGHT LIMITATIONS
• This Trojan Titan 330 Treadmill may not be used by persons weighing more than 110 kg.
SAVE THIS INSTRUCTION MANUAL FOR FUTURE USE AND REFERENCE
If any of these instructions or warnings are unclear please contact Trojan Customer Services on
0861 TROJAN (0861 876526) within the Republic of South Africa or visit www.trojanhealth.co.za.

5
10334

WARNING
• Never use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power cord
away from any moving parts of the treadmill including the elevation mechanism and transport wheels.
• Never remove any cover without rst disconnecting AC power.
• Never expose this treadmill to rain or moisture.This treadmill is not designed for use outdoors, near a
pool, or in any other high humidity environment.
WARNING
Due to the high volume of power failures (black outs) taking place in South Africa, we
recommend you unplug your unit when not in use, as your warranty does NOT cover
damage caused by power surges due to power failures.
This product must be grounded. If a malfunction or breakdown occurs, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock.This product is equipped with a
cord having an equipment-grounding conductor and a grounding plug.The plug must be plugged into
an appropriate outlet that is properly installed and grounded in accordance with all local codes and
ordinances.
DANGER – improper connection of the equipment-grounding conductor can result in a risk of electric
shock. Check with a qualied electrician or serviceman if you are in doubt as to whether the product is
properly grounded. Do not modify the plug provided with the product. If it will not t the outlet have a
proper outlet installed by a qualied electrician.

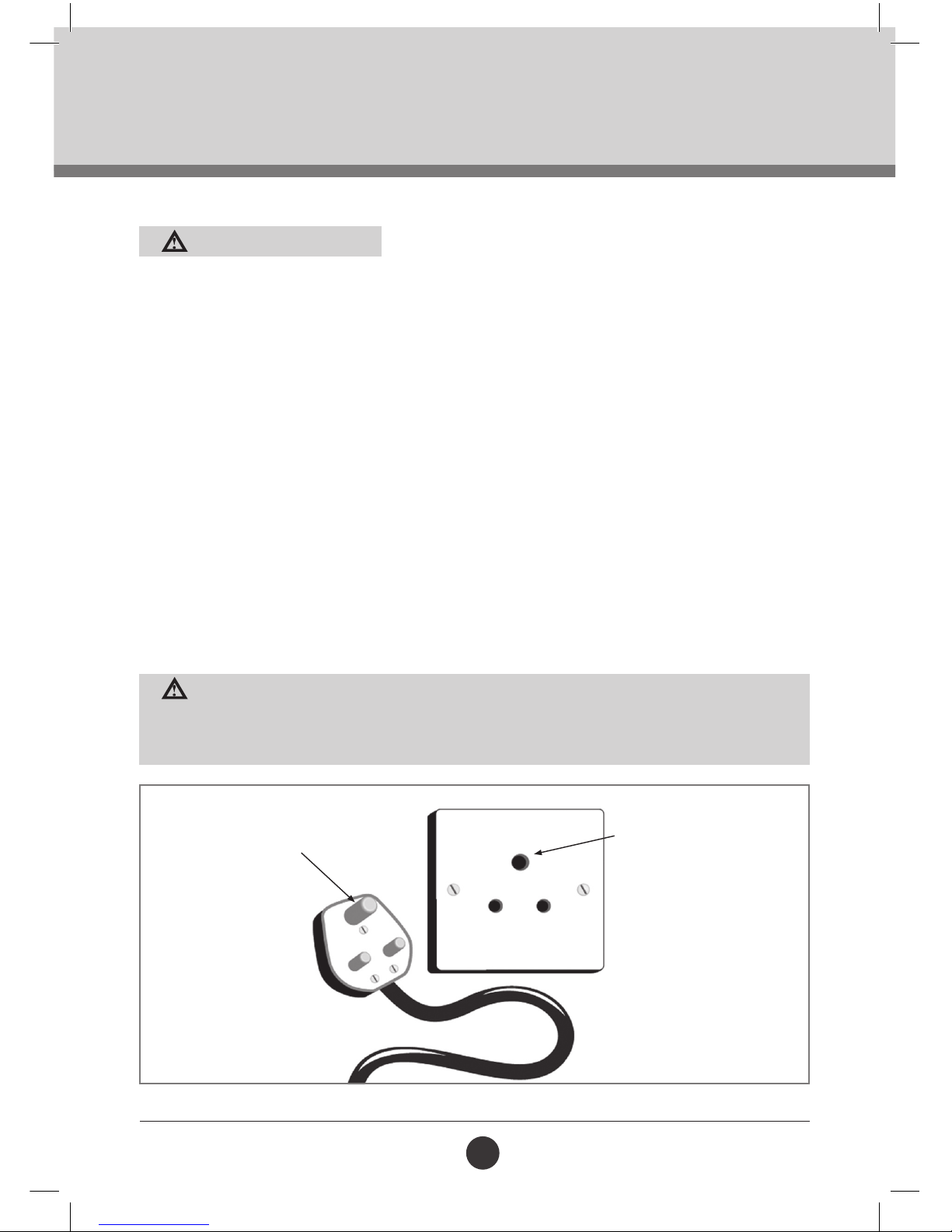

This product is for use on a nominal 220-240 volt circuit and has a grounding plug that looks like
the plug illustrated in the gure. Make sure that the product is connected to an outlet with the same
conguration as the plug. No adaptor should be used with this product.
GROUNDED OUTLET
GROUNDING PIN

6
10334

Thank you for choosing the Trojan Titan 330 Treadmill.We take great pride in producing this
product and hope it will provide many hours of quality exercise to make you feel better, look
better and enjoy life to its fullest.Yes, it’s a proven fact that a regular exercise program can improve
your physical and mental health.Too often, our busy lifestyles limit our time and opportunity to
exercise.The Trojan Titan 330 Treadmill provides a convenient and simple method to begin your
assault on getting your body in shape and achieving a healthier lifestyle. Before reading further,

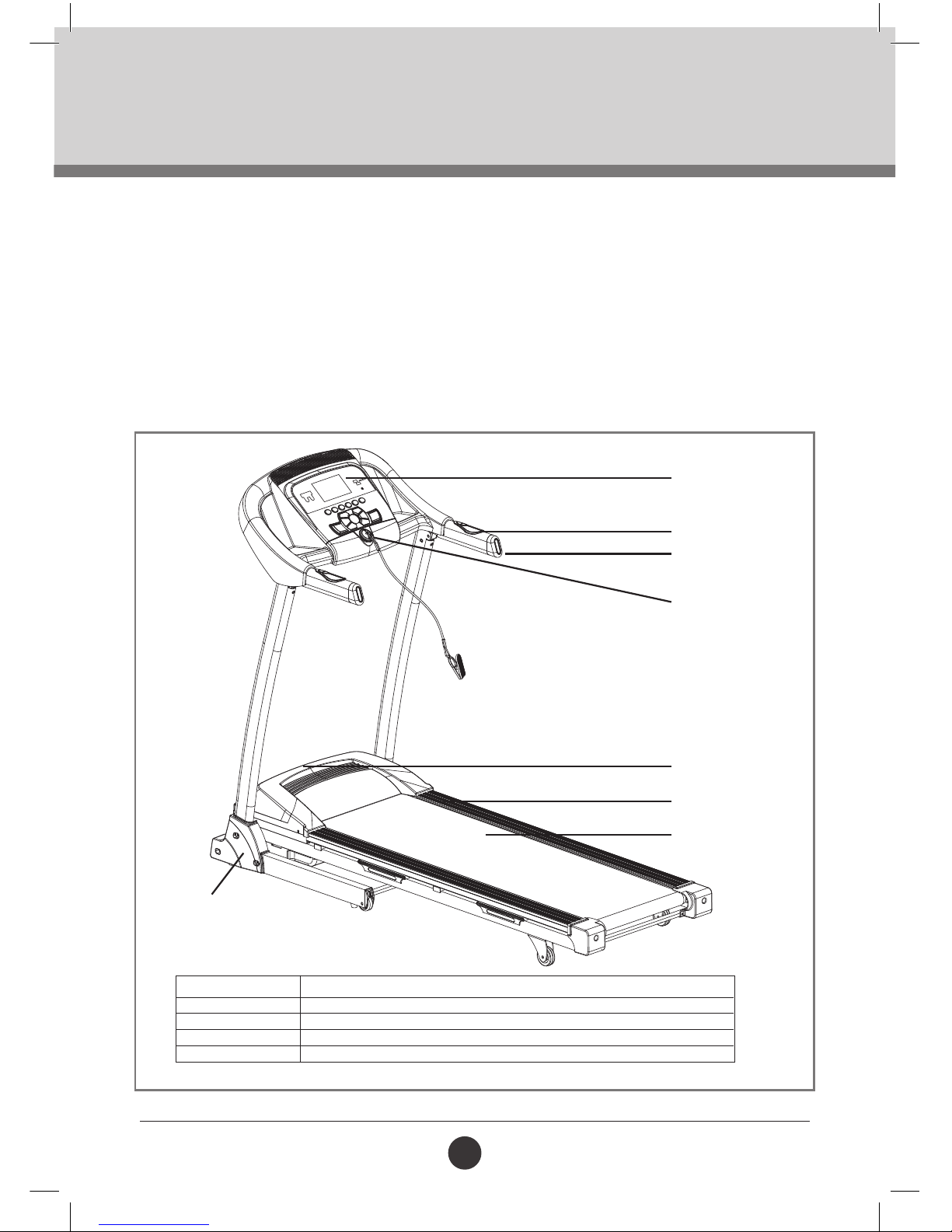

please review the drawing below and familiarise yourself with the parts that are labelled.
Read this manual carefully before using the Trojan Titan 330 Treadmill.
Side Cover
Console Display
Safety Key
Heart Rate Sensor
Hand Rail
Running Deck
Side Rail
Power Switch
Functions: Time / Speed / Pulse / Calories / Speed / Incline / Body Fat / Step Calculation
Programs: 9 Pre-set
Running deck (mm): 1240 (l) x 400 (w)
Set-up size (mm): 1615 (l) x 680 (w) x 12750 (h)
User weight: 110 kg (maximum)

7
10334

INSTRUCTIONS FOR ASSEMBLY
• Before you start to assemble, please check the hardware packaging to make sure all parts are included.
• Basic tools, such as spanners will be required for assembly.
ASSEMBLY TOOLS
• Allen wrench 5mm 1pcs
• Wrench with screw driver S=13, 14, 15 1pcs
no.  
  
  
  
  
  
  
  

8
10334

INSTRUCTIONS FOR ASSEMBLY
• Unpack the carton and use the parts check list to check that all parts are accounted for.
• Do not dispose of the packaging material until assembly is completed.
• Tools are provided for use in assembly.
• Majority of the parts here have been preassembled at the factory.
1
STEP 1:

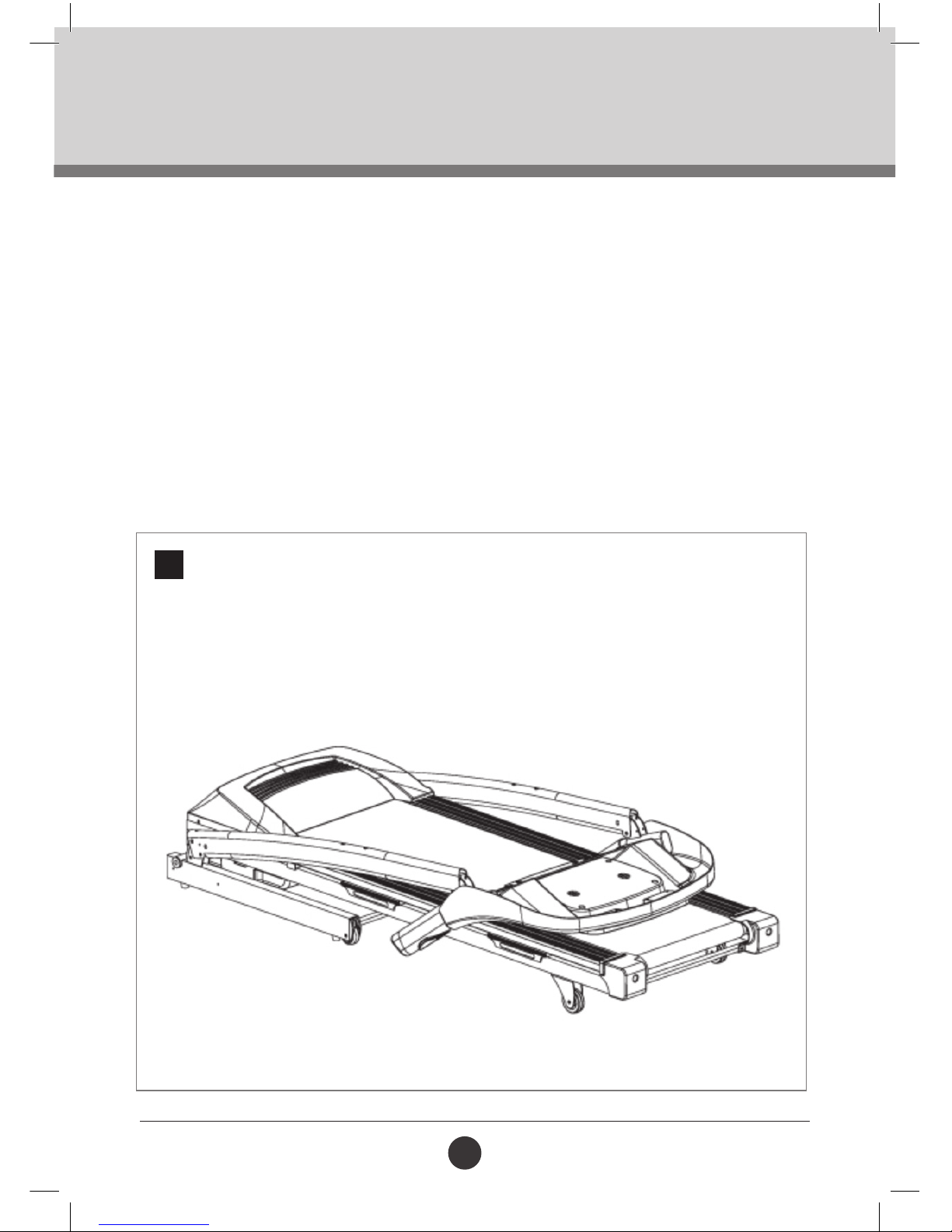

• Open the box and remove the spare parts. Place the Main Frame (1) on level ground.

9
10334

2
STEP 2:

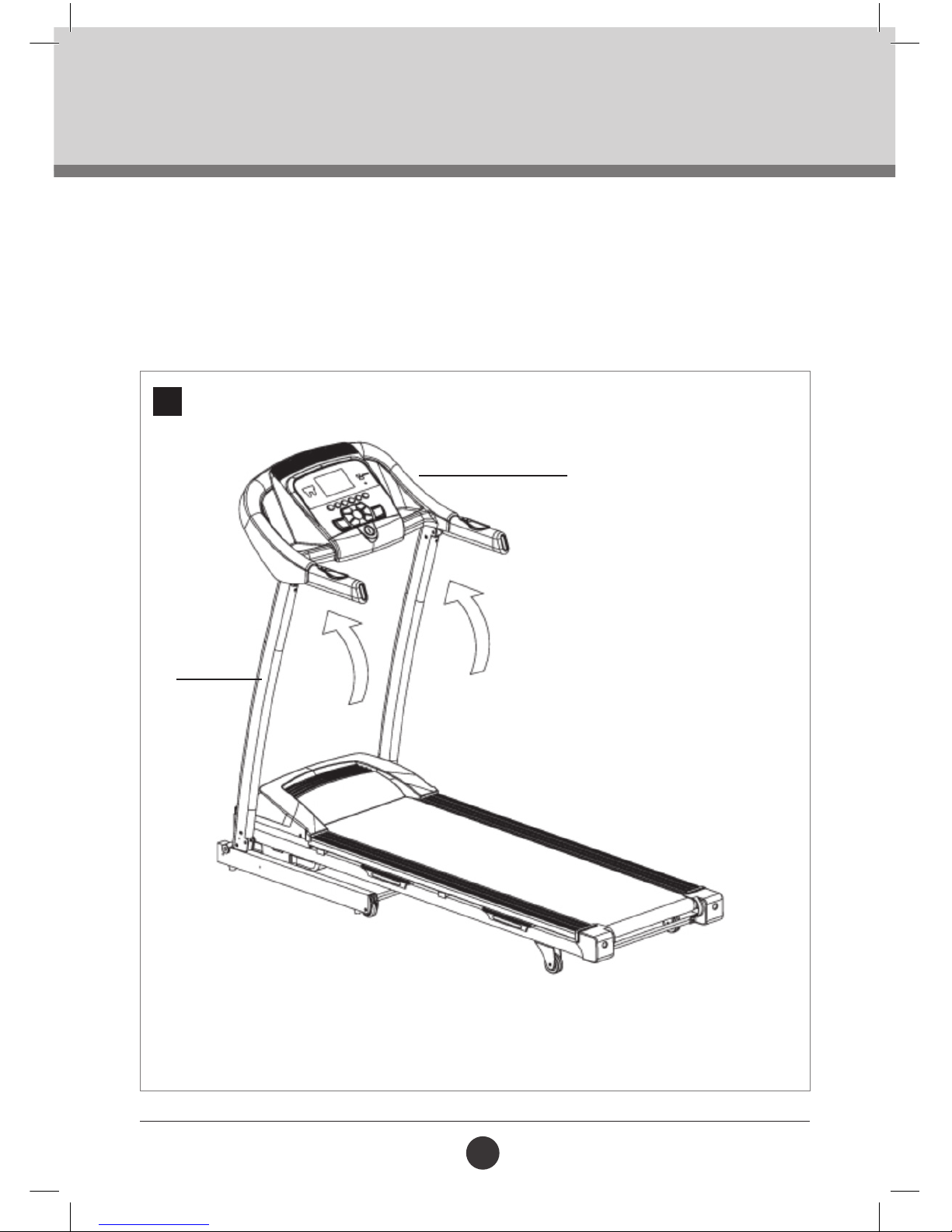

• Lift up the Console Display (A) and Upright Tube (B) as indicated in the diagram.
Note: When lifting the Console Display (A) and Upright Tube (B), make sure not to pinch the wires inside
the upright tubes.
A
B

10
10334

STEP 3:
• Tighten Upright Tube (B) to the Main Frame (A) with six Bolts (39) and Lock Washer (55) using the
provided Allen Wrench.
Note: Support the Upright Tube to avoid it falling down.
3

11
10334

4
STEP 4:

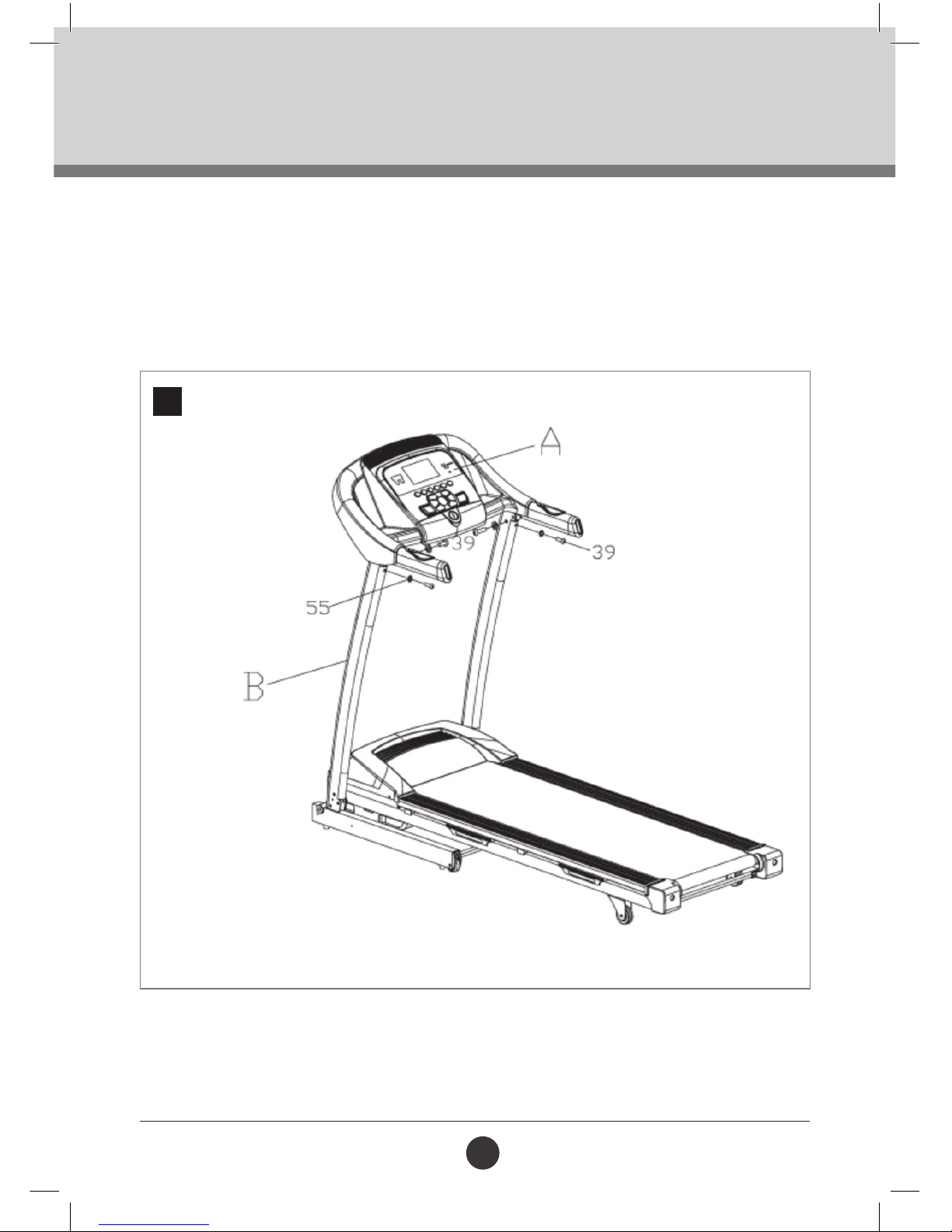

• Tighten the Console Tube (A) to the main frame with four Bolts (39) and four Lock Washers (55) using
the provided Allen Wrench.
Note: Ensure you support the Upright Tube from falling down.

12
10334

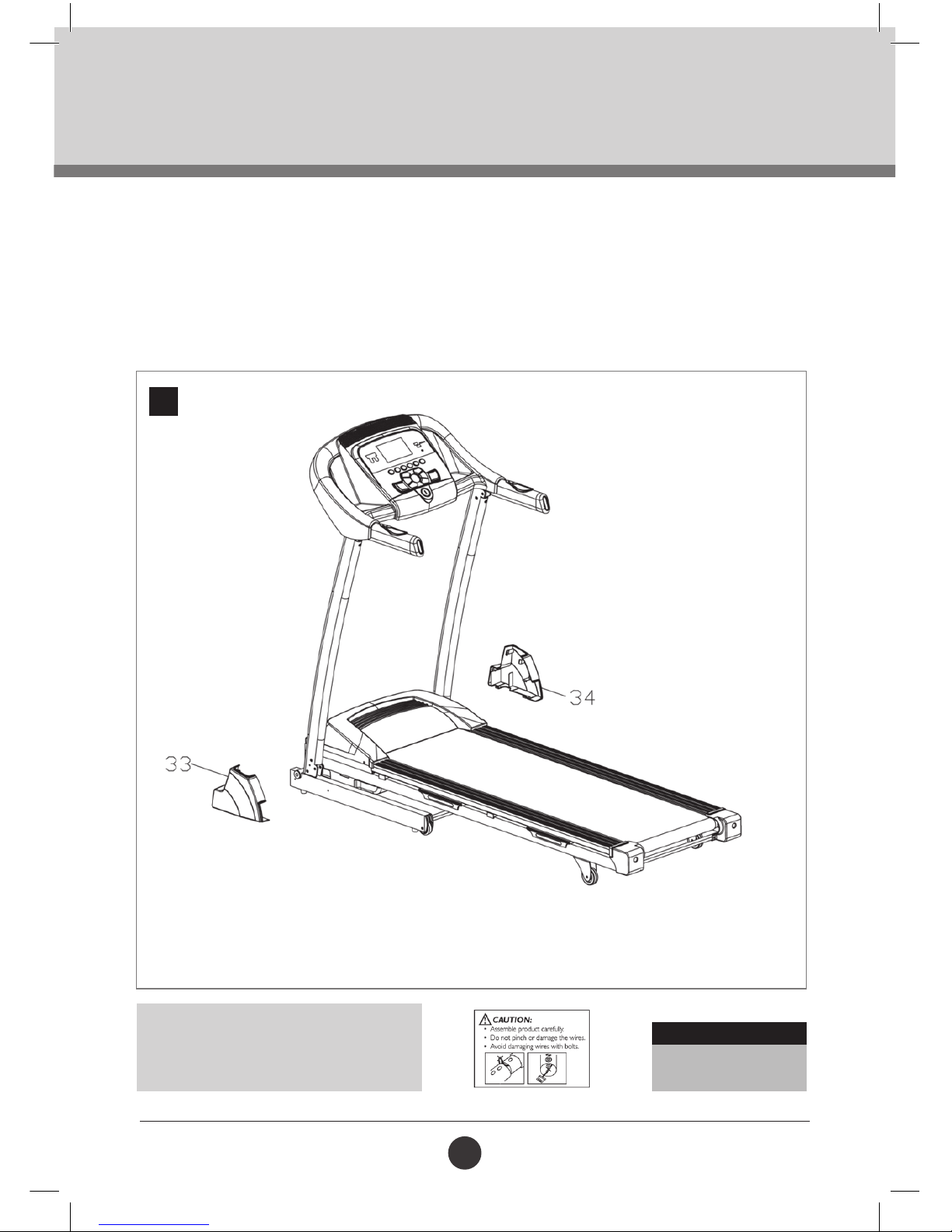

STEP 5:
• Clip the Left and Right Upright Tube Cover (33,34) to the base frame.
5
CAUTION:
Ensure that cables are not damaged
during assembly or when
tightening screws.
Recheck
All bolts and nuts are
tightened securely
before using the machine


13
10334

DISPLAY WINDOW:
SPEED/PULSE DISPLAY WINDOW
During a workout the Speed will be displayed.The speed ranges between 0.8 – 16 km/h.
This displays the heart rate during the workout. Both hands need to be rmly placed on the heart rate pulse
handles.The range displayed is between 50-200 beats/min.
Note: This data is just for reference, and cannot be taken as the medical data.
TIME WINDOW
During a workout this will display the duration.This time ranges from 0:00 to 99:59.
Once it reaches 99:59, the running deck will stop slowly and display “END” then return to the standby state
after 5 seconds.
During a count down mode, the time will count down from the set time to 0:00. Once it has reached 0:00, the
running deck will stop slowly and display “END” then return to the standby state after 5 seconds.
DISTANCE WINDOW
During a workout this will display the distance travelled. It will count from 0,00 to 99.9 km. Once it has
reached 99,9 km it will start counting from “0” again.
Should a set distance be set, the treadmill will count-down from the set distance until it reaches 0,00 km, the
running deck will stop slowly and display “END” then return to the standby state after 5 seconds.
CALORIES/INCLINE WINDOW
This displays the calories burnt during the workout. It will count up from 0 to 999 cal. Once it has reached 999
cal it will start counting from “0” again.
During count down mode, the calories will count-down from the set calories to 0 cal. Once it has reached
0:00, the running deck will stop slowly and display “END” then return to the standby state after 5 seconds.
During a workout this will display the treadmill incline.The incline ranges from 0 to15 levels.

14
10334

STEPS WINDOW
This window displays the total steps that the user has taken and displays from 0 to 99,999.
MATRIX WINDOW
This matrix window will show a virtual example of a 400 m running track. Once you nish running one lap, it
will beep and highlight the laps that have been done.

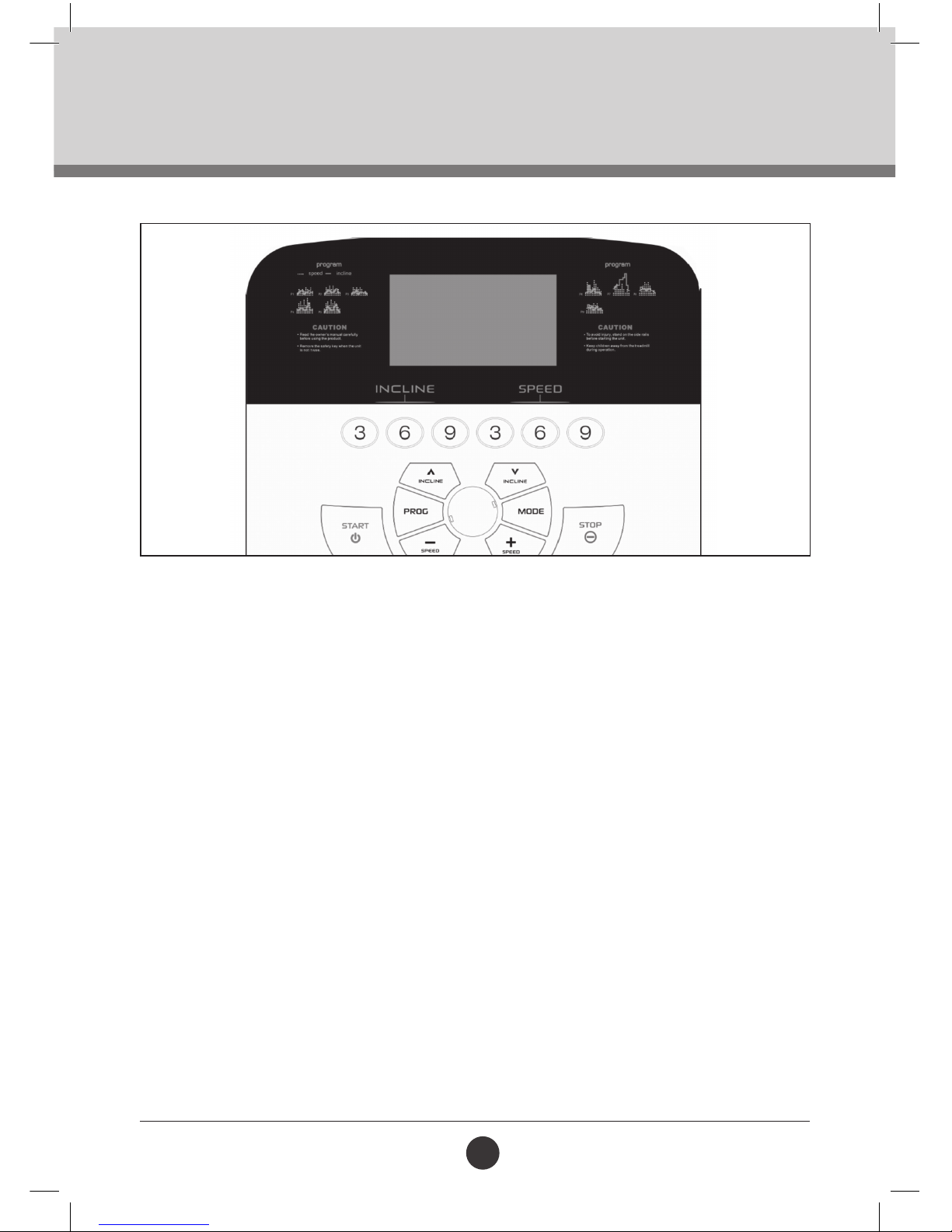

BUTTON FUNCTION:
PROGRAM
Before starting a workout, pressing “PROGRAM” will scroll through the programs from 0,0-P1-P2-P3-P4-P5-
P6-P7-P8-P9.There are 9 Pre-set Programs, 3 User Programs and 1 Body Fat Test.
MODE
Used to select between the Manual,Time Count-Down, Distance Count-Down, or Calorie Count-Down
modes.You are able to adjust the default setting by using the “SPEED+/-” buttons. Press the “START” button to
begin the workout.
START
Press the “START” button to start the machine. Ensure the safety key is connected.
STOP
While the treadmill is in the Manual or Program mode, pressing the “STOP” button will stop the current
workout session and cancel and pre-set programs.
SPEED UP
Press “SPEED UP” to increase the speed by 0.1 km/h while the running deck is moving.
Holding down “SPEED UP” will increase the speed by 0.5 km/h. Release the button once the desired value has
been reached.
SPEED DOWN
Press “SPEED DOWN” to decrease the speed by 0.1 km/h while the running deck is moving.
Holding down “SPEED DOWN” will decrease the speed by 0.5 km/h. Release the button once the desired
value has been reached.
INCLINE +
Press this button to adjust the incline up while the machine is on.
INCLINE –
Press this button to adjust the incline down while the machine is on.
INSTANT INCLINE
Press the 3, 6 or 9 “INSTANT INCLINE” buttons for to set an instant incline setting.
INSTANT SPEED
Press the 3, 6 or 9 “INSTANT SPEED” buttons to set an instant incline setting.

15
10334

START-UP QUICKLY (MANUAL MODE)
Insert the safety key and turn on the treadmill.
Press the “START” button and the system will begin a 3 second count down and begin the running deck at
a speed of 0.8 km/h.
After start-up, you can adjust the speed by using the “SPEED +/-” or “INSTANT SPEED +/-”.
THE OPERATION OF EXERCISE PROCESS
Pressing “SPEED -” will reduce the running speed.
Pressing “SPEED +” will increase the running speed.
Pressing “INCLINE –” will reduce the incline section.
Pressing “INCLINE +” will increase the incline section.
Pressing “INSTANT SPEED” to instantly adjust the running speed.
Pressing “INSTANT INLCINE” to instantly adjust the incline of the treadmill.
Pressing “STOP” will stop the running deck.
Holding the handle pulse sensors with two hands, will provide a pulse reading within 5 seconds.
MANUAL MODE:
MANUAL MODE: If you press the “START” button, the treadmill will start automatically at a speed of 0.8
km/h.You are able to use the “SPEED +/-” or “INSTANT SPEED +/-” to adjust the speed setting.
TIME MODE: To set up the Time Workout, press the “MODE” button until you see H1 in the display
window.The default time displayed will be 10:00. Press “SPEED +/-” to adjust the time to your desired
setting.This setting ranges from 5:00-99:00.
DISTANCE MODE: To set up the Distance Workout, press the “MODE” button until you see H2 in the
display window.The default distance displayed will be 10:00. Press “SPEED +/-” to adjust the distance to
your desired setting.This setting ranges from 0,5-99,9 km.
CALORIE MODE: To set up the Calorie Workout, press the “MODE” button until you see H3 in the
display window.The default calorie displayed will be 50. Press “SPEED +/-” to adjust the calorie to your
desired setting.This setting ranges from 10-999.
Press the “START” button to begin the desired program.The program will begin after 3 seconds. Press
“SPEED +/-” to adjust your speed. Press the “STOP” button to stop the workout.

16
10334

PRE-SET PROGRAM
Press the “PROGRAM” button to choose between the P1-P15 programs.The default Time setting is 10:00.
Press “SPEED +/-” to adjust your desired workout time.
Press the “START” button to begin the pre-set program.The program is divided into 10 sections. Each
exercise split makes up 1/10th of the total exercise time.When the system enters into the next exercise
split, the console will beep and the speed will change. Press “SPEED +/-” to adjust your speed.
Note: The speed will return back to program speed at each split. Once you have completed the workout
program, the console will beep 3 times and will slow down and stop completely.
TIME INTERVAL = SETTING TIME/10
12345678910
P1 SPEED 2434354253
INCLINE 1233122322
P2 SPEED 2546464242
INCLINE 1233223422
P3 SPEED 2545454232
INCLINE 1223122221
P4 SPEED 3675859643
INCLINE 2233224622
P5 SPEED 3675867643
INCLINE 1243224521
P6 SPEED 2864597543
INCLINE 2262342221
P7 SPEED 2674474242
INCLINE 4 5 6 6 9 9 10 12 6 3
P8 SPEED 2468786232
INCLINE 3544344332
P9 SPEED 2455656332
INCLINE 3534234232

17
10334

USER DEFINED PROGRAMS
There are 3 user programs that can be used as well: U1, U2, U3
To set a User Dened Program, press “PROGRAM” repeatedly until U1, U2, U3 is displayed.
Each of these programs are divided into 10 splits with each of the splits worked out to 1/10th of the total
workout time.
The default time for these programs are 10:00. Press “SPEED +/-” to set the desired running time and
then press “MODE” to set the parameters of the workout. Press “SPEED +/-” or “INSTANT SPEED” set
the speed in the split of the workout. Press “INCLINCE +/-” or “INSTANT INCLINE” to set the incline for
this split. Press “MODE” to set this spilt and move on to the next split.You will need to do this for all of the
different splits to complete setting the User Dened Program.This setting will be saved even if the power is
turned off.
Once you have selected the User Dened Program, pressing “START” will begin this workout.
BODY FAT MODE
To begin the Body Fat Mode, press “PROGRAM” to scroll through the Pre-Set Programs until you nd the
Body Fat Test.
Press “MODE” to enter your settings for each of the necessary requirements. F-1, F-2, F-3, F-4, F-5 (F-1/SEX,
F-2/AGE, F-3/HEIGHT, F-4/WEIGHT, F-5/BEGIN THE TEST).
Press “SPEED +/-” to adjust the your F-1 – F-4 (refer to the below chart).
Once you have completed F-4, press “MODE” to set F-5 and begin the test. Grasp both the hand pulse
sensors, and your reading will be displayed in 3 seconds.Your BMI (Body Mass Index) will be displayed.This
reading will show a reading that is relative to your height and weight.
The ideal BMI reading should be 20-25.
19 is considered underweight
26-29 is considered overweight.
30 plus is considered as obese.
Note: This data is just for reference and should not be used as medical data.
DEFAULT START DEFAULT TARGET SET RANGE DISPLAY RANGE
TIME (MIN:SECOND) 0:00 10:00 5:00 - 99:00 0:00 - 99:59
SPEED (Km/h) 0.8 1 0.8 - 16 0.8 - 16
INCLINE 0 0 0 - 15 0 - 15
DISTANCE (KM) 0.00 1.00 0.50 - 99.9 0.00 - 99.9
PULSE (hypo/min) P N/A N/A 50 - 200
CALORIE (THERM) 0 50 10 - 999 0 - 999
F-1 Sex 01 male 02 female
F-2 Age 10 ------ 99
F-3 Height 100 ---- 200
F-4 Weight 20 ----- 150
F-5
FAT ≤19 Underweight
FAT = (20---25) Normalweight
FAT = (26---29) Overweight
FAT ≥30 Obesity

18
10334

Proper maintenance is very important to ensure your treadmill is always in top working condition.
Improper maintenance could cause damage or shorten the life of your treadmill and exceed the
Limited Warranty coverage.
Inspect and tighten all parts of the treadmill regular.ly Replace any worn parts immediately.
CLEANING
The Trojan Titan 330 Treadmill can be cleaned with a soft cloth and mild detergent. Do not use
abrasives or solvents on plastic parts. Please wipe your perspiration off the Trojan Titan 330
Treadmill after each use. Be careful not to get excessive moisture on the computer display panel
as this might cause an electrical hazard or electronics to fail.
Please keep the Trojan Titan 330 Treadmill, especially the computer console, out of direct sunlight
to prevent screen damage. Please inspect all assembly bolts and pedals on the machine for proper
tightness before use. Routine cleaning of your treadmill will extend the product’s life.
STORAGE
Store the Trojan Titan 330 Treadmill in a clean and dry environment away from children.
BELT ADJUSTMENT
Belt adjustment and tension performs two functions: Adjustment for tension and centering.The
running Deck has been adjusted properly at the factory. However transportation, uneven ooring
or other unpredicted reasons could cause the belt to shift off centre resulting in the belt rubbing
with the plastic side rail or end caps and possibly cause damage.To adjust the belt back to its
proper position please follow the directions below.
Your treadmill should require little maintenance other than to periodically apply lubricant.
Lubricating under the running Deck will ensure superior performance and extend the treadmill’s
life expectancy.
HOW TO CHECK RUNNING DECK FOR PROPER
LUBRICATION
•Liftonesideoftherunning Deck and feel the top surface of
the treadboard.
•Ifthesurfaceisslicktothetouch,thennofurther 
lubrication is required.
•Ifthesurfaceisdrytothetouch,applyonepacketof 
lubricant or half of the bottle of lubricant.

19
10334

HOW TO APPLY LUBRICANT
• Liftonesideoftherunningdeck.
• Pouronehalfofthelubricantbottleunderthecentreoftherunningdeckonthetop
surface of the treadboard.
• Walkonthetreadmillataslowspeedfor3to5minutestoevenlydistributelubricant.
• NOTE:DONOToverlubricatetreadboard.Anyexcesslubricantthatcomesoutshould
be wiped off.
• NOTE:ONLYUSEHALFTHEBOTTLEOFLUBRICANTPERAPPLICATION.
• NOTE:Ifyourlubricantisnished,thetreadbeltcanbelubricatedwithDubbin.
LUBRICATION SCHEDULE
• Checkthetreadboardlubricationduringinstallation.Ifit’snecessary,lubricatethe 
treadboard using one half of the lubricant provided, before using the treadmill for the
rst time.
• Ifthetreadmillisusedonaregularbasis,therunningdeckshouldbelubricatedoncea
month.
• Ifthetreadmillisnotusedfortwomonthsormore,thetreadboardmustbelubricated
before use.
BELT TRACKING ADJUSTMENT
• Ifduringuseyounoticethattherunningdeck
either shifts to the right or the left of centre,
switch off the treadmill, remove the “Safety Key”
and unplug the equipment from the AC power
source.
• Iftherunningdeckshiftsleft,usingAllenwrench
provided, turn the left rear roller adjustment
clockwise no more than 1/4” of a turn (if
the running belt shifts right, adjust the right rear
roller).
• RemovetheAllenKey,insertthe“SafetyKey”
and insert the AC power cord into the
AC outlet.Turn on your treadmill and observe
after running for a few minutes to see if
the problem has been corrected.
• Thismaytakeseveraladjustments,sorepeatthe
above procedure.

20
10334

Tr apezius
Posterior
Tricep
Latissimus Dorsi
Gluteals
Hamstrings
Gastrocnemius
Tr apezius
Anterior
Pectoralis Major
Serratus Anterior
Biceps
Abdominal
Sartorius
Quadriceps
Tibialis
Trojan and the Heart and Stroke Foundation have joined forces to KEEP SOUTH AFRICA MOVING.
The Heart and Stroke Foundation South Africa encourages all South Africans to make heart-healthy choices
that include daily physical activity, exercise and a balanced diet. Use Trojan, SA’s No. 1 selling Home Fitness
brand to give you the ability to boost your tness level and lower your risk of cardiovascular disease.
Visit www.trojanhealth.co.za for equipment choices and exercise programs, and
www.heartfoundation.co.za for information on how to adopt a healthy lifestyle.
AEROBIC EXERCISE
Aerobic exercise is any sustained activity that sends oxygen to your muscles via your heart and lungs. Aerobic
exercise improves the tness of your lungs and heart − your body’s most important muscle. Aerobic exercise
tness is promoted by any activity that uses your large muscles (arms, legs, or buttock, for example).Your heart
beats quickly and you breathe deeply. An aerobic exercise should form part of your entire exercise routine.
WEIGHT TRAINING
Along with aerobic exercising which helps get rid of and keeps off excess fat that our bodies can store, weight
training is an essential part of the exercise routine process.Weight training helps tone, build and strengthen
muscle. If you are working above your target zone, you may want to do a lesser amount of reps. Always consult
your physician before beginning any exercise program.
MUSCLE CHART
TROJAN TITAN 330 TREADMILL
The exercise routine that is performed on the Trojan Titan 330 Treadmill will develop the lower body muscle
group as well as condition the circulatory system and provide a good aerobic workout.These muscle groups
are highlighted on the muscle chart below.
