turck TBEN-LH-8IOL User manual

TBEN-LH-8IOL
EtherNet/IPTM Configuration
Guide
1218A

2
— This page intentionally left blank —

3
1General Information 5
1.1 About these instructions 5
1.2 Explanation of symbols used 5
1.2.1 Warnings 5
1.3 Contents 6
1.4 Feedback about these instructions 6
1.5 Technical support 6
2Getting Started 7
2.1 About this document 7
2.2 Factory default IP address 7
2.3 Address switches 8
2.3.1 Static rotary mode 8
2.3.2 BOOTP mode (300) and DHCP mode (400) 8
2.3.3 PGM mode (500) 9
2.3.4 PGM-DHCP mode (600) 9
2.3.5 Factory Reset mode (900) 9
2.3.6 Restore IP Address (000) 9
2.4 TURCK Service Tool (TST) 10
2.4.1 Search (F5) 11
2.4.2 DHCP (F6) 11
2.4.3 Set IP address using Web server 13
2.5 BOOTP/DHCP utility 14
3TBEN-LH-8IOL Controls Reference 17
3.1 Device Overview 17

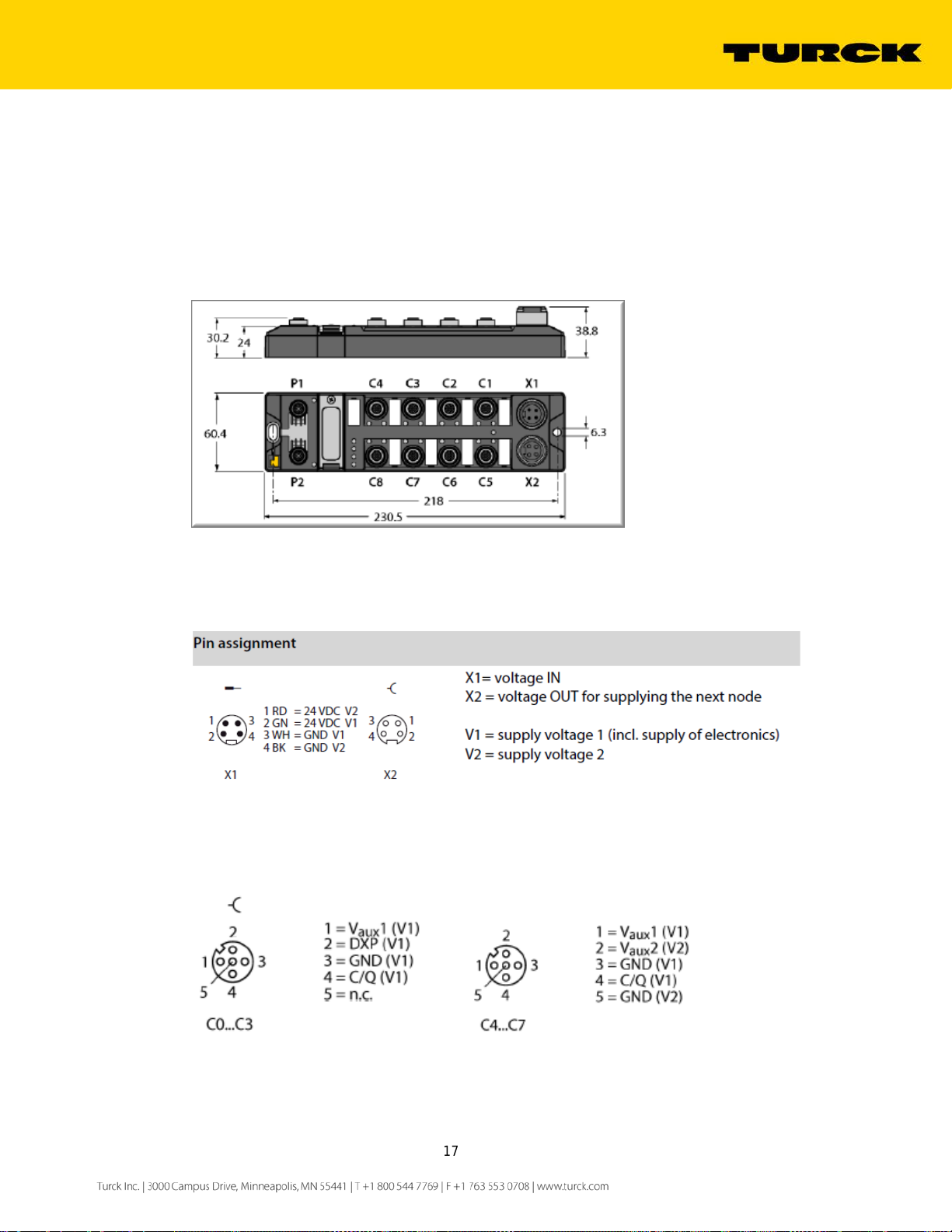

3.1.1 Dimensions and connector assignment 17
3.1.2 Power connector pin assignment 17
3.1.3 IO connector pin assignment 17
3.1.4 Power supply 18

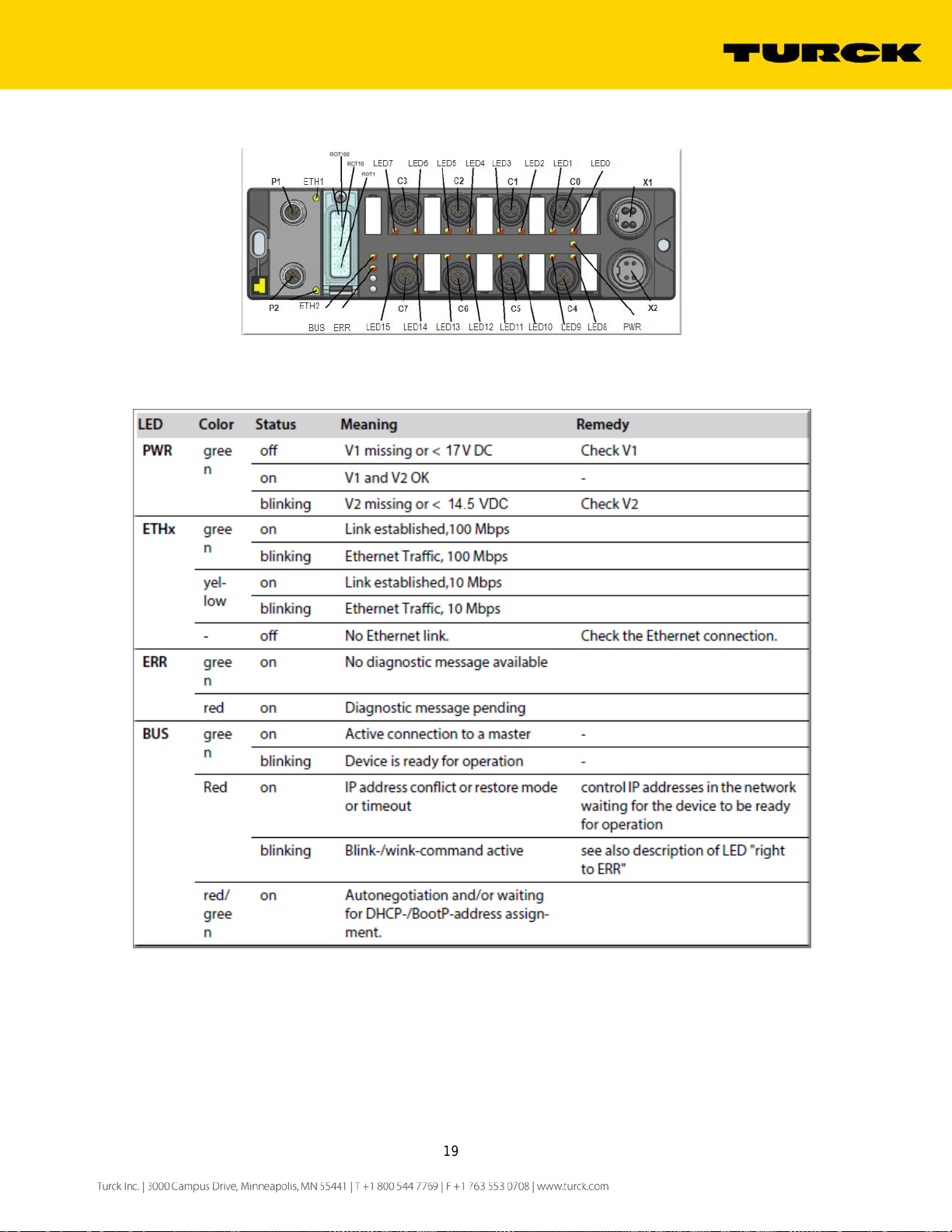

3.1.5 LEDs 19
3.2 IO data map 21
3.2.1 General overview 21
3.2.2 Input data map 22
3.2.3 Output data map overview 24
3.3 Application Requirements 27
3.4 IO-Link Port Setup 28
3.4.1 Open Web Server 28
3.4.2 Administrator access 29
3.4.3 Basic Parameter Setup 29
3.4.4 IOL Master Default Setup 30
3.4.5 VAUX Control 31
4Configure TBEN-LH-8IOL with Rockwell PLC 33
4.1 TBEN-LH-8IOL Configuration using EDS files 33
4.1.1 Install EDS file 33
4.1.2 Create a new module 34

4
4.1.3 Configure TBEN-LH-8IOL using default connection 35
4.1.4 Configure TBEN-LH-8IOL_QC_ON Connection 36
4.1.5 Configure TBEN-LH-8IOL_QC_OFF Connection 38
4.2 TBEN-LH-8IOL configuration using generic device profile 39
4.2.1 Generic device configuration 39
4.2.2 Generic device and QC_ON configuration 40
4.2.3 Generic device and QC_OFF configuration 40
5TBEN-LH-8IOL Configuration with OMRON PLC 41
5.1 Get ready environment 41
5.1.1 Register EDS file 41
5.1.2 Add device to the project 42
5.1.3 Register tag sets 43
5.1.4 The device connection types 43
5.2 Configure TBEN-LH-8IOL 44
5.2.1 Configure TBEN-LH-8IOL using default connection 44
5.2.2 Configure TBEN-LH-8IOL using QC-ON connection 45
5.2.3 Configure TBEN-LH-8IOL using QC-OFF connection 46
6Resources 47
6.1.1 IO-Link master user manuals, data sheets, IODDs 47
6.1.2 IO-Link slave devices 47
6.1.3 FLC controller 47

5
1 General Information
1.1 About these instructions
The following configuration guide describes the setup, functions, and use of the TBEN-LH-8IOL station. It
helps you to plan, design, and implement the system for its intended purpose.
Note*: Please read this manual carefully before using the system. This will prevent the risk of personal
injury or damage to property or equipment. Keep this manual safe during the service life of the system. If
the system is passed on, be sure to transfer this manual to the new owner as well.
1.2 Explanation of symbols used
1.2.1 Warnings
Action-related warnings are placed next to potentially dangerous work steps and are marked by graphic
symbols. Each warning is initiated by a warning sign and a signal word that expresses the gravity of the
danger. The warnings have absolutely to be observed:
DANGER!
DANGER indicates an immediately dangerous situation, with high risk, the death or severe injury,
if not avoided.
WARNING!
WARNING indicates a potentially dangerous situation with medium risk, the death or severe
injury, if not avoided.
ATTENTION!
ATTENTION indicates a situation that may lead to property damage, if it is not avoid-ed.
NOTE
In NOTES you find tips, recommendations and important information. The notes facilitate work,
provide more information on specific actions and help to avoid overtime by not following the
correct procedure.
CALL TO ACTION
This symbol identifies steps that the user has to perform.
RESULTS OF ACTION
This symbol identifies relevant results of steps
Italic Text in Italic is associated with the function of the third party software or application
(E.g. Controller Organizer)

6
1.3 Contents
The complementary documentation and files:
TBEN-LH-8IOL Data sheet
TBEN-L…-8IOL, IO-Link Master Module
IO-Link Devices Commissioning
TBEN-LH-8IOL_R2.7.EDS file
The Rockwell PLC demo:
1756-L72 controller v30
1756-EN2TR Ethernet Bridge
Studio5000 Logic Designer V30
The Omron PLC demo:
CJ1M controller v2.0
CJ1W-EIP21 EtherNet/IP communication adapter v1.01
Network Configurator 3.21
1.4 Feedback about these instructions
We make every effort to ensure that these instructions are as informative and as clear as possible. If you
have any suggestions for improving the design or if some information is missing in the document, please
send your suggestions to [e-mail].
1.5 Technical support
For additional support, email inquiries to appsupp[email protected], or call Application Support at 763-553-
7300, Monday-Friday 8AM-5PM CST.

7
2 Getting Started
2.1 About this document
The configuration guide provides information about configuration of the TBEN-LH-8IOL including:
Address switches
IP address assignment
Configuration options with Rockwell and Omron PLCs
NOTE
The device data sheet and technical information is available for download at
www.turck.us.
2.2 Factory default IP address
The TBEN-LH-8IOL device is shipped with address switches set to 600 (PGM-DHCP). It is factory default
position of the rotary switches which is associated with the IP address:
IP Address: 192.168.0.254
Subnet mask: 255.255.252.0
Gateway: 0.0.0.0
The device has limited functionality in this state:
DHCP client is active and running; use any service to assign IP address
Web server is active
Some other services are active
ARGEE PLC is running
The device responds to the PING command as follows:

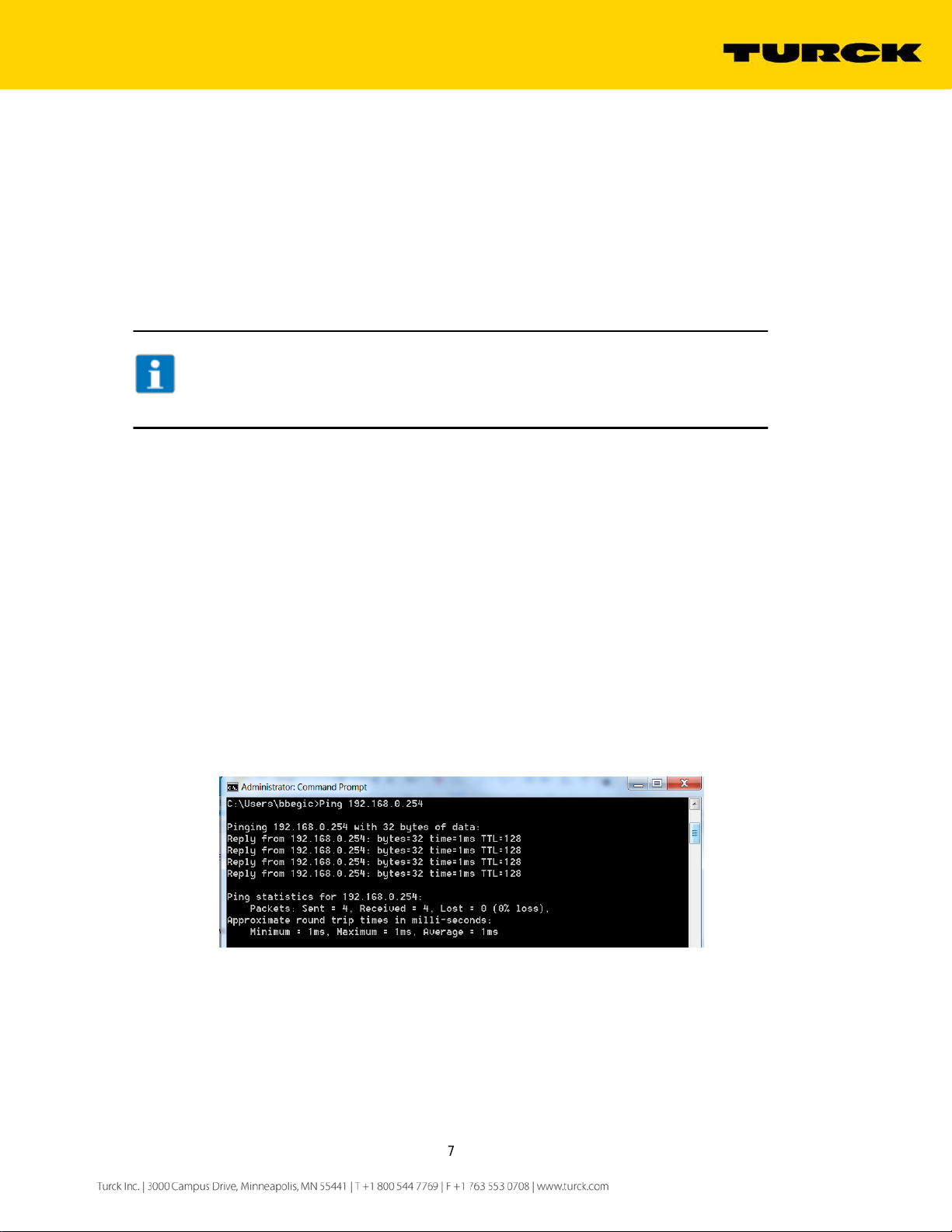

Figure 2.1 - Ping
The first step in the device configuration is to assign an operational IP address.
The device DHCP client is running and waiting for an IP address assignment. When IP address is
acquired, the DHCP becomes disabled.

8
2.3 Address switches
The device has 3 rotary address switches. The position of the switches (Figure 2.2) determines mode of
operation of the device. The Table 2.1 provides a description of the device action when switches are set to
a specific position and the device is powered up.

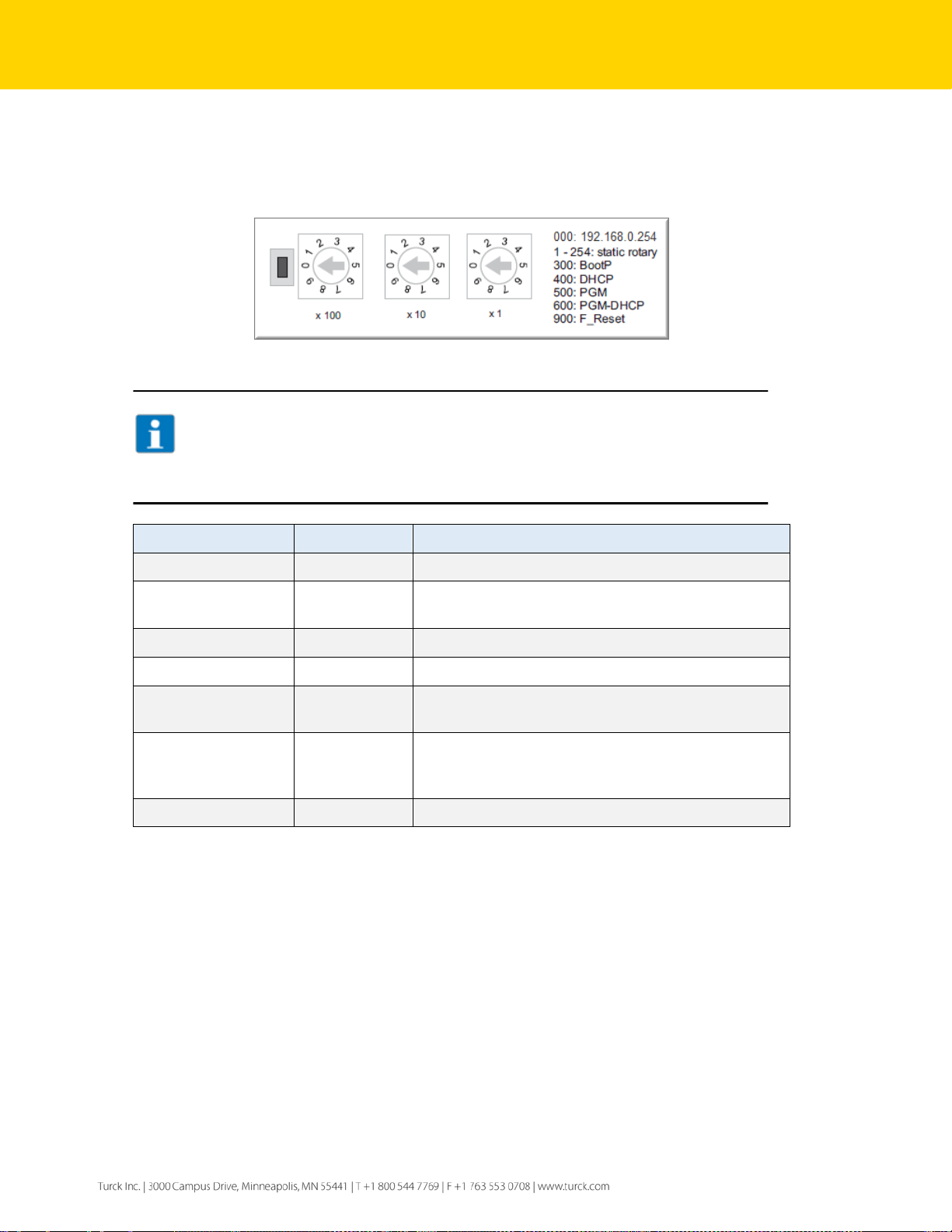

Figure 2.2 – Rotary switches
NOTE
Protective cover opened - Protection class IP65/IP67/IP69K not warranted
Screw the protective cover over the rotary coding-switches firmly
Check if seal of the protective cover is correctly placed
Switch position Mode Description
000 Restore IP address is restored to 192.168.0.254
001,…,254 Static rotary
mode Sets the last octet of IP address in range [1…254].
300 BOOTP BOOTP client is active and requesting an IP address
400 DHCP DHCP client is active and requesting an IP address
500 PGM Device comes up with the last IP address saved in
EEPROM. IP address is programmable.
600 PGM-DHCP DHCP client is active and requesting an IP address. When IP address is acquired, the device transitions to
PGM mode.
900 Factory Reset Device is reset to the factory default setup.
Table 2.1: Address Modes
2.3.1 Static rotary mode
Sets the last octet of the IP address in the range [xxx = 1 ,…, 254] e.g. 192.168.0.xxx, 10.10.10.xxx.
2.3.2 BOOTP mode (300) and DHCP mode (400)
The device BOOTP or DHCP client is active, requesting an IP address assignment.
From any switch position:
Turn OFF device power and set switches to 300 or 400
Start BOOTP / DHCP server
Turn ON device power and assign IP address
Wait for the acknowledgement from the server
Set rotary switches to either the last octet of the IP address or to 500 (PGM)
Cycle power

9
2.3.3 PGM mode (500)
The last known IP address, subnet mask and gateway address are saved in the EEPROM when rotary
switches are set to 500. The IP address is programmable and may be programmed using TURCK Service
Tool or Web server. The procedure:
Assign an IP address using either static rotary mode, or BOOTP/DHCP server
When IP address is acquired, change rotary switches position to 500
Cycle the power of the device
2.3.4 PGM-DHCP mode (600)
When out-of-box device is powered for the first time, while switches are set to 600, the device DHCP
client is active and waiting for an IP address assignment. Use any DHCP server to assign the IP address.
When IP address is acquired, the device disables its DHCP. The device saves permanently assigned IP
address and transitions to the PGM mode.
2.3.5 Factory Reset mode (900)
The factory reset mode resets the device back to the factory default setup and deletes all custom data in
the device’s internal flash. The procedure:
Set address switches to 900
Power-up device and wait 10sec
Set switches to either static rotary mode or 300/400/500/600
Cycle power
2.3.6 Restore IP Address (000)
Set rotary switches to 000 to restore IP address to 192.168.0.254. The device preserves custom
data/setup while restoring IP address.
From any switch position:
Set the address switches to the position 000
Power-up device and wait 10sec
Set switches to either static rotary mode or 300/400/500/600
Cycle power
Depending on the position of the rotary switches, the device comes up as previously described.

10
2.4 TURCK Service Tool (TST)
The TURCK Service Tool can be downloaded from the TURCK Web site at:
Enter “TURCK Service Tool” in the search field
Download and install the tool
Figure 2.3 – TURCK Web page
The tool has a set of action buttons in the tool bar:
Figure 2.4 – Service Tool
The tool has following features:
Scanning for existing devices (F5). All modules are found through use of the protocols DCP
(PROFINET Standard) and IBTP (TURCK Service Protocol). With the IBTP protocol extended
information such as FW version and operating mode improved scanning are read out of
TURCK devices and displayed.
Setting an IP address (F2)
Locate device using Wink function (F3)
Actions menu that resets the device to the factory default or reset network (F4)
Supports the configuration of PROFINET modules, assigning the PROFINET name
Clipboard used for Copy: all, IP address or MAC address
Expert view, when enabled, provides additional functions like DHCP Server, ARGEE and
BEEP features by TURCK multiprotocol device
DHCP server
ARGEE status
BEEP status

11
Frequently used functions of the tool are:
Search (F5)
Change (F2)
DHCP (F6)
Action (F4)
2.4.1 Search (F5)
The Search function is used to identify TURCK multiprotocol device on the continuous physical network
segment including layer 2 of the OSI model switches. The IP address 192.168.0.254 appears when the
device is in the PGM-DHCP mode and DHCP client is active. The IP address transitions to 0.0.0.0 when
DCHP server is started. The device mode is provided (position of the rotary switches), composite firmware
revision, ARGEE loaded program is running, and BEEP status of the device if enabled.
Figure 2.5 – Search function
2.4.2 DHCP (F6)
The device IP address may be assigned using the DHCP server provided by the tool.
The procedure:
Search (F5) to discover device with address 192.168.0.254
Highlight that device
Start DHCP (F6)
Select network adapter in the DHCP server settings page and click Start DHCP
Figure 2.6 – Initialize DHCP server

12
Wait until DHCP server locates the device ( IP transitions to 0.0.0.0)
Figure 2.7 – Device DHCP client active view
Highlight device
Click Change (F2)
Assign IP address
Click Stop DHCP (F6) button
Figure 2.8 – IP Configuration
After the IP address is assigned, the device responds with:
Figure 2.9 – IP address assigned

13
2.4.3 Set IP address using Web server
The device Web server is a communication interface with the device and offers several setup options. It is
necessary to login as an administrator to change device IP address.
The procedure:
Enter current IP address of the device into a browser
If you don’t know what is current IP address, use TURCK Service Tool to discover device
Enter “password” into Login field to get administrator’s privilege.

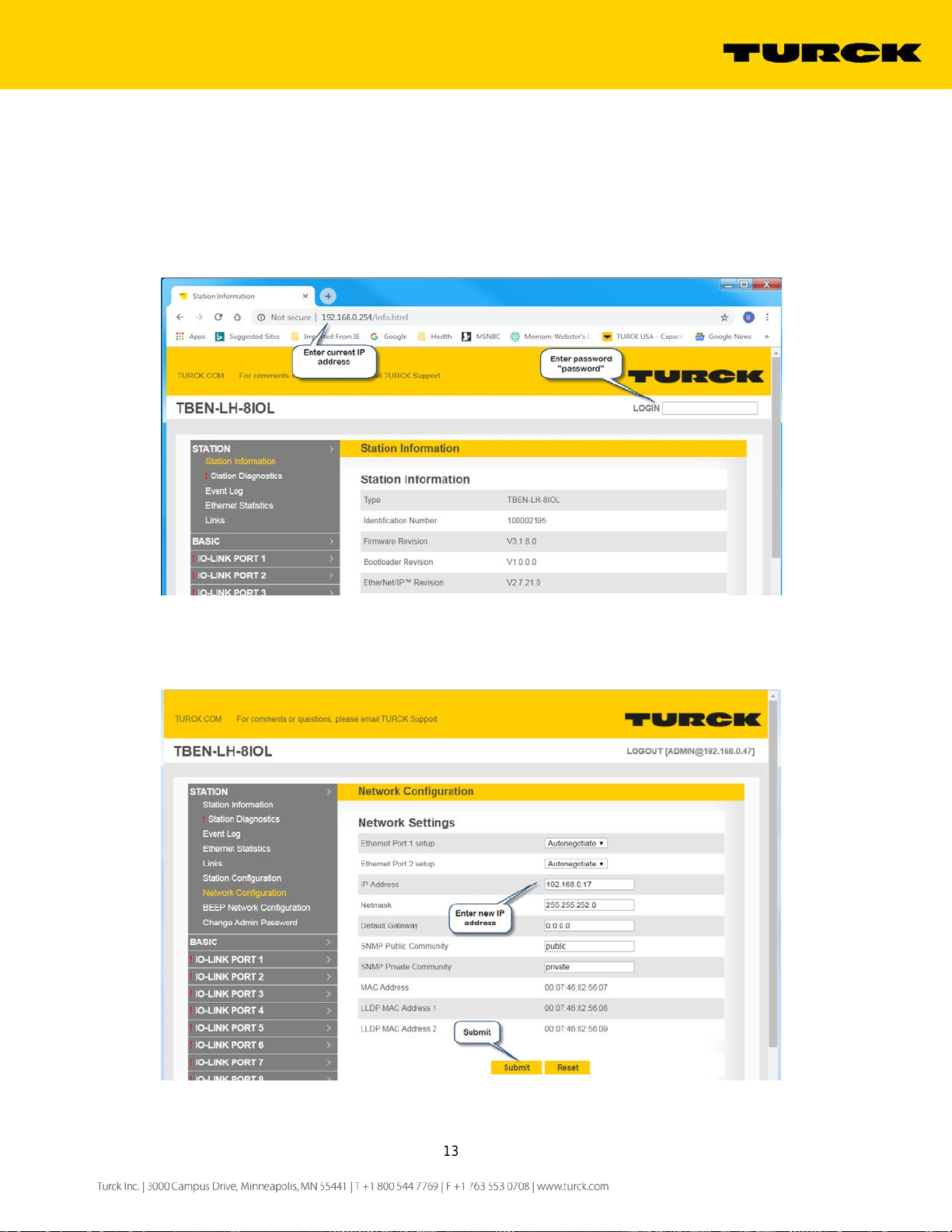

Figure 2.10 – Device Web server
Open Network Configuration menu, enter new IP address and then Submit
If your PC network adapter is set to the same subnet as the device’s subnet, you are going to
see the device which comes up with the new setup
Figure 2.11 – Network Configuration menu

14

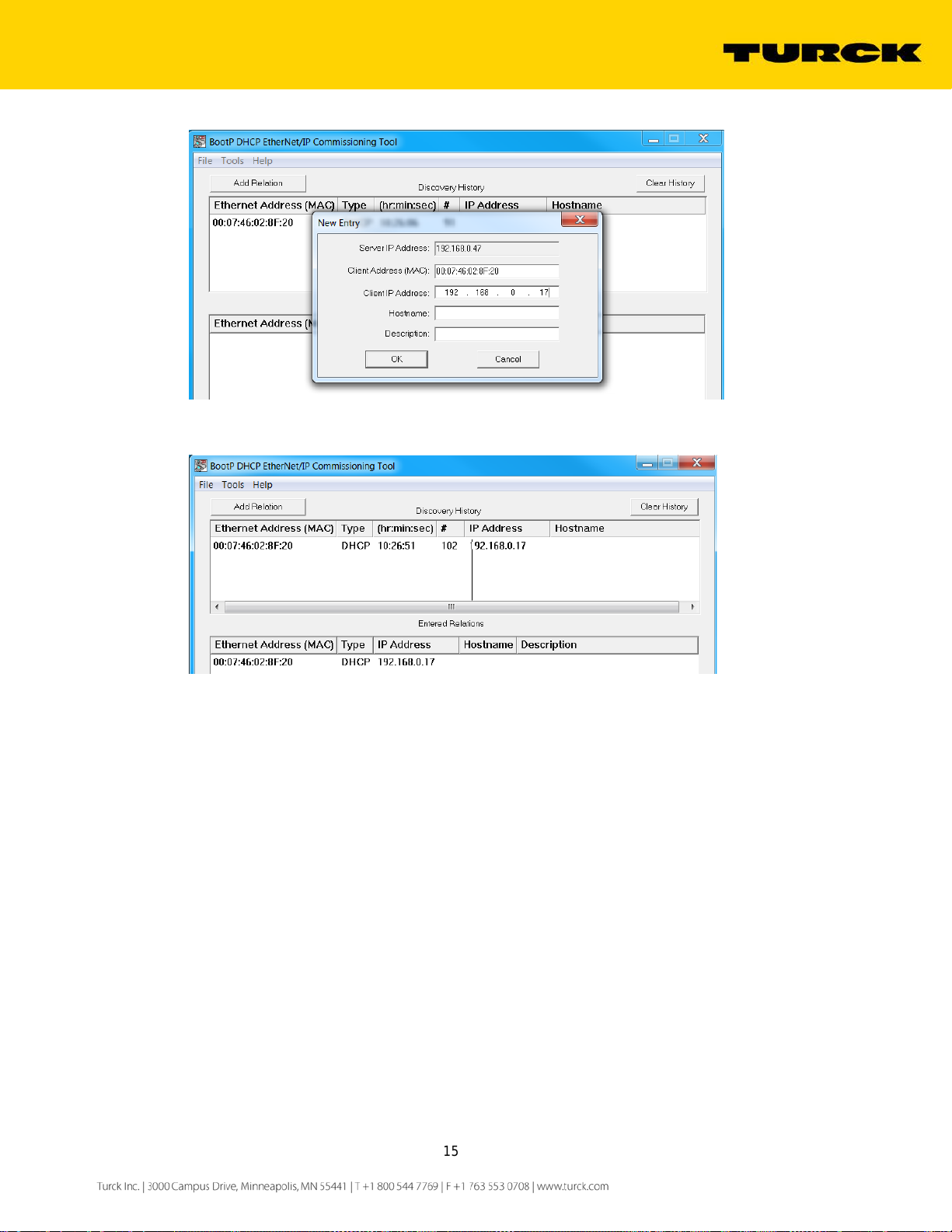

2.5 BOOTP/DHCP utility
The BOOTP/DHCP utility may be used while the device is in the PGM-DHCP mode on the first power-up.
When the IP address is assigned, the device DHCP client becomes disabled.
The procedure:
Start Rockwell DHCP server
Select network interface
Figure 2.12 – BOOTP / DHCP tool
At Tools menu, click at Network Settings
Figure 2.13 – Network Settings menu
Enter Mask and Gateway addresses in the Network Settings dialog
Figure 2.14 – Network Settings view

15
Enter new IP address in the New Entry dialog
Figure 2.15 – IP address setup
Wait for confirmation – assigned IP address appears in the IP Address column
Figure 2.16 – IP address assignment complete

16
— This page intentionally left blank —

17
3 TBEN-LH-8IOL Controls Reference
3.1 Device Overview
The summary of the device installation guidance, connector’s assignment, power distribution and grounding
requirements are as follows.
3.1.1 Dimensions and connector assignment
Figure 3.1 – Connector assignment
3.1.2 Power connector pin assignment
Figure 3.2 – X1 and X2 connector pinout
3.1.3 IO connector pin assignment
Figure 3.3 – C0…C7 connector pinout

18
3.1.4 Power supply
ATTENTION!
Wrong supply of IO-Link devices
Damage to the electronics
The IO-Link devices must only be supplied with the voltage provided at the supply terminals of
the TBEN
ATTENTION!
Connection of Class A devices to Class B ports
Loss of the galvanic isolation
Only use Class A devices with signals on pin 1, pin 3 and pin 4 at Class B ports. The connection
of Class A devices with signals on pin 2 and pin 5 leads to the loss of the galvanic isolation

19
3.1.5 LEDs
Figure 3.4 – LED assignment
Figure 3.5 – Module LED behavior

20
Figure 3.6 – IO LED behavior
