UNIQUE FEATURES OF TVS JUPITER FI
UNIQUE FEATURES OF TVS JUPITER FI
-I-
®

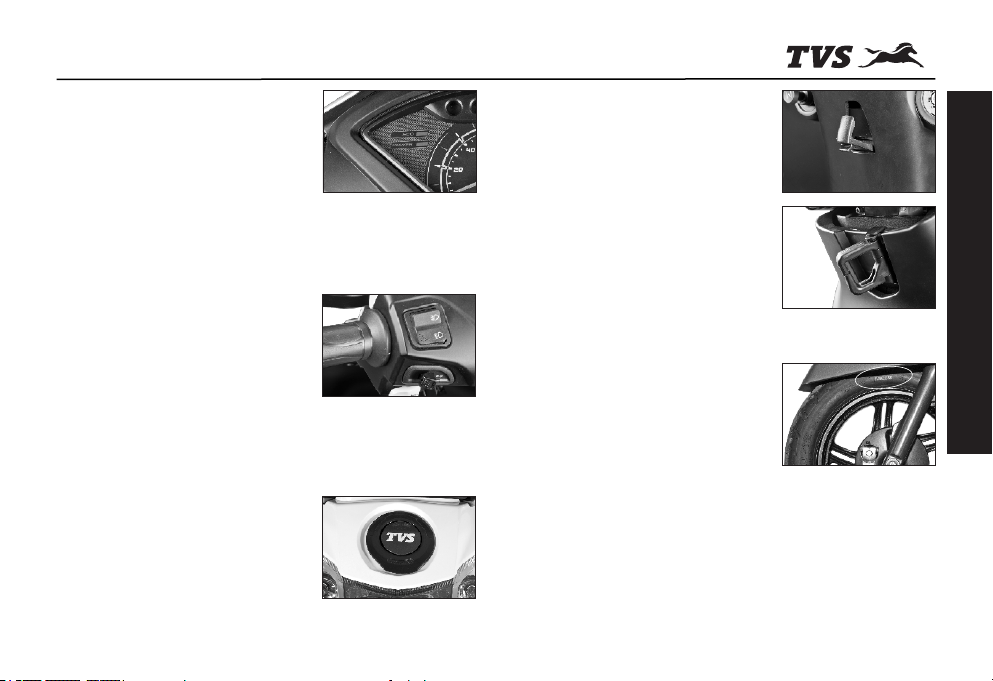

ECONOMETER
Y o u r s p e e d o m e t e r h a s
®
ECONOMETER which indicates
whether you are riding in Economy
Mode or Power mode. This is unique
feature of your scooter which guides
you to ride your scooter fuel
efficiently. Refer page no. 12 for
details.
UNIQUE PASS-BY SWITCH (First
Time in Scooters)
Pass-by Switch is a feature first time
introduced in scooters ever. It allows
you to easily switch between high &
low beam of the headlamp with easy
press and auto release. It is helpful
especially while overtaking. Refer
page no. 15 for details.
EXTERNAL FUEL FILL
No other Scooter offers you this
unique facility. You can get petrol
filled without even getting out of
your seat.
RETRACTABLE BAG HOOKS
Your scooter has two retractable
Bag Hooks to carry light luggage like
carry bags weighing upto 3 kg.
One hook is located below the
handle bar on the rear panel and the
other one is located on the cover
front below the front end of seat.
TUBELESS TYRES
Another important unique feature in
your scooter is “Tubeless Tyres”.
Tubeless tyres reduce the chances
of getting punctured. Even if there is
a puncture, sudden leakage of air is
avoided, thereby provide better
safety and convenience. It is also
very easy to repair the punctured
tyres.

UNIQUE FEATURES OF TVS JUPITER FI
UNIQUE FEATURES OF TVS JUPITER FI
TEL ESC OPIC F RON T & GAS
F I L L E D R E A R S H O C K
ABSORBERS
Your Scooter has Motorcycle-like
Telescopic Front Suspensions for
extreme comfort and Gas Filled
Shock Absorber in the rear for
excellent riding comfort even on bad
roads.
MFR HEADLAMP
Your scooter has a “Multi Focal
Reflector” brightest headlamp with
'Halogen bulb' for better visibility in
dark. It also has stylish twin pilot
lamps on either side of the headlamp
for city riding.
LOW FUEL INDICATOR
Low Fuel Indicator- is yet another
unique feature of your scooter which
indicates you to refill the fuel, when
the fuel in the tank goes below
minimum safe level. Refer page 13
for details.
PATENTED E-Z CENTRE STAND
E-Z Centre Stand of your scooter
reduces the effort required to place
the scooter on stand. Refer page no.
18 for operating procedure.
ALL B LAC K LA RGE R AL LOY
WHEELS
All Black Larger Black Alloy Wheels
with high mechanical advantage
gives progressive braking of your
scooter, results in best-in-class
‘shortest distance’ braking. It also
provide superior comfort in bad road
conditions.
LED TAIL LAMP-CUM-BRAKE
LAMP
Your scooter has a LED Tail Lamp-
cum-Brake Lamp for better visibility
and stylish looks.
-II-

UNIQUE FEATURES OF TVS JUPITER FI
UNIQUE FEATURES OF TVS JUPITER FI
PARKING BRAKE (REAR BRAKE
LOCK)
Parking Brake is another unique
safety feature which protects your
scooter from falling due to wheel
rotation when it is parked with the
side stand on a slope. Refer page no.
14 for details.
S Y N C H R O N I S E D B R A K E
SYSTEM (SBS)
S y n c h r o n i s e d Br a k e S y s t e m
reduces the stopping distance, while
keeping the stability intact.
IGNITION LOCK WITH SECURITY
SHUTTER
Security Shutter on the ignition lock
is a unique feature for an additional
safety of your scooter.
Security shutter protects the use of
key other than the original supplied
along with your vehicle. Refer page
no. 11 for operating procedure.
UNDER-SEAT STORAGE (UTILITY
BOX)
Your scooter has a 17 litre under-
seat storage space to carry your
luggage belongings, full face helmet
etc., refer page no. 20 for details.
HELMET HOOKS
Your scooter has two helmet hooks
under the seat assembly at the front
end of utility box to secure your
helmet. Refer page no. 21 for details.
ECU
Your scooter's fuel efficient engine
uses “Electronic control unit”
engine built with fuel injector, makes
sure that you get the best from your
engine.
THROTTLE BODY ASSY
The throttle body consists of
sensors to identify the throttle
position and based on this , the fuel
injection is done.
-III-

UNIQUE FEATURES OF TVS JUPITER FI
UNIQUE FEATURES OF TVS JUPITER FI
-IV-

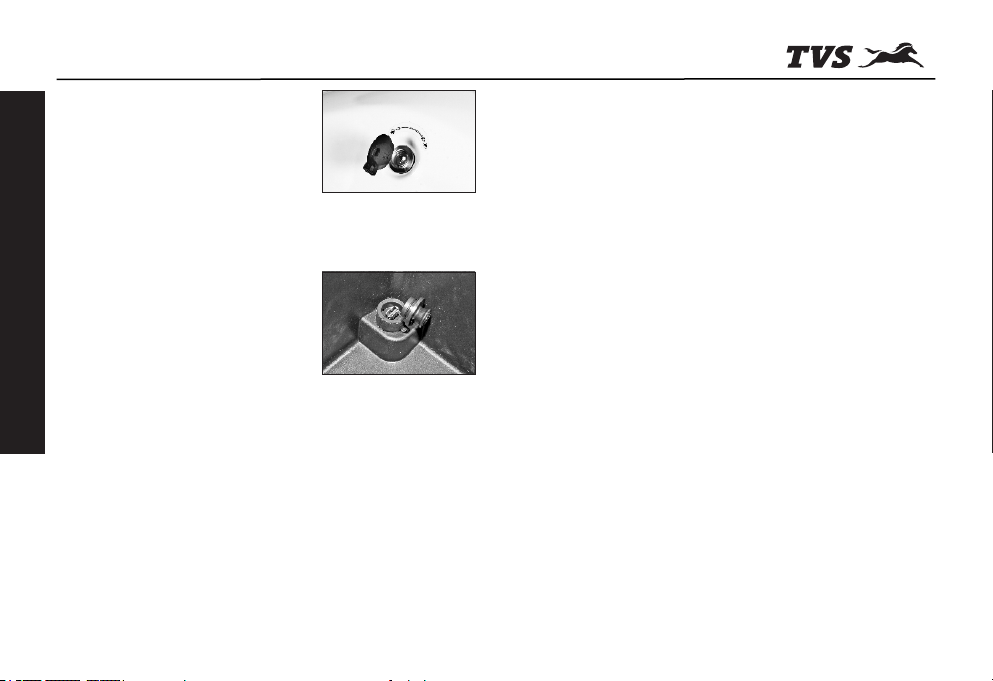

SEAT -CUM- FUEL TANK CA P
LOCK
Your scooter has a Dual lock for
opening the seat assembly and fuel
tank cap. You can open the fuel tank
cap without even getting down from
the scooter, refer page no. 16 & 19
for operating procedure.
SMART PHONE CHARGER
Smart phone charger is supplied as
an optional accessory for your
scooter. Location for fixing the
socket is provided inside the utility
box.
INDICATOR BUZZER
Your scooter has an electronic
buzzer which alerts you that the turn
signal indicators are ‘ON’.

Dear Jupiter Fi Owner,
Thank you for choosing TVS Jupiter Fi, a stylish scooter with all new CVT-I Engine with Fuel Injection & many class-
leading features. As a proud owner of TVS Jupiter Fi, you are now part of a family of millions of satisfied TVS customers.
With TVS Jupiter Fi, riding comfort enters a new dimension. This innovative mobility embodies a combination of class-
leading features and style unprecedented in the two-wheeler segment. Its unique vehicle design and superior
ergonomics makes it a scooter which gives you more in every aspect.
This manual explains the features and operations of your TVS Jupiter Fi. Kindly read it carefully and follow the
instructions to enjoy years of safe riding. To ensure reliable performance, we urge you to get your TVS Jupiter Fi
serviced only at TVS Motor Company Authorised at specified regular Distributor or Dealer / Authorised Service Centers
periodic intervals.
We welcome you once more to a world of comfortable and easy riding!
TVS MOTOR COMPANY LIMITED
FOREWORD
FOREWORD
-V-

NOTICE
NOTICE
Always keep your Owner‘s Manual in the scooter and give it to the new owner if you ever sell your TVS Jupiter Fi.
Take time to familiarize yourself with your TVS Jupiter Fi and its performance characteristics.
This Owner‘s Manual contains a host of useful information. Please take the time to read this manual before you ride your
new TVS Jupiter Fi. Get familiarised with the operation of your scooter for maximum safety and pleasure. The better you
know your vehicle, the more pleasure you will experience riding your new vehicle. Ensure that anyone else riding your
TVS Jupiter Fi does the same.
All information, illustrations, photographs and specifications contained in this owner’s manual are based on the
latest product information available at the time of this publication. TVS Motor Company Limited may, however,
incorporate modifications or improvements on its vehicles at any time without notice, and therefore, in such
events it is possible that the relevant part of the owner‘s manual does not apply to your vehicle.
Prior permission of TVS Motor Company Limited is required for quoting, copying or reproducing any part of this owner’s
manual.
Part Number :- Revision 1, November 2017
-VI-
Accessories shown in the picture may not be part of the standard equipment.
Note

SAFETY INFORMATION
SAFETY INFORMATION
Operating this vehicle safely is an important responsibility of the rider. To help you make decisions about safety, we have
provided operating procedure and other information in this manual. This information alerts you on potential hazards that
could hurt you or others. Since it is not possible to warn you about all hazards associated with operating or maintaining
the vehicle, you must use your own judgement.
You will find important safety information in following form in this manual. These words carry the following
connotations:
Disregarding this message might result in injury to the rider.
This message indicates special procedures or precautions to be followed to avoid damage to the vehicle.
This message provides further clarification for clearer understanding of any particular information.
-VII-
Caution
Warning
Note

CONTENTS
CONTENTS
-VIII-
Running-in information 01
Safe riding tips 02
Know your TVS Jupiter Fi 06
Riding your TVS Jupiter Fi 23
Maintenance 27
Service record sheet 45
Technical specifications 47

Replacing the engine and transmission oil during first service is most important for better life of engine. Always use TVS
TRU4 PREMIUM oil (SAE10W30 API-SL, JASO MA2) for better performance and life.
RUNNING-IN INFORMATION
RUNNING-IN INFORMATION
The first 1000 km is a crucial part for the life of your scooter. Proper running-in operation during this period helps in
ensuring a maximum life and smooth performance of your scooter.
The reliability and performance of your scooter depends on the special care and restraint exercised during the running-in
period. It is especially important that you avoid operating the engine in high speed (RPM), which could expose the engine
parts to excessive stress. Maximum recommended speed during the running-in is:
Maximum 50 kmph speed upto 1000 km (vary the engine speed for better mating of parts).
The first service at 500 ~ 750 km is most important. During running-in period all the engine components and other parts
will have set in. All adjustments to be restored, all fasteners to be tightened. Engine and transmission oil to be replaced.
Timely performance of the first service will ensure optimum service life and performance from the engine.
-1-
Caution

SAFE RIDING RECOMMENDATIONS
Any two wheeler riding requires some precautions to be taken to ensure the safety of the rider, pillion and other road
users. These precautions are:
Familiarise yourself with new TVS Jupiter Fi
Riding skill and your mechanical knowledge form the foundation of safe riding practices. We suggest you to practice
riding TVS Jupiter Fi in a low-traffic condition until you are thoroughly familiar with your vehicle and its controls.
Remember practice makes you perfect.
Riding apparel
Loose, fancy clothing can be uncomfortable and unsafe when riding a two-wheeler. Choose good quality two wheeler
riding apparel.
Know your limits
Ride within the boundaries of your own skill at all times. Knowing these limits and staying within them will help you avoid
accidents.
SAFE RIDING TIPS
SAFE RIDING TIPS
-2-
Two wheeler safety equipment starts with wearing a good quality helmet. One of the most serious injuries that can
happen is a head injury. Always wear good quality helmet. You should also have good quality goggles to protect your
eyes and help your vision.
To prevent or minimize accident, never consume alcohol or drugs before or during the operation of your vehicle. Even
minimal consumption of these will affect the rider’s ability to control the vehicle.
Warning

SAFE RIDING TIPS
SAFE RIDING TIPS
-3-
Cornering
When cornering, centrifugal force works in a direction
perpendicular to the direction in which the vehicle is
moving. Centrifugal force increases in proportion with
speed and the radius of the corner.
During cornering, reduce speed so as to lessen the
effects of centrifugal force. By all means, avoid abrupt
application of brake or sudden steering.
Braking
For safe riding, it is very important to master the
braking techniques.
1. Close / release the throttle.
2. Hold the vehicle upright as you apply the brake.
3. Progressive application of brake is safer.
4. Apply both the brakes.
5. Riding down hills, while cornering and wet roads
close throttle and come to a slower speed to avoid
the loss of control over the vehicle due to
skidding.
Causes for poor braking
1. If the brake shoes or drum are worn out or if there
is water or oil on them, sufficient friction does not
develop and brakes do not work well.
Posture
Proper vehicle riding starts with proper posture.
1. Keep your elbows relaxed and flexible.
2. Sit and adjust yourself on seat so that arms and
shoulders are relaxed.
3. Look widely instead of gazing at one point.
One-hand riding is dangerous. Keep both hands
firmly on the handle bar and both feet securely on the
floor board. Under no circumstances should both the
hands be removed from the handle bar, as it is very
dangerous.
Avoid use of mobile phones while riding as it could
lead to fatal accident.
Slow down to a safe speed before negotiating a
corner. If this is the first time that you are riding a
vehicle of this type, we suggest that you practice on a
safe, open area to become thoroughly familiar with
the operation of the vehicle.
Warning

2. Even when the brake works normally, if the road
surface is wet or the tyre surface is worn-out,
tyres do not take a firm hold on the surface,
increasing the stopping distance.
3. Approximately 60% braking effect is from front
brake. Non-usage of front brake causes poor
braking.
ACCESSORY INSTALLATION AND SAFETY TIPS
Use extreme caution while selecting and installing the
accessories for your scooter.
The addition of unsuitable accessories can lead to
unsafe operating conditions. Your friendly Dealer
will assist you in selecting quality accessories and
installing them correctly.
While selecting the accessories, make sure the
accessories should not obstruct lighting, steering,
suspension level and ground clearance.
Additional electrical equipments and controls
should not exceed the specified electrical system
load of the vehicle (capacity of battery and
magneto).
EMISSION CONTROL
All the TVS vehicles are tested in the factory for
optimum fuel efficiency and CO levels.
If the vehicle needs any adjustments, please consult
nearest TVS Motor Company Authorised Distributor
or Dealer / Authorised Service Centers.
While adequate care is exercised at the factory to
ensure that the emissions are within the limits, it is
essential for the owner to always maintain the scooter
SAFE RIDING TIPS
SAFE RIDING TIPS
As the vehicle speed increases, the stopping distance
also increases progressively. Be sure that, you have
sufficient distance between you and the vehicle or
obstruction ahead of you.
Avoid directing the water jet directly towards brake
drums during water wash.
Using only rear brake is dangerous and can cause
skidding and loss of control. Apply both the brakes
together and with great care on a wet road or other
slippery surfaces. Any abrupt braking on slippery or
irregular roads can cause loss of rider control.
-4-
Warning

in good condition by getting it periodically checked
and serviced by TVS Motor Company Authorised
Distributor or Dealer / Authorised Service Centers so
that the emission and fuel consumption levels are
maintained as per norms.
SAFE RIDING TIPS
SAFE RIDING TIPS
-5-

VEHICLE IDENTIFICATION NUMBER
Serial numbers of both frame and engine are required for vehicle identification. They are also required to assist your
Dealer for ordering parts or referring to special information.
Frame number
Engine number
Control key number
Please fill the above boxes now for future reference
KNOW YOUR TVS JUPITER FI
KNOW YOUR TVS JUPITER FI

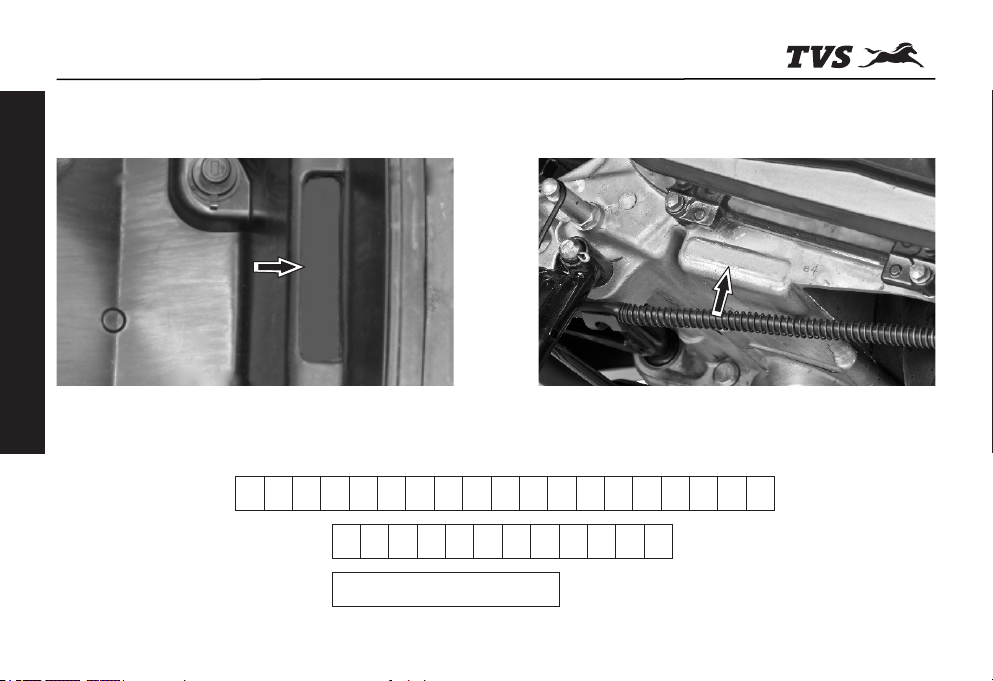

The frame serial number is stamped on the frame, at
the rear end below the seat assembly. Open the seat
assembly to read the frame number.
The engine serial number is stamped on the left side
of the engine, at the bottom, near center stand
mounting. See bottom to read serial number.
-6-
EG4NG1013734
MD626EG44H1F91321
**

LOCATION OF PARTS - HANDLE BAR
1. Bag hook (front)
2. Horn switch
3. Turn signal lamp switch
4. Rear brake lever
5. Parking brake (rear brake lock)
6. Rear view mirror L
7. High/low beam cum pass by
switch
8. Speedometer assembly
9. Rear view mirror R
10. Front brake lever
11. Throttle grip
12. Electric starter switch
13. Ignition cum steering lock
KNOW YOUR TVS JUPITER FI
KNOW YOUR TVS JUPITER FI
-7-
4
5
1
3
2
6
7
89
10
11
13
12

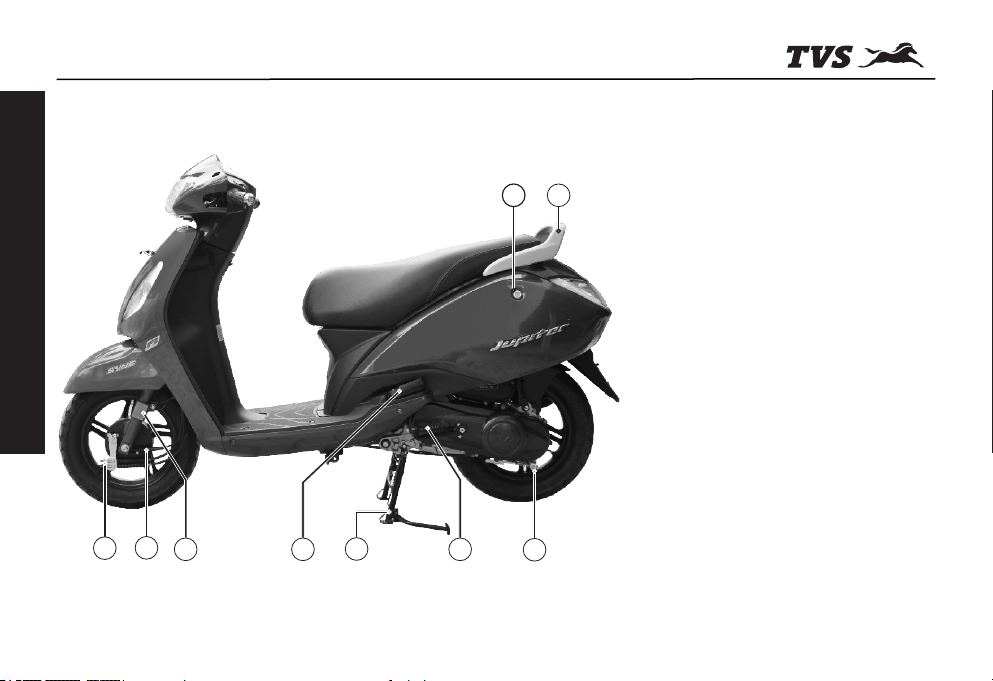

LOCATION OF PARTS - VEHICLE LEFT SIDE
1. Rear brake adjusting nut
2. Kickstarter lever
3. Effortless easy center stand
4. Pillion foot rest L
5. Reflex reflector
6. Speedometer cable
7. Front brake adjusting nuts
8. Seat cum fuel tank cap lock
9. Pillion handle
KNOW YOUR TVS JUPITER FI
KNOW YOUR TVS JUPITER FI
1
3
6
7
98
25 4
-8-

LOCATION OF PARTS - VEHICLE RIGHT SIDE
1. Front wheel axle nut
2. Bag hook (rear)
3. Cover front
4. Pillion foot rest R
5. Gauge oil level
6. Muffler assembly
7. Rear fender
8. Seat assembly
9. Bag hook (front)
KNOW YOUR TVS JUPITER FI
KNOW YOUR TVS JUPITER FI
-9-
1
4
53
67
8 9
2

LOCATION OF PARTS - VEHICLE FRONT & REAR
FRONT
1. Position lamps
2. Head lamp
3. Head lamp focus adjuster
4. Turn signal lamp front LH
5. Turn signal lamp front RH
6. License plate front
7. Throttle cable adjuster
REAR
1. Fuel tank cap
2. Turn signal lamp rear RH
3. Tail / brake lamp
4. Licence plate rear
5. Transmission oil level screw
6. Reflex reflector
7. Turn signal lamp rear LH
KNOW YOUR TVS JUPITER FI
KNOW YOUR TVS JUPITER FI
-10-
2
4
1
3
5
6
7
1
2
4
3
5
6
7

KNOW YOUR TVS JUPITER FI
KNOW YOUR TVS JUPITER FI
-11-
MAX
WEIGHT
3Kg
OFF
LOCK
IGNITION
ON
O
P
E
U
T
N
H
S
CONTROL KEY
TVS Jupiter Fi comes with a pair of identical control
keys. These keys are to operate ignition cum steering
lock (including safety shutter), seat lock and fuel tank
cap.
IGNITION CUM STEERING LOCK
TVS Jupiter Fi has a safety shutter in the ignition cum
steering lock for an additional safety.
To open the safety shutter, align the key head to the
safety shutter hole by matching the projections of key
head to the slots of the shutter knob hole and turn it in
clockwise direction.
There are three positions in the ignition cum steering
lock. They are:
1. ‘OFF’ position
All the electrical circuits are turned ‘OFF‘ in this
position. Engine will not start. Key can be taken out.
2. ‘ON’ position
In this position, all the electrical circuits are turned
‘ON’ and the engine can be started now. Key cannot
be removed in this position.
3. ‘LOCK’ position
TVS Jupiter Fi steering can be locked in both ‘left’ and
‘right’ directions.
