TVS Jupiter ZX User manual

CONTENTS
CONTACT(S) FOR SUPPORT 1
INTRODUCTION 5
UNIQUE FEATURES OF TVS JUPITER ZX 6
ACCESSORIES 10
FOREWORD 11
NOTICE 12
SAFETY INFORMATION 13
RUNNING-IN INFORMATION 14
SAFE RIDING TIPS 15
KNOW YOUR TVS JUPITER ZX 19
RIDING YOUR TVS JUPITER ZX 69
MAINTENANCE 74
EXPRESS SERVICE 98
EXPERT ON WHEELS 99
PICKUP AND DROP 100
WARRANTY AND SERVICES 101
TECHNICAL SPECIFICATIONS 108
GENERAL INFORMATION 113

1
1
CONTACT(S) FOR SUPPORT
Incase you need any clarification please contact
TVS Motor Company Authorised Main Dealer / Authorised Dealer
Or
TVS Motor Company’s Area Offices (flip over for addresses)
Or
Toll Free Number : 1800-258-7111
Email : [e-mail]
Disclaimer : TVS Motor Company or any of its officials / Authorized Main dealer / Authorized Dealer do not ask customers for bank
/ card / wallet details / authentication. In case you face any such claim, please report to the relevant local authorities immediately.

2
CONTACT AT OUR AREA OFFICES
TAMILNADU-1, 3 & 4
1. TVS Motor Company Limited
V Floor, Gee Gee Universal,
No. 2, MC Nichols Road,
Chetpet, Chennai - 600 031.
Phone : [phone]
Email : [e-mail]
[e-mail]
TAMILNADU-2
2. TVS Motor Company Limited
No. 10, 2nd floor,
Shree Shanmugapriya Towers,
Kannuswamy Street,
Behind Hotel Annapoorna,
R S Puram, Coimbatore - 641 002.
Phone : [phone]
Email : [e-mail]
KERALA
3. TVS Motor Company Limited
Ambady Towers, Second Floor,
Door No. 27/631, A6,
Edappally-Pookkattupady Road,
Edappally PO., Cochin - 682 024.
Phone : [phone]
Email : [e-mail]
KARNATAKA-1, 2 & GOA
4. TVS Motor Company Limited
No. 600, Anand Surya, 2nd Floor,
15th Cross, 6th Phase, JP Nagar,
Opp. BMTC Bus Stop,
Bangalore - 560 078.
Phone : [phone]
Email : [e-mail]
[e-mail]
ANDHRAPRADESH -1 & 2
5. TVS Motor Company Limited
Rukumani Towers, First Floor,
No. 3-11-30, Plot No. 11,
Paigha Colony, Behind Anand Theater,
Secunderabad - 500 003.
Phone : [phone]
Email : [e-mail]
[e-mail]
MAHARASHTRA-1 & 2
6. TVS Motor Company Limited
No. 401, 4th Floor, The Chambers,
Plot No. 4/12/3, Near Ganapati Chowk,
Viman Nagar, Pune - 411 014.
Phone : [phone]
Email : [e-mail]
MAHARASHTRA-3 & CHATTISGARH
7. TVS Motor Company Limited
No. 502B, 6th Floor, B Wing,
Shriram Shyam Towers,
Near LIC Square, Sardar,
Nagpur - 440 001.
Phone : [phone]
Email : [e-mail]
[e-mail]
GUJARATH
8. TVS Motor Company Limited
109, Ayna Complex,
Opp. Suvarna Villa Bungalows,
100 ft Thaltej Hebbatpur Road,
Off : S.G. Highway, Thaltej,
Ahmedabad - 380 054.
Phone : [phone]
Email : [e-mail]

3
3
MADHYA PRADESH-1 & 2
9. TVS Motor Company Limited
No. 211-212, 2nd Floor,
Chinar Incube Business Centre,
Chinar Fortune City,
Near Brindhavan Dhaba,
Hosangabad Road,
Bhopal - 462 026.
Phone : [phone]
Email : [e-mail]
[e-mail]
RAJASTHAN-1 & 2
10. TVS Motor Company Limited
Plot No. 17-18,
2nd Floor of National Motors Building,
Jhotwara Industrial Area,
Jaipur - 302 012.
Phone : [phone]
Email : [e-mail]
[e-mail]
DELHI & HARYANA
11. TVS Motor Company Limited
D-3 & D-4, 2nd Floor,
Sector - 10, Noida,
Uttar Pradesh - 201 301.
Phone : [phone]
Email : [e-mail]
[e-mail]
PUNJAB & CHANDIGARH
12. TVS Motor Company Limited
4th Floor, Royal Business Park,
Chandigarh Ambala Highway,
Zirkapur - 140 603.
Phone : [phone]/465777
Email : [e-mail]
UTTAR PRADESH WEST
13. TVS Motor Company Limited
D-3 & D-4, 2nd Floor,
Sector - 10, Noida,
Uttar Pradesh - 201 301.
Phone : [phone]
Email : [e-mail]
UTTAR PRADESH CENTRAL & EAST
14. TVS Motor Company Limited
1st Floor, Cyber Tower, TC-34/V-2,
Vibhuti Khand, Gomti Nagar,
Lucknow - 226 010.
Phone : [phone]
Email : [e-mail]
[e-mail]
WEST BENGAL
15. TVS Motor Company Limited
Ground Floor & First Floor,
133 A. S. P. Mukherjee Road,
Opp. Tollygunge Police Station,
Kolkatta - 700 026.
Phone : [phone]
Email : [e-mail]
BIHAR
16. TVS Motor Company Limited
N-Plaza, Jamal Road,
P.S. Kotwali,
Patna - 800 001.
Phone : [phone]
Email : [e-mail]

4
ORISSA & JHARKHAND
17. TVS Motor Company Limited
No. 303, 3rd Floor,
Creative Plaza, Rasulgarh,
Bhubaneshwar - 751 010.
Phone : [phone]
Email : [e-mail]
NORTH EAST STATES
18. TVS Motor Company Limited
147, Udayan, Ganesh Guri,
Opp. Punjab National Bank,
R G B. Road, Guwahati - 781 005.
Phone : [phone]
Email : [e-mail]

5
5
INTRODUCTION
INTRODUCING THE EXTREMELY NEW TVS JUPITER ZX
Since its inception, TVS Jupiter has represented novelty. With its sweeping silhouette, unrivalled comfort and class-
leading features, it truly exhibits our philosophy of ‘Zyada Ka Fayda‘.
Our ability to develop tailor-made scooters for you is the inspiration behind the creation of TVS Jupiter ZX.
Meticulously designed and lovingly crafted, TVS Jupiter ZX‘s captivating exterior is pure indulgence. It is the scooter
that adapts to your needs and can be uniquely suited to match your style, status and personality. It is the extremely
new TVS Jupiter ZX.

6

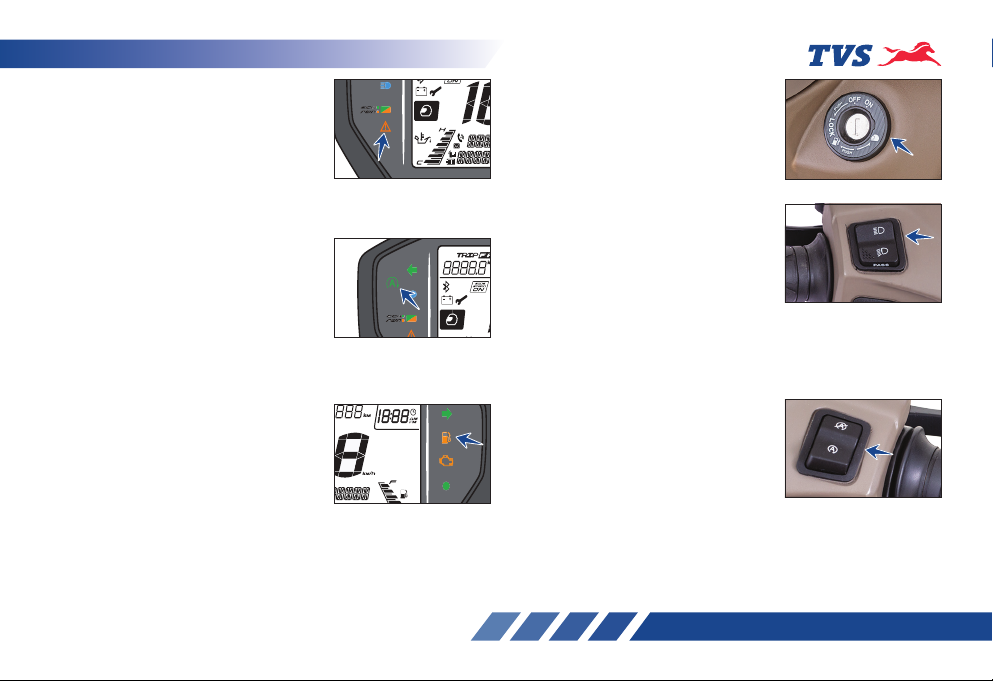

UNIQUE FEATURES OF TVS JUPITER ZX
FULLY DIGITAL CONNECTED
INSTRUMENT CLUSTER WITH
ON-BOARD DIAGNOSTIC
Your scooter is fitted with ‘Fully
Digital Connected Instrument
Cluster’. This first-in class cluster
housed perfectly in the headlamp
housing of your scooter. An Engine
Malfunction Indication lamp is
added to glow whenever any engine
related fault is present in vehicle.
SMARTXONNECT-BLUETOOTH
CONNECTIVITY
The connected instrument cluster
of your scooter has a inbuilt
Bluetooth® connectivity through
which you can connect your
Android™ smart phone / iPhone®
to access the features like caller ID,
SMS and missed call notification,
navigation in the cluster and voice
assist, ride stats share and incase of
Andorid smart phone the last parked
location of the vehicle.
VOICE ASSIST
Your scooter is now provided with
voice assist. You can use your voice
to control various functions like
Speedometer brightness, vehicle
mode etc. You can use your voice
through a connected audio device
like a Bluetooth® headphone
and control vehicle functions like
starting navigation instructions to
a particular location. You can also
set location for navigation, ask for
number of missed calls or current
location etc. over voice.
ECONOMETER®
Your scooter’s speedometer has
ECONOMETER® which indicates
whether you are riding in Economy
Mode or Power mode. This is an
unique feature of your scooter which
guides you to ride your scooter fuel
efficiently. Refer page No. 26 for
details.

7
7
INTEGRATED STARTER
GENERATOR (ISG)
‘Integrated Starter Generator’ (ISG)
system has delivers a noiseless
start of the vehicle. An ISG
malfunction indicator is also added
to the speedometer.
'TVS intelliGO'
An intelligent start/stop system that
further enhances fuel efficiency.
Easy on your pocket and kinder to
the environment. Refer page No.
27 for details.
LOW FUEL INDICATOR
‘Low Fuel Indicator’ is yet another
unique feature of your scooter which
indicates you to refill the fuel, when
the fuel in the tank goes below
minimum safe level. Refer page No.
29 for details.
ALL IN ONE LOCK
Your scooter has all in one lock that
unlocks the seat and fuel tank cap
at the ignition lock itself. Refer page
No. 24 for details.
UNIQUE PASS-BY SWITCH (First
Time in Scooters)
Pass-by Switch is a feature first time
introduced in scooters ever. It allows
you to easily switch between high
& low beam of the head lamp with
easy press and auto release. It is
helpful especially while overtaking.
Refer page No. 59 for details.
'TVS intelliGO' SWITCH
An exclusive intelliGO switch is
provided to switch OFF and ON
the intelliGo system as and when
required. Refer page No. 60 for
details.

8
EXTERNAL FUEL FILL
You can get petrol filled without
even getting out of your seat.
RETRACTABLE BAG HOOKS
Your scooter has two retractable
Bag Hooks to carry light luggage like
carry bags weighing upto 3 kg.
One hook is located below the
handle bar on the rear panel and the
other one is located on the cover
front below the front end of seat.
TELESCOPIC FRONT FORK
Your Scooter has Motorcycle-like
‘Telescopic Front Suspension’ for
extreme comfort for excellent riding
comfort even on bad roads.
ADJUSTABLE REAR SHOCK
ABSORBER
Your Scooter comes with Adjustable
Shock Absorber, a first-in-the-
industry feature. This allows you
to adjust the required level of
hardness / softness as per the
usage requirement at just the push
of a lever.
TUBELESS TYRES
Another important unique feature
in your scooter is ‘Tubeless Tyres’.
Tubeless tyres reduce the chances
of getting punctured. Even if there
is a puncture, sudden leakage of air
is avoided, thereby provide better
safety and convenience. It is also
very easy to repair the punctured
tyres.
T
U
B
E
L
E
S
S

9
9
LED HEAD LAMP
Your Scooter comes in with a
premium LED head lamp. Efficient
and bright, this gives TVS Jupiter ZX
a totally upgraded Look and Style
with better visibility for night rides.
BACKREST PILLION HANDLE IN
BLACK COLOUR
The cushioned pillion handle lets the
pillion rider relax and enjoy the ride.
The sturdy black grabrail provides
additional support and complements
the premium-ness of the scooter.
DUAL COLOR SEAT
The dual colored seat stitched
to perfection ensures not just a
comfortable seating experience but
lets you stay classy on the road.
PATENTED E-Z CENTRE STAND
E-Z Centre Stand of your scooter
reduces the effort required to place
the scooter on stand. Refer page
No. 62 for operating procedure.
ALL BLACK LARGER ALLOY
WHEELS
All ‘Black Larger Alloy Wheels’
with high mechanical advantage
gives progressive braking of your
scooter, results in best-in-class
‘shortest distance’ braking. It also
provide superior comfort in bad road
conditions.
PARKING BRAKE (REAR BRAKE
LOCK)
‘Parking Brake’ is another unique
safety feature which protects your
scooter from falling due to wheel
rotation when it is parked with the
side stand on a slope. Refer page
No. 59 for details.
DISC SYNCHRONISED BRAKE
TECHNOLOGY (SBT)
Taking technological innovation to
next level, your scooter comes with
‘Synchronised Brake Technology
(SBT)’. This feature enhances the
safety by avoiding skidding during
sudden braking.

10
ACCESSORIES FOR YOUR
SCOOTER
SMART PHONE CHARGER*
Your TVS Jupiter ZX is provided with
a socket for charging your smart
phone even while you are traveling
and it is located below the left side
of the handle bar. Refer page No.
68 for usage details.
FRONT GLOVE BOX*
TVS Jupiter ZX is provided with
glove box front. Which has 1 litre
storage capacity and used to hold
your mobiles while charging or hold
a small bottle.
INDICATOR BEEPER*
Your scooter has an electronic
beeper which alerts you that the
turn signal indicators are ‘ON’. This
beeper comes as a mandatory
accessory.
* Mandatory and optional accessory will be charged extra
ACCESSORIES

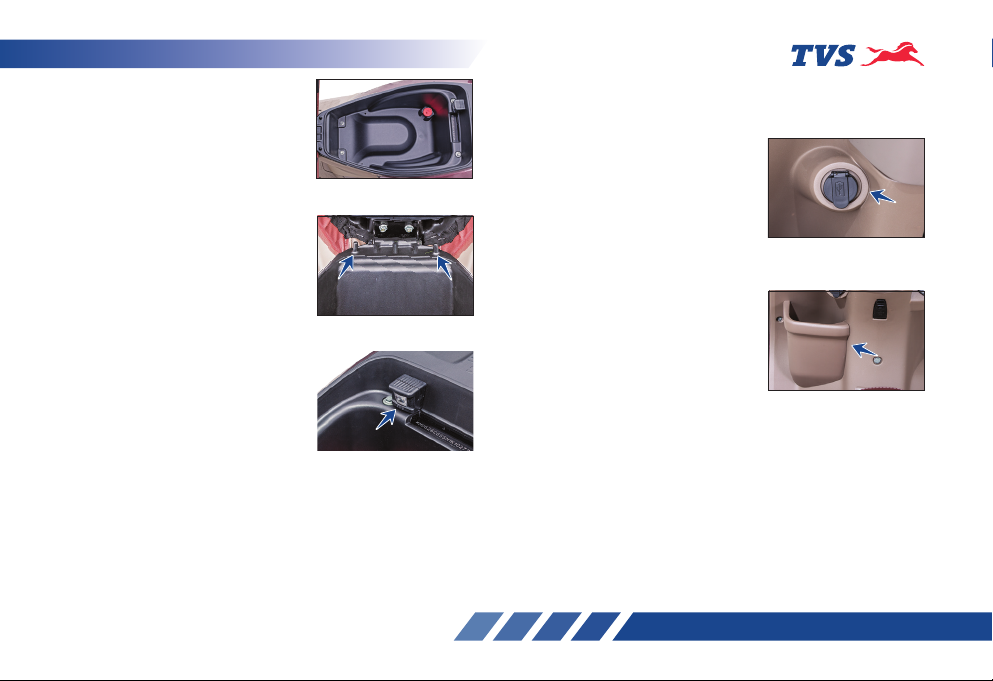

UNDER-SEAT STORAGE (UTILITY
BOX)
Your scooter has a 21 litre under-
seat storage space to carry your
luggage belongings, full face helmet
etc., refer page No. 65 for details.
HELMET HOOKS
Your scooter has two helmet hooks
under the seat assembly at the
front end of utility box to secure
your helmet. Refer page No. 66
for details.
UTILITY BOX LIGHT
TVS Jupiter ZX has a ‘Utility Box
Light‘ which lights up the utility box
automatically whenever the seat is
open.

11
11
Dear TVS Jupiter ZX Owner,
Thank you for choosing TVS Jupiter ZX, a stylish scooter with an all-new CVT-i engine and many class-leading
features. As the proud owner of a TVS Jupiter ZX, you are now a part of the family of millions of satisfied TVS
customers.
TVS Jupiter ZX comes equipped with ETFI (EcoTuned Fuel Injection) BSVI technology, giving you a smoother and
enjoyable riding experience. With TVS Jupiter ZX, riding comfort enters a new dimension. This innovative mobility
embodies a combination of class-leading features and style unprecedented in the two-wheeler segment. Its unique
vehicle design and superior ergonomics make it a scooter which gives you more in every aspect.
This manual explains the features and operations of your TVS Jupiter ZX. Kindly read it carefully and follow the
instructions to enjoy years of safe riding. To ensure reliable performance, we urge you to get your TVS Jupiter
ZX serviced only at TVS Motor Company Authorised Main Dealer / Authorised Dealer at specified regular periodic
intervals.
We welcome you once more to a world of comfortable and easy riding!
TVS MOTOR COMPANY LIMITED
FOREWORD

12
Take time to familiarize yourself with your TVS Jupiter ZX and its performance characteristics.
This Owner‘s Manual contains a host of useful information. Please take the time to read this manual before you ride
your new TVS Jupiter ZX. Get familiarised with the operation of your scooter for maximum safety and pleasure. The
better you know your vehicle, the more pleasure you will experience riding your new vehicle. Ensure that anyone else
riding your TVS Jupiter ZX does the same.
All information, illustrations, photographs and specifications contained in this owner’s manual are based on the latest
product information available at the time of this publication. TVS Motor Company Limited may, however, incorporate
modifications or improvements on its vehicles at any time without notice, and therefore, in such events it is possible
that the relevant part of the owner‘s manual does not apply to your vehicle.
Prior permission of TVS Motor Company Limited is required for quoting, copying or reproducing any part of this
owner’s manual.
Revision 1, Apr 2022
NOTICE
Accessories shown in the picture may not be part of the standard equipment. Pictures shown in this manual are of TVS
Jupiter ZX disc model unless specified.
Your scooter is provided with always glowing head lamp (AHO). The head lamp glows automatically once the engine is
started.
TVS Jupiter ZX is fitted with 'TVS intelliGO' which is an intelligent start/stop system that switches 'OFF / ON' the scooter
automatically (Refer page No. 27 for further details).
Since your vehicle is fitted with side stand cut-off system ensure to retract the side stand before starting the vehicle.
Note

13
13
Operating this vehicle safely is an important responsibility of the rider. To help you make decisions on safety, we
have provided necessary operating procedure and other information in this manual. This information alerts you on
potential hazards that could hurt you or others. Since it is not possible to warn you about all the hazards associated
with operating or maintaining the vehicle, you must use your own judgment.
You will find important safety information in following form in this manual.These words carry the following connotations:
Disregarding this message might result in injury to the rider or deadly accidents.
Warning
This message indicates special procedures or precautions to be followed to avoid damage to the vehicle.
Caution
This message provides further clarification for clear understanding of any particular information.
Note
SAFETY INFORMATION

14
The first 1000 km is a crucial part of your scooter. Proper running-in operation during this period helps in ensuring a
maximum life and smooth performance of your scooter.
The reliability and performance of your scooter depends on the special care and restrain exercised during the
running-in period. It is especially important that you avoid operating the engine in high speed (RPM), which could
expose the engine parts to excessive stress. Recommended speed during the running-in is:
Maximum 50 km/h speed upto 1000 km (vary the engine speed for better mating of parts).
The first free service at 500 ~ 750 km is most important. During running-in period all the engine components and
other parts will have set in. All adjustments to be restored, all fasteners to be tightened. Engine and Transmission
oil to be replaced. Timely performance of the first free service will ensure optimum service life and performance
from the engine.
RUNNING-IN INFORMATION
Replacing the engine and transmission oil during first service is most important for better life of engine. Always use TVS
TRU4 SKUUTA (SAE 10W30 API-SL, JASO MB) oil for better performance and life.
Caution

15
15
SAFE RIDING TIPS
SAFE RIDING RECOMMENDATIONS
Any two wheeler riding requires some precautions to be taken to ensure the safety of the rider, pillion rider and other
road users. These precautions are:
Familiarise yourself with new TVS Jupiter ZX
Riding skill and your mechanical knowledge form the foundation of safe riding practices. We suggest you to practice
riding TVS Jupiter ZX in a low-traffic condition until you are thoroughly familiar with your vehicle and its controls.
Remember practice makes you perfect.
Riding apparel
Loose, fancy clothing can be uncomfortable and unsafe when riding a two-wheeler. Choose good quality two wheeler
riding apparel.
Know your limits
Ride within the boundaries of your own skill at all times. Knowing these limits and staying within them will help you
avoid accidents.
Two wheeler safety starts with wearing a good quality helmet. One of the most serious injuries that can happen is a
head injury. Always wear an ISI approved helmet that should fit your head comfortably and securely. You should also have
good quality goggles to protect your eyes and help your vision.
To prevent or minimize accident, never consume alcohol or drugs before or during the operation of your vehicle. Even minimal
consumption of these will affect the rider’s ability to control the vehicle.
Warning

16
Posture
Proper vehicle riding starts with proper posture.
1. Keep your elbows relaxed and flexible.
2. Sit and adjust yourself on seat so that arms and
shoulders are relaxed.
3. Look widely instead of gazing at one point.
One-hand riding is dangerous. Keep both hands firmly
on the handle bar and both feet securely on the floor
board. Under no circumstances should both the hands
be removed from the handle bar, as it is very dangerous.
Avoid use of mobile phones while riding as it could
lead to fatal accident.
Slow down to a safe speed before negotiating a corner.
If this is the first time that you are riding a vehicle of this
type, we suggest that you practice on a safe, open area
to become thoroughly familiar with the operation of the
vehicle.
Warning
Cornering
When cornering, centrifugal force works in a direction
perpendicular to the direction in which the vehicle
is moving. Centrifugal force increases in proportion
with speed and the radius of the corner.
During cornering, reduce speed so as to lessen the
effects of centrifugal force. By all means, avoid abrupt
application of brake or sudden steering.
Braking
For safe riding, it is very important to master the
braking techniques.
1. Close / release the throttle.
2. Hold the vehicle upright as you apply the brake.
3. Progressive application of brake is safer.
4. Apply both the brakes. ‘SBT’ provides additional
braking even when ‘only rear brake’ is applied,
But applying ‘both the brakes’ helps you to use
the full potential of the brakes.
5. Riding down hills, while cornering and wet roads,
close throttle and come to a slower speed to
avoid the loss of control over the vehicle due to
skidding.

17
17
Causes for poor braking
1. If the brake shoes / pads or drum / disc are worn
out or if there is water or oil on them, sufficient
friction does not develop and brakes do not work
well.
2. Even when the brake works normally, if the road
surface is wet or the tyre surface is worn-out,
tyres do not take a firm hold on the surface,
increasing the stopping distance.
3. Approximately 60% braking effect is from front
brake. Non-usage of front brake causes poor
braking.
As the vehicle speed increases, the stopping distance
also increases progressively. Be sure that, you have
sufficient distance between you and the vehicle or
obstruction ahead of you.
Using only the front or rear brake is dangerous and can
cause skidding and loss of control. Apply both the
brakes together and with great care on a wet road or
other slippery surfaces. Any abrupt braking on slippery
or irregular roads can cause loss of rider control.
Warning
ACCESSORY INSTALLATION AND SAFETYTIPS
Use extreme caution while selecting and installing
the accessories for your scooter.
The addition of unsuitable accessories can lead to
unsafe operating conditions. Your friendly Dealer
will assist you in selecting quality accessories and
installing them correctly.
While selecting the accessories, make sure that the
accessories should not obstruct lighting, steering,
suspension level and ground clearance.
Additional electrical equipments is not acceptable
as it will void warranty terms of the vehicle.
