TVS Scooty Zest 110 User manual

-I-
CONTACT(S) FOR SUPPORT
CONTACT(S) FOR SUPPORT
In case you need any Clarification or Service Assistance, please contact our Dealer
Dealer code , name .......................................................................................................................
Address ..........................................................................................................................................
.........................................................................................................................................................
.........................................................................................................................................................
Contact person name and mobile no. (Sales)
.........................................................................................................................................................
Contact person name and mobile no. (Service)
.........................................................................................................................................................
Email id ...........................................................................................................................................
Or
TVS Motor Company‘s Area Offices (flip over for addresses)
Or
Toll Free Number : 18004252077
Email : [email protected]

CONTACT(S) FOR SUPPORT
-II-
CONTACT(S) FOR SUPPORT

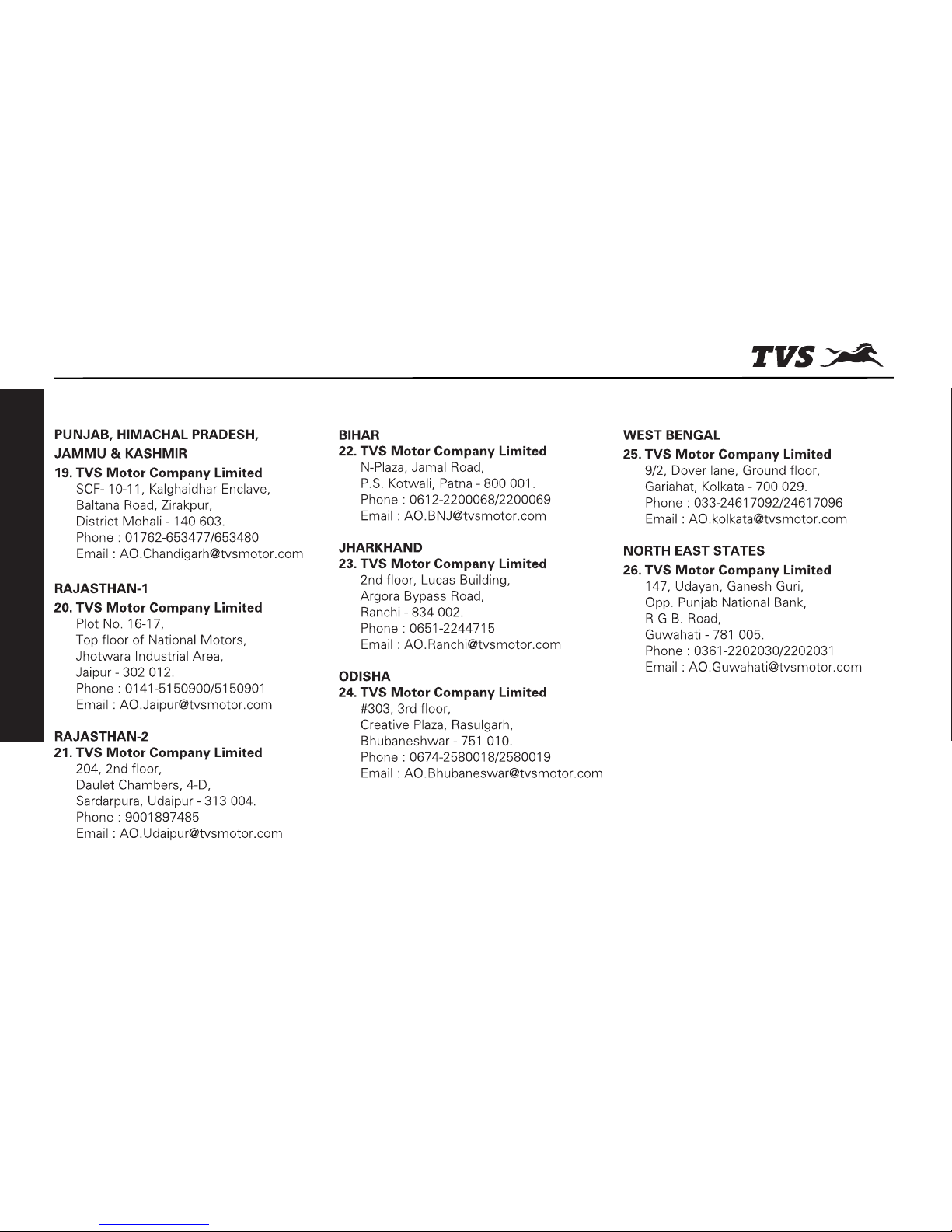

CONTACT AT OUR AREA OFFICES

CONTACT(S) FOR SUPPORT
CONTACT(S) FOR SUPPORT
-III-
CONTACT AT OUR AREA OFFICES

CONTACT(S) FOR SUPPORT
-IV-
CONTACT(S) FOR SUPPORT
CONTACT AT OUR AREA OFFICES

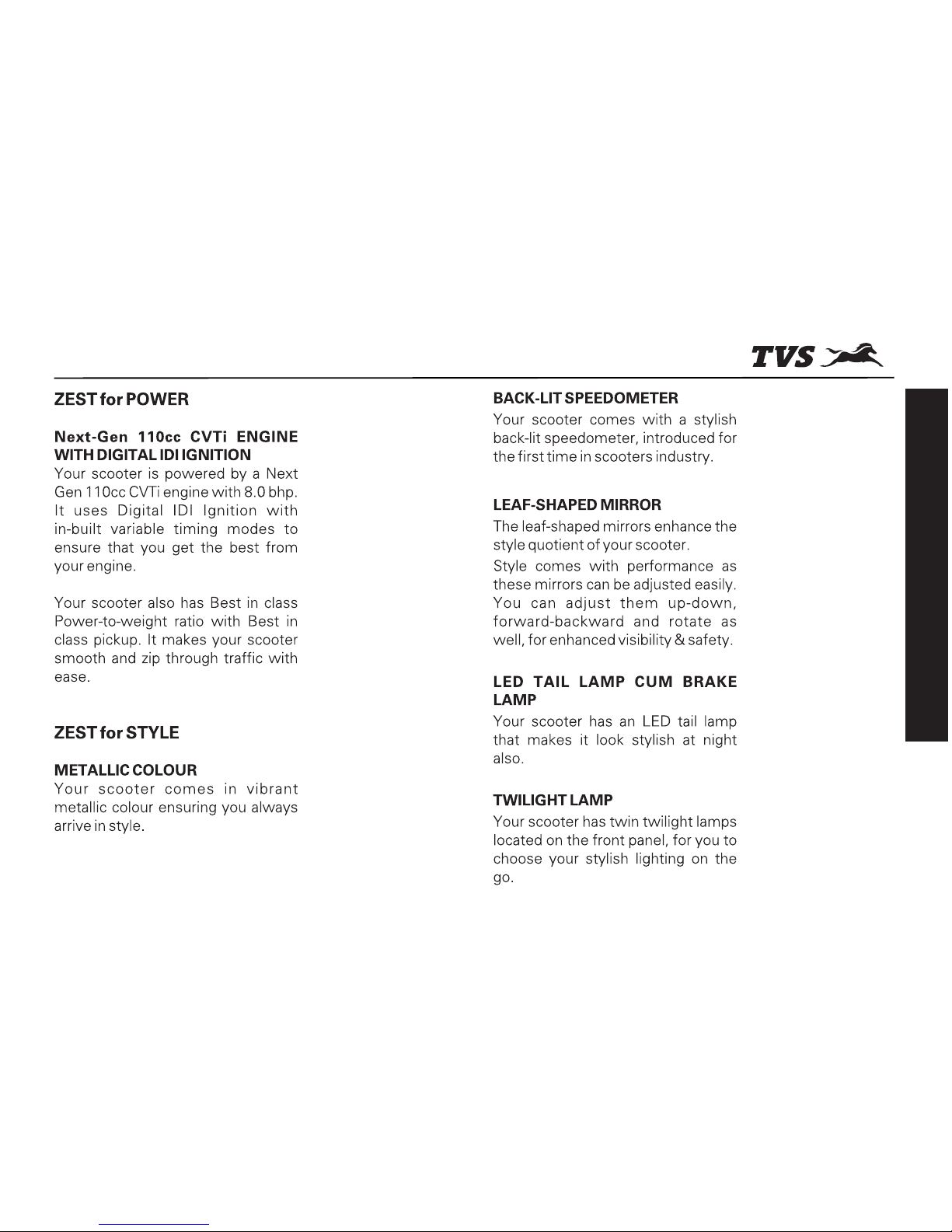

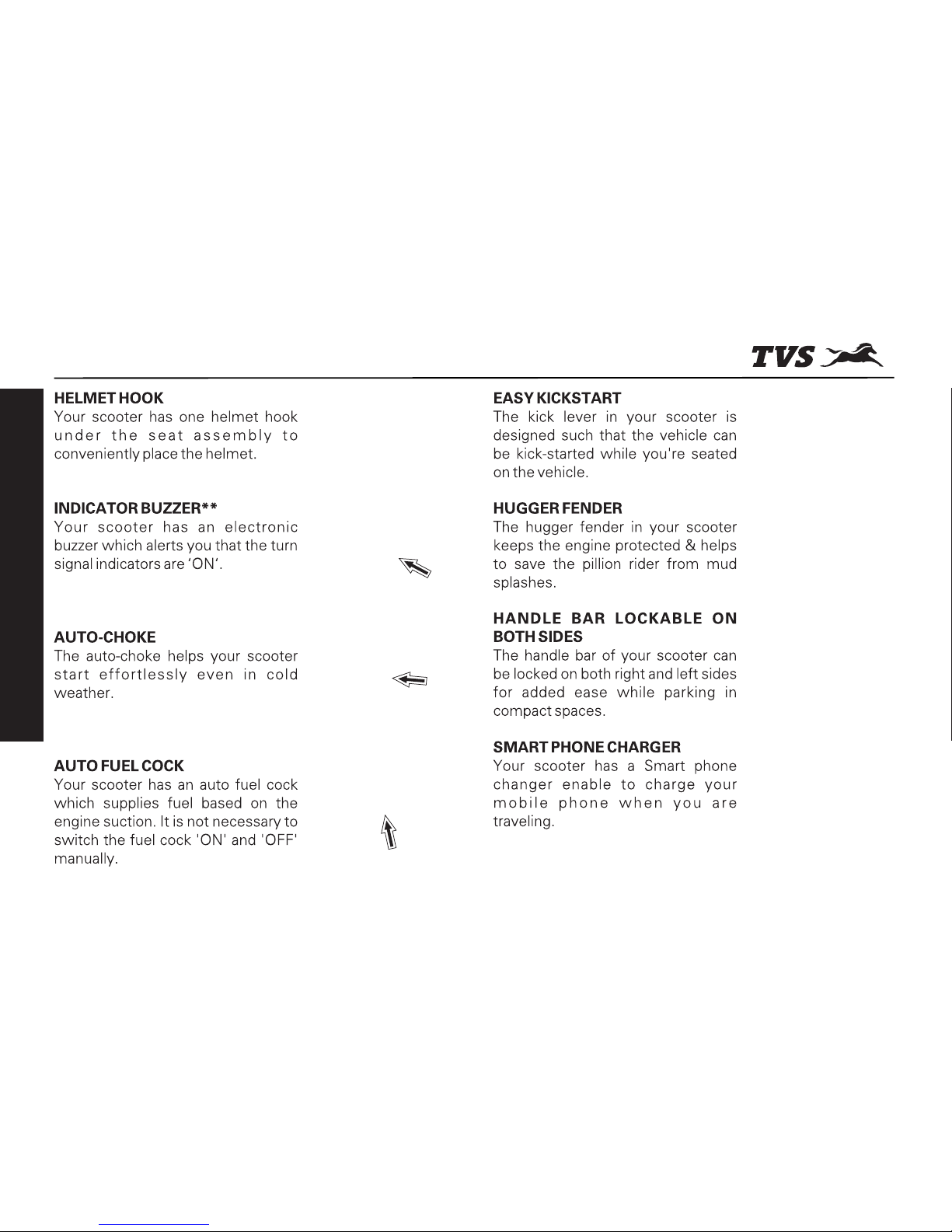

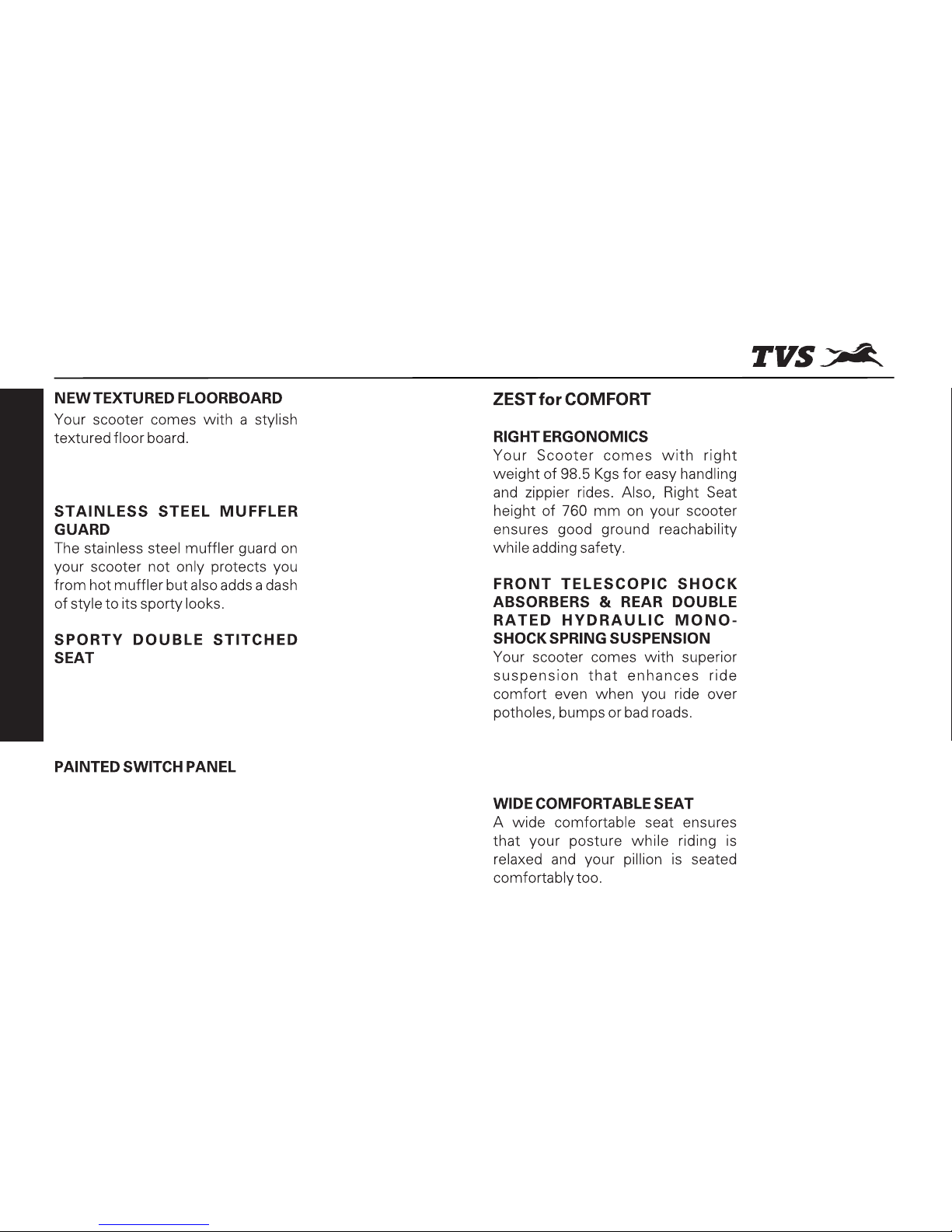

UNIQUE FEATURES OF Scooty Zest 110
-V-
UNIQUE FEATURES OF Scooty Zest 110

UNIQUE FEATURES OF Scooty Zest 110
UNIQUE FEATURES OF Scooty Zest 110
-VI-

UNIQUE FEATURES OF Scooty Zest 110
UNIQUE FEATURES OF Scooty Zest 110
-VII-

UNIQUE FEATURES OF Scooty Zest 110
UNIQUE FEATURES OF Scooty Zest 110
-VIII-
** Accessory will be charged extra

UNIQUE FEATURES OF Scooty Zest 110
UNIQUE FEATURES OF Scooty Zest 110
-IX-
** Accessory will be charged extra

Dear Scooty Zest Owner,
Congratulations and welcome to the world of fun and exciting rides with your Scooty Zest 110.
You‘ve made a smart decision, choosing to ride ahead on the brand new Scooty Zest 110. You‘ll find that it meets all your needs
by striking the perfect balance between power, style, comfort, convenience and mileage.
The stylish new Scooty Zest 110 is crafted especially for you. Its 110cc CVTi engine gives you awesome pick-up and zippy rides.
The Scooty Zest 110 is also easy to ride – with the right height and the right weight; it offers you the perfect balance of speed and
stability, so it‘s easy to handle on busy roads. With the least turning radius, it is easy to manoeuvre as well.
The benefits of Scooty Zest 110 don‘t end there. With its largest under-seat storage of 19 litres, it gives you the all the space to
carry your world with you.
But best of all, it‘s easy on your pocket, with its best-in-class mileage of 62 kmpl.
This manual explains in detail, the many features, benefits and operations of your Scooty Zest 110. Do read through your manual
carefully, it will help you get the best out of your vehicle, and keep it going strong for years to come. To ensure reliable
performance, we urge you to get your Scooty Zest 110 serviced only at TVS Motor Company Authorised Main Dealers /
Authorised Dealers at regular intervals as specified by your service provider.
We wish you zippy, comfortable, safe and exciting trips for years to come! Get ready to zip ahead with Zest!
TVS MOTOR COMPANY LIMITED
FOREWORD
FOREWORD
-X-

NOTICE
NOTICE
This manual should be considered as a permanent part of the scooter and should remain with the scooter when
resold or transferred to a new owner.
All information, illustrations, photographs and specifications contained in this owner’s manual are based on the
latest product information available at the time of this publication. TVS Motor Company Limited may, however,
incorporate modifications or improvements on its vehicles at any time without notice, and therefore, in such
events it is possible that the relevant part of the owner’s manual does not apply to your vehicle.
Prior permission of TVS Motor Company Limited is required for quoting, copying or reproducing any part of this
owner’s manual.
Note
Accessories shown in the picture may not be part of the standard equipment.
Part Number :- K4210360 Revision 3, Aug 2015
-XI-

SAFETY INFORMATION
SAFETY INFORMATION
Operating this vehicle safely is an important responsibility of the rider. To help you make decisions about safety,
we have provided operating procedure and other information in this manual. This information alerts you on
potential hazards that could hurt you or others. Since it is not possible to warn you about all hazards associated
with operating or maintaining the vehicle, you must use on your own judgement.
You will find important safety information in following form in this manual. These words carry the following
connotations:
Warning
Disregarding this message might result in injury to the rider.
Caution
This message indicates special procedures or precautions to be followed to avoid damage to the vehicle.
Note
This message provides further clarification for clearer understanding of any particular information.
-XII-

CONTENTS
CONTENTS
Running-in information 01
Safe riding tips 02
Know your Scooty Zest 110 05
Riding your Scooty Zest 110 21
Maintenance 25
Warranty and services 41
Technical specifications 52
General information 55
-XIII-

Caution
Replacing the engine and transmission oil during first free service is most important for better life of engine.
Always use TVS TRU4 PREMIUM oil (SAE 10W30 SL-JASO MA2) for better performance and life.
RUNNING-IN INFORMATION
RUNNING-IN INFORMATION
The first 1000 km is a crucial part for the life of your scooter. Proper running-in operation during this period helps in
ensuring a maximum life and smooth performance of your scooter.
The reliability and performance of your scooter depends on the special care and restraint exercised during the
running-in period. It is especially important that you avoid operating the engine in high speed (RPM), which could
expose the engine parts to excessive stress. Maximum recommended speed during the running-in is:
Maximum 50 kmph speed upto 1000 km (vary the engine speed for better mating of parts).
The first free service at 500 ~ 750 km is most important. During running-in period all the engine components and
other parts will have set in. All adjustments to be restored, all fasteners to be tightened. Engine and transmission
oil to be replaced. Timely performance of the first free service will ensure optimum service life and performance
from the engine.
-1-

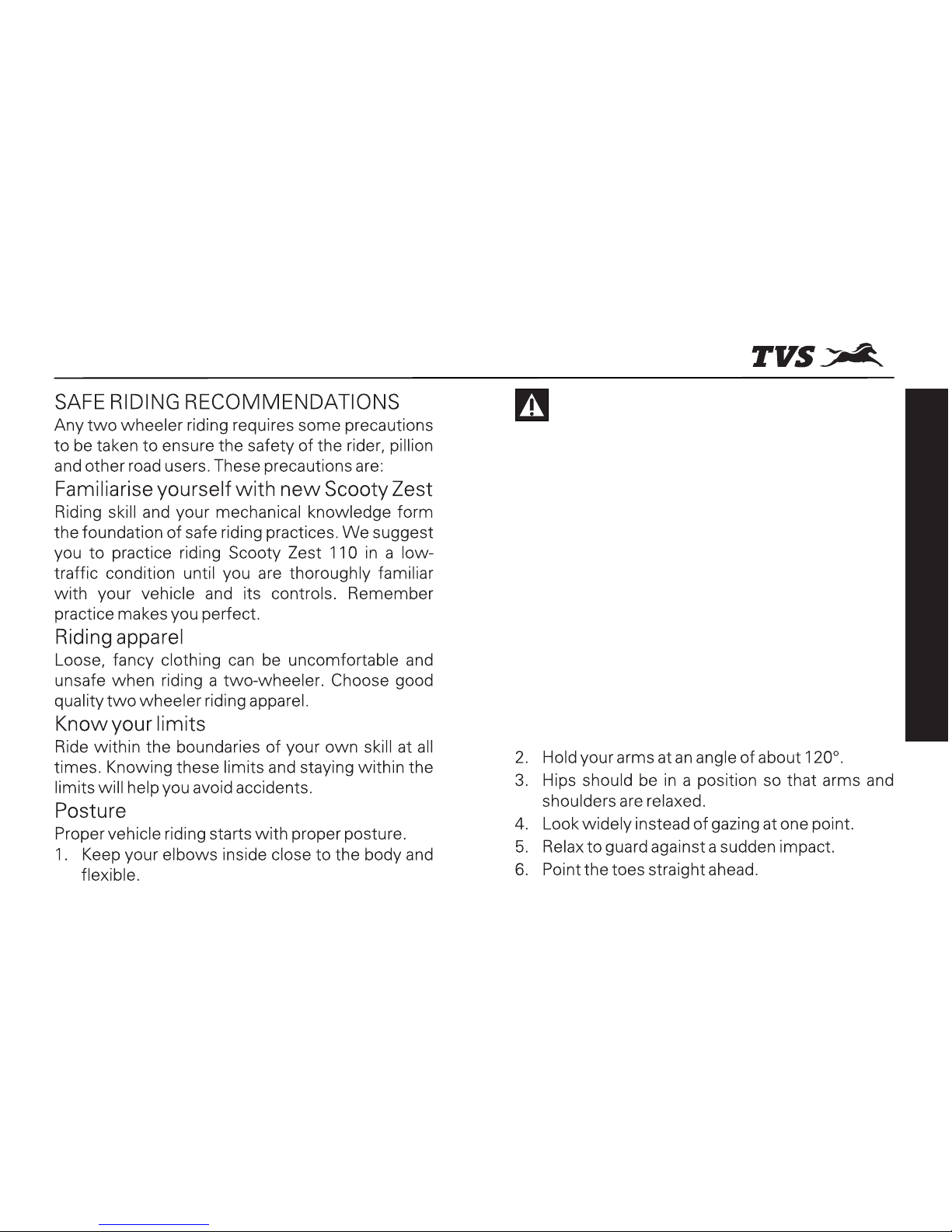

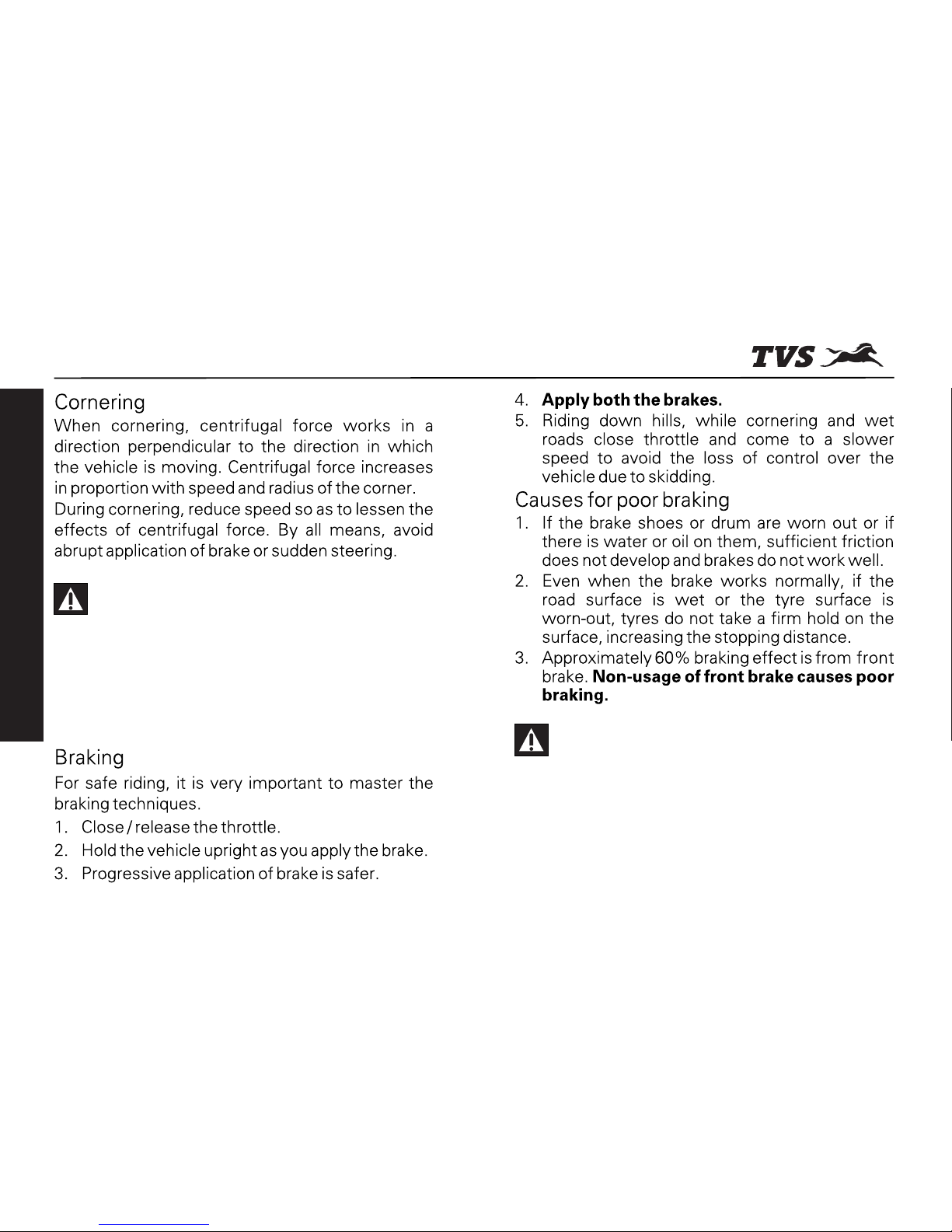

SAFE RIDING TIPS
SAFE RIDING TIPS
-2-
Warning
Two wheeler safety equipment starts with a
safety helmet of good quality. One of the most
serious injuries that can happen is a head injury.
Always wear ISI approved helmet. You should also
have good suitable eye protection.
One-hand riding is dangerous. Keep both hands
firmly on the handle bar and both feet securely on
the floor board. Under no circumstances should
both the hands be removed from the handle bar, as
it is very dangerous.
Avoid use of mobile phones while riding as it
could lead to fatal accident.

SAFE RIDING TIPS
SAFE RIDING TIPS
-3-
Warning
Slow down to a safe speed before negotiating a
corner. If this is the first time that you are riding a
vehicle of this type, we suggest that you practice
on a safe, open area to become thoroughly familiar
with the operation of the vehicle.
Warning
As the vehicle speed increases, the stopping
distance also increases progressively. Be sure
that, you have sufficient distance between you and
the vehicle or obstruction ahead of you. Avoid
directing the water jet directly towards brake
drums during water wash.

SAFE RIDING TIPS
SAFE RIDING TIPS
Warning
Using only the front or rear brake is dangerous and
can cause skidding and loss of control. Apply both
the brakes together and with great care on a
wet road or other slippery surfaces. Any abrupt
braking on slippery or irregular roads can cause loss
of rider control.
-4-
Note
Get your vehicle certified by the Government
authorised emission testing stations at
specified intervals.

VEHICLE IDENTIFICATION NUMBER
Serial numbers of both frame and engine are required for vehicle identification. They are also required to assist
your Dealer for ordering parts or referring to special information.
Frame number
Engine number
Control key number
Please fill the above boxes now for future reference
KNOW YOUR Scooty Zest 110
KNOW YOUR Scooty Zest 110
The frame serial number is stamped on the frame,
at the rear end below the seat assembly. Open the
seat assembly to read the frame number.
The engine serial number is stamped on the left
side of the engine, at the bottom, near center stand
mounting.
-5-

LOCATION OF PARTS - HANDLE BAR
1. Retractable bag hook
2. Horn switch
3. Turn signal lamp switch
4. Rear brake lever
5. Parking brake (rear brake lock)
6. Rear view mirror L
7. High/low beam switch
8. Speedometer assembly
9. Rear view mirror R
10. Front brake lever
11. Throttle grip
12. Lights ON/OFF switch
13. Electric starter switch
14. Ignition cum steering lock
15. Glove box*
KNOW YOUR Scooty Zest 110
-6-
* Accessory will be charged extra
KNOW YOUR Scooty Zest 110
10
11
12
13
14
15
689
7
4
1
2
3
5

LOCATION OF PARTS - VEHICLE LEFT SIDE
1. Rear brake adjusting nut
2. Lady foot rest - foldable*
3. Kickstarter lever
4. Effortless easy centre stand
5. Side stand*
6. Side stand switch*
7. Front brake adjusting nut
8. Pillion foot rest L
9. Seat lock
10. Pillion handle
KNOW YOUR Scooty Zest 110
-7-
* Accessory will be charged extra
KNOW YOUR Scooty Zest 110
2
4
73
5
61
8 9 10
