Tyco DV-5A User manual

DV-5a Automatic Water Control Valve Electric/
Electric Double Interlock Preaction Fire Protection
Systems 1 1/2 Inch to 8 Inch (DN40 to DN200)
Page 1 of 18 SEPTEMBER 2022 TFP1466
Worldwide
Contacts
www.tyco-fire.com
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycore/tfp1466
General
Description
The TYCO DV-5aAutomatic Water
Control Valves are diaphragm type
valves that can be used in double inter-
lock preaction re protection systems.
When properly trimmed, the double
seat design of the DV-5aValve also
provides actuation of re alarms upon
system operation.
The diaphragm style design of the
DV-5aValve allows external resetting,
providing for easy resetting of a deluge
system without having to open a valve
handhole cover to manually reposition
a clapper and/or latch mechanism.
Simply re-pressurizing the diaphragm
chamber resets the valve.
The DV-5afeatures internal and exter-
nal coating of the valve to provide
corrosion resistance. The external cor-
rosion resistance of the epoxy coating
permits the use of the DV-5ain cor-
rosive atmospheres associated with
many types of industrial processing
plants and outdoor installations.
The DV-5aValves are offered with the
DV-5aValve and separately ordered
semi-assembled trim shown in Figures
6 and 7, or, for ease of installation, with
DV-5aValve completely trimmed with or
without a System Main Control Valve.
Double interlock preaction systems are
designed for use in applications, such
as refrigerated areas, requiring the
maximum degree of protection against
inadvertent ooding of the sprinkler
system piping. In order for a double
interlock preaction system to automat-
ically activate, two independent events
must occur. First, the electric detection
system must operate, and secondly,
an automatic sprinkler on the system
piping must operate. Typically, the
electric detection system is designed to
operate before any automatic sprinkler.
Operation of just the electric detection,
or just the opening of a sprinkler will
not allow the DV-5aValve to open and
permit water to ow into the normally
dry sprinkler system piping. However,
operation of just the electric detec-
tion system or the opening of a sprin-
kler (loss of system air pressure) will
result in a supervisory alarm to notify
the building occupants of a condition
Available End Connections and Weights — lb/(kg)
End Connection Nominal Valve Size ANSI Inches
(DN)
Inlet Outlet 1 1/2
(40)
2
(50)
3
(80)
4
(100)
6
(150)
165,1
mm
8
(200)
Thread Thread 26
(11, 8)
25
(11, 3) N/A N/A N/A N/A N/A
Groove Groove 25
(11, 3)
25
(11, 3)
60
( 27, 2 )
95
(4 3,1)
177
(80,3)
177
(80,3)
327
(148,3)
Flange Groove N/A N/A 66
(30,0)
106
(4 8,1)
190
(86,2) N/A 346 (157,0)
Flange Flange N/A N/A 72
(32,7)
116
(52,6)
204
(92,5) N/A 365 (165,6)

TFP1466
Page 2 of 18
Item Description Qty.
Nominal Valve Size ANSI Inch (DN)
1 1/2 (DN40) 2 (DN50) 3 (DN80) 4 (DN100) 6 (DN150)e8 (DN200)
P/N P/N P/N P/N P/N P/N
1Valve Body 1N/R N/R N/R N/R N/R N/R
2Diaphragm 1545000020 545000020 545000030 545000040 545000060 545000080
3Diaphragm Cover 1N/R N/R N/R N/R N/R N/R
4 Hex Bolt, Short 2a545100001 545100001 545100002 545100003 545100004 545100003
5Hex Bolt, Long 2545100011 545100011 545100012 545100013 545100014 545100015
6Lift Washer 2bN/A N/A 545100021 545100022 545100023 545100022
7Hex Nut 2545100031 545100031 545100032 545100033 545100034 545100033
8Hoist Ring 2545100041 545100041 545100041 545100041 545100041 545100041
9Flat Washer 2N/A N/A 545100024 545100025 545100026 545100025
NOTES
a. Hex Bolt, Short, Qty. 6 in 6 and 8 inch (DN150 and DN200) assemblies.
b. Lift Washer not used in 1 1/2 and 2 inch (DN40 and DN50) assemblies.
c. N/R = Not Replaceable.
d. Order replacements parts only via Part Numbers given, do not replace Hex Bolt, Hex
Nut, Lift Washer or Hoist Ring with common hardware parts.
e. Also applicabale to metric 165,1 mm size.
1-1/2 AND 2 INCH
VALVES ONLY
6 AND 8 INCH
VALVES ONLY
79 5
6
3
4
1
75
3
1
1
2
5
9
1
2
3
8
4
7
6
FIGURE 1
DV-5aVALVE ASSEMBLY AND REPLACEMENT PARTS
Nominal
Valve
Size
ANSI
Inches
(DN)
Flange Drilling Specification
Nominal Dimensions in Inches and (mm)
ANSI B16.1a
(Class 125) ISO 7005-2 (PN16)bJIS B 2210 (10K) AS 2129 (Table E)
A B N A B N A B N A B N
3
(80)
6.00
(152,4)
0.75
(19,0) 46.30 (160,0)
0.75
(19,0) 85.90 (150,0)
0.59
(15,0) 85.75 (146,0)
0.71
(18,0) 4
4
(100)
7.50
(190,5)
0.75
(19,0) 87. 0 9 (180,0)
0.75
(19,0) 86.89 (175,0)
0.60
(15,0) 87. 0 0 178,0)
0.71
(18,0) 8
6
(150)
9.50
(241,3)
0.88
(22,2) 89.45 (240,0)
0.91
(23,0) 89.45 (240,0)
0.75
(19,0) 89.25 (235)
0.87
(22,0) 8
8
(200)
11.75
(298,5)
0.88
(22,2) 811.61 (295,0)
0.91
(23,0) 12 11.42 (290,0)
0.75
(19,0) 12 11. 50 (292,0)
0.87
(22,0) 8
NOTES:
a. Same drilling as for
ANSI B16.5 (Class 150) and
ANSI B16.42 (Class 150)
b. Same drilling as for
BS 4504 Section 3.2 (PN16) and
DIN 2532 (PN16)
Dim. A
Bolt Circle
Diameter
Dim. B
Bolt Hole
Diameter
Qty. N
Number of
Bolt Holes
TABLE A
FLANGE DRILLING SPECIFICATIONS

TFP1466
Page 3 of 18
Port Port Description Port Sizes, NPT Inch per ANSI B1.20.1
1 1/2 (DN40) 2 (DN50) 3 (DN80) 4 (DN100) 6 (DN150)a8 (DN200)
P1 Diaphragm Chamber Supply 1/2 1/2 1/2 1/2 1/2 1/2
P2 Water Supply Pressure & Alarm Test 1/2 1/2 1/2 1/2 1/2 1/2
P3 Alarm Actuation 3/4 3/4 3/4 3/4 3/4 3/4
P4 Automatic Drain Valve 1/2 1/2 1/2 1/2 1/2 1/2
P5 System Drain 3/4 3/4 3/4 3/4 3/4 3/4
P6 Main Drain 3/4 3/4 1 1/4 222
P7 System Air Supply 1/2 1/2 1/2 1/2 1/2 1/2
NOTES
a. Also applicable tp metric 165,1 mm size.
FIGURE 2A
FIGURE 2C
FIGURE 2B
FIGURE 2D
SYSTEM DRAIN CONDITION
WATER SUPPLY SHUT OFF
DRAIN FROM SYSTEM
SET CONDITION
WATER SUPPLY
SYSTEM OPEN TO ATMOSPHERE
ALARM PORT
WATERFLOW
TO ALARM
WATER SUPPLY
PRESSURE &
ALARM TEST
SYSTEM
DRAIN
OPEN
SYSTEM
DRAIN
OPEN
MAIN
DRAIN
CLOSED
MAIN
DRAIN
OPEN
DIAPHRAGM
CHAMBER
SUPPLY
FROM
UPSTREAM
SIDE OF
SHUT-OFF
VALVE
DIAPHRAGM
CHAMBER
DIAPHRAGM
CHAMBER
OPEN TO
ATMOSPHERE
VALVE
WATERWAY
DIAPHRAGM
SEAT
VALVE
WATERWAY
DIAPHRAGM
CHAMBER
SUPPLY
FROM
UPSTREAM
SIDE OF
SHUT-OFF
VALVE
DIAPHRAGM
AUTOMATICALLY
FLEXES TO
ITS SEATED
POSTION
DIAPHRAGM
CHAMBER
OPEN TO
ATMOSPHERE
DIAPHRAGM
RETRACTS
OPENING
VALVE
WATERWAY
VALVE
WATERWAY
DIAPHRAGM
SEAT
VALVE
WATERWAY
OPERATED CONDITION
WATER SUPPLY SHUT OFF
RESIDUAL DRAIN CONDITION
WATERFLOW FROM WATER SUPPLY
WATERFLOW TO SYSTEM
RESIDUAL DRAIN FROM SYSTEM
SYSTEM
AIR
SUPPLY
AUTOMATIC
DRAIN VALVE
OPEN TO
ATMOSPHERE
AUTOMATIC
DRAIN VALVE
CLOSED
FIGURE 2
DV-5aVALVE OPERATION, PREACTION SYSTEMS

TFP1466
Page 4 of 18
needing attention so as to avoid inad-
vertent ooding of the system piping.
A solenoid valve is used in the Elec-
tric/Electric Actuation to hold the DV-5a
Valve closed by locking pressure in the
diaphragm chamber of the DV-5aValve.
In the event of a re, Zone 1 of a releas-
ing panel is initiated by a re detection
or electric manual pull station, and
Zone 2 of the releasing panel is initi-
ated by a low pressure alarm switch
triggered by loss of system air pres-
sure due to the opening of an auto-
matic sprinkler. Initiating of Zone 1 and
2 results in opening the solenoid valve
to operate the DV-5aValve.
NOTICE
The DV-5aValves described herein
must be installed and maintained in
compliance with this document, as
well as with the applicable standards
of the NATIONAL FIRE PROTECTION
ASSOCIATION (NFPA), in addition to
the standards of any other authorities
having jurisdiction. Failure to do so
may impair the performance of these
devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Technical
Data
Approvals
UL/C-UL Listed
FM Approved
Listings and Approvals are based on
DV-5abeing trimmed as described in
this technical data sheet.
DV-5AValve
Components for the 1 1/2 thru 8 in.
(DN40 thru DN200) DV-5aValves are
shown in Figure 1. The DV-5aValves
are for vertical installations. They are
rated for use at a service pressures of
20 to 300 psi (1,4 to 20,7 bar).

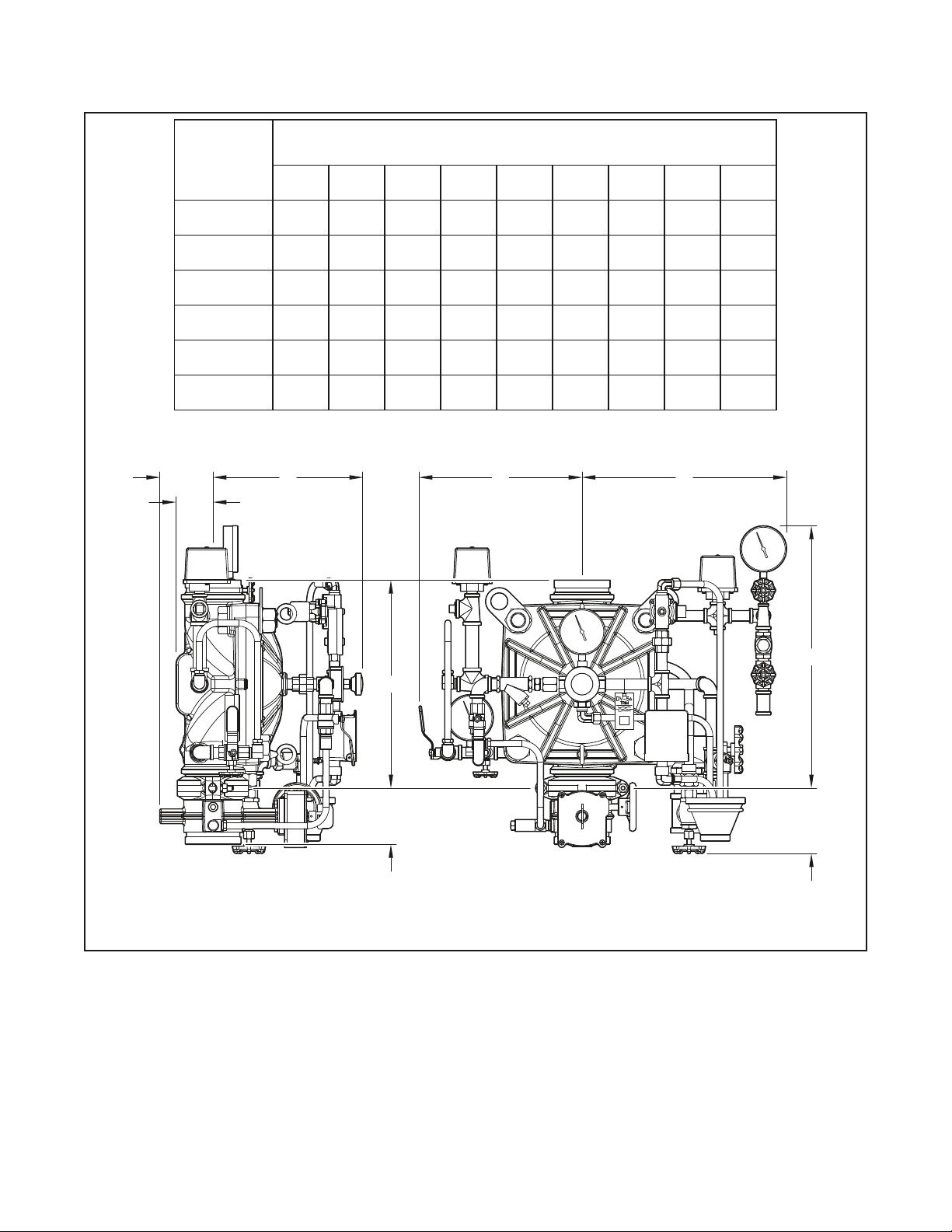

The take-out dimensions are shown
in Figure 3, and anged connections
are available drilled per ANSI, ISO,
AS, and JIS specications (See Table
A). Threaded inlet and outlet connec-
tions are available in NPT or ISO 7-1.
Threaded port connections are NPT
threaded.
NOTE: PN16 flanges are pressure rated
to 16 bar.
Valve Trim
The maximum pressure rating for the
Electric/Electric Double Interlock Pre-
action Trim is dependent on separately
ordered solenoid valve per Technical
Data Sheet TFP2180.
Electric/Electric Double Interlock Pre-
action Trim, when using the separately
ordered QRS Electronic Accelerator, is
based on the separately ordered QRS
Electronic Accelerator per Technical
Data Sheet TFP1100
When the system pressure is greater
than 175 psi (12,1 bar), provision is to be
made to replace the standard order 300
psi (20,7 bar) Water Pressure Gauges
with separately ordered 600 psi (41,4
bar) Water Pressure Gauges.
If the addition of an Alarm Control Valve
is desired or required by the local AHJ,
the Alarm Control Valve noted as Item
H in Figure 8 is to be a separately
ordered electronically supervised nor-
mally open valve.
External trim connections are NPT
threaded. EMEA trim is provided with
NPT x ISO 7-1 thread adapters.
Pressure Loss
See Graph A
Actuation Options
See Electric/Electric Actuation sub-
section for additional information.
Materials of
Construction
Valve Body
Epoxy coated ductile iron per ASTM
A536-77, Grade 65-45-12
Diaphragm Cover
Epoxy coated ductile iron per ASTM
A536-77, Grade 65-45-12
Diaphragm
Polyester fabric reinforced, TEFLON
coated, EPDM rubber per ASTM D2000
Diaphragm Cover Fasteners
Aluminum zinc coated steel
Common Hardware Trim
• Common hardware pipe ttings are
galvanized or black as required and
are malleable per ASME B16.3.
• Common hardware pipe nipples are
galvanized or black as required and
are Schedule 40 per ASTM A53 or
A135.
• Common hardware compression
tting are brass per ASTM B16
• Common hardware tubing is Type L
per ASTM B88
8 Inch (DN200)
6 Inch (DN150)
4 Inch (DN100)
3 Inch (DN80)
2 Inch (DN50)
1-1/2 Inch (DN40)
22-3/8"
(569 mm)
16-3/4"
(425 mm)
13-3/4"
(349 mm)
10-3/16"
(260 mm)
10-3/16"
(260 mm)
27-7/16"
(697 mm)
DIMENSIONS SHOWN
ARE APPLICABLE TO
ALL END CONNECTION
CONFIGURATIONS
AVAILABLE PER
VALVE SIZE
FIGURE 3
DV-5aDELUGE VALVE
TAKE-OUT DIMENSIONS

TFP1466
Page 5 of 18
Operation
The TYCO DV-5aValve is a diaphragm
style valve that depends upon water
pressure in the Diaphragm Chamber
(see Figure 2A) to hold the Diaphragm
closed against the water supply
pressure.
When the DV-5aValve is set for service,
the Diaphragm Chamber is pressurized
through the trim connections from the
inlet side of the system’s main control
valve.
Opening of a solenoid valve for Electric/
Electric Actuation (see Figure 4) trips the
Model MRA-1 Manual Reset Actuator.
Tripping the MRA-1 releases water from
the DV-5aDiaphragm Chamber faster
than it can be replenished through the
1/8 in. (3,2 mm) restriction located in
the diaphragm chamber supply con-
nection. Release of water through the
MRA-1 results in a rapid pressure drop
in the DV-5aDiaphragm Chamber. The
force differential applied through the
Diaphragm to hold the Diaphragm in
the set position is then reduced below
the valve trip point. The water supply
pressure then forces the Diaphragm
open permitting water to flow into
the system piping, as well as through
the Alarm Port to actuate the system
alarms (see Figure 2B).
Upon opening of the DV-5aValve, the
Model MRA-1 Manual Reset Actua-
tor opens to constantly vent the DV-5a
Diaphragm Chamber to "hydraulically
latch" the DV-5ain the tripped position
until manually reset.
See Electric/Electric Actuation sub-
section for additional information.
3 INCH (DN80)
2 INCH (DN50)
4 INCH (DN100)
8 INCH (DN200)
1-1/2 INCH (DN40)
6 INCH (DN150), 165,1 mm
200 400 1000 3000200060010050
50002000 3000 1000070001000600400200
4000
15000
9.0
8.0
4.0
6.0
5.0
7.0
3.0
2.0
1.0
0.7
0.9
0.8
0.5
0.4
0.6
0.3
NOMINAL PRESSURE DROP IN BAR
(1 PSI = 0,06895 BAR)
FLOW RATE IN LITERS PER MINUTE (LPM)
(1 GPM = 3,785 LPM)
NOMINAL PRESSURE DROP IN POUNDS PER SQUARE INCH (PSI)
FLOW RATE IN GALLONS PER MINUTE (GPM)
0,022
0,080
0,030
0,040
0,060
0,050
0,070
0,100
0,090
0,200
0,300
0,400
0,500
0,600
GRAPH A
DV-5aVALVE
NOMINAL PRESSURE LOSS VERSUS FLOW

TFP1466
Page 6 of 18
Electric/
Electric
Actuation
System Design Considerations
Because a double interlock preac-
tion system requires time for a drop in
system air pressure to occur (concur-
rently with the response time for the
separate re detection system) before
it will allow water to enter the system
piping, this system has characteristics
similar to a dry pipe sprinkler system.
Therefore, the system design con-
siderations for a dry pipe system are
normally applied to a double interlock
preaction system, — including: a 30%
increase in design area; a maximum
1 minute water delivery time for system
capacities of 500 gallons (1890 liters)
or more; and, prohibition of gridded
system piping.
As an option, the DV-5aDouble Inter-
lock Preaction System with Electric/
Electric Actuation may be equipped
with the Model QRS Electronic Accel-
erator to reduce the time to valve actu-
ation following the operation of the
electric detection system and one or
more automatic sprinklers. Refer to
Technical Data Sheet TFP1100 for
details regarding installation require-
ments and pressure ratings.
Note: Use of the Model QRS Electronic
Accelerator can permit system volumes
of 750 gallons (2840 Liters) without
applying the minimum one minute
water delivery time.
In order to readily perform the System
Inspection Procedure described in
the Care and Maintenance section,
it is recommended that a System
Shut-Off Valve be installed above the
DV-5aValve, as shown in Figure 4. The
System Shut-Off Valve should be a
listed or approved (as appropriate) indi-
cating valve with a supervisory switch
to monitor the normally open position.
Detection System
The Double Interlock Preaction System
With Electric/Electric Actuation Trim
provides for electric operation of the
DV-5aValve by a detection system
consisting of electrical devices such
as heat sensitive thermostats, smoke
detectors, and/or electric manual pull
stations. Information on the various
types of separately ordered Solenoid
Valves that may be used with this trim
package is given in Technical Data
Sheet TFP2180. Nominal installation
dimensions for the Double Interlock
Preaction System With Electric/Electric
Actuation Trim are shown in Figure 7.
The cross-zone deluge valve releas-
ing panel (automatic control unit)
with battery back-up, re detection
devices, manual pull stations, and sig-
naling devices, that are utilized with the
Double Interlock Preaction System with
Electric/Electric Actuation must be UL
Listed, ULC Listed, C-UL Listed, or FM
Approved, as applicable.
NOTES:
The normally closed, de-energized
solenoid Valve is separately ordered and
selected based on the required laboratory
approval acceptable to the authority having
jurisdiction. Refer to technical data Sheet
TFP2180 for specific laboratory approvals.
Consult with the authority having
jurisdiction regarding installation criteria
pertaining to electric actuation circuitry.
Due to the functionality of the Model
MRA-1 Manual Reset Actuator, the
release circuit of the releasing panel
need only provide the typical ten
minutes of alarm condition intended
to energize the Solenoid Valve to
SYSTEM PIPING WITH AUTOMATIC SPRINKLERS - NORMALLY DRY
SYSTEM DRAIN VALVE
(NORMALLY CLOSED)
MAIN
DRAIN VALVE
(NORMALLY
CLOSED)
LOCAL
MANUAL
CONTROL
STATION
MAIN
CONTROL VALVE
(NORMALLY
OPEN)
WATER
SUPPLY
DIAPHRAGM CHAMBER
PRESSURE GAUGE
WATER SUPPLY
PRESSURE
GAUGE
MANUAL RESET
ACTUATOR
WATERFLOW
PRESSURE
ALARM
SWITCH
SOLENOID
VALVE
(TYPICALLY
24 VOLTS DC)
ELECTRIC DETECTION SYSTEM
(TYPICALLY 24 VOLTS DC)
HEAT DETECTORS, SMOKE DETECTORS,
MANUAL PULL STATIONS, ETC.
CROSS-ZONE
DELUGE VALVE
RELEASING PANEL
(AUTOMATIC
CONTROL UNIT
WITH BATTERY
BACK-UP)
POWER
SUPPLY
(TYPICALLY
120 VOLTS AC)
MANUAL ELECTRIC PULL STATION
(AS REQUIRED)
ZONE
1
AUTOMATIC
AIR/NITROGEN
SUPPLY
TYPICALLY
15 PSI
ZONE
2
SUPERVISORY
LOW PRESSURE
ALARM SWITCH
DV-5A
VALVE
RESTRICTION DRAIN
DRAIN DRAIN
DRAIN
DRAIN
SYSTEM
SHUT-OFF VALVE
(NORMALLY OPEN)
SYSTEM AIR
PRESSURE
GAUGE
WATER SUPPLY SHUT-OFF
(NORMALLY OPEN)
DIAPHRAGM
CHAMBER SUPPLY
CONTROL VALVE
(NORMALLY OPEN)
DIAPHRAGM CHAMBER
SUPPLY CONNECTION
FIGURE 4
DV-5aVALVE - DOUBLE INTERLOCK PREACTION ELECTRIC/ELECTRIC ACTUATION
SCHEMATIC DIAGRAM

TFP1466
Page 7 of 18
open. After the ten minute duration, at
which point should the Solenoid Valve
become de-energized and close (espe-
cially while operating under battery
back-up), the MRA-1 will have already
automatically opened, thereby prevent-
ing the DV-5aDiaphragm Chamber
from becoming re-pressurized, and
preventing an inadvertent closing of
the DV-5aduring a re event.
WARNING
If the delay between electric actua-
tion and subsequent sprinkler activa-
tion is anticipated to be greater then
10 minutes, adjust the battery back-up
calculation accordingly. Inadequate
battery back-up may result in failure of
the system to operate in the event of a
fire during a power failure.
Releasing Circuit
The recommened arrangement is to
equip the releasing circuit with a Potter
RCDS-1 Releasing Circuit Switch, or
equivalent. The RCDS-1 provides for a
temporary disconnect (de-energized) of
the Solenoid Valve during Step 9 of the
Valve Resetting Procedure.
System Air Pressure Requirements
The recommended system air pres-
sure for the Double Interlock Preaction
System with Electric/Electric Actuation
is nominally 15 psi (1,0 bar), irrespective
of the water supply pressure. The use
of a higher system air pressure may or
may not adversely affect water deliv-
ery time, and the use of a lower system
air pressure may prevent clearing the
alarm of the Low Pressure Switch on
increasing pressure. The Low Pressure
Switch is eld set to alarm at nominally
12 psi (0,8 bar) on decreasing pres-
sure when using a nominal system air
pressure of 15 psi (1,0 bar). It is recom-
mended that the system air pressure
be maintained by either of the follow-
ing methods:
• A maximum 200 psi (13,8 bar) plant
air supply in combination with the
Model AMD-1 Air Maintenance
Device described in Technical Data
Sheet TFP1221
• A maximum 3000 psi (206,9 bar)
nitrogen cylinder in combination with
the Model AMD-3 Nitrogen Mainte-
nance Device described in Technical
Data Sheet TFP1241
NOTES:
It is recommended that the pressure
maintenance device be of a type that
maintains a constantsystem pressure, i.e.,
a pressure maintenance device that utilizes
a pressure regulator versus a pressure
switch (e.g., the AMD-1 or AMD-3). Use
of a pressure switch operated pressure
maintenance device with a cut-in/cut-
out differential may result in a delay in
the operation of the system due to a fire,
because of the cut-out pressure being
higher than the recommended nominal
system air pressure.
The dew point of the air or nitrogen
supply, for a system exposed to freezing
conditions, must be maintained below the
lowest ambient temperature to which the
system piping will be exposed. Introduction
of moisture into the system piping can
create ice build up which could prevent
proper operation of the system.
The Air Pressure Relief Valve is typi-
cally eld set to crack open at a pres-
sure of about 20 psi (1,4 bar) when
using a nominal system air pressure of
15 psi (1,0 bar).
Installation
The TYCO DV-5aValve is to be installed
in accordance with this section.
NOTICE
DV-5A Automatic Water Control Valves
are designed to be used in freshwater
systems. When the supply is from an
alternative source such as brackish
water, saltwater, or contains additives
such as foam, the limited warranty is
reduced to one year from the time of
installation. An increase in frequency of
inspections is required when the valve
is exposed to such supplies and other
corrosive conditions or chemicals that
could impact valve materials or the
operation of the assembly. The system
and all components must be designed
accordingly for the increased demand.
It is required to thoroughly flush the
valve and trim assembly with freshwa-
ter and reset to the set condition after
each operation.
Proper operation of the DV-5aValves
depends upon their trim being installed
in accordance with the instructions
given in this technical data sheet.
Failure to follow the appropriate trim
diagram may prevent the DV-5aValve
from functioning properly, as well as
void approvals and the manufacturer’s
warranties.
The DV-5aValve must be installed in a
readily visible and accessible location.
The DV-5aValve and associated trim
must be maintained at a minimum tem-
perature of 40°F (4°C).
Heat tracing of the DV-5aValve or its
associated trim is not permitted. Heat
tracing can result in the formation of
hardened mineral deposits that are
capable of preventing proper operation.
Always open the system control valves
slowly to avoid a sudden rush of water
entering the system.
The DV-5aValve is to be installed in
accordance with the following criteria:
Step 1. All nipples, ttings, and devices
must be clean and free of scale and
burrs before installation. Use pipe
thread sealant sparingly on male pipe
threads only.
Step 2. The DV-5aValve must be
trimmed in accordance with one of the
trim illustrations shown in Figure 5.
Note: If the addition of an Alarm Control
Valve is desired or required by the local
AHJ, the Alarm Control Valve noted as
Item H in Figure 8 is to be a separately
orderedelectronicallysupervisednormally
open valve.
Step 3. Care must be taken to ensure
that check valves, strainers, globe
valves, etc., are installed with the ow
arrows in the proper direction.
Step 4. Drain tubing to the Drip Funnel
must be installed with smooth bends
that will not restrict ow.
Step 5. The Main Drain and Drip Funnel
Drain may be interconnected provided
a check valve is located at least 12 in.
(300 mm) below the Drip Funnel.
Step 6. Suitable provision must be
made for disposal of drain water. Drain-
age water must be directed such that
it will not cause accidental damage to
property or danger to persons.
Step 7. Connect the Diaphragm Supply
Valve to the inlet side of the System
Main Control Valve in order to facilitate
setting of the DV-5aValve (see Figure
8).
Step 8. An Inspector’s Test Connection
is to be located on the sprinkler system
at the most hydraulically demanding
location.
Step 9. A suitable automatic air (nitro-
gen) supply, as described in the appli-
cable Electric/Electric Actuation
sub-section, is to be installed in accor-
dance with the applicable technical
data sheet. The minimum air pressure
is to be in accordance with the refer-
enced sub-sections.
Step 10. A desiccant dryer, when spec-
ied, is to be installed between a drip
leg and the Air Maintenance Device.
Step 11. The Low Pressure Switch on
falling pressure in the Electric/Electric
Actuation is to be adjusted so that the
low pressure alarm setting is set at
3 psi (0,21 bar) below the system air
pressure.
Step 12. Unused Pressure Alarm
Switch connections must be plugged.
Step 13. The Pressure Relief Valve on
rising pressure is to be at 5 psi (0,34 bar)
higher than the required system air
pressure, or be reset in accordance
with the requirements of the authority
having jurisdiction.
To reset the Pressure Relief Valve, rst
loosen the jam nut and then adjust the

TFP1466
Page 8 of 18
cap accordingly, clockwise for a higher
pressure setting or counter clockwise
for a lower pressure setting. After ver-
ifying the desired pressure setting,
tighten the jam nut.
Step 14. Conduit and electrical con-
nections are to be made in accordance
with the applicable standards of the
approval agency.
Step 15. Before a system hydrostatic
test is performed, the DV-5aDiaphragm
Chamber is to be depressurized, the
Automatic Drain Valve is to be tem-
porarily replaced with a plug, and the
Diaphragm Cover Bolts must be uni-
formly and securely tightened using
a cross-draw sequence.After tight-
ening, double-check to make certain
that all of the Diaphragm Cover Bolts
are securely tightened. See Table B in
the Care and Maintenance section for
torque specications.
Valve Setting
Procedure
Perform Steps 1 through 20 when ini-
tially setting the TYCO DV-5aValve,
after an operational test of the re pro-
tection system, or after system opera-
tion due to a re. See Figure 8.
Step 1. Close the System Main Control
Valve (B).
Step 2. Close the Diaphragm Supply
Valve (P) and Air Supply Valve (S).
Step 3. Open the Main Drain Valve (D),
System Drain Valve (E), and all auxil-
iary drains in the system. Close the
auxiliary drain valves and the System
Drain Valve (E) after water ceases to
discharge. Leave the Main Drain Valve
(D) open.
At this time make certain that the
Pressure Gauge Valves and the Alarm
Control Valve (H), as applicable, are
open.
NOTICE
Do not open the Inspector’s Test Con-
nection and auxiliary drains if reset-
ting after a system test; otherwise,
system air pressure will be relieved
unnecessarily.
Step 4. Depress the plunger of the
Automatic Drain Valve (F) to verify that
it is open.
Step 5. Clean the Diaphragm Supply
Strainer (Q) by removing the clean-
out plug and strainer basket. The Dia-
phragm Supply Strainer (Q) may be
ushed out by momentarily opening
the Diaphragm Supply Valve (P).
Step 6. Inspect for and clear all ice
plugs where system piping has been
exposed to freezing conditions and
when there has been a ow of water
into the system.
Step 7. Replace all damaged or oper-
ated sprinklers. Replacement sprinklers
must be of the same type and tempera-
ture rating as those that operated.
NOTICE
In order to prevent the possibility of a
subsequent operation of an overheated
solder type sprinkler, any solder type
sprinklers possibly exposed to a tem-
perature greater than their maximum
rated ambient must also be replaced.
Step 8. Service the air dryer, if appli-
cable, in accordance with the manu-
facturer’s instructions.
Step 9. De-energize the Solenoid Valve
(V) via the Potter RCDS-1 Releasing
Circuit Disable Switch, or equivalent.
Step 10. Operate (open) the Manual
Control Station (M) and then open
the Diaphragm Supply Valve (P). After
unaerated water ceases to discharge
from the Manual Control Station (M)
drain tube, slowly close the operating
lever by pushing it up. Do not close the
hinged cover at this time.
Step 11. After allowing water to ow out
of the Manual Reset Actuator (N) drain
tube until aerated water ceases to dis-
charge, reset the Manual Reset Actua-
tor (N) by pressing the Reset Knob and
hold until water stops owing from its
drain tube and the pressure builds and
reaches approximately 15 psi (1,0 bar)
on the Diaphragm Gauge (K). Pressure
will then build up in the DV-5aDia-
phragm Chamber.
Step 12. Inspect the actuation device
drain connections. Any leaks must be
corrected before proceeding to the
next step. Electric/Electric Actuation
drain connection to be inspected are
from the Manual Control Station (M)
and Solenoid Valve (V) shown in Figure
4.
Step 13. Verify the ability for the DV-5a
Diaphragm to hold pressure as follows:
• With the diaphragm chamber pres-
surized per Step 11, temporarily
close the Diaphragm Supply Valve
(P), and then observe the Diaphragm
Gauge (K) for a drop in pressure.
• If a drop in pressure is noted, the
DV-5aDiaphragm is to be replaced
and/or any leaks must be corrected
before proceeding to the next step.
• If the Diaphragm Gauge (K) indicates
no drop in pressure, re-open the Dia-
phragm Supply Valve (P) and pro-
ceed to the next step.
Step 14. Open the Air Supply Valve
(S) and allow the system to automati-
cally re-establish its nominal system
air pressure. Observe the Automatic
Drain Valve (F) for leaks. If there are
leaks, determine/correct the cause of
the leakage problem.
• Nominal system air pressure for Elec-
tric/Electric Actuation is typically 15
psi (1,0 bar).
Step 15. Open the System Shut-Off
Valve (X), as will be the case when
resetting a system after performing an
operational test.
Step 16. Reset the electric detection
system in accordance with the man-
ufacturer's instructions. After setting
the releasing panel, return the Potter
RCDS-1 to "green light - releasing
circuit system normal".
Step 17. Partially open the System
Main Control Valve (B). Slowly close the
Main Drain Valve (D) as soon as water
discharges from the Main Drain Valve
(D). Observe the Automatic Drain Valve
(F) for leaks. If there are leaks, deter-
mine/correct the cause of the leakage
problem before proceeding.
NOTICE
When the System Main Control Valve
(B) is partially opened, the pressure on
the DV-5aDiaphragm Chamber may
increase. This increase in pressure is
normal, and if the pressure is greater
than 300 psi (20,7 bar), the pressure
is to be relieved by partially and tem-
porarily opening the Manual Control
Station (M); however, do not allow
the pressure as indicated on the Dia-
phragm Gauge (K) to drop below the
supply pressure shown on the Water
Supply Gauge (J), since this action may
result in tripping of the DV-5aValve.
Step 18. Close the hinged cover on the
Manual Control Station (M) and insert a
new break rod in the small hole through
the top of the enclosing box.
Step 19. Fully open the System Main
Control Valve (B).
Step 20. After setting a re protec-
tion system, notify the proper authori-
ties and advise those responsible for
monitoring proprietary and/or central
station alarms.

TFP1466
Page 9 of 18
Notes:
1. Port Connections P1 through P7 are described in Figure 2.
2. External Trim Connections C1 through C5 are described in Figure 8.
3. When ordering pre-assembled "DV-5AValve with Galvanized Trim" or pre-assembled "DV-5AValve with Galvanized Trim and Buttery Valve", Items A1
through A10 are provided, as applicably related to valve size, and Item A7 is provided as P/N 52-287-1-124 described in Technical Data Sheet TFP2180
4. When ordering DV-5A Trim separately from the DV-5AValve, Items A1 through A10 are separately ordered, as applicably related to valve size. Water
Pressure Gauges for EMEA valve trim are also separately ordered.
Assemble in order
from A to L
C6
C7
C3
C5
C4
C2
C1
P1
P2
P3
P6
P7 P4
P5
1-1/2" (DN40) AND 2" (DN50)
VALVES ONLY
A1
A5
A4
A5
A6
A7
A3
A2
A8
A10
A9
E
D
C
A
B
G
H
F
L
J
K
FIGURE 5
DV-5aVALVES
DOUBLE INTERLOCK PREACTION ELECTRIC/ELECTRIC ACTUATION TRIM
SEMI-ASSEMBLED

TFP1466
Page 10 of 18
Notes:
1. Port Connections P1 through P7
are described in Figure 2.
2. External Trim Connections C1
through C5 are described in
Figure 8.
3. When ordering pre-assembled
"DV-5A Valve with Galvanized
Trim" or pre-assembled "DV-5A
Valve with Galvanized Trim
and Buttery Valve", Items A1
through A10 are provided, as
applicably related to valve size,
and Item A7 is provided as P/N
52-287-1-124 described in
Technical Data Sheet TFP2180
4. When ordering DV-5A Trim
separately from the DV-5A Valve,
Items A1 through A10 are sepa-
rately ordered, as applicably
related to valve size. Water Pres-
sure Gauges for EMEA valve trim
are also separately ordered.
ITEM QTY DESCRIPTION CH 1-1/2 IN. (DN40) 2 IN. (DN50) 3 IN. (DN80) 4 IN. (DN100) 6 IN. (DN150)b8 IN. (DN200)
1 2 1/4” GAUGE TEST VALVE 460051003 460051003 460051003 460051003 460051003 460051003
2 1 MRA-1 MANUAL RESET ACTUATOR 545001000 545001000 545001000 545001000 545001000 545001000
3 1 MC-2 MANUAL CONTROL STATION 545002000 545002000 545002000 545002000 545002000 545002000
4 1 AD-3 AUTOMATIC DRAIN VALVE 547932004 547932004 547932004 547932004 547932004 547932004
5 1 PRIMING SUPPLY RESTRICTION 545100051 545100051 545100051 545100051 545100051 545100051
6 1 1/4” PRESSURE RELIEF VALVE 923431020 923431020 923431020 923431020 923431020 923431020
7 2 1/2” BALL VALVE 460501004 460501004 460501004 460501004 460501004 460501004
8 1 1/2” GLOBE VALVE 460471005 460471005 460471005 460471005 460471005 460471005
9 1 1/2” SPRING LOADED CHECK VALVE 923221003 923221003 923221003 923221003 923221003 923221003
10 1 1/2” SWING CHECK VALVE 460491007 460491007 460491007 460491007 460491007 460491007
11 11/2” Y-STRAINER 523531006 523531006 523531006 523531006 523531006 523531006
12 1 3/4” ANGLE VALVE 460481010 460481010 460481010 460481010 460481010 460481010
13 1ANGLE VALVE 460481010 460481010 460481011 460481012 460481012 460481012
14 1DRIP FUNNEL BRACKET CONNECTOR 9221110 0 5 9 2 211100 5 9 2 2111005 9221110 05 9221110 0 5 9221110 05
15 1 DRIP FUNNEL BRACKET 9221110 0 3 9 2 211100 3 9 2 211100 3 9 221110 03 9221110 0 3 9 221110 03
16 1DRIP FUNNEL 923431007 923431007 923431007 923431007 923431007 923431007
17 2 COMP. FITTING 90° 1/2” MNPT x 1/2” OD TUBE 1001253-01 1001253-01 1001253-01 1001253-01 1001253-01 1001253-01
18 1 COMP. FITTING 90° 1/2” FNPT x 1/2” OD TUBE 1001420-01 1001420-01 1001420-01 1001420-01 1001420-01 1001420-01
19 2 FLARE FITTING 90° 1/2” NPT x 1/2” TUBE 545100062 545100062 545100062 545100062 545100062 545100062
20 2 FLARE FITTING 3/4” NPT x 3/4” TUBE 545100063 545100063 545100063 545100063 545100063 545100063
21 2PIPE PLUG ✓1/4” 1/4” 1/4” 1/4” 1/4” 1/4”
22 1PIPE PLUG ✓1/2” 1/2” 1/2” 1/2” 1/2” 1/2”
23 1PIPE PLUG ✓3/4” 3/4” 3/4” 3/4” 3/4” 3/4”
24 2UNION ✓1/2” 1/2” 1/2” 1/2” 1/2” 1/2”
C6
C7
C5
C3
C4
C2
C1
P1
P6
P7
P2
P3
P4
P5
1-1/2" (DN40) AND 2" (DN50)
VALVES ONLY
A5
A4
A5
A6
A1
A3
A7
A2
A8 A10
A9
2
9
17
13
33
55
54 20
12 3
29
39
14
11
37
27
37
7
24
37
20
49
24
31 35
121
25
48
19
38
7
37
27
19
43
5
45
56
16
15
4
29
18
53
50
32
10
30
34
1
36
21
36
36
8
41
36
22
39
26 51
27
28
52 27
42
46
36
47
17
57
40
58
59
56
31
6
32
23
44
FIGURE 6 (1 OF 2)
DV-5aVALVES
DOUBLE INTERLOCK PREACTION ELECTRIC/ELECTRIC ACTUATION TRIM
EXPLODED VIEW

TFP1466
Page 11 of 18
ITEM QTY DESCRIPTION CH 1-1/2 IN. (DN40) 2 IN. (DN50) 3 IN. (DN80) 4 IN. (DN100) 6 IN. (DN150)b8 IN. (DN200)
25 1STREET ELBOW ✓1/4” x 90° 1/4” x 90° 1/4” x 90° 1/4” x 90° 1/4” x 90° 1/4” x 90°
26 1ELBOW ✓1/2” x 45° 1/2” x 45° 1/2” x 45° 1/2” x 45° 1/2” x 45° 1/2” x 45°
27 4ELBOW ✓1/2” x 90° 1/2” x 90° 1/2” x 90° 1/2” x 90° 1/2” x 90° 1/2” x 90°
28 1CROSS ✓1/2” 1/2” 1/2” 1/2” 1/2” 1/2”
29 2TEE ✓1/2” 1/2” 1/2” 1/2” 1/2” 1/2”
30 1REDUCING TEE ✓1/2” x 1/4” x 1/2” 1/2” x 1/4” x 1/2” 1/2” x 1/4” x 1/2” 1/2” x 1/4” x 1/2” 1/2” x 1/4” x 1/2” 1/2” x 1/4” x 1/2”
31 2REDUCING TEE ✓1/2” x 1/2” x 1/4” 1/2” x 1/2” x 1/4” 1/2” x 1/2” x 1/4” 1/2” x 1/2” x 1/4” 1/2” x 1/2” x 1/4” 1/2” x 1/2” x 1/4”
32 2REDUCING TEE ✓3/4” x 1/2” x 3/4” 3/4” x 1/2” x 3/4” 3/4” x 1/2” x 3/4” 3/4” x 1/2” x 3/4” 3/4” x 1/2” x 3/4” 3/4” x 1/2” x 3/4”
33 1REDUCING TEE ✓3/4” x 3/4” x 3/4” 3/4” x 3/4” x 3/4” 1-1/4” x 1-1/4” x 3/4” 2” x 2” x 3/4” 2” x 2” x 3/4” 2” x 2” x 3/4”
34 1PIPE NIPPLE ✓1/4” x CLOSE 1/4” x CLOSE 1/4” x CLOSE 1/4” x CLOSE 1/4” x CLOSE 1/4” x CLOSE
35 1PIPE NIPPLE ✓1/4” x 1 1/2” 1/4” x 1 1/2” 1/4” x 1 1/2” 1/4” x 1 1/2” 1/4” x 1 1/2” 1/4” x 1 1/2”
36 5PIPE NIPPLE ✓1/2” x CLOSE 1/2” x CLOSE 1/2” x CLOSE 1/2” x CLOSE 1/2” x CLOSE 1/2” x CLOSE
37 4PIPE NIPPLE ✓1/2” x 1 1/2” 1/2” x 1 1/2” 1/2” x 1 1/2” 1/2” x 1 1/2” 1/2” x 1 1/2” 1/2” x 1 1/2”
38 1PIPE NIPPLE ✓1/2” x 2” 1/2” x 2” 1/2” x 2” 1/2” x 2” 1/2” x 2” 1/2” x 2”
39 2PIPE NIPPLE ✓1/2” x 2 1/2” 1/2” x 2 1/2” 1/2” x 2 1/2” 1/2” x 2 1/2” 1/2” x 2 1/2” 1/2” x 2 1/2”
40 1PIPE NIPPLE ✓1/2” x 4 1/2” 1/2” x 4 1/2” 1/2” x 4 1/2” 1/2” x 4 1/2” 1/2” x 4 1/2” 1/2” x 4 1/2”
41 1PIPE NIPPLE ✓1/2” x 5” 1/2” x 5” 1/2” x 5” 1/2” x 5” 1/2” x 5” 1/2” x 5”
42 1PIPIE NIPPLE ✓1/2” x 8 1/2” 1/2” x 8 1/2” 1/2” x 8 1/2” 1/2” x 8 1/2” 1/2” x 8 1/2” 1/2” x 8 1/2”
43 1PIPE NIPPLE ✓3/4” x 1 1/2” 3/4” x 1 1/2” 3/4” x 1 1/2” 3/4” x 1 1/2” 3/4” x 1 1/2” 3/4” x 1 1/2”
44 1PIPE NIPPLE ✓3/4” x 4 1/2” 3/4” x 4 1/2” 3/4” x 4 1/2” 3/4” x 4 1/2” 3/4” x 4 1/2” 3/4” x 4 1/2”
45 1TUBING, MRA-1 DRAIN 545100065 545100065 545100066 535002140 535002160 535002180
46 1TUBING, MC-2 DRAIN 535000220 535000220 535000230 535000240 535000260 535000280
47 1TUBING, SOLENOID DRAIN 535001020 535001020 535000630 535000640 535000660 535000680
48 1 TUBING ASSY, ALARM TEST INTERCONNECT 535000320 535000320 535000330 535000340 535000360 535000380
49 1 TUBING ASSY, SYSTEM DRAIN 535000420 535000420 535000430 535000440 535000460 535000480
50 1PIPE NIPPLE ✓1/2” x 3 1/2” 1/2” x 3 1/2” 1/2” x 4 1/2” 1/2” x 5 1/2” 1/2” x 5 1/2” 1/2” x 6 3/4”
51 1PIPE NIPPLE ✓1/2” x 5” 1/2” x 5” 1/2” x 5 1/2” 1/2” x 5 1/2” 1/2” x 5 1/2” 1/2” x 6 1/2”
52 1PIPE NIPPLE ✓1/2” x 5” 1/2” x 5” 1/2” x 4 1/2” 1/2” x 5” 1/2” x 7 1/2” 1/2” x 9 1/2”
53 1PIPE NIPPLE ✓3/4” x 5” 3/4” x 5” 3/4” x 6” 3/4” x 7” 3/4” x 9” 3/4” x 11 1/2”
54 1PIPE NIPPLE ✓3/4” x 4 1/2” 3/4” x 4 1/2” 1-1/4” x 3 1/4” 2” x 3” 2” x 3” 2” x 3”
55 1PIPE NIPPLE ✓3/4” x 6 1/2” 3/4” x 6 1/2” 1-1/4” x 5 1/2” 2” x 5” 2” x 6” 2” x 8”
56
2WATER PRESSURE GAUGE, 300 PSI / 2000 kPa
(AMER/APAC) 923431005 923431005 923431005 923431005 923431005 923431005
2WATER PRESSURE GAUGE, 20 bar / 2000 kPa
(EMEA) 025500013 025500013 025500013 025500013 025500013 025500013
57 1AIR PRESSURE GAUGE, 80 PSI / 550 kPa
RETARDED TO 250PSI / 1750 kPa 923431012 923431012 923431012 923431012 923431012 923431012
58 1LABEL 545003005 545003005 545003005 545003005 545003005 545003005
59 1 LABEL WIRE — — — — — —
A1 1DV-5 A VALVE SEE ORDERING PROCEDURE, SEPARATE DV-5A VALVES WITHOUT TRIM, FOR PART NUMBERS
A2
1WATERFLOW PRESSURE ALARM SWITCH,
DOUBLE CONTACTS (APAC) 25710 or 100102 25710 or 100102 25710 or 100102 25710 or 100102 25710 or 100102 25710 or 100102
1WATERFLOW PRESSURE ALARM SWITCH,
SINGLE CONTACTS (EMEA) 0260 0260 0260 0260 0260 0260
1WATERFLOW PRESSURE ALARM SWITCH,
DOUBLE CONTACTS (AMER) 25710 25710 25710 25710 25710 25710
A3
1LOW AIR PRESSURE ALARM SWITCH, DOUBLE
CONTACTS (APAC) 25730 or 100402 25730 or 100402 25730 or 100402 25730 or 100402 25730 or 100402 25730 or 100402
1LOW AIR PRESSURE ALARM SWITCH, DOUBLE
CONTACTS (AMER) 25730 25730 25730 25730 25730 25730
1LOW AIR PRESSURE ALARM SWITCH, DOUBLE
CONTACTS (EMEA) 0262 0262 0262 0262 0262 0262
A4 1 BUTTERFLY VALVE, G x G 51024A 51021A — — — —
1 BFV-300 BUTTERFLY VALVE, G x G — — 59300G030WS 59300G040WS 59300G060WS 59300G080WS
A5 2FIGURE 577 RIGID GROOVED COUPLING 57715ACP 57720ACP — — — —
1FIGURE 577 RIGID GROOVED COUPLING — — 57730ACP 57740ACP 57760ACP 57780ACP
A6 1 GROOVE x THREADED OUTLET WELDED TEE 545004000 545004001 — — — —
A7 1SOLENOID VALVE NORMALLY CLOSED
(SEPARATELY ORDERED) SEE TFP2180 SEE TFP2180 SEE TFP2180 SEE TFP2180 SEE TFP2180 SEE TFP2180
A8 1INVERTED FLARE SHUT-OFF VALVEa545100100 545100100 545100099 545100100 545100100 545100100
A9 1 FLARE FITTING 90° 1/2” NPT x 1/2” TUBE 545100062 545100062 545100062 545100062 545100062 545100062
A10 1TUBING ASSY, DIAPHRAGM CHAMBER SUPPLY 540000015 540000020 540000030 540000040 540000060 540000080
NOTES
a. Not VdS Approved
b. Also applicable to metric 165,1mm size.
CH - Common Hardware - Refer to Materials of Construction section for specications.
FIGURE 6 (2 OF 2)
DV-5aVALVES
DOUBLE INTERLOCK PREACTION ELECTRIC/ELECTRIC ACTUATION TRIM
EXPLODED VIEW

TFP1466
Page 12 of 18
Nominal
Valve
Size
ANSI
Inches
(DN)
Inches
(mm)
A B C D E F G H J
1 1/2
(40)
2.8
(71)
9.7
(246)
9.8
(249)
15.7
(399)
16.0
(406)
7.4
(188)
10.2
(259)
8.02
(204)
1.2
(31)
2
(50)
2.8
(71)
9.7
(246)
9.8
(249)
15.7
(399)
16.0
(406)
7.4
(188)
10.2
(259)
8.09
(205)
2.9
(74)
3
(80)
4.0
(102)
10.7
(272)
11.5
(292)
16.3
(414)
18.4
(467)
6.2
(158)
13.8
(351)
3.79
(96)
3.6
(91)
4
(100)
4.5
(114)
11.9
(302)
12.6
(320)
16.5
(419)
21.0
(533)
5.5
(140)
16.8
(427)
4.54
(115)
4.3
(109)
63
(150)
5.7
(145)
13.4
(340)
14.5
(368)
18.4
(467)
24.8
(630)
3.8
(97)
22.4
(569)
5.83
(148)
5.7
(145)
8
(200)
6.8
(174)
16.1
(409)
16.7
(424)
19.5
(495)
29.2
(742)
3.3
(84)
27. 5
(699)
5.24
(133)
6.7
(170)
NOTES
1. Dimensions based on drain valves being open.
2. Dimensions do not provide installation clearance.
3. Also applicable to metric 165,1 mm size.
HF
E
DCB
J
A
G
FIGURE 7
DV-5aVALVE
DOUBLE INTERLOCK PREACTION ELECTRIC/ELECTRIC ACTUATION TRIM
NOMINAL DIMENSIONS

TFP1466
Page 13 of 18
Care and
Maintenance
The following procedures and inspec-
tions must be performed as indicated,
in addition to any specic require-
ments of the NFPA and any applicable
standards recognized by the Approval
agency. Any impairment must be imme-
diately corrected. See Figure 8.
NOTICE
If the water supply needs to be shut off
to the DV-5avalve and trim and cannot
be shut off upstream of the system,
close the System Main Control Valve
(B), the Diaphragm Supply Valve (P),
and the Water Supply Shut-Off Valve
(R). This will allow any trim above the
System Main Control Valve (B) to be
taken apart for service if necessary.
The frequency at which the following
procedures and inspections are to be
performed are to be in accordance with
the NFPA and any applicable specific
requirements of the standards recog-
nized by the Approval agency.
Before closing a fire protection system
main control valve for maintenance
work on the fire protection system that
it controls, permission to shut down
the affected fire protection systems
must first be obtained from the proper
authorities and all personnel who may
be affected by this action must be
notified.
The owner is responsible for the
inspection, testing, and maintenance
of their fire protection system and
devices in compliance with this docu-
ment, as well as with the NFPA and any
applicable standards recognized by the
Approval agency. Contact the install-
ing contractor or product manufacturer
with any questions.
Some procedures in this section result
in the operation of the associated
alarms. Notify the owner and the fire
department, central station, or other
signal station to which the alarms are
connected before performing the tests.
It is recommended that automatic
sprinkler systems be inspected, tested,
and maintained by a qualified Inspec-
tion Service in accordance with the
NFPA and any applicable standards
recognized by the Approval agency.
It is recommended that the System
Inspection Procedure be performed
at least semi-annually by a quali-
ed Inspection Service. The Double
Interlock Preaction System Inspec-
tion Procedure may be followed in lieu
of performing any of the operational
tests recommended in the Technical
Data Sheets for the 24 VDC Solenoid
Valve and Model MC-1 Manual Control
Station.
It is recommended that the individuals
responsible for the care and mainte-
nance of the Double Interlock Preaction
System develop a working understand-
ing of the system, in general, prior to
performing inspection and/or mainte-
nance procedures. These instructions,
as well as individual instructions for
the solenoid valve, dry pilot actuator,
manual control station, switches, and
pressure maintenance device should
be reviewed.
The following procedures pertain to
the automatic control valve portion of
the Double Interlock Preaction System.
Refer to the manufacturer’s instructions
and NFPA 25 for care and maintenance
procedures for all other devices (e.g.,
electric detection, main control and
system shut-off valves, supervisory
devices, sprinklers, etc.).
Before performing the System Inspec-
tion Procedure or Waterflow Alarm
Test Procedure, which will result in
operation of alarms, notify the proper
authorities and all personnel who may
be affected.
Drop in Water Supply Pressure
Below Normal Range
NOTICE
If the water supply pressure is signif-
icantly reduced below the normally
expected static pressure range (as
could occur in the case of a water main
break or repair), and there is a subse-
quent drop in the diaphragm chamber
water pressure below its normal range
(for example, due to a leak in a piping
connection to or from the diaphragm
chamber or, a leak in the diaphragm
chamber check valve caused by dirt or
debris in the check valve seal area), a
deluge valve such as the DV-5acould
inadvertently trip, if its water supply
pressure is quickly restored.
A drop in the water supply pressure
to below its normal range (as in the
case of an interrupted water supply
condition) constitutes an emergency
impairment.
Should this condition occur, immedi-
ately close the System Main Control
Valve (B) and use the following proce-
dure to reset the system:
Step 1. Prior to the water supply pres-
sure being restored to the closed
System Main Control Valve (B), note the
pressure indicated by the Diaphragm
Gauge (K) and determine if the pres-
sure is within the normally expected
range.
Step 2. If the diaphragm chamber pres-
sure is below the normal range, check
for and correct any source of leakage
from the diaphragm chamber prior to
resetting the system.
Step 3. After the water supply pres-
sure is restored to the System Main
Control Valve (B), reset the DV-5aValve
in accordance with the Valve Setting
Procedure section.
NOTICE
For fire protection systems subject to
an emergency impairment caused by
an interrupted water supply condition,
it is recommended that consideration
be given to installing a low water supply
pressure switch with the appropriate
alarm/indications to monitor the water
supply pressure.
Waterflow Alarm Test Procedure
To test the waterow alarm, open the
Alarm Test Valve (G), which will allow a
ow of water to the Waterow Pressure
Switch (C) and/or Water Motor Alarm.
Upon satisfactory completion of the
test, close the Alarm Test Valve (G).
To ensure drainage of the alarm line,
depress the plunger on the Automatic
Drain Valve (F).

TFP1466
Page 14 of 18
NOTES
• Port Connections P1 through P7 are described in Figure 2.
External Trim Connections
C1
C2
C3
C4
C5
C6
C7
Diaphragm Supply Connection
Water Motor Alarm Connection
Air Supply Connection
Waterow Pressure Alarm Switch
Connection
Low Air Pressure Switch
Connection
Main Drain Connection
Drip Funnel Drain Connection
Item Description
A
B
C
D
E
F
G
H
J
K
L
M
DV-5aValve
System Main Control Valve
Waterow Pressure Switch
Main Drain Valve
System Drain Valve
Automatic Drain Valve
Alarm Test Valve
Alarm Control Valve (Optional)
Water Supply Gauge
Diaphragm Gauge
System Gauge
Manual Control Station
Item Description
N
P
Q
R
S
T
U
V
W
X
Manual Reset Actuator
Diaphragm Supply Valve
Diaphragm Supply Strainer
Inverted Flare Shut-Off Valve
Air Supply Valve
Air Pressure Relief Valve
Low Air Pressure Alarm Switch
Solenoid Valve
Not Used
System Shut-Off Valve
(Shown in Figure 4)
LOCATION
FOR OPTIONAL
ELECTRICALLY
SUPERVISED
N.O. ALARM
CONTROL
VALVE
C6
C7
C5
C3
C2 C4
C1
A
B
JK
D
E
F
G
M
N
P
Q
U
V
X
S
L
T
C
H
R
P1
P6
P7
P2
P3
P4
P5
FIGURE 8
DV-5aVALVE - DOUBLE INTERLOCK PREACTION ELECTRIC/ELECTRIC ACTUATION
(See Figure 6 for specific Bills of Materials)

TFP1466
Page 15 of 18
Electric/Electric Actuation
System Operation Procedure
Proper operation of the DV-5aValve for
both opening of the DV-5aValve in a
re condition, or not opening the DV-5a
Valve in a non-re condition, must be
veried as follows:
Step 1. Close the System Main Control
Valve (B) and then open the Main Drain
Valve (D).
Step 2. Manually operate Zone 1 of
the Releasing Panel, and verify the
following:
• The operation of the Releasing Panel
and its associated alarms
• That there is no leakage from the
Solenoid Valve (V)
NOTE: During this procedure, the Solenoid
Valve (V) should remain closed and the
DV-5aDeluge Valve Diaphragm Chamber
should remain pressurized.
This procedure is used to verify that the
DV-5aDeluge Valve will remain set if the
electric detectionsystem (Zone1) operates
but the sprinkler system (Zone 2) remains
in its normally pressurized condition.
Step 3. Restore the electric re detec-
tion system to a normal condition in
accordance with the manufacturer’s
instructions.
Step 4. Open the Inspector’s Test Con-
nection to relieve system air pressure,
and verify the following:
• That the Low Air Pressure Alarm
Switch (U) and Zone 2 of the Releas-
ing Panel, as well as its associated
alarms, operate properly. The Low
Air Pressure Alarm Switch (U) should
operate at the previously established
pressure (see Installation section,
Step 9).
• That there is no leakage from the
Solenoid Valve (V).
Step 5. Close the Inspector’s Test
Connection.
NOTE: During this procedure, the Solenoid
Valve (V) should remain closed and the
DV-5aValve Diaphragm Chamber should
remain pressurized.
This procedure is used to verify that the
DV-5aValve will remain set if the Low
Air Pressure Alarm Switch (U) (Zone 2)
operates due to loss of system air pressure
and the electric detection system (Zone 1)
remains in a normal condition.
Step 6. Restore the electric re detec-
tion system to a normal condition in
accordance with the manufacturer’s
instructions after the system air pres-
sure has automatically been restored
to normal.
Step 7. Close the System Shut-Off
Valve (W) after the system air pressure
has been restored to normal.
Step 8. Open the System Main Control
Valve (B) one turn beyond the position
at which water just begins to ow from
the Main Drain Valve (D).
Step 9. Close the Main Drain Valve (D).
Step 10. Close the Air Supply Valve (S).
Step 11. Manually operate Zone 1 of
the Releasing Panel, and then operate
Zone 2 of the Releasing Panel by par-
tially opening the System Drain Valve
(E) to relieve air pressure at the Low Air
Pressure Alarm Switch (U), and verify
the following:
• That the DV-5aValve operates as is
indicated by a discharge of water
from the System Drain Valve (E) and
the Automatic Drain Valve (F). The
Automatic Drain Valve (F) may or may
not close depending on the ow past
the partially open System Main Con-
trol Valve (B)
• That the Model MRA-1 Manual Reset
Actuator (N) has operated as is indi-
cated by water discharging into the
Drip Funnel from the 1/2 in. drain
tube connected to the Model MRA-1
Manual Reset Actuator (N)
• That the Waterow Pressure Switch
(C) and its associated alarms prop-
erly operate
• That the Water Motor Alarm, if appli-
cable, properly operates
NOTE: This procedure simulatesautomatic
system operation upon both electric
detection and loss of system air pressure.
Internal Valve Inspection
Once every ve years during the annual
operational test procedure and prior
to the DV-5aValve being reset and
with the DV-5aValve de-pressurized,
the interior of the DV-5aValve must
be cleaned and inspected for wear
and damage. Damaged or worn parts
must be replaced. (Replacement of the
Diaphragm every ten years is recom-
mended, or more frequently if inspec-
tions and/or wear and tear warrant
more frequent replacement.)
NOTICE
The Diaphragm Cover may be removed
between Steps 4 and 5 of the reset-
ting instructions, since at that point the
DV-5aValve should be de-pressurized
as evident by a zero gauge reading on
the Diaphragm Gauge (K) and Water
Supply Gauge (J), as well as no water
discharging from the Automatic Drain
Valve (F).
To perform internal valve inspection
between Steps 4 and 5 of the Valve
Setting Procedure remove the Dia-
phragm cover as follows:
Step 1. Close the Inverted Flare Shut-
Off Valve (R).
Step 2. Remove the Copper Tube
Fitting between the Diaphragm Supply
Valve (P) and the Inverted Flare Shut-
Off Valve (R).
Step 3. Loosen the union securing the
Electric/Electric Actuation Trim and
remove the Electric/Electric Actuation
Trim.
Step 4. Loosen and remove the union
between the Diaphragm Cover and the
MRA-1 Manual Reset Actuator (N) and
remove the MRA-1 Manual Reset Actu-
ator (N) subassembly.
Step 5. Remove the Diaphragm Valve
Cover hardware, then slowly remove
the Diaphragm Cover and perform
internal valve inspection. Clean the
valve interior and replace parts as
necessary.
After cleaning and inspecting valve
interior, and replacing parts as nec-
essary, reinstall the Diaphragm Cover
by completing the following steps to
assure the Diaphragm Cover Fasteners
are uniformly and securely tightened.
Step 1. With reference to Figure 1,
ensure that the Diaphragm is properly
oriented and that the proper hardware
arrangement is utilized when assem-
bling the Diaphragm Covers. The hard-
ware arrangements differ depending on
the size of the DV-5aValve.
Step 2. By rst using the Long Hex
Bolts, support of the Diaphragm Cover
will be provided before installing the
Short Hex Bolts. Align Diaphragm in
proper orientation with Valve Body, and
then align Diaphragm Cover in proper
orientation with Valve Body. Hand-
tighten all fasteners.
Step 3. Using crossdraw sequence
to assure uniformity, wrench-tighten
Long Hex Bolts and Short Hex Bolts
to appropriate torque values. Repeat
crossdraw sequence two to three
times at incremental torque valves
until reaching the torque valves found
in Table B.
Step 4. Inspect to assure all Hex Bolts
are securely tightened.
Step 5. Using the union, secure the
MRA-1 Manual Reset Actuator (N) to
the Diaphragm Cover.
Step 6. Using the union, secure the
Electric/Electric Actuation Trim.
Step 7. Replace the Copper Tube
Fitting between the Diaphragm Supply
Valve (P) and the Inverted Flare Shut-
Off Valve (R).

TFP1466
Page 16 of 18
Step 8. Ensure that the unions and are
ttings are securely tightened.
Step 9. With the Diaphragm Supply
Valve (P) closed, fully open the Inverted
Flare Shut-Off Valve (R) stainless steel
screw (approximately 1/2 in.) until resis-
tance is met so as not to break the
internal roll-pin. The internal roll-pin
stops the removal of the Inverted Flare
Shut-Off Valve (R) stainless steel screw.
Step 10. Proceed with Step 5 of the
Valve Setting Procedures section in this
data sheet.
NOTICE
If the water supply contains chemicals
which tend to attack a polyester fabric-
reinforced, EPDM rubber or the five year
inspection indicates a build-up of debris
within the DV-5aValve that could affect
its proper operation, then the frequency
of the internal valve inspection procedure
must be appropriately increased.
With reference to Figure 1, make
certain that the Diaphragm is correctly
oriented; otherwise, the DV-5aValve
cannot be properly set.
Under-tightening the Diaphragm Cover
Bolts can result in internal and external
leakage.
Use only TYCO replacement fasteners
as specified in Figure 1.
Do not apply adhesives, lubricants, or
other substances to the Diaphragm
Valve Body.
Limited
Warranty
For warranty terms and conditions, visit
www.tyco-re.com.
Ordering
Procedure
Order the TYCO DV-5aAutomatic
Water Control Valves as follows:
Pre-Assembled Valves
with Trim
DV-5 A Valves with Galvanized Trim
and Butterfly Valve
Specify: Size (specify), DV-5aAuto-
matic Water Control Valve, G x G con-
nections with assembled galvanized
Americas Double Interlock Preac-
tion with Electric/Electric Actuation
Trim, complete with assembled Model
BFV-300 Buttery Valve, P/N (specify):
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 551011515
2 in. (DN50) .................... 551011520
3 in. (DN80) .................... 55101153 0
4 in. (DN100). . . . . . . . . . . . . . . . . . . . 5510115 40
6 in. (DN150). . . . . . . . . . . . . . . . . . . . 551011560
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 5 510115 80
Notes:
Americas pressure switches, P/N 52-287-
1-124 Solenoid Valve, and psi/kPa water
pressure gauges are provided.
This arrangement is available for EMEA
and APAC upon request. Contact your
local distributor.
AMERICAS
DV-5 A Valves with Galvanized Trim
Specify: Size (specify), DV-5aAuto-
matic Water Control Valve, (specify)
end connection with assembled galva-
nized Americas, Double Interlock Pre-
action Electric/Electric Actuation Trim,
P/N (specify):
Grooved x Grooved
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 550011515
2 in. (DN50) ....................550 011520
3 in. (DN80) ....................55 00115 30
4 in. (DN100). . . . . . . . . . . . . . . . . . . . 55 0011540
6 in. (DN150). . . . . . . . . . . . . . . . . . . . 550011560
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 550 01158 0
Flange x Flange ANSI
3 in. (DN80) ....................550021530
4 in. (DN100)....................550021540
6 in. (DN150)....................550021560
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 550021580
Flange x Grooved ANSI
3 in. (DN80) ....................550031530
4 in. (DN100)....................550031540
6 in. (DN150)....................550031560
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 550031580
T x T NPT
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 550061515
2 in. (DN50) ....................550061520
Note: Pressure switches, P/N 52-287-1-124
solenoid valve, and psi/kPa water pressure
gauges are provided.
Separate DV-5 A Valves without Trim
See Table A for flange drilling
specications.
Specify: Size (specify), DV-5aAuto-
matic Water Control Valve, (specify)
end connection, P/N (specify):
Groove x Groove
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 530010015
2 in. (DN50) ....................530010020
3 in. (DN80) ....................530010030
4 in. (DN100)....................530010040
6 in. (DN150)....................530010060
8 in. (DN200) ...................530010080
Flange x Flange ANSI
3 in. (DN80) ....................530020030
4 in. (DN100)....................530020040
6 in. (DN150)....................530020060
8 in. (DN200) ...................530020080
Flange x Groove ANSI
3 in. (DN80) ....................530030030
4 in. (DN100)....................530030040
6 in. (DN150)....................530030060
8 in. (DN200) ...................530020080
T x T NPT
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 530060015
2 in. (DN50) ....................530060020
Notes:
Valves are typically provided with flange
drilling per ANSI B16.1 (Class 125) or ISO
(7005-2 PN16).
Upon request, valves can be provided with
flange drilling per JIS B 2210 or AS 2129. In
which case part numbers are not assigned.
DV-5 A Valve Trim
Specify: Size (specify), nish (specify),
Electric/Electric Actuation Trim for
DV-5aAutomatic Water Control Valves
used in Double Interlock Preaction Fire
Protection System, P/N (specify):
Galvanized
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 540001520
2 in. (DN50) ....................540001520
3 in. (DN80) ....................540001530
4 in. (DN100)....................540001540
6 in. (DN150)....................540001560
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 540001580
Black
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 542001520
2 in. (DN50) ....................542001520
3 in. (DN80) ....................542001530
4 in. (DN100)....................542001540
6 in. (DN150)....................542001560
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 542001580
Note: Pressure switches and/or solenoid
valves for electric actuation are separately
ordered.
EMEA
DV-5 A Valves with Galvanized Trim
Specify: Size (specify), DV-5aAuto-
matic Water Control Valve, (specify)
end connection with assembled gal-
vanized EMEA, Double Interlock Pre-
action Electric/Electric Actuation Trim,
P/N (specify):
Grooved x Grooved
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 550111515
2 in. (DN50) .................... 55 0111520
3 in. (DN80) .................... 5501115 30
4 in. (DN100). . . . . . . . . . . . . . . . . . . . 55 01115 40
6 in. (DN150). . . . . . . . . . . . . . . . . . . . 55 011156 0
165,1 m m ...................... 55011156 6
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 5 50111580
Nominal
Valve Sizes
ANSI
Inches
(DN)
Torque
lb-ft
(N∙m)
Nuts Short Hex
Bolts
1 1/2
(40)
44
(59,7)
35
(47,5)
2
(50)
44
(59,7)
35
(47,5)
3
(80)
125
(169,5)
125
(169,5)
4
(100)
150
(203,4)
150
(203,4)
61
(150)
150
(203,4)
150
(203,4)
8
(200)
188
(254,9)
188
(254,9)
NOTES
1. Also applicable to metric 165,1 mm size.
TABLE B
DIAPHRAGM COVER BOLTS
MINIMUM TORQUE

TFP1466
Page 17 of 18
Flange x Flange ANSI
3 in. (DN80) ....................550121530
4 in. (DN100). . . . . . . . . . . . . . . . . . . . 550121540
6 in. (DN150). . . . . . . . . . . . . . . . . . . . 550121560
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 550121580
Flange x Grooved ANSI
3 in. (DN80) ....................550131530
4 in. (DN100). . . . . . . . . . . . . . . . . . . . 550131540
6 in. (DN150). . . . . . . . . . . . . . . . . . . . 550131560
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 550131580
Flange x Flange ISO
3 in. (DN80) ....................550141530
4 in. (DN100). . . . . . . . . . . . . . . . . . . . 550141540
6 in. (DN150). . . . . . . . . . . . . . . . . . . . 550141560
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 550141580
Flange x Grooved ISO
3 in. (DN80) ....................550151530
4 in. (DN100). . . . . . . . . . . . . . . . . . . . 550151540
6 in. (DN150). . . . . . . . . . . . . . . . . . . . 550151560
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 550151580
T x T ISO
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 550171515
2 in. (DN50) ....................550171520
Note: Pressure switches, P/N 52-287-1-
124 solenoid valve, bar/psi water pressure
gauges, and NPT to ISO threaded trim adap-
tors for external connections are provided.
Separate DV-5 A Valves without Trim
See Table A for flange drilling
specications.
Specify: Size (specify), DV-5aAuto-
matic Water Control Valve, (specify)
end connection, P/N (specify):
Groove x Groove
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 530010015
2 in. (DN50) ....................530010020
3 in. (DN80) ....................530010030
4 in. (DN100)....................530010040
6 in. (DN150)....................530010060
165,1 m m ......................530010066
8 in. (DN200) ...................530010080
Flange x Flange ANSI
3 in. (DN80) ....................530020030
4 in. (DN100)....................530020040
6 in. (DN150)....................530020060
8 in. (DN200) ...................530020080
Flange x Groove ANSI
3 in. (DN80) ....................530030030
4 in. (DN100)....................530030040
6 in. (DN150)....................530030060
8 in. (DN200) ...................530030080
T x T NPT
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 530060015
2 in. (DN50) ....................530060020
Flange x Flange ISO
3 in. (DN80) ....................530040030
4 in. (DN100)....................530040040
6 in. (DN150)....................530040060
8 in. (DN200) ...................530040080
Flange x Groove ISO
3 in. (DN80) ....................530050030
4 in. (DN100)....................530050040
6 in. (DN150)....................530050060
8 in. (DN200) ...................530050080
T x T ISO
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 530070015
2 in. (DN50) ....................530070020
Notes:
Valves are typically provided with flange
drilling per ANSI B16.1 (Class 125) or ISO
(7005-2 PN16).
Upon request, valves can be provided with
flange drilling per JIS B 2210 or AS 2129. In
which case part numbers are not assigned.
DV-5 A Valve Trim
Specify: Size (specify), nish (specify),
Double Interlock Preaction Electric/
Electric Actuation Trim for DV-5aAuto-
matic Water Control Valves used in
Deluge Fire Protection System, P/N
(specify):
Galvanized
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 540101520
2 in. (DN50) ....................540101520
3 in. (DN80) ....................540101530
4 in. (DN100). . . . . . . . . . . . . . . . . . . . 540101540
6 in. (DN150). . . . . . . . . . . . . . . . . . . . 540101560
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 540101580
Black
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 542101520
2 in. (DN50) ....................542101520
3 in. (DN80) ....................542101530
4 in. (DN100). . . . . . . . . . . . . . . . . . . . 542101540
6 in. (DN150). . . . . . . . . . . . . . . . . . . . 542101560
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 542101580
Note: Pressure switches, solenoid valves for
electric actuation, water pressure gauges,
and BFV-300 Butterfly Valve are separately
ordered. NPT to ISO threaded adaptors
are provided for External Trim Connections
(drains, pressure switches, water motor
alarms, etc.).
APAC
DV-5 A Valves with Galvanized Trim
Specify: Size (specify), DV-5aAuto-
matic Water Control Valve, (specify)
end connection with assembled gal-
vanized APAC, Double Interlock Pre-
action Electric/Electric Actuation Trim,
P/N (specify):
Grooved x Grooved
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 550011515
2 in. (DN50) ....................550 011520
3 in. (DN80) ....................55 00115 30
4 in. (DN100). . . . . . . . . . . . . . . . . . . . 55 0011540
6 in. (DN150). . . . . . . . . . . . . . . . . . . . 550011560
165,1 m m ......................550011566
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 550 01158 0
Flange x Flange ANSI
3 in. (DN80) ....................550021530
4 in. (DN100)....................550021540
6 in. (DN150)....................550021560
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 550021580
Flange x Grooved ANSI
3 in. (DN80) ....................550031530
4 in. (DN100)....................550031540
6 in. (DN150)....................550031560
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 550031580
T x T NPT
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 550061515
2 in. (DN50) ....................550061520
Flange x Flange ISO
3 in. (DN80) ....................550041530
4 in. (DN100)....................550041540
6 in. (DN150)....................550041560
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 550041580
Flange x Grooved ISO
3 in. (DN80) ....................550051530
4 in. (DN100)....................550051540
6 in. (DN150)....................550051560
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 550051580
Note: Pressure switches, P/N 52-287-1-124
solenoid valve, and psi/kPa water pressure
gauges are provided.
Separate DV-5 A Valves without Trim
See Table A for flange drilling
specications.
Specify: Size (specify), DV-5aAuto-
matic Water Control Valve, (specify)
end connection, P/N (specify):
Groove x Groove
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 530010015
2 in. (DN50) ....................530010020
3 in. (DN80) ....................530010030
4 in. (DN100)....................530010040
6 in. (DN150)....................530010060
165,1 m m ......................530010066
8 in. (DN200) ...................530010080
Flange x Flange ANSI
3 in. (DN80) ....................530020030
4 in. (DN100)....................530020040
6 in. (DN150)....................530020060
8 in. (DN200) ...................530020080
Flange x Groove ANSI
3 in. (DN80) ....................530030030
4 in. (DN100)....................530030040
6 in. (DN150)....................530030060
8 in. (DN200) ...................530020080
T x T NPT
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 530060015
2 in. (DN50) ....................530060020
Flange x Flange ISO
3 in. (DN80) ....................530040030
4 in. (DN100)....................530040040
6 in. (DN150)....................530040060
8 in. (DN200) ...................530040080
Flange x Groove ISO
3 in. (DN80) ....................530050030
4 in. (DN100)....................530050040
6 in. (DN150)....................530050060
8 in. (DN200) ...................530050080
T x T ISO
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 530070015
2 in. (DN50) ....................530070020
Notes:
Valves are typically provided with flange
drilling per ANSI B16.1 (Class 125) or ISO
(7005-2 PN16).
Upon request, valves can be provided with
flange drilling per JIS B 2210 or AS 2129. In
which case part numbers are not assigned.
DV-5 A Valve Trim
Specify: Size (specify), nish (specify),
Double Interlock Preaction Electric/
Electric Actuation Trim for DV-5aAuto-
matic Water Control Valves used in
Deluge Fire Protection System, P/N
(specify):
Galvanized
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 540001520
2 in. (DN50) ....................540001520
3 in. (DN80) ....................540001530
4 in. (DN100)....................540001540
6 in. (DN150)....................540001560
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 540001580
Black
1 1/2 in. (DN40) . . . . . . . . . . . . . . . . . 542001520
2 in. (DN50) ....................542001520
3 in. (DN80) ....................542001530
4 in. (DN100)....................542001540
6 in. (DN150)....................542001560
8 in. (DN200) . . . . . . . . . . . . . . . . . . . 542001580

TFP1466
Page 18 of 18
NATIONAL FIRE PROTECTION ASSOCIATION and NFPA are registered trademarks of National Fire Protection Association;
TEFLON is a trademark of The Chemours Company FC, LLC
1467 Elmwood Avenue, Cranston, RI 02910 | Telephone [phone]
© 2022 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision date and are subject to change without notice.
DV-5 A Valve Replacement Parts
Specify: (Description) for use with
(specify size) DV-5aAutomatic Water
Control Valve, P/N (See Figure 1)
DV-5 A Valve Trim Replacement
Parts
Specify: (Description) for use with
DV-5aValve Trim, P/N (See Figure 6)
DV-5 A Valve Trim Accessories
(for separately ordered valve trim)
Specify: (Specify Accessory Descrip-
tion), P/N (specify):
Model QRS Quick Refer to Technical
Release Switch Q1....... Data Sheet TFP1100
Waterow Pressure Alarm
Switch Double Contacts
(Americas) . . . . . . . . . . . . . . . . . . . . . . . . . 25710
Waterow Pressure Alarm
Switch Double Contacts
(APAC) ................... 25710 or 100102
Waterow Pressure
Alarm Switch (EMEA). . . . . . . . . . . . . . . . . . 0260
Model WMA-1 Water Motor
Motor Alarm (America/APAC) . . . . . 526301001P
Model WMA-1 Water
Motor Alarm (EMEA) . . . . . . . . . . . . 526301021R
Model AMD-1 Air
Maintenance Device . . . . . . . . . . . . . 523242002
Model AMD-3 Nitrogen
Maintenance Device . . . . . . . . . . . . . 523282001
Model MC-1 Manual
Control Stations. . . . . . . . . . . . . . . . . 522892001
Water Gauges with bar/psi . . . . . . . . 025500013
600 psi Water Gauge psi/kPa
(service pressure over 300 psi) . . . . . 923431004
Solenoid Valve for Refer to Technical
Releasing Service .......Data Sheet TFP2180

APPENDIX A INSTRUCTIONS SEPTEMBER 2022 TFP1466
Worldwide
Contacts
www.tyco-fire.com
DV-5AAppendix
Poster Printing
Instructions
General
Description
The appendix found at the end of this
document provides valve setting and
testing/inspection procedures summa-
rized from the Care and Maintenance
section.
Some jurisdictions require a copy of the
Summary Instructions appendix to be
displayed in proximity to a DV-5AAuto-
matic Control Valve riser supplying a
re protection system.
Reproduce as an individual poster by
printing on appropriate media.
A form of protection is recommended
to prevent damage which could render
the poster illegible. Conditions to avoid
include moisture inltration, fading,
mutilation, etc.. Protective measures
may include lamination, placement
within an impact- and water-resistant
frame, etc.
The format shown in this document is
landscape orientation on US Tabloid
size, also known as ANSI B drawing
format, both roughly comparable to
ISO A3 size format.
To avoid potential cropping of content
when printing to A3 format, select
options such as print to t or scale
to t. Depending on printer capabil-
ity content will be slightly reduced but
should remain readable.
See Print Format Dimensions Table for
details.
Format
Imperial
in. Metric mm
W H W H
US Tabloid 17 11 — —
ANSI B
ISO A3 — — 420 297
PRINT FORMAT DIMENSIONS
TFP1485 APPENDIX A
AUGUST 2022
1467 Elmwoo d Avenue, Cran ston, RI 02910 | Tele phone [phone]
© 2022 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document
revision d ate and are sub ject to chang e without not ice.
Worldwide
Contacts
www.tyco-fire.com
Summary Instructions
DV-5AAutomatic Water Control Valve
Preaction Type A Systems
(EN12845 Compliance)
Scan the QR code or e nter the URL
in a web browser to acces s the most
up-to-date elec tronic version of this
document. Data ra tes may apply.
docs.jci.com/tycore/tfp1485
NOTICE
The procedu res provided ar e summary in structions of the complete proce dures appea ring in
Technical Data Sheet TFP1485. If problems occur, consult full document.
Valve Setting Procedure
1. Close System Main Con trol Valve (B), Diaphragm Supply Valve (P), and Air S upply Control
Valves (X) and ( Y).
2. Open Main Drain Valve (D), System D rain Valve (E), and all auxiliar y drains in system. Also,
remove plug from Air Sup ply Strainer (W ) to drain any water and ensu re it is clean and free
of debris. Close aux iliary drain valves , System Drain Valve (E), and reas semble Air Suppl y
Strainer (W ) after water stops dis charging. Leave Main Dra in Valve (D) open.
3. Ensure Pressure Ga uge Valves and Alarm Contro l Valve (H), as applicable, are open.
4. Depress plunge r of Automatic Drain Valve (F) to ver ify it is open.
5. Clean Diaphra gm Supply Strainer (Q). Flus h strainer by opening the D iaphragm Supply
Valve ( P).
6. Replace operate d automatic sprinkler s on system piping.
7. Reset D V-5AValve Releasing Panel in accordance with manufacturer instructions.
8. Re-estab lish system air pressu re to reset Model DP-1 Dry Pilot Actua tor (T) by openi ng Air
Supply Control Valve (X ). Do not open Air Supp ly Control Valve (Y) a t this time. Observe Dr y
Pilot Actuator (T ) air pressure on D ry Pilot Gauge (Z ).
9. Open Manual Cont rol Station (M), then open D iaphragm Supply Valve (P). After a erated
water stops discharging f rom Manual Control St ation (M) drain tube, slowly c lose operating
lever. Do not close hinged cover at this time.
10. After aera ted water stops discharging, re set Manual Reset Ac tuator (N) until water stops
owing from its drain tub e and pressure reac hes approximately 15 psi (1,0 bar) on Diaphragm
Gauge (K).
11. With diaphragm chamber pressurized, temporarily close Diaphragm Supply Valve (P), and
observe Diap hragm Gauge (K ) for a drop in pressure. If p ressure drop is noted, re place DV-5A
Diaphragm and co rrect any leaks befo re proceeding.
12. If Diaph ragm Gauge (K) i ndicates no drop in pres sure, re-open Di aphragm Supply Valve
(P) and procee d.
13. Open Air S upply Control Valve (Y ) to pressurize system pip ing.
14. Parti ally open System Main Co ntrol Valve (B). Slowly close Main Drai n Valve (D) as water
discharges from M ain Drain Valve (D). Obser ve Automatic Drain Valve (F) for le aks. If there
are leaks, correct the leakage problem.
15. Close hinge d cover of Manual Control St ation (M) and inser t new break rod in small ho le
through the top of the enclosing box.
16. Open System M ain Control Valve (B).
17. After sett ing re protection system, no tify proper autho rities and advise tho se responsible
for monitoring proprietary and/or central station alarms.
Waterflow Alarm Test Procedure
1. Open Alarm Test Valve (G), allowing water to ow to Waterow Press ure Switch (C) and/or
Water Motor Alarm. Close A larm Test Valve (G) when test is completed.
2. Depress plunge r on the Automatic Drain Valve (F ) to drain alarm line.
Solenoid Valve Test Procedure For Electric Actuation
1. Close System Main Co ntrol Valve (B) and open Main Drai n Valve (D).
2. Test deluge releasing panel in a ccordance with manu facturer’s instructions to en ergize
the Solenoid Valve (R).
3. Verify that water is owing fro m Solenoid Valve (R) drain conn ection.
4. Verify Diaphrag m Chamber pressure has decrea sed to below 25% of water supp ly pressure.
5. Reset electric d etection system in accord ance with manufacture r’s instruc tions to de-ener-
gize Solenoid Valve (R). Water should top draining from Solenoid Valve (R) but remain draining
from Manual Rese t Actuator (N).
6. Press Reset Knob o n Manual Reset Actua tor (N) and hold a few second s until water stops
owing.
7. After system pres sure is restored, inspe ct Solenoid Valve (R) and Manu al Reset Actuator
(N) for leaks. Corr ect any leaks before pro ceeding.
8. Partially open S ystem Main Control Valve (B). Slowly clos e Main Drain Valve (D) as water
discharges from M ain Drain Valve (D). Obser ve Automatic Drain Valve (F) for le aks. If there
are leaks, corre ct the leakage probl em. If there are no leaks, p lace DV-5AValve in service an d
open System Main Con trol Valve (B).
Solenoid Valve and Dry Pilot Actuator Test Procedure
1. Close System Main Co ntrol Valve (B) and open Main Drai n Valve (D).
2. Simulate power failure by disconnecting main power to releasing panel, and disconnecting
battery back-up. Refer to releasing panel manufacturer’s instructions for specic details. This
step allows Solenoid Valve (S) to open.
3. Open system’s Inspector’s Test Connection to relieve syste m air pressure.
4. Verify water ow from Dr y Pilot Actuator (T ) drain connec tion.
5. Verify Diaphrag m Chamber pressu re decreased to below 25% of water supply pr essure.
6. Close Inspector’s Test Connectio n and allow the system air pres sure to re-establish. Water
stops draining from D ry Pilot Actuator ( T) but continue s to drain from Manual Res et Actua-
tor (N). Press Reset Kn ob on Manual Reset Actu ator (N) and hold a few secon ds until water
stops owing from drain tub e.
7. Pressure will then bui ld up in DV-5ADiaphragm Chamber.
8. After system pres sure is restored, inspe ct Solenoid Valve (R) and Manu al Reset Actuator
(N) for leaks. Any lea ks must be corrected b efore proceeding.
9. Reestablish bat tery and main power to releasing panel in a ccordance with manu facturer’s
instructions.
10. Partially o pen System Main Contro l Valve (B). Slowly close Main Drain Valve (D) as water
discharges from M ain Drain Valve (D), then close Main D rain Valve (D). Observe Automati c
Drain Valve (F) for leaks a nd correct the lea kage problem. If there a re no leaks, place DV-5A
Valve in service and op en System Main Control Valve (B).
Supervisory Low Pressure Alarm Test Procedure and Validation of Normally Closed
Solenoid Valve (S)
1. Close System Main Co ntrol Valve (B), and open Main Drain Valve (D).
2. Crack open system’s Inspector’s Test Connection to re lieve air pressure from syste m.
Verify Super visory Low Pressu re Alarm Switch ( V) is operatio nal and low pressure se t point
is approximately 0,4 bar und er minimum system air pres sure.
3. Allow system air press ure to decay to 0 psig. Verify no water dr aining from Dry Pil ot Actu-
ator (T ).
4. Close system’s Inspector’s Test Connection and all ow system supervisor y pressure to auto-
matically re- established. As ne cessary, open, then c lose quick ll air supply c ontrol valve in
automatic air maintena nce device. Super visory Low Press ure Alarm Switch ( V) should retur n
to “normal” conditio n.
5. Verify system air pres sure is normal and DV-5ADiaphr agm Chamber remains pressurized.
6. Partially open S ystem Main Control Valve (B). Slowly clos e Main Drain Valve (D) as water
discharges from M ain Drain Valve (D). Obser ve Automatic Drain Valve (F) for le aks. If there
are leaks, corre ct the leakage probl em. If there are no leaks, p lace DV-5AValve in service an d
open System Main Con trol Valve (B).
Operation Test Procedure
1. To prevent water from owing beyond riser, close System Ma in Control Valve (B). Open
Main Drain Valve(D).
2. Open System Main Co ntrol Valve (B) one turn beyond which water be gins to ow from Main
Drain Valve (D). Slowly close Main D rain Valve (D).
3. Test deluge releasing panel i n accordance with man ufacturer’s instruction s to energize
Solenoid Valve (R).
4. Veri fy DV- 5AValve has tripped, a s indicated by water ow into system.
5. Close System Main Con trol Valve (B).
6. Close Diaphragm S upply Valve (P) and Air Supply Co ntrol Valves (X) and ( Y).
7. Reset DV-5AValve with Preaction Type A Trim in accordance with Valve Setting Proce dure.
Internal Valve Inspection
1. Ensure that Steps 1 to 4 of the Valve Setti ng Procedure are comp leted prior to procee ding
with the Internal Valve Inspec tion.
2. Ensure Diaphrag m Supply Valve (P) is closed. If provide d as part of the valve trim, c lose
Inverted Flare Shut- Off Valve (AA).
3. Remove the Supply Line bet ween the Diaphrag m Supply Valve (P) and the System Main
Control Valve (B). If provided as par t of the valve trim, remove the Suppl y Line between the
Diaphragm Supp ly Valve (P) and Inverted Flare Shut- Off Valve (AA).
4. Loosen union sec uring Actuation Trim and remove Actuatio n Trim.
5. Remove union between D iaphragm Cover and MRA-1 Manual Reset Actuator (N ). Remove
MRA-1 Manual Reset Actuator ( N) subassembly.
6. Remove Diaphragm Valve Cover hard ware, slowly remove Diaphrag m Cover and perform
internal valve inspec tion. Clean valve interior an d replace parts a s necessar y.
7. Ensure Diaphrag m is properly orien ted and proper hardwar e arrangement is u tilized.
8. Insert Long H ex Bolts. Align Diaphr agm with Valve Body, and then align Diaphr agm Cover
with Valve Body. Insert Shor t Hex Bolts. Hand-tighten a ll fasteners.
9. Using crossdraw se quence, wrench-tig hten Long Hex Bolts and Shor t Hex Bolts. Repea t
crossdraw seque nce two to three times at inc remental torque valves.
10. Inspect to as sure all Hex Bolts are sec urely tightened.
11. Using the union, s ecure the MRA-1 Manual Reset A ctuator (N) to the Diaphra gm Cover.
12. Using uni on, secure Actuation Trim.
13. Replace the S upply Line between th e Diaphragm Supply Valve and th e System Main
Control Valve (B). If provided as par t of the valve trim, replace Supply Line betwee n Diaphragm
Supply Valve (P) and Inverted Fl are Shut-Off Valve (A A).
14. Ensure unio ns and are ttings a re securely tightene d.
15. If provided with t he valve trim, and with Diaphr agm Supply Valve (P) closed, fully o pen
Inverted Flare Shut- Off Valve (AA) st ainless steel scr ew (approximately 1/2 in.) until resis-
tance is met.
16. Proceed wi th Step 5 of the Valve Setting Procedu res.
Item Description
P
Q
R
S
T
U
V
W
X
Y
Z
AA
Diaphragm Supply Valve
Diaphragm Supply Strainer
Solenoid Valve (NC) D e-Energized #1
Solenoid Valve (NC) En ergized #2
Dry Pilot Actu ator
Pressure Relief Valve
Supervis ory Low Pressure Alarm Swi tch
Air Supply Strainer
Air Supply Con trol Valve "A"
Air Supply Con trol Valve "B"
Dry Pilot Gau ge
Inverted Fl are Shut-Of f Valve
Item Description
A
B
C
D
E
F
G
H
J
K
L
M
N
DV-5aVal ve
System Main Con trol Valve
Waterow Press ure Switch
Main Drain Valve
System Drain Valve
Automatic Drain Valve
Alarm Test Valve
Alarm Contro l Valve (Opti onal)
Water Supply Gauge
Diaphragm Gauge
System Gauge
Manual Control Station
Manual Reset Actuator
A
B
C
JK
D
E
F
G
N
P
Q
V
X
Y
M
W
S
T
R
L
Z
U
H
AA
W
H
General
Description
The appendix found at the end of this
document provides valve setting and
testing/inspection procedures summa-
rized from the Care and Maintenance
section.
Some jurisdictions require a copy of the
Summary Instructions appendix to be
displayed in proximity to a DV-5AAuto-
matic Control Valve riser supplying a
re protection system.
Reproduce as an individual poster by
printing on appropriate media.
A form of protection is recommended
to prevent damage which could render
the poster illegible. Conditions to avoid
include moisture inltration, fading,
mutilation, etc.. Protective measures
may include lamination, placement
within an impact- and water-resistant
frame, etc.
The format shown in this document is
landscape orientation on US Tabloid
size, also known as ANSI B drawing
format, both roughly comparable to
ISO A3 size format.
To avoid potential cropping of content
when printing to A3 format, select
options such as print to t or scale
to t. Depending on printer capabil-
ity content will be slightly reduced but
should remain readable.
See Print Format Dimensions Table for
details.
Format
Imperial
in. Metric mm
W H W H
US Tabloid 17 11 — —
ANSI B
ISO A3 — — 420 297
PRINT FORMAT DIMENSIONS
TFP1485 APPENDIX A
AUGUST 2022
1467 Elmwoo d Avenue, Cran ston, RI 02910 | Tele phone [phone]
© 2022 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document
revision d ate and are sub ject to chang e without not ice.
Worldwide
Contacts
www.tyco-fire.com
Summary Instructions
DV-5AAutomatic Water Control Valve
Preaction Type A Systems
(EN12845 Compliance)
Scan the QR code or e nter the URL
in a web browser to acces s the most
up-to-date elec tronic version of this
document. Data ra tes may apply.
docs.jci.com/tycore/tfp1485
NOTICE
The procedu res provided ar e summary in structions of the complete proce dures appea ring in
Technical Data Sheet TFP1485. If problems occur, consult full document.
Valve Setting Procedure
1. Close System Main Con trol Valve (B), Diaphragm Supply Valve (P), and Air S upply Control
Valves (X) and ( Y).
2. Open Main Drain Valve (D), System D rain Valve (E), and all auxiliar y drains in system. Also,
remove plug from Air Sup ply Strainer (W ) to drain any water and ensu re it is clean and free
of debris. Close aux iliary drain valves , System Drain Valve (E), and reas semble Air Suppl y
Strainer (W ) after water stops dis charging. Leave Main Dra in Valve (D) open.
3. Ensure Pressure Ga uge Valves and Alarm Contro l Valve (H), as applicable, are open.
4. Depress plunge r of Automatic Drain Valve (F) to ver ify it is open.
5. Clean Diaphra gm Supply Strainer (Q). Flus h strainer by opening the D iaphragm Supply
Valve ( P).
6. Replace operate d automatic sprinkler s on system piping.
7. Reset D V-5AValve Releasing Panel in accordance with manufacturer instructions.
8. Re-estab lish system air pressu re to reset Model DP-1 Dry Pilot Actua tor (T) by openi ng Air
Supply Control Valve (X ). Do not open Air Supp ly Control Valve (Y) a t this time. Observe Dr y
Pilot Actuator (T ) air pressure on D ry Pilot Gauge (Z ).
9. Open Manual Cont rol Station (M), then open D iaphragm Supply Valve (P). After a erated
water stops discharging f rom Manual Control St ation (M) drain tube, slowly c lose operating
lever. Do not close hinged cover at this time.
10. After aera ted water stops discharging, re set Manual Reset Ac tuator (N) until water stops
owing from its drain tub e and pressure reac hes approximately 15 psi (1,0 bar) on Diaphragm
Gauge (K).
11. With diaphragm chamber pressurized, temporarily close Diaphragm Supply Valve (P), and
observe Diap hragm Gauge (K ) for a drop in pressure. If p ressure drop is noted, re place DV-5A
Diaphragm and co rrect any leaks befo re proceeding.
12. If Diaph ragm Gauge (K) i ndicates no drop in pres sure, re-open Di aphragm Supply Valve
(P) and procee d.
13. Open Air S upply Control Valve (Y ) to pressurize system pip ing.
14. Parti ally open System Main Co ntrol Valve (B). Slowly close Main Drai n Valve (D) as water
discharges from M ain Drain Valve (D). Obser ve Automatic Drain Valve (F) for le aks. If there
are leaks, correct the leakage problem.
15. Close hinge d cover of Manual Control St ation (M) and inser t new break rod in small ho le
through the top of the enclosing box.
16. Open System M ain Control Valve (B).
17. After sett ing re protection system, no tify proper autho rities and advise tho se responsible
for monitoring proprietary and/or central station alarms.
Waterflow Alarm Test Procedure
1. Open Alarm Test Valve (G), allowing water to ow to Waterow Press ure Switch (C) and/or
Water Motor Alarm. Close A larm Test Valve (G) when test is completed.
2. Depress plunge r on the Automatic Drain Valve (F ) to drain alarm line.
Solenoid Valve Test Procedure For Electric Actuation
1. Close System Main Co ntrol Valve (B) and open Main Drai n Valve (D).
2. Test deluge releasing panel in a ccordance with manu facturer’s instructions to en ergize
the Solenoid Valve (R).
3. Verify that water is owing fro m Solenoid Valve (R) drain conn ection.
4. Verify Diaphrag m Chamber pressure has decrea sed to below 25% of water supp ly pressure.
5. Reset electric d etection system in accord ance with manufacture r’s instruc tions to de-ener-
gize Solenoid Valve (R). Water should top draining from Solenoid Valve (R) but remain draining
from Manual Rese t Actuator (N).
6. Press Reset Knob o n Manual Reset Actua tor (N) and hold a few second s until water stops
owing.
7. After system pres sure is restored, inspe ct Solenoid Valve (R) and Manu al Reset Actuator
(N) for leaks. Corr ect any leaks before pro ceeding.
8. Partially open S ystem Main Control Valve (B). Slowly clos e Main Drain Valve (D) as water
discharges from M ain Drain Valve (D). Obser ve Automatic Drain Valve (F) for le aks. If there
are leaks, corre ct the leakage probl em. If there are no leaks, p lace DV-5AValve in service an d
open System Main Con trol Valve (B).
Solenoid Valve and Dry Pilot Actuator Test Procedure
1. Close System Main Co ntrol Valve (B) and open Main Drai n Valve (D).
2. Simulate power failure by disconnecting main power to releasing panel, and disconnecting
battery back-up. Refer to releasing panel manufacturer’s instructions for specic details. This
step allows Solenoid Valve (S) to open.
3. Open system’s Inspector’s Test Connection to relieve syste m air pressure.
4. Verify water ow from Dr y Pilot Actuator (T ) drain connec tion.
5. Verify Diaphrag m Chamber pressu re decreased to below 25% of water supply pr essure.
6. Close Inspector’s Test Connectio n and allow the system air pres sure to re-establish. Water
stops draining from D ry Pilot Actuator ( T) but continue s to drain from Manual Res et Actua-
tor (N). Press Reset Kn ob on Manual Reset Actu ator (N) and hold a few secon ds until water
stops owing from drain tub e.
7. Pressure will then bui ld up in DV-5ADiaphragm Chamber.
8. After system pres sure is restored, inspe ct Solenoid Valve (R) and Manu al Reset Actuator
(N) for leaks. Any lea ks must be corrected b efore proceeding.
9. Reestablish bat tery and main power to releasing panel in a ccordance with manu facturer’s
instructions.
10. Partially o pen System Main Contro l Valve (B). Slowly close Main Drain Valve (D) as water
discharges from M ain Drain Valve (D), then close Main D rain Valve (D). Observe Automati c
Drain Valve (F) for leaks a nd correct the lea kage problem. If there a re no leaks, place DV-5A
Valve in service and op en System Main Control Valve (B).
Supervisory Low Pressure Alarm Test Procedure and Validation of Normally Closed
Solenoid Valve (S)
1. Close System Main Co ntrol Valve (B), and open Main Drain Valve (D).
2. Crack open system’s Inspector’s Test Connection to re lieve air pressure from syste m.
Verify Super visory Low Pressu re Alarm Switch ( V) is operatio nal and low pressure se t point
is approximately 0,4 bar und er minimum system air pres sure.
3. Allow system air press ure to decay to 0 psig. Verify no water dr aining from Dry Pil ot Actu-
ator (T ).
4. Close system’s Inspector’s Test Connection and all ow system supervisor y pressure to auto-
matically re- established. As ne cessary, open, then c lose quick ll air supply c ontrol valve in
automatic air maintena nce device. Super visory Low Press ure Alarm Switch ( V) should retur n
to “normal” conditio n.
5. Verify system air pres sure is normal and DV-5ADiaphr agm Chamber remains pressurized.
6. Partially open S ystem Main Control Valve (B). Slowly clos e Main Drain Valve (D) as water
discharges from M ain Drain Valve (D). Obser ve Automatic Drain Valve (F) for le aks. If there
are leaks, corre ct the leakage probl em. If there are no leaks, p lace DV-5AValve in service an d
open System Main Con trol Valve (B).
Operation Test Procedure
1. To prevent water from owing beyond riser, close System Ma in Control Valve (B). Open
Main Drain Valve(D).
2. Open System Main Co ntrol Valve (B) one turn beyond which water be gins to ow from Main
Drain Valve (D). Slowly close Main D rain Valve (D).
3. Test deluge releasing panel i n accordance with man ufacturer’s instruction s to energize
Solenoid Valve (R).
4. Veri fy DV- 5AValve has tripped, a s indicated by water ow into system.
5. Close System Main Con trol Valve (B).
6. Close Diaphragm S upply Valve (P) and Air Supply Co ntrol Valves (X) and ( Y).
7. Reset DV-5AValve with Preaction Type A Trim in accordance with Valve Setting Proce dure.
Internal Valve Inspection
1. Ensure that Steps 1 to 4 of the Valve Setti ng Procedure are comp leted prior to procee ding
with the Internal Valve Inspec tion.
2. Ensure Diaphrag m Supply Valve (P) is closed. If provide d as part of the valve trim, c lose
Inverted Flare Shut- Off Valve (AA).
3. Remove the Supply Line bet ween the Diaphrag m Supply Valve (P) and the System Main
Control Valve (B). If provided as par t of the valve trim, remove the Suppl y Line between the
Diaphragm Supp ly Valve (P) and Inverted Flare Shut- Off Valve (AA).
4. Loosen union sec uring Actuation Trim and remove Actuatio n Trim.
5. Remove union between D iaphragm Cover and MRA-1 Manual Reset Actuator (N ). Remove
MRA-1 Manual Reset Actuator ( N) subassembly.
6. Remove Diaphragm Valve Cover hard ware, slowly remove Diaphrag m Cover and perform
internal valve inspec tion. Clean valve interior an d replace parts a s necessar y.
7. Ensure Diaphrag m is properly orien ted and proper hardwar e arrangement is u tilized.
8. Insert Long H ex Bolts. Align Diaphr agm with Valve Body, and then align Diaphr agm Cover
with Valve Body. Insert Shor t Hex Bolts. Hand-tighten a ll fasteners.
9. Using crossdraw se quence, wrench-tig hten Long Hex Bolts and Shor t Hex Bolts. Repea t
crossdraw seque nce two to three times at inc remental torque valves.
10. Inspect to as sure all Hex Bolts are sec urely tightened.
11. Using the union, s ecure the MRA-1 Manual Reset A ctuator (N) to the Diaphra gm Cover.
12. Using uni on, secure Actuation Trim.
13. Replace the S upply Line between th e Diaphragm Supply Valve and th e System Main
Control Valve (B). If provided as par t of the valve trim, replace Supply Line betwee n Diaphragm
Supply Valve (P) and Inverted Fl are Shut-Off Valve (A A).
14. Ensure unio ns and are ttings a re securely tightene d.
15. If provided with t he valve trim, and with Diaphr agm Supply Valve (P) closed, fully o pen
Inverted Flare Shut- Off Valve (AA) st ainless steel scr ew (approximately 1/2 in.) until resis-
tance is met.
16. Proceed wi th Step 5 of the Valve Setting Procedu res.
Item Description
P
Q
R
S
T
U
V
W
X
Y
Z
AA
Diaphragm Supply Valve
Diaphragm Supply Strainer
Solenoid Valve (NC) D e-Energized #1
Solenoid Valve (NC) En ergized #2
Dry Pilot Actu ator
Pressure Relief Valve
Supervis ory Low Pressure Alarm Swi tch
Air Supply Strainer
Air Supply Con trol Valve "A"
Air Supply Con trol Valve "B"
Dry Pilot Gau ge
Inverted Fl are Shut-Of f Valve
Item Description
A
B
C
D
E
F
G
H
J
K
L
M
N
DV-5aVal ve
System Main Con trol Valve
Waterow Press ure Switch
Main Drain Valve
System Drain Valve
Automatic Drain Valve
Alarm Test Valve
Alarm Contro l Valve (Opti onal)
Water Supply Gauge
Diaphragm Gauge
System Gauge
Manual Control Station
Manual Reset Actuator
A
B
C
JK
D
E
F
G
N
P
Q
V
X
Y
M
W
S
T
R
L
Z
U
H
AA
W
H

TFP1466 APPENDIX A
SEPTEMBER 2022
1467 Elmwood Avenue, Cranston, RI 02910 | Telephone [phone]
© 2022 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document
revision date and are subject to change without notice.
Worldwide
Contacts
www.tyco-fire.com
Summary Instructions
DV-5AAutomatic Water Control Valve
Double Interlock Electric/Electric
Preaction Fire Protection System
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycore/tfp1466
A
B
JK
D
E
F
G
M
N
P
Q
U
V
X
S
L
T
C
H
R
Item Description
A
B
C
D
E
F
G
H
J
K
L
DV-5aValve
System Main Control Valve
Waterow Pressure Switch
Main Drain Valve
System Drain Valve
Automatic Drain Valve
Alarm Test Valve
Alarm Control Valve (Optional)
Water Supply Gauge
Diaphragm Gauge
System Gauge
Item Description
M
N
P
Q
R
S
T
U
V
W
X
Manual Control Station
Manual Reset Actuator
Diaphragm Supply Valve
Diaphragm Supply Strainer
Inverted Flare Shut-Off Valve
Air Supply Valve
Air Pressure Relief Valve
Low Air Pressure Alarm Switch
Solenoid Valve
Not Used
System Shut-Off Valve
NOTICE
The procedures provided are summary instructions of the complete procedures appearing in
Technical Data Sheet TFP1466. If problems occur, consult full document.
Valve Setting Procedure
1. Close System Main Control Valve (B), Diaphragm Supply Valve (P) and, Air Supply Valve (S).
2. Open Main Drain Valve (D), System Drain Valve (E), and all auxiliary drains in the system.
Close auxiliary drain valves and System Drain Valve (E) after water stops discharging. Leave
Main Drain Valve (D) open.
3. Depress plunger of Automatic Drain Valve (F) to verify it is open.
4. Clean Diaphragm Supply Strainer (Q). Flush strainer by opening the Diaphragm Supply
Valve (P).
5. Inspect for and clear all ice plugs where system piping has been exposed to freezing
conditions.
6. Replace operated sprinklers.
7. Service air dryer, if applicable, in accordance with the manufacturer’s instructions.
8. De-energize Solenoid Valve (V) via Potter RCDS-1 Releasing Circuit Disable Switch, or
equivalent.
9. Open Manual Control Station (M), then open Diaphragm Supply Valve (P). After aerated
water stops discharging, slowly close operating lever. Do not close hinged cover at this time.
10. After aerated water stops discharging, reset Manual Reset Actuator (N) until water stops
owing from the drain tube and the pressure builds and reaches approximately 15 psi (1,0
bar) on Diaphragm Gauge (K).
11. Inspect Electric/Electric actuation drain connection from Manual Control Station (M) and
Solenoid Valve (V). Correct any leaks before proceeding.
12. With diaphragm chamber pressurized, temporarily close Diaphragm Supply Valve (P),
and observe Diaphragm Gauge (K) for a drop in pressure. If a pressure drop is noted, correct
any leaks before proceeding. If Diaphragm Gauge (K) indicates no drop in pressure, re-open
Diaphragm Supply Valve (P) and proceed.
13. Open Air Supply Valve (S) and allow system to automatically re-establish nominal system
air pressure of 15 psi (1,0 bar). Observe Automatic Drain Valve (F) for leaks. If there are leaks,
correct leaks before proceeding.
14. Open System Shut-Off Valve (X), as will be the case when resetting a system after per-
forming an operational test.
15. Proceed to reset electric detection system in accordance with the manufacturer's instruc-
tions. After setting releasing panel, return Potter RCDS-1 to "green light - releasing circuit
system normal".
16. Partially open System Main Control Valve (B). Slowly close Main Drain Valve (D) as water
discharges from Main Drain Valve (D). Observe Automatic Drain Valve (F) for leaks. If there
are leaks, correct the leakage problem.
17. Close hinged cover on Manual Control Station (M) and insert a new break rod in small
hole through top of enclosing box.
18. Fully open System Main Control Valve (B).
19. After setting re protection system, notify proper authorities and advise those responsible
for monitoring proprietary and/or central station alarms.
Drop in Water Supply Pressure Below Normal Range
1. Note water supply pressure by the Diaphragm Gauge (K) and determine if the pressure is
within normally expected range.
2. If below normal range, correct any leakage from diaphragm chamber prior to resetting the
system.
3. When water supply pressure is restored, reset DV-5aValve in accordance with the Valve
Setting Procedure.
Waterflow Alarm Test Procedure
1. Open Alarm Test Valve (G), allowing water to ow to Waterow Pressure Switch (C) and/or
Water Motor Alarm. Close the Alarm Test Valve (G) when test is completed.
2. Depress plunger on Automatic Drain Valve (F) to drain alarm line.
Electric/Electric Actuation System Operation Procedure
1. Close System Main Control Valve (B) and open Main Drain Valve (D).
2. Manually operate Zone 1 of Releasing Panel, and verify operation of Releasing Panel and
associated alarms, and there is no leakage from Solenoid Valve (V)
3. Restore electric re detection system to normal condition in accordance with manufac-
turer’s instructions.
4. Open Inspector’s Test Connection to relieve system air pressure, and verify Low Air Pres-
sure Alarm Switch (U) and Zone 2 of Releasing Panel, as well as associated alarms, operate
properly. Low Air Pressure Alarm Switch (U) should operate at previously established pres-
sure. Verify no leakage from Solenoid Valve (V)
5. Close Inspector’s Test Connection.
6. Restore electric re detection system to a normal condition in accordance with manu-
facturer’s instructions after system air pressure has automatically been restored to normal.
7. Close System Shut-Off Valve (W) after system air pressure has been restored to normal.
8. Open System Main Control Valve (B) one turn beyond which water begins to ow from
Main Drain Valve (D).
9. Close Main Drain Valve (D) and Air Supply Control Valve (S).
10. Manually operate Zone 1 of Releasing Panel, then operate Zone 2 of Releasing Panel by
partially opening System Drain Valve (E) to relieve air pressure at Low Air Pressure Alarm
Switch (U). Verify DV-5a Valve operates as is indicated by discharging water from System
Drain Valve (E) and Automatic Drain Valve (F). Automatic Drain Valve (F) may or may not close
depending on ow past partially open System Main Control Valve (B)
11. Verify Model MRA-1 Manual Reset Actuator (N) has operated indicated by water discharg-
ing into Drip Funnel from drain tube connected to Model MRA-1 Manual Reset Actuator (N),
that Waterow Pressure Switch (C) and its associated alarms properly operate, and Water
Motor Alarm, if applicable, properly operates.
Internal Valve Inspection
1. Ensure that Steps 1 to 4 of the Valve Setting Procedure are completed prior to proceeding
with the Internal Valve Inspection.
2. Ensure Diaphragm Supply Valve (P) is closed. If provided as part of the valve trim, close
Inverted Flare Shut-Off Valve (R).
3. Remove the Supply Line between the Diaphragm Supply Valve (P) and the System Main
Control Valve (B). If provided as part of the valve trim, remove the Supply Line between the
Diaphragm Supply Valve (P) and Inverted Flare Shut-Off Valve (R).
4. Loosen union securing Actuation Trim and remove Actuation Trim.
5. Remove union between Diaphragm Cover and MRA-1 Manual Reset Actuator (N). Remove
MRA-1 Manual Reset Actuator (N) subassembly.
6. Remove Diaphragm Valve Cover hardware, slowly remove Diaphragm Cover and perform
internal valve inspection. Clean valve interior and replace parts as necessary.
7. Ensure Diaphragm is properly oriented and proper hardware arrangement is utilized.
8. Insert Long Hex Bolts. Align Diaphragm with Valve Body, and then align Diaphragm Cover
with Valve Body. Insert Short Hex Bolts. Hand-tighten all fasteners.
9. Using crossdraw sequence, wrench-tighten Long Hex Bolts and Short Hex Bolts. Repeat
crossdraw sequence two to three times at incremental torque valves.
10. Inspect to assure all Hex Bolts are securely tightened.
11. Using the union, secure the MRA-1 Manual Reset Actuator (N) to the Diaphragm Cover.
12. Using union, secure Actuation Trim.
13. Replace the Supply Line between the Diaphragm Supply Valve and the System Main
Control Valve (B). If provided as part of the valve trim, replace Supply Line between Diaphragm
Supply Valve (P) and Inverted Flare Shut-Off Valve (R).
14. Ensure unions and are ttings are securely tightened.
15. If provided with the valve trim, and with Diaphragm Supply Valve (P) closed, fully open
Inverted Flare Shut-Off Valve (R) stainless steel screw (approximately 1/2 in.) until resistance
is met.
16. Proceed with Step 5 of the Valve Setting Procedures.
