General
Description

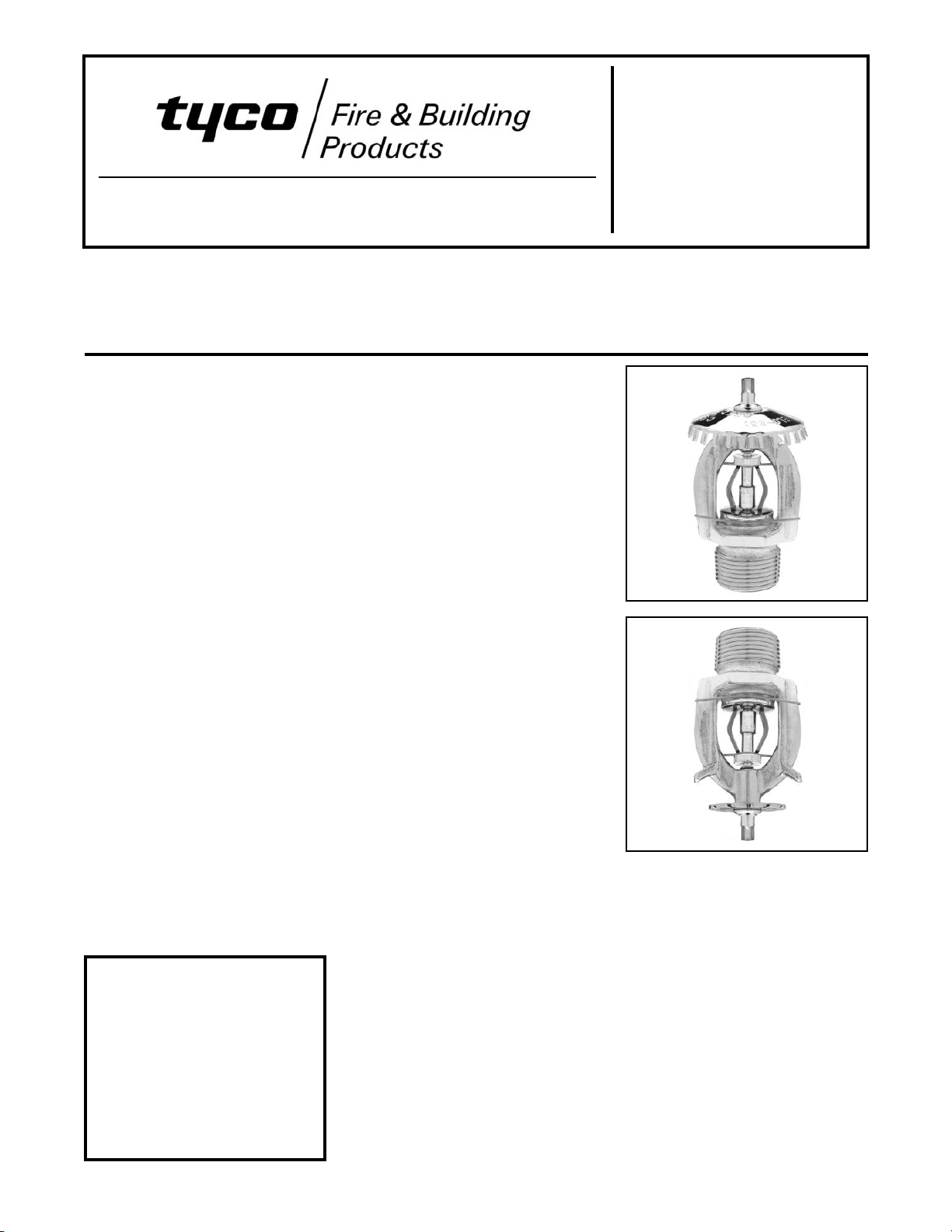

The 11.2 K-factor, Series ELO-231,
Standard Response, Standard Cover-
age, Upright and Pendent Sprinklers
(Ref. Figure 1) are automatic sprin-
klers of the fusible solder type. They
are “standard response - spray sprin-
klers” that produce a hemispherical
water distribution pattern below the
deflector.
The 11.2 K-factor, ELO-231 Sprinklers
were subjected to full scale, high-piled
storage, fire tests to qualify their use in
lieu of 5.6 or 8.0 K-factor standard
spray sprinklers for the protection of
high-piled storage.
Higher flow rates can be achieved at
much lower pressures with the 11.2
K-factor, ELO-231 Sprinklers — mak-
ing their use highly advantageous in
high density applications, such as the
protection of high-piled storage.
Wax or lead coatings can be used to
extend the life of the copper alloy com-
ponentsusedinSeriesELO-231sprin-
klers beyond that which would other-
wise be obtained when exposed to
corrosive atmospheres. Although wax
and lead coated sprinklers have
passed the standard corrosiontests of
the applicable approval agencies, the
testing is not representative of all pos-
sible corrosive atmospheres. Conse-
quently, it is recommended that the
end user be consulted with respect to
the suitability of these corrosion resis-
tant coatings for any given corrosive
environment. The effects of ambient
temperature, concentration of chemi-
cals, and gas/chemical velocity,
should be considered, as a minimum,
along with the corrosive nature of the
chemicalto which thesprinklerswill be
exposed.
An upright intermediate level version
of the Series ELO-231 Sprinklers for
in-rack applications can be obtained
by utilizing the Series ELO-231 Up-
right Sprinkler with the WSG-2 Guard
& Shield, and a pendent intermediate
level version of the Series ELO-231
Sprinklers can be obtained by utiliz-
ing the Series ELO-231 Pendent
Sprinklerwith theWS-2Shield.If there
is a possibility of the pendent interme-
diate level version being exposed to
mechanical damage, a G-2 Guard can
be added.
WARNINGS
The 11.2 K-factor, Series ELO-231
Upright and Pendent Sprinklers de-
scribed herein must be installed and
maintained in compliance with this
document, as well as with the applica-
ble standards of the National Fire Pro-
tection Association, in addition to the
standards ofany other authorities hav-
ing jurisdiction. Failure to do so may
impair the performance of these de-
vices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or manufac-
turer should be contacted with any
questions.
Installation of Series ELO-231 Pen-
dent Sprinklers in recessed escutch-
eons will void all sprinkler warranties,
as well as possibly void the sprinkler’s
Approvals and/or Listings.
Series ELO-231
Upright and Pendent Sprinklers
Standard Response, Standard Coverage
Page 1 of 6 TFP340
MARCH, 2007
Technical Services: Tel: [phone] / Fax: [phone]
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the “INSTALLER
WARNING” that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and in-
stallation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
tooperatein a fire situationor cause
it to operate prematurely.

Model/Sprinkler
Identification
Numbers
TY5111 - Upright 11.2K, 3/4"NPT
TY5211 - Pendent 11.2K, 3/4"NPT
TY5811 - Upright 11.2K, 1/2"NPT
TY5111 is a redesignation for C5111.
TY5211 is a redesignation for C5211.
TY5811 is a redesignation for C5811.
Technical
Data
Approvals
UL and C-UL Listed. FM and NYC Ap-
proved.(Refer to Table A for complete
approval information including corro-
sion resistant status. The approvals
apply to the service conditions indi-
cated in the Design Criteria section.)
Maximum Working Pressure
175 psi (12,1 bar)
Discharge Coefficient
K = 11.2 GPM/psi1/2
(161,4 LPM/bar1/2)
Temperature Ratings
RefertoTableA
Finishes
RefertoTableA
Physical Characteristics
Frame . . . . . . . . . . . . . Bronze
SealDisc .......... Copper
Cap . . . . . . . . . . . . . . Bronze
Strut Assembly . . . Solder, Bronze,
............ StainlessSteel
Compression Screw . . . . . Bronze
Deflector . . . . . . . . . . . . Bronze
Helper Spring . . . . Stainless Steel
EjectorSpring......... Nickel
Strut Clip . . . . . . Stainless Steel
Design Criteria
ULandC-ULListing
Requirements
The 11.2 K-factor, Model ELO-231
(TY5111, TY5211 & TY5811) Sprin-
klers are to be installed in accordance
with NFPA 13 standard sprinkler posi-
tion and area/density flow calculation
requirements for light, ordinary, or ex-
tra hazard occupancies, as well as
high piled storage occupancies (solid
piled, palletized, rack storage, bin box,
and shelf storage including but not lim-
ited to Class I-IV and Group A plastics)
with a minimum residual (flowing)
pressure of 7 psi (0,5 bar) for wet or
dry pipe systems.
FM Approval
Requirements
The 11.2 K-factor, Model ELO-231
(TY5111, TY5211 & TY5811) Sprin-
klers are to be installed in accordance
with the applicable “control mode den-
sity/area” guidelines provided by Fac-
tory Mutual. (FM guidelines may differ
from UL and C-UL Listing criteria.)
Page2of6 TFP340
TYPE TEMPERATURE FRAME
COLOR NATURAL BRASS
SPRINKLER FINISH
NOTES:
1. Listed by Underwriters Laboratories, Inc. (UL Listed).
2. Listed by Underwriters Laboratories, Inc. for use in Canada (C-UL Listed).
3. Approved by Factory Mutual Research Corporation (FM Approved).
4. Approved by the City of New York under MEA 291-04-E.
(a). Listed/Approved for a maximum ceiling temperature of 150°F/66°C.
TABLE A
LABORATORY LISTINGS AND APPROVALS
FOR 11.2 K-FACTOR SERIES ELO-231 UPRIGHT AND PENDENT SPRINKLERS
(Refer to the Design Criteria Section)
UPRIGHT
(TY5111
&
TY5811)
1, 2, 3, 4
165°F/74°C Unpainted
212°F/100°C White
286°F/141°C Blue
CHROME
PLATED WAX COATED
LEAD
COATED WAX OVER LEAD
1, 2, 3, 4
1(a) ,2(a) ,3
(a),4 (a)
165°F/74°C
212°F/100°C
286°F/141°C
PENDENT
(TY5211
Unpainted
White
Blue
1, 2, 3, 4 1, 2, 4
1(a) ,2(a),4
(a)
1, 2, 3, 4
1, 2, 4

Operation
A fusible alloy is sealed into a bronze
actuating rod (center strut) by a stain-
less steel ball. When the alloy melts at
its rated temperature, the ballis forced
upward into the center strut, releasing
the two ejectors and operating the
sprinkler.
Installation
The Series ELO-231 Sprinklers must
be installed in accordance with the fol-
lowing instructions:
NOTES
A leak tight 3/4 inch NPTsprinkler joint
should be obtained with a torque of 10
to 20 ft.lbs. (13,4 to 26,8 Nm). A maxi-
mum of 30 ft.lbs. (40,7 Nm) of torque
is to be used to install sprinklers with
3/4 NPT connections. A leak tight 1/2
inch NPT sprinkler joint should be ob-
tained with a torque of 7 to 14 ft.lbs.
(9,5 to 19,0 Nm). A maximum of 21 ft.
lbs. (28,5 Nm) of torque may be used
to install sprinklers with 1/2 NPT con-
nections. Higher levels of torque may
distort the sprinkler inlet and cause
leakage or impairment of the sprinkler.
Do not attempt to make-up for insuffi-
cient adjustment in the escutcheon
plate by under- or over-tightening the
sprinkler. Readjust the position of the
sprinkler fitting to suit.
The Series ELO-231 Upright and
Pendent Sprinklers must be installed
in accordance with the following in-
structions.
Step 1. Pendent sprinklers are to be
installed in the pendent position, and
upright sprinklers are to be installed in
the upright position.
Step 2. With pipe thread sealant ap-
plied to the pipe threads, hand tighten
the sprinkler into the sprinkler fitting.
Step 3. Tighten the sprinkler into the
sprinkler fitting using only the W-Type
3 Sprinkler Wrench (Ref. Figure 2),
except that an 8 or 10 inch adjustable
Crescent wrench is to be used for wax
coated sprinklers. With reference to
Figure 1, the W-Type 3 Sprinkler
Wrench or the adjustable Crescent
wrench, as applicable is to be applied
to the wrench flats.
When installing wax coated sprinklers
with the adjustable Crescent wrench,
additional care needs to be exercised
to prevent damage to the wax coating
on the sprinkler wrench flats or frame
arms and, consequently, exposure of
bare metal to the corrosive environ-
ment. The jaws of the wrench should
be opened sufficiently wide to pass
over the wrench flats without damag-
ing the wax coating. Before wrench
tightening the sprinkler, the jaws of the
wrench are to be adjusted to just con-
tact the sprinkler wrench flats. After
wrenchtighteningthesprinkler,loosen
TFP340 Page 3 of 6
FIGURE 1
11.2 K-FACTOR SERIES ELO-231
UPRIGHT - 3/4" NPT (TY5111), UPRIGHT - 1/2" NPT (TY5811), AND PENDENT - 3/4" NPT (TY5211) SPRINKLERS
FIGURE 2
W-TYPE 3 SPRINKLER
WRENCH
"FITTIN
G
SIDE"
FITTING
TOWARDS SPRINKLER
RECESS
WRENCH
(END "A")
1/2" (12,7 mm)
TY5211
PENDENT
NOMINAL MAKE-IN
Temperature rating is indicated on deflector.
Pipe thread connections per ISO 7/1 can be provided on
7/16" (11,1 mm)
NOMINAL MAKE-IN
2-13/16"
(71,4 mm)
TYP.
UPRIGHT
TY5811
special request.
**
*
UPRIGHT
TY5111
NOMINAL MAKE-IN
1/2" (12,7 mm)
**
NPT
1/2"
WRENCH
FLATS THREAD
**
RELIEF
3/4"
NPT
Compression
Strut
Assembly
Components:
Seal Disc
Cap
Frame
Strut Clip
Spring
Ejector
Spring
Helper
Deflector
Screw
-
4
2
6
8
9
7
4
5
3
CROSS
SECTION
8
9-
-
5
7
6-
-
-
NPT
**
3/4" 11
2
3-
-
-
*

the wrench jaws before removing the
wrench.
After installation, the sprinkler wrench
flats and frame arms must be in-
spected and the wax coating re-
touched (repaired) whenever the coat-
ing has been damaged and bare metal
is exposed. The wax coating on the
wrench flats can be retouched by gen-
tly applying a heated 1/8 inch diameter
steel rod to the areas of wax that have
been damaged, to smooth it back over
areas where bare metal is exposed.
NOTES
Only retouching of the wax coating ap-
plied to the wrench flats and frame
arms is permitted, and the retouching
is to be performed only at the time of
the initial sprinkler installation.
The steel rod should be heated only to
the point at which it can begin to melt
the wax, and appropriate precautions
need to be taken, when handling the
heated rod, in order to prevent the
installer from being burned.
If attempts to retouch the wax coating
with complete coverage are unsuc-
cessful, additional wax can be ordered
in the form of a wax stick (the end of
which is color coded). Only the correct
color coded wax is to be used, and
retouching of wrench flats and frame
arms is only permitted at the time of
initial sprinkler installation. With the
steel rod heated as previously de-
scribed, touch the rod to the area re-
quiring additional wax with the rod an-
gled downward, and then touch the
wax stick to the rod approximately
one-half inch away from the area re-
quiring retouching. The wax will melt
and run down onto the sprinkler.
Care and
Maintenance
Series ELO-231 Sprinklers must be
maintained and serviced in accord-
ance with the following instructions:
NOTES
Before closing a fire protection system
control valve for maintenance work on
the fire protection system that it con-
trols, permission to shut down the af-
fected fire protection system must be
obtained from the proper authorities
and all personnelwho may be affected
by this action must be notified.
Sprinklers that are found to be leaking
or exhibiting visible signs of corrosion
must be replaced.
Automatic sprinklers must never be be
painted, plated, coated or otherwise
altered after leaving the factory. Modi-
fied or over-heated sprinklers must be
replaced.
Care must be exercised to avoid dam-
age to the sprinklers — before, during,
and after installation. Sprinklers dam-
aged by dropping, striking, wrench
twist/slippage, or the like, must be re-
placed.
Frequent visual inspections are rec-
ommendedtobeinitiallyperformedfor
corrosion resistant sprinklers,after the
installation has been completed, to
verify the long term potential integrity
of the sprinkler coatings. Thereafter,
annual inspections per NFPA 25
should suffice; however, instead of in-
specting from the floor level, a random
sampling of close-up visual inspec-
tions should be made, so as to better
determine the exact sprinkler condi-
tion and the long term integrity of the
corrosion resistant coating, as it may
be affected by the corrosive conditions
present.
The owner is responsible for the in-
spection, testing, and maintenance of
their fire protection system and de-
vices in compliance with this docu-
ment, as well as with the applicable
standards of the National Fire Protec-
tion Association (e.g., NFPA 25), in
addition to the standards of any other
authorities having jurisdiction. The in-
stalling contractor or sprinkler manu-
facturer should be contacted relative
to any questions.
It is recommended that automatic
sprinkler systems be inspected,
tested, and maintained by a qualified
Inspection Service in accordance with
local requirements and/or national
code.
Limited
Warranty
Products manufactured by Tyco Fire &
Building Products (TFBP) are war-
ranted solely to the original Buyer for
ten (10) years against defects inmate-
rial and workmanship when paid for
and properly installed and maintained
under normal use and service. This
warranty will expire ten (10) years
from date of shipment by TFBP. No
warranty is given for products or com-
ponents manufactured by companies
not affiliated by ownership with TFBP
or for products and components which
havebeensubject tomisuse, improper
installation,corrosion, or which have
not been installed, maintained, modi-
fied or repaired in accordance with ap-
plicable Standards of the National Fire
Protection Association, and/or the
standards of any other Authorities
Having Jurisdiction. Materials found
by TFBP to be defective shall be either
repaired or replaced, at TFBP’s sole
option. TFBP neither assumes, nor
authorizesanypersontoassumeforit,
any other obligation in connection with
the sale of products or parts of prod-
ucts.TFBP shall not be responsiblefor
sprinkler system design errors or inac-
curate or incomplete information sup-
plied by Buyer or Buyer’s repre-
sentatives.
In no event shall TFBP be liable, in
contract, tort, strict liability or under
any other legal theory, for incidental,
indirect,specialor consequentialdam-
ages, including but not limited to labor
charges, regardless of whether TFBP
was informed about the possibility of
such damages, and in no event shall
TFBP’s liability exceed an amount
equal to the sales price.
Theforegoingwarrantyismadeinlieu
of any and all other warranties, ex-
press or implied, including warranties
ofmerchantabilityandfitnessforapar-
ticular purpose.
This limited warranty sets forth the ex-
clusive remedy for claims based on
failure of or defect in products, materi-
als or components, whether the claim
is made in contract, tort, strict liability
or any other legal theory.
Page4of6 TFP340

Ordering
Procedure
A Part Number (P/N) is not specified
when ordering sprinklers with thread
connections per ISO 7/1.
Contact your local distributor for avail-
ability.
Sprinkler Assemblies
with NPT Thread Connection:
Specify: (specify SIN), 11.2 K-factor,
(specify temperature rating), Series
ELO-231 Standard Response (specify
Pendent or Upright) Sprinkler with
(specify finish), P/N (specify from Ta-
ble B).
Sprinkler Wrench:
Specify: W-Type 3 Sprinkler Wrench,
P/N 56-895-1-001.
Wax Sticks:
(for retouching wrench damaged
wax coating)
Specify: (Specify color) color coded
Wax Stick for retouching (specify tem-
perature rating) temperature rated Se-
ries ELO-231 Sprinklers, P/N (spec-
ify).
Red for 165°F. . . . . . . . . . . . . P/N 56-065-1-155
Blue for 212°F and
286°F. . . . . . . . . . . . . . . . . P/N 56-065-1-286
NOTES
Each wax stick is suitable for retouch-
ing up to twenty-five sprinklers.
The wax used for 286°F sprinklers is
the same as for 212°F sprinklers, and,
therefore,the286°Fsprinkler islimited
tothe samemaximumceilingtempera-
ture as the 212°F sprinkler (i.e.,
150°F).
TFP340 Page 5 of 6
P/N 50 — XXX — X — XXX
165°F/74°C165
TEMPERATURE
RATING
110 9
SPRINKLER
TABLE B
PRODUCT SYMBOL NUMBER SELECTION
11.2 K-FACTOR SERIES ELO-231
STANDARD RESPONSE UPRIGHT AND PENDENT SPRINKLERS
UPRIGHT
3/4" NPT
(TY5111)
286
212°F/100°C212
286°F/141°C
CHROME PLATED
TYPE NATURAL BRASS1
WAX COATED
LEAD COATED
WAX OVER LEAD
6
7
8
112 PENDENT
3/4" NPT
(TY5211)
210 UPRIGHT
1/2" NPT
(TY5811)

Page6of6 TFP340
TYCO FIRE & BUILDING PRODUCTS, 451 North Cannon Avenue, Lansdale, Pennsylvania 19446
