Dear User,
Tzora Active Systems Ltd. thanks you for choosing the EasyTravel Lite
scooter and wishes you safe and enjoyable journeys.
For proper operation and to maintain the scooter’s operational readiness, we
recommend that you read this user manual and all warning labels prior to
using the scooter.
Kibbutz Tzora, 9980300, Israel
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Web site:: www.tzora.com

EasyTravel Lite - ET1L 4 User Manual - Rev. Jul 2016 us

EasyTravel Lite - ET1L 5 User Manual - Rev. Jul 2016 us
Table of Contents
SECTION A –PRE-SALES INFORMATION
1
Introduction
6
2
Technical Data
7
3
Safety
10
4
System Components and Details
17
SECTION B –USER INFORMATION
5
Unfolding and Folding Instructions
19
6
Operating the Scooter
23
7
Batteries and Charging
27
8
Storage and Transportation
31
9
Helpful Hints for Everyday Use
32
10
EMI –Electro-magnetic Interference
33
SECTION C –SERVICE INFORMATION
11
General Maintenance and Inspections
39
12
Fault Finding
42
13
Disposal and Recycling
44
NOTE: Design details may change without notice.

EasyTravel Lite - ET1L 6 User Manual - Rev. Jul 2016 us
SECTION A –PRE-SALES INFORMATION
REMARK: For people with impaired vision, this manual is available in digital format
uponrequest from themanufacturer;pleasesend [e-mail].
1. Introduction
Indications for Use
The EasyTravel Lite is a mobility assistive device for indoor and
restricted outdoor use on pavements or paved footpaths only during
daylight hours. It is not intended to be used as a transportation vehicle on
roads and freeways used by cars.
General Information
The EasyTravel Lite is a “Class A” electrically powered scooter.
It is intended to be used by individuals who are able to walk, but suffer
from mobility limitations. The user must have sufficient arm and leg
strength to get on and off the EasyTravel Lite alone and to safely steer
under all driving conditions.
The occupant’s weight should not exceed 115 kg. (250 lbs.).
CAUTION: Failure to follow the instructions contained in this manual may
result in injury to the user or to other persons.
IMPORTANT:
Charge the batteries for 24 hours before first use.

EasyTravel Lite - ET1L 7 User Manual - Rev. Jul 2016 us
2. Technical Data
Item
Category
Class A
Maximum speed
6.0 km/h (3.7 mph)
Power supply
24V from 2 rechargeable sealed lead/acid,
maintenance-free batteries.
12V-12 A/h
Charge time
7-10 hours
Estimated range
Using recommended battery and depending on
operating conditions and load:
Up to13 km. (8 miles)
Climbing slope
6° (10%)
Reversing width
1200 mm.
Ascending and
descending curb (step)
15 mm. (5/8 in.) maximum
(see note on page 12)
Ground clearance
4 cm. (1.6 in.)
Maximum load
115 kg. (250 lb.)
Resistance to ignition of
materials & assemblies
UL94 V-0
Scooter weight
(excluding batteries)
21 kg. (46 lb.)
Seat Weight
6 kg (13 lbs)
Battery pack weight
8 kg. (18 lb.)
Front Wheels
200x50 mm (8x2 in.)
Rear Wheels
200x50 mm (8x2 in.)
Tyres
Flat-free PU
Dimensions
(Length, Width, Height)
101x57x90 cm. (39”x22”x35”)

EasyTravel Lite - ET1L 8 User Manual - Rev. Jul 2016 us
Disclosure Information per ISO 7176-15:1996
Item
Min
Max
Overall length with legrest
1010 mm
Overall width
570 mm
Folded length
1010 mm
Folded width
570 mm
Folded height
520 mm
Total mass
30 kg
Mass of the heaviest part
21 kg
Static stability downhill
6º
Static stability uphill
6º
Static stability sideways
6º
Energy consumption
15 km
Dynamic stability uphill
3º
Obstacle climbing
15 mm
Maximum speed forward
6 km/h
Minimum braking distance from
max speed
92 mm
Seat plane angle
3º
5º
Effective seat depth
420 mm
440 mm
Effective seat width
440 mm
Seat surface height at front edge
500 mm
510 mm
Backrest angle
10º
12º
Backrest height
360 mm
370 mm
Footrest to seat distance
380 mm
390 mm
Leg to seat surface angle
10º
12º
Armrest to seat distance
170 mm
180 mm
Minimum turning radius
900 mm

EasyTravel Lite - ET1L 9 User Manual - Rev. Jul 2016 us
BATTERY
Manufacturer
Kung Long Batteries Industrial Co., Ltd.
No. 6, Tzu-Li 3 Road, Nantou City, Taiwan
Model
WP12-12
Type
Rechargeable Sealed Lead Acid Battery
Nominal Capacity
20hour rate ( 0.6A to 10.50V ) 26A/h
Charge Retention (shelf life)
at 20°C (68°F)
1 month 92%
3 month 90%
6 month 80%
Life expectancy:
Cycle Use:
100% depth of discharge 200 cycles
80% depth of discharge 225 cycles
50% depth of discharge 500 cycles
Standby Use: 3~5years
No. of batteries
2
Nominal Voltage
12 V
Power
12A/h
Weight
Approx. 4.075kg (8.96 lbs.)
MOTOR
Rated Voltage
24 V
Power
180 W

EasyTravel Lite - ET1L 10 User Manual - Rev. Jul 2016 us
3. Safety
The EasyTravel Lite is intended to be operated by the occupant and
used by individuals who are able to walk but suffer from mild mobility
limitations. The user must have sufficient arm and leg strength to get
on and off the scooter alone and the cognitive and visual ability to
safely operate the scooter under all driving conditions. The occupant’s
weight should not exceed 115 kg. (250 lb.).
The EasyTravel Lite is intended for indoor and restricted outdoor use
on pavements or paved footpaths only during daylight hours. It does
not have lights nor reflectors and therefore must not be used in the
dark or in limited visibility conditions.
Operation
These safety considerations and tips will help you operate the scooter safely.
The Scooter is a powerful electric vehicle, and the following rules will help
you prevent personal injury and damage to your scooter.
Make sure that your weight does not exceed the recommended weight
limit of the scooter (see Technical Specifications).
Do not carry passengers.
Always ensure that the power is switched off, when getting on or off of
the scooter.
When getting on and off the scooter, do not step on the foot rest.
At all times while driving, keep your feet on the foot rest.
Be aware of the environment around you when choosing a desired
speed. For indoor environments, we recommend that you select the
slowest speed setting. For outdoor operation select a speed that is
comfortable for you to control the scooter safely.
Reduce speed when making sharp turns.
Do not switch off the power when the scooter is still moving forward.
This will bring the scooter to an extremely abrupt stop.

EasyTravel Lite - ET1L 11 User Manual - Rev. Jul 2016 us
Avoid jerky stop/start motions as it will result in excessive battery drain
and increased tire wear. To brake in an emergency, simply release the
throttle control lever.
Make sure the brake release lever is in driving mode prior to operation
(see Figure 1).
In “Freewheel” mode the scooter may be moved manually. If the
operator is unable to reach the control lever, it may be adjusted
by an assistant. See also “Moving the Scooter” on Page 22.
Make sure that the throttle control lever is in the centered
position before switching the scooter on.
WARNING!- Do not attempt to move the “Brake Release Lever”
to the “Freewheel” mode when the scooter is standing on a
slope as the brake (EMB) is disabled and there is a risk of
accident. (Figure 1)
If the automatic brake fails to work, the user should immediately
turn the key-switch to the off position.
Do not attempt to drive the scooter while it is charging as operation
is inhibited.
Figure 1

EasyTravel Lite - ET1L 12 User Manual - Rev. Jul 2016 us
Ramps and Curbs (Sidewalks)
Use extra caution when driving down a slope.
Never drive across a slope.
DO NOT turn sharply on a slope.
DO NOT drive in reverse on a slope or on a bumpy surface.
When driving over a curb or raised surface, make sure that the bottom
of the scooter has sufficient clearance (see Technical Specifications).
The EasyTravel Lite scooter requires some momentum to climb a
curb (step). The curb should be approached from a "run up" distance
of approximately 1 meter (3 ft.).
No attempt should be made to ascend or descend a curb of a height
greater than 15 mm. (5/8 in.)
General Instructions
DO NOT attempt to lift or move a power scooter by any of its
removable parts. Personal injury and damage to the power scooter
may result.
DO NOT drive the scooter on a major roadway.
The EasyTravel Lite does not have lights and reflectors and therefore
must not be used in the dark or in limited visibility conditions
DO NOT connect any electrical or mechanical devices to the scooter.
Doing so may cause personal injury or damage to equipment, and
voids the manufacturer’s warranty.
DO NOT operate your vehicle if it is not functioning properly. Contact
your service center immediately.
The EasyTravel Lite scooter is NOT intended to be used as a seat in
a motor vehicle.
When exposed to external sources of heat (e.g. sunlight) surface
temperatures of the scooter can increase. Exercise caution before
touching exposed surfaces.
DO NOT perform stretching exercises, wheelies or other stunts with
the scooter.

EasyTravel Lite - ET1L 13 User Manual - Rev. Jul 2016 us
DO NOT drive the scooter on a roadway.
DO NOT use the scooter on an escalator.
DO NOT use the scooter during weight training as the maximum
loading may be exceeded and the stability of the scooter
compromised.
Influence of Medication or Alcohol
Check with your physician if you are taking any medication that may
affect your ability to operate your power scooter safely.
DO NOT operate your vehicle while you are under the influence of
alcohol, as it impairs your ability to operate your power scooter in a
safe manner.
Warning Labels
Please read the warning labels situated on the front of the Tiller, behind
the Battery (see Figure 2) and on the Controller Cover (Figure 3)
Figure 2
Figure 3

EasyTravel Lite - ET1L 14 User Manual - Rev. Jul 2016 us

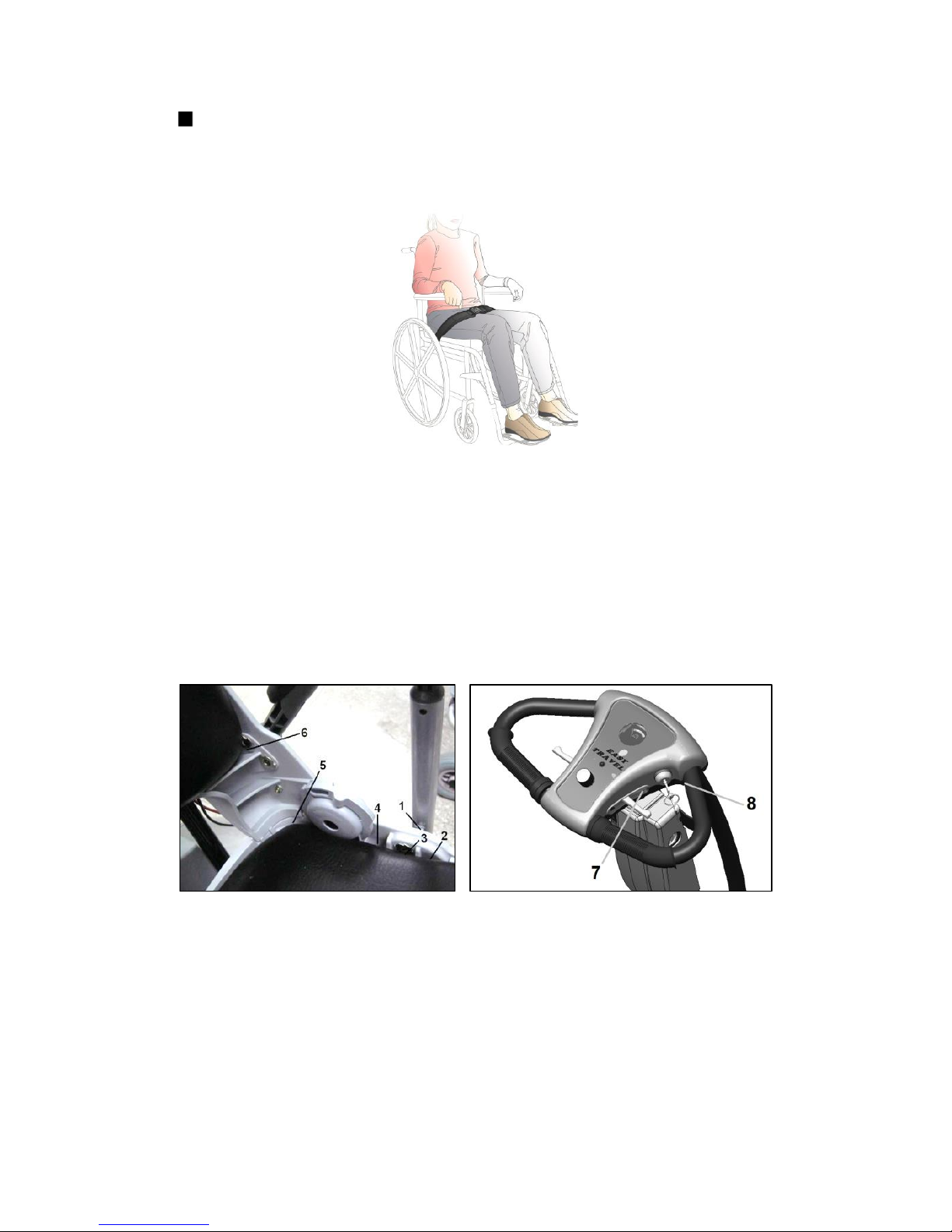

Additional Comfort and Safety
For additional comfort and safety, it is recommended that the user
fastens the anterior pelvic support belt similar to that shown in the
figure below.
Figure 4
Important Note
There are a number of potential finger traps on the scooter as indicated
below. The operator or his/her assistant should be aware of these and
take particular care to avoid personal injury. (see Figures 5 & 6)
Figure 5 Figure 6

EasyTravel Lite - ET1L 15 User Manual - Rev. Jul 2016 us
The Type Plate
The Type Plate can be found on the front of the Tiller behind the Battery.
Figure 7a
This label contains the serial number of the EasyTravel Lite.
The serial number consists of 11 digits and one letter:
Example: Serial no. 11001405006X
1100
14
05
006
X
1
2
3
4
5
1. Model: EasyTravel Lite
2. Year of manufacturing (last two digits of the year)
3. Month of manufacturing
4. Sequential number of batch
5. Letter identifying the manufacturing location

EasyTravel Lite - ET1L 16 User Manual - Rev. Jul 2016 us
Legend:
Read this user manual and all labels before operating.
When this equipment is no longer operational it must be
sent to a separate collection facility for recovery and
recycling.
CE approved Notified Body
Type B equipment.
Read the warnings in this manual before operating.
Motor Warning Label
The Motor Warning/Serial No. label can be found on the Motor at
the rear of the chasis.
Figure 7b

EasyTravel Lite - ET1L 17 User Manual - Rev. Jul 2016 us
4. System Components and Details
Your EasyTravel Lite power scooter comes partially disassembled for protection
during shipment. After unpacking, please familiarize yourself with the following
components (see Figures 8, 8A, 8B and 9).
1. Battery pack (detachable)
10. Rear Wheels
2. Tiller (foldable)
11. Utility Basket (holding capacity 20lbs/9kg)
3. Tiller lock/release triggers
12. Control Panel
4. Controller cover
13. Drive/EMB (Electro-magnetic Brake)
5. Charging socket
Release Switch
6. Front drive wheels
14. Transaxle Motor (Fig. 8A)
7. Foot platform
15. Electro-magnetic Brake (EMB) Release Lever
8. Seat shell
(Freewheel Device) (Fig. 8A)
9. Seat cushions
16. Charger & Connecting Cables (Fig.8B)

EasyTravel Lite - ET1L 18 User Manual - Rev. Jul 2016 us
Control Panel –(Figure 9)
1. On-Off Switch
2. Throttle control lever (right and left)
3. Speed adjusting knob
4. Indicator light (LED)
5. Battery Gauge
6. Hand-grips
Figure 9

EasyTravel Lite - ET1L 19 User Manual - Rev. Jul 2016 us
Figure 10
SECTION B –USER INFORMATION
5. Unfolding and Folding Instructions
It is very easy to unfold or fold your scooter. Please follow the steps below.
Contact your service center in any problems occur.
Unfolding your EasyTravel Lite
1. Pull the Column Lock Triggers
(Figure 8/3) and lift Steering
Column from Seat (Figure 10)
2. Lift the Seat Backrest upright
3. Grasp top of Backrest and pull
upwards to unfold the Seat Frame
and let the Crossbar (Figure 12-A)
fall into the Crossbar Supports
(Figure 12-B)
Folding your EasyTravel Lite
1. Grasp top of Backrest, lift it a little bit
just to release the Crossbar (Figure
11-A) from the Supports (Figure 11-B)
and fold the Seat Frame down
2. Fold Seat Backrest down
3. Pull Column Lock Triggers (Figure 8/3)
and fold Column down over Seat (Figure
10)
Figure 11

EasyTravel Lite - ET1L 20 User Manual - Rev. Jul 2016 us
Positioning the Tiller (Figure 12)
To adjust the angle of the front column, pull the column lock triggers upward.
Move the column into the desired position and release. Push lightly back and
forth on the column to ensure that it is locked in the desired position.
For driving the EasyTravel Lite,
adjust column to one of the two
positions (Figure 12).
CAUTION: When getting in and out of
the EasyTravel Lite seat, step only on
the CENTER of the foot platform. DO
NOT STEP ON SIDE OF THE FOOT
PLATFORM to avoid tipping the
EasyTravel Lite.
Optional Armrests (Figure 14)
To enable easier entry to and exit
from your EasyTravel the armrest
can be lifted (Figure 13).
Figure 12
Figure 13
