Ublox C93-M8E User manual

C93-M8E
Application Board
User Guide

Abstract
This document describes the structure and use of the C93-
M8E application board and provides
information for evaluating and testing u-
blox M8 Untethered Dead Reckoning (UDR) positioning
technology.
www.u-blox.com
UBX-15031067 - R03

C93-M8E - User Guide
UBX-15031067 - R03 Page 2 of 21
Early Production Information
Document Information
Title C93-M8E
Subtitle User Guide
Document type User Guide
Document number UBX-15031067
Revision and date R03 12-Dec-2018
Disclosure Restriction Early Production Information
This document applies to the following products:
Product name Type number ROM/FLASH version PCN reference
C93-M8E C93-M8E-0-00 ROM 3.01 / Flash FW 3.01 UDR 1.21 N/A
u-blox or third parties may hold intellectual property rights in the products, names, logos and designs included in this
document. Copying, reproduction, mod
ification or disclosure to third parties of this document or any part thereof is only
permitted with the express written permission of u
-blox.
The information contained herein is provided “as is” and u
-blox assumes no liability for its use. No warranty, either express or
implied, is given, including but not limited
to, with respect to the accuracy, correctness, reliability and fitness for a particular
purpose of the information. This document may be revised by u
-blox at any time without notice. For the most recent
documents, visit www.u
-blox.com.
Copyright © u
-blox AG.

C93-M8E - User Guide
UBX-15031067 - R03 Page 3 of 21
Early Production Information
Contents
Document Information................................................................................................................................2
Contents ..........................................................................................................................................................3
1Product description ..............................................................................................................................4
1.1 Overview........................................................................................................................................................4
1.2 C93-M8E package includes ...................................................................................................................... 4
1.3 Evaluation software....................................................................................................................................4
1.4 System requirements ................................................................................................................................ 4
2Specifications .........................................................................................................................................5
3Device description.................................................................................................................................6
3.1 Interface connection and measurement................................................................................................ 6
3.2 Integrated GNSS antenna.........................................................................................................................6
3.3 Evaluation unit.............................................................................................................................................6
3.3.1 USB ........................................................................................................................................................ 6
3.3.2 Pin header............................................................................................................................................. 7
3.3.3 LED.........................................................................................................................................................7
3.3.4 Backup Battery....................................................................................................................................7
3.3.5 GNSS Configuration........................................................................................................................... 7
4Setting up.................................................................................................................................................8
4.1 C93-M8E installation ................................................................................................................................. 8
4.1.1 Mounting the C93-M8E.....................................................................................................................8
4.1.2 Connecting the cables .......................................................................................................................8
4.2Recommended Configuration ..................................................................................................................9
4.2.1 Serial port default configuration .....................................................................................................9
4.2.2 UDR Receiver Operation .................................................................................................................... 9
4.3 Accelerated Initialization and Calibration Procedure ........................................................................11
5Test Drives............................................................................................................................................. 12
6Block diagram ....................................................................................................................................... 13

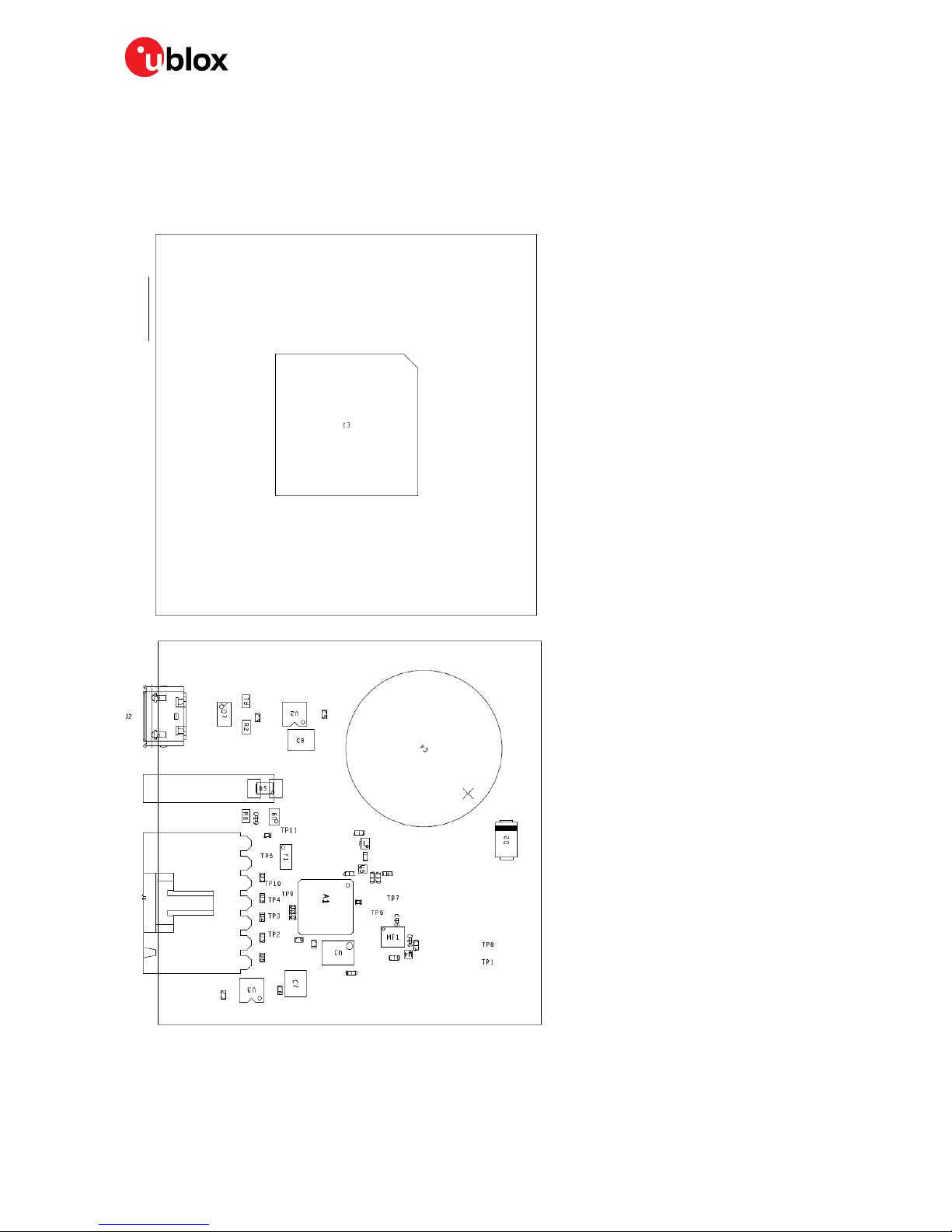

7Board layout........................................................................................................................................... 14
8Schematic .............................................................................................................................................. 16
9Troubleshooting................................................................................................................................... 17
10 Common evaluation pitfalls ............................................................................................................. 19
Related documents ................................................................................................................................... 20
Revision history.......................................................................................................................................... 20
Contact........................................................................................................................................................... 21

C93-M8E - User Guide
UBX-15031067 - R03 Early Production Information Product description
Page 4 of 21
1Product description
1.1 Overview
Based on the EVA-M8E module, the C93-M8E application board enables immediate evaluation of u-
blox’s Untethered Dead Reckoning (UDR) technology in most vehicle applications. The C93-M8E
includes the antenna, RTC and peripheral components that are required to complete an end-product
design, all enclosed in a small case, ready for mounting in a vehicle application. The built-in USB
interface provides both power supply and high-speed data transfer, and eliminates the need for an
external power supply. The C93-M8E is compact, and ideally suited for use in laboratories and
vehicles. It can be used directly with a PDA or a notebook PC via its USB interface. Schematics and
layouts are available, allowing the C93-M8E to be used as a basis for customer designs.
1.2 C93-M8E package includes
•C93-M8E Application board in clear plastic housing
•USB cable
1.3 Evaluation software
The u-center software installation package for the C93-M8E can be downloaded from the Web:
www.u-blox.com/en/evaluation-software-and-tools. Once the zip file is downloaded and unzipped,
unzip the file in Tools folder and double-click the extracted exe file. The software will be installed on
your system and placed under the “u-blox” folder in the “Start Programs” menu.
The installation software includes u-center, an interactive tool for configuration, testing,
visualization and data analysis of GNSS receivers. It provides useful assistance during all phases of
a system integration project. The version of the u-center should be v8.22 Beta03 or later.
1.4 System requirements
•PC with USB interface
•Operating system: Windows Vista onwards (x86 and x64 versions)
•USB drivers are provided in the installed software

C93-M8E - User Guide
UBX-15031067 - R03 Early Production Information Specifications
Page 5 of 21
2Specifications
Parameter Specification
USB 1 micro USB V2.0
Extra connectors connection pins for UART communication, 3.3 V
Dimensions 49 x 49 x 20 mm
Power Supply 5V via USB or external powered via extra power supply pin 1 (VCC) and common
supply/interface ground pin 6 (GND)
Normal Operating temperature -40°C to +65°C
Table 1: C93-M8E specifications

C93-M8E - User Guide
UBX-15031067 - R03 Early Production Information Device description
Page 6 of 21
3Device description
3.1 Interface connection and measurement
For connecting the application board to a PC, use included USB cable or 6-pin connector. USB
provides both power and a communication channel.

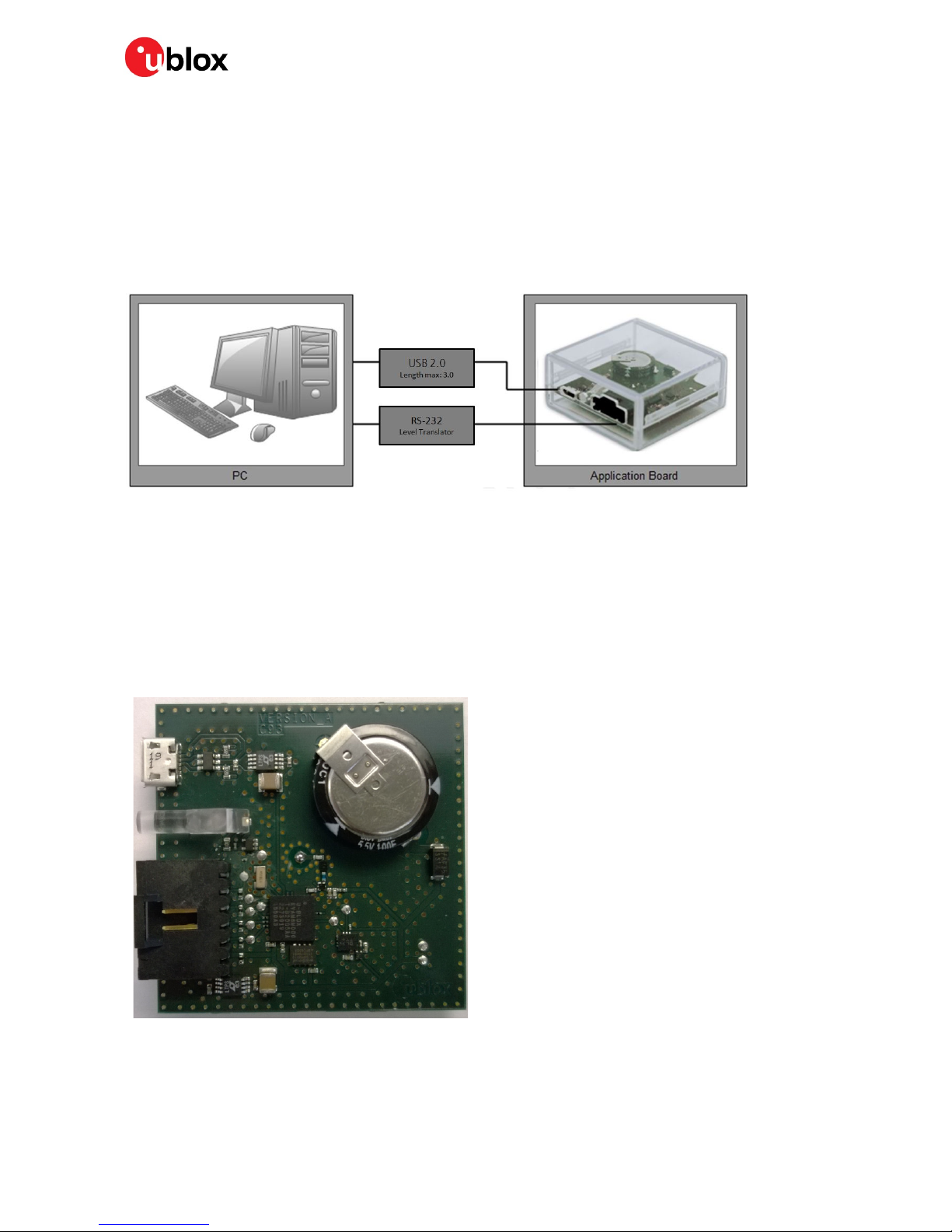

Figure 1: Connecting the unit for power supply and communication
3.2 Integrated GNSS antenna
The C93-M8E includes an 18 mm patch type GNSS antenna. The PCB design allows for patch
antennas of up to 25 mm to be fitted (soldering required).
3.3 Evaluation unit
Figure 2 shows C93-M8E application board.
Figure 2: C93-M8E application board
3.3.1 USB

C93-M8E - User Guide
UBX-15031067 - R03 Early Production Information Device description
Page 7 of 21
A micro USB V2.0 compatible port is featured for data communication and power supply.
3.3.2 Pin header
The C93-M8E application board includes a 6-pin latching connector from the TE Connectivity
AMPMODU MTE series. Mating cable receptacles from this series include part numbers 5-103960-
5 and 5-103957-5. The 6-pin header is assigned as listed in Table 2:
Pin Nr. Assignment
1 VCC
2 TXD, GPS Transmit Data, serial data to DTE, 3V logic level inverted
3 RXD, GPS Receive Data, serial data from DTE, 3V logic level inverted
4 Connect to RESET pin of EVA-M8E
5 Connect to SAFEBOOT pin of EVA-M8E
6 GND
Table 2: pin header description for C93-M8E
☞Note that the UART signals are at 3 V logic levels, suitable only for direct connection to a host
microcontroller. For connection to standard RS-232 level interfaces on PCs or other equipment,
a separate inverting level-shifter buffer must be used (e.g. MAX3232).
3.3.3 LED
On the front panel of the unit, a single blue LED may be configured to follow the receiver time pulse
signal using message UBX-CFG-TP5. The time-pulse may be configured so that the LED starts
flashing at one pulse per second during a valid GNSS fix. If there is no GNSS fix, the LED will only light,
without flashing. The time pulse is enabled by default in C93-M8E.
3.3.4 Backup Battery
The unit includes a “Supercapacitor” type rechargeable backup battery. This is necessary to store
calibration, dead-reckoning and orbital information between operations, and supports the Real Time
Clock (RTC) to enable immediate start-up in DR mode and fast acquisition of GNSS signals. Once
fully charged, the capacitor provides around 24 hours backup supply.
3.3.5 GNSS Configuration
The C93-M8E supports GPS, QZSS, GLONASS, Galileo and BeiDou.
The GNSS to be used can be configured on u-center (View Messages View then UBX-CFG-GNSS).
For more information, refer to the
u-center User Guide [6], the u-blox 8 / u-blox M8 Receiver
Description including Protocol Specification
[5].

C93-M8E - User Guide
UBX-15031067 - R03 Early Production Information Setting up
Page 8 of 21
4Setting up
4.1 C93-M8E installation
The following sections describe the steps required to complete the C93-M8E hardware installation.
4.1.1 Mounting the C93-M8E
The C93-M8E application board should be firmly attached to the car body so as to avoid any
movement or vibration with respect to the car body. The application board should not be attached to
any “live” (unsprung) part of the vehicle’s suspension. Often it is enough to use strong double sided
tape or Velcro tape glued to the bottom of the C93-M8E casing. The C93-M8E must be secured
against any change in position and particularly orientation with respect to the vehicle frame.
Figure 3: Example installation of the C93-M8E on car dashboard
☞For best performance, the integrated antenna needs to have the best sky view possible in the car
or outside of the car.
4.1.2 Connecting the cables
Rather than using USB alone, we recommend using the 6-pin latching receptacle recommended
above, because it locks securely to the front connector of the C93-M8E. Other 0.1" receptacles may
be compatible. You will need to solder the necessary I/O cables to signal sources and outputs as in
Table 3.
1. Connect the unit to a PC running Microsoft Windows by
1.1. USB: Connect via USB port or
1.2. UART: Connect via 6-pin header via an inverting RS-232 level shifter (e.g. MAX3232).
2. The device is powered either via USB or from a 5 V supply via Pin #1 of the 6-pin header.
3. Start the u-center GNSS Evaluation Software and select the corresponding COM port and baud
rate.
☞Refer to the u-center User Guide [6] for more information.

C93-M8E - User Guide
UBX-15031067 - R03 Early Production Information Setting up
Page 9 of 21
4.2 Recommended Configuration
For an optimum navigation performance, the recommended configuration is as follows:
•Navigation Rate: The default DR/GNSS-fused navigation solution update rate of 1 Hz is
recommended. You can set the navigation update rate with the message UBX-CFG-RATE. (In this
mode navigation rates up to 20 Hz are also available from the UBX-HNR-PVT message.)
•Signal Attenuation Compensation: For installations where the signals are attenuated due to the
C93-M8E placement, the signal attenuation compensation feature can be used to restore normal
performance. There are three possible modes:
oDisabled: no signal attenuation compensation is performed
oAutomatic: the receiver automatically estimates and compensates for the signal attenuation
oConfigured: the receiver compensates for the signal attenuation based on a configured value
•These modes can be selected using UBX-CFG-NAVX5 message.
☞In the case of the "configured" mode, the user should input the maximum C/N0 observed in a
clear-sky environment, excluding any outliers or unusually high values. The configured value can
have a large impact on the receiver performance, so should be chosen carefully.
☞For more information, refer to the u-blox 8 / u-blox M8 Receiver Description including Protocol
Specification
[5].
4.2.1 Serial port default configuration
Parameter Description Remark
UART Port 1, Input UBX and NMEA protocol at 9,600 Bd
UART Port 1, Output UBX and NMEA protocol at 9,600 Bd Only NMEA messages are activated
USB, Input UBX and NMEA protocol
USB, Output UBX and NMEA protocol Only NMEA messages are activated
Table 3: Default configuration
4.2.2 UDR Receiver Operation
By default, C93-M8E is ready to operate in UDR navigation mode.

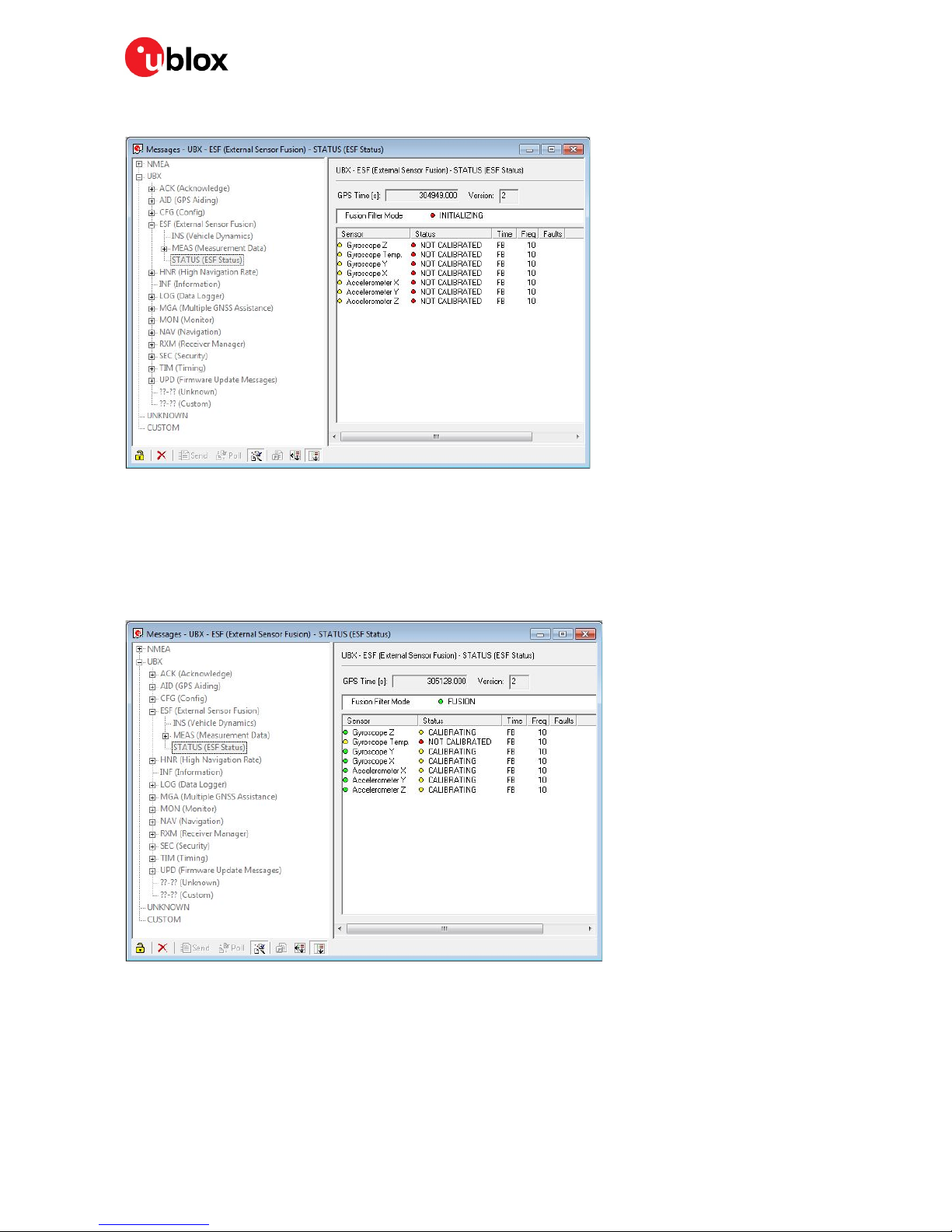

☞The statuses of different modes of UDR receiver are output in the UBX-ESF-STATUS message.
4.2.2.1 Initialization Mode
The purpose of the Initialization phase is to estimate all unknown parameters that are required for
achieving fusion. In this case, the required sensor calibration status shows NOT CALIBRATED (see
Figure 4). Note that the initialization phase requires good GNSS signals conditions as well as periods
during which vehicle is stationary and moving (including turns). Once all required initialization steps
are achieved, fusion mode is triggered and the calibration phase begins.

C93-M8E - User Guide
UBX-15031067 - R03 Early Production Information Setting up
Page 10 of 21
Figure 4: Screenshot of u-center showing the INITIALIZING mode in UBX-ESF-STATUS message
4.2.2.2 Fusion Mode
Once the initialization phase is achieved, the receiver enters navigation mode and starts to compute
combined GNSS/Dead-reckoning fixes and to calibrate the sensor required for computing the fused
navigation solution. The sensor calibration status outputs CALIBRATING (see Figure 5).
Figure 5: Screenshot of u-center showing the FUSION mode in UBX-ESF-STATUS message
As soon as the calibration reaches a status where optimal fusion performance can be expected, the
sensor calibration status are flagged as CALIBRATED (see Figure 6)

C93-M8E - User Guide
UBX-15031067 - R03 Early Production Information Setting up
Page 11 of 21
Figure 6: Screenshot of u-center showing the sensor calibration as CALIBRATED
4.3 Accelerated Initialization and Calibration Procedure
This section describes how to perform fast initialization and calibration of the UDR receiver for the
purpose of evaluation.
The duration of the initialization phase mostly depends on the quality of the GNSS signals and the
dynamics encountered by the vehicle. Therefore the car should be driven to an open and flat area
such as an empty open-sky parking area. The initialization and calibration drive should contain
phases where the car is stopped during a few minutes (with engine turned-on), phases where the car
is doing normal left and right turns, and phases where the speed is above 30 km/h under good GNSS
reception conditions.
☞Note that the calibration status of some used sensors might fall back to CALIBRATING if the
receiver is operated in challenging conditions. In such cases, the quality of the fused navigation
will be degraded until optimal conditions are available again for re-calibrating the sensors.
☞For more information, refer to the u-blox 8 / u-blox M8 Receiver Description including Protocol
Specification
[5].

C93-M8E - User Guide
UBX-15031067 - R03 Early Production Information Test Drives
Page 12 of 21
5Test Drives
☞Before testing can be done, make sure that the calibration has been completed according to
chapter 4.
We recommend recording and archiving the data of your test drives. You can enable additional debug
messages by clicking the Debug button, and then clicking the Record button (see Figure 7). When
prompted to poll for configuration, click “Yes” (see Figure 8).

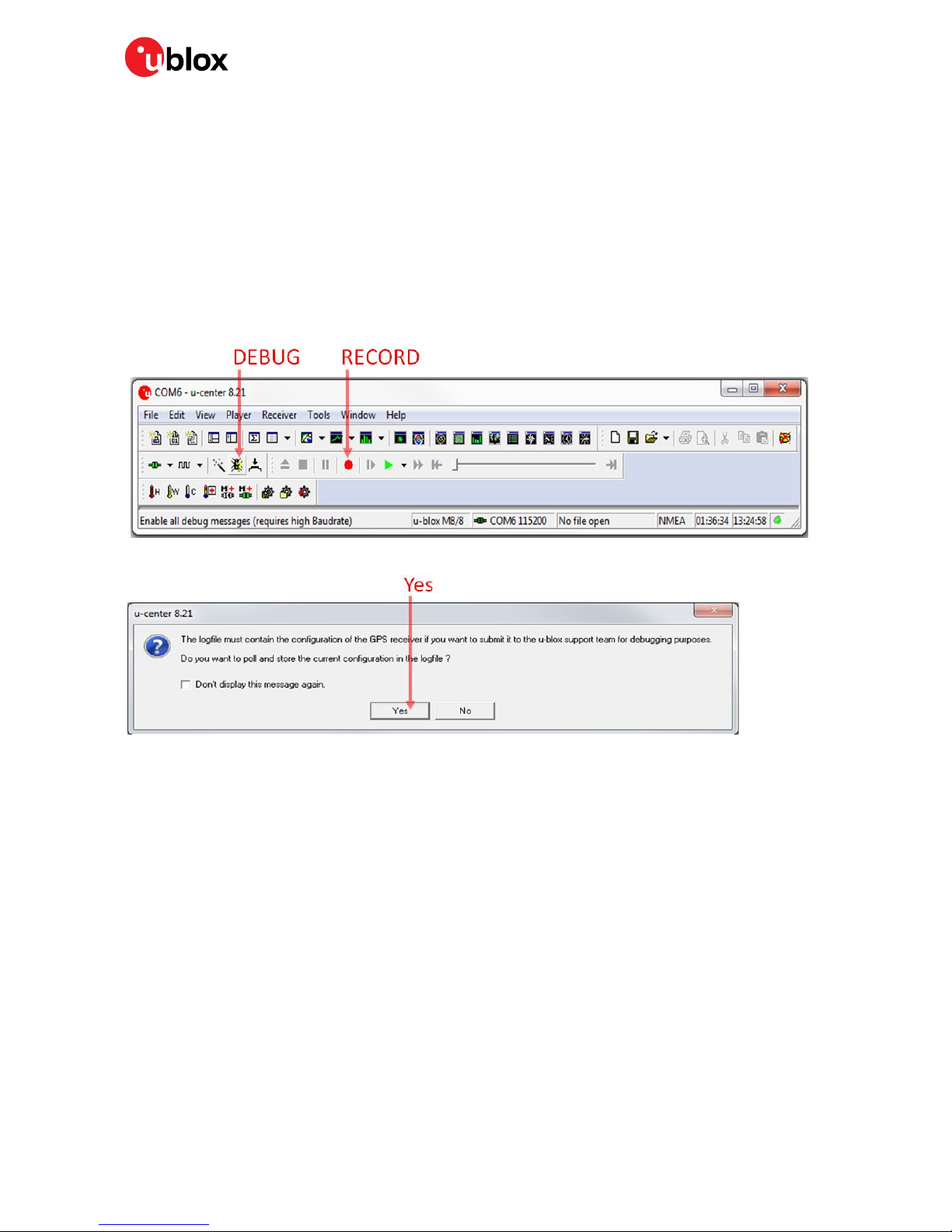

Figure 7: The Debug and Record buttons are used for extra messages and debugging / post-analysis
Figure 8: Allow polling and storing of the receiver configuration into log file

C93-M8E - User Guide
UBX-15031067 - R03 Early Production Information Block diagram
Page 13 of 21
6Block diagram
EVA-M8E
FLASH
RTC
BACKUP
LNA + SAW
PATCH
ANTENNA
50
Ω
50
Ω
SENSORS
Power
regulator
USB (5V)
Pin header
1.65 V–3.6 V
3.3 V
Interfaces
USB
UART
Figure
9: C93-M8E block diagram
Power

C93-M8E - User Guide
UBX-15031067 - R03 Early Production Information Board layout
Page 14 of 21
7Board layout
Figure 10 shows the C93-M8E board layout. See Table 4 for the application board component list.
Figure
10: C93-M8E layout: Top and Bottom

C93-M8E - User Guide
UBX-15031067 - R03 Early Production Information Board layout
Page 15 of 21
PART DESCRIPTION
C1 C2 C3 C10 C14 C18 CAP CER X5R 0402 1U0 10% 6.3V
C4 CAP ELECTRIC DOUBLE LAYER THT PANASONIC SERIES SG 1F 30% 5.5V
C5 C6 CAP CER X7R 0402 10N 10% 16V
C7 C8 CAP CER X5R 1210 10U 10% 10V
C9 CAP CER X5R 0402 2U2 20% 6.3V
C11 CAP CER COG 0402 1P8 +/-0.1P 25V
C12 CAP CER COG 0402 22P 5% 25V
C13 CAP CER X7R 0402 1N0 10% 16V
C15 C16 C19 CAP CER X5R 0201 100N 10% 6.3V
C17 CAP CER COG 0402 47P 5% 25V
D1 D3 D4 D5 D6 VARISTOR BOURNS MLE SERIES CG0402MLE-18G 18V
D2 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER SS14 1A -55/+125C
D7 USB DATA LINE PROTECTION ST USBLC6-2SC6 SOT23-6
DS1 LED OSRAM HYPER MINI TOPLED LB M673-L1N2-35 BLUE 0.02A
E1 ANTENNA PATCH THT 18MM X 18MM X 4MM TAOGLAS 1561MHZ,1575MHZ,1602MHZ -
40/+85C
FB1 FERRITE BEAD MURATA BLM15HD 0402 1000R@100MHZ
FL1 SAW FILTER FOR GPS/GLONASS/BEIDOU TST TA1343A -40/+85C
J1 6PIN 90\xB0 2.54MM PITCH DISCONNECTABLE CRIMP CONNECTOR -40/+85C
J2 CON USB RECEPTACLE MICRO B TYPE SMD - MOLEX 47346-0001 - TID60001597 30V 1A
L1 IND MURATA LQW15A 0402 8N7 3% 0.54A -55/+125C
MT1 SMAL, LOW POWER INERTIAL MEASUREMENT UNIT BMI160 BMI160 3.6V -40/+85C
R1 R2 RES THICK FILM CHIP 0603 22R 5% 0.1W -55/+125C
R3 R4 R5 R6 RES THICK FILM CHIP 0201 220R 5% 0.05W
R7 RES THICK FILM CHIP 0201 1K0 5% 0.05W
R8 RES THICK FILM CHIP 0603 100R 5% 0.1W
U1 WINBOND W25Q16DVZPIG 16MBIT SERIAL QUAD I/O SPI FLASH MEMORY 2.7 - 3.6V
USON8 3.6V -40/+85C
U2 U3 LOW DROPOUT REGULATOR LINEAR LT1962 MS8 3.3V 0.3A
U4 LOW DROPOUT REGULATOR MICREL MIC5503 1.8V 0.3A -40/+125C
U5 LOW NOISE AMPLIFIER GAAS MMIC 1.575 GHZ 1.5V-3.6V JRC EPFFP6-A2 3.6V -40/+85C
U9 TINY LOGIC UHS BUFFER OE_N ACTIVE LOW FAIRCHILD NC7SZ125 SC70
Y1 CRYSTAL CL=7PF MICRO CRYSTAL CC7 GOLD TERMINATION 32.768KHZ 100PPM -40/+85C
Table 4: C93-M8E component list

C93-M8E - User Guide
UBX-15031067 - R03 Early Production Information Schematic
Page 16 of 21
8Schematic
Figure 11: Schematic C93-M8E

C93-M8E - User Guide
UBX-15031067 - R03 Contents Page 17 of 21
Early Production Information
9Troubleshooting
My application (e.g. u-center) does not receive anything
Check whether the blue LED on the application board is blinking. Also make sure that the USB cable
is properly connected to the application board and the PC. By default, the application board outputs
NMEA protocol on Serial Port 1 at 9600 Bd, or on the USB.
My application (e.g. u-center) does not receive all messages
When using UART, make sure the baud rate is sufficient. If the baud rate is insufficient, GNSS
receivers based on u-blox M8 GNSS technology
will skip excessive messages. Some serial port
cards/adapters (i.e. USB to RS232 converter) frequently generate errors. If a communication error
occurs while u-center receives a message, the message will be discarded.
My application (e.g. u-center) loses the connection to the GNSS receiver
u-blox M8 positioning technology and u-center have an autobauding feature. If frequent
communication errors occur (e.g. due to problems with the serial port), the connection may be lost.
This happens because u-center and the GNSS receiver both autonomously try to adjust the baud rate.
Do not enable the u-center autobauding feature if the GNSS receiver has the autobauding flag
enabled.
The COM port does not send any messages
Be sure that the slide switch at the front side is set to RS232 and not USB. In USB Mode the RS232
pins on the DB9 connector are switched off.
Some COM ports are not shown in the port list of my application (e.g. u-center)
Only the COM ports that are available on your computer will show up in the COM port drop down list.
If a COM Port is gray, another application running on this computer is using it.
The position is off by a few dozen meters
u-blox M8 GNSS technology starts up with the WGS84 standard GNSS datum. If your application
expects a different datum, you’ll most likely find the positions to be off by a few dozen meters. Don’t
forget to check the calibration of u-center map files.
The position is off by hundreds of meters
Position drift may also occur when almanac navigation is enabled. The satellite orbit information
retrieved from an almanac is much less accurate than the information retrieved from the ephemeris.
With an almanac-only solution, the position will only have an accuracy of a few kilometers but it may
start up faster or still navigate in areas with obscured visibility when the ephemeris from one or
several satellites has not yet been received. The almanac information is NOT used for calculating a
position if valid ephemeris information is present, regardless of the setting of this flag.
In NMEA protocol, position solutions with high deviation (e.g. due to enabling almanac navigation) can
be filtered with the Position Accuracy Mask. UBX protocol does not directly support this since it
provides a position accuracy estimation, which allows the user to filter the position according to his
requirements. However, the “Position within Limits” flag of the UBX-NAV-STATUS message indicates
whether the configured thresholds (i.e. P Accuracy Mask and PDOP) are exceeded.
TTFF times at startup are much longer than specified
At startup (after the first position fix), the GNSS receiver performs an RTC calibration to have an
accurate internal time source. A calibrated RTC is required to achieve minimal startup time.
Before shutting down the receiver externally, check the status in MON-HW in field “Real Time Clock
Status”. Do not shut down the receiver if the RTC is not calibrated.

C93-M8E - User Guide
UBX-15031067 - R03 Contents Page 18 of 21
Early Production Information
The C93-M8E does not meet the TTFF specification
Make sure the C93-M8E has a good sky view. An obstructed view leads to prolonged startup times. In
a well-designed system, the average of the C/No ratio of high elevation satellites should be in the
range of 40 dBHz to about 50 dBHz. With a standard off-the-shelf active antenna, 47 dBHz should
easily be achieved. Low C/No values lead to a prolonged startup time.
C93-M8E does not preserve the configuration in case of removed power
u-blox M8 GNSS technology uses a slightly different concept than most other GNSS receivers do.
Settings are initially stored to volatile memory. In order to save them permanently, sending a second
command is required. This allows testing the new settings and reverting to the old settings by
resetting the receiver if the new settings aren’t good. This provides safety, as it is no longer possible
to accidentally program a bad configuration (e.g. disabling the main communication port).

C93-M8E - User Guide
UBX-15031067 - R03 Contents Page 19 of 21
Early Production Information
10 Common evaluation pitfalls
•A parameter may have the same name but a different definition. GNSS receivers may have a
similar size, price and power consumption but can still have different functionalities (e.g. no
support for passive antennas, different temperature range). Also, the definitions of hot, warm,
and cold start times may differ between suppliers.
•Verify design-critical parameters; do not base a decision on unconfirmed numbers from
datasheets.
•Try to use identical or at least similar settings when comparing the GNSS performance of different
receivers.
•Data that has not been recorded at the same time and the same place should not be compared.
The satellite constellation, the number of visible satellites, and the sky view might have been
different.
•Do not compare momentary measurements. GNSS is a non-deterministic system. The satellite
constellation changes constantly. Atmospheric effects (i.e. dawn and dusk) have an impact on
signal travel time. The position of the GNSS receiver is typically not the same between two tests.
Comparative tests should therefore be conducted in parallel by using one antenna and a signal
splitter; statistical tests shall be run for 24 hours.
•Monitor the Carrier-To-Noise-Ratio. The average C/No ratio of the high elevation satellites should
be between 40 dBHz and about 50 dBHz. A low C/No ratio will result in a prolonged TTFF and more
position drift.
•When comparing receivers side by side, make sure that all receivers have the same signal levels.
The best way to achieve this is by using a signal splitter. Comparing results measured with
different antenna types (with different sensitivity) will lead to incorrect conclusions.
•Try to feed the same signal to all receivers in parallel (i.e. through a splitter); the receivers won’t
have the same sky view otherwise. Even small differences can have an impact on the accuracy.
One additional satellite can lead to a lower DOP and less position drift.

C93-M8E - User Guide
UBX-15031067 - R03 Related documents Page 20 of 21
Early Production Information
Related documents
[1] EVA-M8E Data Sheet, Docu. No UBX-15028061
[2] EVA-M8E Hardware Integration Manual, Docu. No. UBX-15028542
[3] NEO-M8U Data Sheet, Docu. No 15015679
[4] NEO-M8U Hardware Integration Manual, Docu. No. UBX-15016700
[5] u-blox 8 / u-blox M8 Receiver Description including Protocol Specification (Public version), Docu.
No UBX-13003221
[6] u-center User Guide, Docu. No. UBX-13005250
☞For regular updates to u-blox documentation and to receive product change notifications, register
on our homepage (www.u-blox.com).
Revision history
Revision Date Name Comments
R01 07-Jun-2016 njaf Advance Information.
R02 24-Apr-2018 pmcm Firmware Update.
R03 12-Dec-2018 njaf Update to Early Production Information.
