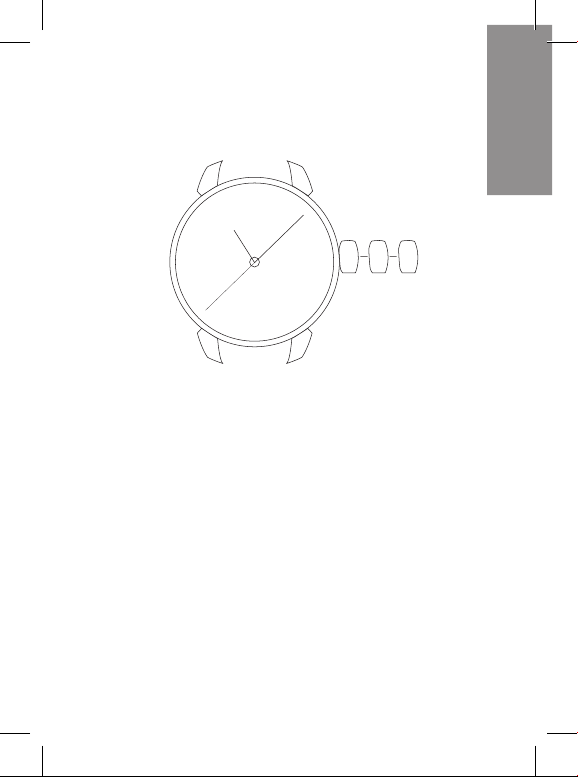

CALIBER UN815 SCREWCROWN SYSTEM
A Screw down security crown.
B Unscrew and turn the crown clockwise approx.
30 full turns to wind the movement.
C Quick date setting.
Important : do not use quick correction between
9:00 pm and 3:00 am; doing so may result in
damage to the calendar mechanism.
D Time setting. After time setting (D), or using the
quick date setting (C), push the crown back into
position (A) to ensure water resistance.
A B C D

5
ENGLISH

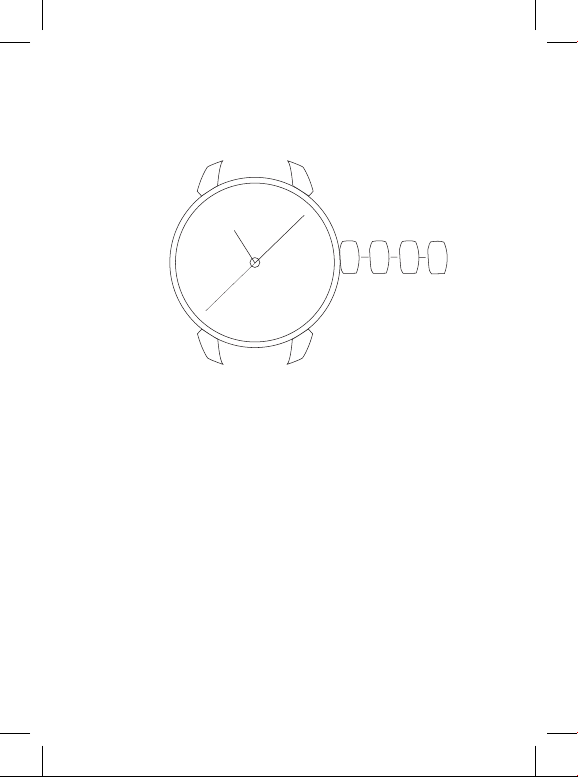

CALIBER UN815 STANDARD CROWN
A Turn the crown clockwise approx. 30 full
turns to wind the movement.
B Quick date setting.
Important : do not use quick correction between
9:00 pm and 3:00 am; doing so may result in
damage to the calendar mechanism.
C Time setting. After time setting (C), or using the
quick date setting (B), push the crown back into
position (A) to ensure water resistance.
A B C

6
TECHNICAL DATA
Type Mechanical self-winding movement
Size 11
1/2’’’
Diameter of movement 25.60 mm
Height of movement 3.60 mm
Jewels 21
Oscillations 28,800 V/h (4Hz)
Power reserve Approximately 42 hours
Display Hour and minute hands in the
center.
Seconds.
Date (some models).
Watch winders Min. 650 rotations/day to maintain
power.
Winding of movement :
bidirectional.

7
SETTING OF TIME AND DATE
Pull the crown to position (B or C) and turn the crown clockwise
to the date before the date required. Then pull the crown into
position(CorD)andturnthehandspastmidnightandthentothe
required hour and minute. The date will advanced one day. Push
the crown and (screw down) into position (A) to guarantee full
water-resistance.
PRECISION
Precision and average daily rate depend on the activity of the
person wearing the instrument. Magnetic elds (computers,
mobile phones, etc.) may inuence the working of a watch.
Violent shocks or knocks - quite common in tennis or golf -
should be avoided to prevent shaking that may loosen certain
parts.
MAINTENANCE
All mechanical timepieces should have their movements
cleaned and the oil replaced every 3-5 years. The life span
of any mechanical timepiece will primarily depend upon
both daily care and the recommended routine mainte-
nance. We strongly encourage you to have your timepiece
serviced only at ocially authorized Ulysse Nardin Customer
Service departments. For additional information regarding
Customer Service please visit our website : ulysse-nardin.com
ENGLISH

8
CALIBRE UN815 COURONNE VISSÉE
A Position normale, couronne vissée.
B Tourner la couronne en sens horaire au minimum
30 tours complets pour remonter le mouvement.
C Correction rapide du quantième.
Important : aucune correction rapide entre 21h
et 3h du matin ce qui peut endommager le
mécanisme du calendrier.
D Mise à l’heure. Une fois les réglages terminés,
remettre la couronne en position (A) pour
garantir la parfaite étanchéité de votre montre.
A B C D

9
FRANÇAIS
CALIBRE UN815 COURONNE STANDARD
A Tourner la couronne dans le sens horaire au
minimum 30 tours complets pour remonter le
mouvement.
B Correction rapide du quantième.
Important : aucune correction rapide entre 21h
et 3h du matin ce qui peut endommager le
mécanisme du calendrier.
C Mise à l’heure. Après avoir réglé l’heure (C) ou
après avoir utilisé la correction rapide du quan-
tième (B), repousser la couronne en position (A)
pour assurer une parfaite étanchéité.
A B C

10
DONNÉES TECHNIQUES
Type Mécanique à remontage auto-
matique
Lignes 11
1/2’’’
Diamètre du mouvement 25.60 mm
Hauteur du mouvement 3.60 mm
Rubis 21
Fréquences 28’800 A/h (4Hz)
Réserve de marche Environ 42 heures
Achage Heures et minutes au centre.
Secondes.
Date (certains modèles).
Remontage Min. de 650 rotations/jour an de
maintenir la réserve de marche. Le
mouvement remonte dans les deux
sens.
