Uplift desk Upl960 User manual

For assembly assistance,

visit upliftdesk.com/2leg-srd, or call 800-349-3839,

or email [email protected]

355 lb

two person

assembly

V2 Standing Desk Frame

C-Frame and T-Frame Models

C-Frame

T-Frame

Thank you for choosing UPLIFT Desk.

SAFETY AND WARNINGS

WARNING: Designed for use in dry work environments only. Risk of re, electric shock, or personal in-

jury if used outdoors or in a damp location. Use only indoors.

WARNING: Only plug the desk into a properly grounded 120V outlet. Unplug the desk from the electri-

cal outlet before moving the desk or before adding/removing parts or accessories. Risk of electric shock.

WARNING: Do not open any desk component or insert any object in a desk component. Risk of electric

shock.

WARNING:

In case of spilled liquids, immediately unplug desk. Then clean spill with a dry cloth. Risk of

desk failure or electric shock if desk components become wet.

WARNING: Keep heated surfaces away from plug. Never use desk with a damaged cord or plug. Risk

of electric shock. Call us for a free replacement cord.

WARNING: Keep ngers and all body parts clear of the moving desk. Check surroundings on all sides

before using the desk to ensure there are no immobile obstacles within the desk’s range of motion. En-

sure all cords are the appropriate length so they don’t pull as the desk moves.

WARNING: Keep unsupervised children away from desk. Before use, teach children about desk

safety with this manual. Risk of personal injury and electric shock if the desk is misused.

Please read this manual carefully. This desk is height adjustable so that it may be positioned at a user’s ergo-

nomic height as described in this manual. Inappropriate use of this desk can cause property damage or bodily

injury. Under no circumstances does the manufacturer accept warranty or liability claims for damages caused

from improper use or handling of this desk. Provide this manual to any new user.

355 lb

You’ll also need:

Phillips head

screwdriver

COMPONENTS “CORE1” Box

PACKAGE CONTENTS - C-Frame

Leg

(qty 2)

Control boxCrossbar end

(qty 2)

Anchor plate

(qty 2)

Wire Management

Tray

Crossbar rail

(qty 2)

Keypad

(qty 1)

Leg cable

Power cable C12

C8C7C6

C5C4

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

This is the V2 C-Frame, our most pop-

ular desk. Most assembly instructions

in this booklet will show this model of

UPLIFT Desk.

However we do cover another model

of UPLIFT Desk in these pages called

the T-Frame (more on that later).

If you are assembling the C-

Frame model, keep an eye

out for this “C” icon for in-

structions specic to this model.

(Packed in the CORE1 box

or an accessory box)

HARDWARE “CORE1” Box

#10-24x3/4’’

Machine screw

(qty 8)

#10x3/4’’

Wood screw

(qty 8)

Washer

(qty 8)

Cable mount

(qty 10)

#10x5/8’’

Wood screw

(qty 4)

Allen

wrench handle

M6x14

Machine screw

(qty 8)

M6x10

Machine screw

(qty 12)

4mm

Allen wrench

M8x8

Set screw

(qty 8)

M8x10

Machine screw

(qty 4)

5mm

Allen wrench

H8 H9

H4 bH4 a

H3H2H1

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

H14 H15

C-Frame Components “CORE2” Box

Side bracket

(right and left, qty 2)

Foot

(includes leveling pads, qty 2)

C2C1

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C11

C10

Step 1

Before proceeding, count all pieces before disposing

of any packing material. Inspect the top surface of

your desktop for damage. To avoid any damage to

your oor or your table, assemble on top of a debris-

free carpeted area or blanket.

For ease and safety, we recommend two people for

assembly.

Before assembly, consider where you want your desk

to be located. Since your new desk is height adjust-

able, you will want it located a safe distance from win-

dow frames, furniture, radiators, or anything else that

could obstruct the desk from raising or lowering. Do

not place any objects underneath the desk that are

taller than 21”, and consider any accessories mounted

to your desk that would lower even further than the

desk itself.

Use the included Allen wrench handle (H15) to pro-

vide increased leverage and a better grip when tight-

ening the frame screws.

Simply insert either the 4mm Allen wrench into the

side marked with the number “4” or the 5mm Allen

wrench into the side marked with the number “5”. Be

sure to push the Allen wrench all the way into the slot

until it snaps into place.

DESK ASSEMBLY INSTRUCTIONS

PACKAGE CONTENTS (Continued) - T-Frame

The UPLIFT Desk is also available as

a T-Frame. The details in this section

only apply to the T-Frame.

This conguration assembles in the

same way as the C-Frame, but with a few

different components pictured below.

If you are assembling the

T-Frame model, keep an

eye out for this “T” icon for

instructions specic to this model.

T-Frame Components “CORE2” Box

Side

bracket

(qty 2)

Foot

(includes leveling pads,

qty 2)

C3C2C1

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

T-Frame

Crossbar end

adapter

(right and left qty 2)

M8x10

Machine screw

(qty 4)

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

Step 2

Place Crossbar ends (C5) upside down as shown. In-

sert the Leg (C4) so that the back of the Leg and the

back of the Crossbar end are ush.

To avoid cross-threading and to ensure all the screw

holes are lined up, start the four M6x10 Machine screws

(H1) by rotating each for only a few turns through the

Crossbar end holes into the Leg as shown, but do not

tighten them all the way.

Once all four screws have been started, tighten them

all the way using the 4mm Allen wrench (H6).

Repeat this step for the 2nd Leg.

Step 3

Slide the Side bracket (C2) tabs into the Crossbar end

(C5) and secure it loosely by using two M6x10 screws

(H1).

Rotate each screw by hand for only a few turns to

avoid cross-threading.

Once both screws are started, tighten all the way us-

ing the 4mm Allen wrench (H6).

Repeat this step for the 2nd Leg.

Slide the Crossbar rails into one of the Crossbar ends (C5).

Step 4

Orient the Crossbar rails (C6) so that the Center in-

dicator marks are facing up and the slots are facing

inward as shown

Center indicator marks

The slots on the Crossbar rails are offset, and should be farther from the oor.

Step 7.1

Attach the rst C-Frame Leg assembly to the

Desktop using four of the washers and screws

chosen in Step 6. Do not tighten all the way.

Note: If you had to drill a pilot hole for the Crossbar

end in Step 5, you will have to use a Wood screw

(H4a) for that hole.

Step 5

Place your Desktop upside down on a debris-free

carpeted area or a blanket. If your Desktop has pre-

drilled holes or threaded inserts, they should be visible

and facing up.

When placing your frame on your Desktop, lift it up.

DO NOT SLIDE IT. This will help protect your desk-

top and keep the rubber grommets on the frame as-

sembly from dislodging. If they do become dislodged,

they can be easily re-inserted.

For Desktops that have Pre-Drilled Holes or Thread-

ed Screw Inserts: Move the frame assembly by lifting,

and line it up with the pre-drilled holes or threaded

inserts on the Desktop. If the Crossbar end hole does

not line up with a threaded insert, make a pencil mark

and drill a pilot hole per the instructions below.

For Desktops without Pre-Drilled Holes: Place the

Leg assembly where you would like it to be. Make sure

the side bracket is centered from front to back on the

Desktop and approximately 1/2” in from the edge.

Make a pencil mark in each of the Side bracket holes

and the Crossbar end hole. Then move the Leg as-

sembly out of the way and drill the pilot holes using a

1/8” drill bit.

Note: DRILL NO DEEPER THAN 1/2”. To ensure

this, we recommend wrapping a piece of tape

around your drill bit 1/2” from the tip. Stop drill-

ing just before the tape touches the desktop.

1/2’’

Step 6

For Desktops with Threaded Screw Inserts: You’ll be

using the #10-24x3/4” Machine screws (H4b) along

with Washers (H5) for the following two steps.

For Desktops without Threaded Screw Inserts: You’ll

be using the #10x3/4” Wood screws (H4a) along with

Washers (H5) for the following two steps.

H4 b

H4 a

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

Machine screw: at end

Wood screw: pointy end

Step 7.2

Attach the side bracket of the rst T-Frame Leg

assembly using two of the washers and screws

chosen in Step 6. Do not tighten all the way.

Attach one of the T-Frame Crossbar end adapters (C3)

to the Crossbar end using two M8x10 Machine screws

(H7) as shown (Fig.1). Do not tighten the screws yet.

Slide the adapter so the single hole lines up with the

threaded insert or pre-drilled hole in the Desktop and

attach using one washer and one screw chosen in

Step 6 but do not tighten completely (Fig.2).

Using the 5mm Allen wrench (H8), tighten the two

M8x10 screws.

Step 8.1

Once the rst side is done, place the other C-

Frame Leg assembly onto the Crossbar rails,

and position over the Pre-Drilled Holes or

Threaded Screw Inserts.

Attach the Leg assembly to the Desktop by following

the same process outlined in

in Steps 6 and 7.1.

After all screws are started, go back and tighten them.

Be careful to not over-tighten, to avoid stripping.

If you have a Solid Wood Desktop, immediately refer

to the Solid Wood Desktops note below.

Step 8.2

Once the rst side is done, place the other T-

Frame Leg assembly onto the Crossbar rails,

and position over the Pre-Drilled Holes or

Threaded Screw Inserts.

Attach the Leg assembly to the Desktop by following

the same process outlined in Steps 6 and 7.2.

After all screws are started, go back and tighten them.

Be careful to not over-tighten, to avoid stripping. If

you have a Solid Wood Desktop, then immediately re-

fer to the Solid Wood Desktops note below.

Important Note about Solid Wood Desktops:

The bottom of an UPLIFT Solid Wood desktop can

sometimes have uneven bottom surface creating

gaps between the Frame and the desktop.

Screws that go in holes where there is no gap beween

the frame and desktop can be screwed in completely.

Screws that go in holes where there is a gap between

the frame and the desktop should be tightened only

until the screw is snug. Over tightening where there

is a gap can cause stress on the desktop which can

cause cracks or warping over time.

Fig. 2Fig. 1

Step 11

Plug the Power cable (C9) into the power socket on

the Control box (C7) marked “AC”. Next, position the

Control box with the Power cable end pointing away

from the Leg on the side of your desk where the Key-

pad is attached. Slide the tabs of the Control box to

interlock with the slots on the Crossbar end (C5). (See

diagram below).

Note: Control box MUST be attached to your frame in

order for your desk to function properly.

Top view of Control box tabs & Crossbar end slot. This is just

an illustration, you won’t be able to see this when installing.

H14 H14

H14

Step 10

Most UPLIFT desktops include pre-drilled holes for at-

taching the Keypads at the front on either end. Choose

which side of the Desktop you’d like your Keypad to be

on. Remember that you’re installing your desk upside

down, so the nal location of the Keypad will be oppo-

site of what you’re seeing during assembly.

If you do not have an UPLIFT Desktop or choose to

place the keypad in a different location, make a pen-

cil mark at each Keypad mounting hole location and

attach it to your desktop using two #10x5/8’’ Wood

screws (H14).

You can also follow the instructions in Step 5 for pre-

drilling Keypad mounting holes.

Step 9

Slide each Crossbar rail (C6) until the

Center indicator

mark

is in the middle. Once this is done, the Crossbar

rail will be centered and in the proper position.

Insert the eight M8x8 Set screws (H3) into the Cross-

bar ends (four on each side) to secure each Crossbar

rail, then tighten using the 4mm Allen wrench (H6).

Installing Wire Management Tray:

Most UPLIFT desktops include holes between the

grommets for attaching the Wire management tray.

If you choose to place the tray in a different location,

make a pencil mark at each mounting hole location and

attach tray to your desktop using two #10x5/8’’ Wood

screws (H14).

If needed, follow the instructions in Step 5 for pre-drill-

ing tray mounting holes.

Desk Cable Management:

Use the included Cable mounts (H9) to organize your

wires, keep a clean presentation, and prevent any wires

from snagging on anything when adjusting height. The

Cable mounts work best when stuck directly to the

metal desk frame. Attach Cable mounts to the inside

of frame parts. You might want to save some for once

you have everything on your desk plugged in.

Note: Before securing all wires, check that the Frame

screw under the Control box is tight.

Now is a good time to install accessories such as wire management, CPU holders, keyboard trays, or anything

else that fastens to the bottom of your desk. This section will cover Accessories that are included with this

Frame. For additional accessories, refer to the instructions that came with those accessories.

ACCESSORY INSTALLATION

Step 12

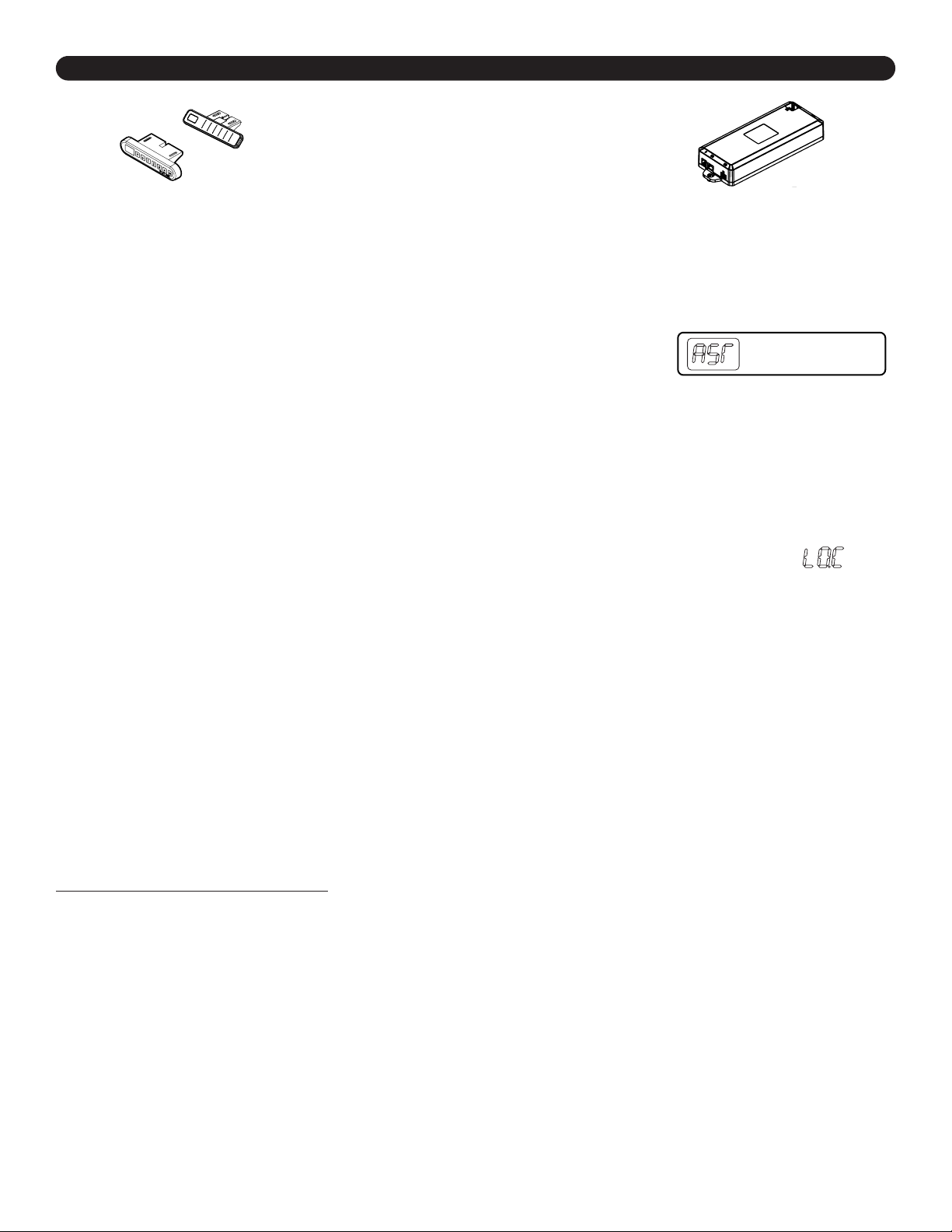

Plug the Keypad (C8) into the Control box port

labeled “HS”. Next, plug the Leg closest to the Control

box (C7) directly into the white port marked “M2” lo-

cated on the same end as the Keypad port.

Finally, plug the farther leg into the Leg cable (C10),

and then plug the angled-end of the Leg cable into

the white port marked “M1” located on the top of the

Control box. Important:

Only plug the angled end of

the Leg cable into the Control box as shown in Figure

Do not try to plug it in with the cable running the op-

posite direction; this will damage your cable and the

Control box.

Note: On some models the “M1” port may be located

right next to the AC Power socket on the Control box.

Fig. 1

Table of contents

Other Uplift Desk Indoor Furnishing manuals

Uplift Desk

Uplift Desk ACC021 User manual

Uplift Desk

Uplift Desk Steelcase Think User manual

Uplift Desk

Uplift Desk V2-Commercial F600 C-Frame User manual

Uplift Desk

Uplift Desk UPLIFT Adapt Freestand User manual

Uplift Desk

Uplift Desk 2-Leg Side Table Quick setup guide

Uplift Desk

Uplift Desk TOP314 User manual

Uplift Desk

Uplift Desk Power Tower PDC009 User manual

Uplift Desk

Uplift Desk UDA116-SML User manual

Uplift Desk

Uplift Desk CHR467 User manual

Uplift Desk

Uplift Desk Humanscale World One HUS505 User manual

Uplift Desk

Uplift Desk FRM075 User manual

Uplift Desk

Uplift Desk STR041 User manual

Uplift Desk

Uplift Desk FRM067 User manual

Uplift Desk

Uplift Desk UPL127 User manual

Uplift Desk

Uplift Desk FRM413 User manual

Uplift Desk

Uplift Desk FRM415 User manual

Uplift Desk

Uplift Desk ACC067 User manual

Uplift Desk

Uplift Desk FRM240 User manual

Uplift Desk

Uplift Desk Vert Ergonomic Chair CHR458 User manual

Uplift Desk

Uplift Desk ACU021-60x27.4x31 User manual

Uplift Desk

Uplift Desk T-Frame User manual

Uplift Desk

Uplift Desk Dillo ACC101 User manual

Uplift Desk

Uplift Desk V2 User manual

Uplift Desk

Uplift Desk V2-Commercial User manual

Popular Indoor Furnishing manuals by other brands

Regency

Regency LWMS3015 Assembly instructions

Furniture of America

Furniture of America CM7751C Assembly instructions

Safavieh Furniture

Safavieh Furniture Estella CNS5731 manual

PLACES OF STYLE

PLACES OF STYLE Ovalfuss Assembly instruction

Trasman

Trasman 1138 Bo1 Assembly manual

Costway

Costway JV10856 manual

moss DESIGN

moss DESIGN Caisson Credenza Assembly instructions

Aquaglide

Aquaglide FULL DECK 15.0 owner's manual

AREBOS

AREBOS AR-HE-SW30 user manual

Till-Hilft

Till-Hilft Fulda 87005.330 Assembly instructions

Twoey Outside

Twoey Outside 2010 quick start guide

Hettich

Hettich Easys 200 operating instructions

The bedboss

The bedboss RELAX 404 Series owner's manual

Oeseder Möbelindustrie

Oeseder Möbelindustrie Bern 991 720 Assembly instructions

Costway

Costway HW68469 user manual

Next ALIX A27743 Assembly instructions

BROSA

BROSA Hans Assembly guide

Prodigg

Prodigg MINIKA PBA015T-FUR installation manual

Uplift Desk UPL960 User manual

Popular Indoor Furnishing manuals by other brands
