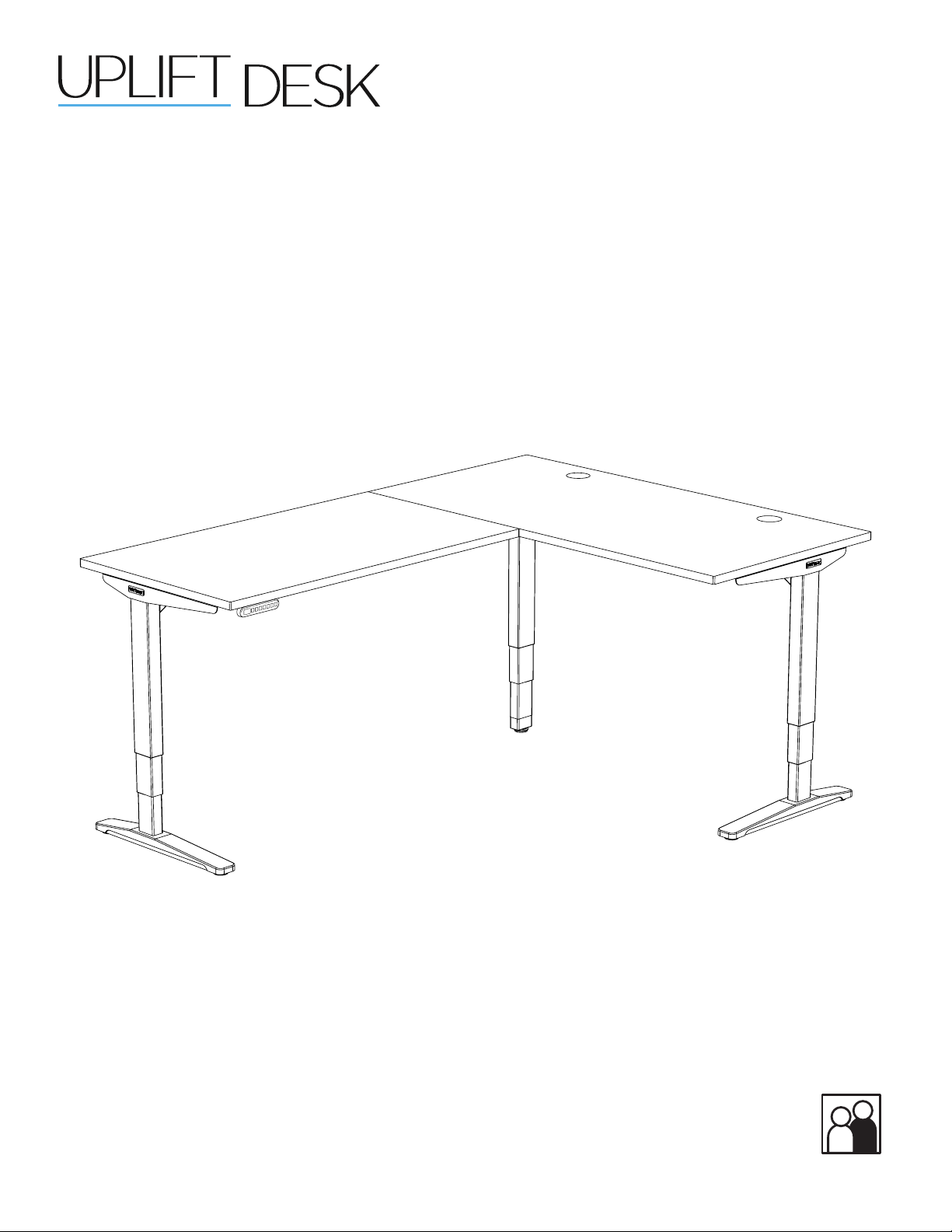

Uplift desk V2 User manual

For assembly assistance,

visit upliftdesk.com/3leg-srd-lshp or call 800-349-3839

or email [email protected]

two person

assembly

V2 Standard 3-Leg

Standing Desk Frame

for 2-Piece L-Shaped Desks

Thank you for choosing UPLIFT Desk.

SAFETY AND WARNINGS

WARNING: Designed for use in dry work environments only. Risk of re, electric shock, or personal in-

jury if used outdoors or in a damp location. Use only indoors.

WARNING: Only plug the desk into a properly grounded 120V outlet. Unplug the desk from the electri-

cal outlet before moving the desk or before adding/removing parts or accessories. Risk of electric shock.

WARNING: Do not open any desk component or insert any object in a desk component. Risk of electric

shock.

WARNING:

In case of spilled liquids, immediately unplug desk. Then clean spill with a dry cloth. Risk of

desk failure or electric shock if desk components become wet.

WARNING: Keep heated surfaces away from plug. Never use desk with a damaged cord or plug. Risk

of electric shock. Call us for a free replacement cord.

WARNING: Keep ngers and all body parts clear of the moving desk. Check surroundings on all sides

before using the desk to ensure there are no immobile obstacles within the desk’s range of motion. En-

sure all cords are the appropriate length so they don’t pull as the desk moves.

WARNING: Keep unsupervised children away from desk. Before use, teach children about desk

safety with this manual. Risk of personal injury and electric shock if the desk is misused.

Please read this manual carefully. This desk is height adjustable so that it may be positioned at a user’s ergo-

nomic height as described in this manual. Inappropriate use of this desk can cause property damage or bodily

injury. Under no circumstances does the manufacturer accept warranty or liability claims for damages caused

from improper use or handling of this desk. Provide this manual to any new user.

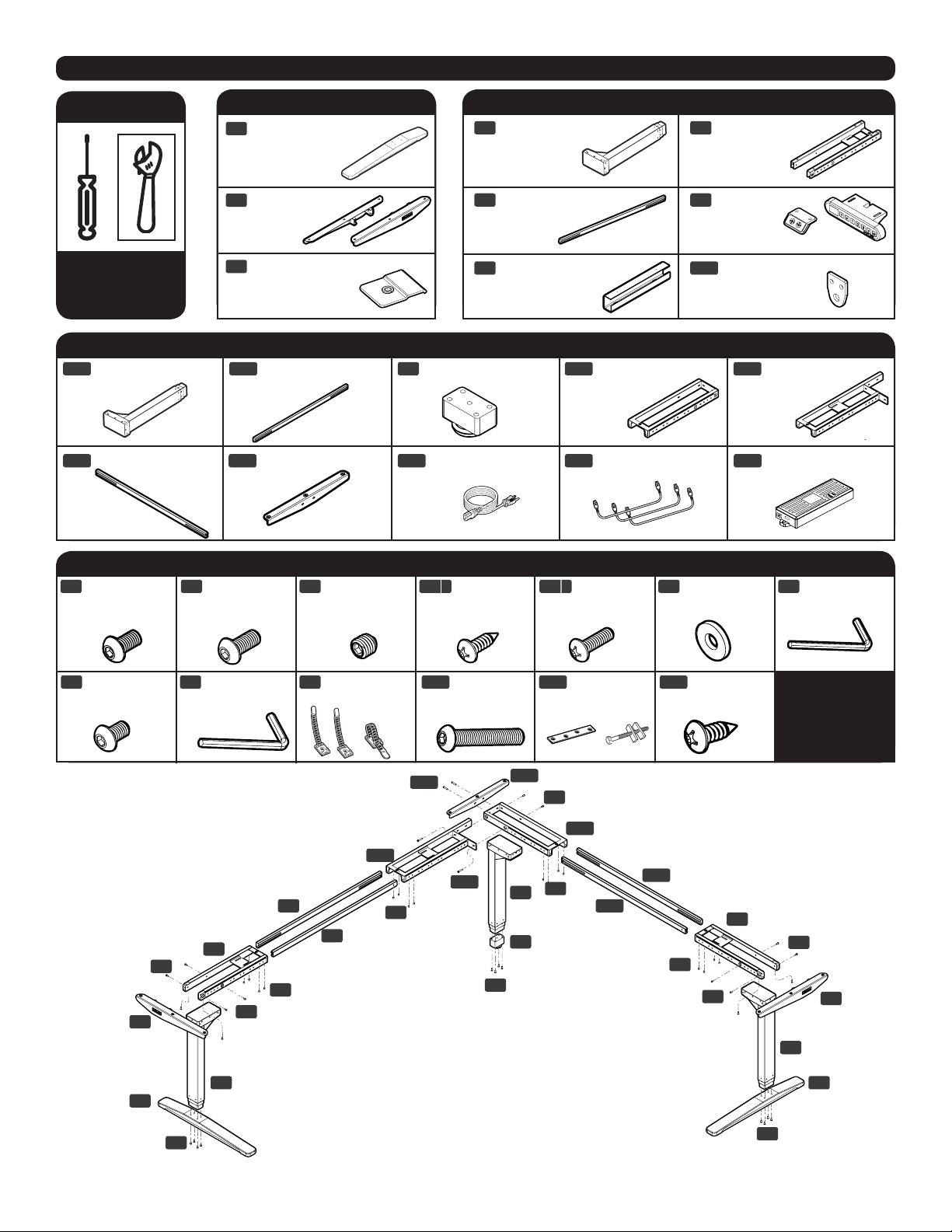

PACKAGE CONTENTS

Peg foot

(includes leveling pad, qty 1)

Short corner

crossbar end

(qty 1)

Long corner

crossbar end

(qty 1)

Corner side bracket

(qty 1)

COMPONENTS Box 3 (3rd Leg Kit)

HARDWARE - Contained in both Boxes 2 and 3

M6x10

Machine screw

(qty 14)

Cable

mount

(qty 15)

M8x8

Set screw

(qty 16)

#10x3/4’’

Wood screw

(qty 25)

#10-24x3/4’’

Machine screw

(qty 13)

4mm

Allen wrench

M8x10

Machine screw

(qty 4)

M6x14

Machine screw

(qty 12)

M6x35

Machine screw

(qty 4)

Support bracket

Dogbone bolt

#10x5/8’’

Wood screw

(qty 4)

5mm

Allen wrench

H5H3

H2H1

H4 a H4 b

H11 H14H10

H10

Control BoxPower cable

(qty 1)

Leg cables

(qty 3)

C17C15 C16

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

COMPONENTS Box 1 COMPONENTS Box 2

Leg

(qty 2)

Leg

(qty 1)

Crossbar end

(qty 2)

Anchor plate

(qty 2)

Wire management

tray

Crossbar rail

(qty 2)

Side bracket

(right and left. qty 2)

Keypad

(qty 1)

Crossbar end

adapter

(qty 2)

Foot

(includes leveling pads,

qty 2)

C10

C11

C12

C13

C14

C1 C4

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

(either in main components box

or in the desk’s accessory box)

(quantity varies per desktop)

Open crossbar rail

(qty 1)

Washer

(qty 13)

H2 H2

Crossbar rail

(qty 1)

You’ll also need:

Phillips-head

screwdriver

(Wrench for Solid

Wood desks)

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

Step 2

Prior to assembling, choose which side you’d like for

the desk Return. A Return is the smaller desktop ex-

tending out from the larger, Main desktop.

To help you choose which side the Return should be

on, consider how you’ll be using the desk, if there will

be any other users of the desk (like a visiting guest),

as well as space limitations and the orientation of the

room in it’s entirety.

Keep in mind that your desk will be upside down while

assembling, so what looks like it’s on the left side will

instead on the right, and vice versa. We know this can

be confusing so we’ve added pictures to explain.

These instructions will generally be following the left

Return conguration, and exceptions will be noted

with an L and R icon, as seen here.

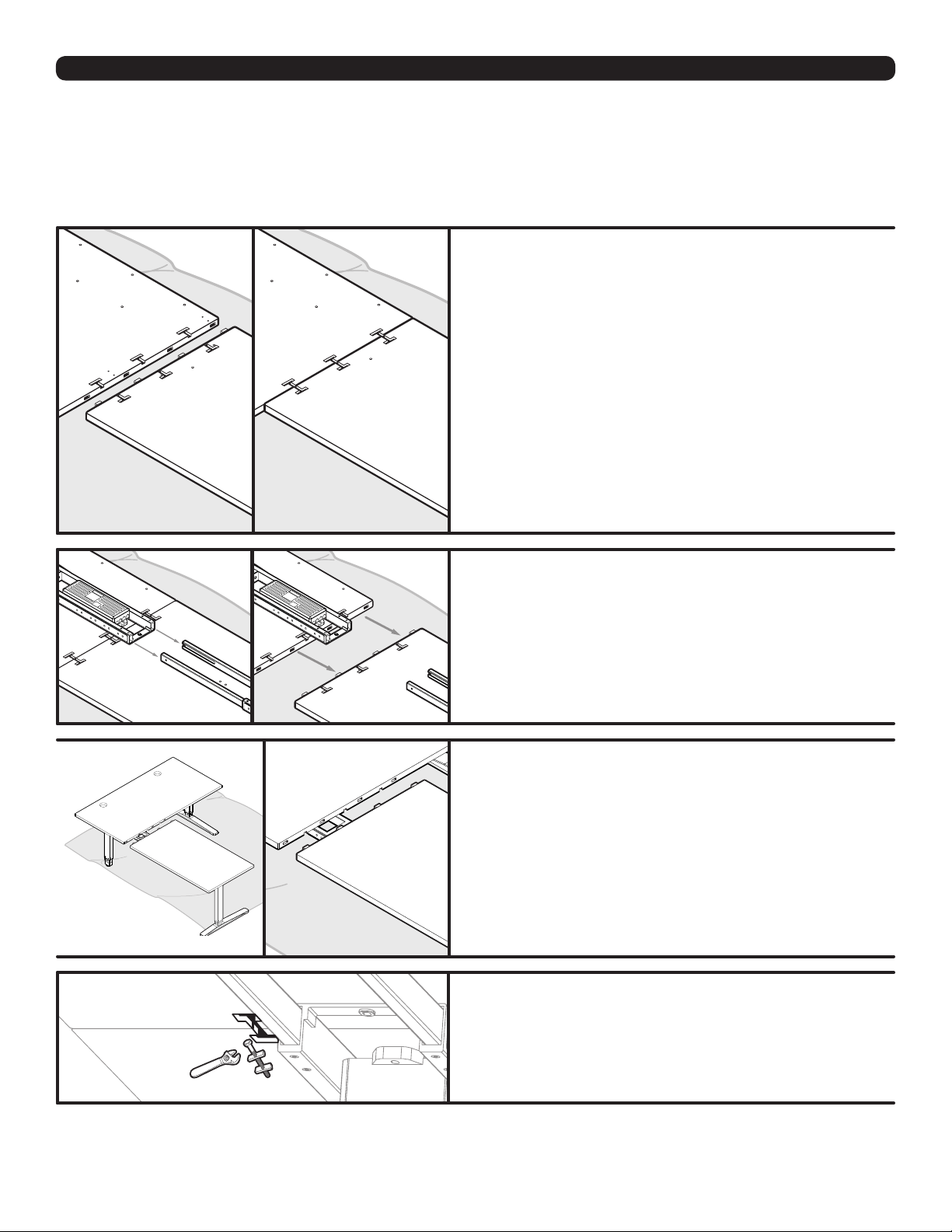

ASSEMBLY INSTRUCTIONS

Note: Custom Solid Wood L-Shaped Desk-

tops made per order. The Return will be on

one side, depending on how it was ordered,

and cannot be changed to the other side.

Step 3

Check the top of your Desktops for damage, prior

to assembly. Place your Desktop upside down on

a debris-free carpeted area or a blanket. Make sure

the Desktop is upside down. The pre-drilled holes or

threaded inserts should be visible and facing up. Slide

the smaller Return desktop against the Main desktop.

Note: The holes for the Keypad should be facing the inside.

Note: If assembling a Custom Solid Wood L-Shape

desk, refer to page 16 for special instructions.

Step 1

Before proceeding, count all pieces before disposing

of any packing material. Inspect the top surface of

your desktop for damage. To avoid any damage to

your oor or your table, assemble on top of a debris-

free carpeted area or blanket. For ease and safety, we

recommend two people for assembly.

Before assembly, consider where you want your desk

to be located.

Since your new desk is height adjustable,

you will want it located a safe distance from window

frames, furniture, radiators, or anything else that could

obstruct the desk from raising or lowering. Do not place

any objects underneath the desk that are taller than 21”,

and consider any accessories mounted to your desk

that would lower even further than the desk itself.

Step 4

Make sure both Main and Return desktops are ush.

Line up the Support brackets (H11) over their corre-

sponding pre-drilled holes.

Note 1: Some desktops use only two Support brack-

ets (H11) and others use three.

Note 2: Do not use Support brackets for Custom Sol-

id Wood Desktops AT ALL.

Screw two #10x3/4’’ Wood screws (H4a) all the way

into the Support bracket on the side overlapping the

Main desktop (g. 1).

On the Return desktop, carefully align and insert a

third Wood screw (H4a) through a hole, but only par-

tially (g. 2). At this point, this screw is only used to

keep the Return desktop from moving around. You

will remove this third screw in a later step.

(g 1) (g 2)

H4 a

H11 H11

Step 6

Place Short corner crossbar end (C10) upside down,

as shown. Insert the last Leg (C4) so it ts snug in the

back, and on the RIGHT SIDE ONLY as shown.

To avoid cross-threading and to ensure all the screw

holes are lined up, start the two M6x10 Machine screws

(H1) by rotating each for only a few turns through the

Short corner crossbar end holes into the Leg as shown.

Do not tighten the screws all the way until Step 7.

C10

Step 5

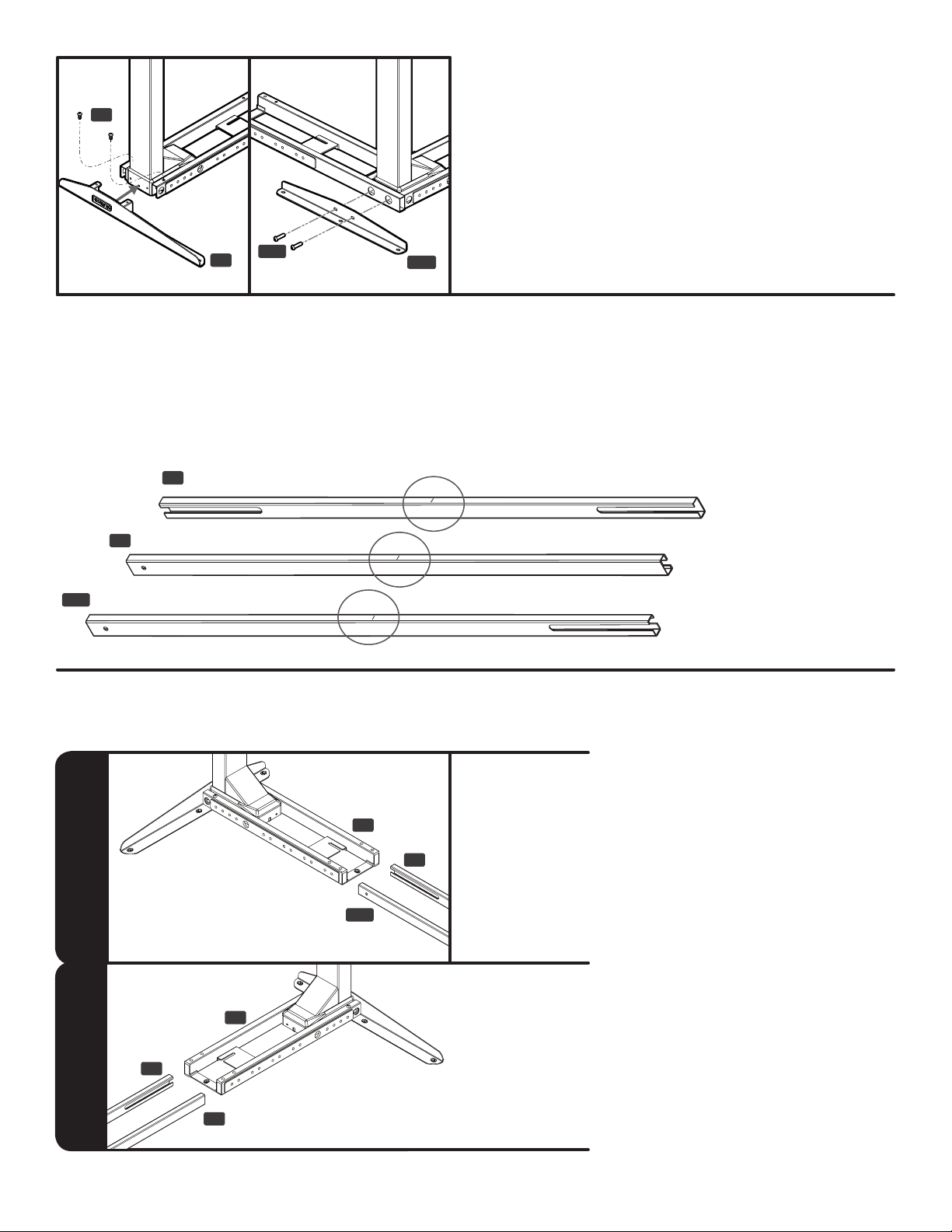

Place Crossbar ends (C5) upside down as shown. In-

sert the Leg (C4) so that the back of the Leg and the

back of the Crossbar end are ush.

To avoid cross-threading and to ensure all the screw

holes are lined up, start the four M6x10 Machine screws

(H1) by rotating each for only a few turns through the

Crossbar end holes into the Leg as shown, but do not

tighten them all the way.

Once all four screws have been started, tighten them

all the way using the 4mm Allen wrench (H6). Repeat

this step for a 2nd Leg and Crossbar end.

C12

H10 Step 7

Place the Long corner crossbar end (C12) on the op-

posite side of the Leg assembly as shown, and con-

nect using two M6x35 screws (H10).

To avoid cross-threading and to ensure all the screw

holes are lined up, start the two screws by rotating

each for only a few turns.

Once both screws have been started, tighten them and

the two screws from Step 6 all the way using the 4mm

Allen wrench (H6).

H4 a

Step 8

Place all leg assemblies upside down. For the rst two,

insert the Side brackets (C2) tabs inside the Crossbar

end, and attach using two M6x10 screws (H1).

On the Corner leg assembly, connect the Corner side

bracket (C14) as shown using two M6x35 screws

(H10).

To avoid cross-threading and to ensure all the screw

holes are lined up, start the screws by rotating each for

only a few turns. Once all screws have been started, tight-

en them all the way using the 4mm Allen wrench (H6).

C2 C14

H10

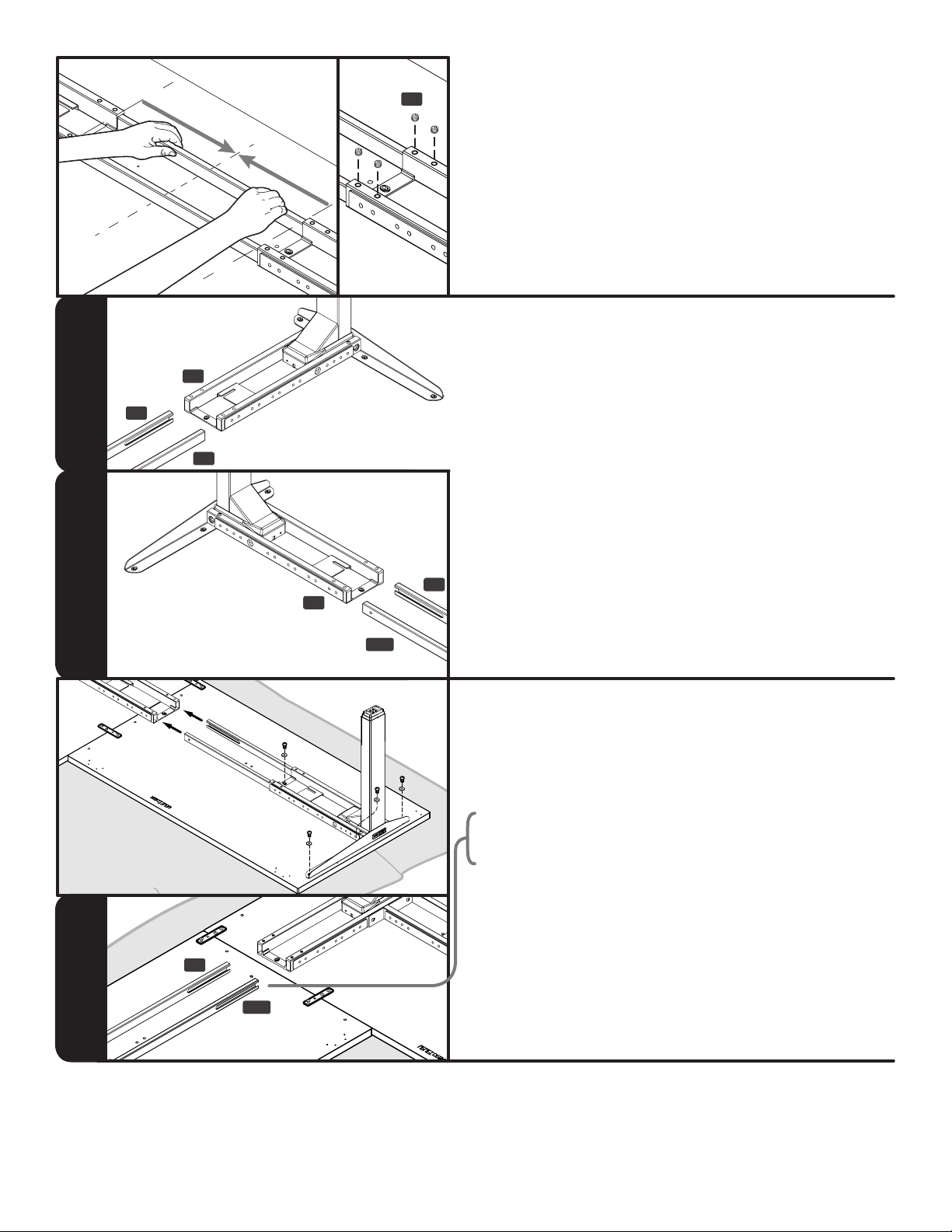

Step 9

Get your Crossbar rails (C6) and Open crossbar rail

(C13) ready, align them so that the Center indicator

marks are facing up, as shown below

. Keep the sides

with the Center indicator marks facing up at all times

during assembly.

When sliding them in, make sure the slots of Crossbar

rails (C6) are facing inward (towards each other).

Note: C13 Open crossbar

rail is about 1.5’’ longer

than C6 Crossbar rails.

Center indicator marks

C13

Step 10

Insert the various rails into a Leg Assembly as follows...

Right-Return

Insert two Crossbar rails (C6) into the Right Leg

assembly.

Ensure the

Center indicator marks in the middle of

each rail are facing up, and that

the slots on each

rail are pointing inward, facing each other.

C13

Left-Return

Insert a Crossbar rail (C6) into the further open-

ing and the Open crossbar rail (C13) into the closer

opening of the Left Leg assembly, with the open

end pointing outward.

Ensure the

Center indicator marks in the middle of

each rail are facing up, and the slot of the Crossbar

rail (C6) is facing inward.

Step 11

Line up the rst Leg assembly with inserted rails to

the outer pre-drilled holes on the Main desktop.

Lift the frame, DO NOT SLIDE IT, when lining up the

frame for placement. Sliding the frame may dislodge

the rubber grommets in the frame components. If a

rubber grommet does come out, they can be easily

inserted back in the slot.

Note: if holes on the Crossbar ends do not perfectly

align, see Note in Step 13.

Step 12

For Desktops with Threaded Screw Inserts: You’ll be

using the #10-24x3/4” Machine screws (H4b) along

with eight Washers (H5) for the following two steps.

For Desktops without Threaded Screw Inserts: You’ll

be using the #10x3/4” Wood screws (H4a) along with

eight Washers (H5) for the following two steps.

Machine screw: at end

Wood screw: pointy end

H4 b

H4 a

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

Step 13

Attach the Left Leg assembly with inserted rails to

the Desktop using the Washers and Screws chosen

in Step 12.

Do not tighten all the way.

Note: If the hole in the Crossbar end (C5) does not

line up with the pre-drilled hole or threaded insert on

the Desktop, use a Crossbar end adapter (C3) and

loosely attach it with the Screw chosen in Step 12 and

a Washer (H5) as shown in Figure 1.

Do not tighten all the way.

Figure 1

Step 14

Once the Outer Leg assembly is in place, move the

Corner Leg assembly onto the Crossbar rails as shown.

If you are assembling a Left-return desk, the Open

crossbar rail (C13) should have the open end pointing

toward the Corner Leg assembly.

Move the Corner Leg assembly so the rails can be

inserted inside, and then align it with the pre-drilled

holes or inserts in the Desktop.

Attach the Corner Leg assembly to the Desktop by

following the same instructions as Steps 12 and 13.

After all screws for the Outer and Corner Leg assem-

blies are started, go back and tighten them all the

way. Be careful to not over-tighten, to avoid stripping.

*Note:

when assembling a Left-return desk, do NOT put

a screw into the hole on the Long corner crossbar end

(C12). This will be done later after the desk is upright.

C13

Step 15

Slide the Crossbar rail (C6) and Open crossbar rail

(C13) until the

Center indicator mark

is in the middle.

Once this is done, the Crossbar rail will be centered,

and in the proper position.

Insert eight M8x8 Set screws (H3) into the Crossbar

End (C5) and Short corner crossbar end (C11) (four on

each side) to secure them and tighten using the 4mm

Allen wrench (H6).

Step 16

Slide the two remaining Crossbar rails into the remain-

ing Leg assembly.

Left-Return

Insert two Crossbar rails (C6) into the nal Leg as-

sembly. Ensure the Center indicator line in the middle

of each rail are facing up, and that the slots on each

rail are pointing inward, facing each other.

Right-Return

Insert a Crossbar rail (C6) into the further opening and

the Open crossbar rail (C13) into the closer opening

of the Final Leg assembly, with the open end pointing

outward.

Ensure the Center indicator line in the middle of each

rail are facing up, and the slot of the Crossbar rail (C6)

is facing inward.

Step 17

Place the nal Leg assembly with inserted rails onto

the Return desktop.

Insert the two regular Crossbar rails into the Main desk

assembly.

Note: if you’re assembling a Right-return desk, slide

the regular Crossbar rail (C6) and the open side of the

Open crossbar rail (C13) into the Main desk assembly.

Finally, line up the holes on the remaining Leg assem-

bly with the pre-drilled holes or inserts on the Return

desktop. Attach using four of the screws from Step 12

above, and four washers.

Tighten them all the way. Be careful to not over-tight-

en, to avoid stripping.

Do NOT use the Set screws yet to secure the Crossbar

rails. This will be done in a later step.

C13

Step 18

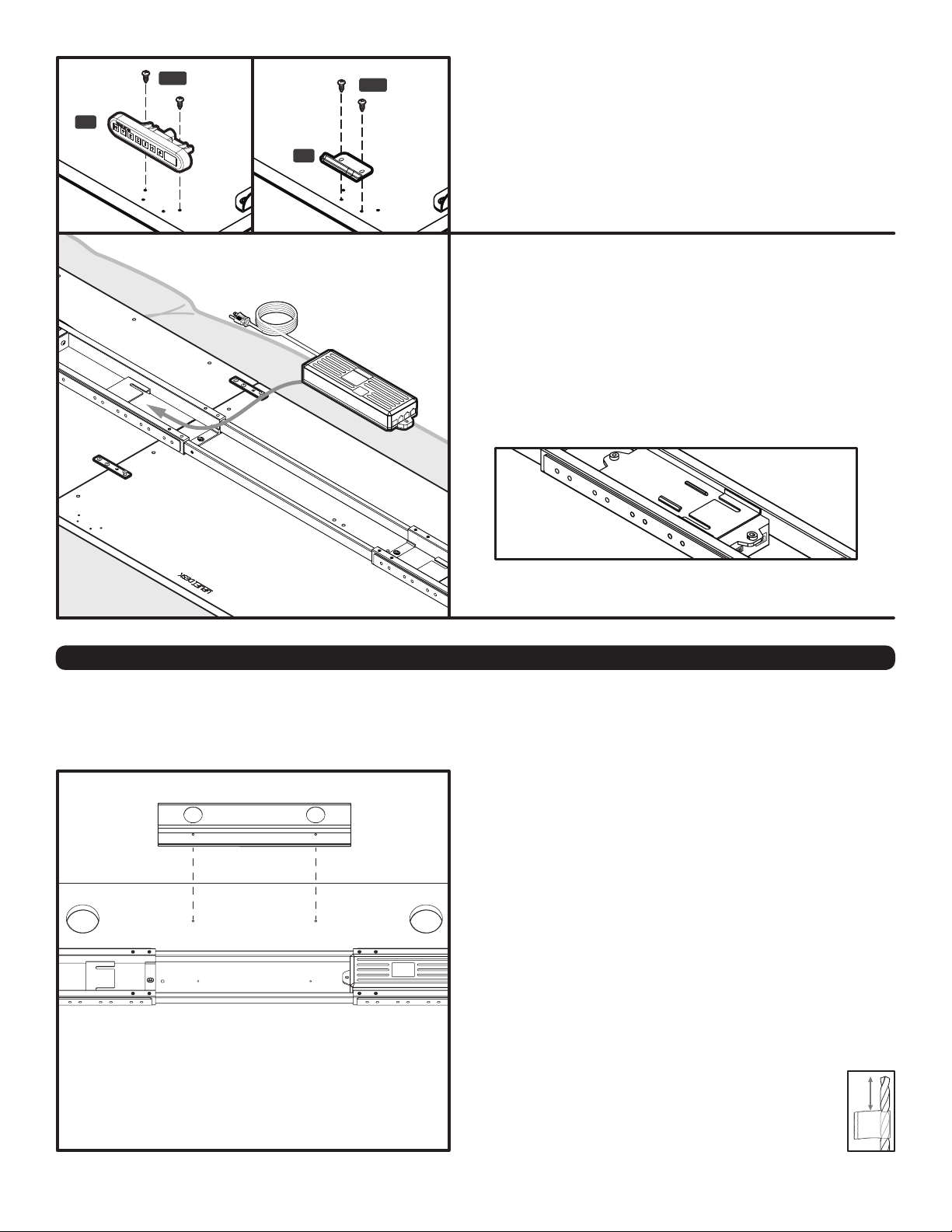

Attach the Keypad to the outermost end of the Re-

turn desktop. There are two sets of holes to accom-

modate different Keypads. Line up your Keypad (C7)

with the pre-drilled holes, and attach it to the Desktop

with two #10x5/8’’ Wood screws (H14).

Do not plug the Keypad into the Control box yet. This

will be done in a later step.

H14 H14

Step 19

Plug the Power cable (C15) into the power socket on

the Control box (C17) marked “AC”. Next, Slide the

tabs of the Control box (C17) into the slots on Long

corner crossbar end (C12). Slide the tabs of the Con-

trol box to interlock with the slots on the Crossbar end

(C5). See diagram below.

Note: Control box MUST be attached to your frame in

order for your desk to function properly.

Top view of Control box tabs & Crossbar end slot. This is just

an illustration, you won’t be able to see this when installing.

Now is a good time to install accessories such as wire management, CPU holders, keyboard trays, or anything

else that fastens to the bottom of your desk. This section will cover Accessories that are included with this

Frame. For additional accessories, refer to the instructions that came with those accessories.

ACCESSORY INSTALLATION

Installing Wire Management Tray:

Install the Wire management tray (C8) to help wrangle

your wires. Imagine where all of your wires will be once

your desk is entirely set up with all your peripherals.

We recommend placing an outlet strip into the Wire

management tray, and plugging everything on your

desk into that outlet strip to allow for cords to travel

along with the desk and only have one cable running

to a wall outlet.

Once you know where you want the tray, make a pen-

cil mark at each hole location and attach it to your

desktop using

two #10x5/8’’ Wood screws (H14).

If you own a drill, you can make this a little easier by

drilling pilot holes where you’ve made your pencil

marks using a 1/8” diameter bit.

Note: DRILL NO DEEPER THAN 1/2”. To ensure

this, we recommend wrapping a piece of tape

around your drill bit 1/2” from the tip. Stop drill-

ing just before the tape touches the desktop.

1/2’’

Future desk accessories:

UPLIFT Desk offers various desk accessories that will

mount easily to our innovative, patent pending desk

frame. Accessories will either mount directly to the

Crossbar ends, or will require the two included An-

chor plates (C11).

Read your accessory’s instructions to see if you’ll need

the Anchor plates for installation. If so, attach them to

the frame using four M8x10 machine screws (H7), and

tighten using the 5mm Allen wrench (H8) at the loca-

tions mentioned in the accessory’s instructions.

C11

patent pending

ACCESSORY INSTALLATION (Continued)

H2 H2

Step 20

Prepare to attach the feet to your legs. Take a moment

and think about where you’d like your legroom when

the desk is upright.

If you’ll regularly sit on the outer ends of the L-Shape, at-

tach the Peg foot (C9) to one of the outer leg assemblies.

If you’ll regularly sit at the center, attach the Peg foot

(C9) to the corner leg assembly.

When you’ve decided, attach the feet to the legs.

Make sure the long end of the Feet (C1) are pointing

towards the inside of the L-Shaped desk, in the same

direction as the Side brackets.

Place both long Feet (C1) and the Peg foot (C9) onto

the Legs (C4) as shown. Loosely start four M6x14 Ma-

chine screws (H2) by hand.

Once all four screws have been started, tighten all the

way using the 4mm Allen wrench (H6). Repeat this

step for all three Feet.

Note: If you purchased Casters, remove the leveling

pads and install the Casters now.

Step 21

Double check that all screws on the desk are tight.

And then check all screws again and make sure they’re

tight. This isn’t a typo, it’s important and it’s far easier

to tighten them with the desk upside down than it is

later.

Be careful not to miss the screws marked with an ar-

row in the diagram.

*Note: There should NOT be a screw in the Long

corner crossbar end (C12) yet. This will be done lat-

er after the desk is upright.

Step 22

In preparation to ip over your desk, slide OUT the two

Crossbar rails from the Main Desk assembly and un-

screw the third #10x3/4’’ Wood screw (H4a) from each

Support bracket (H11) on the the Return desktop. Then

separate the Return assembly from the Main assembly.

Note: If assembling a Custom Solid Wood L-Shape

desk, refer to page 16 for special instructions.

Step 23

For this step onward, it’s advised that you use two

people.

With you and a friend on opposite ends of the desk,

grab the Desktop and Side bracket with one hand and

a Leg in the other. The person at the corner may need

to just hold onto the Desktop. Be careful of any ca-

bles or attached accessories, especially an accessory

that might move on a track like a Keyboard tray or

CPU holder. Support the desk frame and the Desktop

equally and tilt it gently back 90 degrees.

Readjust your grip, one hand on the leg, and the other

hand grasping the desktop (and side bracket if your

ngers can reach.) Lift and rotate 90 more degrees

until the Main Desk assembly is upright. Adjust the

leveling studs or Casters as needed to make the desk

level.

Once the Main desk assembly is on it’s own two feet,

carefully lift and rotate so that it faces the Return Desk

assembly. With a similar lifting method as described

above, ip the Return assembly 90 degrees so the

Keypad is facing up, and then ip another 90 degrees

so it is upright.

Note: If you are assembling the Left-return congura-

tion, the Long corner crossbar end (C12) will be stick-

ing out.

Note: If you are assembling the Right-return congu-

ration, the Long corner crossbar end (C12) will not be

sticking out.

Even though the Return desktop may rest on the

Support brackets, one person should hold the Return

assembly in place while the other person lays under-

neath the desk to nish assembly. Be careful not to

apply any downward pressure on the return while

holding it in place.

Note: If assembling a Custom Solid Wood L-Shape

desk, refer to page 16 for special instructions.

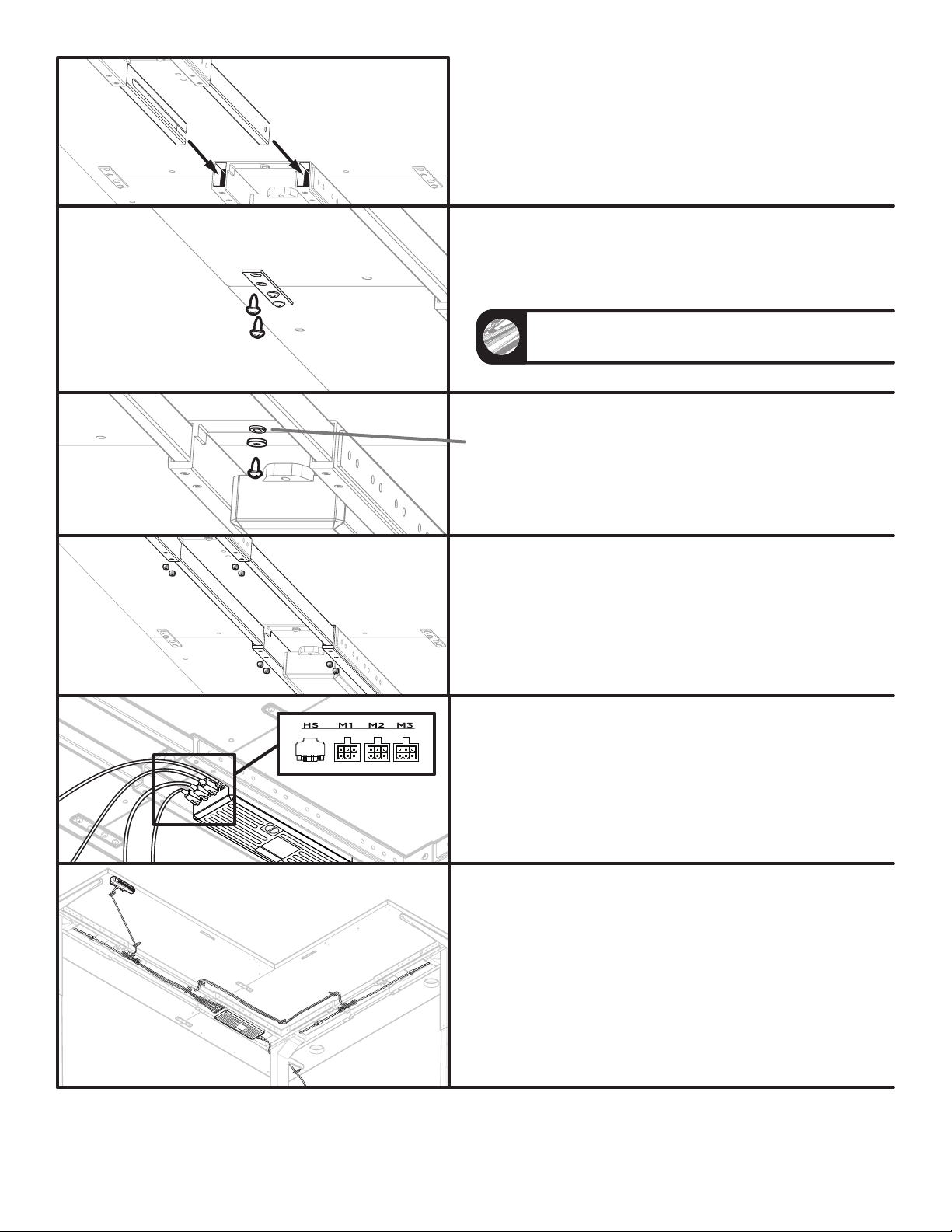

Step 27

Refer to Step 15, Center the Crossbar rails so they are

centered, and insert and tighten the remaining eight

Set screws (H3) into the Crossbar ends to secure the

Crossbar rails in place. Make sure all Set screws make

contact with the Crossbar rails.

Step 28

Plug each Leg into a Leg cable (C16), and then plug

the Leg cable into the white ports on the Control box

marked “M1”, “M2”, and “M3”.

Now, plug the Keypad (C7) into the Control box port

labeled “HS”.

Step 24

Slide the Crossbar rails from the Return desktop as-

sembly back into the Long corner crossbar end (C12)

of the Main Desktop assembly.

Step 25

Screw two #10x3/4’’ Wood screws (H4a) into the last

two holes of each Support bracket (H11).

Step 26

At this point, if you are assembling the Left-return

conguration, Use one of the screws used in Step 12

and one washer to attach Long corner crossbar end

(C12) to the Return Desktop.

Note: If assembling a Custom Solid Wood L-Shape

desk, refer to page 16 for special instructions.

Step 29

To keep all of your cables tidy and not hanging loose,

use the Cable mounts (H9) to keep them snug against

the frame and desktop.

Note: The Cable mounts work best when stuck di-

rectly to the metal desk frame. Attach Cable mounts

to the inside of frame parts. You might want to save

some for when you have other corded devices and

accessories plugged in and on your desk.

Step 31

Position your desk where you’d like it to be. Keep it

close to a wall outlet and away from obstacles which

may interfere with the desk’s height adjustability range.

If your desk has Casters:

Moving is easy! Make sure the

casters are unlocked and roll it to the desired position.

If your desk does not have Casters: Using three peo-

ple, lift your desk (do not drag it) by holding onto the

Side bracket (marked with arrows, to the left).

Note: Never lift by holding on to the Desktop itself, as

this will put undue stress on the screws.

Once the desk is in position, proceed to the next step.

Step 32

Check your desk’s surroundings to make sure there

will be no obstacles in the desk’s path and that all

cords are long enough to accommodate the motion

of your desk.

Plug your desk into a 120V outlet.

Before using your desk, you’ll need to sync all the

components by using the reset procedure.

Initial Desk Reset Procedure

Press and hold the DOWN button for 10 seconds, then

release the button.

Press and hold the DOWN button again, the desk will

lower a little, then rise a little, and then stop. Release

the button. Your desk is now ready for use!

If you are using a Memory keypad, see additional key-

pad instructions for further information on how to use

your keypad.

Step 3 for Custom Solid Wood tops

Place your Desktops upside down on a debris-free

carpeted area or a blanket. Make sure the Desktops

are upside down. The pre-drilled holes or threaded in-

serts should be visible and facing up

Line up the biscuits and slots of the Main and Re-

turn desktops, and press them togther until the Main

and Return desktops are ush. While assembling the

frame, it is important to keep the two Desktops com-

pletely together and not moving around, so the frame

can be lined up and assembled properly. They will be

separated again, before ipping the desk upright.

Custom Solid Wood Desktop Assembly

There are a few things that are unique to Custom Solid Wood L-Shape Assembly. The Custom Solid Wood

tops are typically heavier and thicker, and require a biscuit joiner and Dogbone Bolts to provide a stronger

bond than the Support Brackets (which is what the lighter desktops use) can provide.

The Desk assembles much in the same way, but differs as detailed below.

Step 22 for Custom Solid Wood tops

In preparation to ip over your desk, slide OUT the

two Crossbar rails from the Main Desk assembly and

shimmy apart the Return assembly from the Main

Desk assembly.

Step 23 for Custom Solid Wood tops

With both halves right side up, line up and insert the

biscuits into the slots, and press the Return assembly

into the Main Desk assembly. Even though the two

halves are reasonably stable, it would be safer if one

person remains holding the Return assembly in place

while the other person lays underneath the desk to

nish assembly. Be careful not to apply any down-

ward pressure on the Return while holding it in place.

Step 25 for Custom Solid Wood tops

Insert the Dogbone bolts (H11) into the cutouts, and

tighten with a wrench. Depending on the cut of your

Custom desktop, you may need 3 or 4 Dogbone bolts.

ASSEMBLY INSTRUCTIONS - Addendum for Custom Solid Wood L-Shaped Tops

These UPLIFT Desk programming instructions

are compatible only with Memory keypads.

HEIGHT CALIBRATION

Make sure the numeric display matches the actual height of the desktop in its lowest position.

1. Hold the DOWN button on the Keypad until the desk reaches its lowest height, then release.

2. Measure the height from the oor to the underside of the desktop. If the displayed height does

not match your measurement, follow the next steps.

Hold the DOWN button again until the LED display reads “RST”.

4. Press the “M” button until the numeric display begins ashing.

5. Press the UP or DOWN button to set the desk to the measured height.

6. Once display changes back to “RST”, Hold the DOWN button until the desktop lowers slightly,

then rises slightly and the display changes back to the numeric height setting, then release.

*Note: “RST” will look like

“ASr” on the display

PROGRAMMING (Memory keypad only)

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

MEMORY SETTINGS

Save up to four commonly used desk heights and recall them quickly.

l. Use the UP or DOWN button to move the desk to the desired height.

2. Press the “M” button.

3. Press the “1, 2, 3, or 4” button to assign the current height to a number on the keypad.

4. To bring the desk back to any of those assigned heights, press the numbered button.

CONSTANT-TOUCH & ONE-TOUCH

These steps allow the desktop to be set to either One-Touch or Constant-Touch. One-Touch requires

only a single touch of the “1, 2, 3, or 4” button to move the desktop to a preset memory location.

One-Touch is the default setting. Constant-Touch requires a continuous touch of the “1, 2, 3, or 4” but-

ton to move the desktop to a preset memory location.

Change between One-Touch and Constant-Touch:

l. Hold the DOWN button on the Keypad until the desk reaches the lowest height, then release.

2. Hold the DOWN button again until display ashes “RST”.

3. Press the “1” button until display shows “10.1” (One-Touch) or “10.2” (Constant-Touch)

and goes back to “RST”.

Note: While “RST” is still ashing, you can press the “1” button as many times as you’d like

to toggle between the two settings.

4. Hold the DOWN button until the desktop lowers slightly, then raises slightly, and the display

changes back to the numeric height setting, then release.

KEYPAD LOCK

The Keypad can be locked to prevent accidental activation or movement of the desk and to pre-

vent desk settings from being accidentally changed by children or coworkers.

To lock: Press and hold “M” button. The display will show “S-” then it will show

the current numeric height setting of the desk and nally will change to “LOC”.

Please continue to hold the “M” button until “LOC” is displayed.

To unlock: Press and hold “M” button until display changes to numeric height setting.

NOTE: If a power outage occurs, the program will automatically return to the unlocked setting.

PROGRAMMING (continued)

DISPLAY UNITS

Change the numeric display to show heights in either inches or centimeters.

l. Hold the DOWN button on the Keypad until the desk reaches the lowest height, then release.

2. Hold the DOWN button again until display ashes “RST”.

3. Press the “2” button until display shows “10.3” (centimeters) or “10.4” (inches) and goes

back to “RST”.

Note: While “RST” is still ashing, you can press the “2” button as many times as you’d like

to toggle between the two settings.

4. Hold the DOWN button until the desktop lowers slightly, then raises slightly, and the display

changes back to the numeric height setting, then release.

MINIMUM & MAXIMUM HEIGHT SETTINGS

The desk frame ships with default minimum and maximum height limits. These steps allow the upper

and lower limits to be changed to your preference.

Note: If memory settings were previously set outside of the new minimum and maximum height

settings, they will default to the new minimum and maximum settings. To set new minimum and

maximum height settings outside of the current settings, you will need to rst remove the current

minimum and maximum settings.

To set a new maximum desk height:

l. Use the UP or DOWN button to bring the desk to the desired maximum height.

2. Press the “M” button once, and “S-” will appear on the Display. Immediately follow by

pressing the UP button once, so the “S-” ashes once.

3. Hold the “M” button until the Display shows “999” then changes to numeric value of new

upper limit.

To set a new minimum desk height:

l. Use the UP or DOWN buttons to bring the desk to the desired minimum height.

2. Press the “M” button once, and “S-” will appear on the Display. Immediately follow by

pressing the DOWN button once, so the “S-” ashes once.

3. Hold the “M” button until the Display shows “000” then changes to numeric value of new

lower limit.

Removing adjusted maximum and minimum heights:

l. Press the “M” button once and the display will show “S-”.

2. Hold the “M” button again until the display shows “555” then changes to the current

numeric height setting.

If your desk does not respond when you try to raise it or lower it, or if the Keypad displays error messages

(“EO1” through “EO12”), check to make sure all the cables are secure (Legs to cables, cables to Control box).

If the problem persists, perform the reset procedure below.

If the error message persists after performing the Reset procedure, or if there is a height difference between

the legs which exceeds 1.5’’, contact UPLIFT Desk at the email address or phone numbers listed at the bot-

tom of each page of these instructions.

*Note: “RST” will look like

“ASr” on the display

RESET PROCEDURE

1. Unplug the power cord and hold the DOWN button on the Keypad for 30 seconds.

2. Plug the power cord back in.

3. Hold the DOWN button until the desk reaches its lowest height, then release.

Hold the DOWN button again until the LED display reads “RST”

(or for about 10 seconds on non-LED keypads), then release.

Hold the DOWN button again until the desk lowers a bit more, then

slightly rises and stops, then release.

Your desk is now ready to use.

4. The Advanced Keypad will then display the current height, and you should be able

to operate the desk.

5. You may also need to do this if the desktop is ever unplugged or loses power.

TROUBLESHOOTING

CODE DESCRIPTION TROUBLESHOOTING SOLUTION

H01 Overheated

The desk motor has a 10% duty cycle to protect from overheating. For

example, in a 20 minute period if your desk motor is activated for 2 minutes

you will want to let it rest for 18 minutes. Otherwise you may see an H01

code on your keypad.

E01-E06 Firmware or

connectivity issues

Check all cables to ensure they’re all rmly plugged in, and perform Reset

procedure above

E07-E012 Legs are uneven Perform Reset procedure above

Starting & Stopping

If your desk is continuously starting and stopping as you try to raise or lower it, check to make sure the con-

trol box is attached to the frame as shown in Step 11. The control box MUST be attached to your frame in

order for your desk to function properly.

512-614-3152

800-349-3839

[email protected]

upliftdesk.com

Work Better. Live Healthier

Copyright Notice: This guide is a component of the UPLIFT Desk™. This guide is a part of the scope of delivery, even if the item is resold. This guide

is also available on the UPLIFT Desk website: upliftdesk.com. Excerpts or copies may not be forwarded to third parties or used in any other published

form without the prior written consent of UPLIFT Desk. These instructions are subject to United States copyright law.

SAVE THESE INSTRUCTIONS

Study this manual carefully. If this desk is sold, please provide this

manual to the buyer, installers, or support personnel operating the product.

90.014.01.0648v.C - AI-FRMA-3-SRD-LSHP-2.1

4933053185232 - THS065

4933053185232

Other manuals for V2

Table of contents

Other Uplift Desk Indoor Furnishing manuals

Uplift Desk

Uplift Desk ACC089 User manual

Uplift Desk

Uplift Desk FRM075 User manual

Uplift Desk

Uplift Desk STR041 User manual

Uplift Desk

Uplift Desk V2-Commercial F600 C-Frame User manual

Uplift Desk

Uplift Desk UDA116-SML User manual

Uplift Desk

Uplift Desk 2-Leg Side Table Quick setup guide

Uplift Desk

Uplift Desk UDA100-riser User manual

Uplift Desk

Uplift Desk FRM704 User manual

Uplift Desk

Uplift Desk KBT002 User manual

Uplift Desk

Uplift Desk V2 4-Leg User manual

Uplift Desk

Uplift Desk ACC021 User manual

Uplift Desk

Uplift Desk J3 CHR456 User manual

Uplift Desk

Uplift Desk KBT001 User manual

Uplift Desk

Uplift Desk CPU128-NTS User manual

Uplift Desk

Uplift Desk MVT013 User manual

Uplift Desk

Uplift Desk Starling CHR464 User manual

Uplift Desk

Uplift Desk ACU069 User manual

Uplift Desk

Uplift Desk ACC009 User manual

Uplift Desk

Uplift Desk CHR454 User manual

Uplift Desk

Uplift Desk TOP314 User manual

Uplift Desk

Uplift Desk MoPac STR026 User manual

Uplift Desk

Uplift Desk UDA115 User manual

Uplift Desk

Uplift Desk UPL127 User manual

Uplift Desk

Uplift Desk SoCo User manual

Popular Indoor Furnishing manuals by other brands

Loll Designs

Loll Designs LOLLYGAGGER ASSEMBLY INSTRUCTIONS & PRODUCT INFO

RSA Lighting

RSA Lighting MINIACCURUS TZ5103 specification

Avenue Six

Avenue Six OFFICE STAR SAVANNA SAV2 quick start guide

Hjellegjerde

Hjellegjerde HJE User instruction

Forte

Forte RAVEN RVXB221 Assembling Instruction

Strictly Beds & Bunks

Strictly Beds & Bunks Cypress Bunk Bed Assembly instructions

Ashley

Ashley H371-44 manual

OSP Home Furnishings

OSP Home Furnishings OSP Designs Amelia Office Chair AME26 Assembly instructions

CONFORAMA

CONFORAMA PANAMA BC-431 Assembling instructions

BED BATH & Beyond

BED BATH & Beyond Bedside manual

Hillsdale Furniture

Hillsdale Furniture 5526-826 Assembly instructions

Furinno

Furinno 18136 Assembly instruction

Maintal

Maintal Maggy EB SH55 Assembly instructions

physa

physa PHYSA CHESTER GRAY user manual

IKEA

IKEA STOLMEN manual

Clinton

Clinton 81100 OPERATION, CARE & MAINTENANCE

overstock

overstock 0080 S Assembly instructions

RTA

RTA AWD 5421 Assembly instructions

Uplift Desk V2 User manual

Popular Indoor Furnishing manuals by other brands
