V-TAC VT-403 User manual

INSTRUCTION MANUAL
SOLAR LED WALL LIGHT
INTRODUCTION
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these
instructions carefully before starting the installation and keep this manual handy for future refer-
ence. If you have any another query, please contact our dealer or local vendor from whom you have
purchased the product. They are trained and ready to serve you at the best. The warranty is valid
for 2 years from the date of purchase. The warranty does not apply to damage caused by incor-
rect installation or abnormal wear and tear. The company gives no warranty against damage to any
surface due to incorrect removal and installation of the product. The products are suitable for 10-12
Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is
warranted for manufacturing defects only.
MULTI-LANGUAGE MANUAL QR CODE
Please scan the QR code to access the
manual in multiple languages.
This marking indicates that this product
should not be disposed of with other
household wastes.
Caution, risk of electric shock.
In case of any query/issue with the product, please reach out to us at: [e-mail]
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

TECHNICAL DATA

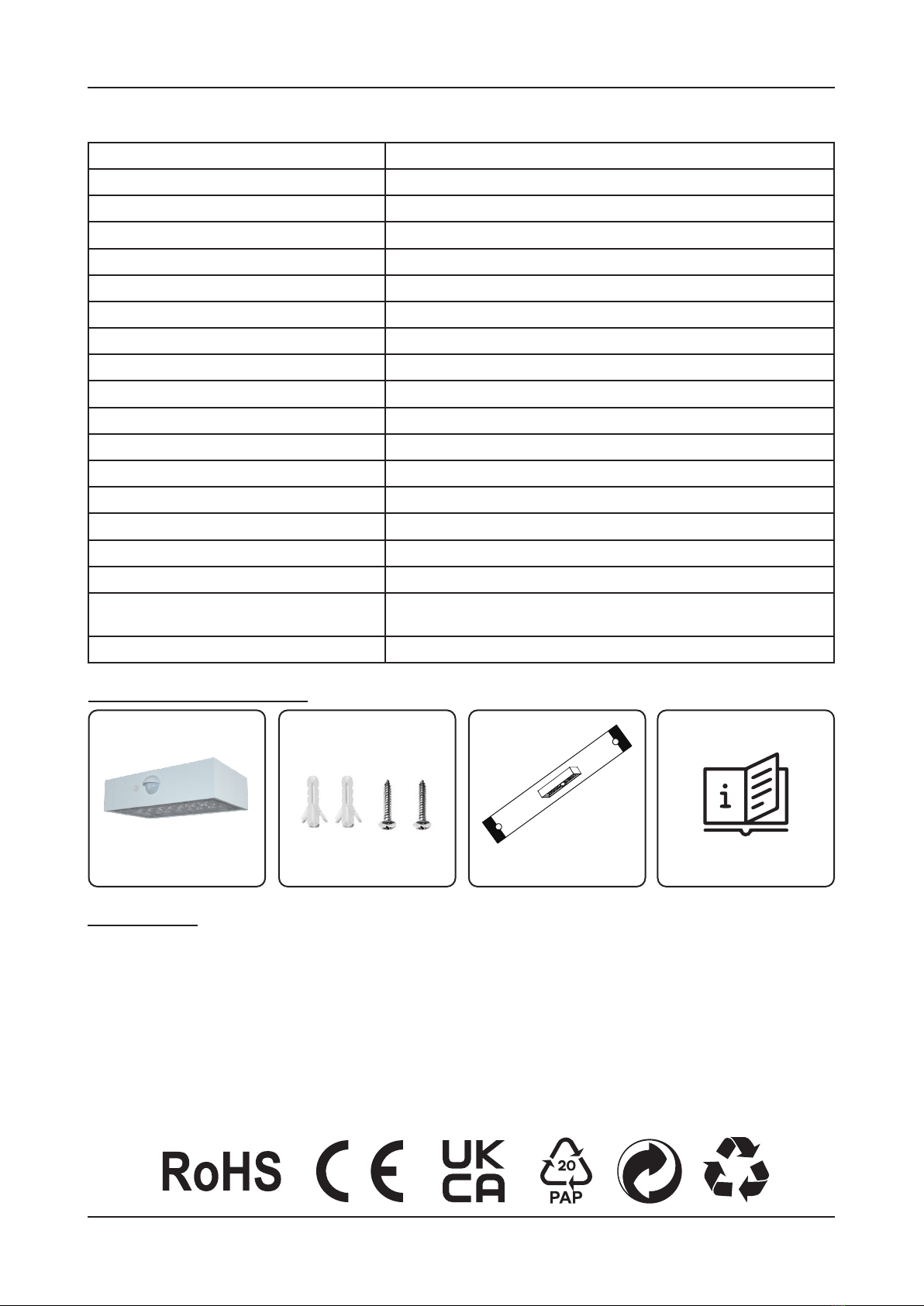

PACKAGE CONTENT
MODEL VT-403
SKU 10305, 10306
LUMENS 350 LM
OUTPUT POWER 3W
EQUIVALENT WATT 30 W
LEDs SMD 2835x21 pcs
BATTARY 18650, 3.7V, 1200mAh, 4.44Wh
MONO SOLAR PANEL DC 5.5V, 1.15W
PIR SENSOR 120° x 6 Meters
BEAM ANGLE 120° x 60°
WORK MODES 2 Optional Work Modes
CHARGING TIME 5 Hours strong sunshine to fully charge
LIGHTING TIME Up to 50 Hours
INSTALLATION HEIGHT 2-4 M
LIGHTING AREA 50m2
HOUSING MATERIAL ABS+PC, Anti-UV, Antioxidant, Fireproof
LAMP DIMENSION 137.6x90.4x35.4mm
PACKING 1xSolar Lamp, 2xExpansion Plugs x Screws, 1xMeasure Card, 1xUser
Manual
WARRANTY 2 Year (1 Year for Battery)
1PC* Lamp 2PCS*Screws 1PC* Measure Card 1PC* User Manual
WARNING
1. This is a solar powered lamp, please install it in a location where can get ecient sunlight.
2. Please note the lighting time depends on sunshine duration & work mode.
3. Built-in intelligent IC is with over-charge and over-discharge protection, safe and durable.
4. When the lamp is turned o, it still can get solar charging at day time.
5. The lamp is equipped with an internal battery pack, which is replaceable.
If any need, please contact the seller for support.
6. Non-professionals please do not disassemble the lamp.
7. Please do not dispose the battery with household garbage to avoid explosion.

TWO OPTIONAL WORK MODES
INSTALLATION
MODE A
MODE B
1. Press the button 1st time, the upper light flashes once, lamp enter Mode A.
2. Press the button 2nd time, the upper light flashes twice, lamp enter Mode B.
3. Press the button 3rd time, the upper light flashes 3 times, lamp turns o.
Lamp automatically lights up at night, automatically
turns to full brightness when motion is detected in the
range ≤6m, and dims to low brightness (upper light
on, down light on) aer 10 seconds of no motion.
ON/OFF/Switch Work Mode
Lamp automatically lights up at night, automatically
turns to full brightness when motion is detected in the
range ≤6m, and dims to low brightness (upper light
on, down light o) aer 10 seconds of no motion.
1. Please use the measure card to mark holes position.
2. Drill 2 holes(6mm, depth 50mm) with a spacing of 80mm.
3. Fix the expansion plugs in the holes.
4. Fix the screws into the expansion plugs, allow the screws to protrude slightly around 3-5mm.
5. Turn on the lamp and set desired work mode.
6. Hang the lamp on the screws to secure it to the wall.
