DIMMABLE DRIVER
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these
instructions carefully before starting the installation and keep this manual handy for future reference.
If you have any another query, please contact our dealer or local vendor from whom you have
purchased the product. They are trained and ready to serve you at the best. The warranty is valid for
5 years from the date of purchase. The warranty does not apply to damage caused by incorrect
installation or abnormal wear and tear. The company gives no warranty against damage to any
surface due to incorrect removal and installation of the product. The products are suitable for 10-12
Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is
warranted for manufacturing defects only.
Caution, risk of electric shock.
This marking indicates that this
product should not be disposed
of with other household wastes.
TECHNICAL DATA

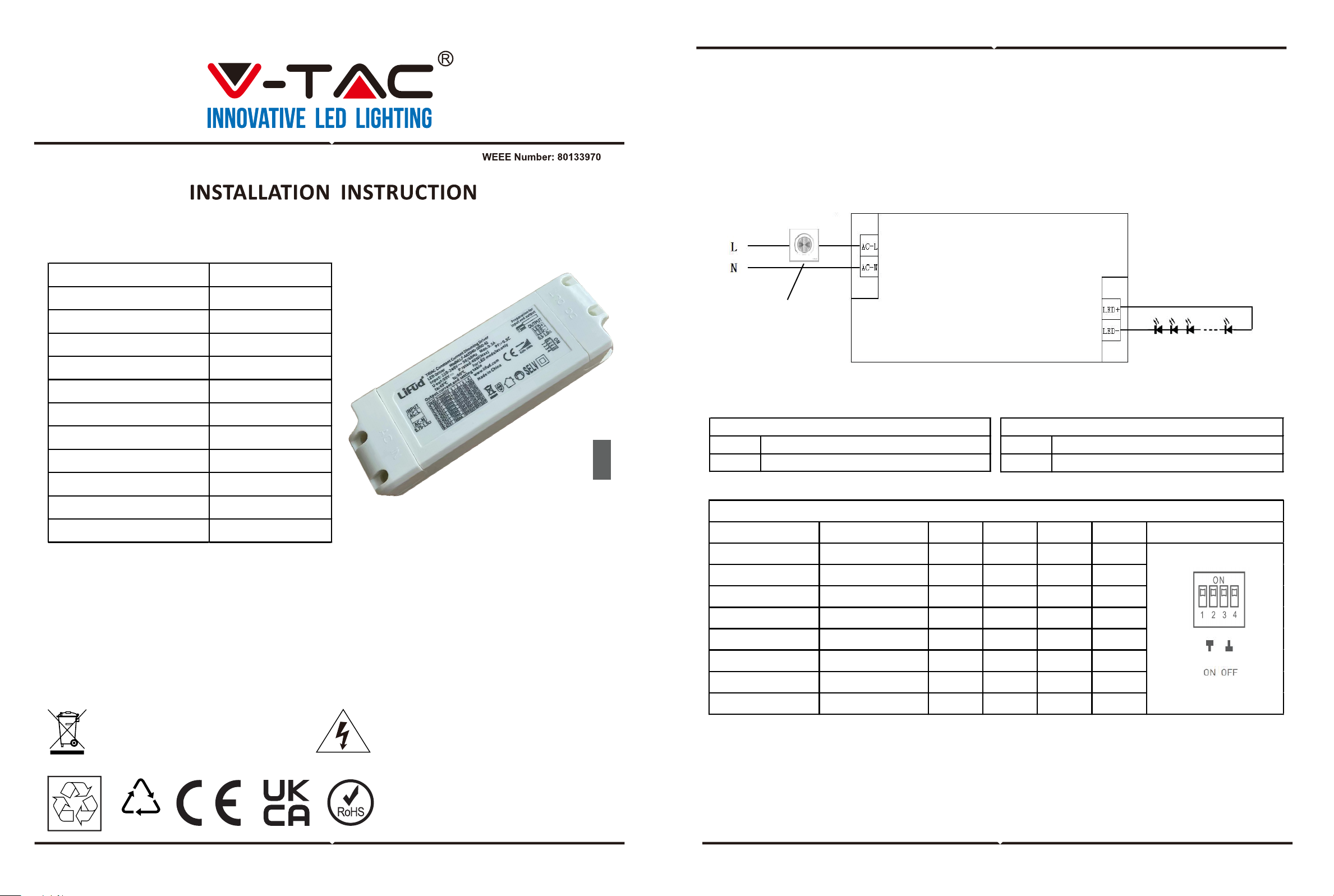

WIRING DIAGRAM OF TRIAC DIMMING OPERATION:
DIMMING OPERATION:
PRODUCT TERMINALS
OUTPUT CURRENT ADJUSTABLE VIA A BUILT-IN DIP SWITCH
WARNING:
5
YEARS
WARRANTY *
1. Please make sure to turn off the power before starting the installation.
2. Connect the AC input source to the power supply and the AC plug (not in the scope of delivery
included). AC plugs can be bought in any hardware store.
3. Wire the DC output of the power supply unit to the LED Panel.
4. Plug the power adapter into the socket to illuminate the whole system.
INSTALLATION:
1) Please make sure to turn off the power before starting the installation.
2) Observe the connection diagram provided before connecting to the power supply
3) Installation should be done by a qualified electrician.
4) Disconnect the power supply when wiring or soldering the LED.
5) Please ensure to check the DC output of the power supply matches with the DC Input of the Panel.
6) For LED Modules only
7) For Infoor use only
AC-L Input terminal of AC live wire
AC-N Input terminal of AC neutral wire
Output Voltage Output Current 1 2 3 4 DIP Switch Diagram
9-38Vdc 1050mA ON ON ON ON
9-40Vdc 1000mA ON ON ON OFF
9-42Vdc 950mA OFF ON ON ON
9-42Vdc 900mA OFF ON ON OFF
9-42Vdc 850mA OFF OFF ON ON
9-42Vdc 800mA OFF OFF ON OFF
9-42Vdc 750mA OFF OFF OFF ON
9-42Vdc 700mA OFF OFF OFF OFF
LED+ Positive electrode output of LED driver
LED- Negative electrode output of LED driver
20
SKU 11410
MAX INPUT CURRENT MAX 0.3A
INPUT VOLTAGE AC:220-240V, 50/60Hz
RATED POWER 40W(MAX)
PF >0.9
AMBIENT TEMPERATURE (ta) 45°C
CRITICAL TEMPERATURE (tc) 90°C
OUTPUT POWER DC:9-38V
INPUT STANDBY MODE 0.75-1.5mm²
OUTPUT STANDBY MODE 0.5-1.0mm²
STANDBY POWER (Psb) Psb<0.5W
EFFICIENCY IN FULL-LOAD >83%
Triac/ELV Dimmer
0~100% Dimming
Input
Output
Neutral - black or blue
Live - brown or red
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT
SUPPORT@VTACEXPORTS.COM V-TAC HOUSE, KELPATRICK ROAD, SLOUGH, BERKSHIRE, SL1 6BW, UK.
NOTE: The dimmable driver cannot no-load
