Vega VEGAPULS 6X User manual

Operating Instructions
Radar sensor for continuous level
measurement of liquids and bulk solids
VEGAPULS 6X
Two-wire 4 … 20 mA/HART
Document ID: 66190

2
Contents
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
Contents
1 About this document ............................................................................................................... 5
1.1 Function ........................................................................................................................... 5
1.2 Target group ..................................................................................................................... 5
1.3 Symbols used................................................................................................................... 5
2 For your safety ......................................................................................................................... 6
2.1 Authorised personnel ....................................................................................................... 6
2.2 Appropriate use................................................................................................................ 6
2.3 Warning about incorrect use............................................................................................. 6
2.4 General safety instructions............................................................................................... 6
2.5 Mode of operation - Radar signal ..................................................................................... 7
2.6 Installation and operation in the USA and Canada ........................................................... 7
3 Product description ................................................................................................................. 8

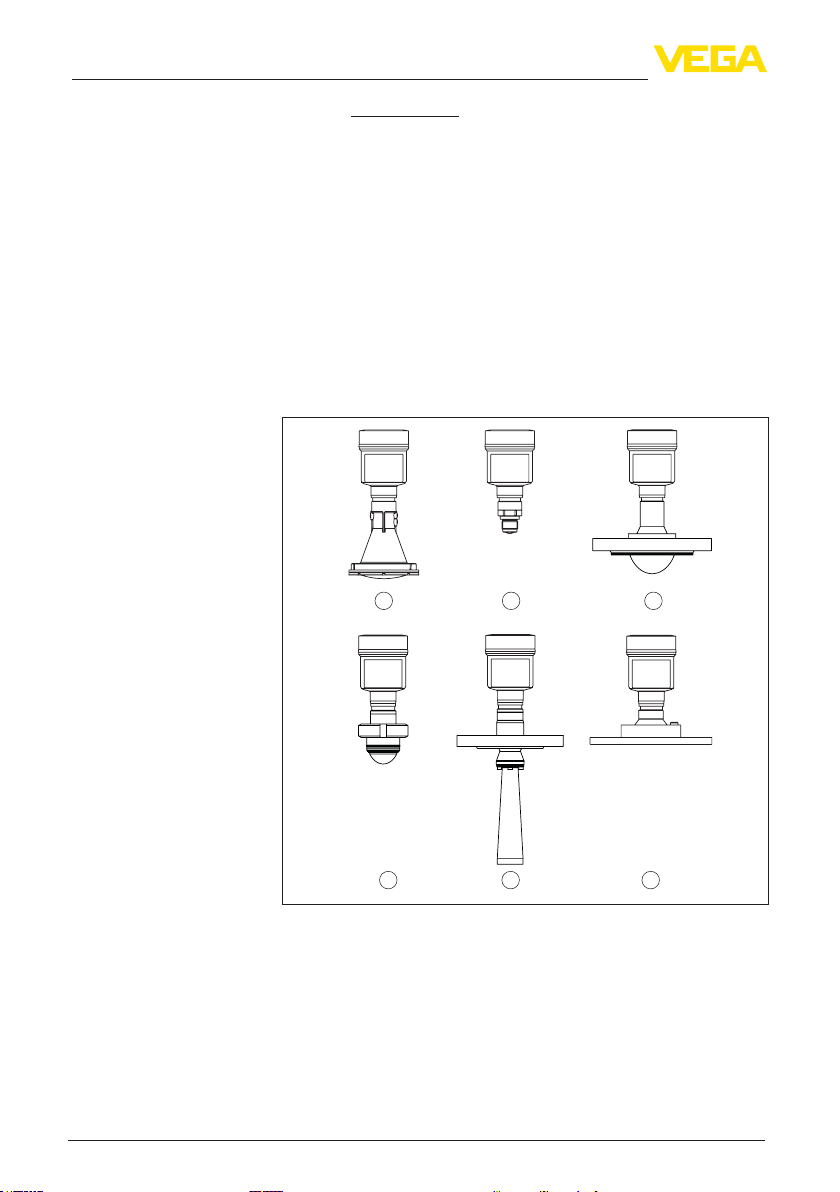

3.1 Conguration.................................................................................................................... 8
3.2 Principle of operation...................................................................................................... 10
3.3 Adjustment..................................................................................................................... 11
3.4 Packaging, transport and storage................................................................................... 12
3.5 Accessories.................................................................................................................... 13

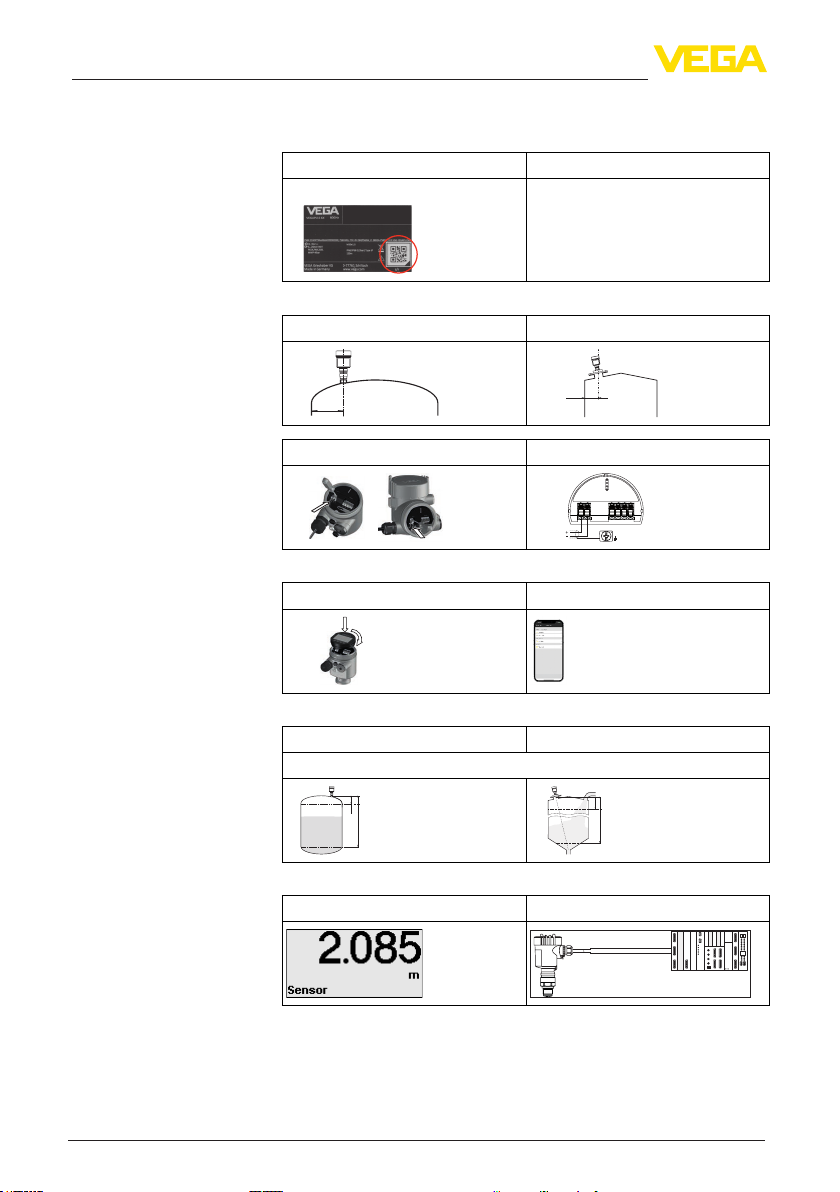

4 Setup – the most important steps ........................................................................................ 14
5 Mounting................................................................................................................................. 15
5.1 General instructions ....................................................................................................... 15

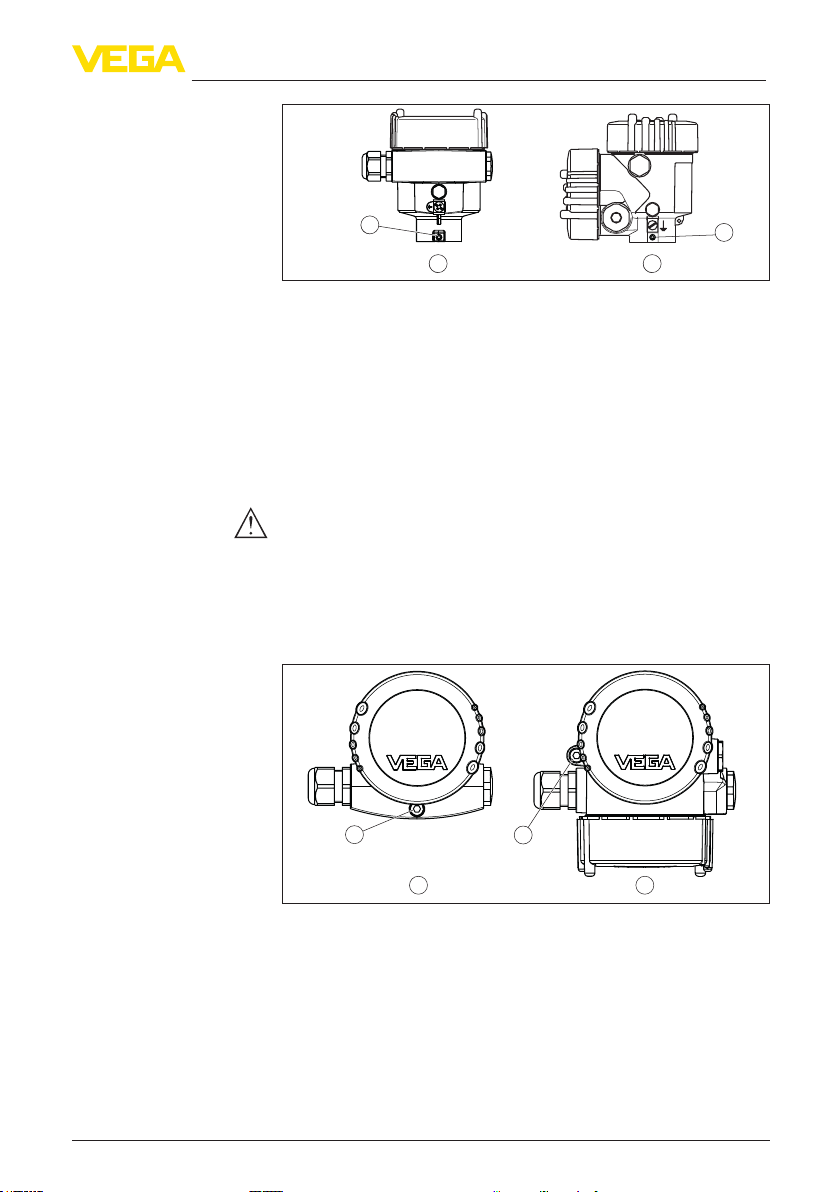

5.2 Housing features ............................................................................................................ 15

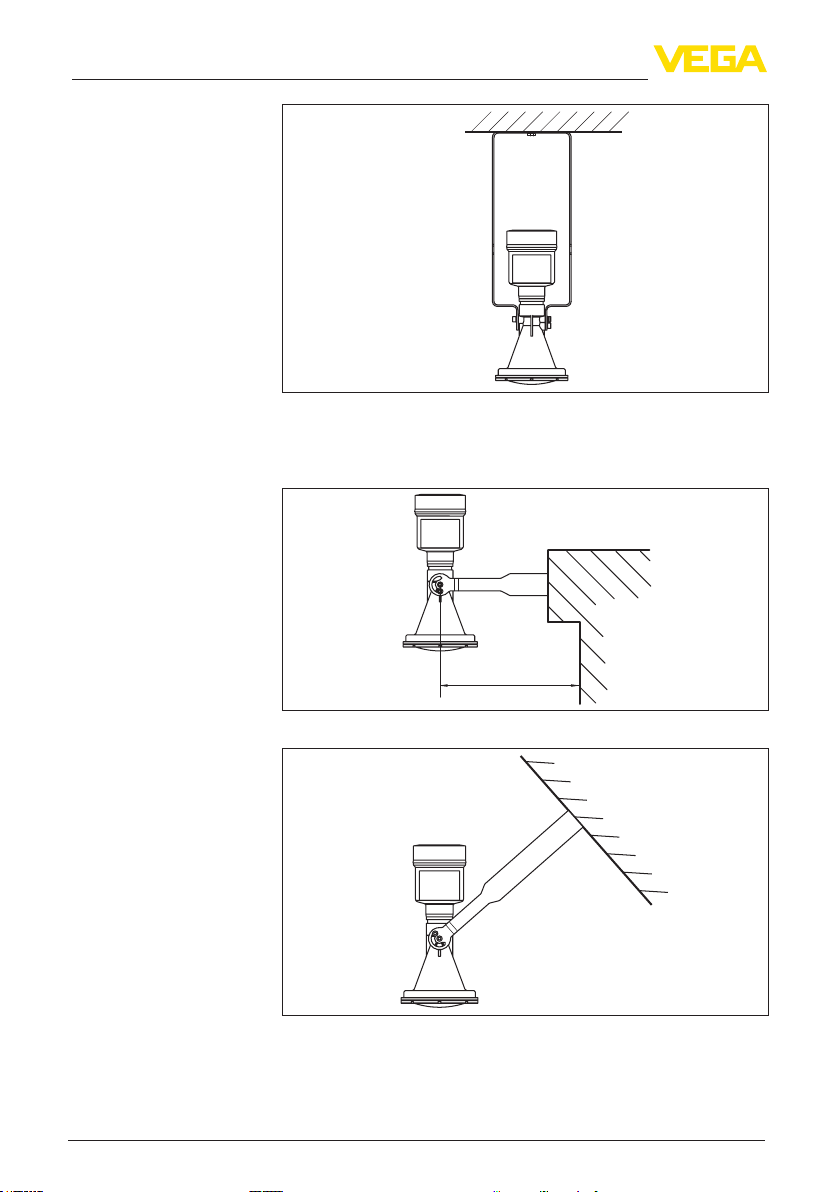

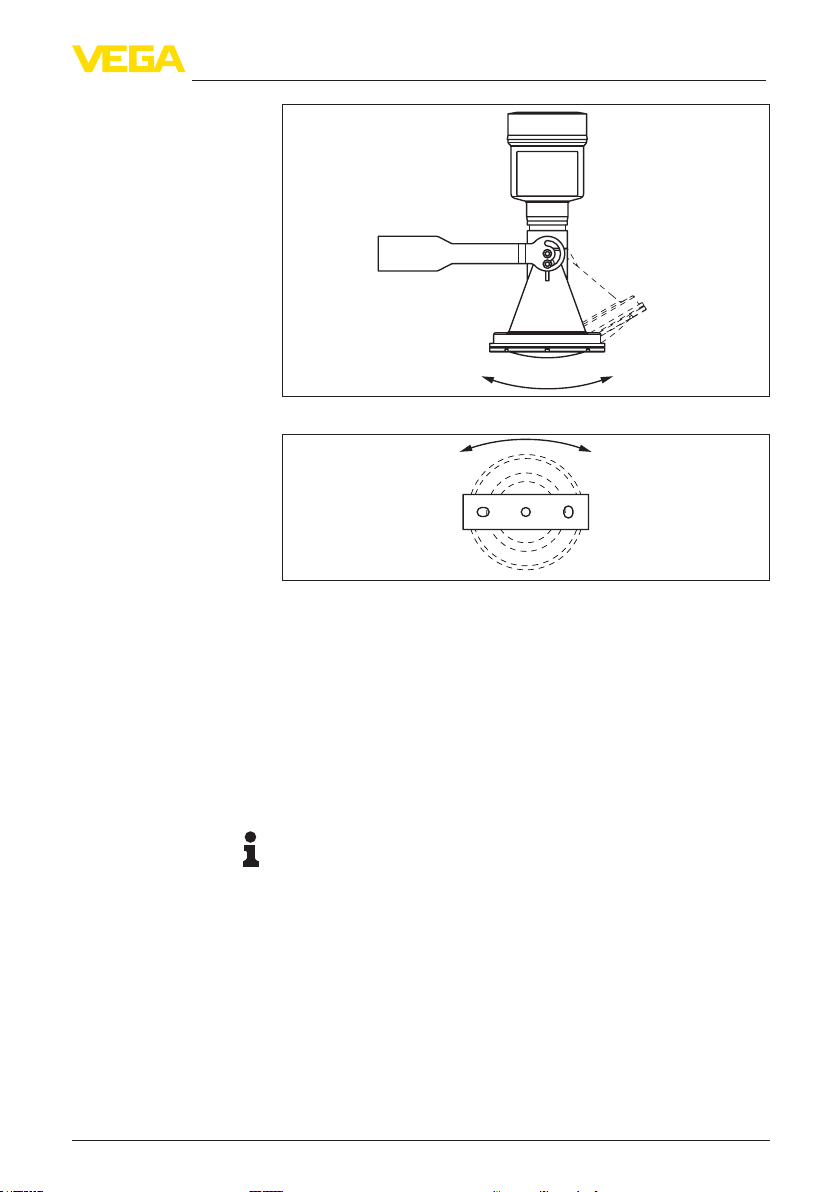

5.3 Mounting preparations, mounting strap.......................................................................... 18
5.4 Mounting versions, plastic horn antenna ........................................................................ 19
5.5 Mounting instructions ..................................................................................................... 21
5.6 Measuring rigs - bypass ................................................................................................. 40
5.7 Measurement setup - Flow............................................................................................. 42
6 Connecting to power supply................................................................................................. 45
6.1 Preparing the connection ............................................................................................... 45
6.2 Connecting..................................................................................................................... 46
6.3 Wiring plan, single chamber housing.............................................................................. 47
6.4 Wiring plan, double chamber housing ............................................................................ 48
6.5 Wiring plan - version IP66/IP68, 1 bar ............................................................................ 49
6.6 Switch-on phase............................................................................................................. 49
7 Access protection, IT security.............................................................................................. 50
7.1 Bluetooth radio interface ................................................................................................ 50
7.2 Protection of the parameterization.................................................................................. 50
7.3 Storing the codes in myVEGA........................................................................................ 51
7.4 IT Security (IEC 62443-4-2)............................................................................................ 51
8 Functional safety (SIL) .......................................................................................................... 52
8.1 Objective........................................................................................................................ 52
8.2 SILqualication.............................................................................................................. 52
8.3 Application area ............................................................................................................. 53
8.4 Safety concept of the parameterization .......................................................................... 53
8.5 First setup ...................................................................................................................... 54
8.6 Function test................................................................................................................... 55

3
Contents
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
8.7 Parameteradaptationsaftertherstsetup..................................................................... 57
9 Set up with the display and adjustment module ................................................................ 58
9.1 Insert display and adjustment module............................................................................ 58
9.2 Adjustment system......................................................................................................... 59
9.3 Measured value indication - Selection of national language........................................... 60
9.4 Parameterization ............................................................................................................ 61
9.5 Save parameter adjustment data.................................................................................... 82
10 Set up with Smartphone/tablet............................................................................................. 83
10.1 Preparations................................................................................................................... 83
10.2 Connecting..................................................................................................................... 83
10.3 Parameterization ............................................................................................................ 84
11 Set up with PC/notebook ...................................................................................................... 86
11.1 Preparations (Bluetooth) ................................................................................................ 86
11.2 Connecting (Bluetooth) .................................................................................................. 86
11.3 Connect the PC (VEGACONNECT) ............................................................................... 88
11.4 Parameterization ............................................................................................................ 88
11.5 Save parameter adjustment data.................................................................................... 90
12 Menu overview ....................................................................................................................... 91
12.1 Display and adjustment module ..................................................................................... 91
12.2 VEGA Tools app and PACTware/DTM............................................................................. 94
12.3 Special parameters ........................................................................................................ 99
13 Set up with other systems .................................................................................................. 102
13.1 DD adjustment programs ............................................................................................. 102
13.2 Field Communicator 375, 475 ...................................................................................... 102
14 Diagnosis, asset management and service ...................................................................... 103
14.1 Maintenance ................................................................................................................ 103
14.2 Measured value and event memory ............................................................................. 103
14.3 Asset Management function......................................................................................... 104
14.4 Echo curve ................................................................................................................... 108
14.5 Rectify faults................................................................................................................. 114
14.6 Exchanging the electronics module.............................................................................. 118
14.7 Software update ........................................................................................................... 119
14.8 How to proceed if a repair is necessary........................................................................ 119
15 Dismount............................................................................................................................... 120
15.1 Dismounting steps........................................................................................................ 120
15.2 Disposal ....................................................................................................................... 120
16 Certicates,approvalsandcertications ......................................................................... 121
16.1 Radio licenses.............................................................................................................. 121
16.2 Approvals for Ex areas ................................................................................................. 121
16.3 Approvalsasoverllprotection..................................................................................... 121
16.4 Foodandpharmaceuticalcerticates........................................................................... 121
16.5 Conformity.................................................................................................................... 121
16.6 NAMUR recommendations .......................................................................................... 121
16.7 IT Security.................................................................................................................... 122
16.8 Safety Integrity Level (SIL)............................................................................................ 122
16.9 Materialandtestcercates......................................................................................... 122
16.10 Environment management system ............................................................................... 122

4
Contents
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
17 Supplement .......................................................................................................................... 123
17.1 Technical data .............................................................................................................. 123
17.2 Radio astronomy stations............................................................................................. 142
17.3 Dimensions .................................................................................................................. 142
17.4 Industrial property rights............................................................................................... 160
17.5 Licensing information for open source software ........................................................... 160
17.6 Trademark .................................................................................................................... 160
Safety instructions for Ex areas:
TakenoteoftheExspecicsafetyinstructionsforExapplications.
These instructions are attached as documents to each instrument
with Ex approval and are part of the operating instructions.
Editing status: 2022-10-26

5
1 About this document
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
1 About this document
1.1 Function
This instruction provides all the information you need for mounting,
connection and setup as well as important instructions for mainte-
nance,faultrectication,theexchangeofpartsandthesafetyofthe
user. Please read this information before putting the instrument into
operation and keep this manual accessible in the immediate vicinity
of the device.
1.2 Target group
This operating instructions manual is directed to trained personnel.
Thecontentsofthismanualmustbemadeavailabletothequalied
personnel and implemented.
1.3 Symbols used
Document ID
This symbol on the front page of this instruction refers to the Docu-
ment ID. By entering the Document ID on www.vega.com you will
reach the document download.
Information, note, tip: This symbol indicates helpful additional infor-
mation and tips for successful work.
Note: This symbol indicates notes to prevent failures, malfunctions,
damage to devices or plants.
Caution: Non-observance of the information marked with this symbol
may result in personal injury.
Warning: Non-observance of the information marked with this symbol
may result in serious or fatal personal injury.
Danger: Non-observance of the information marked with this symbol
results in serious or fatal personal injury.
Ex applications
This symbol indicates special instructions for Ex applications.
• List
The dot set in front indicates a list with no implied sequence.
1 Sequence of actions
Numbers set in front indicate successive steps in a procedure.
Disposal
This symbol indicates special instructions for disposal.

6
2 For your safety
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
2 For your safety
2.1 Authorised personnel
All operations described in this documentation must be carried out
onlybytrained,qualiedpersonnelauthorisedbytheplantoperator.
During work on and with the device, the required personal protective
equipment must always be worn.
2.2 Appropriate use
VEGAPULS 6X is a sensor for continuous level measurement.
Youcannddetailedinformationabouttheareaofapplicationin
chapter " Product description".
Operational reliability is ensured only if the instrument is properly
usedaccordingtothespecicationsintheoperatinginstructions
manual as well as possible supplementary instructions.
2.3 Warning about incorrect use
Inappropriate or incorrect use of this product can give rise to applica-
tion-specichazards,e.g.vesseloverllthroughincorrectmounting
or adjustment. Damage to property and persons or environmental
contamination can result. Also, the protective characteristics of the
instrument can be impaired.
2.4 General safety instructions
This is a state-of-the-art instrument complying with all prevailing
regulations and directives. The instrument must only be operated in a
technicallyawlessandreliablecondition.Theoperatorisresponsi-
ble for the trouble-free operation of the instrument. When measuring
aggressive or corrosive media that can cause a dangerous situation
if the instrument malfunctions, the operator has to implement suitable
measures to make sure the instrument is functioning properly.
The safety instructions in this operating instructions manual, the na-
tional installation standards as well as the valid safety regulations and
accident prevention rules must be observed by the user.
For safety and warranty reasons, any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer. Arbi-
traryconversionsormodicationsareexplicitlyforbidden.Forsafety
reasons,onlytheaccessoryspeciedbythemanufacturermustbe
used.
To avoid any danger, the safety approval markings and safety tips on
the device must also be observed.
The low transmitting power of the radar sensor is far below the inter-
nationally approved limits. No health impairments are to be expected
with intended use.The band range of the measuring frequency can
be found in chapter " Technical data".

7
2 For your safety
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
2.5 Mode of operation - Radar signal
Countryspecicsettingsfortheradarsignalsaredeterminedviathe
mode.The operating mode must be set in the operating menu via the
respective operating tool at the beginning of the setup.
Caution:
Operating the device without selecting the relevant mode constitutes
a violation of the regulations of the radio approvals of the respective
country.
2.6 Installation and operation in the USA and
Canada
This information is only valid for USA and Canada. Hence the follow-
ing text is only available in the English language.
Installations in the US shall comply with the relevant requirements of
the National Electrical Code (ANSI/NFPA 70).
Installations in Canada shall comply with the relevant requirements of
the Canadian Electrical Code
A Class 2 power supply unit has to be used for the installation in the
USA and Canada.

8
3 Product description
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
3 Product description
3.1 Conguration
The scope of delivery encompasses:
• Radar sensor, possibly with accessories
– Discsprings(angeversionwithencapsulatedantennasys-
tem) 1)
– Hexagon socket wrench (for instruments with swivel holder)
– Optional accessory
• Information sheet " PINs and Codes" (with SIL, IT security,
Bluetooth versions) with:
– Bluetooth access code
– Device code
• Information sheet " Access protection" (with SIL, IT security,
Bluetooth versions) with:
– Bluetooth access code
– Emergency Bluetooth unlock code
– Device code
– Emergency device code
• Documentation
– Quick setup guide VEGAPULS 6X
– Instructions for optional instrument components
– Ex-specic"Safety instructions" (with Ex versions)
– Safety Manual (with SIL version)
– Radio licenses
– Ifnecessary,furthercerticates
Information:
Optional instrument features are also described in this operating
instructions manual.The respective scope of delivery results from the
orderspecication.
This operating instructions manual applies to the following instrument
versions:
• Hardware version from 1.1.2
• Hardware version (SIL) from 1.2.1.1
• Software version from 1.1.0
• Software version (SIL) from 1.1.1.1
Scope of delivery
Scope of this operating
instructions
1) Use see chapter "Mounting instructions, sealing to the process"

9
3 Product description
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
4
6
5
1
2
3
Fig. 1: Components of VEGAPULS 6X
1 Radar antenna
2 Processtting
3 Process seal
4 Electronics housing
5 Housing cover with optional display and adjustment module
6 Ventilation
Thetypelabelcontainsthemostimportantdataforidenticationand
use of the instrument:
5
4
3
2
1
Fig. 2: Layout of the type label (example)
1 Device type, order code, radar frequency
2 Field for approvals, product code
3 Technical data
4 QR-code for VEGA Tools app
5 Reminder to observe the instrument documentation
6 Field for conformity logos
The type label contains also the serial number of the instrument. With
ityoucanndthefollowinginstrumentdataonourhomepage:
• Product information
• Deviceconguration
• Related documentation
• Further documents
Constituent parts
Type label
Serial number - Instru-
ment search

10
3 Product description
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
Move to " www.vega.com"andenterinthesearcheldtheserial
number of your instrument.
Alternatively, you can access the data via your smartphone:
• Download the VEGA Tools app from the " Apple App Store" or the
" Google Play Store"
• Scan the QR-code on the type label of the device or
• Enter the serial number manually in the app
3.2 Principle of operation
The VEGAPULS 6X is a radar sensor for continuous level measure-
mentofliquidsaswellasbulksolidsunderdierentprocesscondi-
tions.
Theinstrumentisavailablewithdierentantennasystems:
1 2 3
4 5 6
Fig. 3: Antenna systems VEGAPULS 6X
1 Plastic horn antenna
2 Thread with integrated antenna system
3 Flange with encapsulated antenna system
4 Hygienictting
5 Horn antenna
6 Flange with lens antenna
The instrument emits a continuous, frequency-modulated radar signal
throughitsantenna.Theemittedsignalisreectedbythemedium
andreceivedbytheantennaasanechowithmodiedfrequency.The
Application area
Antenna systems
Functional principle

11
3 Product description
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
frequency change is proportional to the distance and is converted into
the level.
3.3 Adjustment
On-site adjustment of the device is carried out via the integrated
display and adjustment unit.
Note:
The housing with display and adjustment unit can be rotated 330° for
optimum readability and operability without tools.
Devices with integrated Bluetooth module can be adjusted wirelessly
via standard adjustment tools:
• Smartphone/tablet (iOS or Android operating system)
• PC/notebook (Windows operating system)
13
2

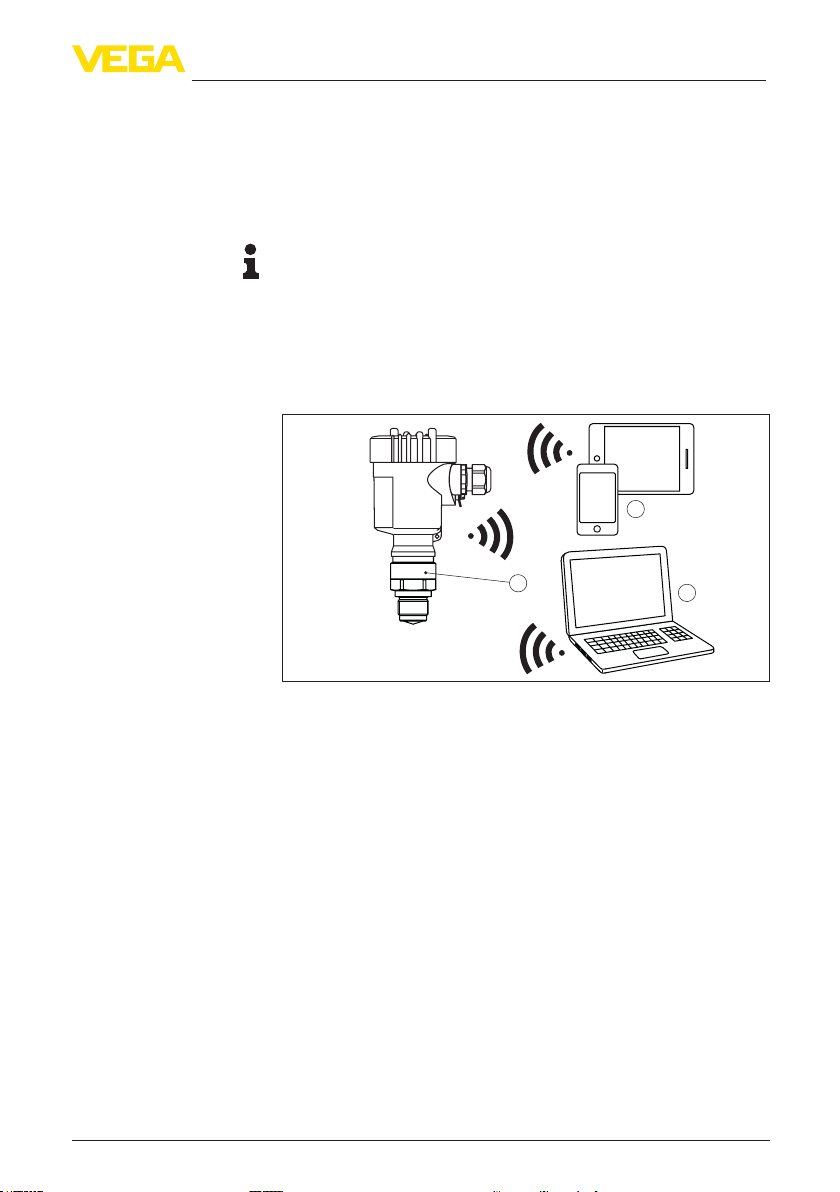

Fig. 4: Wireless connection to standard operating devices with integrated
Bluetooth LE
1 Sensor
2 Smartphone/Tablet
3 PC/Notebook
Devices with signal output 4 … 20 mA/HART can also be operated
via a signal cable.This is done via an interface adapter and a PC/
notebook using DTM/PACTware.
Local adjustment
Wireless adjustment
Adjustment via the signal
cable

12
3 Product description
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
1
2 4
3
5
OPEN
TWIST
USB
LOCK

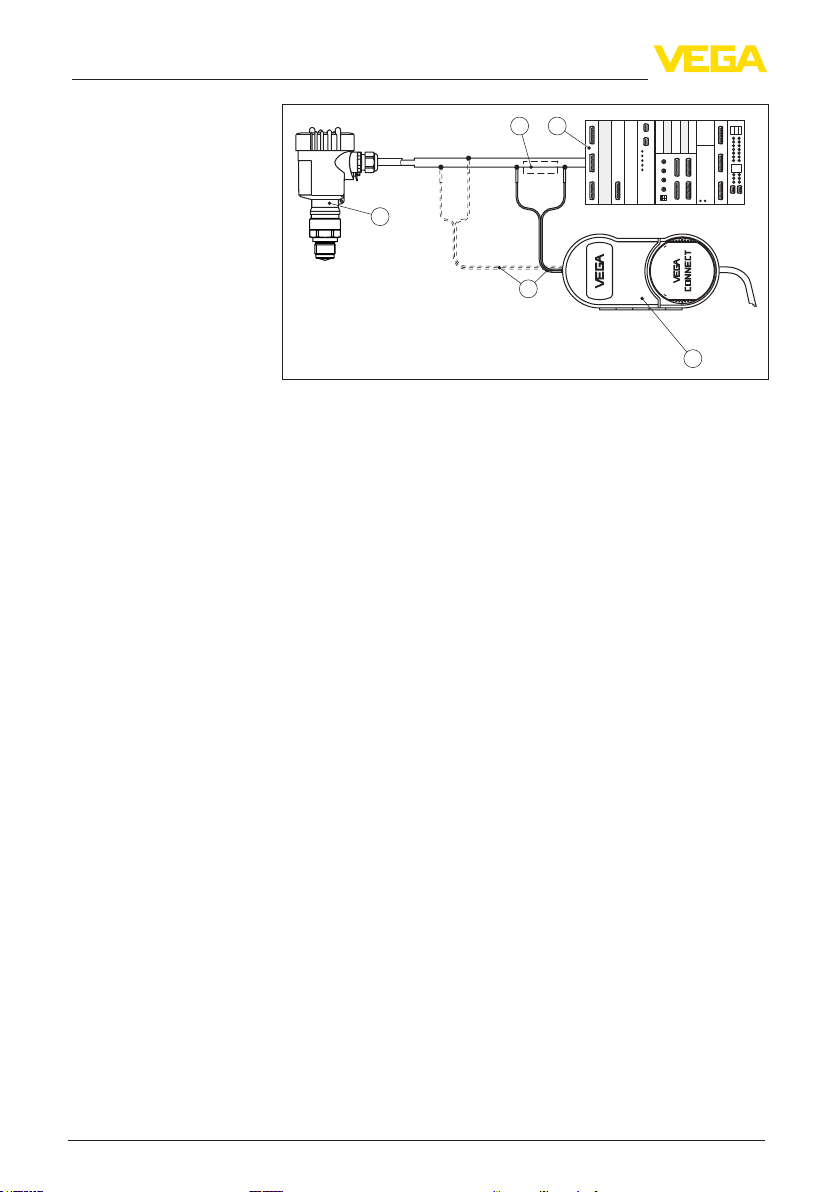

Fig. 5: Connecting the PC to the signal cable
1 Sensor
2 HARTresistance250Ω(optionaldependingonevaluation)
3 Connection cable with 2 mm pins and terminals
4 Voltage supply
5 Interface adapter VEGACONNECT
3.4 Packaging, transport and storage
Your instrument was protected by packaging during transport. Its
capacity to handle normal loads during transport is assured by a test
based on ISO 4180.
The packaging consists of environment-friendly, recyclable card-
board. For special versions, PE foam or PE foil is also used. Dispose
of the packaging material via specialised recycling companies.
Transport must be carried out in due consideration of the notes on the
transport packaging. Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt. Ascertained transit damage or con-
cealed defects must be appropriately dealt with.
Up to the time of installation, the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated, the packages must be stored only under
the following conditions:
• Not in the open
• Dry and dust free
• Not exposed to corrosive media
• Protected against solar radiation
• Avoiding mechanical shock and vibration
• Storage and transport temperature see chapter " Supplement -
Technical data - Ambient conditions"
• Relative moisture 20 … 85 %
Packaging
Transport
Transport inspection
Storage
Storage and transport
temperature

13
3 Product description
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
With instrument weights of more than 18 kg (39.68 lbs) suitable and
approved equipment must be used for lifting and carrying.
3.5 Accessories
The instructions for the listed accessories can be found in the down-
load area on our homepage.
The display and adjustment module is used for measured value indi-
cation, adjustment and diagnosis.
The integrated Bluetooth module (optional) enables wireless adjust-
ment via standard adjustment devices.
The interface adapter VEGACONNECT enables the connection of
communication-capable instruments to the USB interface of a PC.
The VEGADIS 81 is an external display and adjustment unit for VEGA
plics®sensors.
VEGADIS 82 is suitable for measured value indication and adjustment
of sensors with HART protocol. It is looped into the 4 … 20 mA/HART
signal cable.
The PLICSMOBILE T81 is an external GSM/GPRS/UMTS radio unit
for transmission of measured values and for remote parameter adjust-
ment of HART sensors.
Welded sockets are used to connect the devices to the process.
Threaded and hygienic adapters enable simple adaptation of devices
withstandardthreadedttingstoprocess-sidehygieneconnections.
Screwedangesareavailableindierentversionsaccordingtothe
following standards: DIN 2501, EN 1092-1, BS 10, ASME B 16.5,
JIS B 2210-1984, GOST 12821-80.
Lifting and carrying
Display and adjustment
module
VEGACONNECT
VEGADIS 81
VEGADIS 82
PLICSMOBILE T81
Welded socket, threaded
and hygienic adapter
Flanges

14
4 Setup – the most important steps
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
4 Setup – the most important steps
What? How?
Identify sensor Scan QR code on type label, check
sensor data
Liquids Bulk solids
> 200 mm
(7.87 ")
200 mm
(7.87
")
Connection technology Wiring plan
5678
4...20mA Display
12
+ ( ) (-)
Display and adjustment module VEGA Tools app 2)
Liquids Bulk solids
Enter medium type, application, vessel height, adjustment and mode
100%
0%
0,5 m
(19.68
")
5 m
(196.9
")
100%
0%
1 m
(39.37
")
35 m
(1378
")
Indicators Output
Prepare
Mount and connect sen-
sor
Select adjustment
Parameterize sensor
Check measured value
2) Download via Apple App Store, Google Play Store, Baidu Store

15
5 Mounting
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
5 Mounting
5.1 General instructions
Protect your instrument against moisture ingress through the following
measures:
• Use a suitable connection cable (see chapter " Connecting to
power supply")
• Tighten the cable gland or plug connector
• Lead the connection cable downward in front of the cable entry or
plug connector
This applies mainly to outdoor installations, in areas where high
humidity is expected (e.g. through cleaning processes) and on cooled
or heated vessels.
Note:
Make sure that during installation or maintenance no moisture or dirt
can get inside the instrument.
To maintain the housing protection, make sure that the housing lid is
closed during operation and locked, if necessary.
Note:
For safety reasons, the instrument must only be operated within the
permissibleprocessconditions.Youcannddetailedinformationon
the process conditions in chapter " Technical data" of the operating
instructions or on the type label.
Hence make sure before mounting that all parts of the instrument ex-
posed to the process are suitable for the existing process conditions.
These are mainly:
• Active measuring component
• Processtting
• Process seal
Process conditions in particular are:
• Process pressure
• Process temperature
• Chemical properties of the medium
• Abrasionandmechanicalinuences
As a standard feature, the VEGAPULS 6X is separate from the pro-
cess through its plastic antenna encapsulation.
Optionally, the instrument is available with a Second Line of Defense
(SLOD), a second process separation. It is located as gas-tight
leadthrough between the process component and the electronics.
This means additional safety against penetration of the medium fron
the process into the instrument.
5.2 Housing features
Thelterelementinthehousingisusedforventilationofthehousing.
Protection against mois-
ture
Process conditions
Second Line of Defense
Filter element

16
5 Mounting
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
Foreectiveventilation,thelterelementmustalwaysbefreeof
deposits.Therefore,mountthedevicesothatthelterelementis
protected against deposits.
Note:
Do not use a high-pressure cleaner to clean housings in standard
typesofprotection.Thelterelementcouldbedamagedandmois-
ture could penetrate the housing.
For applications with high-pressure cleaners, the device is available
with the appropriate IP69 housing protection.
2 3 4
1
1
11
1
6
5
Fig.6:Positionofthelterelementdependingonhousing
1 Filter element
2 Plastic single chamber
3 Aluminium single chamber, stainless steel single chamber (precision cast-
ing)
4 Stainless steel single chamber (electropolished)
5 Plastic double chamber
6 Aluminium, stainless steel double chamber housing (precision casting)
Information:
For devices in protection class IP66/IP68 (1 bar), ventilation is pro-
videdbyacapillaryinthexedcable.Inthesedevices,ablindplugis
installedinthehousinginsteadofthelterelement.
The housing of VEGAPULS 6X can be rotated completely by 360°.
This enables optimal reading of the display and easy cable entry. 3)
For housings made of plastic or electropolished stainless steel, this is
done without tools.
For housings made of aluminium or stainless steel (precision cast-
ing), a locking screw must be loosened for turning, see the following
illustration:
Housing orientation
3) No limitation by a rotation stop

17
5 Mounting
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
1
2 3
1
Fig. 7: Position of the locking screw depending on housing
1 Locking screw
2 Aluminium, stainless steel single chamber housing (precision casting)
3 Aluminium, stainless steel double chamber housing (precision casting)
Proceed as follows:
1. Loosen locking screw (hexagon size 2.5)
2. Turn housing into requested position
3. Re-tighten the locking screw (torque see chapter " Technical
data").
Note:
By rotating the housing, polarisation changes. For this reason,
please also observe the notes on polarisation in chapter " Mounting
instructions".
With the aluminium and stainless steel housing (precision casting),
the housing cover can be secured with a screw. This protects the
device against unauthorised opening of the cover.
32
11
Fig. 8: Position of the safety screw depending on housing
1 Safety screw
2 Aluminium, stainless steel single chamber housing (precision casting)
3 Aluminium, stainless steel double chamber housing (precision casting)
Proceed as follows to secure the cover:
1. Screw the housing cover on tightly by hand
2. Unscrew the locking screw from the cover up to the stop using a
size 4 hexagonal spanner
3. Check if the cover can no longer be turned
Cover catch

18
5 Mounting
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
The housing cover is unlocked in the opposite way.
Note:
The locking screw has two holes drilled through the head. Thus it can
also be sealed.
5.3 Mounting preparations, mounting strap
The mounting bracket is supplied loose as an optional accessory for
the plastic horn antenna. It must be screwed onto the sensor with the
three M5 x 10 hexagon socket screws and spring washers before
setup:
• Required tool: Hexagon spanner size 4
• Max. torque: see chapter " Technical data"
Therearetwodierentvariantsofscrewingthestraptothesensor,
see following illustration:
1 2

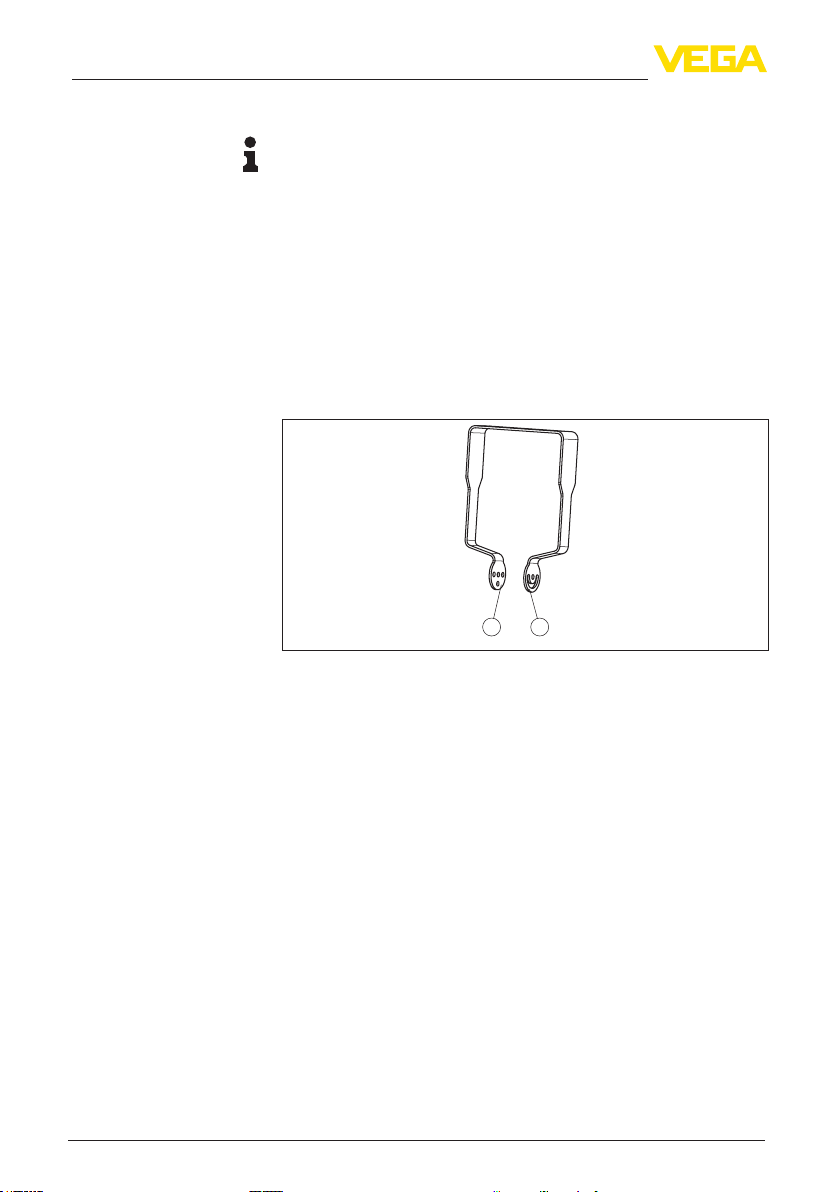

Fig. 9: Mounting strap for screwing to the sensor
1 Variant 1: Inclination adjustable in steps
2 Variant 1: Inclination steplessly adjustable
Depending on the selected variant, the sensor can be rotated in the
strap:
• Single chamber housing
– Inclination in three steps 0°, 90° and 180°
– Inclination 180° steplessly
• Double chamber housing
– Inclination in two steps 0° and 90°
– Inclination 90° steplessly

19
5 Mounting
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
Fig. 10: Adjustment of the inclination when mounted horizontally on the wall
Fig. 11: Rotate when mounted vertically on the ceiling
5.4 Mounting versions, plastic horn antenna
The optional mounting strap allows simple mounting of the instrument
on a wall, ceiling or boom. Especially in the case of open vessels, this
isasimpleandeectivewaytoalignthesensortothesurfaceofthe
bulk solid material.
The following versions are available:
• Length 300 mm
• Length 170 mm
Note:
For safe operation of the device, stable, permanent mounting on a
load-bearing surface (concrete, wood, steel, etc.) is required.Take
this into account when choosing the installation location and use suit-
able fastening materials (screws, dowels, pipe clamps, etc.).
The instrument is normally mounted vertically with a bracket on the
ceiling.
This allows swivelling the sensor up to 180° for optimal orientation
and rotating for optimal connection.
Mounting strap
Mounting strap - Ceiling
mounting

20
5 Mounting
VEGAPULS 6X • Two-wire 4 … 20 mA/HART
66190-EN-221107
Fig. 12: Ceiling mounting via the mounting strap with length 300 mm
As an alternative the strap mounting is carried out horizontally or
obliquely.
> 200 mm
(7.87")
Fig. 13: Wall mounting horizontally via the mounting strap with length 170 mm
Fig. 14: Wall mounting with inclined wall via the mounting strap with length
300 mm
Two versions are available for mounting the instrument on a nozzle:
Mounting strap - Wall
mounting
Flange
